Steelcase Opus Bedienungsanleitung

Opus™ Sloped Fascia

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

Grand Rapids, MI 49501

U.S.A.

Printed in U.S.A.

Page 1 of 8

939500295 Rev E

3/16" Drill

Page 2 of 8

939500295 Rev E

Installing the Units

1. Lay units onto saw

horses. Peal paper backing

from pad (1a). Place pad

onto back of base assembly

as shown (1b). Cut excess

pad when finished.

PAPER

BACKING

PAD

Page 3 of 8

939500295 Rev E

2. Place the sloped end panel on a clean, abrasive

resistant surface. Place the base assembly on it's side

as shown.

3. Align the aluminum extrusion with the sloped end panel.

SLOPED END PANEL

ALUMINUM

EXTRUSION

Page 4 of 8

939500295 Rev E

4. Secure side panel to base

assembly using six (6) 1-1/4"

wood screws.

TIP: Insert screw through

extrusion to hold into place.

SIX (6) 1-1/4"

WOOD SCREWS

Page 5 of 8

939500295 Rev E

5. Stand base units

upright and gang base

units together (see

assembly instruction

939500801).

6. Place units against

wall and level.

7. Install upper

storage if applicable

(see assembly

instruction 939500809).

8. Add lower storage

(see assembly

instruction 939500811).

9. Install the aluminum

extrusion (9a) and

attach using screws at

top canopy joints and

ends of each unit (9b).

ALUMINUM

EXTRUSION

#8 x 5/8" PAN

HEAD SCREW

NOTE: When drilling the rear

hole for a bolt, make sure the

hole is drilled 8" in from the

back of the unit.

Drill 3/16" holes in the aluminum

extrusion as required to ensure at least one

fastener is located at each canopy joint and

at each end of run.

NOTE:

Page 6 of 8

939500295 Rev E

10. Install three (3)

support blocks as

shown (10a) and

attach each

support block

using two (2)

screws (10b).

11. Install fascia

into the aluminum

extrusion at an

angle (11a) and

then place

downward (11b).

11a

10a

11b

10b

SIDE VIEW

TIP: Remove dust

cover supports by

simply breaking off.

SUPPORT BLOCK

FLUSH

#8 x 1-1/4"

WOOD SCREWS

Page 7 of 8

939500295 Rev E

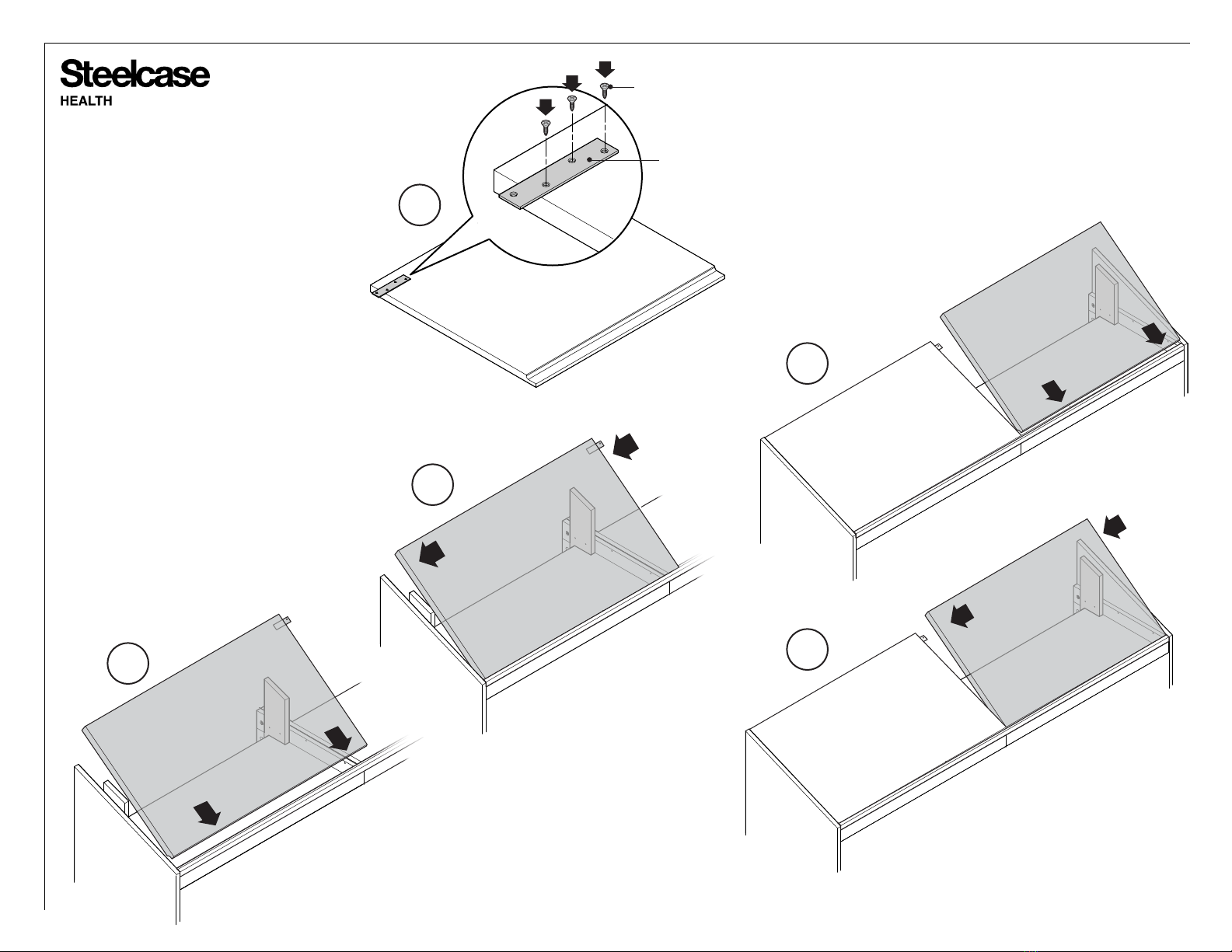

Situation where a

Seam is Present

1. Flip fascia over and locate

pilot holes. Align strap with pilot

holes and scure using three (3)

#8-15 x 5/8" pan head screws.

2. Install fascia into the

aluminum extrusion at an

angle (2a) and then place

downward (2b).

3. Install second fascia into the

aluminum extrusion at an angle

(3a) and then place downward

(3b) and allow fascia to rest upon

strap.

STRAP

#8-15 x 5/8"

PAN HEAD SCREW

Page 8 of 8

939500295 Rev E

12.Remove

protective tape

backing from the

adhesive pad on

the back of the wall

trim (12a) and

install as shown

(12b). Trim if needed.

12a

12b

PROTECTIVE

TAPE BACKING

ADHESIVE PAD
