OPERATION,
MAINTENANCE AND
WARRANTY MANUAL
P/N Z001022/0 9th Edition January 2009
4 CYLINDERS
+ 6 CYLINDERS
4 CYLINDERS
+ 6 CYLINDERS
WELCOME ABOARD
Congratulations on your decision of choosing a STEYR MOTORS
marine engine for your boat, and we hope you will enjoy it.
STEYR MOTORS GmbH has developed a high-speed diesel engine
with two stage high-pressure fuel injection specifically for the marine
environment. STEYR MOTORS marine engines are designed to be
adapted to various propulsion systems.
To come up to your expectations, please study thoroughly this manual
for your new STEYR MOTORS marine engine to get sufficient
information on its operation and handling and to permit an optimal
use of the various built-in functions.
With kind regards,
STEYR MOTORS GmbH
STEYR MOTORS GmbH
After Sales Service
Im Stadtgut B1
4407 Steyr, Austria
www.steyr-motors.com 9th Edition, January 2009 P/N Z001022/0
YOUR STEYR MOTORS
MARINE DEALER
3
4

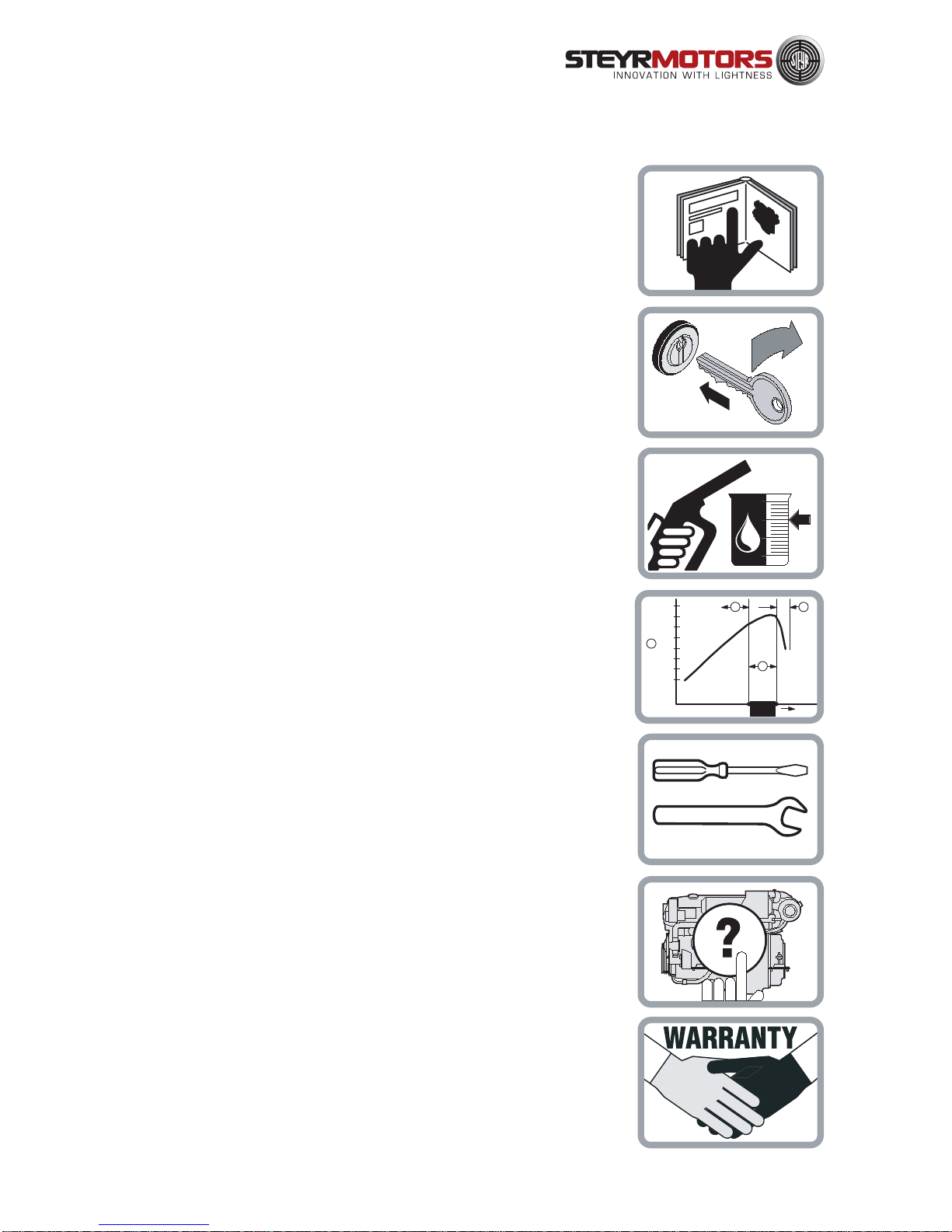

How to use this manual
Table of Contents
PAGE 13 - 38START-UP AND FUNCTIONS
Thissectioncontainsbriefinstruction,functiondescriptionandnormaloperation,as
well as correct start-up and handling of STEYR MOTORS marine engines.
PAGE 5 - 12
GENERAL PART
This section contains user instructions and general notes on safety for STEYR
MOTORS marine engines.
PAGE 39 - 42
FUEL AND LUBRICANTS
ThissectiondefinestherequirementsastofuelandlubricantsforSTEYRMOTORS
marine engines.
PAGE 43 - 60
TECHNICAL DATA
This section contains technical data and product description of STEYR MOTORS
marine engines.
PAGE 61 - 88
MAINTENANCE, TROUBLE SHOOTING
This section contains instructions for required maintenance and notes on the
fault finding on your STEYR MOTORS marine engine.
PAGE 89 - 104
DEALER´S RESPONSIBILITIES
Thissectioncontainsinstructionsforinstallationacceptancetests,propellerselection,
removal from service, start-up after storage, adequate disposal and dealer´s test
list.
PAGE 105 - 114
WARRANTY, DISTRIBUTORS
Thissectioncontainswarrantyconditions(servicesandobligations)forownersand
manufacturers of STEYR MOTORS marine engines.
full load
speed range
100%
90%
80%
70%
60%
50%
40%
30%
B
C D
RPM
A
OUTPUT
POWER
5
GENERAL PART
General.......................................................................................................6
Product References, Illustrations and Specifications..................................7
Insurance....................................................................................................7
Stolen Unit..................................................................................................7
Owner Identification Card ...........................................................................7
Installation and pre-delivery inspection log.................................................8
Dealer Service - Maintenance ....................................................................8
Illustration Symbols ....................................................................................8
Repair Service............................................................................................9
Replacement Parts.....................................................................................9
Before Casting Off......................................................................................9
Engine Submersion ..................................................................................10
Bottom Painting ........................................................................................10
Boat Bottom..............................................................................................10
Boating Responsibilities ...........................................................................11
Safety .......................................................................................................11
Symbols....................................................................................................12
6
General
This MANUAL is published by STEYR MOTORS GmbH with the main intention -
to provide information in form of technical data and know-how based on our experience in the marine diesel
engine business, which will enable you, after thorough study to operate and check the engines on your boat,
ensuring their operating safety, reliability and long service life.
CE conformity:
Under regular maintenance, as described in the chapter "Maintenance and Trouble Shooting", the exhaust gas
emission levels adhere to the limits stipulated, for pleasure boat operation, throughout the life time of the engine.
All warranty claims to be addressed to your local STEYR MOTORS Marine Dealer.
(We have to rely on your assistance however) For continuous improvement with regard to form and contents of
the information required.
Your comments on the following questions would be much appreciated -
- Which descriptions or terms are not understandable?
- Which enlargements or complements do you suggest?
- Where did content-related mistakes slip in?
Please address your comments and ideas to your STEYR MOTORS - Marine Dealer.
< 3700 rpm.
< 2600 rpm.
< 4000 rpm.
Since this manual covers the whole family of STEYR MOTORS marine engines, differing sections are marked as
follows:
1.)
whole page applies to all engines
2.)
whole page applies to specified engine types only
3.)
whole page applies in principle for
all engine types,
but different data, e.g. technical
data, is marked.
MO144K33
MO144K33
MO166K28
MO236K42
GENERAL
7
Product References, Illustrations and Specifications
When reference is made in this manual to a brand name, number, product or specific tool, an equivalent product may
be used in place of the product referred to unless specifically stated otherwise. Equivalent products which are used
must meet all current local regulations and standards to avoid hazards.
Some countries may apply additional internal regulation. Please follow their advices appropriately, example:
Austria: Bundesamt für Schiffahrt
Sweden: Navigation Office
Finland: Navigation Office
Norway: DNV = Det Norske Veritas
USA: USCG = United States Coast Guard
USA: ABYC = American Boat Yacht Council
USA: NMMA = National Marine Manufacturers Association
England: LR = Lloyds Register of Shipping
France: BV = Bureau Veritas
Germany: GL = GERMANISCHER Lloyd
Italy: RINA = Registro Italiano Navale
All information, illustrations and specifications contained in this manual are based on the latest product information
available atthe timeof printing. STEYRMOTORS GmbH reservesthe right tomakechanges at anytime, without
notice, to specifications and models and also to discontinue models, as well as the right to change
specifications or parts at any time without incurring any obligation to equip same on models manufactured
prior to date of such change.
Continual accuracy of this manual cannot be guaranteed.
All illustrations used in this manual may not depict actual models or equipment and are intended as representative
views for reference only.
Insurance
Insurance on your STEYR MOTORS Marine Engine and boat should be obtained as soon as practical for protection
against loss by fire, theft, etc. Consult your local insurance agent.
Stolen Unit
The model and serial numbers on your engine are important for you. As to the location of these important numbers,
refer to Model and Serial Numbers in the section Technical Data.
Record each of these numbers in the spaces provided at the end of this manual and on a separate sheet. Store the
separate sheet in a safe place other than your boat.
In case of theft, report the model and serial numbers to your local authorities and your insurance agent.
Owner Identification Card
When you purchases your boat, your dealer was obliged to issue an owner identification card for your
STEYR MOTORS Marine Engine.
This owner identification card gives proof and is to be submitted in case of warranty claims.
8
Refer to the photograph or drawing
described in that paragraph.
Refer to specific items or features
described in the text and illustrated on
the photograph.
Refer to the general subject of the text.
Refer to an item or feature not clearly
visible on the photograph.
Installation and pre-delivery inspection log
Your STEYR MOTORS Marine dealer is also obliged to complete the installation and pre-delivery inspection log
(Chapter "DEALER´S RESPONSIBILITIES"). Required tests and measurements are to be carried out accordingly.
A copy of the installation and pre-delivery inspection log and engine registration card are to be forwarded to STEYR
MOTORS GmbH.
Dealer Service - Maintenance
NOTE: Pleasedonotforgettohaveconfirmedin yourmanualthattheinstallationandmaintenance
have been carried out in accordance with the guidelines.
This is also an opportunity to clarify with your STEYR MOTORS marine dealer possible questions arisen during the
first running hours on your boat, and to establish a service- and maintenance routine.
Services will be performed by STEYR MOTORS Marine Dealers at local rates.
Costs for service material to be paid by the owner.
Illustration Symbols
9
Repair Service
All repair works on your STEYR MOTORS marine engine should be carried out by a licensed STEYR MOTORS
MarineDealer withhisprofessionalknowledge,trainedstaffand special-purposetoolsto solvealloccuring problems.
Preferably, all work on your STEYR MOTORS marine engine should be carried out by the STEYR MOTORS Marine
Dealer that sold the equipment to you - he knows you and the equipment.
Ifproblemsoccurduringatrip,bringyourenginetothenextSTEYRMOTORSMarineDealer. InformationonDealers
and Distributors can be found at the end of this manual.
Replacement Parts
Your STEYR MOTORS Marine Engine was designed to operate in a marine environment use STEYR MOTORS
original replacement parts.
Before Casting Off
Check the weather report, wind and water conditions. Tell someone where you are going to and when you expect to
arrive or return.
Recommended Minimum
On-Board Tools
Screwdriver Set lubrication oil spray
Metric Socket Set 12-volt pilot lamp
Metric Allen Key Set flashlight
Metric Spanner Set insulating tape
long nose pliers sharp knife
Recommended Minimum
On-Board Spare Parts
propeller and small parts for propeller mounting fuses
fuel filter bulbs
impeller for raw water pump sealing compound
These lists represent a suggested MINIMUM, and are not intended to cover all boats or possible boating conditions.
10
Engine Submersion
Removeenginefromwaterasquicklyaspossibleandcontact your local STEYR MOTORS Marine dealer for service.
It is imperative that your dealer removes all water from the engine and immediately relubricates all internal parts.
Electrical devices must be replaced. Delay in completing these actions may allow extensive engine damage.
Frequently check engine compartment for excessive water accumulation; water depth in bilge should be kept well
below flywheel housing.
Bottom Painting
If your boat is in water where marine growth is a problem, the use of an antifouling paint will reduce the growth rate.
*Tin base antifouling paint (TBTA or TBTF) is recommended where its use is permitted.
*Copper base antifouling paint may be used, but will require more frequent inspection and replacement of
sacrificial anodes. DO NOT PAINT any part of the drive unit with copper base antifouling paint.
NOTE: Painting the drive unit with copper base paint will accelerate galvanic corrosion.
* Vinyl-butyl base antifouling paint is a recommended alternative.
*DO NOT USE any graphite base antifouling paint.
NOTE: Never paint anti-corrosion anodes, or their effectiveness will be lost.
See your STEYR MOTORS Marine contract partner for an antifouling paint that is suitable
for your area.
Boat Bottom
The condition of the boat bottom can affect your boat's performance. Marine growth, present in fresh water as well
as salt water, will reduce boat speed. A boat bottom with evidence of marine growth causes a reduction in top speed
of 20 percent or more. Periodically clean the bottom of your boat following the manufacturer's recommendations.
