MDVR 808

QUICK START GUIDE

MDVR808 Series

Whilst every effort has been made to ensure the

accuracy of the information provided, no liability can

be undertaken for any errors or omissions. All

dimensions stated in this document are approximate.

Stortech Electronics Ltd reserves the right to alter the

specifications and introduce changes without prior

notice. © Stortech Electronics 2018

Tel: +44 (0) 1279 419913

www.stortech.co.uk

MDVR808 Quick Guide 21052018

Introduction & Warnings

Before installing please read the following warnings carefully. Stortech CCTV

strongly recommends that all connections and installations are carried out by

qualified personnel.

PLEASE READ THIS BEFORE ATTEMPTING INSTALLATION AND USE

The recorder uses a DC power supply; input DC range is 8V-36V. Please pay attention

to VDD and GND when connecting the power. DO NOT make the DVR short-circuit.

Initial power must be over 30W (Specific power consumption will vary

depending on the external equipment).

Power supply must be over 60W.

From the vehicle supply to the MDVR all power cables must be able

to withstand 5 Amps or more.

Install the equipment in the dry and avoid damp, drips, water spray etc.

To extend the life of the equipment, please install the part of the vehicle

that has the lowest vibration. We recommend a horizontal installation

position.

The equipment should be installed inside the vehicle where there is

good ventilation. Do not install in a closet type environment.

Ensure that equipment is away from any heat source in the vehicle and is

not covered. Also location must be as far as possible away from an

electromagnetic environment, which may cause strong interference.

Ensure that passengers and drivers cannot interfere or damage any

components of the equipment.

The installation and all materials must bear the correct fuse rating.

It is recommended that the power cords are kept away from any heat source

and are sealed to prevent water and oil ingress and short circuiting.

Please do not open or attempt to install the equipment without

professional guidance.

Attention: The device will automatically format the hard disk/SD card to pre-allocate

the storage space before starting to record video.

MDVR808 Series

Whilst every effort has been made to ensure the

accuracy of the information provided, no liability can

be undertaken for any errors or omissions. All

dimensions stated in this document are approximate.

Stortech Electronics Ltd reserves the right to alter the

specifications and introduce changes without prior

notice. © Stortech Electronics 2018

Tel: +44 (0) 1279 419913

www.stortech.co.uk

MDVR808 Quick Guide 21052018

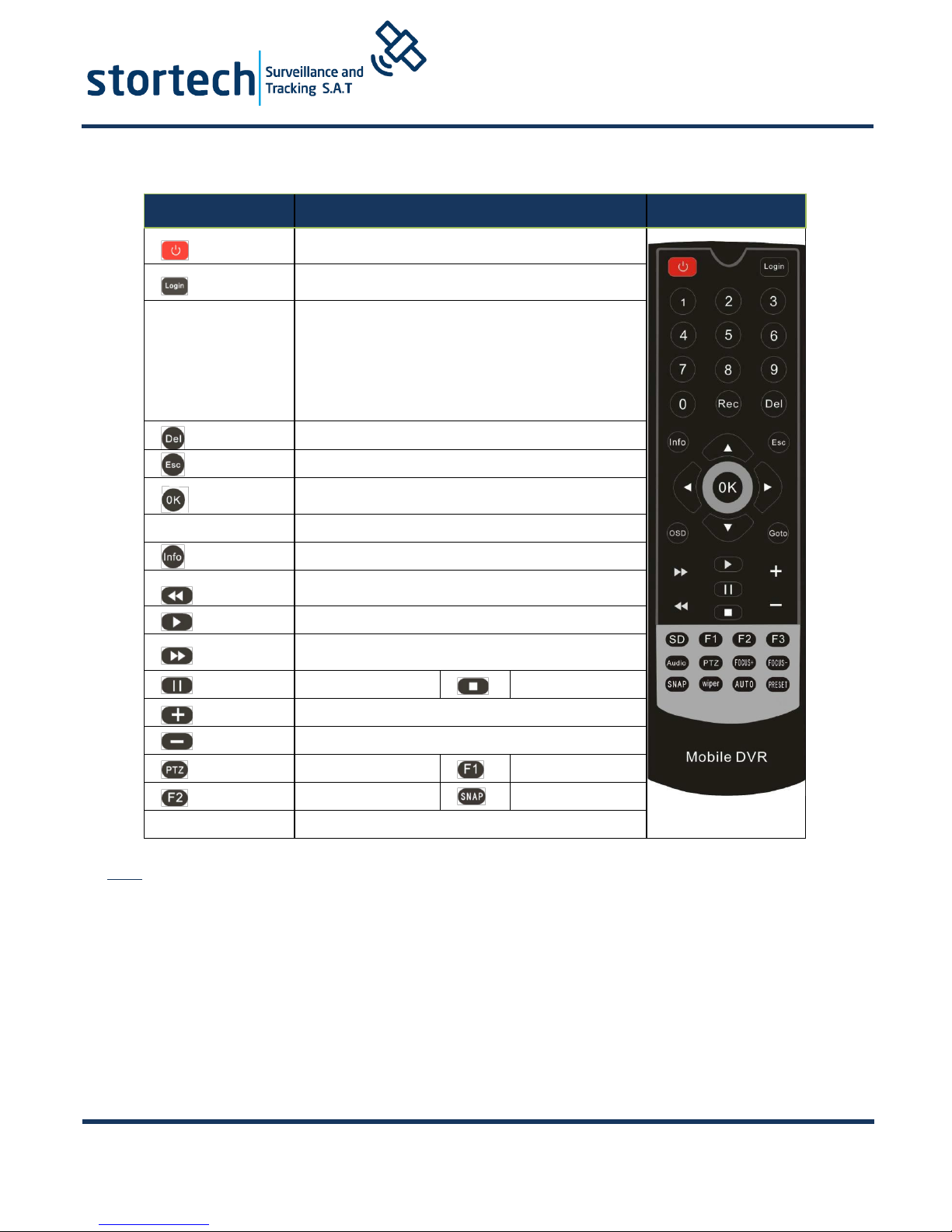

1. Remote Controller

Power and Standby Button, Reserved

To enter system settings.

[0－9] key: In the setting mode, 0-9 is used to

select a number of menu items. In playback

mode, the key 1,2,3,4 will select a single

channel to playback. ESC Button for 4 channel

playback.

Delete Button

Return to the preview picture or previous screen

Enter button: button for setting system

parameters.

Direction Key: up, down, left, right

Display system info under monitoring mode

Rewind button.

Play Button

Forward button.

Pause button

Stop button

Playback Page\Forward to del PARAM\Aperture

Playback Page\Back del PARAM\Aperture

PTZ Function key

Calling Shortcut

Quickly setup

Snap pictures

Tips: In the video preview interface, you can undertake the following actions:

Press F2 to enter Quick Setting. You can change the device number, server IP and port

information; Press LOGIN to enter the menu, direct input password: Administrator: 666666,

User: 000000.

Press INFO to display the signal strength, dial –up connection status, hardware and software

versions, storage capacity etc.

Press the play button to start playing back the video.

Press 1.2.3.4 to enlarge the corresponding video channel.

Whilst every effort has been made to ensure the

accuracy of the information provided, no liability can

be undertaken for any errors or omissions. All

dimensions stated in this document are approximate.

Stortech Electronics Ltd reserves the right to alter the

specifications and introduce changes without prior

notice. © Stortech Electronics 2018

Tel: +44 (0) 1279 419913

www.stortech.co.uk

MDVR808 Quick Guide 21052018

MDVR808 Series

2. Front Panel

Functions Layout

1. HDD Lock. This is used for unloading hard disk. Device will automatically shut down while the lock is open.

2. Front AV output interface. This is used for standard definition AV output.

3. IC card slot. IC card should be inserted straight with chip downwards.

4. SD card slot. SD card should be inserted straight into slot. Notch should be inward with metal contacts

upwards.

5. HDD box. Press the left button, then you can open the hard disk box door, and insert into 2.5-inch hard

drive.

6. SIM card slot. This is used for SIM card.

7. USB Interface. This is used to import or export data or upgrade;

8. RS232 Series port. This is used for device debugging or printout;

9. LCD windows. This is used for vehicle information, driver information, print driving information, etc.

10. LCD button. This is used for LCD operations.

1. Device status (left to right). IC card, battery power

video status, centre connection status, GPS,3G/4G

state.

2. The current date of the device.

3. The current time of the device.

4. The current speed of the vehicle.

** Status LED will show an alternate loop and flash when the device powered on, it will quickly loop flash when device is upgrading **

**** Built-in UPS, after device power off, PWR LED will be continuously on ten more seconds ****

Whilst every effort has been made to ensure the

accuracy of the information provided, no liability can

be undertaken for any errors or omissions. All

dimensions stated in this document are approximate.

Stortech Electronics Ltd reserves the right to alter the

specifications and introduce changes without prior

notice. © Stortech Electronics 2018

Tel: +44 (0) 1279 419913

www.stortech.co.uk

MDVR808 Quick Guide 21052018

MDVR808 Series

3. Back Panel

1. Power Input interface. Input voltage is DC 6-36V. Red cable connects positive power. Black cable

connects negative power. Yellow line ACC signal cable.

2. Wi-Fi antenna interface supports double Wi-Fi.

3. 30 PIN Extension Port. Including 1st-10th alarm input, RS232,RS485 interface, detailed definition see

Annex.

4. 10PINExtension Port, including 11th-16th alarm input, support 4channel alarm output interface.

5. Video & Audio Input interface, 1-8Channels support AV input with DC 12V output.

6. RJ45 Ethernet port. This is used for wired network connection.

7. USB data port. This is used for data backup.

8. Speaker output interface. External speakers etc.

9. Microphone input interface. External microphone etc.

10. VGA HD output interface.

11. GPS antenna interface.

12. 3G/4G antenna interface.

Attention:

The Audio/Video analogue output port is inside the device 16PIN PANEL port

When connecting a network cable directly to the network port, only use a 4PIN RJ45 definition cable,

otherwise it will damage the MDVR.



[DC-IN] Power port



Red cable connect power positive, black cable connect power negative, yellow line ACC

signal cable



[AV1-AV4] 1-4 CH Video and Audio input interface include DC 12V output



[AVOUT] Video and Audio output interface, include DC 12V output



[GPS] Built-in GPS module antenna interface



[3G] Built-in wireless communication module antenna interface



[SENSOR] Extension Function interface



[VGA] Video output interface

If you need timed or ignition recording, please connect the ACC cable to the vehicle ACC supply

Whilst every effort has been made to ensure the

accuracy of the information provided, no liability can

be undertaken for any errors or omissions. All

dimensions stated in this document are approximate.

Stortech Electronics Ltd reserves the right to alter the

specifications and introduce changes without prior

notice. © Stortech Electronics 2018

Tel: +44 (0) 1279 419913

www.stortech.co.uk

MDVR808 Quick Guide 21052018

MDVR808 Series

4. DVR Wiring Installation Introduction

Please ensure to read this fully before installation and first usage.

Device Power Connection:

Only connect the MDVR to the vehicle power supply. The power for cameras and

monitors are all supplied by MDVR via aviation connectors and its built-in DC 12V

output.

Use the ignition switch to control the video recorder delay timer operation.

Red cable must connect to the positive of the vehicle storage battery. Black cable

connects to the negative. Yellow cable must connect to an independent ignition

switch (ACC).

Switch Connection (Indoor test).

Red cable and yellow cable together connect power positive of the car storage

battery, whilst black cable connect negative.

The Camera connects via AV IN.

The Monitor connects via BNC connector of AV out of PANEL.

If it is not a standard aviation connector, please use the aviation conversion line.

Black side is DC 12V output. White side is Audio output. Yellow side is Video

output.

★Use the ignition switch or (ACC) to control the MDVR record delay time operation.

Whilst every effort has been made to ensure the

accuracy of the information provided, no liability can

be undertaken for any errors or omissions. All

dimensions stated in this document are approximate.

Stortech Electronics Ltd reserves the right to alter the

specifications and introduce changes without prior

notice. © Stortech Electronics 2018

Tel: +44 (0) 1279 419913

www.stortech.co.uk

MDVR808 Quick Guide 21052018

MDVR808 Series

5. Main Configuration Instructions

SIM card dial-up parameters should be set in 3/4G Setup. Customers can

consult APN and other related parameters from SIM card operators.

If need to change the server, press F2 to enter quick settings page.

Device number and mobile phone number must be the same to set as the device ID.

The monitoring centre can change the IP of the server.

After mounting SD card, SIM card and antenna, press “info” button to check the

signal strength, dial-up state and the server connection state.

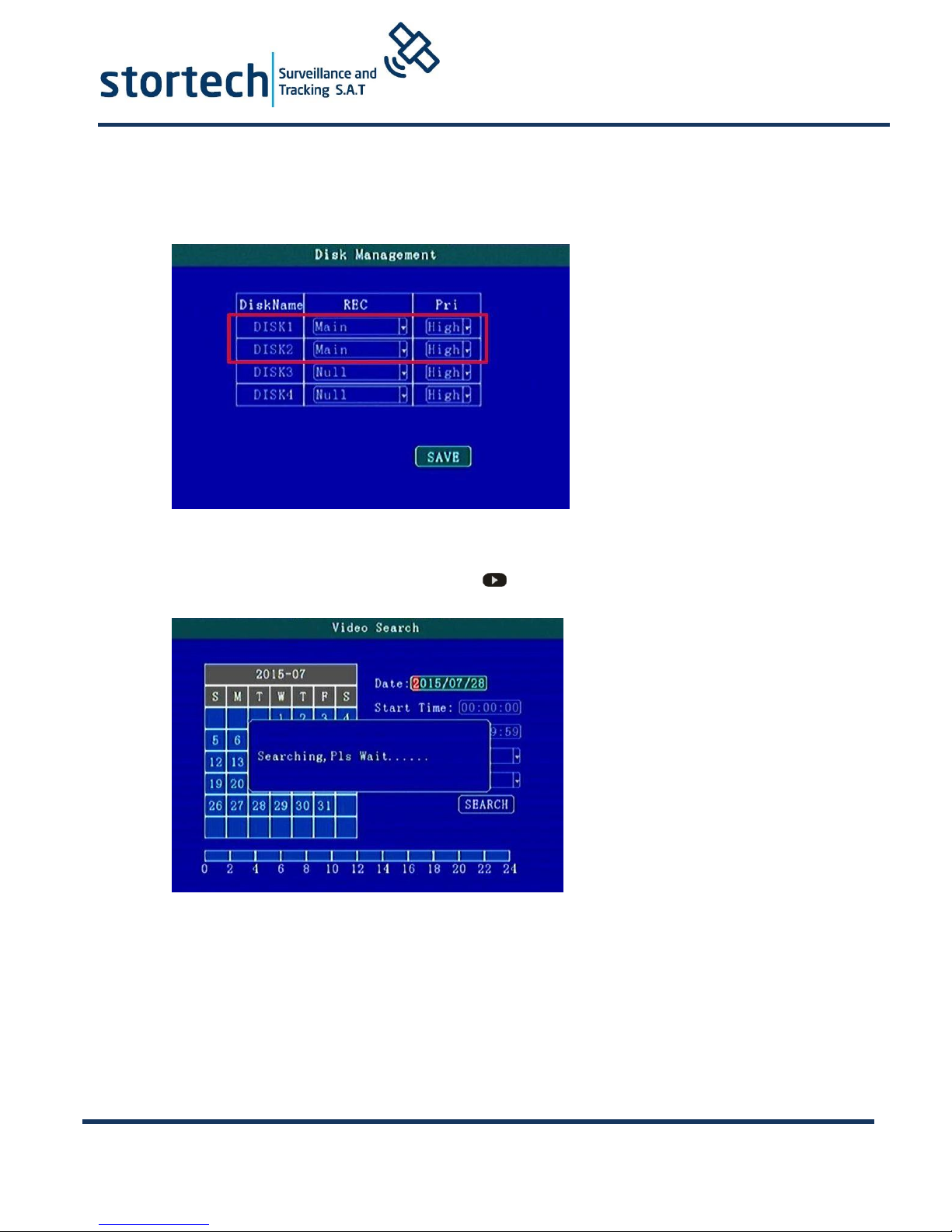

The next page shows the disk and RS232 status.

Whilst every effort has been made to ensure the

accuracy of the information provided, no liability can

be undertaken for any errors or omissions. All

dimensions stated in this document are approximate.

Stortech Electronics Ltd reserves the right to alter the

specifications and introduce changes without prior

Tel: +44 (0) 1279 419913

www.stortech.co.uk

MDVR808 Quick Guide 21052018

MDVR808 Series

The following shows the positioning and the server connection is successful.

The 8CH MDVR can switch camera input types and quality. In the Video Recording

menu you can set—Basic Record Reset and choose AHD or Normal camera. After

saving, the MDVR will reboot automatically.

Whilst every effort has been made to ensure the

accuracy of the information provided, no liability can

be undertaken for any errors or omissions. All

dimensions stated in this document are approximate.

Stortech Electronics Ltd reserves the right to alter the

specifications and introduce changes without prior

Tel: +44 (0) 1279 419913

www.stortech.co.uk

MDVR808 Quick Guide 21052018

MDVR808 Series

Video Recording Setting - Main Code Stream.

Video can be switched to mainstream. Video mode, 0 at the highest quality,

every hour @ 720P=1GB.

In System setting- Power on/off can be changed to delay shutdown time, and

the default layout for full screen (PTZ) 5CH screen (IPC), 9CH (8CH DVR).

Whilst every effort has been made to ensure the

accuracy of the information provided, no liability can

be undertaken for any errors or omissions. All

dimensions stated in this document are approximate.

Stortech Electronics Ltd reserves the right to alter the

specifications and introduce changes without prior

Tel: +44 (0) 1279 419913

www.stortech.co.uk

MDVR808 Quick Guide 21052018

MDVR808 Series

When Double SD cards or HDD+ SD card is recording, if needed, the second card or

HDD can be changed to support different recording modes and priority levels such

as Loop video recording without overwriting.

In video preview interface,directly pressing can make video search replay.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Stortech Diktiergerät Handbücher

Stortech

Stortech MDVR404 Series Bedienungsanleitung

Beliebte Diktiergerät Handbücher anderer Marken

Sony

Sony ICD-UX533F Bedienungsanleitung

RCA

RCA VR5230 Bedienungsanleitung

Ramsey Electronics

Ramsey Electronics BULLSHOOTER ENDLESS LOOP BS2C Benutzerhandbuch

Sony

Sony TCM-400DV Bedienungsanleitung

LogTag

LogTag TREL30-16 Bedienungsanleitung

SVAT

SVAT CVP800 Bedienungsanleitung

Marantz

Marantz PMD620 Bedienungsanleitung

Zoom

Zoom H4next Bedienungsanleitung

Roland

Roland BR-900CD Bedienungsanleitung

JVC

JVC ProHD GY-HMZ1U Bedienungs- und Wartungshandbuch

Panasonic

Panasonic PQT8531-P Bedienungsanleitung

Sanyo

Sanyo TRC-6400 Bedienungsanleitung

Tascam

Tascam DR-07 Bedienungsanleitung

Olympus

Olympus DW-90 Bedienungsanleitung

Sanyo

Sanyo ICR-B150 Bedienungsanleitung

Korg

Korg D4 Bedienungsanleitung

Sony

Sony ICD-SX46 - Ic Recorder Bedienungsanleitung

Olympus

Olympus DIGITAL VOICE RECORDER WS-200S Montageanleitung
