Description of video cards

Content

Alpha Plus PCI-E – card for graphics generation and overlay for pass-through analog

video signal ................................................................................................................................... 3

Main features

Technical characteristics

Description of connectors and schema for wiring

Sound Pro – extention sound card ............................................................................................. 6

Main features

Technical characteristics

Description of connectors and schema for wiring

MSP2 – card with two ASI/SDI ports for generation/overlay of computer graphics ........... 8

Main features

Description of connectors and schema for wiring

Configuration of MSP2 for Windows

AlphaSDI HD - card for graphics generation and overlay for pass-through video signal 11

Main features

Technical characteristics

Description of connectors and schema for wiring

MS 416 – curcuit board for multichannel input of AV signals ............................................. 14

Technical characteristics

Description of connectors

Schema for wiring/connection to SBCC board

MS4, MS2 – curcuit boards for multichannel input of AV signals ...................................... 17

Main features

Desciption of connectors and schema for wiring

MH4LM - curcuit board for multichannel input of AV signals ........................................... 19

Main features

Description of connectors and schema for wiring

SBCC – extension board for input of analog sound ............................................................... 22

Description of connectors and schema for wiring

Schema for connecting of SBCC to video capture card

Cable for input of analog audio signal - 16 RCA inputs (8 stereo pairs) ............................ 24

Drscription of connectors

Cable for input of analog video signal 16/8 BNC inputs ....................................................... 25

Description of connector

Installation of drivers for Windows' curcuit boards ............................................................. 26

Contacts ...................................................................................................................................... 27

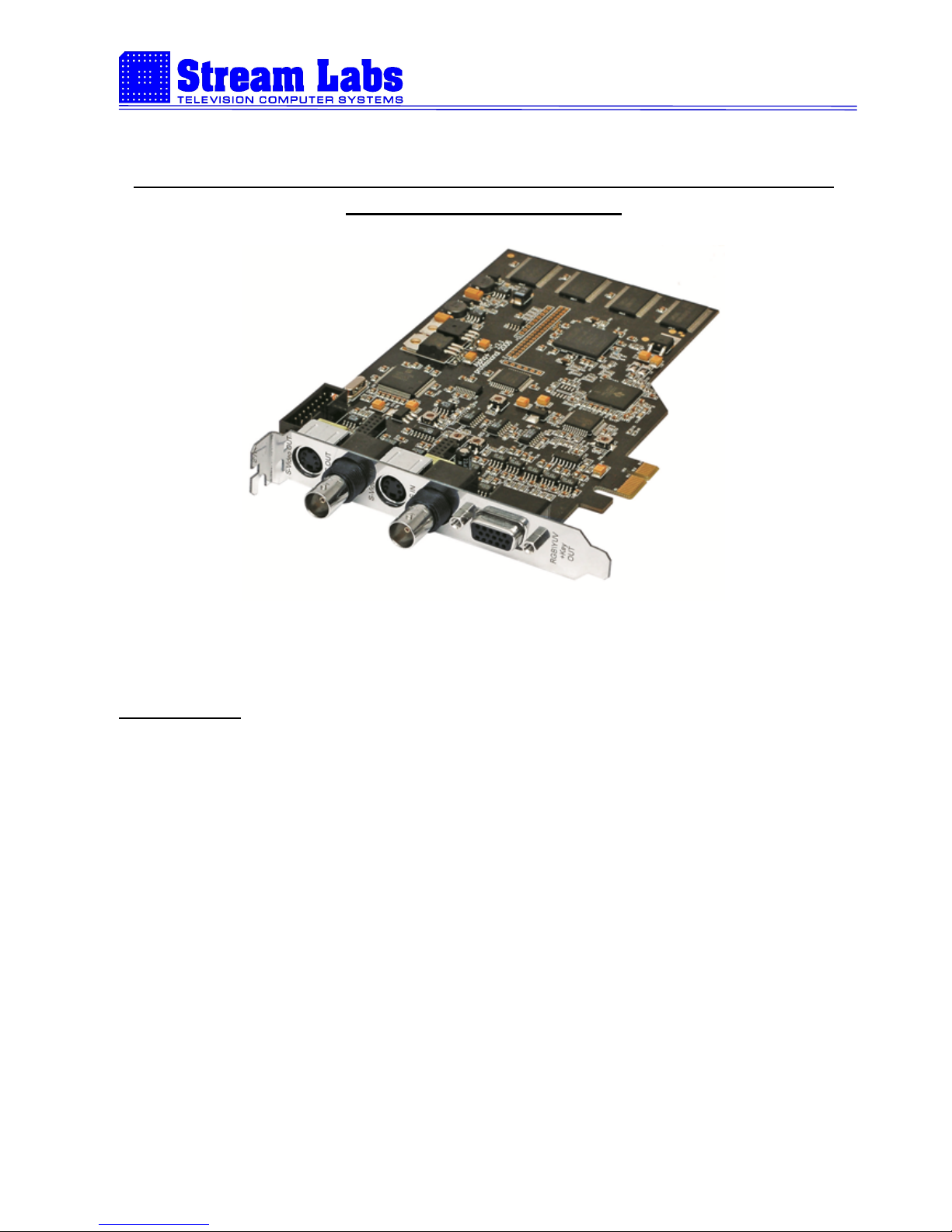

Alpha Plus PCI-E - card for graphics generation and overlay for pass-

through analog video signal

Stream Alpha Plus PCI-E could be implemented in PC based systems for real time graphics design

during broadcast (CG-system) and broadcasting video servers. The board can be used for overlays for

composite and/or S-Video signals in PAL, SECAM, NTSC standards.

Main features

 Automatic turn on of relay for video signal BYPASS after PC’s shut down.

 Output of component YUV and alpha channel signal allows using card for work with mixer,

which has corresponding DSK-input (Down Stream Key).

 During overlay in analog mode the pass-through signal does not get decoded, bur goes thru the

board without alterations, preserving frequency mode and service information.

 During overlay in digital mode signal gets decoded using color combine filter for separation of

signals, responsible for brightness and color.

 During overlay in digital mode it is possible to use combination of input and output signals in

different signal formats. It allows, for instance, to lower requirements for quality of input signal,

preserving high quality of output one.

 All output signals are processed with filters and measured up to the level of black. Green signal

of component output and alpha-channel have built-in video synchronization, which could be

turned off.

 During digital overlay and output in SECAM standard, signals of color field synchronization are

being inserted into output stream according to GOST 7845-92 and OST 58-18-96, what allows

using board for trans-coding of signal from PAL to SECAM.

 There is an option for capture and hardware based scaling of input video signal. It allows

resizing of pass-through signal along with overlaid graphics in real time. Ability to capture by

ALPHA Plus PCI-E board also allows deploying of chromo-key function.

 Optional remote firmware update.

Technical characteristics

Size:

188х126 мм.

Bus:

PCI-Express 1х.

Inputs (1,0 В / 75 Ohm):  Composite: PAL/SECAM/NTSC;

 S-video: PAL, SECAM, NTSC.

Outputs (1,0 В / 75 Ohm):  Composite: PAL/SECAM/NTSC;

 S-video: PAL, SECAM, NTSC;

 Component YUV;

 Output of linear analog DSK-signal of alpha-channel

with synchronal mix (BNC).

«Relayed» BYPASS in case of

emergency power shut down:

CVBS, S-Video.

Channel bandwidth for analog

overlay:

> 10 МHz.

Differential nonlinearity:

< 0,2%.

Alpha-channel:

256 levels of transparency

Delay of alpha-channel:

From -127 to +127 with ¼ of pixel.

Color-phase alteration:

From 0 to 360° (256 values).

Positioning of graphics relative to

synchronal signal:

Within the limits if entire line with precision up to the pixel.

Description of connectors and schema for wiring

S-Video Output (J4):

Thru connector miniDIN-4 video signal in S-Video (Y/C) format is out.

Composite Output (J3):

Thru connector BNC composite video signal is out.

S-Video Input (J2):

Thru connector miniDIN-4 video signal in S-Video (Y/C) format is in.

Composite Input (J3):

Thru connector BNC composite video signal is in.

YUV+Key/RGB+Key Output: (J6):

15-n pin connector D-SUB, which allows connecting VGA cable with BNC outputs Y/G, Cr/R, Cb/B

(green, red and blue, correspondingly) and Key signal (yellow).

During analog overlay, only computer’s graphics is being outputted thru 15-n pin connector. During

digital decoding/coding an output is identical to the main output.

Cable with additional connectors is not a part of a standard package and is being supplied separately.

15-n pin connector D-SUB (J6):

1 2 3 4 5

R/Cr G/Y B/Cb - -

6 7 8 9 10

Ground Ground Ground - Ground

11 12 13 14 15

- - Key - Relay

Connector J9:

For input/output of analog sound via extension audio card Sound Pro.

Sound Pro – extension audio card

This board is installed inside PC and connects either to video card or Stream Alpha Plus PCI-E or

AlphaSDI HD using special ribbon cable for transmission of audio stream and control signals. Board

provides professional quality audio track, synchronized with video. It grants precise insertion of audio

in pass-through audio stream. Also, this board has capability for analog and digital mixing of pass-

through audio streams and provides Audio BYPASS after shut down of PC.

Main features

 Microchips with laser calibration of resistor’s matrixes;

 Relay with orthogonal prismatic contacts;

 Topology, what is used in valve/tube studio equipment and hi-end amplifiers;

 «Ground» bus is connected to «ground» of PC only in one point;

 Non trivial power supply;

 Full galvanic insulation from power train of PC;

 Physical and technological minimization of noise and interference.

Technical characteristics

 Size: 107x90 mm;

 16-n bit audio codec UDA1380;

 Sampling rate — 48 KHz;

 Signal/noise ratio for audio in — 96 dB;

 Signal/noise ratio for audio — 90 dB;

 Channel separation for audio out — 68 dB.

Description of connectors and schema for wiring

Audio input (balanced analog) J3-4:

2 jacks TRS 1/4' — balanced input for stereo audio.

Line In (Stereo) J5:

Phone jack Stereo — linear input for stereo audio.

Line Out (Stereo) J6:

Phone jack Stereo — linear output of stereo signal.

Audio output (balanced analog) J1-2:

2 jacks TRS 1/4' — balanced output of stereo audio.

J7:

2х8 pin connector, which connects audio card to Alpha Plus PCI-E or AlphaSDI HD cards, using

ribbon cable.

J8:

Power supply connector (Molex 4 pin), which connects audio board to PC power supply, using

corresponding ribbon cable.

Jumpers Jp1, Jp2:

Sensitivity: middle and left - 200 мV, middle and right – 0.775 V.

Jumpers Jp3, Jp4:

Resistance of balanced input: middle and left – 18 кОhm, middle and right – 600 Оhm.

Jumpers Jp5, Jp6:

Sensitivity of asymmetrical output 3.5 mm: middle and left – 200 мV, middle and right – 0.775 V.

Attention! Connect head phones only when Jp5 and Jp6 are middle and left.

MSP2 – board with two ports ASI/SDI for generation/overlay of

computer graphics

MSP2 –multi-functional board with two ports ASI/SDI for generation/overlay of computer graphics. It

could be implemented for development of computer systems for graphics design for real time TV-air

(CG-систем) and broadcast video servers.

Main features

 Size: 102x64 mm;

 Low-profile board, manufactured in form-factor PCI Express 4x (is supplied either with low or

standard profile of mounting bracket, what allows mounting in 1U servers);

 Two independent ports ASI/SDI: input + output; or two outputs (configuration is handled

programmatically in operating system);

 Automatic turn on of relay based BYPASS for video signal after PC shut down;

 Input port may receive DVB-ASI from 216 Mbps and up to full frame mode: 10-bit SDI;

 Adaptive aligning of cable and inversion ASI;

 Control of application functioning (watchdog timer). During “freeze” of application or

operating system board provides pass-through mode for the stream;

 Flexible reception of packets with possibility of designation of duration and order of reception;

 SDI coding/decoding without loss of quality;

 Gauging of bit rate of input/output stream and management of statistics;

 Option for remote firmware update.

Description of connectors and schema for wiring

Port 1: SD-SDI/ASI input/output / SD-SDI Key output (J2):

For input/output of video signal or output of key signal in SD-SDI/ASI format.

Port 2: SD-SDI/ASI output (J3):

For output of video signal in SD-SDI/ASI format.

Разъем J5:

For pre-programming of board.

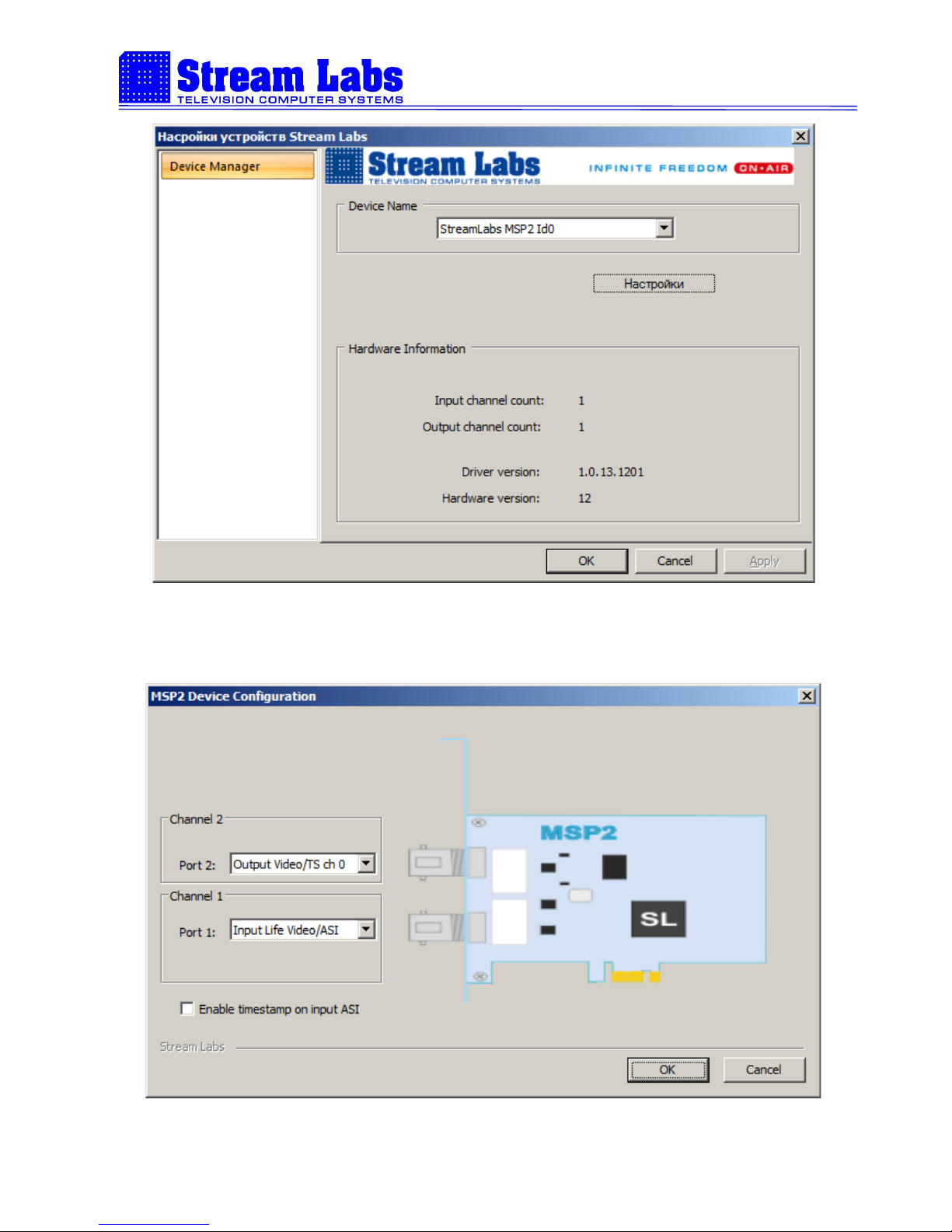

Configuration of MSP2 for Windows

In order to change assignment for ports, select «SL Devices – Settings for Stream Lab devices» in

Windows’ «Device Manager». Then select corresponding device from the list «Device Name» and

press button «Settings».
