Sub-Zero PRO 48 Bedienungsanleitung

PRO 48 Refrigeration Installation Guide

PRO 48 REFRIGERATION

Contents

3PRO 48 Refrigeration

4Opening Dimensions

5Electrical

5Plumbing

6Preparation

6Anti-Tip Bracket

8Placement

8Water Line

8Alignment

10 Completion

Features and specications are subject to change at any

time without notice. Visit subzero.com/specs for the most

up-to-date information.

Important Note

To ensure this product is installed and operated as safely

and efciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specied.

IMPORTANT NOTE: Save these instructions for the local

electrical inspector.

subzero.com

Product Information

Important product information including the model and

serial number are listed on the product rating plate. The

rating plate is located inside the cabinet, to the left of the

upper freezer drawer. Refer to the illustration below.

If service is necessary, contact Sub-Zero factory certied

service with the model and serial number. For the name

of the nearest Sub-Zero factory certied service or for

questions regarding the installation, visit the contact & sup-

port section of our website, subzero.com or call Sub-Zero

customer care at 800-222-7820.

PRO 48 REFRIGERATION

Tools and Materials

•Screwdrivers—standard, Phillips and Torx.

•Power drill.

•Drill bits (masonry bits required for concrete installation).

•Standard Allen wrench set.

•Standard socket and wrench set.

•2' and 4' levels.

•Tubing cutter.

•3' of 1/4" OD copper, braided stainless steel or PEX

tubing.

•Saddle valve.

•Material to protect home, ooring and cabinetry during

installation.

Rating plate location (inside

drawer).

RATING

PLATE

Sub-Zero Customer Care 800.222.7820

SITE PREPARATION

Opening Dimensions

STANDARD AND FLUSH BUILT-IN INSTALLATIONS

OPENING

HEIGHT

FRONT VIEW

SIDE

VIEW

OPENING WIDTH

OPENING

DEPTH

TOP VIEW

For standard built-in installations, the face frame will extend

2" (51) beyond cabinetry. In ush installations, the face frame

will be ush with surrounding cabinetry.

OPENING WHD

Standard 471/2"(1206) 833/4"(2127) 24" (610)

Flush 48" (1219) 841/8"(2137) 26" (660)

subzero.com

SITE PREPARATION

Electrical

Installation must comply with all applicable electrical codes.

The electrical supply should be located within the shaded

area shown in the illustration below. A separate circuit, ser-

vicing only this appliance is required. A ground fault circuit

interrupter (GFCI) is not recommended and may cause inter-

ruption of operation.

ELECTRICAL REQUIREMENTS

Electrical Supply 115 VAC, 60 Hz

Service 15 amp

Receptacle 3-prong grounding-type

CAUTION

The outlet must be checked by a qualied electrician to

be sure that it is wired with the correct polarity. Verify

that the outlet is properly grounded.

WARNING

Do not use an extension cord, two-prong adapter or

remove the power cord ground prong.

Plumbing

Installation must comply with all applicable plumbing codes.

The water supply line should be located within the shaded

area shown in the illustration below. The water supply line

should be connected to the house supply with an easily

accessible shut-off valve. Do not use self-piercing valves.

The water supply line must not interfere with installation of

the anti-tip bracket.

A reverse osmosis system can be used provided there is

constant water pressure of 35–120 psi (2.4–8.3 bar) supplied

to the unit at all times. In this application, the water ltration

system must be bypassed by removing the lter. A copper

line is not recommended for this application.

PLUMBING REQUIREMENTS

Water Supply 1/4" OD copper, braided

stainless steel or PEX tubing

Pressure 35–120 psi (2.4–8.3 bar)

Excess Line for Connection 36" (914)

751/2" (1918)

FROM FLOOR

(178) E

(152)

RIGHT SIDE

OF OPENING

Electrical supply location.

3" (76)

(152)

53/16"

(132)

RIGHT SIDE

OF OPENING

AREA EXTENDS 1/2"(13)

FORWARD ON FLOOR

Water supply location.

Sub-Zero Customer Care 800.222.7820

SITE PREPARATION

Preparation

Uncrate the unit and inspect for damage. Remove the wood

base and discard shipping bolts and brackets. Remove and

recycle packing materials. Do not discard the kickplate, anti-

tip bracket and hardware.

Completely retract the front leveling legs to allow the unit to

be moved into position. The front and rear leveling legs can

be adjusted from the front once the unit is in position.

Remove the drain pan from the base of the unit to avoid

damage, and allow for proper appliance dolly placement.

The grille assembly should be removed prior to moving the

unit. To remove, pull out on the bottom edge of the grille and

rotate upward. Cut cable ties that attach the network cable

to the grille, then disconnect the network cable. Remove

three grille bolts from the grille, then pull grille forward to

remove. Refer to the illustration below.

NETWORK

CABLE

GRILLE

BOLT

CABLE TIE

Grille removal.

Anti-Tip Bracket

WARNING

To prevent the unit from tipping forward, the anti-tip

bracket must be installed.

Use the centerline locating holes to position the anti-tip

bracket in the center of the opening. The bracket must be

positioned 24" (610) from the front of the opening to the

back of the bracket. This depth will increase to 26" (660) for

a ush installation. Failure to properly position the anti-tip

bracket will prevent proper engagement.

Use all anti-tip bracket hardware as instructed for wood or

concrete oors.

IMPORTANT NOTE: For wood or concrete oor applications,

if the #12 screws do not hit a wall stud or wall plate, use the

#8 screws and #12 washers with the wall anchors.

IMPORTANT NOTE: In some installations the subooring or

nished oor may necessitate angling the screws used to

fasten the anti-tip bracket to the back wall.

ANTI-TIP HARDWARE

1 Anti-tip bracket

12 #12 x 21/2" pan head screws

33/8"–16 x 33/4" wedge anchors

12 #12 at washers

3 #8–18 x 11/4" truss head screws

3 Nylon Zip-it®wall anchors

CENTERLINE

LOCATING HOLES

Anti-tip bracket.

subzero.com

SITE PREPARATION

CONCRETE WEDGE ANCHOR INSTALLATION:

1Drill a 3/8"(10) diameter hole any depth exceeding the

minimum embedment. Clean the hole or drill additional

depth to accommodate drill nes.

2Assemble the washer and nut ush with the end of

anchor to protect threads. Drive the anchor through the

material to be fastened until the washer is ush with the

surface material.

3Expand the anchor by tightening the nut 3–5 turns past

hand-tight position or to 25 foot-pounds of torque.

WARNING

Verify there are no electrical wires or plumbing in the

area which the screws could penetrate.

CAUTION

Always wear safety glasses and use other neces-

sary protective devices or apparel when installing or

working with anchors.

Anchors are not recommended for use in lightweight

masonry material such as block or brick, or for use in

new concrete which has not had sufcient time to cure.

The use of core drills is not recommended to drill holes

for the anchors.

Anti-Tip Bracket

WOOD FLOOR APPLICATION

After properly locating the anti-tip bracket in the opening,

drill pilot holes 3/16"(5) diameter maximum in the wall studs

or wall plate. Use the #12 screws and washers to secure

the bracket. Verify the screws penetrate through the ooring

material and into wall studs or wall plate a minimum of 3/4"

(19). Refer to the illustration below.

CONCRETE FLOOR APPLICATION

After properly locating the anti-tip bracket in the opening,

drill pilot holes 3/16"(5) diameter maximum in the wall studs

or wall plate. Drill 3/8"(10) diameter holes into the concrete

a minimum of 11/2"(38) deep. Use the #12 screws and

washers to secure the bracket to the wall, and use the 3/8"

wedge anchors to secure the bracket to the oor. Verify the

screws penetrate wall studs or wall plate a minimum of 3/4"

(19). Refer to the illustration below.

233/4"

(603)

233/4"

(603)

SUBFLOORING

WOOD FLOOR

WALL PLATE

FINISHED

FLOORING

233/4"

(603)

233/4"

(603)

SUBFLOORING

CONCRETE

FLOOR

WALL PLATE

FINISHED

FLOORING

11/2"(38)

min

Wood oor.

Concrete oor.

Sub-Zero Customer Care 800.222.7820

Alignment

LEVELING

Once the unit is in position, turn the front leveling legs

clockwise to adjust the height. The rear height adjustment

can be made from the front of the roller base. Using a 3/8"

socket, turn the 3/8" hex bolt clockwise to raise the unit or

counterclockwise to lower. Use the lowest torque setting

when using a power drill. Do not turn the rear leveling legs

by hand. Refer to the illustration below.

When the unit is properly leveled, door and drawer adjust-

ments are less likely to be necessary.

IMPORTANT NOTE: Level the unit to the oor, not sur-

rounding cabinetry. This could affect the operation of the

unit, such as door closing.

WARNING

To reduce the possibility of the unit tipping forward, the

front leveling legs must be in contact with the oor.

INSTALLATION

FRONT

LEVELING LEG

REAR

ADJUSTMENT

Leveling.

Placement

CAUTION

Before moving the unit into position, secure doors and

drawers closed and protect any nished ooring.

Use an appliance dolly to move the unit near the opening.

If the unit has been on its back or side, it must stand upright

for a minimum of 24 hours before connecting power.

Plug the power cord into the grounded outlet and roll the

unit into position. Verify the anti-tip bracket is properly

engaged.

Water Line

Approximately 3' (.9 m) of 1/4" plastic tubing is connected to

the unit with a preassembled 1/4" compression connection

under the unit. The water line tting connection kit, provided

with the unit, contains a 1/4" compression union tting for

connection to the household water line.

Purge the water line prior to nal connection to the unit. This

will remove any debris that may be present in the tubing

from installing the new water line.

Place the sleeve and nut on the water line and fasten

to the connection at the end of the tubing. Do not over

tighten. Check all water line ttings for leaks. Verify the

drain pan can be installed and removed without water line

interference.

IMPORTANT NOTE: If a reverse osmosis system used, it is

recommended that the water ltration system be bypassed

by removing the lter.

IMPORTANT NOTE: Water lines can not be exposed to

freezing temperatures.

subzero.com

Alignment

DOOR ADJUSTMENT

To make adjustments, remove door and door stop, then

slightly loosen the two upper hinge screws. Use the Allen

wrench provided to turn adjustment screw to adjust hinge.

Refer to the illustration below. Reinstall door and check

alignment. Repeat until door is properly aligned.

IMPORTANT NOTE: When adjusting doors, verify the hinge

tab continues to engage the door light switch. Refer to the

illustration below.

INSTALLATION

HINGE

CABINET

HINGE

SCREW

ADJUSTMENT

SCREW

LIGHT

SWITCH

Door removal.

Hinge adjustment.

DRAWER ADJUSTMENT

Vertical adjustment |Loosen the three mounting screws.

Refer to the illustration below. Using a 7/16" wrench, turn the

adjustment bolt clockwise to raise and counterclockwise to

lower. Tighten screws, then reinstall drawer and check align-

ment. Repeat until drawer is properly aligned.

Horizontal adjustment |Loosen the front drawer slide

screw. Refer to the illustration below. Adjust the front

retainer right or left, then tighten screw. Next, lift up on

the rear retainer and shift forward or backward to maintain

alignment with front retainer. Each set of holes will adjust

alignment by 1/32"(.8).

MOUNTING

SCREW

ADJUSTMENT

BOLT

SLIDE

SCREW

FRONT

RETAINER

REAR

RETAINER

Vertical adjustment.

Horizontal adjustment.

Sub-Zero Customer Care 800.222.7820

WATER FILTER BYPASS

If the water ltration system will not be utilized, it can be

placed in water lter bypass mode by removing the water

lter. Refer to the illustration below. Follow these steps to

remove the water lter:

1Pull out on the bottom edge of the grille assembly and

tilt the grille frame upward.

2To remove the cartridge, rotate the cartridge counter-

clockwise one-quarter turn and pull out. Refer to the

illustration below.

Completion

Install the grille assembly and check for proper t. Recon-

nect the network cable. Refer to page 6. Attach the network

cable to the grille using cable ties provided.

Reinstall the drain pan and verify it is in the proper position.

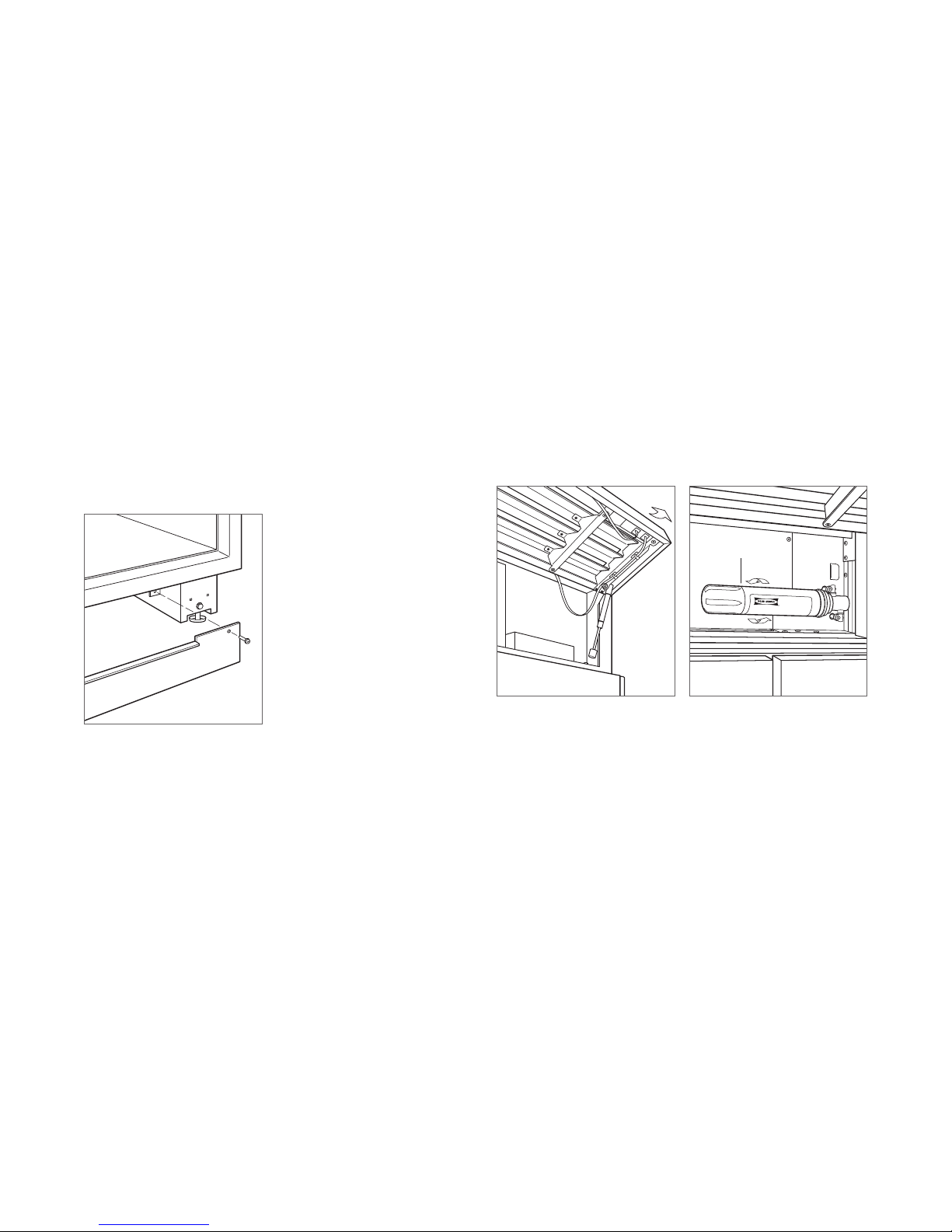

Install the kickplate using screws to attach it to brackets on

the inside of each roller base. Refer to the illustration below.

The kickplate must be removable for service. The oor

cannot interfere with removal.

Install leg covers. Remove paper backing and press into

position.

Turn power on by touching POWER on the control panel.

INSTALLATION

Kickplate installation.

Open grille.

Water lter removal.

WATER FILTER

Andere Handbücher für PRO 48

Inhaltsverzeichnis

Sprachen:

Andere Sub-Zero Kühlschrank Handbücher

Sub-Zero

Sub-Zero UC-24R Bedienungsanleitung

Sub-Zero

Sub-Zero BI-30U Montageanleitung

Sub-Zero

Sub-Zero CBIC-18FI Leitfaden

Sub-Zero

Sub-Zero PRO 48 Bedienungsanleitung

Sub-Zero

Sub-Zero 600 Series BI-30U Bedienungsanleitung

Sub-Zero

Sub-Zero Sub-Zero BI series Bedienungsanleitung

Sub-Zero

Sub-Zero 648PRO Bedienungsanleitung

Sub-Zero

Sub-Zero Built-In Refrigeration Betriebsanleitung

Sub-Zero

Sub-Zero 650G Bedienungsanleitung

Sub-Zero

Sub-Zero 600 Series BI-30U Bedienungsanleitung

Sub-Zero

Sub-Zero Uc24crh Bedienungsanleitung

Sub-Zero

Sub-Zero Built-In Refrigeration Bedienungsanleitung

$Sub-Zero \601RG Bedienungsanleitung$

Sub-Zero

Sub-Zero \601RG Bedienungsanleitung

Sub-Zero

Sub-Zero BI-36UFD Bedienungsanleitung

Sub-Zero

Sub-Zero 600 Series BI-30UG Bedienungsanleitung

Sub-Zero

Sub-Zero IC-24FI Bedienungsanleitung

Sub-Zero

Sub-Zero 601R Bedienungsanleitung

Sub-Zero

Sub-Zero PRO 48 Bedienungsanleitung

Sub-Zero

Sub-Zero 700TCI Gebrauchsanweisung

Sub-Zero

Sub-Zero ICB736TCI Betriebsanleitung

Sub-Zero

Sub-Zero BI-36R Bedienungsanleitung

Sub-Zero

Sub-Zero BI-42S Bedienungsanleitung

Sub-Zero

Sub-Zero 650/B Bedienungsanleitung

Sub-Zero

Sub-Zero BI-42S Montageanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
