WINE STORAGE

USE AND CARE GUIDE

CLEANING, MAINTENANCE, AND MORE

2 | Sub-Zero Customer Care 800.222.7820

WINE STORAGE

Contents

4Wine Storage Features

5Interactive Control Panel

6Storage

8Operation

10 Care Recommendations

11 Technical Data

13 Troubleshooting

15 Sub-Zero Warranty

subzero.com | 3

Customer Care

The model and serial number are printed on the enclosed

product registration card. Both numbers are also listed on

the product rating plate. Refer to page 4 for rating plate

location. For warranty purposes, you will also need the date

of installation and name of your authorized Sub-Zero dealer.

Record this information below for future reference.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certied Service Name

Certied Service Number

Authorized Dealer

Dealer Number

If your product ever needs attention, be sure to use a

Sub-Zero Factory Certied Service provider recommended

by our Customer Care Center, or select one from our list of

providers available at subzero.com/locator. All Factory Certi-

ed Service providers are carefully selected and thoroughly

trained by us.

WINE STORAGE

Important Note

To ensure this product is installed and operated as safely

and efciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specied.

WARNING

PROPOSITION 65 FOR CALIFORNIA RESIDENTS

Cancer and Reproductive Harm—

www.P65Warnings.ca.gov

4 | Sub-Zero Customer Care 800.222.7820

WINE STORAGE FEATURES

Wine Storage Features

FEATURES

1Product Rating Plate

2Interactive Control Panel

3Wine Storage Racks

4Display Rack

5Full-View Glass Door

6Home Security Connection

7Refrigerator Storage Drawer

8Freezer Storage Drawer*

9Water Filtration System*

10 Automatic Ice Maker*

*Not available on all models.

Column model

Tall model (IW-30CI shown)

subzero.com | 5

Interactive Control Panel

For initial start up, touch and hold “power” on the control

panel for 2 seconds.

The temperature can be adjusted in one-degree increments

on the home screen. The temperature on the left of the dis-

play represents the lower zone and the temperature on the

right represents the upper. If applicable, the storage drawers

temperature can be adjusted using the options screen.

To change the temperature, touch the temperature being

adjusted, then press + or – until the desired temperature is

displayed. Refer to the illustration below.

Once the temperature has been adjusted, additional

features can be activated or deactivated from the options

screen. Touch to view the options screen.

OPTIONS SCREEN

Touch to activate or deactivate the door/drawer alarm.

Touch to activate accent lighting.

Touch to activate the humidor feature.*

Touch to adjust drawer temperature.*

Touch to activate or deactivate the ice maker system and

max ice feature.*

Touch to view settings screen.

*Not available on all models.

SETTINGS SCREEN

Touch to view model information.

Touch to select temperature unit, Fahrenheit or Celsius.

Touch to adjust control panel brightness and contrast.

Touch to adjust door/drawer alarm volume and pitch.

Touch to adjust door/drawer alarm duration.

Touch to activate the humidor feature.*

Touch to enter Sabbath mode.

Touch to view troubleshooting and service information.

Touch to set the clock.

Touch to enable or disable connect.

Touch to select language options.

Touch to adjust soft on lighting.

*Not available on all models.

INTERACTIVE CONTROLS

Home screen (column model shown)

6 | Sub-Zero Customer Care 800.222.7820

Wine Storage

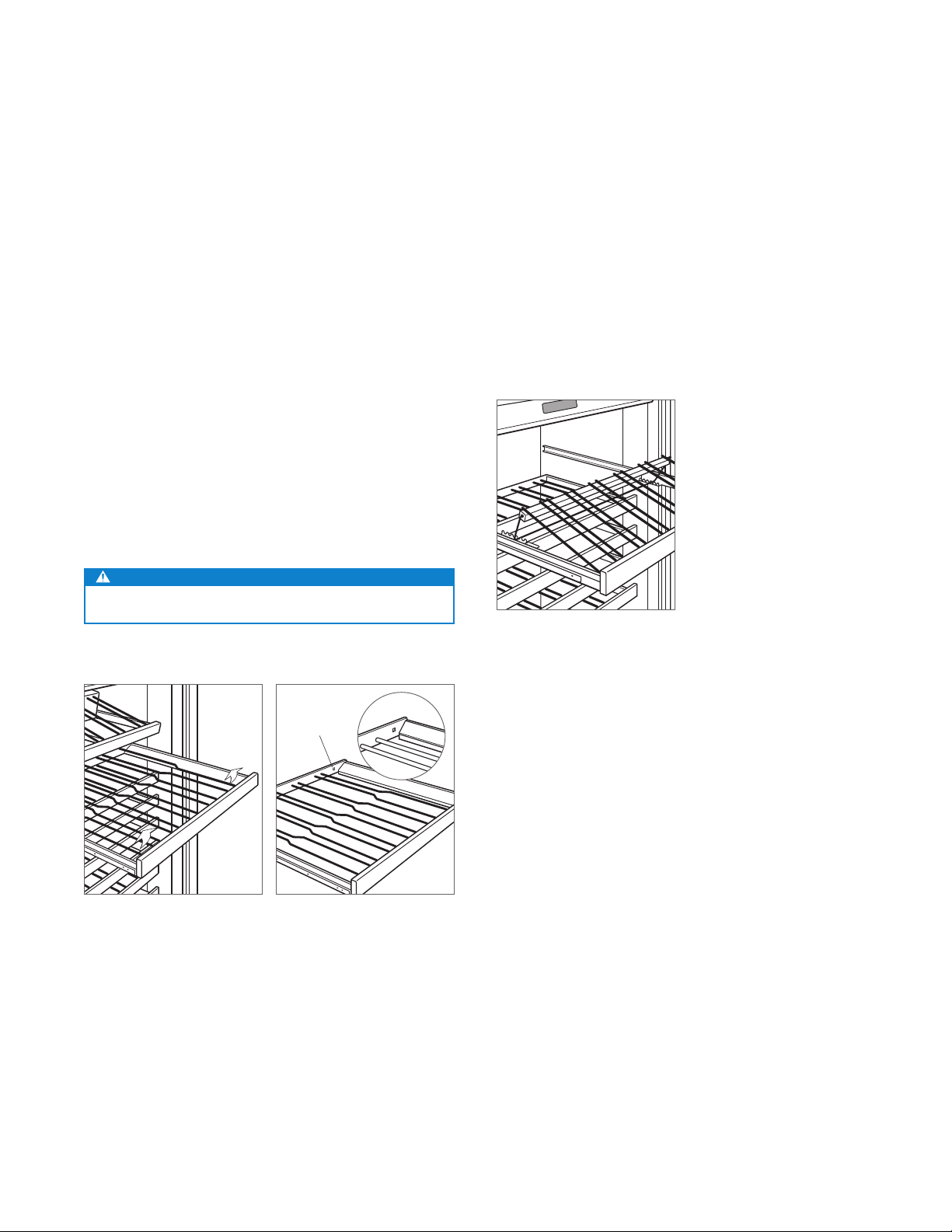

WINE RACKS

The full-extension wine racks provide easy access to

750 ml, half-bottles, and magnums. When storing mag-

nums, the rack above must be removed.

To remove a wine rack, pull out to full extension, tilt up,

then lift up and out. Refer to the illustration below. The top

two racks in the upper compartment and top rack (top two

for tall model) in the lower compartment cannot be placed

in any other position. These racks can be identied by the

small square cut-out located in the right rear corner. Refer to

the illustration below.

The natural cherrywood facing on wine racks can be stained

or replaced with wood to compliment cabinetry. For more

information, refer to the Sub-Zero design guide, visit our

website at subzero.com, or contact Sub-Zero Customer

Care at 800-222-7820.

CAUTION

Remove all bottles from the wine rack before removal.

DISPLAY RACK

The adjustable display rack is designed for wine to stay in

contact with the cork at any position. Refer to the illustration

below.

To remove the display rack, pull out to full extension, tilt up,

then lift up and out.

STORAGE

Display rack

CUT-OUT

Wine rack removal

Rack position indicator

subzero.com | 7

ICE CONTAINER

To remove the ice container, pull the freezer drawer open

until it stops, then lift the container out. Refer to the illustra-

tion below.

The ice maker must be turned off by touching when

the ice container is removed. The unit is equipped with a

3-minute delay after the ice container has been removed, to

ensure cubes are not ejected before the ice maker can be

deactivated or the ice container is reinstalled.

Storage Drawers—Tall Model

DRAWER DIVIDERS

To remove or adjust a short divider, ex the long divider

slightly, then pull upward. Refer to the illustration below.

To remove a long divider, the short dividers must be

removed. Pull the divider up until it stops, rotate counter-

clockwise, then pull upward. To reinstall, align grooves with

drawer tabs, rotate clockwise, then slide down.

DRAWER REMOVAL

To remove, pull open until the drawer stops. Raise the

drawer front and pull out the drawer. To reinstall, raise the

front of the drawer and place onto the slides. Align the back

of the drawer with hooks on the slide, then align the white

pegs at the front of the slide with holes at the front of the

drawer. Refer to the illustration below.

Drawer dividers

Drawer removal

STORAGE

Ice container (IW-30CI)

8 | Sub-Zero Customer Care 800.222.7820

WATER FILTER REPLACEMENT

1To access the water lter, pull out on the bottom edge

of the access door and rotate upward. Refer to the illus-

tration below.

2To remove the old lter, rotate counterclockwise one-

quarter turn, then pull out. It is normal for a small amount

of water to drip when the lter is removed. It should be

wiped up with a paper towel or cloth.

3Remove the new lter from packaging and remove the

plastic cap.

4Insert the new lter into the manifold and turn clockwise.

5Once the new lter has been installed, follow instructions

on the control panel. The lter life cycle will reset for

approximately one year.

Water Filtration System

For model IW-30CI, the water ltration system supplies

ltered water to the ice maker.

IMPORTANT NOTE: When using the water ltration system

for the rst time and after lter replacement, it is necessary

to clear any air from the system and allow the lter to assist

in cleaning the water lines. Discard the rst two full con-

tainers of ice.

If the water ltration system will not be used, it can be

placed in water lter bypass mode by removing the lter.

The lter is rated for 750 gallons (2839 L) or one year,

whichever comes rst. “Change Water Filter” appears on

the control panel when the cartridge needs to be replaced.

Touch “Snooze” to delay the reminder for 24 hours or until

the lter can be replaced.

Replacement Sub-Zero water lters can be ordered online

at subzero.com/store. For questions, contact Sub-Zero

Customer Care at 800-222-7820.

OPERATION

WATER FILTER

ACCESS DOOR

Water lter removal (IW-30CI)

subzero.com | 9

OPERATION

Ice Maker Operation

For model IW-30CI, to initiate ice production, touch

on the options screen. A single highlighted cube indicates

the ice maker is active. Three highlighted cubes indicate the

max ice feature is active. Max ice increases ice production

up to 30% for a 24-hour period. During that period, some

components may run at a higher speed resulting in a unique

audible tone. This is typical and will revert back after 24

hours or when the ice container is full. To deactivate the ice

maker, touch until no cubes are highlighted. After initial

start-up, discard the rst few batches of ice. The ice may

contain impurities from new plumbing connections.

If ice is not used regularly it may fuse together. To avoid,

discard the ice and allow the ice maker to replenish.

The ice maker must be turned off by touching when

the ice container is removed. The unit is equipped with a

3-minute delay after the ice container has been removed, to

ensure cubes are not ejected before the ice maker can be

deactivated or the ice container is reinstalled.

Sabbath

This appliance is certied by Star-K to meet strict religious

regulations in conjunction with specic instructions found

on www.star-k.org.

For Sabbath mode, from the settings screen, touch and

follow instructions on the control panel.

10 | Sub-Zero Customer Care 800.222.7820

Cleaning

INTERIOR CLEANING

To clean interior surfaces and all removable parts, wash with

a mild solution of soap, water and baking soda. Rinse and

dry thoroughly. Avoid getting water on the lights, control

panel, and cherrywood facing on wine racks.

Use a standard glass cleaner to clean the UV-resistant glass

door.

CAUTION

Do not use vinegar, rubbing alcohol, or other alcohol-

based cleaners on any interior surface.

STAINLESS STEEL EXTERIOR

Use a nonabrasive stainless steel cleaner and apply with

a soft lint-free cloth. To bring out the natural luster, lightly

wipe the surface with a water-dampened microber cloth

followed by a dry polishing chamois. Always follow the grain

of stainless steel.

CONDENSER CLEANING

CAUTION

Before cleaning the condenser, turn power off at the

control panel. Wear gloves to avoid injury from sharp

condenser ns.

The condenser is located behind the grille. Remove the

kickplate by extracting the two mounting screws. Refer to

the illustration below. Use a soft bristle brush and vacuum

to remove dust and lint from the condenser. Clean the con-

denser every 6–12 months.

IMPORTANT NOTE: To avoid damaging condenser ns,

vacuum in the direction of the ns.

CAUTION

Failure to clean the condenser could result in tempera-

ture loss, mechanical failure, or damage.

CONDENSER

SCREW

Condenser location

CARE RECOMMENDATIONS

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Sub-Zero Weinkühler Handbücher

Sub-Zero

Sub-Zero ICBIW-18 Bedienungsanleitung

Sub-Zero

Sub-Zero 427 Bedienungsanleitung

Sub-Zero

Sub-Zero 424 Bedienungsanleitung

Sub-Zero

Sub-Zero 315W Gebrauchsanweisung

Sub-Zero

Sub-Zero Designer Series Bedienungsanleitung

Sub-Zero

Sub-Zero IW-30-LH Bedienungsanleitung

Sub-Zero

Sub-Zero Designer Series Bedienungsanleitung

Sub-Zero

Sub-Zero 427RG Leitfaden

Sub-Zero

Sub-Zero 400-2 Series Service-Handbuch

Sub-Zero

Sub-Zero DEU2450WL Bedienungsanleitung

Sub-Zero

Sub-Zero 427R Bedienungsanleitung

Sub-Zero

Sub-Zero Designer Series Bedienungsanleitung

Sub-Zero

Sub-Zero ICB424 Bedienungsanleitung

Sub-Zero

Sub-Zero DEU1550B/L Bedienungsanleitung

Sub-Zero

Sub-Zero 427R Bedienungsanleitung

Sub-Zero

Sub-Zero DEU1550B/R Bedienungsanleitung

Sub-Zero

Sub-Zero Designer Series Bedienungsanleitung

Sub-Zero

Sub-Zero BW-30 Bedienungsanleitung

Sub-Zero

Sub-Zero 424G Bedienungsanleitung

Sub-Zero

Sub-Zero 424 Bedienungsanleitung

Sub-Zero

Sub-Zero 315W Bedienungsanleitung

Sub-Zero

Sub-Zero 424FSG Bedienungsanleitung

Sub-Zero

Sub-Zero 315W Bedienungsanleitung

Sub-Zero

Sub-Zero Designer Series Bedienungsanleitung

Beliebte Weinkühler Handbücher anderer Marken

U-Line

U-Line Echelon Wine Captain 2075WC Betriebsanleitung

Haier

Haier WS50GA Bedienungsanleitung

Cavist

Cavist 62 Bedienungsanleitung

Kenmore

Kenmore 461.99130 Bedienungsanleitung

Miele

Miele KWT 6422 iG Bedienungsanleitung

Danby

Danby DWC113BLSDB Bedienungsanleitung

Caple

Caple Wi6128 Bedienungsanleitung

Avanti

Avanti WC1001 Bedienungsanleitung

Frigidaire

Frigidaire FFWC38F6LS Bedienungsanleitung

Titan

Titan TT-W2454SZ Installationshandbuch

Klarstein

Klarstein Botella 166 Uno Bedienungsanleitung

Costway

Costway FP10130WL Bedienungsanleitung

Lemair

Lemair LWC59 Bedienungsanleitung

Haier

Haier JC-125GEA Bedienungsanleitung

Caple

Caple WCi46B Bedienungsanleitung

Climadiff

Climadiff CLI24 Kurzanleitung

Viking

Viking VCWB301LSS Bedienungsanleitung

Caple

Caple WC6511 Bedienungsanleitung
