SUMAKE PNEUMATIC TOOLS

Pressure Air Spray Gun Only

SS-1305HSPS

SUMAKE INDUSTRIAL CO., LTD

4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91

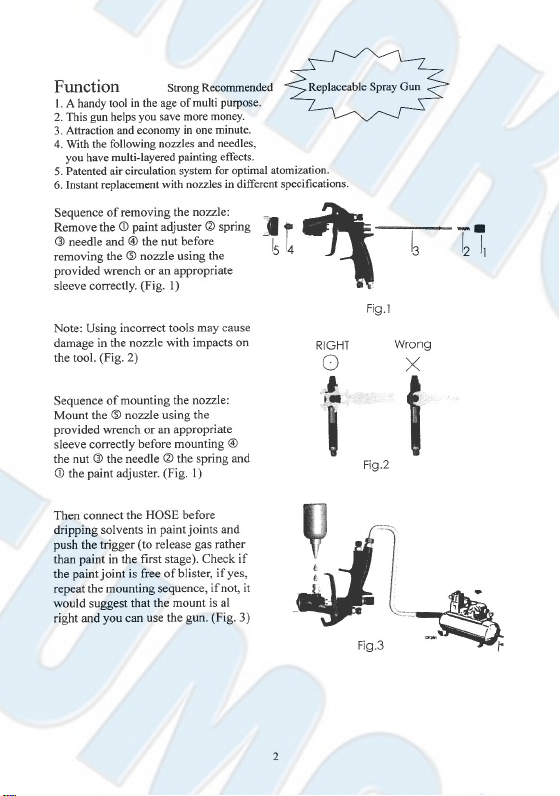

Specification:

Free Type

Pressure

Nozzle

1.3mm, 1.4mm, 1.8mm,

2.0mm, 2.5mm

Air Consumption

6.2 CFM (175 L/min)

Air Inlet (NPS)

1/4” (6.35 mm)

Air Hose (NPS)

3/8” (10 mm)

Air Pressure

29psi (2kg/cm²) (2Bar)

Net Weight

1.87 lbs (0.85 kg)

Noise and Vibration:

Vibration

Noise

Remark

0.116 m/s²

Sound Pressure Level

: 81.6 dB(A)

Please always

wear ear

protector at

environment

noise level > 80

dB(A) due to

risk of impaired

hearing!

Sound power level

: 92.6 dB(A)

Uncertainty

K= 1.5 m/s²

Uncertainty

K= 3dB

SS-1305HSPS-S-1502A-GW

EC DECLARATION OF CONFORMITY

We: SUMAKE INDUSTRIAL CO., LTD.

4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan

declare in sole responsibility that the equipment

Equipment：PRESSURE AIR SPRAY GUN ONLY (W/O TANK)

Model/ Serial No.：SS-1305HSPS

to which this declaration applies, complies with these normative documents:

Machinery Directive: 2006/42/EC

and conforms to the following EN standard,

EN ISO 12100: 2010

EN 1953:2013

Name and Signature/Position Date and Place

2022/12/1

Mike Su –Managing Director Taipei, Taiwan

SS-1305HSPS-D-2310B-GWF

SS-1305HSPB, SS-1305HSPS

PRESSURE AIR SPRAY GUN ONLY

PARTS LIST

No. Parts No. Description Q'ty No. Parts No. Description Q'ty

1 1305-01 Air Cap 1 1305-13 Air Valve Seat Set 1

1305-02A Fluid Nozzle 1.0 [SS-1305HSPB] 1 1305-13-1 O-Ring 1

1305-02B Fluid Nozzle 1.3 [SS-1305HSPS] 115 1305-15 Fluid Adj. Guie Set 1

1305-02C Fluid Nozzle 1.4 [SS-1305HSPS] 1 1305-16A Fluid Needle 1.0 [SS-1305HSPB] 1

1305-02D Fluid Nozzle 1.5 [SS-1305HSPS] 1 1305-16B Fluid Needle 1.3 [SS-1305HSPS] 1

1305-02E Fluid Nozzle 1.8 [SS-1305HSPS] 1 1305-16C Fluid Needle 1.4 [SS-1305HSPS] 1

1305-02F Fluid Nozzle 2.0 [SS-1305HSPS] 1 1305-16D Fluid Needle 1.5 [SS-1305HSPS] 1

1305-02G Fluid Nozzle 2.5 [SS-1305HSPS] 1 1305-16E Fluid Needle 1.8 [SS-1305HSPS] 1

3A 1305-03A Needle Packing Set 1 1305-16F Fluid Needle 2.0 [SS-1305HSPS] 1

3A-1 1305-03A-1 Spring 1 1305-16G Fluid Needle 2.5 [SS-1305HSPS] 1

4A 1305-04A Needle Packing Seat 1 17 1305-17 Needle Spring 1

5 1305-05 Body Set 1 18 1305-18 Fluid Adj. Knob 1

6 1305-06 Fluid Nipple 1 19 1305-19 Air Inlet Nipple 1

7 1305-07 Pattern Adj. Set 1 20 1305-20 Air Adj. Set 1

8 1305-08 Air Valve Shaft 1 21 1305-21 Trigger 1

9 1305-09 Packing Holder 1 22 1305-22 Gasket 2

10 1305-10 O-Ring 1 23 1305-23 Trigger Stud 1

11 1305-11 Gasket 1 24 1305-24 E-Ring 1

1305-12 Air Valve Seat Set 1 25 1305-25 Spanner 1

1305-12-1 O-Ring 1 26 1305-26 Brush 1

14 1305-14 Air Valve Spring 1

SS-1305HSPB(S)-P-2211A-GW

2

16

12

13
