sumar SM8006 Bedienungsanleitung
For the latest version of this document, please visit us on the web at www.SumarUSA.com

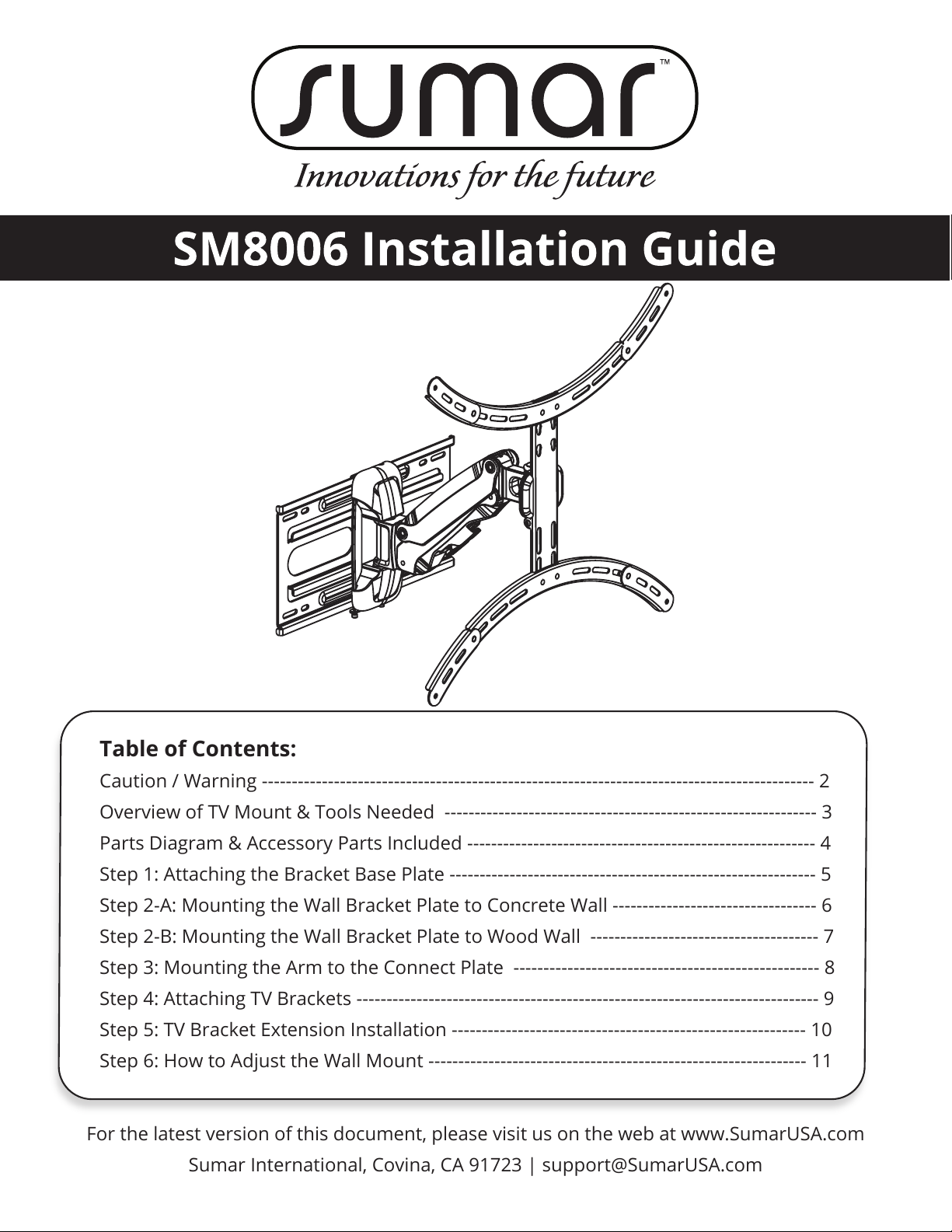

Table of Contents:
Caution / Warning -------------------------------------------------------------------------------------------- 2
Overview of TV Mount & Tools Needed -------------------------------------------------------------- 3
Parts Diagram & Accessory Parts Included ---------------------------------------------------------- 4
Step 1: Attaching the Bracket Base Plate ------------------------------------------------------------- 5
Step 2-A: Mounting the Wall Bracket Plate to Concrete Wall ---------------------------------- 6
Step 2-B: Mounting the Wall Bracket Plate to Wood Wall -------------------------------------- 7
Step 3: Mounting the Arm to the Connect Plate --------------------------------------------------- 8
Step 4: Attaching TV Brackets ----------------------------------------------------------------------------- 9
Step 5: TV Bracket Extension Installation ----------------------------------------------------------- 10
Step 6: How to Adjust the Wall Mount --------------------------------------------------------------- 11
- 2
I would like to see a revised
version of the Caution / Warning
text.
Caution / Warning
Supported Screen Size
Vesa Compatibility
Supported Weight
Tilting Angle
Extension Range
ADDITIONAL TOOLS (Not Included):
- 3
Pencil
# 2 Phillips
Screw Driver
Electric Drill Tape Measure
7/32 (5.5mm)
Wood Drill Bit
3/8 (10mm)
Concrete Drill Bit
Hammer
Stud Finder
Socket Wrench
Overview of Parts & Tools
- 4
18” Wall Bracket Plate
Connection Plate
Plastic Cover
Safety Bolts
PARTS:
* Required for Concrete
A1 A2 A3 A4
A6
B2 B3
B1
C1 C2
*Level
2 pcs4 pcs
4 pcs
4 pcs 4 pcs 2 pcs 1 pc
4 pcs 4 pcs
4 pcs 4 pcs 4 pcs
Safety Bolts
Plastic Covers
M4X12MM M5X12MM M6X12MM M6X16MM
Diagram & Accessory Parts Included

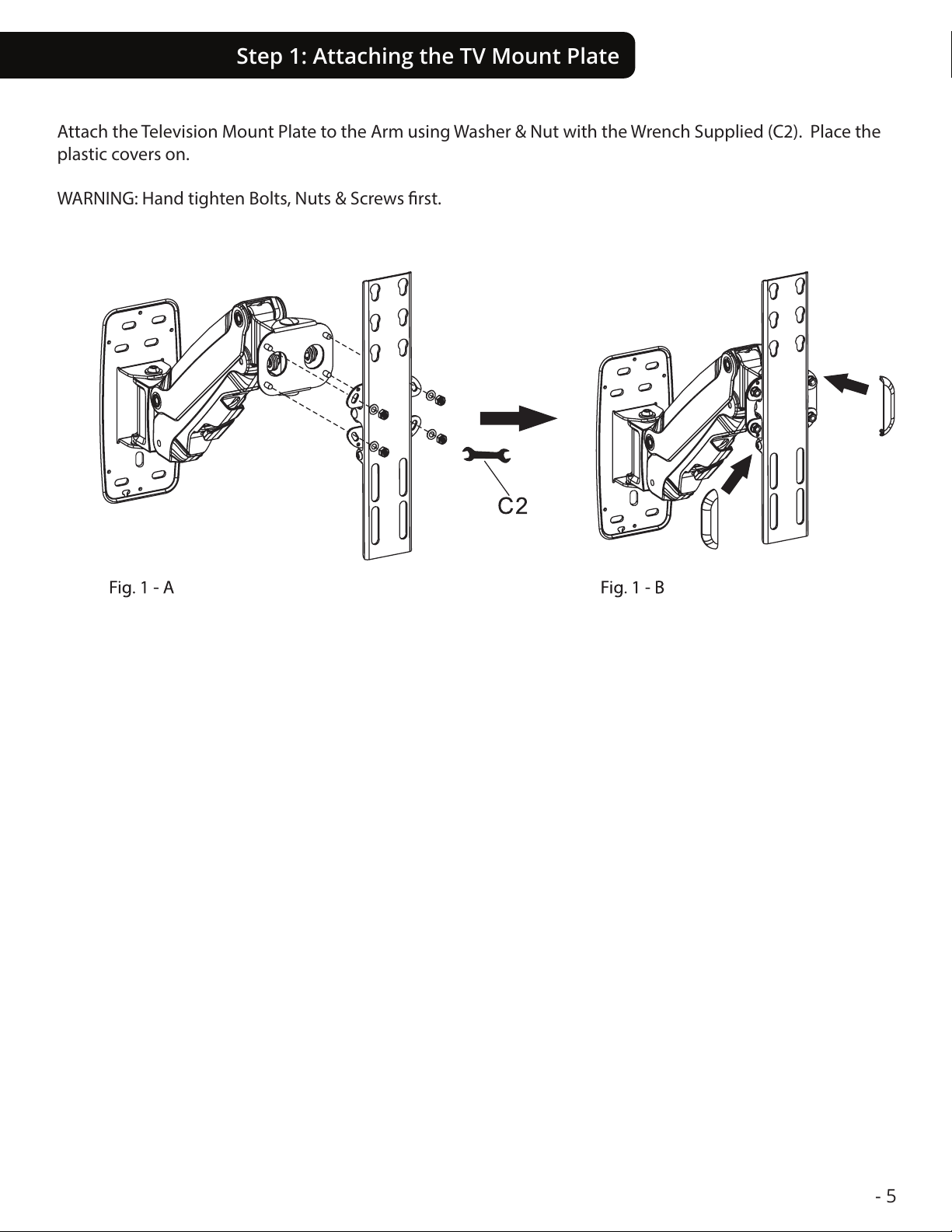

Attach the Television Mount Plate to the Arm using Washer & Nut with the Wrench Supplied (C2). Place the
plastic covers on.
WARNING: Hand tighten Bolts, Nuts & Screws rst.
- 5
Step 1: Attaching the TV Mount Plate

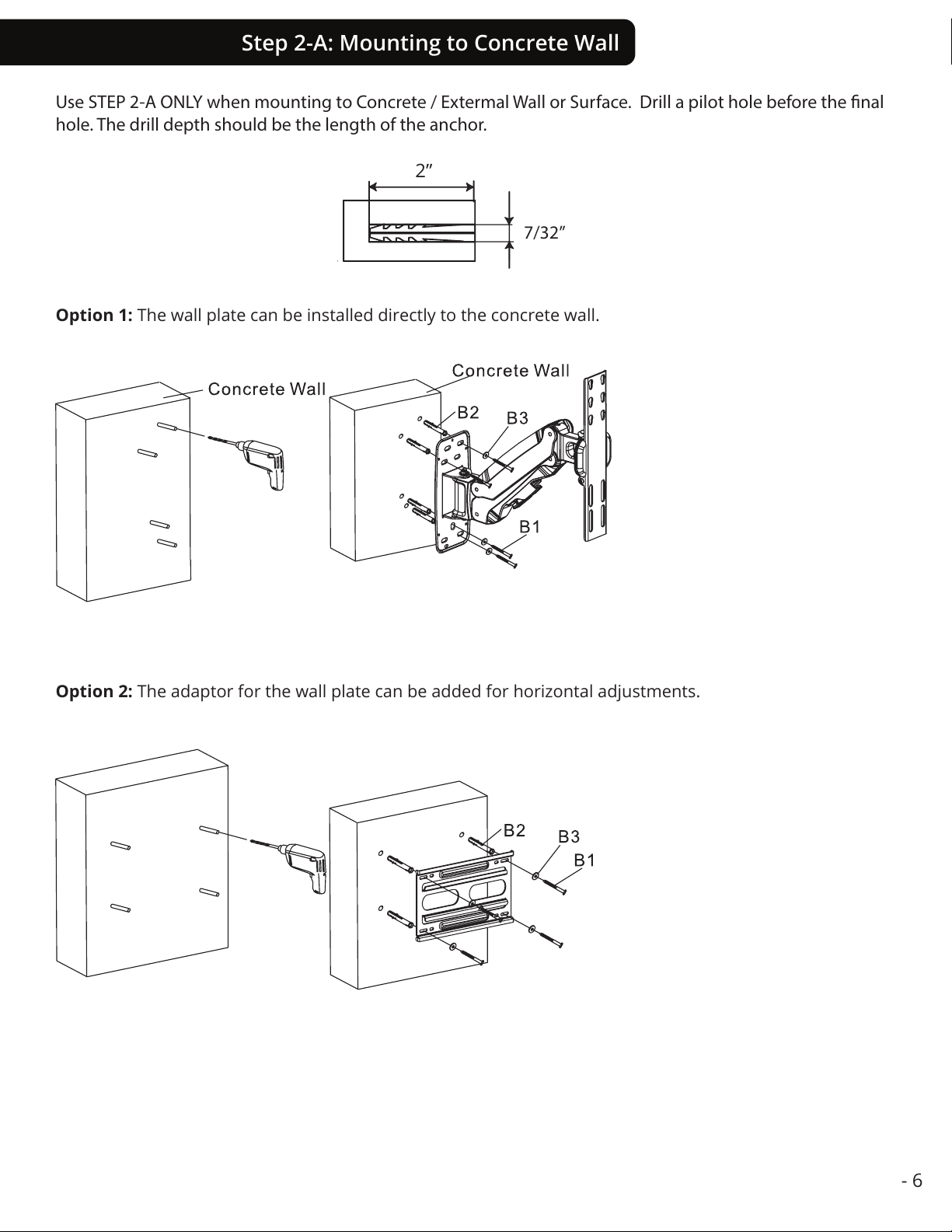

Use STEP 2-A ONLY when mounting to Concrete / Extermal Wall or Surface. Drill a pilot hole before the nal
hole. The drill depth should be the length of the anchor.
2”
7/32”
Option 1: The wall plate can be installed directly to the concrete wall.
Option 2: The adaptor for the wall plate can be added for horizontal adjustments.
- 6
Step 2-A: Mounting to Concrete Wall

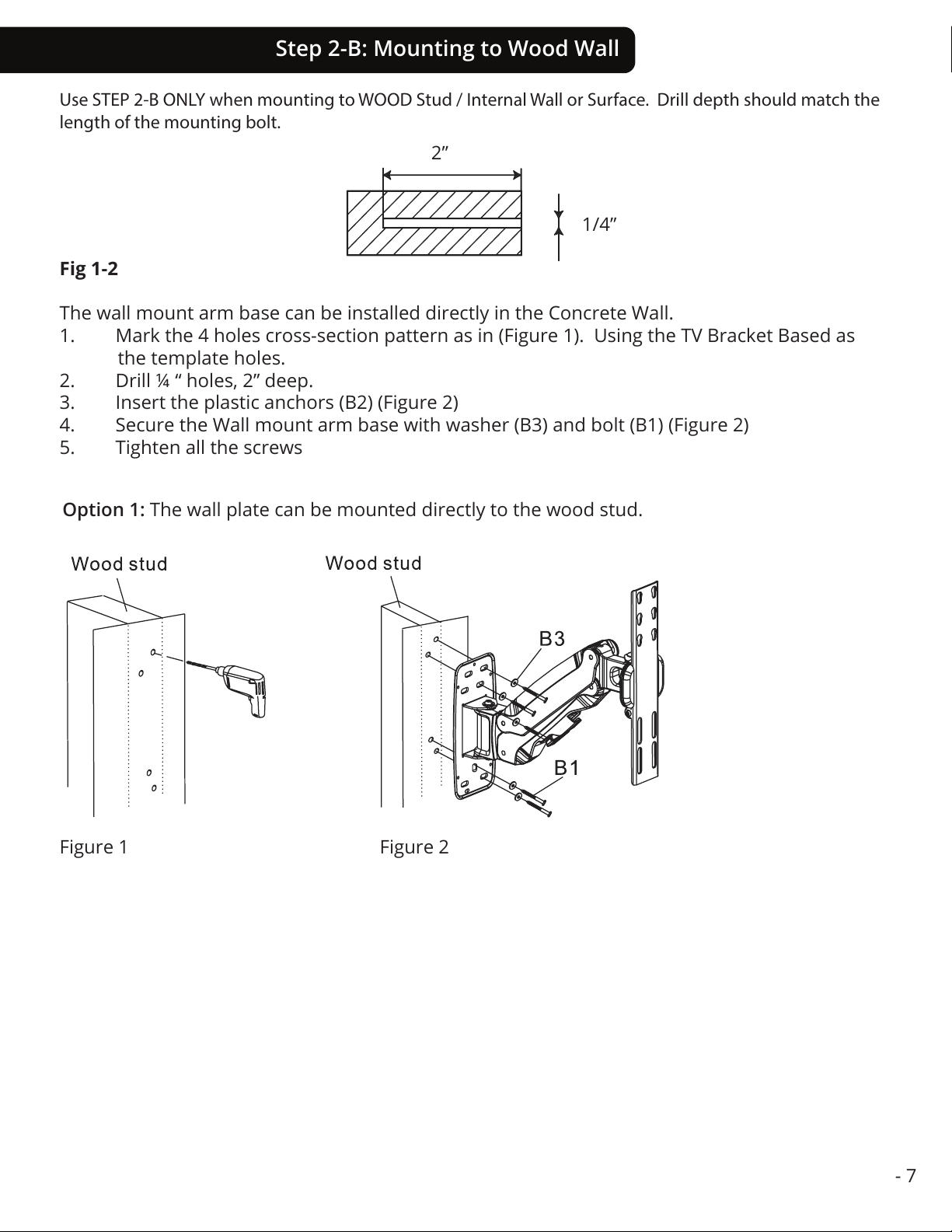

Use STEP 2-B ONLY when mounting to WOOD Stud / Internal Wall or Surface. Drill depth should match the
length of the mounting bolt.
2”
1/4”
Figure 1 Figure 2
Option 1: The wall plate can be mounted directly to the wood stud.
Fig 1-2
The wall mount arm base can be installed directly in the Concrete Wall.
1. Mark the 4 holes cross-section pattern as in (Figure 1). Using the TV Bracket Based as
the template holes.
2. Drill ¼ “ holes, 2” deep.
3. Insert the plastic anchors (B2) (Figure 2)
4. Secure the Wall mount arm base with washer (B3) and bolt (B1) (Figure 2)
5. Tighten all the screws
- 7

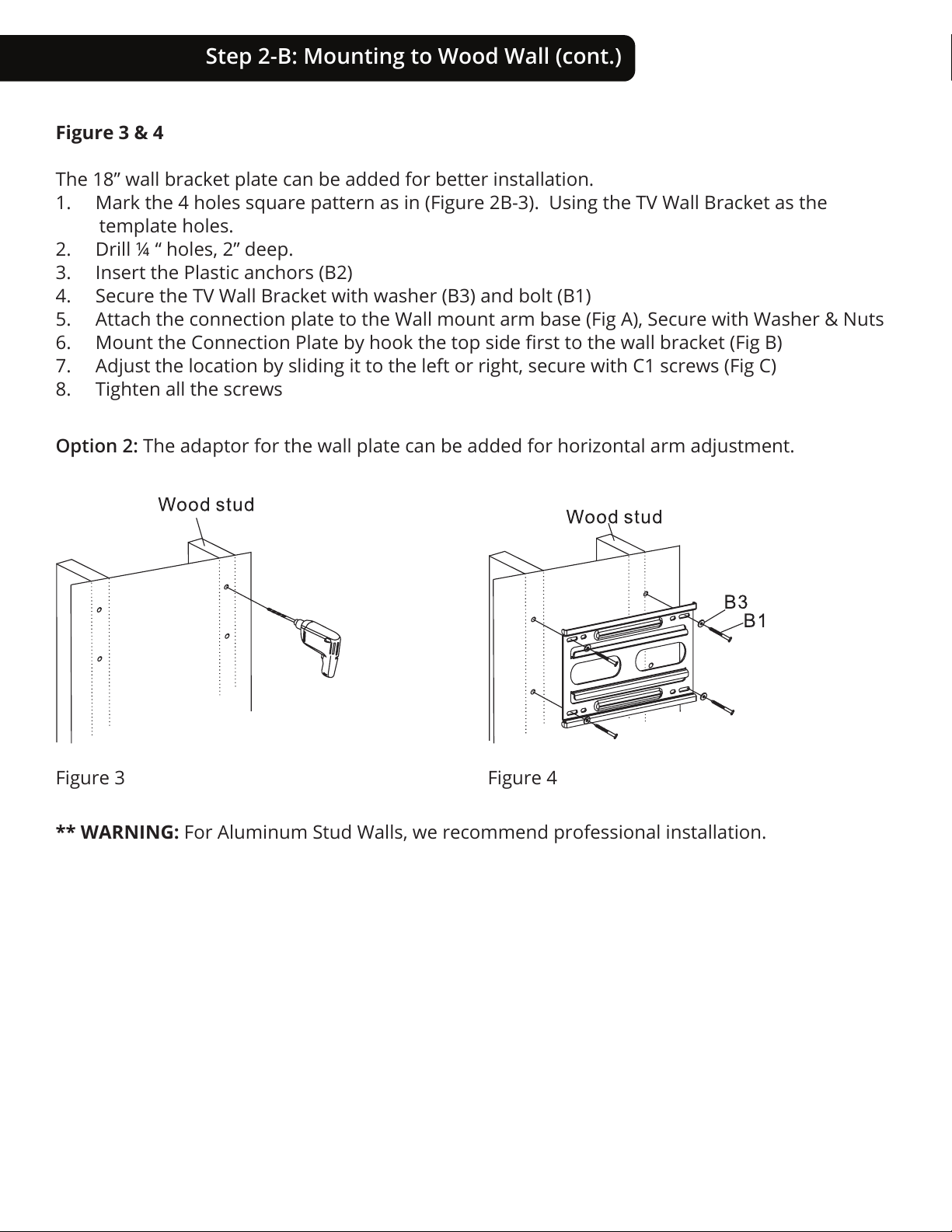

Step 2-B: Mounting to Wood Wall
Figure 3 Figure 4
Option 2: The adaptor for the wall plate can be added for horizontal arm adjustment.
Figure 3 & 4
The 18” wall bracket plate can be added for better installation.
1. Mark the 4 holes square pattern as in (Figure 2B-3). Using the TV Wall Bracket as the
template holes.
2. Drill ¼ “ holes, 2” deep.
3. Insert the Plastic anchors (B2)
4. Secure the TV Wall Bracket with washer (B3) and bolt (B1)
5. Attach the connection plate to the Wall mount arm base (Fig A), Secure with Washer & Nuts
7. Adjust the location by sliding it to the left or right, secure with C1 screws (Fig C)
8. Tighten all the screws
Step 2-B: Mounting to Wood Wall (cont.)
** WARNING: For Aluminum Stud Walls, we recommend professional installation.
The Connect Plate can be adjusted by shifting left and right. To lock the Connect Plate in
position, tighten the two safety bolts.
Mount Arm to Connect Plate using A(x)
Wall Mount Arm Base
Connection Plate
Fig. A Fig. B Fig. C

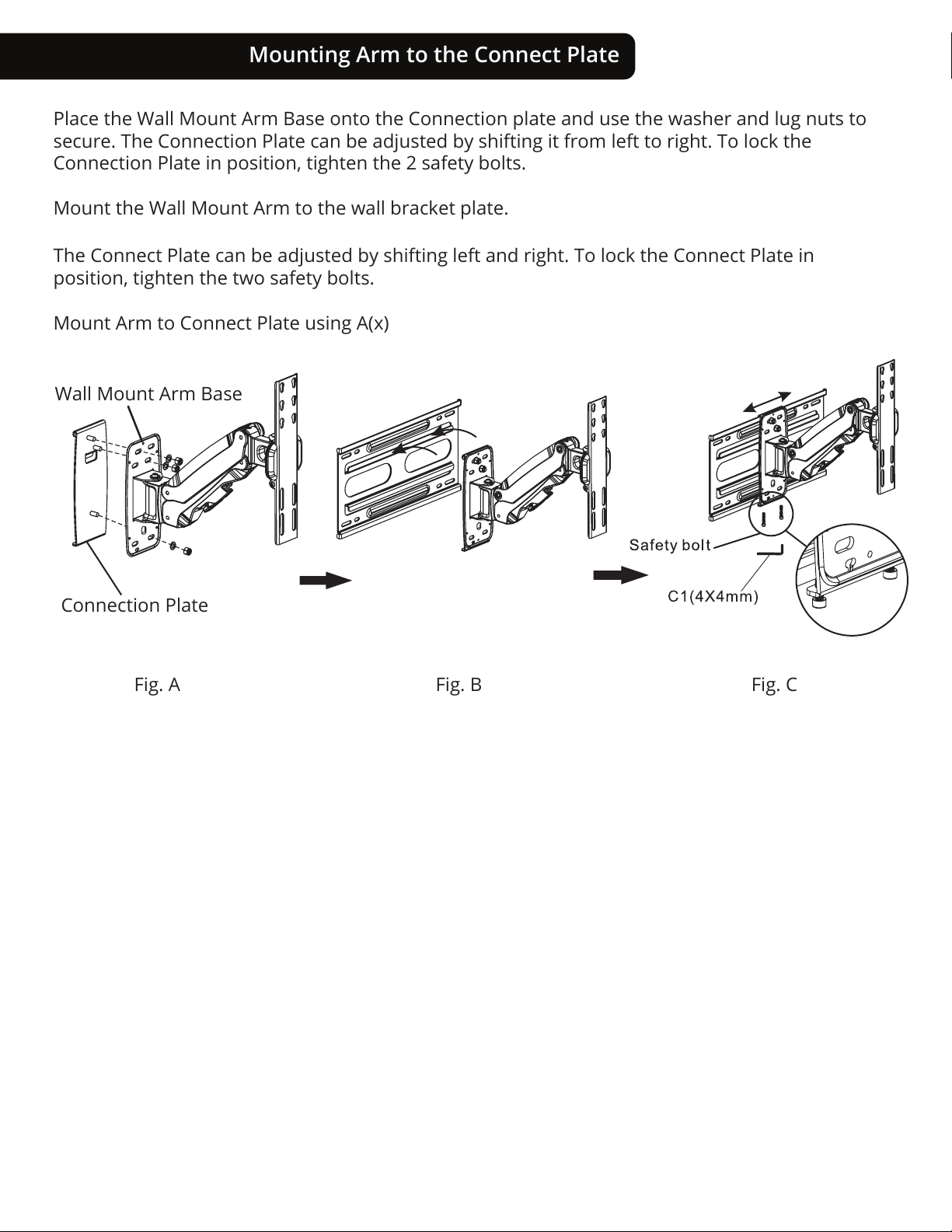

Place the Wall Mount Arm Base onto the Connection plate and use the washer and lug nuts to
secure. The Connection Plate can be adjusted by shifting it from left to right. To lock the
Connection Plate in position, tighten the 2 safety bolts.
Mount the Wall Mount Arm to the wall bracket plate.
Mounting Arm to the Connect Plate

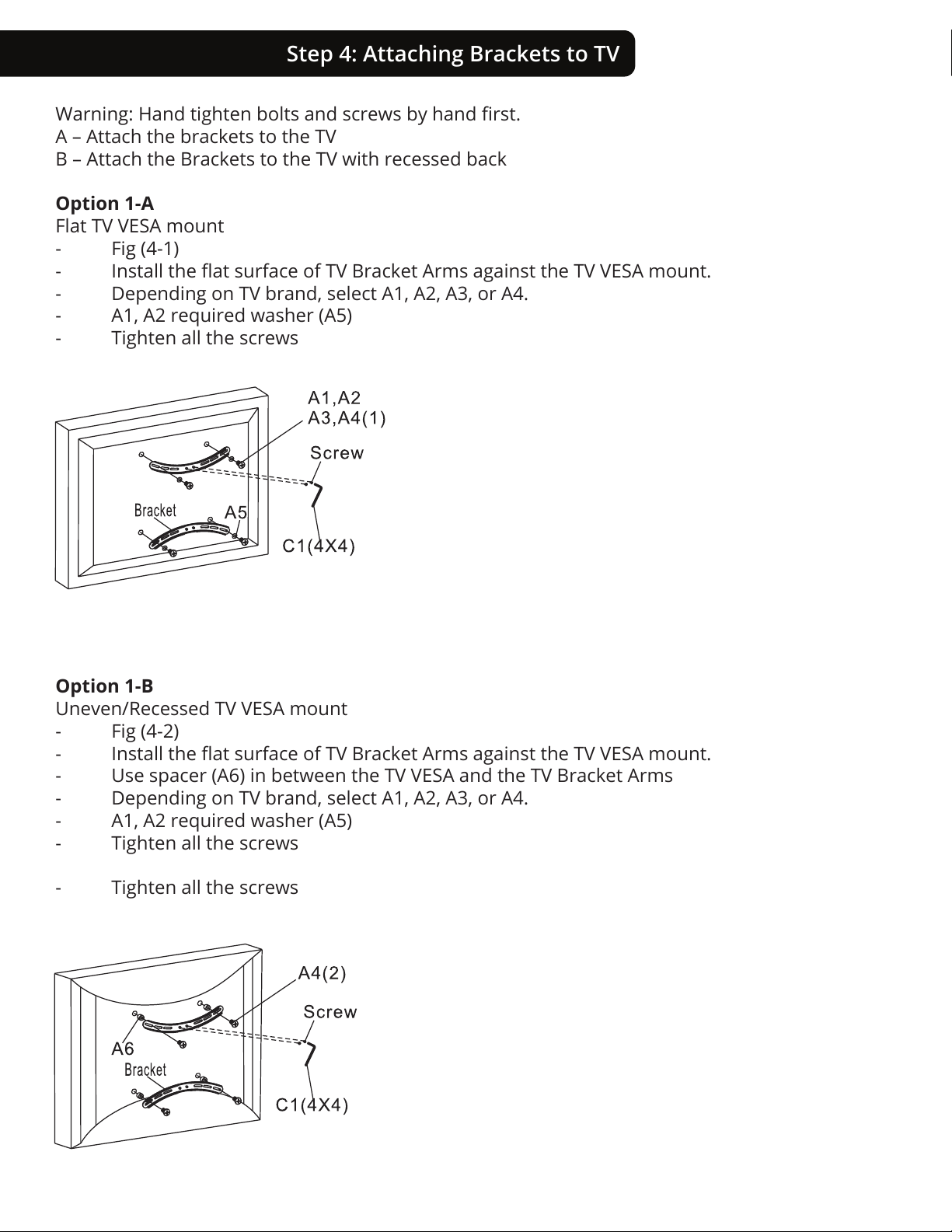

A – Attach the brackets to the TV
B – Attach the Brackets to the TV with recessed back
Option 1-A
Flat TV VESA mount
- Fig (4-1)
- Depending on TV brand, select A1, A2, A3, or A4.
- A1, A2 required washer (A5)
- Tighten all the screws
Option 1-B
Uneven/Recessed TV VESA mount
- Fig (4-2)
- Use spacer (A6) in between the TV VESA and the TV Bracket Arms
- Depending on TV brand, select A1, A2, A3, or A4.
- A1, A2 required washer (A5)
- Tighten all the screws
- Tighten all the screws
Step 4: Attaching Brackets to TV
