Sumitomo Cyclo BBB4 Bedienungsanleitung

5FMt4.$:$-0'BYCyclo® BBB4 Bevel Buddybox®

Right Angle Spiral Bevel Gearbox

with Cyclo® Reducer Input

Operation and

Maintenance

Manual

Manual 13.604.60.001

5FMt4.$:$-0'BY$PSPOB$"5FMt4.$:$-0'BY0BLWJMMF0OUBSJP$BOBEB--,5FMt'BY5FMt'BY#MWE%BOJFM+PIOTPO5FMt'BY5FMt'BY5FMt'BY5FMt'BY"W.BSRVÐTEF4ÍP7JDFOUF$K5FMt'BY5FMt'BY$BMMF.BO[BOB/4JUJP5FMt'BY$BNJOPB$PSPOFM,N.PEVMP"5FMt'BY*OH%FMQJOJ(SBOE#PVSH#VFOPT"JSFT"SHFOUJOB#,(#5FMt'BY5IJOL1BSL5PXFS0TBLJDIPNF5FMt'BY

ration and

Ope

Operation & Maintenance Manual 1

Cyclo® BBB4

Important Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Inspection Upon Delivery . . . . . . . . . . . . . . . . . . . . . . 3

Nameplate Inspection . . . . . . . . . . . . . . . . . . . . . . . . 3

Lubrication Inspection . . . . . . . . . . . . . . . . . . . . . . . . 3

Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Storing and Transporting . . . . . . . . . . . . . . . . . . . . . . 6

Storage Location . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Storage Period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operation After Storage . . . . . . . . . . . . . . . . . . . . . . . 6

Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation Precautions. . . . . . . . . . . . . . . . . . . . . . . . 7

Installation Location. . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Severe Loading Conditions . . . . . . . . . . . . . . . . . . . . . 7

Installation onto the Driven Machine . . . . . . . . . . . . . . . 7

Installation onto Driven Shaft . . . . . . . . . . . . . . . . . . . 8

Taper-Grip® Bushing. . . . . . . . . . . . . . . . . . . . . . . . . . 8

Keyed Hollow Bore. . . . . . . . . . . . . . . . . . . . . . . . . . 12

Shrink Disc Type Hollow Bore . . . . . . . . . . . . . . . . . . . 14

Torque Arm Installation . . . . . . . . . . . . . . . . . . . . . . 16

Torque Arm Introduction . . . . . . . . . . . . . . . . . . . . . . 16

Flange Mount (Banjo) Type Torque Arm. . . . . . . . . . . . . 16

T-Type Torque Arm . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Removal from Driven Shaft . . . . . . . . . . . . . . . . . . . . 20

Cyclo® BBB4 with Taper-Grip® Bushing . . . . . . . . . . . . . 20

Cyclo® BBB4 with Keyed Hollow Bore . . . . . . . . . . . . . . 21

Cyclo® BBB4 with Shrink Disc . . . . . . . . . . . . . . . . . . . 22

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Lubrication Introduction . . . . . . . . . . . . . . . . . . . . . . 23

Lubrication Nomenclature . . . . . . . . . . . . . . . . . . . . . 23

Lubrication Method . . . . . . . . . . . . . . . . . . . . . . . . . 24

Bevel Gear Portion and Cyclo® Portion Recommended Oils . 25

Cyclo® Portion Recommended Greases . . . . . . . . . . . . . 25

Oil Quantities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Oil Supply Procedure . . . . . . . . . . . . . . . . . . . . . . . . 27

Oil Discharge Procedure . . . . . . . . . . . . . . . . . . . . . . 27

Grease Quantities . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Grease Replenishment and Draining Procedures . . . . . . . 29

Grease Replacement . . . . . . . . . . . . . . . . . . . . . . . . 29

Motor Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Measuring Insulation Resistance . . . . . . . . . . . . . . . . . 30

Motor Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Motor Wiring Method . . . . . . . . . . . . . . . . . . . . . . . . 31

Brake Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Varistor Selection . . . . . . . . . . . . . . . . . . . . . . . . . . 32

U.S. Standard and CSA Approved Motor Brake Wiring . . . . 33

Table of Contents

Models CMB-20 Brakes . . . . . . . . . . . . . . . . . . . . . . . 34

CE Motor Brake Wiring . . . . . . . . . . . . . . . . . . . . . . . 35

CE Motors Models FB-01A through FB-15B with Inverter . . 36

Brake Rectiﬁers and Power Modules . . . . . . . . . . . . . . . 37

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Cyclo® BBB4 Reducer Parts . . . . . . . . . . . . . . . . . . . . . 38

Cyclo® Planetary Reduction Component Parts

(Cyclo® Ratios 11 – 18:1). . . . . . . . . . . . . . . . . . . . 39

Cyclo® Reduction Component Parts

(Cyclo® Ratios ≥ 19:1) . . . . . . . . . . . . . . . . . . . . . 40

Bearings and Oil Seals. . . . . . . . . . . . . . . . . . . . . . . . 42

Bevel Gearing Parts and Tooth Count . . . . . . . . . . . . . . 43

Cyclo® BBB4 Screw Conveyor Options. . . . . . . . . . . . . . 44

Screw Conveyor Components . . . . . . . . . . . . . . . . . . . 44

Screw Conveyor Assembly Instructions . . . . . . . . . . . . . 44

Cyclo® Portion Disassembly/Assembly . . . . . . . . . . . . . 47

Cyclo® Portion - General Disassembly . . . . . . . . . . . . . . 47

Cyclo® Portion - General Reassembly . . . . . . . . . . . . . . 51

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Cyclo® BBB4

2Operation & Maintenance Manual Cyclo® BBB4

Important Notes

Safety Symbols

These safety symbols appear throughout this manual to indicate

important warnings:

DANGER: Incorrect handling of the unit and/or

failure to follow the instructions may cause physical

damage, serious personal injury, and/or death.

CAUTION: Incorrect handling of the unit and/or

failure to follow the instructions may cause physical

damage and/or personal injury.

Safety Precautions

Review and adhere to the instructions in this manual to ensure:

tUSPVCMFGSFF$ZDMP¥###PQFSBUJPOtZPVSSJHIUTUPNBLFBXBSSBOUZDMBJNRead this manual and all accompanying documents thoroughly

before use. Understand the machine, information on safety, and

all precautions for correct operation. Sumitomo recommends

that this manual is easily accessible for reference at the machine

location. tOnly properly trained personnel should

transport, install, align, wire, inspect, operate, and

maintain the unit.

t8IFOUIFVOJUJTUPCFVTFEJOBTZTUFNGPStransport of human beings, a secondary safety

device should be installed to guard against

accidents that may result in injury, death, or

damage to the system.

t8IFOUIFVOJUJTUPCFVTFEGPSBOFMFWBUPSJOTUBMMBsafety device on the elevator side to prevent it from

falling; otherwise, serious injury, death, or damage

to the elevator may result.

CAUTION:

t0QFSBUFUIFVOJUPOMZXJUIJOJUTEFTJHOBOEperformance speciﬁcations; otherwise, injury or

damage to the system may occur.

t,FFQIBOETBOEBMMGPSFJHOPCKFDUTGSPNUIFinternal moving parts of the unit; otherwise, injury

or damage to the system may occur.

t5BLFEBNBHFEVOJUTPõMJOFJNNFEJBUFMZBOEEPnot resume operation until properly repaired.

t.PEJmDBUJPOTPSBMUFSBUJPOTPGBOZLJOEUPUIFVOJUwill void the warranty and all subsequent claims.

t%POPUSFNPWFUIFSBUJOHQMBUFDisposal

Please refer to local, state, and federal regulations governing

disposal of:

Steel Scrap:

t)PVTJOH%VDUJMFBOE(SBZ$BTU*SPOt(FBSTt4IBGUTt#FBSJOHTLubricants:

t(FBS0JMt(SFBTF

Operation & Maintenance Manual 3

Cyclo® BBB4

Delivery

Inspection Upon Delivery

t*OPSEFSUPBWPJEJOKVSZensure that the unit is in

a stable position before unpacking.

tVerify that the unit received matches your

order. Using the incorrect product may cause

equipment damage or personal injury.

tDo not remove the nameplate from the unit.

Upon delivery, inspect the unit for damage that may have

occurred during shipment. Notify the shipping company

immediately if you ﬁnd any damage. Do not install or operate a

damaged unit.

Upon receipt of the reducer/gearmotor, verify that:

tUIFNPEFMOVNCFSPOUIFVOJUOBNFQMBUFNBUDIFTUIFpurchase order

tUIFVOJUXBTOPUEBNBHFEEVSJOHTIJQQJOHtBMMCPMUTBOEOVUTBSFGVMMZUJHIUFOFEPlease consult your Sumitomo agent, distributor, or sales oﬃce if

you ﬁnd any defects or if you have any questions.

Nameplate Inspection

When contacting Sumitomo about this product, please be

prepared to provide the following information from the reducer/

gearmotor nameplate:

tSFEVDFSPSHFBSNPUPSNPEFMOVNCFSOPNFODMBUVSFtSFEVDUJPOSBUJPtTFSJBMOVNCFSLubrication Inspection

tOil lubricated units are shipped without oil,

unless the customer speciﬁed otherwise when

the unit was ordered. Always ﬁll the unit with

the correct type and quantity of lubricant prior to

operation.

tCertain models must be ﬁlled with lubricant in

two separate locations, the Bevel Gear portion

(output) and the input portion.

Refer to the lubrication section in this manual for detailed

lubrication information.

Nominal

Reduction

Ratio

Unit Model

Number

Unit Serial

Number

TESA Nameplate

Nominal

Reduction

Ratio

Unit Serial

Number

Unit Model

Number

Metal Nameplate

Cyclo® BBB4

Type Preﬁx

Unit built with special mods S

Shrink Disc S

No special mods applied

Cyclo® BBB4

4Operation & Maintenance Manual4Operation & Maintenance Manual

Type of Input Reducer

Preﬁx

Gearmotor

Preﬁx

Gearmotor M

Free Input Shaft

w/ Input Adaptor J JM

w/Quill Adaptor X XM

Nomenclature

Motor Power

(applies only to

1750 RPM)

Modiﬁcation

Output Shaft Orientation

Frame Size

Shaft Speciﬁcations

AGMA Class

#SBLF(FBSNPUPS0OMZInput Connection

Mounting Style

Modiﬁcation (Special feature) Mounting position and optional speciﬁcation (as required)

Input connection Gearmotor or Reducer Speciﬁcation

Mounting style AGMA class (Gearmotor only)

Output shaft orientation Shaft speciﬁcation

Cyclo® BBB4 product code (always“L”)

Motor Power

Symbol (1750 RPM)

Frame Size Brake Ratio

HP (kW) Symbol

1/8 (0.1) 01

1/4 (0.2) 02

1/3 (0.25) 03

1/2 (0.4) 05

3/4 (0.55) 08

1(0.75) 1

1.5 (1.1) 1H

2(1.5) 2

3(2.2) 3

5(3.7) 5

7.5 (5.5) 8

10 (7.5) 10

15 (11) 15

20 (15) 20

25 (18.5) 25

30 (22) 30

40 (30) 40

50 (37) 50

60 (45) 60

75 (55) 75

Single Reduction

4A100 4B125 4C170 4E175

4A105 4B140 4C175 4E180

4A110 4B145 4D160 4E185

4A115 4B160 4D165 4E190

4A120 4B165 4D170 4E195

4A125 4C140 4D175 4F180

4A140 4C145 4D180 4F185

4A145 4C160 4D185 4F190

4B120 4C165 4E170 4F195

Double Reduction

4A10DA 4B16DA 4C17DC 4E17DC

4A12DA 4B16DB 4D16DA 4E18DA

4A12DB 4B16DC 4D16DB 4E18DB

4A14DA 4C14DA 4D16DC 4E19DA

4A14DB 4C14DB 4D17DA 4E19DB

4A14DC 4C14DC 4D17DB 4F18DA

4B12DA 4C16DA 4D17DC 4F18DB

4B12DB 4C16DB 4D18DA 4F19DA

4B14DA 4C16DC 4D18DB 4F19DB

4B14DB 4C17DA 4E17DA

4B14DC 4C17DB 4E17DB

Type Preﬁx

Horizontal H

Vertical V

Vertical Up (Solid Shaft) W

Type Preﬁx

Shaft Mount (Hollow Shaft) Y

Housing U

Flange (Solid Shaft) F

Foot (Solid Shaft) H

Input

Shaft

Hollow Output

Shaft Suﬃx

mm Key (mm)

Inch Key (Inch) K

mm Taper-Grip® M

Inch Taper-Grip® Y

Class Suﬃx

I A

II B

III C

Suﬃx

With Brake B

No Brake

LHYMS 5 - 4 A 1 2 5 YY1 - B - 28

Output shaft direction (shafted model only)

Our nomenclature details speciﬁc information about our proucts. Verify that the nomenclature of the unit delivered matches your order.

Operation & Maintenance Manual 5

Cyclo® BBB4

Nomenclature, continued

Gearmotor Speciﬁcation Reducer Speciﬁcation

Mounting Positions

Nomenclature Example:

LHYMS-5-4A125-YBY1-B-28

L- Cyclo® Bevel Buddybox

H- Horizontal

Y- Shaft Mount (Hollow Shaft)

M- Gearmotor

S- Special Modiﬁcations

5 - 5 HP (3.7kW), 1750 RPM

4A125 - Frame Size

Y- Inch Shaft Speciﬁcation

B- AGMA Class

Y1 - Mounting Position

B- Brake (gearmotor only)

28 - Ratio

Speciﬁcation Suﬃx

Three-Phase Motor

Single-Phase Motor SG

AF Motor (Adj. Frequency) AV

Servo Motor SV

DC Motor DV

Torque Limiter TL

Type Suﬃx

Standard

Baseplate BP

Shovel Base SB

DC Motor DV

Nominal and Exact Ratio

Projects to Left Side L

Projects to Right Side R

Projects to Both Left/Right Sides T

Output Shaft DirectionTIBGUFENPEFMPOMZY4

Y2 Y3

BBB with Planetary Input

Nominal Ratio Frame

Size

Exact

Ratio

Input Overall

3 11

4A10 10.50

4A12

4A14 10.89

4B14

4B16

10.85

4C16

4D16

4D17

4E17

4E18 10.50

4F18

4E19 10.82

4F19

4A10 12.99

4A12 12.80

4A14 12.95

4B14

4B16

12.804C16

4D16

4D17

13.09

4E17

4E18

4F18

4E19 13.01

4F19

4A10 14.21

4A12 14.00

4A14 14.16

4B14

4B16

14.004C16

4D16

4D17

14.32

4E17

4E18

4F18

4E19 14.23

4F19

4A10 15.36

4A12 15.65

4A14 16.00

4B14

4B16

16.264C16

4D16

4D17 16.17

4E17

4E18 15.63

4F18

4E19 15.47

4F19

4A10 16.80

4A12 17.12

4A14 17.50

4B14

4B16

17.784C16

4D16

4D17 17.68

4E17

4E18 17.10

4F18

4E19 16.92

4F19

BBB with Cyclo Input

Single Reduction

Nominal Ratio Frame

Size

Exact

Ratio

Input Overall

6 21

All

21.0

722 22.4

25 24.5

8 28 28.0

11 35 35.2

39 38.5

13 46 45.5

15 53 52.5

17 60 59.5

21 67 67.2

74 73.5

25 80 80.0

88 87.5

29 102 101.5

35 112 112.0

123 122.5

43 151 150.5

51 179 178.5

59 207 206.5

71 249 248.5

87 305 304.5

119 417 4A10 416.5

Double Reduction

Nominal Ratio Frame

Size

Exact

Ratio

Input Overall

104 364

All

364.0

121 424 423.5

143 501 500.5

165 578 577.5

195 683 682.5

231 809 808.5

273 956 955.5

319 1117 1116.5

377 1320 1319.5

473 1656 1655.5

559 1957 1956.5

649 2272 2271.5

731 2559 2558.5

841 2944 2943.5

1003 3511 3510.5

1247 4365 4364.5

1479 5177 5176.5

1849 6472 6471.5

2065 7228 7227.5

2537 8880 8879.5

3045 10658 10657.5

3481 12184 12183.5

4437 15530 15529.5

5133 17966 17965.5

6177 21620 21619.5

7569 26492 26491.5

Cyclo® BBB4

6Operation & Maintenance Manual Cyclo® BBB4

Storing and Transporting

Storage Location

t4UPSFUIFVOJUJOBDMFBOESZBSFBtDo not store outdoors or in an area with high humidity, dust,

sudden temperature changes, or corrosive gases.

Generally, the Cyclo® BBB4 gearbox is to be stored indoors, in an

ordinary factory or a warehouse. The unit should be sealed,

wrapped in plastic and additionally packed with desiccant.

Desiccant should be replaced periodically to keep the inside

of the box dry. Use of color changing desiccant will aid in

identifying when desiccant should be changed.

Storage Period

tDo not store the unit for longer than 3 months without

following long-term storage procedures recommended by

Sumitomo.

t$POTVMU4VNJUPNPXIFOTUPSJOHUIFVOJUGPSNPSFUIBOmonths. Rust prooﬁng procedures are required.

t$POTVMU4VNJUPNPXIFOFYQPSUJOHUIFVOJU3VTUQSPPmOHprocedures may be required.

If the Cyclo® BBB4 gearbox will be inactive for a long period of

time, long-term storage preparation is required to prevent rust

or other degradation to the gearbox.

LONG-TERM STORAGE SPECIFIED WITH ORDER:

If long-term storage is speciﬁed at the time of order entry, Shell

VSI Circulating Oil #32 or NP-20 [JIS] equivalent rust preventative

is already sprayed into the Cyclo® BBB4 reducer and the air vent is

replaced with a sealing plug before shipping the reducer from

Sumitomo factory. External machined surfaces are coated with a

suitable NP-19 [JIS] petroleum base corrosion preventative such

as Black Bear Par-Al-Ketone, Houghton Rust Veto 342, Daphne

Ever Coat No.1 or equivalent.

Consult Sumitomo for Long Term Storage procedures:

t4UPSBHFXJUIPVUGBDUPSZQSFQBSBUJPOTt0OHPJOHNBJOUFOBODFEVSJOHTUPSBHFQFSJPEOperation After Storage

Before operating the unit after an extended storage period, ﬂush

unit of rust preventative and ensure that non-metal parts, i.e., oil

seals, o-rings, air breather, have not deteriorated. Non-metal parts

may deteriorate easily from exposure to ambient conditions (i.e.,

extreme temperatures, UV rays). Replace deteriorated parts with

new before unit start-up.

After starting the unit, verify that there is no abnormal noise,

vibration, and/or temperature rise. Immediately stop the unit and

call your local distributor, Original Equipment Manufacturer or

Sumitomo directly if you observe any abnormality.

Transporting

tDo not stand directly under a unit suspended by a

lifting mechanism. Injury or death may occur if the

unit is dropped.

tBefore lifting the unit, determine its weight (refer

to catalog, packing list, etc.) and ensure that the

moving equipment will support the unit’s weight.

tNever hoist or move a unit that exceeds the

moving equipment’s rated capacity or else

personal injury and/or equipment damage may

occur.

tDo not allow the unit to drop or fall while moving.

Always use the eye bolts attached to the gear

housing (and on motor if supplied) when moving

the unit. After securing the unit to the machine,

remove the moving hooks/straps from the

eyebolts.

Operation & Maintenance Manual 7

Cyclo® BBB4

Installation Notes

Installation Precautions

t%POPUVTFUIFSFEVDFSHFBSNPUPSGPSTQFDJmDBUJPOTother than those shown on the nameplate or in the

manufacturing speciﬁcation documents. Personal

injury and/or equipment damage may occur.

t%POPUQMBDFDPNCVTUJCMFNBUFSJBMPOPSBSPVOEthe unit; ﬁre may occur.

t%POPUQMBDFBOZPCKFDUTBSPVOEUIFVOJUUIBUXJMMprohibit proper ventilation. Inadequate ventilation

may lead to high unit temperature and/or ﬁre.

t%POPUTUFQPOPSIBOHGSPNUIFVOJU&YDFTTJWFweight may cause component breakage leading to

personal injury and/or equipment damage.

t%POPUUPVDIUIFTIBGULFZXBZPSNPUPSGBOXJUIbare hands; injury may occur.

t'PSBQQMJDBUJPOTJOXIJDIMVCSJDBOUMFBLTDPVMEBEWFSTFMZBõFDUPQFSBUJPOTJFQBDLBHFIBOEMJOHfood processing), place an oil pan below the unit to

protect against contamination that may occur if oil

seals become damaged or worn.

t%POPUSFNPWFUIFFZFCPMUGSPNUIFNPUPS4IPVMEthe eye-bolt need to be removed for any reason,

install a replacement bolt in the tapped hole to

prevent water from entering the motor.

Installation Location

Ambient Temperature Range: 14° - 104°F (-10° - 40°C)

Ambient Humidity: 85% or less

Ambient Conditions: 14°F minimum

Altitude: 3,280 feet (1,000 m) or less

Atmosphere: The location should not contain corrosive gas,

explosive gas, or steam. The location should be free

of dust and well ventilated.

Location: Indoor – free of dust and water

Consult Sumitomo when the unit will operate in conditions other

than those speciﬁed above. Special unit modiﬁcations may be

required.

Units manufactured according to customer speciﬁed application

requirements (i.e. outdoor modiﬁcations, high-temperature

modiﬁcations) are designed to operate within the speciﬁed

environment.

Install the unit so inspection and/or maintenance procedures may

be easily performed. Install all units that are not shaft mounted

on a suﬃciently rigid base.

Torque arm clearance with machine structure is required to allow

for machine shaft run out. Refer to the Torque Arm Installation

section in this manual for additional information.

Installation Angle

Mount the unit in the speciﬁed position for which it was

ordered. Conﬁrm the mounting position from the gearbox

nameplate.

Consult your local distributor, Original Equipment Manufacturer

or Sumitomo directly if the mounting angle is to be other than

horizontal or vertical.

Severe Loading Conditions

For applications with severe vibration and/or frequent starts and

stops, Sumitomo recommends the use of high-strength mounting

bolts of Grade 8.8 (or greater).

Installation onto the Driven Machine

t#FGPSFDPVQMJOHUIFSFEVDFSHFBSNPUPSUPUIF

machine, verify the appropriate/desired rotation of

UIFNBDIJOF%JõFSFODFTJOUIFSPUBUJPOBMEJSFDUJPOmay cause personal injury and/or equipment dam-

age.

t#FGPSFPQFSBUJOHUIFVOJUFOTVSFUIBUBMMTBGFUZguards around the rotating components are

in-place and secure. Failure to do so may result in

personal injury.

t8IFOKPJOJOHUIFSFEVDFSPSHFBSNPUPSUPUIFMPBEensure that the center alignment, belt tension, and/

or parallelism of the coupling device are within the

coupling manufacturer’s established recommendations.

For applications with a belt, ensure that the belt is

properly tensioned to the manufacturer’s speciﬁcation,

and the bolts securing the pulley and couplings

are suﬃciently tightened. Failure to follow these

precautions may result in personal injury and/or

equipment damage.

8Operation & Maintenance Manual

Cyclo® BBB4

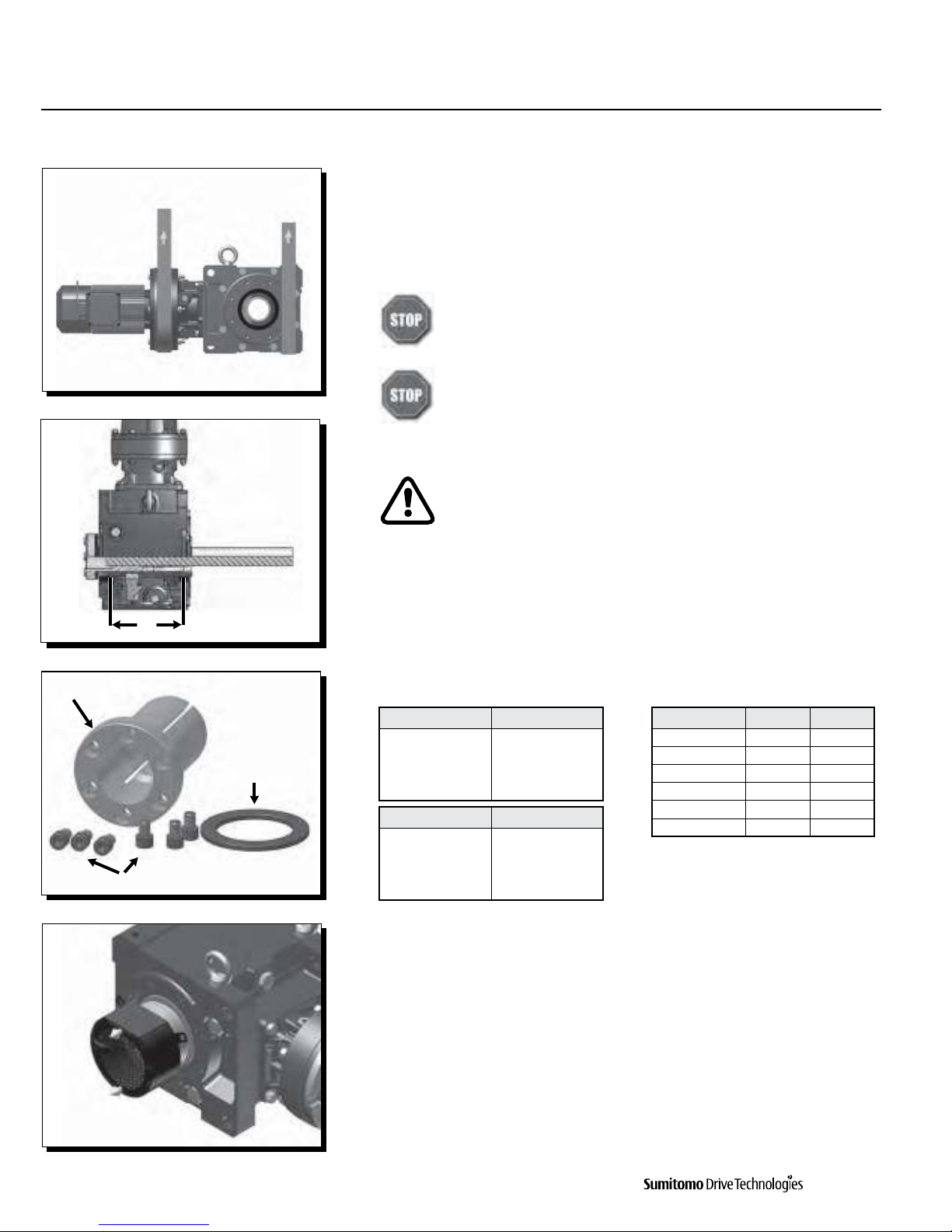

Installation onto Driven Shaft

Taper-Grip® Bushing

Taper-Grip® Bushing Introduction

The keylessTaper-Grip® bushing system provides a simple and reliable shaft attachment

for Sumitomo speed reducers and gearmotors. This system allows bi-directional shaft

rotation operation with a powerful, slip-free grip.To assure peak performance of your

equipment, please read, understand and follow these installation instructions.

Prior to installation of the Cyclo® BBB4 onto the driven shaft, ensure that

the shaft length meets or exceeds the minimum shaft engagement value

“TT” detailed in Table 1.

Do not operate unit until the torque arm has been attached to the unit

and ﬁxed to a rigid structure. The torque arm prevents counter-rotation

during unit operation. Refer to torque arm installation section in this

manual for instructions.

CAUTION: The Cyclo® BBB4 must be externally supported prior to

insertion of driven shaft into bushing. External support MUST be

maintained until all bushing socket head cap screws have been

tightened to the appropriate operational torque.

Components of Taper-Grip® Bushing

As shown in the ﬁgure on the left, the Taper-Grip® bushing includes the bushing,

thrust collar, and socket head cap screws.

Table 1. Driven Shaft Tolerance [1] and Minimum Shaft Engagement

Taper-Grip® Bushing Installation onto Driven

Shaft

Remove bushing cover if unit was supplied with one.

Taper-Grip® Bushing

Socket Head Cap Screws

Thrust Collar

TT 4IBGU%JBNFUFSJO5PMFSBODFJO1-3/16 – 1-15/16 +0 / -0.0015

2 – 3-1/8 +0 / -0.0018

3-3/16 – 4-11/16 +0 / -0.0021

4-3/4 – 6-1/2 +0 / -0.0025

Cyclo® BBB4 Size 55JOTT (mm)

4A 7.79 (198)

4B 9.33 (237)

4C 10.16 (258)

4D 11.82 (300)

4E 13.94 (354)

4F 16.22 (412)

Shaft Diameter (mmTolerance (μm)

(30 - 50) (+0 / -39)

(50 - 80) (+0 / -46)

(80 - 120) (+0 / -54)

(120 - 180) (+0 / -63)

Note: [1] Based on ISO/JIS/DIN h8

Cyclo® BBB4

Operation & Maintenance Manual 9

Cyclo® BBB4

Installation onto Driven Shaft, continued

Taper-Grip® Bushing

Clean Driven

Shaft

Loosen socket head cap screws.

Remove (unscrew) Taper-Grip® bushing from the unit.

Clean all grease, oil and/or anti-seize grease from the driven shaft. Failure to do so

could result in damage to shaft.

Slide Taper-Grip® bushing onto driven shaft.

Inspect and test Taper-Grip® bushing on shaft.

t$IFDLTIBGUGPSburrs, corrosion, or warpage. Repair or replace shaft

as necessary.

t4MJEFCVTIJOHCBDLBOEGPSUIBMPOHTIBGUDIFDLJOHGPSTVSGBDFJSSFHVMBSJUJFT

and ﬁt.

t7FSJGZCVTIJOHJTTJ[FEDPSSFDUMZGPSUIFTIBGUEJBNFUFS
