Write the Model and Serial Numbers here:

Écrivez les numéros de modèle et de série ici:

Mod. #: _________________________

Ser. #: __________________________

HOUSEHOLD REFRIGERATOR-FREEZERS

and ALL-REFRIGERATORS

CONGELATEURS / REFRIGERATEURS

MENAGERS et TOUT- REFRIGERATEURS

Models / Modèles

CM411L

Instruction Manual / Mode d’emploi

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS

AVANT UTILISATION, VEUILLEZ LIRE ET SUIVRE TOUTES LES RÈGLES DE SÉCURITÉ ET LES

INSTRUCTIONS D'UTILISATION

BRF65S ADA65S

BAR63S ADA63S

BAR61W ADA61W

AR5S AR5SIF

IMPORTANT SAFEGUARDS

Your safety and the safety of others are very important.

Before the appliance is used, it must be properly positioned and installed

as described in this manual, so read the manual carefully. To reduce the

risk of fire, electrical shock or injury when using the appliance, follow basic

precautions, including the following:

Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter,

and do not use an extension cord.

It is recommended that a separate circuit, serving only your appliance, be provided. Use

receptacles that cannot be turned off by a switch or pull chain.

Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or

explosion. And do not store or use gasoline or other flammable vapors and liquids in the

vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

Before proceeding with cleaning and maintenance operations, make sure the power line of the

unit is disconnected.

Do not connect or disconnect the electric plug when your hands are wet.

Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do so

can result in electrical shock or death.

Do not attempt to repair or replace any part of your appliance unless it is specifically

recommended in this material. All other servicing should be referred to a qualified technician.

Use two or more people to move and install the appliance. Failure to do so can result in back

or other injury.

To ensure proper ventilation for your appliance, the front of the unit must be completely

unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below

90°F (32°C). This unit must be installed in an area protected from the elements, such as wind,

rain, water spray or drips.

The appliance should not be located next to ovens, grills or other sources of high heat.

The appliance must be installed with all electrical connections in accordance with state and

local codes. A standard electrical supply (115V AC only, 60 Hz), properly grounded in

accordance with the National Electrical Code and local codes and ordinances, is required.

Do not kink or pinch the power supply cord of the appliance.

The fuse (or circuit breaker) size should be 15 amperes.

It is important for the appliance to be leveled in order to work properly. You may need to make

several adjustments to level it.

Never allow children to operate, play with or crawl inside the appliance.

Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may

damage or discolor the interior.

Do not use this apparatus for other than its intended purpose.

Risk of child entrapment!

Child entrapment and suffocation are not problems of the past. Junked or abandoned

refrigerators and freezers are still dangerous, even if they will “just sit in the garage a few

days.”

Before you throw away your old refrigerator or freezer: Take off the doors. Leave

the shelves or drawers in place so that children may not easily climb inside.

Never allow children to operate, play with, or crawl inside the appliance.

THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM

PERSONS UNLESS THEY HAVE BEEN ADEQUATELY SUPERVISED BY A RESPONSIBLE

PERSON TO ENSURE THAT THEY CAN USE THE APPLIANCE SAFELY. YOUNG CHILDREN

SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

- SAVE THESE INSTRUCTIONS –

Table of Contents

Important Safeguards ......................................................................................................1 - 2

Location of Parts ...................................................................................................................3

Technical Information ...........................................................................................................4

Installation Instructions ...................................................................................................4 - 7

Before Using Your Appliance............................................................................................4

Installing Your Appliance .............................................................................................4 - 5

Electrical Connection ..................................................................................................5 - 6

Extension Cord .................................................................................................................6

Reversing the Door Swing ...............................................................................................6

Changing Direction of Door Opening on Low Temperature Compartment ......................7

Operating Your Refrigerator-Freezer or All-Refrigerator ..............................................7 - 9

Refrigerator-Freezers (Models BRF65S and ADA65S) ...............................................7 - 8

All-Refrigerators (Models BAR63S, ADA63S, BAR61W, and ADA61W).....................8 - 9

Care and Maintenance ........................................................................................................10

Cleaning Your Appliance / Power Failure / Vacations /

Moving your Appliance / Energy-Saving Tips

Troubleshooting...................................................................................................................11

Limited Warranty .................................................................................................................15

French version of this manual ....................................................................................13 - 27

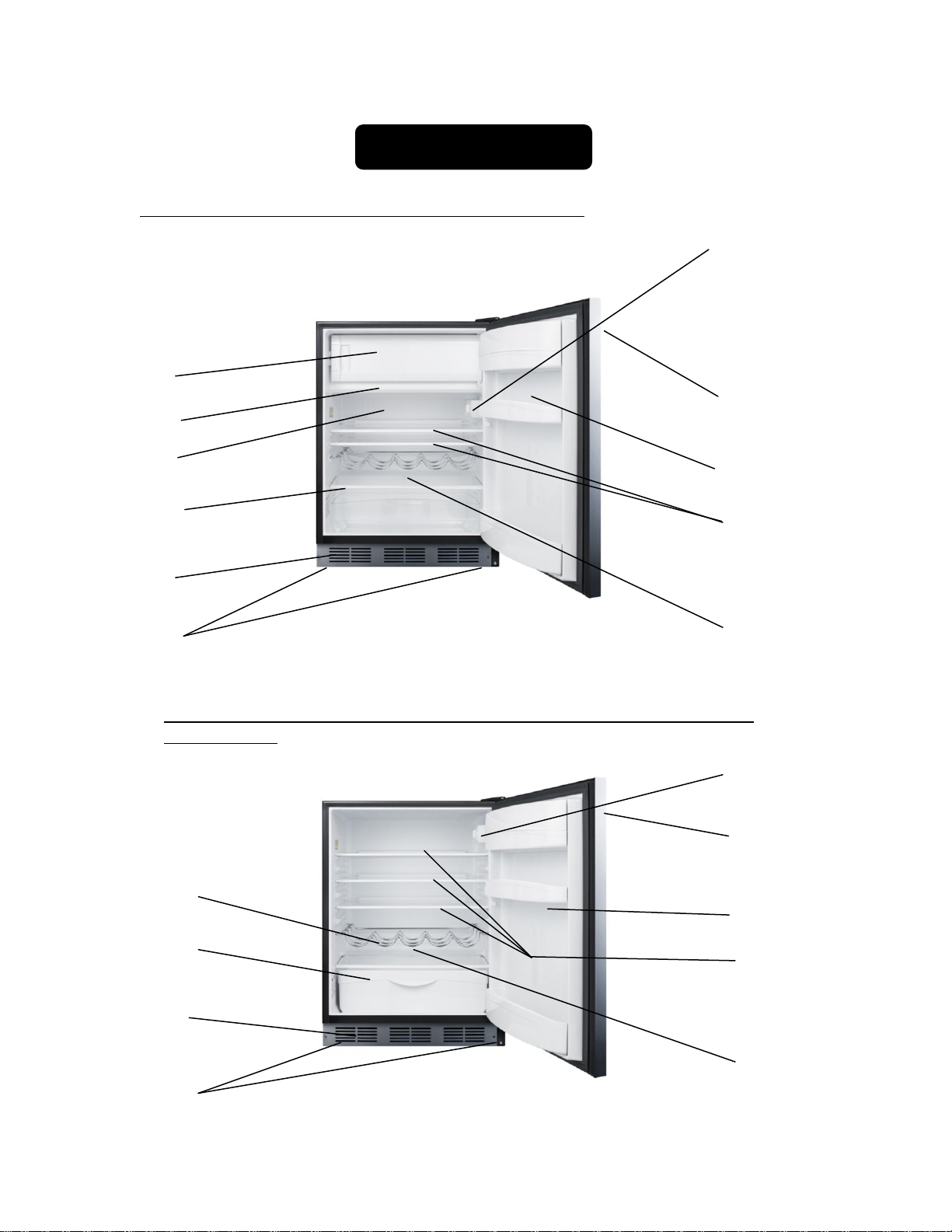

Location of Parts

Models BRF65S and ADA65S (Refrigerator-Freezers)

Temperature control dial

(thermostat)

and interior light

Door with storage

compartments

Front ventilation

slots (kick plate)

Leveling legs

Freezer

compartment

Glass shelves

Defrost water

outlet

(behind crisper)

Horizontal

handle

Drip tray

Crisper and

Glass Cover

Refrigerator

compartment

Models BAR63S, ADA63S, BAR61W, ADA61W, AR5S, and AR5IF (All-

Refrigerators)

NOTE: “ADA” models have a 32” height to fit under lower ADA-compliant counters.

Temperature control dial

(thermostat)

and interior light

Door with storage

compartments

Front ventilation

slots (kick plate)

Leveling legs

Glass shelves

Defrost water

outlet

(behind crisper)

Horizontal

handle

Crisper &

Glass Cover

(not included on AR5

models)

Wire wine

rack

Technical Information

Model Numbers

BRF65S

ADA65S

BAR63S

ADA63S

AR5S

AR5IF

BAR61W

ADA61W

Type

Refrig-freezer

All-refrigerator

Exterior

Black w SS door

(panel-ready on –IF)

White

Capacity

5.1 cu. ft.

5.5 cu. ft.

Electrical Input

115V AC/60Hz

Rated Current

1.3A

Temperature

of Freezer

5°F

--------

-------

Refrigerant

R134a, 2.3oz.

Installation

Built-in or Free-

standing

Built-in or Free-

standing

Built-in or Free-

standing

Ship Weight

102 lbs.

Unit Dimensions

(W x D x H)

23.63" x 23.5"

x 33.25" *

23.63" x 23.5"

x 33.25" *

23.63" x 23.5"

x 33.25" *

NOTES: * “ADA” models have a 32” height to fit under lower ADA-compliant counters.

Specifications are subject to change without notice.

Installation Instructions

Before Using Your Appliance:

Remove the exterior and interior packing.

Before connecting the unit to a power source, let it stand for approximately 2 hours.

This will reduce the possibility of a malfunction in the cooling system from handling

during transportation.

Remove the crisper, drip tray and shelves and clean them and the interior surfaces of

the unit with lukewarm water using a soft cloth.

Installing Your Appliance:

Place the unit on a floor that is strong enough to support the appliance when it is fully

loaded. To level the unit, adjust the two leveling legs at the front.

These models are designed to be built-in, but can also be used free-standing. For

built-in installation, keep ¼” (6.35mm) of space on each side and at the top and 2”

(51mm) at the rear. Take care that the air vent at the front of the appliance is never

covered or blocked in any way.

Improper use of the grounded plug can result in the risk of electrical shock. If the power

cord is damaged, have it replaced by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

This appliance is supplied with spacers that have to be mounted onto the condenser

tube to make sure there is sufficient clearance between the appliance and the wall.

Locate the unit away from direct sunlight and sources of heat (oven, heater, radiator,

etc.). Direct sunlight may affect the acrylic coating and heat sources may increase

electrical consumption. Extremely cold ambient temperatures may also affect the

unit's performance.

Avoid locating the unit in moist areas. Too much moisture in the air will cause frost to

form quickly on the evaporator, requiring more frequent defrosting of the freezer

compartment (for refrigerator-freezer models).

Plug the unit into an exclusive, properly installed and grounded wall outlet. Any

questions concerning power and/or grounding should be directed toward a certified

electrician or authorized service center.

Electrical Connection:

This unit should be properly grounded for your safety. The power cord of this unit is

equipped with a three-prong plug which mates with a standard three-prong wall outlet to

minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power

cord supplied. For personal safety, this appliance must be properly grounded.

This unit requires a standard 115-volt AC/60Hz electrical outlet with three-prong ground.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet

is properly grounded. When a standard 2-prong wall outlet is encountered, it is your

responsibility and obligation to have it replaced with a properly grounded 3-prong wall

outlet.

To prevent accidental injury, the cord should be secured behind the unit and not left

exposed or dangling.

The unit should always be plugged into its own individual electrical outlet which has a

voltage rating that matches the rating label on the appliance. This provides the best

performance and also prevents overloading house wiring circuits that could cause a fire

hazard from overheated wires. Never unplug the unit by pulling on the power cord.

Always grip the plug firmly and pull straight out from the receptacle. Repair or replace

immediately any power cord that has become frayed or otherwise damaged. Do not use

a cord that shows cracks or abrasion damage along its length or at either end. When

moving the unit, be careful not to damage the power cord.

Extension Cord:

Do not use an extension cord with this appliance. If the power cord is too short, have a

qualified electrician or service technician install an outlet near the appliance.

Reversing the Door Swing:

If you find the direction of opening the door of the appliance inconvenient, you can

change it. Holes on the opposite side have already been prepared at the factory.

This appliance can be opened from either the right side or the left. By default, the door

hinge is on the right side. If you prefer it on the left, please follow these instructions:

1. Take off the upper hinge cover from the door and remove the screws that hold the top

hinge.

2. Lift the hinge straight up to free the hinge pin from the socket in the top of the door.

3. Lift the door up and away to free its bottom socket from the hinge pin.

4. Remove the screws to the bottom hinge.

5. Remove the decorative caps from the opposite side and plug the holes from the

original side with the decorative caps.

6. Move the bottom hinge to the opposite side and tighten the screws. Use any lock

washers or nuts if they were installed in the original installation.

7. Replace door onto the hinge pin on the bottom hinge. Place top hinge pin into door.

Insert screws into the top hinge and tighten.

8. Check the gasket. It should not be creased and should seal well.

*NOTE: Model AR5IF requires a different hinge in order to reverse the door. Contact

our parts team at 718-893-3900 ext. 598 or email parts@summitappliance.com

1 Upper hinge cover

2 Upper hinge

3 Lower hinge

4 Kick plate

5 Handle

6 Fastener for corner with hole

Changing the Direction of Door Opening on the Low Temperature Compartment

(for Refrigerator-Freezer models):

Unscrew the blocking element and the hinge of the low temperature compartment

and take off the door.

Plug the holes with plastic caps provided.

Turn the door 180° and replace it on the opposite side of the low temperature

compartment. Fix the hinge and the blocking element of the door (position of holes

already provided).

Operating Your Appliance

Refrigerator-Freezers (Models BRF65S, ADA65S)

Temperature Control:

A unique dual evaporator system separately cools the refrigerator while keeping the

freezer at 5°F. (Ice cream and other food items in the freezer

stay frozen and free of freezer burn.)

The refrigerator temperature is controlled with a thermostat

knob located inside the unit, towards the upper right-hand

corner. Turn the knob clockwise from the STOP (0) position

toward the higher numbers for colder temperatures. Higher

settings on the knob (higher numbers) mean lower

temperatures (colder) in the refrigerator.

On the coldest settings, temperatures in some spots of the refrigerator compartment

may drop below 32°F. Use higher thermostat settings only when required or

recommended. When the ambient temperature is normal, we recommend a medium

setting.

Changes in the ambient temperature affect temperature in the refrigerator

compartment so choose an appropriate setting of the thermostat knob, depending on

ambient conditions.

In the STOP (0) position, the appliance does not operate (the cooling system is

switched off), yet the power supply is not interrupted (the light goes on when you

open the refrigerator door).

The temperature in the refrigerator compartment also depends on how often you

open the door.

In all small refrigerators and freezers without interior fans, temperatures are coldest

near the bottom, and occasionally near the rear. Place contents accordingly. It is best

not to operate these units mostly empty. If temperatures are erratic, try putting some

water bottles or freezer packs inside to create a load for the compressor.

NOTES:

1. For best storage, be sure not to over-pack and assure the freezer door closes fully.

2. The glass shelves are adjustable. These shelves stop short an inch before the back

wall, which is essential for air flow and the proper operation of the automatic defrost

system. Do not block these gaps.

3. The interior light on this unit is controlled by a plunger type switch, so that the light

comes on automatically when the refrigerator door is opened.

4. If the unit is unplugged, has lost power, or is turned off, you must wait 3 to 5 minutes

before restarting the unit. If you attempt to restart before this time delay, the unit will

not start.

Defrosting Your Appliance:

This appliance combines a manual defrost freezer section and an automatic defrost

refrigerator section. The refrigerator compartment defrosts itself, but when frost builds to

½ inch in the freezer compartment, defrost carefully according to this procedure:

1. Remove contents from the entire unit, taking care that frozen items do not begin to

thaw. Set the thermostat to STOP (0).

2. Unplug the appliance. Defrosting is accelerated if the doors are left open.

3. Melting ice will drain into the drip tray below the freezer compartment. Empty this as

needed.

4. Use a sponge or toweling to remove water and melting ice from the freezer floor. After

the frost or ice has melted, dry the interior of the freezer compartment thoroughly.

5. Restart the appliance by plugging it in and turning the thermostat to the desired

position. Once it is cold, return contents to the freezer and refrigerator sections.

CAUTION: Do not use boiling water or an electric device such as a hair dryer to help

speed up the defrosting process because this could damage the plastic parts of

the unit. In addition, never use a sharp or metallic instrument to remove frost as it

may damage the cooling coils and will void the warranty. We recommend using a

plastic scraper.

All-Refrigerators (Models BAR63S, ADA63S, BAR61W, ADA61W)

Temperature Control:

Your appliance’s evaporator system is out of sight behind the interior rear wall.

The interior temperature is controlled with a thermostat knob

located inside the unit, towards the upper right-hand corner.

Turn the knob clockwise from the STOP (0) position toward

the higher numbers for colder temperatures. Higher settings

on the knob (higher numbers) mean lower temperatures

(colder) in the refrigerator.

On the coldest settings, temperatures in some spots inside

the cabinet may drop below 32°F. Use higher thermostat settings only when required

or recommended. When the ambient temperature is normal, we recommend a

medium setting.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Summit Appliance Kühlschrank Handbücher

Summit Appliance

Summit Appliance Accucold CT66 Series Bedienungsanleitung

Summit Appliance

Summit Appliance FF1DSS Bedienungsanleitung

Summit Appliance

Summit Appliance accucold ACR1718 Series Bedienungsanleitung

Summit Appliance

Summit Appliance Accucold ACR1717 Series Bedienungsanleitung

Summit Appliance

Summit Appliance accucold FF6 Series Bedienungsanleitung

Summit Appliance

Summit Appliance Accucold CP133 Bedienungsanleitung

Summit Appliance

Summit Appliance accucold FFAR12W Bedienungsanleitung

Summit Appliance

Summit Appliance accucold PLUS Series Bedienungsanleitung

Summit Appliance

Summit Appliance BeautiFridge Bedienungsanleitung

Summit Appliance

Summit Appliance CT661BI Bedienungsanleitung

Summit Appliance

Summit Appliance Accucold ACR612 Bedienungsanleitung

Summit Appliance

Summit Appliance Accucold CM411L Bedienungsanleitung

Summit Appliance

Summit Appliance Accucold FFAR24LMAN Bedienungsanleitung

Summit Appliance

Summit Appliance AccuCold FCL44 MED Series Bedienungsanleitung

Summit Appliance

Summit Appliance FF61BI Bedienungsanleitung

Summit Appliance

Summit Appliance CFF61WBI Bedienungsanleitung

Summit Appliance

Summit Appliance CT661W Series Bedienungsanleitung

Summit Appliance

Summit Appliance accucold FFAR121SS Bedienungsanleitung

Summit Appliance

Summit Appliance BRF65S2 Bedienungsanleitung

Summit Appliance

Summit Appliance FF7BK Series Bedienungsanleitung

Summit Appliance

Summit Appliance SPRF34D Bedienungsanleitung

Summit Appliance

Summit Appliance FF61W Bedienungsanleitung

Summit Appliance

Summit Appliance Accucold FFAR10 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
