Sun Heat 1500 Leitfaden
12
OPERATION MANUAL
AND
WARRANTY
ELECTRONIC ZONE HEATING SYSTEMS
Model #1500
SAFE-SOFT-COMFORTABLE
PLEASE READ THIS MANUAL
2
11
WARRANTY CARD
SUNHEAT International
3724 Arch Ave.
Grand Island, NE 68803
1-877-467-8643
TO REGISTER WARRANTY ONLINE OR FOR DEALER INQUIRIES GO TO
WWW.SUNHEAT.COM
OR
CLIP AND RETURN THE WARRANTY CARD BELOW.
_______________________________________________________________
SUNHEAT Warranty Registration
Please return this card within 30 days of purchase to activate your
warranty.
THANK YOU
NAME:________________________PHONE:_____________
ADDRESS:_________________________________________
CITY:__________________STATE:______ZIP:____________
EMAIL ADDRESS:___________________________________
DEALER PURCHASED FROM:________________________
DEALER’S ADDRESS:_______________________________
MODEL #:__________________SERIAL #:_______________
DATE PURCHASED: Month_______ Day_____ Year_______
10
3
CONTENTS PAGE
Important Instructions........................................4
Welcome/Operation.............................................6
Free Heat/Placement Suggestions.......................7
Filter Maintenance..............................................8
Warranty Information..........................................9
Warranty Card....................................................11
4
IMPORTANT INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE HEATER.
WARNING
IMPROPER USE COULD RESULT IN RISK OF
ELECTRIC SHOCK, FIRE AND INJURY TO PEOPLE.
(1) The grill of the heater is hot when in use. To avoid burns, do not let bare skin touch
hot surfaces. If provided, use handles when moving this heater. Keep combustible
materials such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet
(0.9m) from the front of the heater and keep them away from the sides and the rear.
(2) Extreme caution is necessary when any heater is used by or near children or invalids
and whenever the heater is left operating and unattended.
(3) Always unplug heater when not in use.
(4) Do not operate any heater with a damaged cord, plug or after the heater malfunctions,
has been dropped or damaged in any manner. Return heater to authorized service facil-
ity for examination, electrical or mechanical adjustment, or repair.
(5)Do not use the heater outdoors or for heating construction sites.
(6)The heater is not intended for use in bathrooms, laundry areas and similar indoor loca-
tions, areas with standing water, a shower or swimming pool. Never locate heater
where it may fall into a bathtub or other water container.
(7)Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or simi-
lar coverings. Arrange cord away from traffic area and where it will not be tripped
over.
8) To disconnect heater, turn controls to off, when the fan shuts off remove plug from
outlet.
(9) Do not plug heater into any other cord connecting device such as a power strip, surge
protector, multiple outlet adapter, grounding adapter or outlet-type air fresheners. Plug
into a 3-prong 120v 15 amp or higher grounded circuit receptacle only.
10) Do not insert or allow foreign objects to enter any ventilation or exhaust opening as
this may cause an electric shock or fire, or damage the heater.
(11) To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not
use on soft surfaces, like a bed, where openings may become blocked
12) Do not block the front or rear of the heater.
(13) Do not place anything directly in front of the heater.
9
LIMITED FIVE YEAR WARRANTY
WARRANTY: The Company warrants this product to the original purchaser
or gift recipient, to be free from defects in workmanship and material under
normal use and service, for a period of five years from the date of purchase.
LIMITATIONS: ALL WARRANTIES IMPLIED BY LAW, INCLUDING
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE EXPRESSLY LIMITED TO THE
DURATION OF THE LIMITED WARRANTIES SET FORTH ABOVE. IN
NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY INCIDEN-
TAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFIT OR MEDI-
CAL EXPENSES CAUSED BY ANY DEFECT, FAILURE, MISUSE OR
MALFUNCTION OF THIS PRODUCT.
Some jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages, so these limitations or exclusions may not apply to
you. The Company will not be responsible for damages or losses, direct or
indirect, caused by misuse, abuse, accident, negligence, product alteration,
connecting to an improper electrical supply, acts of God, conditions of trans-
portation or storage, or failure to follow instructions. The Company will not
be responsible for any statements that are made or published, written or oral,
that are inconsistent with this written warranty, or which are misleading or
inconsistent with the facts as published in the literature or specifications by
the company.
WARRANTY CLAIM PROCEDURE: Any product that proves to be de-
fective within the warranty period must be delivered to the nearest
SUNHEAT Warranty Service Center or to the address below. All transporta-
tion charges are the responsibility of the consumer. A copy of the original
receipt must accompany all warranty claims.
SUNHEAT International
3724 Arch Ave. Grand Island, NE 68803
www.sunheat.com
1-877-467-8643
8

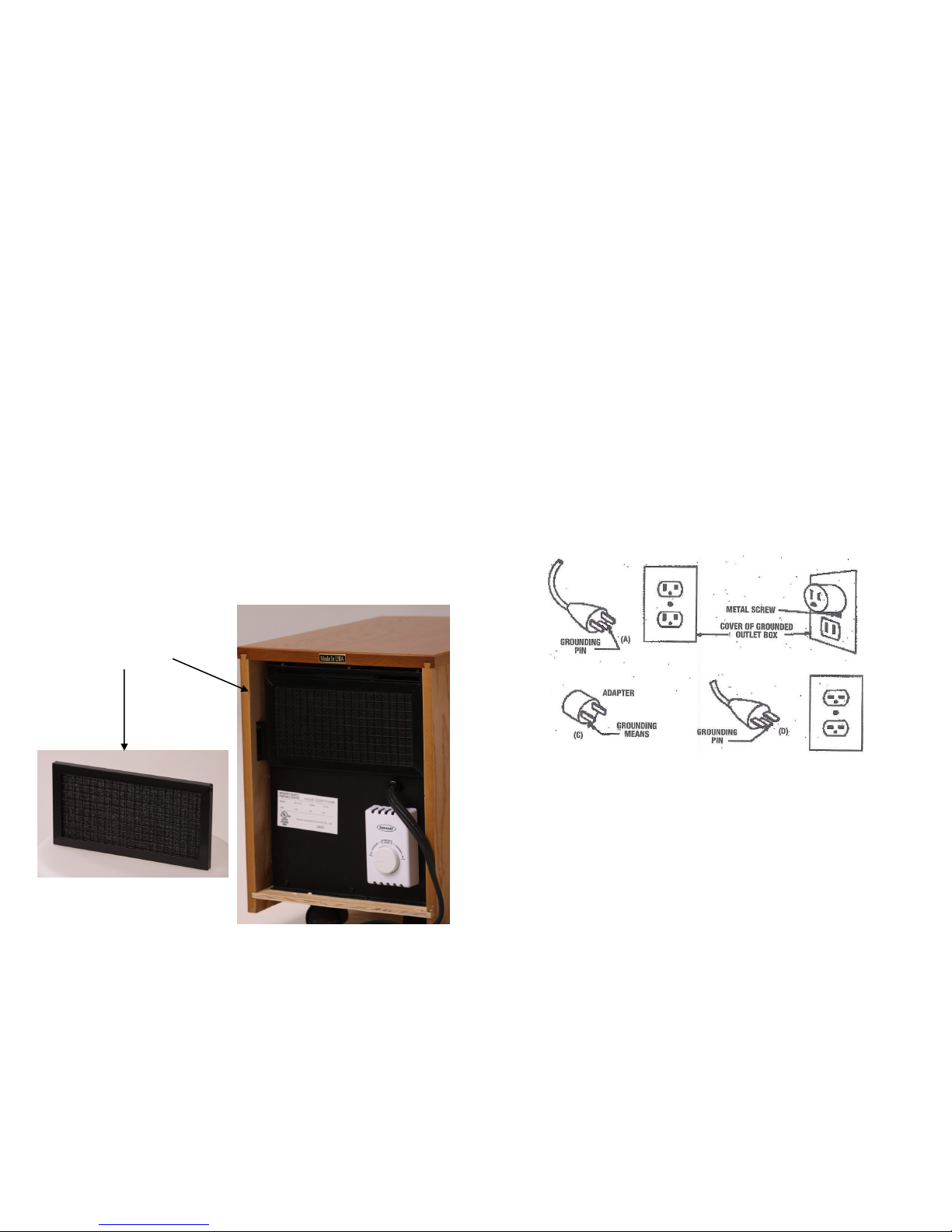

AIR FILTER MAINTENANCE
The Original SUNHEAT Heating System is equipped with a lifetime wash-
able air filter which is easy to clean. The manufacturer recommends the filter
be cleaned a minimum of once per month. If you have pets or the heater is
operated in a rural area you may need to clean the filter more often.
To clean the air filter, follow these steps:
1. Remove the air filter from the rear of the unit by tilting out.
2. Run warm tap water over the filter, the opposite direction of air flow,
until sufficiently clear of dirt and dust. A small amount of mild deter-
gent may be used.
3. Shake the filter until excess water is removed. Allow to air dry.
Do not use forced air to dry the filter.
4. Once dry, replace the filter on the rear of the unit.
Lifetime Filter
5
(14) Do not force the filter to dry using alternative methods when performing filter main-
tenance, doing so could damage the filter.
(15) Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
A heater has hot or arcing or sparking parts inside.
(16) Do not plug the heater into a loose fitting or broken receptacle.
(17) Do not alter the heater’s design or you will void the warranty.
(18) The heater must be located immediately below a socket outlet.
(19) Avoid the use of an extension cord because the extension cord may overheat and
cause a risk of fire. However, if you have to use an extension cord, the cord should be
No. 14 AWG.
(20) The heater is for use on 120 volt outlets. The cord has a plug as shown at (A) in Fig-
ure below. An adapter as shown at (C) is available for connecting three-blade
grounding type plugs to two-slot receptacles. (B) The green grounding wire extend-
ing from the adapter must be connected to a permanent ground such as properly
grounded outlet box. The adapter should not be used if a three-slot grounded recep-
tacle is available. Figure (D) European type plug.
WARNING Unauthorized repair work by anyone other than the manufacturer or
the authorized SUNHEAT dealer or team member you purchased from is not rec-
ommended. Please contact the company you purchased from or call SUNHEAT at
1-877-467-8643 if you have questions regarding your heater not working properly.
SAVE THESE INSTRUCTIONS
(B)
6
WELCOME
Congratulations! You have made a wise choice for quality heat. The Original
SUNHEAT is the safest and most effective infrared zone heater available.
The Original SUNHEAT will provide safe, soft, comfortable heat for many
years to come. The Infrared Quartz Heating Tubes produce no fumes or
deadly monoxides. The ambient room air processed through The Original
SUNHEAT passes through a lifetime washable filter –it is truly clean
healthy heat!
The Original SUNHEAT does not dry out or remove the oxygen from the air.
Instead it uses the moisture in the air to transfer soft infrared warmth to you
and everything in the room. The entire zone is evenly filled, from floor to
ceiling and wall to wall, with comfortable even heat.
OPERATION
Plug the power cord into any unused grounded 120 volt 15 amp or higher
circuit receptacle.
Turn the thermostat on the back to its highest setting.
Then flip the power switch (O/I) on the front of the unit up to the “I” or
ON position. The switch should turn red.
In less than a minute the infrared heat tubes will start to warm up.
Soon the fan will kick on and begin delivering safe, soft, comfortable heat
out of the front grill.
Once the zone you are heating reaches a comfortable temperature, slowly
turn the thermostat back until you hear a click. This will set your comfort
level.
The thermostat will maintain this desired comfort setting by cycling ON
and OFF as needed.
If you do not need the SUNHEAT to run, turn the (O/I) power switch down
to the “O” or OFF position.
The fan will continue to run until the heater cools down and the “Free Heat”
has been exhausted from the heater.
The SUNHEAT is equipped with an internal high limit switch that cuts off
power to the infrared heat tubes if air to the unit is blocked. To restore
power to the heat tubes, turn the thermostat down , flip the power switch to
the OFF or “O” position, remove power cord from wall outlet and allow
approximately 30 seconds before plugging power cord back into the wall
outlet.
For safety and to prevent the high limit switch from cutting power to the
heat tubes, keep the area around the heater clear of clutter and obstacles
to insure free airflow into and out from the heater.
.
7
FREE HEAT
Your SUNHEAT infrared zone heating system is a truly effective way to sup-
plementally heat areas of your home. The industrial grade infrared tubes
transfer their heat waves to the cured copper canisters within the unit.
Because of this process, it may take a couple of minutes for it to become
necessary for the fan to kick on and begin to provide safe, soft, comfortable
warmth. The infrared heat stored in the copper is transferred to people and
objects in the room in a remarkably even manner. This transitive heating
system also provides 7 to 10 minutes of “Free Heat” once the tubes shut off.
This is why the fan continues to run after the unit is turned off.
PLACEMENT SUGGESTIONS
To assure maximum performance of your Original SUNHEAT Electronic
Infrared Portable Zone Heater, please note the following recommendations.
1) Place the SUNHEAT near the center of the home next to a warmer inside
wall with the heat being blown toward the colder outside walls of the
home. This will allow the thermostat to more accurately moderate the
temperature.
2) For best results, do not locate the SUNHEAT Heater in an area with a
high rate of air flow.
3) For maximum efficiency, a 40% (minimum) relative humidity should be
maintained in the heated environment.
4) The SUNHEAT Quartz Infrared Portable Heater is designed to operate at
maximum efficiency up to the 70-72˚F range. Due to this unique heat
concept, a temperature of 68˚F feels as though it were 72˚F. Similar to a
summer heat index, the moisture in the air holds the heat and transfers it
evenly throughout the entire area.
5. For efficiency, the Original SUNHEAT is not recommended for use in
areas with exposed, non-insulated, concrete, or metal walls. You can use
the SUNHEAT in any room, whether insulated or not. However, a non-
insulated room will allow for greater heat loss that will impact the effec-
tiveness of the heater.
Inhaltsverzeichnis
Andere Sun Heat Schwimmbadheizung Handbücher
Beliebte Schwimmbadheizung Handbücher anderer Marken
Pentair Pool Products
Pentair Pool Products MiniMax CH 150 Bedienungsanleitung
Jandy
Jandy LJ Bedienungsanleitung
Pentair Pool Products
Pentair Pool Products MiniMax NT Series Bedienungsanleitung
Raypak
Raypak P-R185A to P-R405A, C-R185A to Bedienungsanleitung
Hayward Pool Products
Hayward Pool Products HP40A Service-Handbuch
Laars
Laars Lite 2 LC Bedienungsanleitung
