Sunbeam DF7700 Bedienungsanleitung

DF7700.doc Page 1 of 10

SERVICE MANUAL

DF7700

Deep Fryer

DF7700.doc Page 2 of 10

SPARE PARTS LIST

Note: Not all parts are available as spare parts. Please check price list.

Item

DESCRIPTION

QTY

MATERRIAL TYPE

Sunbeam

Part Number

1 FRONT HEATER HOUSING 1 1.) PP,NAYAN 3317(V0)

2 BACK HEATER HOUSING 1

2.) PP KOREA,TYPE

CB5108H 94HB

3.) PP Damsung Atofina ,

FH44 94 V-0

3 TIMER KNOB 1

ABS TORAY,TYPE

100,RATED 94HB,60

℃

DF77105

4 LAMP COVER(POWER ON) 1 ABS

5 LAMP COVER(OIL READY) 1 ABS

6 THERMOSTAT KNOB 1

ABS TORAY,TYPE

100,RATED 94HB,60

℃

DF77106

7 SUPPORT PINS 4 CR.PLATED STEEL

8 HEAT SHRINK TUBE 5

1.) CHANGBAO 102 ,600V,

125

℃

, VW-1

2.) ACE TUBE , 600V

,125

℃

,VW-1

3.) RSFR-x ,600V ,125

℃

,VW-1

9 LAMP HOUSING 2 NYLON-6 , 1013NW

10 FIXED THERMOSTAT 1 WF,L-270-P,250V 15A

11 MOUNTING PLATE 1 PP,NAYAN 3317(V0)

ADJUSTABLE

THERMOSTAT 1 WF,T-190-P,250V 15A

13 POWER CORD 1 H05VV-F,3 X 1,W/SAA PLUG,BK

14 HEATING ELEMENT 1

TYPE 36-DF15-60AA,240V

2400W

15 SENSOR WIRE CLAMP 4

STAINLESS STEEL 304 SHINY

1/2H 0.25THK

16 HEATER DIFFUSER 1

STAINLESS STEEL 430 #4

BRUSHED 0.6THK

17 SENSOR CLAMP 2

STAINLESS STEEL 304 1/2H

0.8THK

18 HEATER STAND 1

STAINLESS STEEL 304 SHINY

1/2H 0.4THK

19 PUSH BUTTON 1 PA66+30%GF

20 PUSH BUTTON SPRING 1 SST D0.2X10

21 S.TERMINAL 4 6.35X0.8,#14-20,TPB 804401-61

22 LEAD WIRE 4

UL 1015,16#,105

℃

600V

VW-1 PVC

23 LAMP LEAD WIRE 4

UL 1015,22#,105

℃

600V

VW-1 PVC

24 TIMER 1 DKJ-Y-30,6.5A/250V 15A/125V

25 INTER LOCK SWITCH 1

SAIA-BURGESS TYPE X3M502,

250V 16A

26 CORD CLAMP 1 NYLON-66

27 CABLE TIE 3 PA6,2.5MMTHK

28 TERMINAL BLOCK 1 KINGS 104-2 (V0)

DF7700.doc Page 3 of 10

29 METAL WRAP 1 SST430 #4 BRUSHED,0.5THK

30 ON/OFF SWITCH 1 CHILY TYPE 6011,125V 15A

METAL COVER

SST430 #4 BRUSHED 0.6TK

DF77103

FILTER MOUNTING PLATE

SST SHEET430

MIRROR,0.25TK

FILTER

ALUMINUM,3 LAYERS

SEAL MOUNTING PLATE

SST SHEET430 MIRROR ,

0.30TK

SEAL PLATE

SILICONE RUBBER 0.5THK,

TRANSPARENT

COVER HANDLE

PF BLACK

SEAL RING 1

SILICONE RUBBER BLACK ,

1.0 THK

38 VIEWING WINDOW 1

TEMPERDED GLASS , 4.0

THK

39 SEAL MOUNTING PLATE 2

SST SHEET430 MIRROR ,

0.30TK

SEAL PLATE 2

SILICONE RUBBER 0.8THK,

SUN-BL-005

OIL TANK

SST SHEET304 0.7TK

DF77104

OIL TANK HOOK

SST

SHEET430,BRUSHED,0.6TK

RIVET

SST D3.0X5.0

SILICONE RUBBER DC737 300ml/pcs

FOOLPROOF STAND

SST SHEET430 BRUSHED,0.6TK

BASKET BODY

NICKEL PLATED STEEL DF77101

(DF77102

for 47 and

48 only)

METAL HADLE

NICKEL PLATED STEEL

BASKET HANDLE

ABS TORAY,TYPE

100,RATED 94HB,60

℃

50 HANDLE 2

SAMSUNG PP+15GF GH-42

,94HB

51 MAIN HOUSING 1 SST430,#4 BRUSHED 0.5THK

52 INSULATION RING 1 PA66+33GF ,ZYTEL 70G33HS1L

53 RIVET 13 RIVET , AL

54 SUPPORT PLATE 1

NICKEL PLATED STEEL ,

1.5THK

RIGHT SUPPORTING

BRACKET 1

NICKEL PLATED STEEL ,

1.5THK

56 TRIGGER 1

PC LEXAN,TYPE 241R,RATED

94V-2

57 LEFT SUPPORTING BRACKET 1

NICKEL PLATED STEEL ,

1.5THK

58 FEET 4

Nature Rubber

Nature Rubber=40-60%

Calcim carbonate ,vulcanization

acce;eratprs.grease=remain%

59 REINFORCE PLATE 1 SST SHEET430 MIRROR 0.5THK

60 CONDENSATION CONTAINER 1 PP , NC

DF7700.doc Page 4 of 10

61 LOGO BADGE 1 Xiang-Lian

SELF-LOCKING EXTERNAL

RING 2 NICKEL PLATED STEEL

DF7700.doc Page 5 of 10

EXPLODED VIEW

DRAWING

DF7700.doc Page 6 of 10

DF7700.doc Page 7 of 10

DF7700.doc Page 8 of 10

DF7700.doc Page 9 of 10

DF7700.doc Page 10 of 10

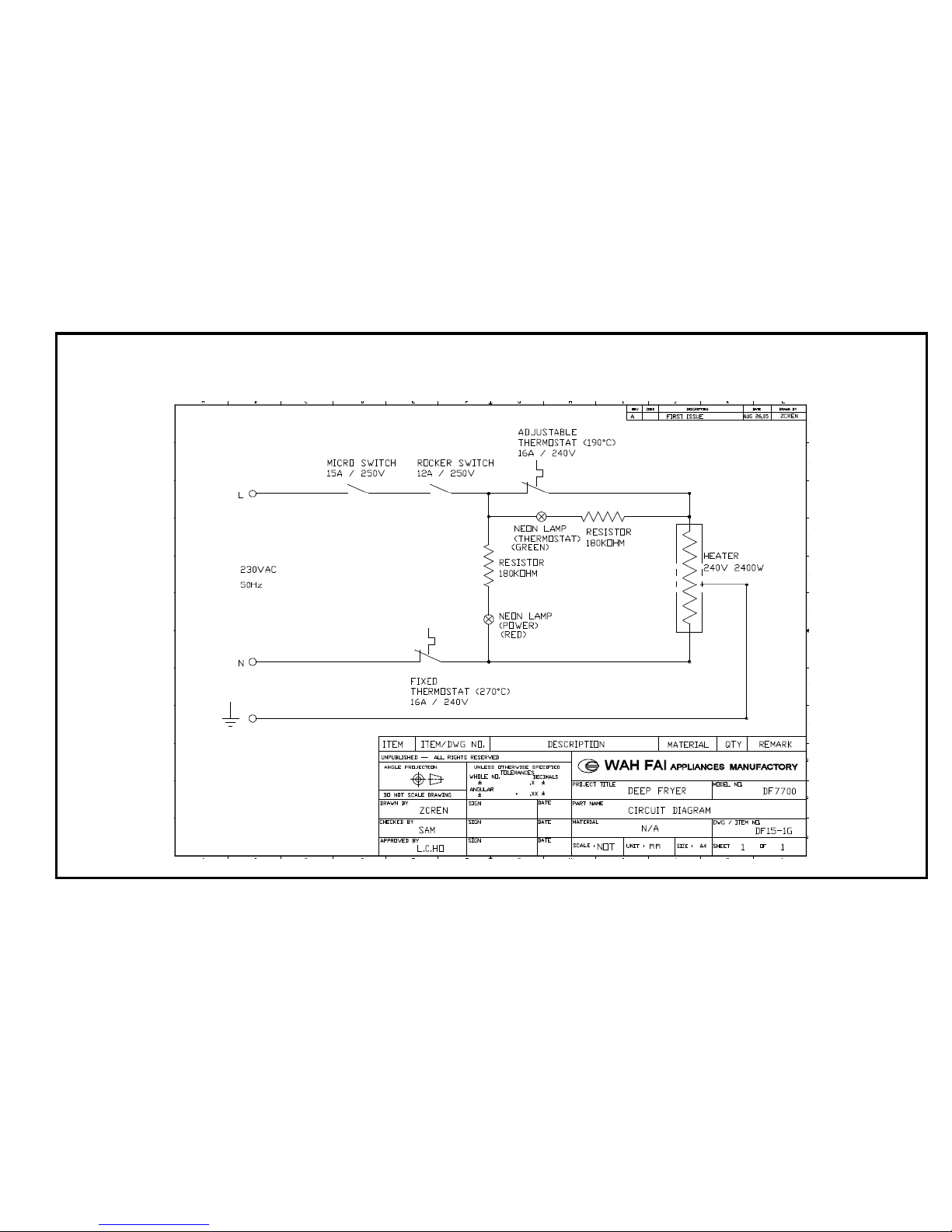

CIRCUIT DIAGRAM
