Supplemental TouchScreen
Operator’s Manual
Rev 141021
PN: Draft
DS-3214TSP
DS-4717TSP
DS-5517TSP
Models
DS-3214TSL
DS-4717TSL
DS-5517TSL
Choose a Location for the TV*
Important: The TV and GFCI Receptacle must be installed at least 5 feet from pool, spa, or other body of
water.
Refer to the TV Operator’s Manual for information regarding choosing a location for this model.
Because of the interactive nature of this model, you will also want to consider placing the TV in an area that
provides a comfortable environment for your audience.*
SunBriteTV Model DS Series All-Weather Outdoor TouchScreen System
Congratulations on the ownership of SunBriteDS® Touchscreen Display. With the integration of our all-weather
outdoor technology and 3M™ MicroTouch Dispersive Signal Technology, SunBriteTV brings to the forefront a dynamic
interactive digital signage touch screen solution for outdoor installations.
With a traditional sense of customer satisfaction and attention to detail, this product is designed to withstand the
rigors of the outdoor environment and provide many years of optimum viewing.
This model includes two Operator’s Manuals. The TV Operator’s Manual is to be use for general information,
installation safety guidelines and TV Operation. This Supplemental TouchScreen Operator’s Manual refers to the
TouchScreen functions, instructions and specications.
To ensure safety and long product life, please read both Operator’s Manuals completely before installing and using
the TV. If you have any questions about the installation procedures, please contact our qualied SunBriteTV Customer
Support Team at 800.331.4626.
Water-Resistant
Wireless Remote
Control
Landscape Display
TV
Operator’s
Manual
Portait Display
OR
Supplemental*
TouchScreen
Operator’s
Manual
Important Safety Instructions
Refer to the TV Operator’s Manual for the Important Safety Instructions

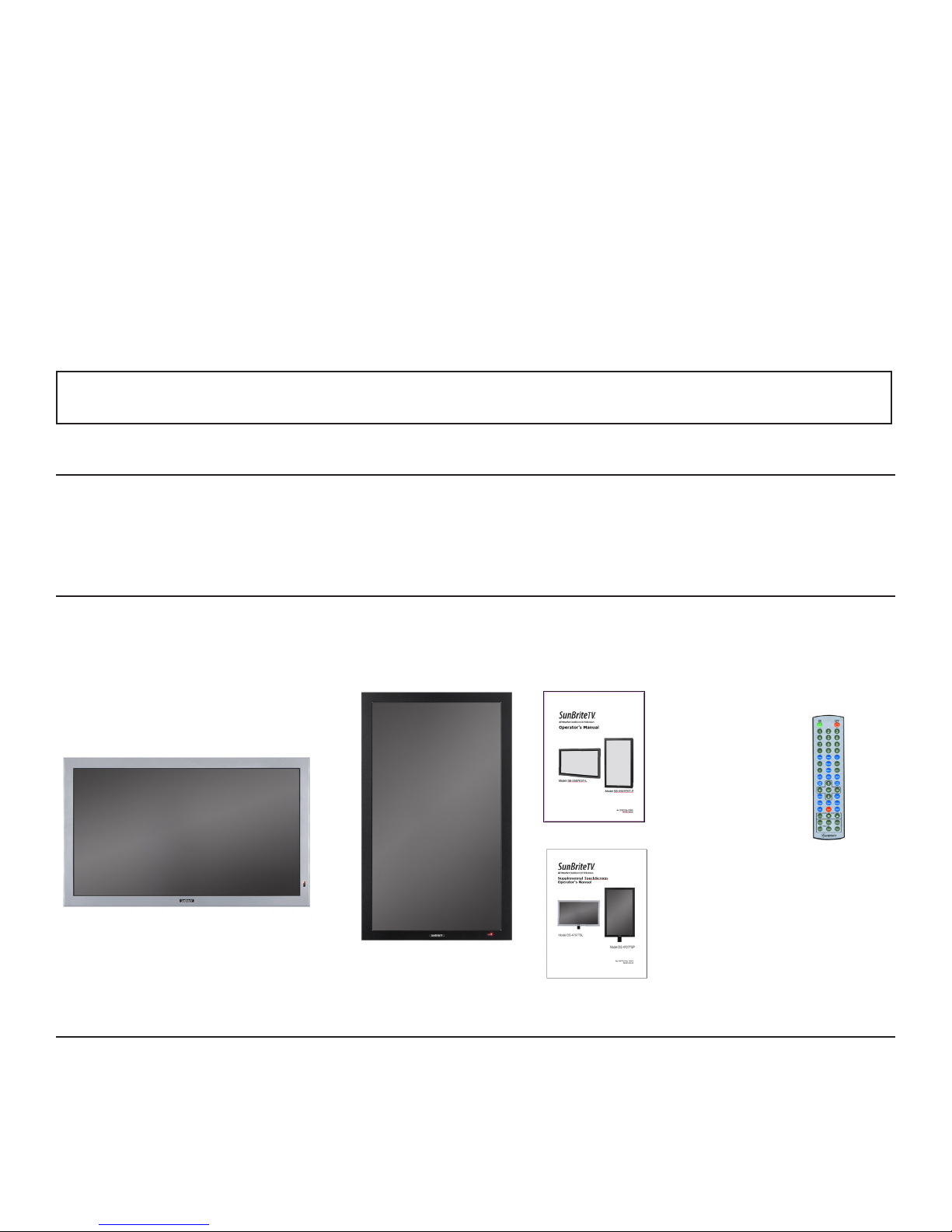

Unpacking*
After unpacking the SunBriteTV television, please make sure that the following items are included in the carton and that they are
in good condition. If items are damaged or missing, contact your dealer immediately.
• SunBriteTV LCD Television
• Remote Control with Batteries
• TV Operator’s Manual
• Supplemental TouchScreen Manual
Note: There is information in the TouchScreen Operator’s Manual that will supersede the TV Operator’s Manual.
These changes will be clearly marked in this manual in Bold Italic Type* with an asterisk.

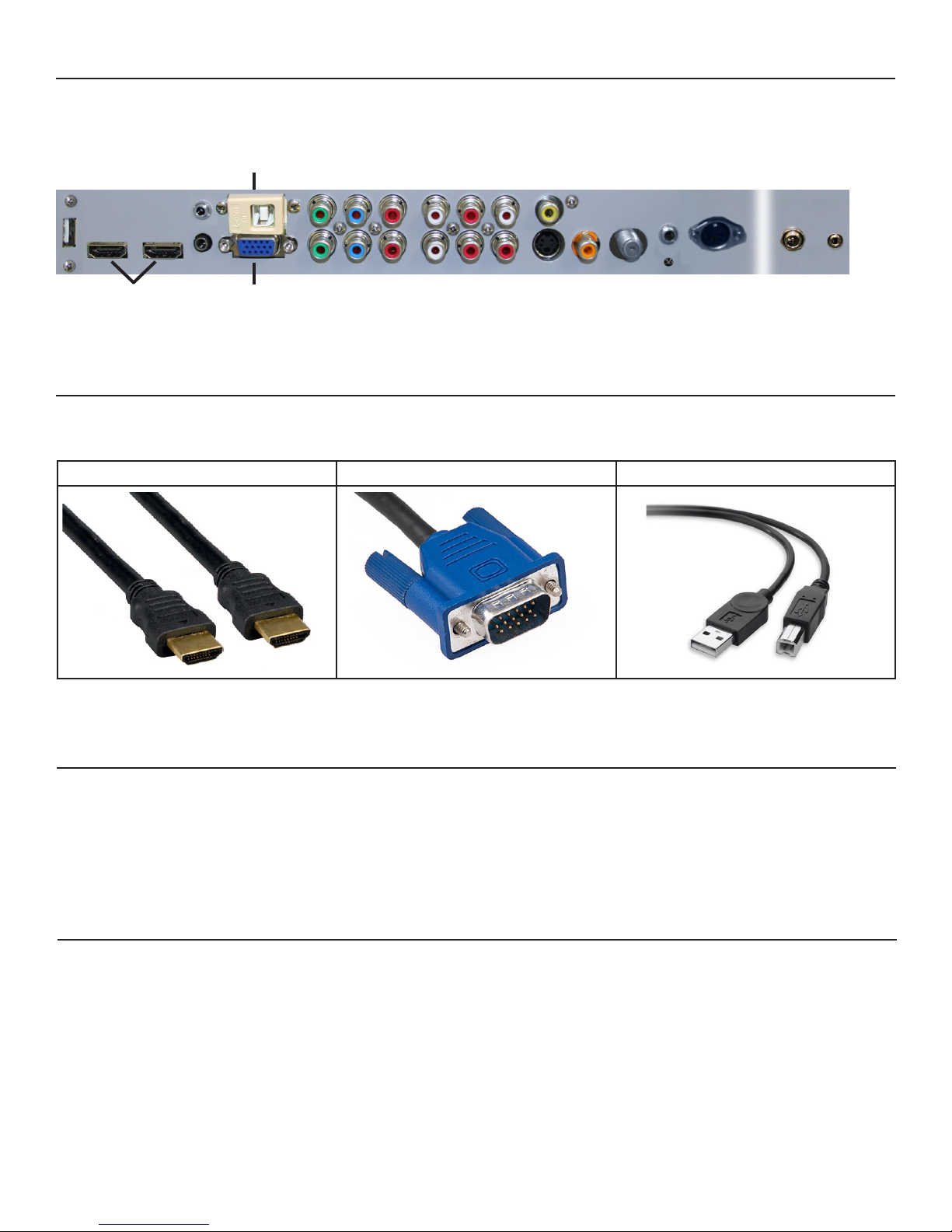

Rear Panel Connections*
USB Type B
The images and information below refer to the connectors and wires that are relevant to the TouchScreen
Functions of the TV*. Refer to the TV Operator’s Manual for more information regarding Rear Panel Connections.
Care of SunBriteTV*
General care guidelines for this model can be found in the TV Operator’s Manual.
Because the MicroTouch Screen replaces the Anti Reective Window, please disregard care instructions regarding this feature.
To clean the MicroTouch screen, use a mixture of 50% water and 50% isopropyl alcohol. Spray the mixture on a smooth clean
cloth and then wipe the screen clean.*
Disclaimer: While SunBriteTV LLC intends to make this manual accurate and complete, we do not make claims that the information contained within
covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The
information contained in this manual may change without notice.
VGAHDMI
Cable Connectors*
The cables the customer will need to supply are VGA or HDMI for video, and USB Type A to B for Touch Interface.*
Refer to the TV Operator’s Manual for more information regarding Cable Connectors.
HDMI VGA USB Type A to B Device Cable
Visit the URL below to select and download the appropriate drivers and instructions for your operating system:
http://solutions.3m.com/wps/portal/3M/en_US/TouchSystems/TouchScreen/CustomerSupport/TouchScreenDrivers/
Download Drivers*
System Performance
Input Method Finger and stylus input
Accuracy Reported coordinates are within 1.0% of true position
(based on viewing area dimensions)
Touch System Resolution 16k x 16k (maximum resolution)
Response Time 20 ms for tap input
Minimum Touch Impact* 50 mN∙s (milli-newton seconds), the equivalent of a very
light touch
Optics
Light Transmission** 92% light transmission (±2%)
Surface Finish Anti-glare etch (standard)
Mechanical
Glass Thickness 2.2 mm (± 0.2 mm), glass only
Substrate Material Chemically-strengthened glass substrate
Reliability
Surface Obstructions Touch screen operation withstands surface contami-
nants such as dirt, dust and grime
Operating Temperature
(See TV Operator’s Manual for TV
Temperatures)
-15° C to +50° C (5° F to +122° F) for the touch
screen
RH: Up to 90% non-condensing*
Storage Temperature
(See TV Operator’s Manual for TV
Temperatures)
-31° C to +50° C * (-24° F. to 122° F.)
RH: Up to 90% non-condensing*
Electronics
Communications
Protocol
USB HID
Drivers* MicroTouch MT7 for Microsoft® Windows®
2000, XP , VISTA, 7 and 8 (32- and 64-bit)
Mac OSX (Power PC), Mac OSX (INTEL)
3M MicroTouch Dispersive Signal Technology Specications*
Refer to the TV Operator’s Manual for TV Specications.
*For the most current list of drivers, please visit:
http://solutions.3m.com/wps/portal/3M/en_US/TouchSystems/TouchScreen/CustomerSupport/TouchScreenDrivers/
Note: Specications are subject to change without notice.
sunbritetv.com
All Rights Reserved. 2014 ©SunBriteTV® LLC
