Sundrax Splitter Duo Bedienungsanleitung
User
Manual
Version 1.05
April 5, 2022
Splitter Duo
Contents
Safe operation
General information
Connection types
LED indication
Connection scheme
Technical maintenance
Notes
3
3
4
4
5
6
6
2Splitter Duo
Safe operation
To ensure safe and reliable operation of the devices, please
observe the following requirements:
Use the device only for its intended purpose
Do not use devices that show signs of malfunctioning
Avoid strong physical impacts on the device
Protect devices and cables from contact with moisture or other corrosive liquids
Whenever a fault is detected in the device, please contact the manufacturer.
General information
Splitter Duo is a dual-channel device with 6 DMX input/output ports that operates
as a regular splitter with 1 input and 5 outputs as well as two separated 1-to-2 splitters.
All input and output channels are galvanically isolated from each other. The device is suitable
for outdoor use and has the highest levels of dust and moisture protection. The device is powered
by 100-250V industrial AC mains, power consumption is less than 5 watts. Input, output DMX cables
and power cable are connected to the device body via cable glands.
3
Splitter Duo
Warning!
The device uses hazardous
voltage AC 100-250V
4Splitter Duo
Connection types
Before mounting and power up, it is necessary to verify protective
earthing and cable connectors.
1. Ensure the device has no damage due to transportation.
2. Remove device lid. If the device fixation is needed on a surface,
wall, farm, attach the device housing to a surface, or install the
appropriate fastening element. Connection scheme located on the
backside of the lid.
3. Use the package connectors kit to connect DMX cables. In the scheme
given the location of contacts Data +, Data – and Common for input (IN)
and output (OUT1-OUT5) terminal blocks.
4. Set position of 4-section DIP-switcher in accordance with needed
device configuration.
5. All input and output channels have 120 Ohm terminators, managed
by special DIP-switches TIN, T(1)–T(5). To connect the terminator to the line
is necessary to set proper switcher in ON position, to disconnect- in OFF position.
6. Connect power supply terminal ~230 V. Some modifications of the device can
be equipped with additional ground contact for terminal input power supply
connected to the device. Apply power to the device.
7. When device properly connected, the LED indicator on the device is lit.
Its color indicates the presence of a valid DMX input signal: Green - present, Red - missing.
8. Cover back the device lid.
9. The device is ready for use.
LED indication

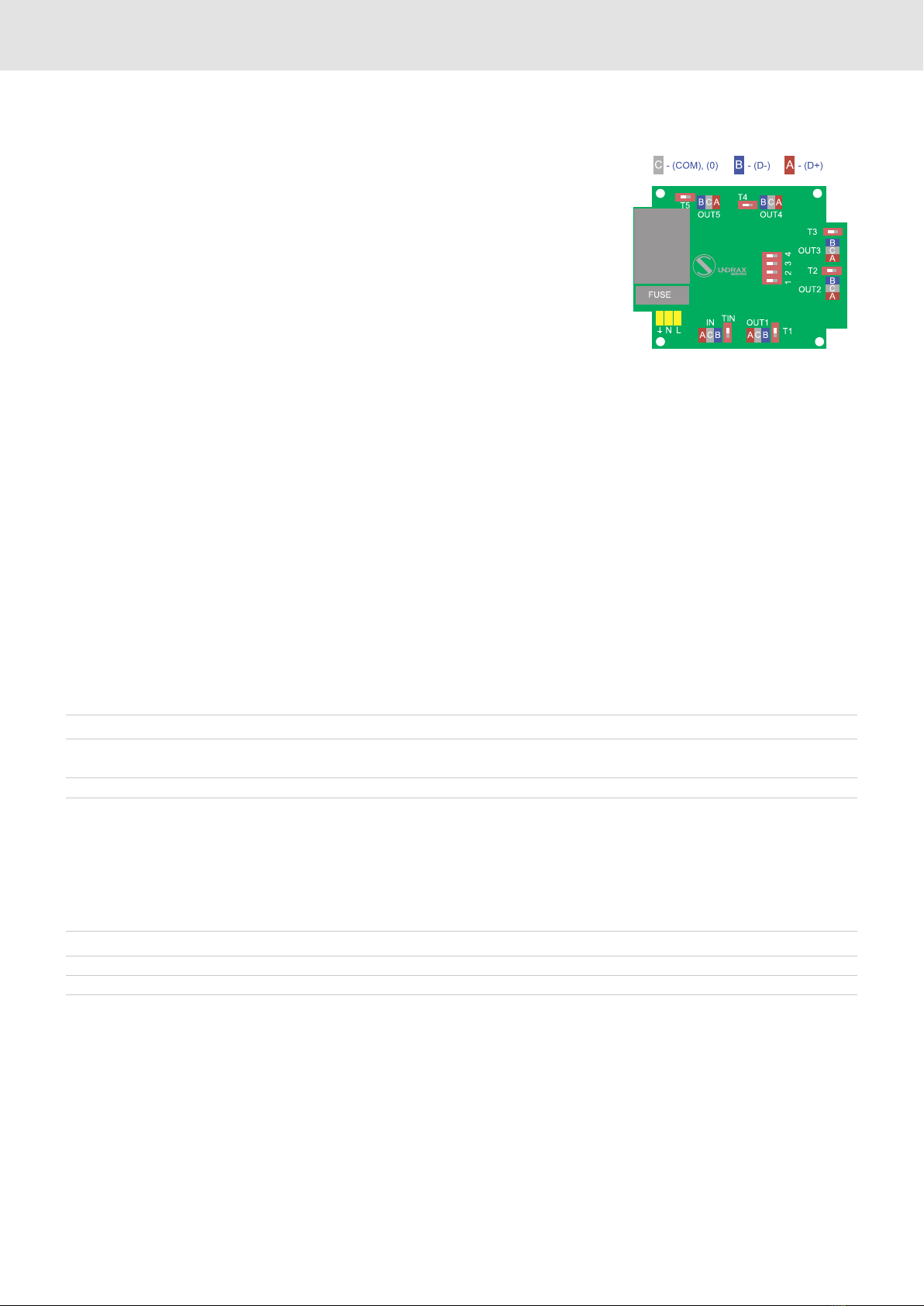

Pic. 1
System board
SW1
SW2
SW3
SW4
ON
RDM enabled
Dual splitter mode
Full transparent mode
Bus indication mode
OFF
RDM disabled
Single splitter mode
Dedicated input(s) mode
DMX512 indication mode
Green
Red
Off
DMX512 mode
Valid DMX signal
No DMX signal
Device/Section doesn’t work
Bus mode
Bus is idle
Bus is busy
Device/Section doesn’t work
5
Splitter Duo

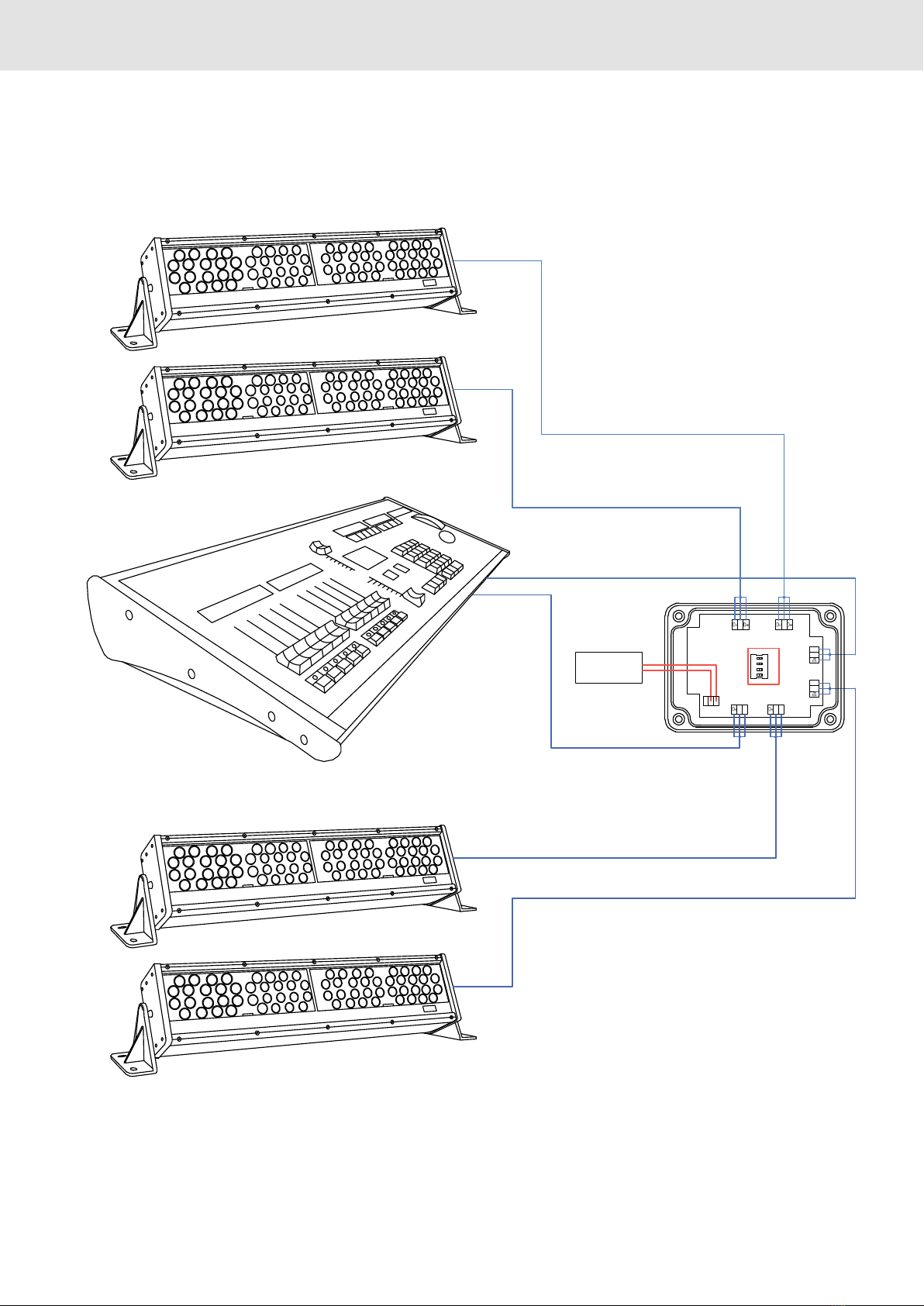

Connection scheme
~100-250 VAC,
50/60 Hz
POWER
0 D- 0 D-
0 D- 0 D-
00
IN OUT1
OUT2
OUT3
OUT4OUT5
ON
IN DMX A
IN DMX B (D mode)
OUT 3 DMX À (S mode)
OUT 1 DMX A
OUT 2 DMX A
OUT 1 DMX B (D mode)
OUT 4 DMX À (S mode)
OUT 2 DMX B (D mode)
OUT 5 DMX À (S mode)
G N L
1 2 3 4
6Splitter Duo
Technical maintenance
Maintenance the device, search and troubleshooting should be performed
by service personnel. The device should be free from dirt, dents, connecting
cables and wires must be intact and securely fastened.
Notes
Please send all your warranty-related questions to [email protected]
All Sundrax products are covered by a 36 months warranty.
7
Splitter Duo
Notes
Sundrax Electronics
6008, First Central 200
2 Lakeside Drive, Park Royal, London
NW10 7FQ United Kingdom
+ 44 (0) 208 991 33 19
www.sundrax.com
