Sunricher SR-2850C Bedienungsanleitung

RF RGB & Dual Color Wall Mounted Controller 09.2830C.04192

Click or to choose the zone, Touch the sliders to dim CCT

color(if choose CCT color zone) or RGB color(if choose RGB color zone)

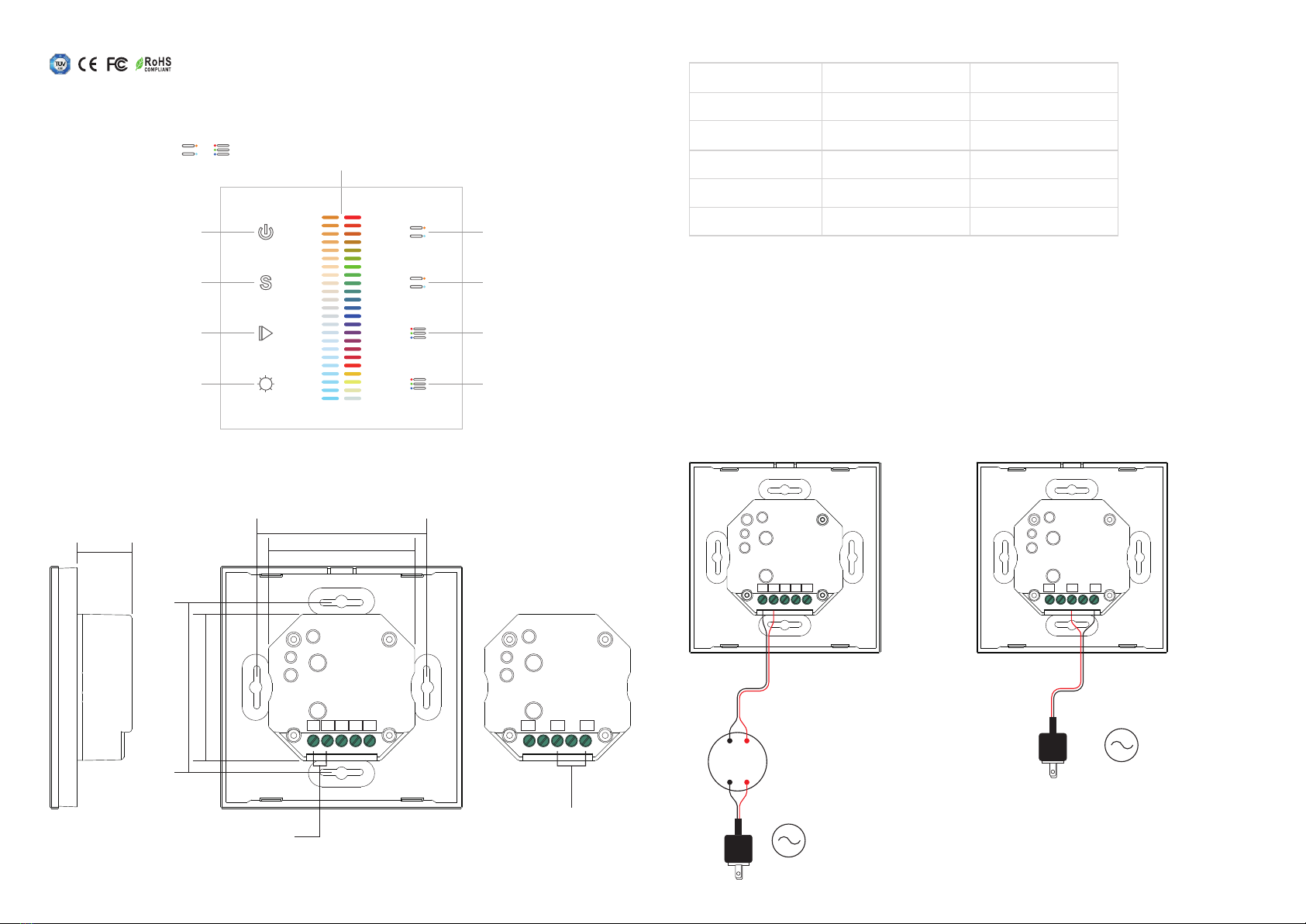

Function introduction

Important: Read All Instructions Prior to Installation

Click to turn on/off

Press and hold down to save

color; Click to recall the saved

Click to play / pause the 10

built-in effects, Press and hold

down to speed up/down the

running effect

CCT color zone 1.Click to choose

the zone, Press and hold down to

turn on/off corresponding zone

Press and hold down to

increase/decrease light

intensity

CCT color zone 2.Click to choose

the zone, Press and hold down to

turn on/off corresponding zone

RGB color zone 1.Click to choose

the zone, Press and hold down to

turn on/off corresponding zone

RGB color zone 2.Click to choose

the zone, Press and hold down to

turn on/off corresponding zone

Front side

Back side

60.3 mm

RF Wall

Panel Controller

DC Power input

V- V+

52.0 mm

60.3 mm

52.0 mm

19.4 mm

Product Data

• DO NOT install with power applied to device.

• DO NOT expose the device to moisture.

Safety & Warnings

Wiring diagram

Output Signal RF signal

Power Supply 12-24VDC

Power consumption 20 mA

Operating temperature 0-40°C

Relative humidity 8% to 80%

Dimensions 86x86x29.1mm

• Touch sensitive

• Glass interface(white & black)

• Compatible with all universal series RF receivers, radio frequency: 869.5/434MHz

• Control RGB+CCT color

• Control 4 zone of RF receiver synchronously and separately

• Waterproof grade: Ip20

RF Wall

Panel Controller

V- V+

12-24VDC

PSU

AC 100-240V

DC Version

RF Wall

Panel Controller

AC Version

AC Power input

RF signal

100-240VAC

20 mA

0-40°C

8% to 80%

86x86x29.1mm

DC Version AC Version

DC Version

AC 100-240V

AC Version

RF Wall

Panel Controller

AC Version

AC Power

50/60Hz

AC Power

50/60Hz

Note : only can pair with CCT color lighting. only can pair with LED RGB color lighting. LED

Installation

12-24VDC

Power Supply

DC version needs connect

with DC power supply

Pair with RF receiver

Step 2:Choose and click a zone number(e.g. RGB color zone 2)

Step 1:Click the “Learning Key” button on RF receiver or re-power on the

receiver three times continuously to set it into pairing status

Learning Key

RF LED Receiver

Step 3:Touch the slider, LED lights connected with the RF receiver flicker

once means the receiver is paired with RGB color zone 2 successfully.

Built-in 10 color changing modes are as follows:

Mode 1: Any two colors of RGB mix fade-in & fade-out

Mode 2: RGB three colors mix fade-in & fade-out

Mode 3: RGB three colors mix fade-out & fade-in

Mode 4: RGB flash

Mode 5: RGB three colors fade-in & fade-out successively

Mode 6: RGB three colors fade-in successively

Mode 7: RGB three colors fade-out successively

Mode 8: RGB three colors jump changing successively

Mode 9: R&B two colors mix fade (R in B out), then G fade-in, then R&B mix fade (R out B in), then G fade-out

Mode 10: B fade-out, then G&B mix fade (G out B in), then R&G mix fade (R out G in), then R fade-in

Click the paired zone number/numbers, then touch the slider or the other buttons to do the controlling

Operate the remote after pairing

1. Do wiring the wall panel & RF receiver according to wiring diagram (please refer to the instruction of RF receiver that

you would like to pair with)

2. Power on, then touch the button to turn on the controller, indicator of the controller turned blue

Operation
