Sunricher SR-2820B Bedienungsanleitung

RF RGBW Wall Mounted Controller 09.2820B.04173

Function introduction

Important: Read All Instructions Prior to Installation

Front side

Touch color wheel, touch to

select R/G/B color

R/G/B/W 4channels:Click to turn off/on the channel

Press and hold down to increase/decrease light intensity of each channel

Click to switch on/off

Click to play / pause the

10 built-in effects,

Press and hold down to

speed up/down the

running effects

Press and hold down to save color/effect;

Click to recall the saved

Press and hold down to

increase/decrease light

intensity

Back side

60.3 mm

RF Wall

Panel Controller

DC Power input

V- V+

52.0 mm

60.3 mm

52.0 mm

19.4 mm

Product Data

• DO NOT install with power applied to device.

• DO NOT expose the device to moisture.

Safety & Warnings

Wiring diagram

Output Signal RF signal

Power Supply 12-24VDC

Power consumption 20 mA

Operating temperature 0-40°C

Relative humidity 8% to 80%

Dimensions 86x86x29.1mm

• Touch sensitive

• Glass interface(white & black)

• Compatible with all universal series RF receivers

• Control 1 Zone of RGBW LED lighting

• Radio frequency: 869.5/434MHz

• Waterproof grade: Ip20

RF Wall

Panel Controller

V- V+

12-24VDC

PSU

AC 100-240V

LED indicator

DC Version

RF Wall

Panel Controller

AC Version

AC Power input

RF signal

100-240VAC

20 mA

0-40°C

8% to 80%

86x86x29.1mm

DC Version AC Version

DC Version

AC 100-240V

AC Version

RF Wall

Panel Controller

AC Version

AC Power

50/60Hz

AC Power

50/60Hz

Installation

12-24VDC

Power Supply

Pair with RF receiver

Step 1:Click the “Learning Key” button on RF receiver or re-power on the

receiver three times continuously to set it into pairing status

Learning Key

RF LED Receiver

Step 2:Touch the color wheel, LED lights connected with the RF receiver

flicker once means the receiver is paired with the wall panel successfully.

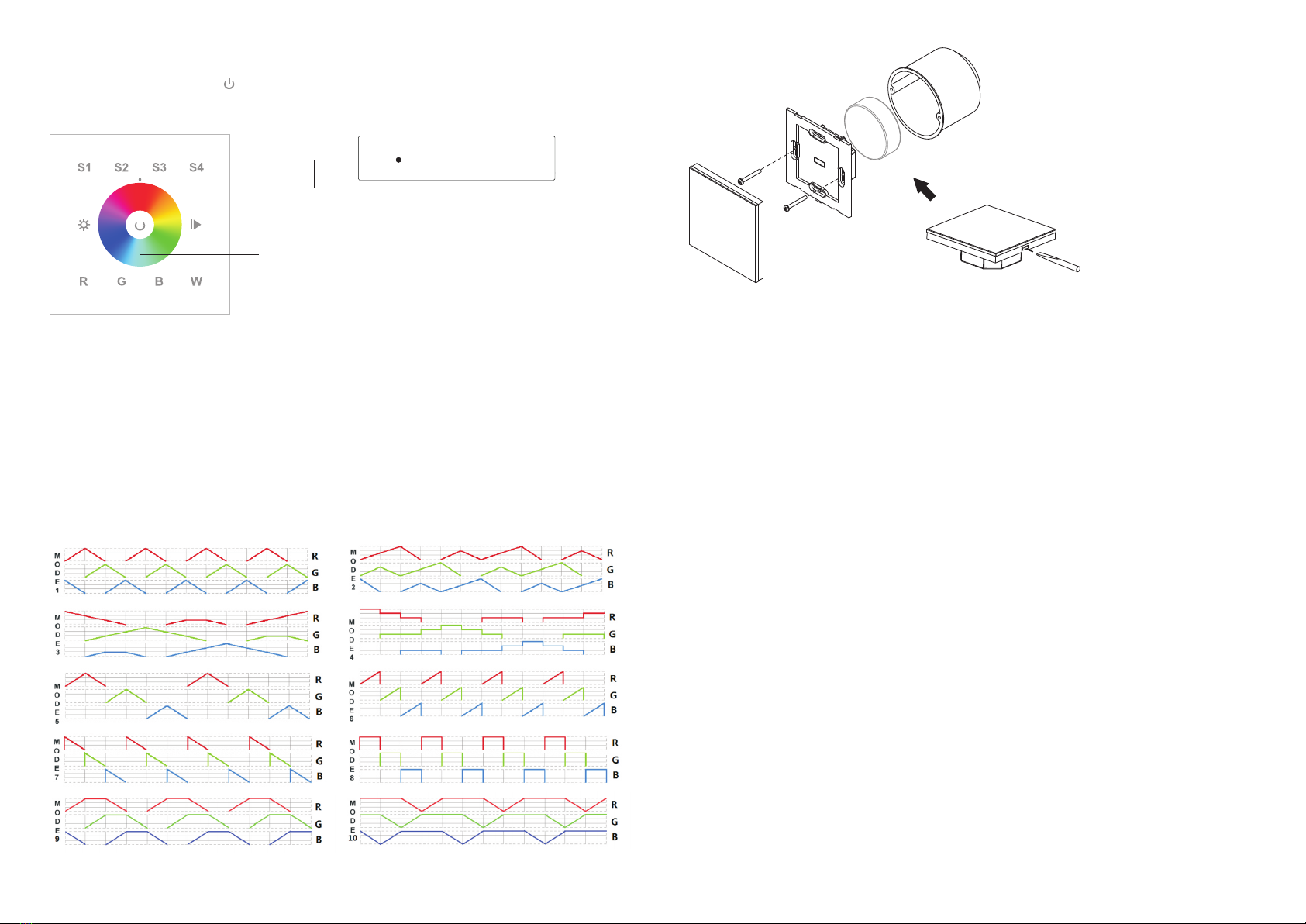

Built-in 10 color changing modes are as follows:

Mode 1: Any two colors of RGB mix fade-in & fade-out

Mode 2: RGB three colors mix fade-in & fade-out

Mode 3: RGB three colors mix fade-out & fade-in

Mode 4: RGB flash

Mode 5: RGB three colors fade-in & fade-out successively

Mode 6: RGB three colors fade-in successively

Mode 7: RGB three colors fade-out successively

Mode 8: RGB three colors jump changing successively

Mode 9: R&B two colors mix fade (R in B out), then G fade-in, then R&B mix fade (R out B in), then G fade-out

Mode 10: B fade-out, then G&B mix fade (G out B in), then R&G mix fade (R out G in), then R fade-in

1. Do wiring the wall panel & RF receiver according to wiring diagram (please refer to the instruction of RF receiver that

you would like to pair with)

2. Power on, then touch the button to turn on the controller, indicator of the controller turned blue

Operation
