Sunstech GRECO Bedienungsanleitung
1
1. Features Overview................................. 5
2. Indicator light.......................................... 6
3. Battery........................................................ 6
4. Trouble Shooting ................................... 7
5.Technical Specifications ....................... 8
2
1. DO NOT place objects on
top of the device, as objects
may scratch the device.
2. DO NOT expose the
device to dirty or
dusty environments.
3. DO NOT place the device on
an uneven or unstable surface.
4. DO NOT insert any foreign
objects into the device.
5. DO NOT expose the
device to strong magnetic or
electrical field.
6. DO NOT expose the
device to direct sunlight as it
can damage the device.
Keep it away from heat
sources.
7. DO NOT store your device in
temperatures higher than
40°C(104°F). The internal
operating temperature for this
device is from 20°C(68°F) to
3
60°C(140°F).
8. DO NOT use the device in
the rain.
9. Please check with your
Local Authority or retailer for
proper disposal of electronic
products.
10. The device and adaptor
may product some heat
during normal operation of
charging. To prevent
discomfort or injury from
heat exposure, DO NOT leave the device on
your lap.
11. POWER
INPUT RATING:
Refer to the
rating label on
the device and
be sure that the
power adaptor complies with the rating. Only
use accessories specified by the
manufacturer.
12. Clean the
device with a
soft cloth. If
needed, dampen
the cloth slightly
before cleaning. Never use abrasives or
cleaning solutions.
4
13. Always power off the
device to install or remove
external devices that do not
support hot-plug.
14. Disconnect the device
from an electrical outlet and
power off before cleaning
the device.
15. DO NOT disassemble the
device. Only a certified
service technician should
perform repair.
16. The device has apertures to
disperse heat. DO NOT block the
device ventilation, the device may
become hot and malfunction as a
result.
17. Risk of explosion if
battery replaced by an
incorrect type. Dispose of
used batteries according to
the instruction.
18. PLUGGABLE
EQUIPMENT: the
socket-outlet shall be
installed near the
equipment and shall be easily accessible.
5
1. Features Overview
●Classic appearance design and suitable
hand feel.
●Only support MP3 music playing format.
●USB 1.1 interface, free driver U-disk
function.
You can directly through the "Removable
Disk" operation documents in the "My
Computer", and in Windows 2K over the
system is without installing the driver.

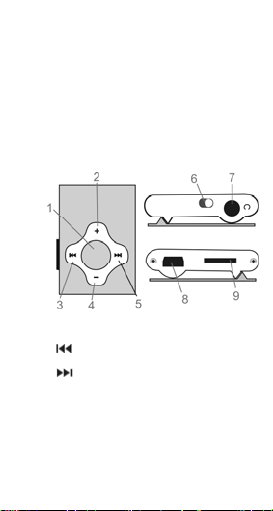

1 Play / Pause / Power On/Off
2 +:Volume Increasing
3 : Rewind /Previous Music
4 -:Volume Decreasing
5 : Fast-forward / Next Music
6 On/Off: Power On/Off.
7 Earphone Jack
8 USB Slot
9 Micro SD card
6
2. Indicator light
1. USB be used to charge MP3, when
connected PC, the indicator red light flash a
few seconds fast.
2. When playing music, the indicator light will
flash rhythmically slowly..
3. when low power, the indicator light will
flash fast for a second and then shutdown.
3. Battery
Make sure the power switch is being ON to
charge, or the player could not be charged
properly. Disconnect the player and USB,if
you want to stop charging.
Turn OFF the player when you do not use it.
Warning: Please make sure the player is fully
charged before not using for a long time. Pls
switch OFF the machine when didnot use the
player more than 6 months and please
remember to recharge it again.
7
4. Trouble Shooting
No Power Check to see if battery is low.
Check to see if the player is ON
No sound
from
earphone.
Check to see Volume is set “0”
and connect the earphone
connects properly.
Make sure earphone is clean and
in good status.
Damaged MP3 file may make
noise and could not be played
Make sure that the music files are
not damaged.
Failure of
music
download
Check to see if USB cable is
damaged and connected
properly.
Check to see if driver is installed
correctly.
Check to see if memory space is
enough.
8
5.Technical Specifications
Dimensions 41mm x 28mm x 10mm
（without clip）
Weight 16g
Solution AC1083
Mirco SD card Support(up to 32GB)
Connecting to
PC
USB 1.1
Battery Type Li-Polymer Rechargeable
(3.7V) , 110mAh
Play time approx. 5hours
Supported
Music Formats
MP3
Earphones
output power
(L)10mW +
(R)10mW(32Ohm)
Working
temperature
-5 to 40 degree
Operating
System
Windows / Mac
Please note: Design and characters may
change without prior notice.
Made in China
9
Warranty conditions
- The warranty of this product is for 2
years since the purchase date.
- The warranty will exclude
breakdowns caused by bad use of the
product, wrong installation or
installation in not desirable places for
a proper maintenance of the product,
rips, updates of the products
that are not the supplied by the brand,
pieces wore away for its use or for not
domestic or inappropriate
use. Also are excluded breakdowns
caused for manipulations of the
products by people or companies
alien to our company.
- For any request regarding the
warranty terms, the purchase receipt
must be attached.
