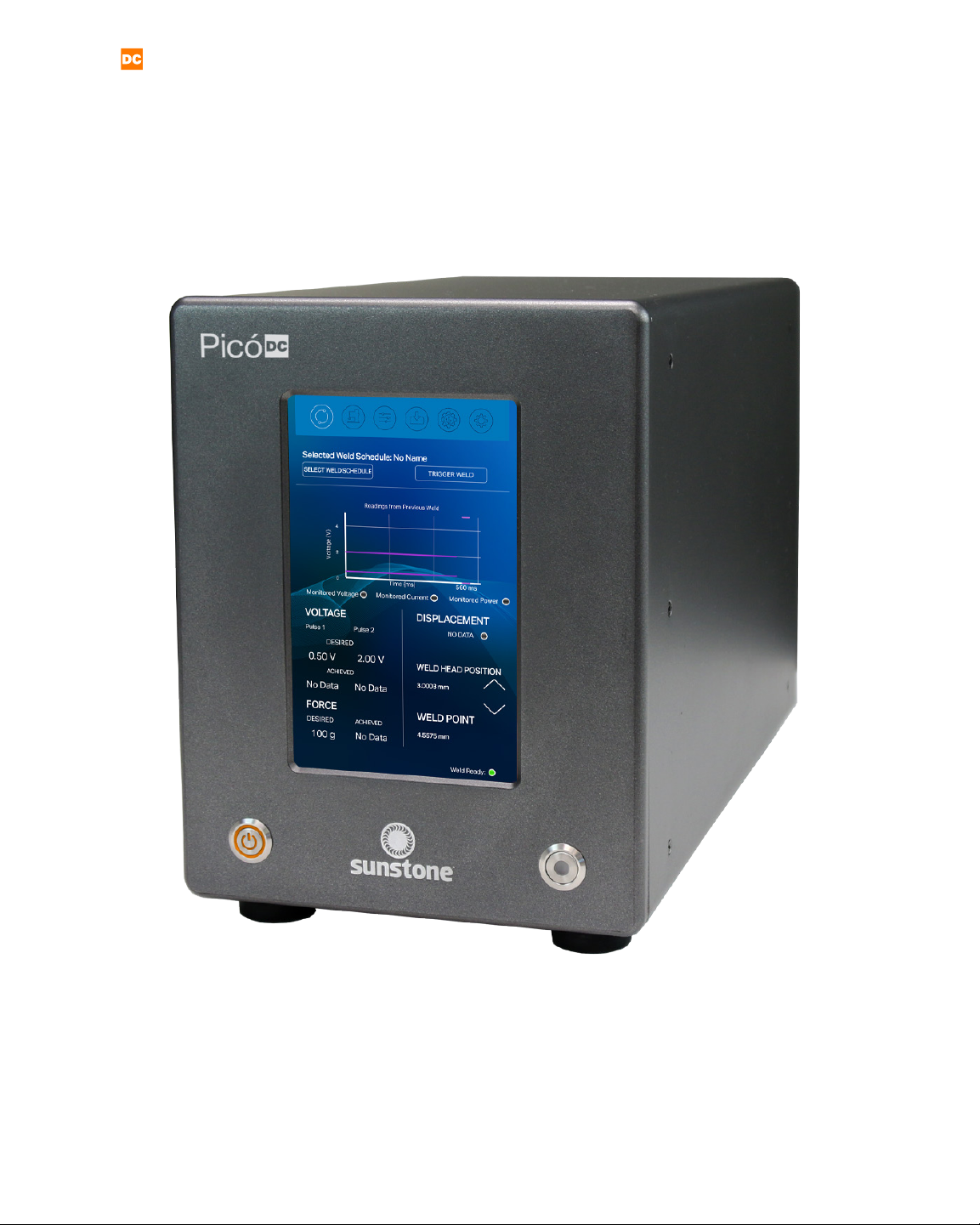

SUNSTONE PicoDC Bedienungsanleitung

Direct Current Resistance Welder Users Guide

20210615 • PART #1230

Picó

Users Guide

Picó

ATTENTION: Read the Safety Guide before operating this welder!

Operator assumes all liability.

REVISION DATE VERSION NO. DESCRIPTION OF CHANGES

1 08/2021 Original Content

LIMITATION OF LIABILITY

IN NO EVENT, UNDER ANY CAUSE OF ACTION OF THEORY OF LIABILITY, SHALL SUNSTONE ENGINEERING LLC, ITS DISTRIBUTORS,

OR SUPPLIERS BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, EXEMPLARY

OR PUNITIVE DAMAGES, OF ANY NATURE WHATSOEVER, ARISING OUT OF THE USE OF OR INABILITY TO USE ANY SUNSTONE ENGI-

NEERING LLC PRODUCT, INCLUDING, WITHOUT LIMITATION, PROPERTY DAMAGE, LOSS OF VALUE OF THE SUNSTONE ENGINEER-

ING LLC PRODUCT OR ANY THIRD PARTY PRODUCTS THAT ARE USED IN OR WITH THE SUNSTONE ENGINEERING LLC PRODUCT,

OR LOSS OF USE OF THE SUNSTONE ENGINEERING LLC PRODUCT OR ANY THIRD PARTY PRODUCTS THAT ARE USED IN OR WITH

THE SUNSTONE ENGINEERING LLC PRODUCT, EVEN IF SUNSTONE ENGINEERING LLC HAS BEEN ADVISED OF THE POSSIBILITY

OF SUCH DAMAGES. WITHOUT LIMITING THE FOREGOING, YOU UNDERSTAND AND AGREE THAT SUNSTONE ENGINEERING LLC

HAS NO LIABILITY FOR ANY DAMAGE OR DESTRUCTION TO ANY PROPERTY. NOTWITHSTANDING ANY DAMAGES THAT YOU MIGHT

INCUR FOR ANY REASON WHATSOEVER (INCLUDING, WITHOUT LIMITATION, ALL DAMAGES REFERENCED HEREIN AND ALL DIRECT

OR GENERAL DAMAGES IN CONTRACT, TORT (INCLUDING NEGLIGENCE) OR OTHERWISE), THE ENTIRE AGGREGATE LIABILITY OF

SUNSTONE ENGINEERING LLC AND ANY OF ITS DISTRIBUTORS AND/OR SUPPLIERS SHALL BE LIMITED TO THE AMOUNT ACTUALLY

PAID BY YOU FOR THE SUNSTONE ENGINEERING LLC PRODUCT GIVING RISE TO LIABILITY. SOME STATES AND/OR JURISDICTIONS

DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR

EXCLUSIONS MAY NOT APPLY TO YOU. THE LIMITATIONS OF LIABILITY SET FORTH ABOVE SHALL APPLY TO THE MAXIMUM EXTENT

PERMITTED UNDER APPLICABLE LAW.

e Micro Welder Experts

Contents

Chapter 1: Overview ....................................................1

Welding Tips and Recommendations ................3

Common Electrode Types......................................4

How to Maintain Repeatable Welds ....................5

Chapter 2: Setup and Installation ............................7

Safety Precautions ...................................................7

Voltage and Power Requirements .......................7

Exploring the Welder’s Front Panel.....................8

Exploring the Welder’s Back Panel .....................9

Exploring the Side Panel...................................... 10

How to Set Up Your Welder................................. 10

Chapter 3: How to Use the Software Interface . 12

Run Screen Operation .......................................... 13

Selecting Weld Schedules........................... 13

Trigger Weld ..................................................... 13

Comparator Monitoring................................ 14

Displacement Monitoring ............................ 14

Weld Head Position........................................ 14

Force ................................................................... 14

Weld Head Control Screen Operation ............ 15

Mode Select...................................................... 15

Force ................................................................... 16

Position .............................................................. 17

Timing ................................................................. 18

Speed.................................................................. 19

Displacement ................................................... 20

Weld Setting Screen Operation ........................ 21

Waveform Graph ............................................. 21

Turn Pulses On or O .................................... 21

Set Voltage........................................................ 21

Set Pulse Duration.......................................... 22

Set Delay Between Pulses........................... 22

Save/Load Screen Operation............................. 23

Communications Screen Operation................ 24

PLC ....................................................................... 24

Alarms................................................................. 26

Importing/Exporting Weld Settings......... 28

Systems Screen Operation................................. 29

Interface Panel................................................. 29

Lock Panel ......................................................... 29

System Panel.................................................... 31

How to Update the Pico’s Software ................. 32

Appendix A: Pinout Details ..................................... 34

 ............................................ 36

Users Guide

Picó

Questions? Call or Text +1-801-658-0015 • 1

e Micro Welder Experts

Chapter 1: Overview

The Sunstone Pico is a closed-loop feedback, direct-current, resistance welder engineered for thermocom-

pression and other ne welds. With built-in force and displacement monitoring, the Pico provides unmatched

precision, energy control, and monitoring using a color touchscreen interface.

The Pico provides you with many advantageous benets, including built-in weld monitoring, SPC tools, PLC

communication, closed-loop feedback, and more—all controlled with a 100% digital interface. The touchscreen

provides easy access to all weld parameters in addition to a visual representation of the weld waveform graph,

weld histograms, alarms, and warnings.

For automated production settings, the welder has basic PLC protocols. A cloning feature provides a simplied

method to set up multiple identical welders. Cloning copies all parameters and settings from one welder and

quickly exports them to other welders.

DC resistance welders, like the Pico, can provide consistent and repeatable energy discharges with accurate

controls and ne adjustments. DC resistance welders are ideal for thermocompression applications and small

wires due to the lower peak currents and maintainable energy discharge.

The Pico provides the following features and benets:

• Small heat-aected zone during the weld

• Ability to monitor Force and Displacement during the weld (coupled with the Micro E weld head)

• Versatility to weld very small, thin, and delicate metal parts

• Single or Dual Pulse operation

• Low maintenance required

• Touchscreen Interface

• Weld Monitoring

• Weld Head Controls

• Remote Schedule Select

• Weld Counter

• Histogram of weld results

2• Questions? Call or Text +1-801-658-0015

Users Guide

Picó

• Weld Comparator

• Full welder parameter cloning

• Lock-Out Mode

• PLC communication ready

• Software Updates

• Multiple Languages available

• Alarms and warnings

What is Direct Current Resistance Welding?

The Sunstone Pico welder converts the AC power coming from the wall to DC power and utilizes an internal

control system to regulate and maintain the weld discharge for accurate, repeatable welds. The control system

allows for ne tuning and manipulation of the weld energy to adjust for various welding applications. DC power

can be ideal for very ne wires and thin components that need the precision other welding power supplies do

not provide. The peak current of DC welders is lower than that of CD welders, but more sustainable throughout

the weld process. The sustained peak currents are ideal for using thermocompression electrodes because the

constant current provides a more even heat during the length of the weld.

DC RESISTANCE WELD FORMATION

Resistive spot welding relies on metal resistivity to heat and fuse metal. Current is generated by the DC power

supply and is passed through the workpiece metal. Energy is dissipated in the form of heat due to the metal’s

resistance to the current. This resultant heat melts the weld materials, fusing them together. There are two

phases to the melting process and the welder must overcome both the “Contact Resistance” and the “Bulk

Resistance” of the material.

Contact Resistance

On the micro scale, surfaces of materials are rough and uneven, resembling peaks and valleys, as shown in Fig-

ure 2.1. When two surfaces are pressed together, contact is only made in a limited number of locations (where

the peaks meet the peaks), instead of across the entire surface. These contact points act as resistive bridges

for the current to ow across and create contact resistance. During the rst few milliseconds of weld formation

these bridges melt, allowing other bridges to come into contact to continue the melting process.

Figure 2.1. Surface roughness limits surface-to-

surface contact. More contact points result in a

lower contact resistance.

Questions? Call or Text +1-801-658-0015 • 3

e Micro Welder Experts

Bulk Resistance

Once all the bridges have fused, the contact resistance nears zero. At this point the second phase of the

melting process begins and the bulk resistance of the materials plays the nal role in weld formation. The “Bulk

Resistance” is the inherent resistive nature of the material and varies depending on the type of material. As

conductivity increases, resistivity decreases. Conductive metals such as copper require much larger amounts

of energy to form a weld compared to more resistive materials such as steel.

What is Thermocompression Welding?

Thermocompression welds utilize the resistive nature of the electrode material to generate the heat for fusion

instead of relying on the resistive nature of the materials being welded. Thermocompression electrodes (gener-

ally made of tungsten) are specially designed to be fused at the very tip. As current is passed through the resis-

tive tip of the electrode, heat is generated. Constant contact between the electrode and material being welded

must be maintained with the correct amount of compressive force to create fusion with the substrate material.

Welding Tips and Recommendations

Remember that every weld application is dierent. Several factors must work together and be balanced to

achieve successful welds. Sometimes experimentation and tweaking is required to get just the right weld. As

previously discussed, the resistivity of the materials and contact resistance play a major role. Other important

factors include the force being applied, the weld discharge energy, the weld discharge length, and the elec-

trodes being used.

WELD FORCE

Since contact resistance plays such an important role in the weld process, the weld force being applied by the

electrodes is critical. The larger the contact resistance, the hotter the resultant weld.

As more force is applied, the contact resistance is reduced due to an increased number of contact points be-

tween the two surfaces at the weld spot (more contact points result in lower contact resistance). More contact

points results in a cooler weld.

Conversely, too little force can lead to arcing between the two surfaces, which causes undesirable weld results.

Too much force can lead to weaker welds and part deformation.

Note: Weld force, as specically described above, applies to resistance welding only. Thermocompression

welds are not aected by contact resistance and therefore lighter forces do not lead to increased weld heat.

In fact, higher forces are sometimes necessary to create good contact fusion (hence the term “compression”

used in the name).

WELD ENERGY

The weld energy is adjusted using the welding power supply. Sunstone recommends that you rst try a weld at

a low energy setting and then increase energy until the desired hold strength is achieved. This tactic helps pre-

vent destroying the workpiece by having too much energy to start out. With thermocompression welds, when

set too high, energy settings can even lead to electrode tip degradation/failure.

4• Questions? Call or Text +1-801-658-0015

Users Guide

Picó

WELD LENGTH

Some applications require longer weld times than others to achieve good welds. Keep in mind that the longer

the weld lasts, the larger the heat aected zone will become. Weld length plays an important role in Thermo-

compression welding because the electrode tip must remain heated long enough for the coating and wire to

melt.

Common Electrode Types

Thermocompression

Thermocompression electrodes are typically used to weld magnet wires or other coated wires. Thermocom-

pression electrodes typically have an 1/8” diameter shaft body; dierent tip sizes/shapes can be available to

cater to various applications. Larger tips require more energy to heat suciently while smaller tips can be more

fragile and require less force.

Parallel Adjustable Gap

Parallel adjustable gap electrodes can be used to weld thin foils and strips and oer exibility in gap distance,

also allowing for a step conguration if required. They are available with a variety of tip sizes and come in Glid-

cop® or molybdenum.

Fixed Gap

Fixed gap electrodes can be used for similar welding applications to the adjustable gap but have the advantage

of easily maintaining the exact same gap for every weld with no need to adjust the gap. They have a smaller gap

that can often be achieved by the adjustable gap electrodes (but cannot be used for step weld congurations).

They are available in molybdenum.

Opposed

The opposed conguration is ideal for cross-wire welds and welds that oer access to both top and bottom of

the material. Electrodes come in Glidcop, Molybdenum, and Tungsten, with a variety of tip shapes.

Electrode Tip Ratings

Dierent electrode tip sizes can handle dierent amounts of force. Use the following as a guide:

• .01” x .01” – 40-1000 grams

• .015” x .025” – 125-1500 grams

• Anything larger – 400-2000 grams

Questions? Call or Text +1-801-658-0015 • 5

e Micro Welder Experts



Direct weld (Opposed)

Current passes from one electrode through both

workpieces and out the opposing electrode. Typically

the easiest conguration to achieve good weld nuggets

and strength. See Figure 5.1.

Step (Adjustable Gap)

The electrode is placed on both materials, but from the

same side. A step or adjustable gap electrode congu-

ration can be challenging when maintain proper pres-

sure at each electrode due to possibly uneven surface.

See Figure 5.2.

Series (Adjustable Gap/Fixed Gap)

The electrodes are placed on the surface material only.

Because the current is split between both materials,

sometimes this conguration requires more weld ener-

gy than a direct weld would. See Figure 5.3.

Thermocompression

In a thermocompression conguration, the current

does not pass through the materials being welded, but

rather the current passes through the electrode tip. A

thermocompression conguration is most useful for

coated surfaces like magnet wire. See Figure 5.4.

How to Maintain Repeatable Welds

Consistent weld results require a consistent and

repeatable process. A few suggestions for ensuring

repeatable welds include:

• Keep a weld logbook documenting the process

once a successful weld has been achieved. Try

to keep track of the following:

• Force applied

• Electrodes (tip size/shape, electrode

material, etc.)

Figure 5.1. Direct

(opposed) electrode

conguration.

Figure 5.2. Step

(adjustable gap) electrode

conguration.

Figure 5.3. Series

(adjustable gap/xed gap)

electrode conguration.

Figure 5.4. Thermocom-

pression electrode cong-

uration.

6• Questions? Call or Text +1-801-658-0015

Users Guide

Picó

• Measured gap distances (between electrodes, between the tips and workpiece, etc)

• Electrode placement in electrode holders (ush with top, extending “X” amount, etc.)

• Welding Power Supply settings (energy, length, etc.)

• Make sure there are no impediments to shaft movement.

• Make sure all the screws and connectors are tight.

• Make sure the weld head is placed on a stable, level surface that does not wobble.

• Try to make sure the materials being welded are clean and free of contaminants like dirt and oil.

• Whenever possible, xture the parts being welded to ensure repeatable positioning and stability during

the weld.

• Keep electrodes clean (create a process of maintaining the electrodes after a predetermined number of

welds.

Inhaltsverzeichnis

Andere SUNSTONE Schweißsystem Handbücher

SUNSTONE

SUNSTONE AC1050 Bedienungsanleitung

SUNSTONE

SUNSTONE Linear DC Bedienungsanleitung

SUNSTONE

SUNSTONE CDSP Bedienungsanleitung

SUNSTONE

SUNSTONE MICRO E Bedienungsanleitung

SUNSTONE

SUNSTONE WH1 Bedienungsanleitung

SUNSTONE

SUNSTONE CD200DP-A Bedienungsanleitung

SUNSTONE

SUNSTONE Orion M Series Bedienungsanleitung

SUNSTONE

SUNSTONE CDDP-A Bedienungsanleitung

SUNSTONE

SUNSTONE Venus GX Bedienungsanleitung

SUNSTONE

SUNSTONE Scout Bedienungsanleitung

SUNSTONE

SUNSTONE Zapp Plus Bedienungsanleitung

SUNSTONE

SUNSTONE Orion i Series Bedienungsanleitung

SUNSTONE

SUNSTONE Orion PJ Bedienungsanleitung

SUNSTONE

SUNSTONE CD200DP Bedienungsanleitung

SUNSTONE

SUNSTONE Orion 200i Bedienungsanleitung

SUNSTONE

SUNSTONE Orion c Series Bedienungsanleitung

SUNSTONE

SUNSTONE Orion 50p Bedienungsanleitung

SUNSTONE

SUNSTONE Orion mPulse Bedienungsanleitung

SUNSTONE

SUNSTONE AC 5.0 kVA Bedienungsanleitung

SUNSTONE

SUNSTONE Zapp Bedienungsanleitung

SUNSTONE

SUNSTONE Orion 150s Series Bedienungsanleitung

SUNSTONE

SUNSTONE Orion 100c Bedienungsanleitung

SUNSTONE

SUNSTONE OMEGA PA 250i Bedienungsanleitung

SUNSTONE

SUNSTONE Orion LZR Benchtop Laser Welder Bedienungsanleitung

Beliebte Schweißsystem Handbücher anderer Marken

Berner

Berner PLASMACUT 54 Bedienungsanleitung

Pro Spot

Pro Spot PR-155 Bedienungsanleitung

Forney

Forney 210 Bedienungsanleitung

Thermal Arc

Thermal Arc 400S Bedienungsanleitung

Lincoln Electric

Lincoln Electric HANDYMIG 170I Bedienungsanleitung

GYS

GYS PROTIG 201 AC/DC Bedienungsanleitung

TAFA

TAFA 30*8B35 Bedienungsanleitung

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Bedienungsanleitung

ESAB

ESAB Buddy Arc 145 Bedienungsanleitung

CIGWELD

CIGWELD 636804 Kurzanleitung

Red-D-Arc

Red-D-Arc DC-400 Bedienungsanleitung

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Bedienungsanleitung

Elettro

Elettro HI-MIG 3000 SYNERGIC Bedienungsanleitung

WIA

WIA Weldmatic 270 CP132-2 Bedienungsanleitung

Sonics

Sonics H520T Bedienungsanleitung

Miller

Miller Big Blue 400D Bedienungsanleitung

NewArc

NewArc RT2000 Kurzanleitung

Hypertherm

Hypertherm powermax1000 Bedienungsanleitung
