SUNTEC TM-5H Bedienungsanleitung

Operating Manual

Thank you for purchasing the SUNTEC products.

To ensure best results and use for a long time, it is

important that you read, understand and follow

these instructions in this manual carefully before

using.

This manual should be retained for future reference.

The following words and symbols, found in this

manual, alert you to hazards to the operator, service

personnel or the equipment. The words are defined

as follows; WARNING: This symbol refers to a

potential hazard which could result in serious injury

or death. CAUTION: This symbol refers to a potential

hazard or unsafe practice which may result in minor

or moderate injury or product or property damage.

Safety Precautions

However, indicated CAUTION may result in serious

condition by situation, it is important that you follow

the instruction in this manual carefully.

Conveyor Toaster

TM-5H

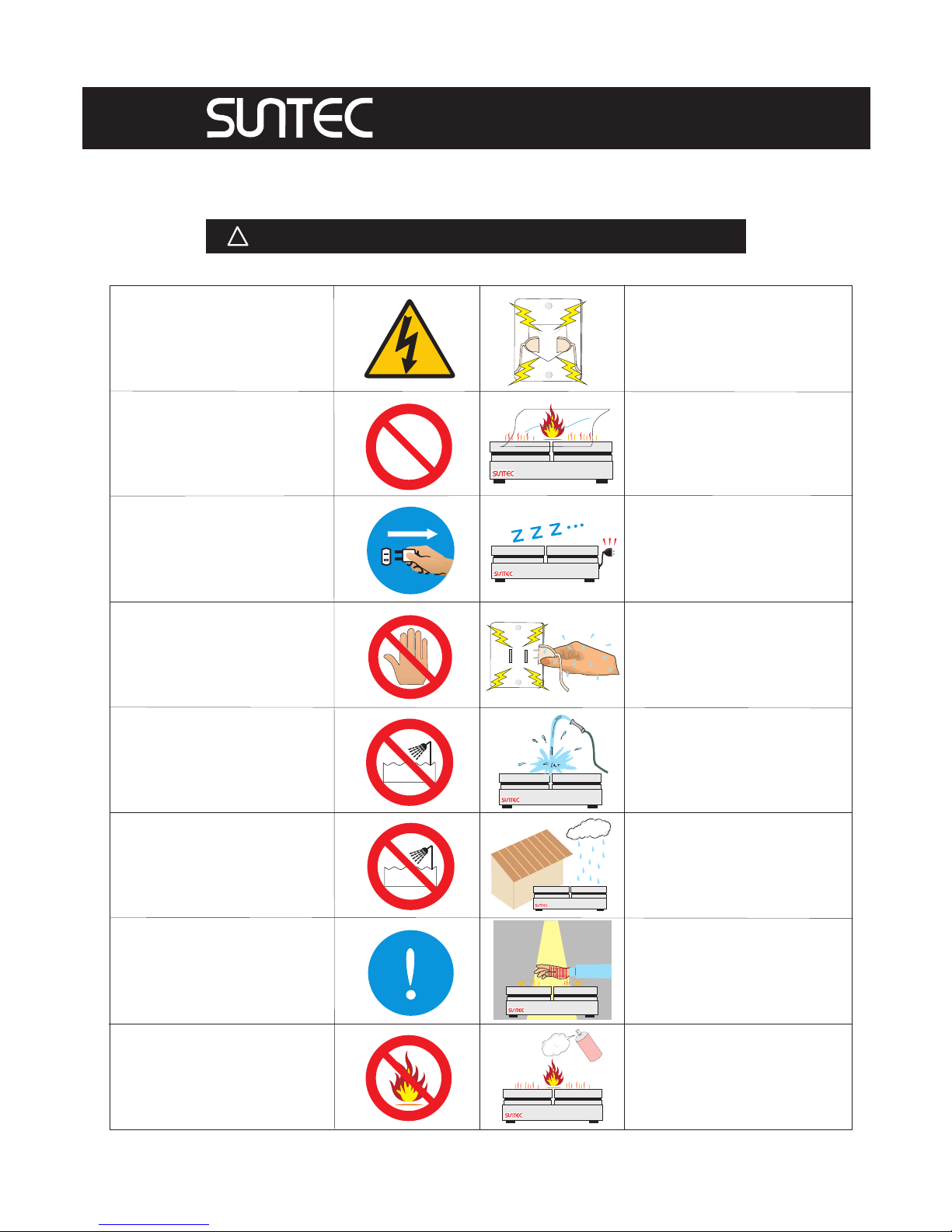

！WARNINGWARNING

The products which

electric power is over

1.0kw must plag a

properly(grounded)

indlvidual receptacle.

It could result in fire

by ignition.

Do not cover the

product with a cloth

or plastic bag while

you are using it.

It could result in fire.

Ensure to unplug the

product while you

don't use it.

It could result in fire

or electric shock.

Do not touch the

product with wet

hands.

It could result in

electric shock.

Never clean the

product by sprinkling

water.

It could result in

electric shock or

product damage.

Do not use the

product outside in

the rain or wet area.

Use the product in a

light place.

It could result in

accident or burn if

you use it in a dark

room.

Do not use the

product near

flammable gas or

liquid.

It could result in

explosion or fire.

It could result in

electric shock.

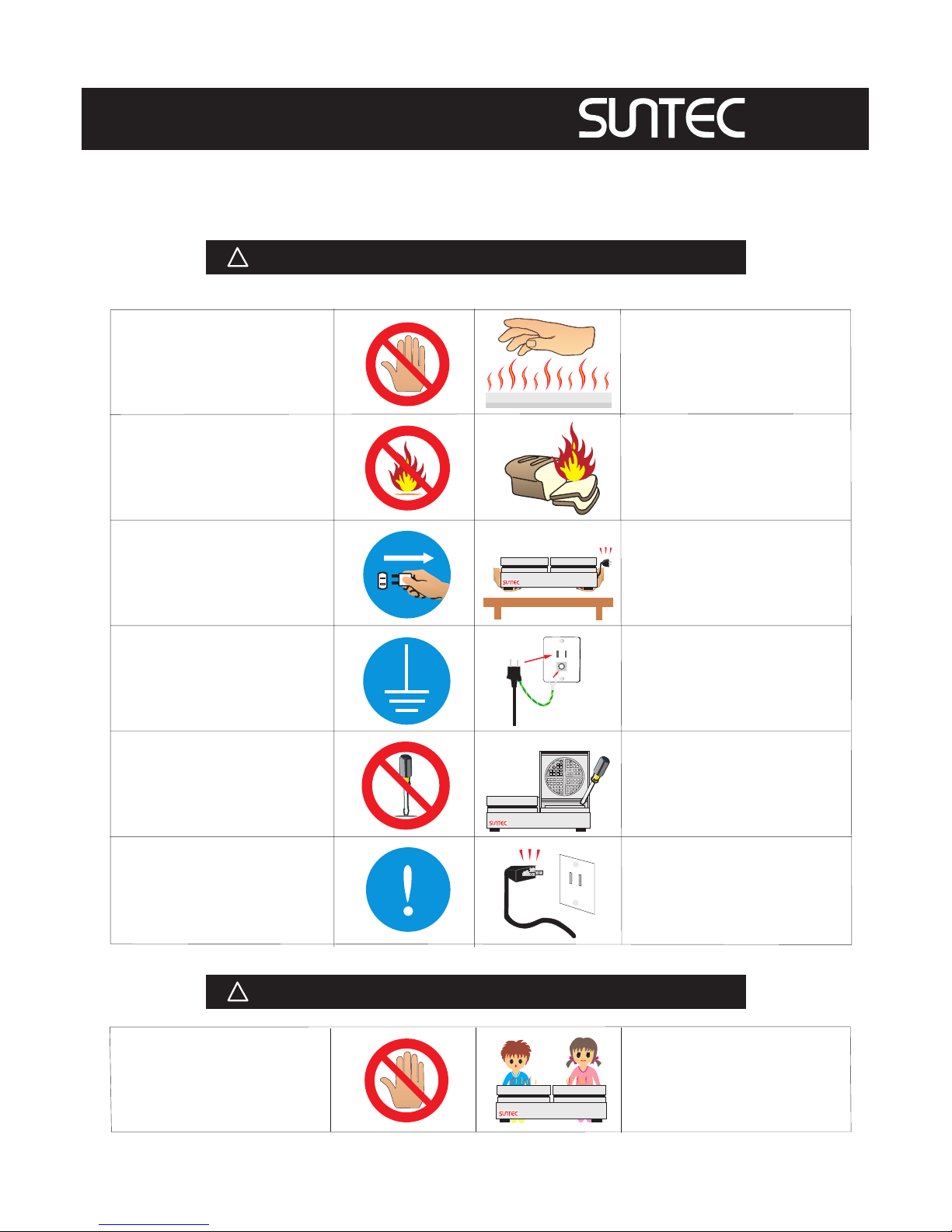

！WARNINGWARNING

Never touch the plate

or around while the

product is working

because there are

very hot.

It could result in burn..

Ensure to unplug and

get cold the product

when you move it.

It could result in

electric shock or

burn.

Must be plugged

directly into a

properly grounded.

(Never connect with

gas pipe)

It could result in

electric shock by

trouble or electric

leakage.

Do not overhaul,

repair or reconstruct

the product except

service personnel.

It could result in

ignition or injury by

unusual

performance.

Always clean the edge

of a plug when it is

dirty or dusty. It could result in fire.

！CAUTIONCAUTION

Nobody allows

touching the product

or code and keep

anyone away from

workshop except

workers.

It could result in injury

or burn.

Please note the

thickness and the

length of bread.

There is fear of Hi a

fire in the upper part.

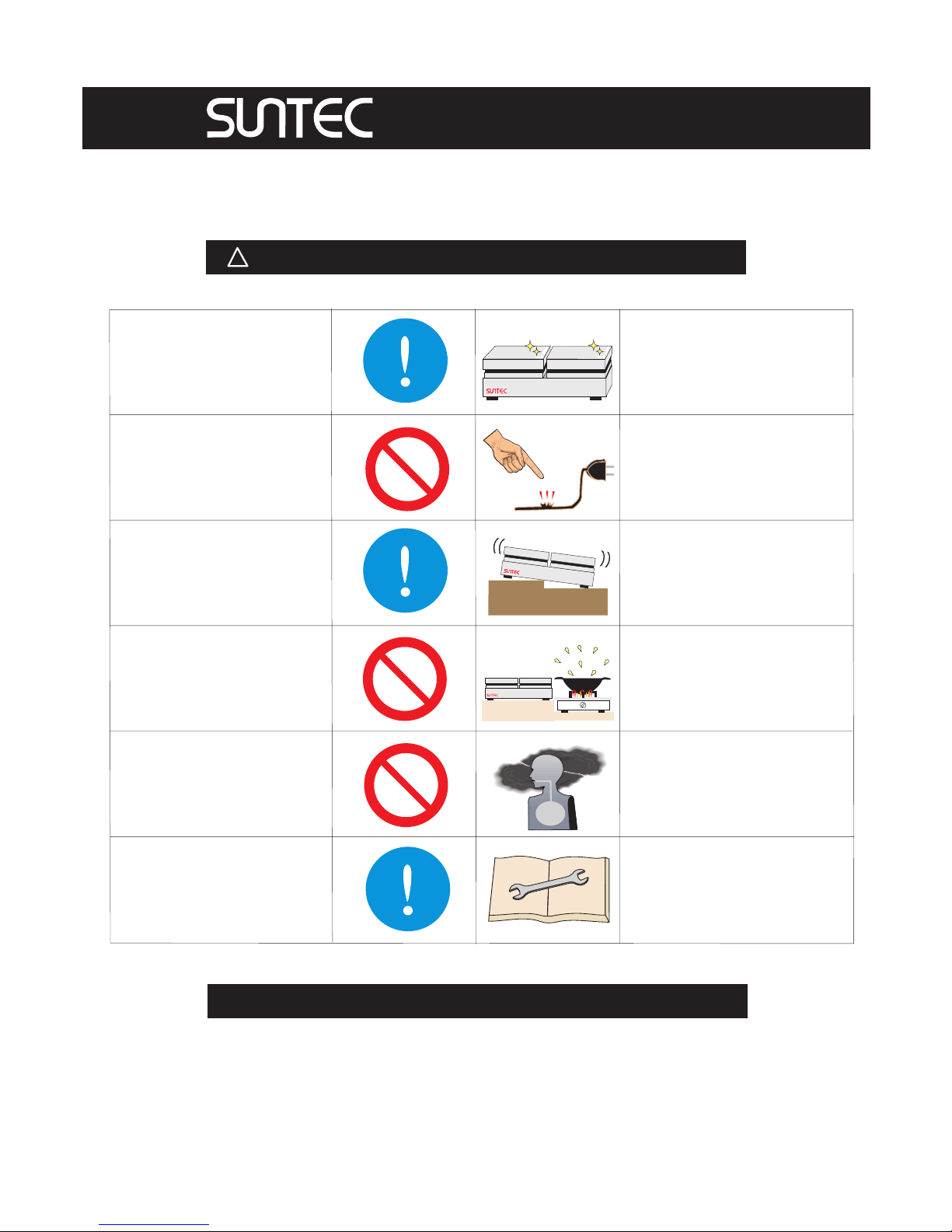

！CAUTIONCAUTION

Always keep cleaning

the workshop.

It could result in

obstruction of safety

or efficient work.

Check the supply

cord regularly. If it is

damaged, it must be

replaced with a new

cord assembly

available from the

suppliers agent.

It could result in

electric shock or

ignition by short

circuit.

Place on a horizontal

and strong surface at

the desired location.

Set up with not

slipping down.

It could result in injury

or burn by the product

falls down.

Do not place near

water or oil.

It could result in

electrical shock, fire,

trouble or

transformation.

Stop to use the

product when it

appears smoke, smell

or other unusual

things.

Be sure to attach this

manual, if you hand

over the product.

It's necessary that new

user works safety and

uses correctly.

Contact with the sales

agent after turning off

the switch and pulling

out the plug for

ｐreventing trouble or

accident.

Before First UseBefore First Use

・Please put it on the horizontal, strong place so that installation features

　may avoid imperfect ventilation.

・A minimum clearance of 10 cm is required between other equipments.

・Must be plugged directly into a properly grounded. Improper grounding

could result in electrical shock or accident. Never connect with gas pipe.

・Don't place near water or oil. It could result in electrical shock, fire,

accident or transformation.

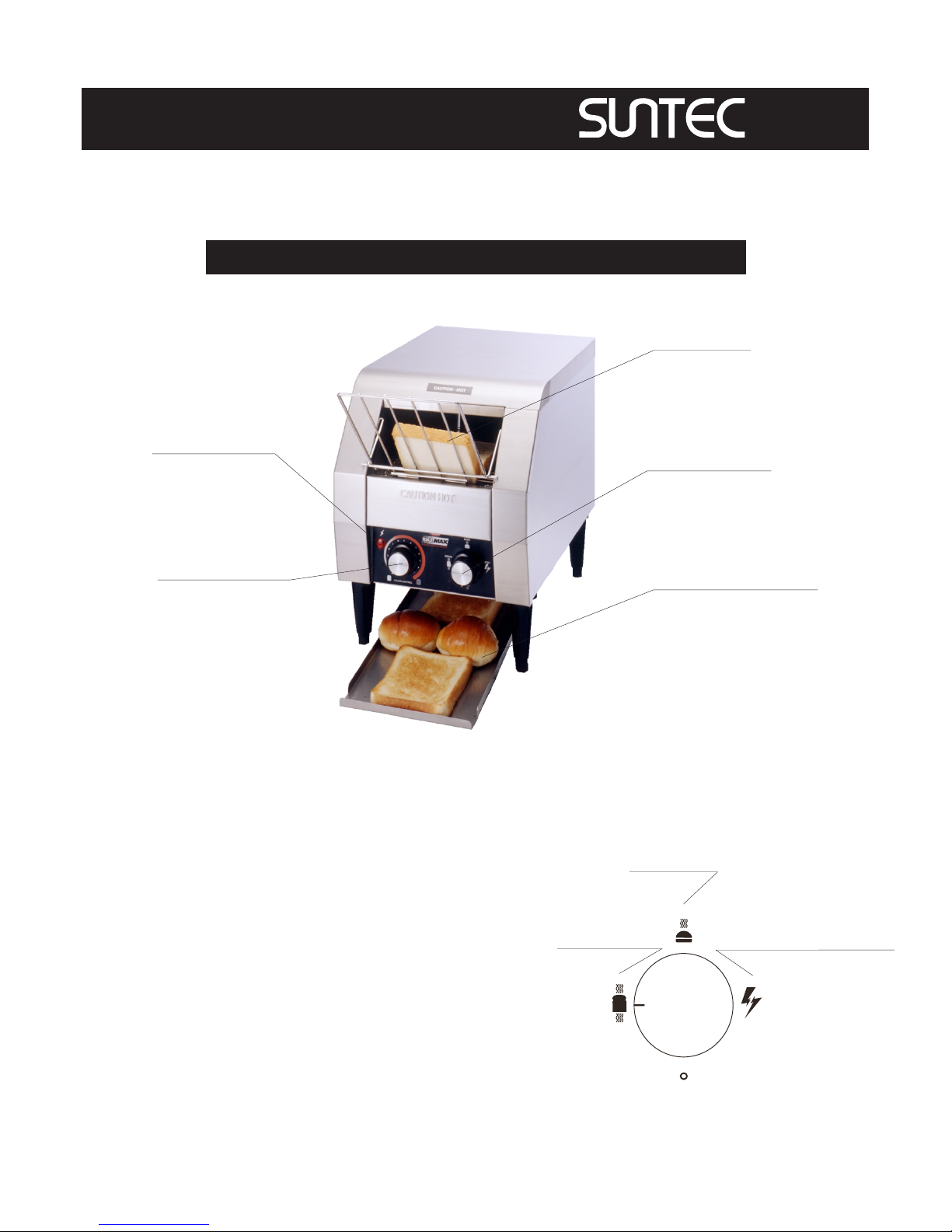

Parts DescriptionParts Description

Color　Contrl

Entrance

Front Discharge

Description：Electric Conveyor Toaster

Model：TM-5H

Power：AC100V

Electricity

Measurements：290(W)×420(D)×420(H)

　　 Entrance：175(W)×89(H)

Shipping Weight:16kg

Capacity:150slices per hour.

Switch/

Thermostat

Pilot Lanp

About the Switch/Thermostat

☆The power at the saving mode

　becomes 25% usually.

One side

Both sides Power Save Mode

STBY

BUNS

BREAD

OFF

Consumption：1480W

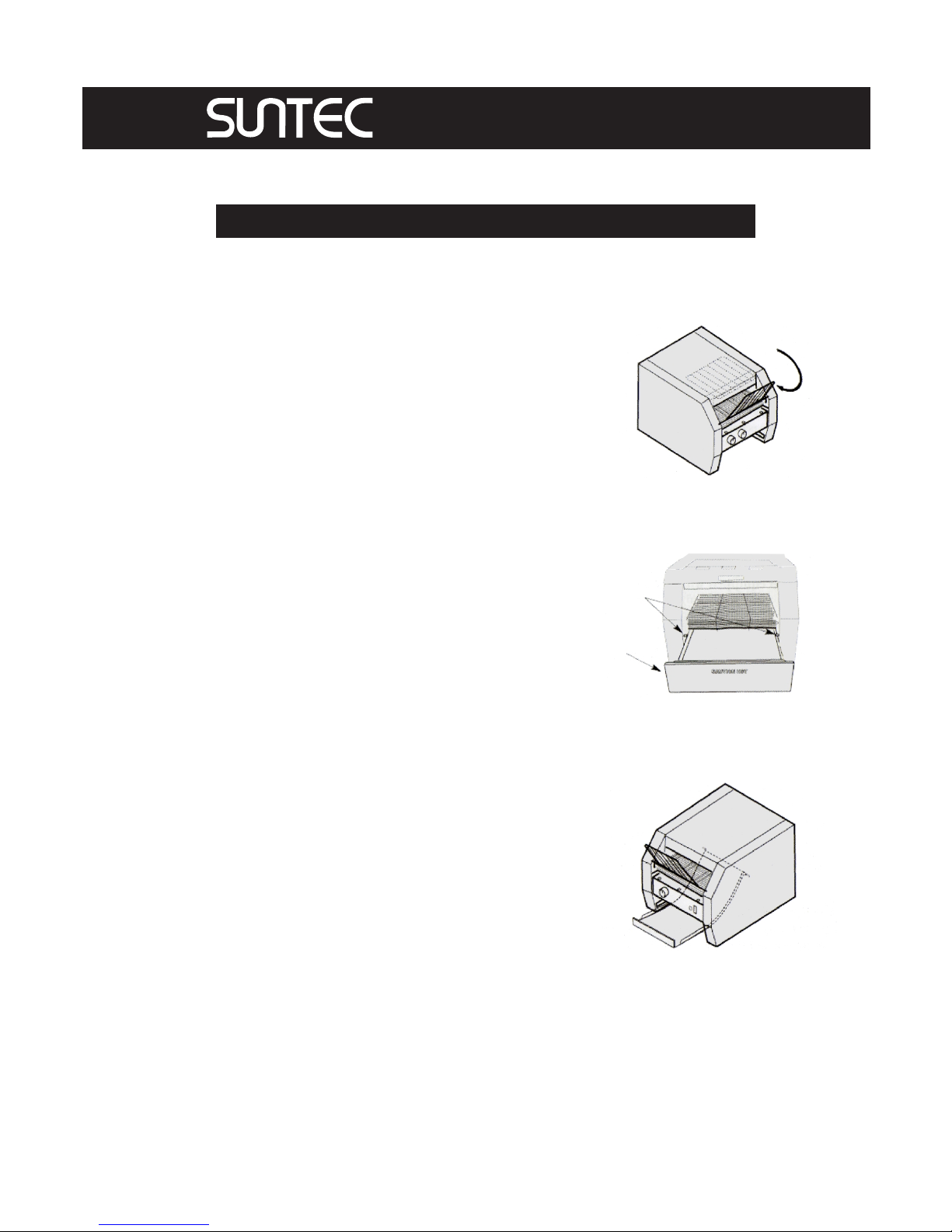

Set-upSet-up

Stop Pins

Toast Crumb

　　Tray

Figure 1.

Figure 2.

Figure 3.

・Install the legs.

　If unit is not level, use 9/16"(14mm)

　open-end wrench to adjust the foot

　of each leg until unit is level.

・Toast Feed Ramp

　The toast feed ramp is installed

　at the factory and can be used in

　tow positions. See Figure 1.

　1.When in the upright position,

　　the toaster is set for automatic feed.

　　Bread products enter the toaster by

　　placing them on the feed ramp and

　　releasing.

　2.For manual feeding of product,

　　tip the feed ramp until it

　　rests on top of the unit.

　　In this position bread

　　products can be manually

　　loaded by placing them directly

　　on the conveyor belt.

・Toast Crumb Tray

　Install toast crumb tray

　directly conveyor belt and

　below the stop pins. Insert

　until the front of the crumb

　tray meets the stop pins.

　See Figure 2.

・Front/Rear Discharge

　The toaster can be configured

　to discharge in the front or rear.

　User can pull up the rear discharge

　door for front discharge

（See Figure 3) and push down the

　rear discharge door for rear discharge.

OperationOperation

1.Plug toaster into a properly grounded electrical

　outlet of the correct voltage, size and plug

　configuration.

2.Place the On/Off switch in the On position.

3.Turn the Color Control to the lightest position while

　the unit heats up.

　Note:Allow approximately 15 to 20 minutes for a

　　　　warm-up period.

4.After warm-up period, set the Color Control to the

　medium position and toast two slices of bread

　product then re－adjust the Color Control to the

　desired setting.

　Note:To toast moist products such as English Muffins,

　　　　rye bread or whole wheat, slow the convveyor by

　　　　turning the Color Control knob to a darker setting

　　　　(clockwise)

1.Plug toaster into a properly grounded electrical

　outlet of the correct voltage, size and plug

　Configuration.

2.Rotate the Rotary switch in the high-heat position.

3.Turn the Color Control to the lightest position while

`　the unit heats up.

　Note:Allow approximately 15 to 20 minutes for a

　　　 warm-up period.

4.After warm-up period, set the Color Control to the

　medium position and toast two slices of bread product

　then re-adjust the Color Control to the desired setting.

The toaster can go into a Power Save mode by turning

the rotary selector into power save mode. The toaster is

operating at 25% power.

Note：To place toaster back into full opration turn the

　　　 selector back into TOAST. Unit is back up to full

　　　 power within 5 minutes.

For model equipped with rocker switchFor model equipped with rocker switch

For model equipped with rotary selectorFor model equipped with rotary selector

Power Save ModePower Save Mode

SafetySafety

・This product should not be cleaned with water.

　It's very dangerous.　

・Wipe off the product with a dry cloth and always

　keep clean.

・If the plates don't work sufficiently, contact with

　your agency. To change the plates is at your cost.

・A warranty should be retained carefully, it's writtn

a serial number of the product.

・Should attach a warranty with the product when

you order the repair of the product under warranty.

・This manual should be retained carefully for future

reference.

・Unit is not weatherproof. For safe and proper

　operation locate the unit indoors where the ambient

　air temperature is a minimum of 21℃ and a maximum

　of 29℃.

・The toasting of coated or buttered products such as

　garlic bread, cheese sandwiches and sweet rolls is NOT

　recommended. Residue will reduce toaster performance

　and could possibly ignite inside the toaster.

・Some exterior surfaces on the unit will get hot.Use

　caution when touching these areas to avoid injury.

・To avoid damage to the unit or injury to personnel

　always operate toaster with crumb tray installed.

CleaningCleaning

To avoid any injury, turn the power switch off,

unplug the unit from the power source and allow

to cool before performing any cleaning.

To preserve the bright finish of the unit, it is

recommended that the exterior surfaces be

wiped daily with a damp cloth. Stubborn stains

may be removed with a good stainless steel

cleaner or a non-abrasive cleaner. Hard to reach

areas should be cleaned with a small brush and

mild soap. Use only non-abrasive cleaners.

Remove from unit and wash with soap and water,

then rinse.To avoid any injury, do not remove the

crumb tray for cleaning until is cool.

Press in the two wire spokes and remove guide

from unit. Wipe clean with a soft, damp cloth or

soak the guide in a mild solution of 1cup ammonia

and 1 gallon of water （227milliliters and 3.785 liters）.

Re-install guide by aligning wire spokes with holes

in toaster.

ExteriorExterior

Toast Crumb Tray & Toast Collector PanToast Crumb Tray & Toast Collector Pan

Toast Feed RampToast Feed Ramp
