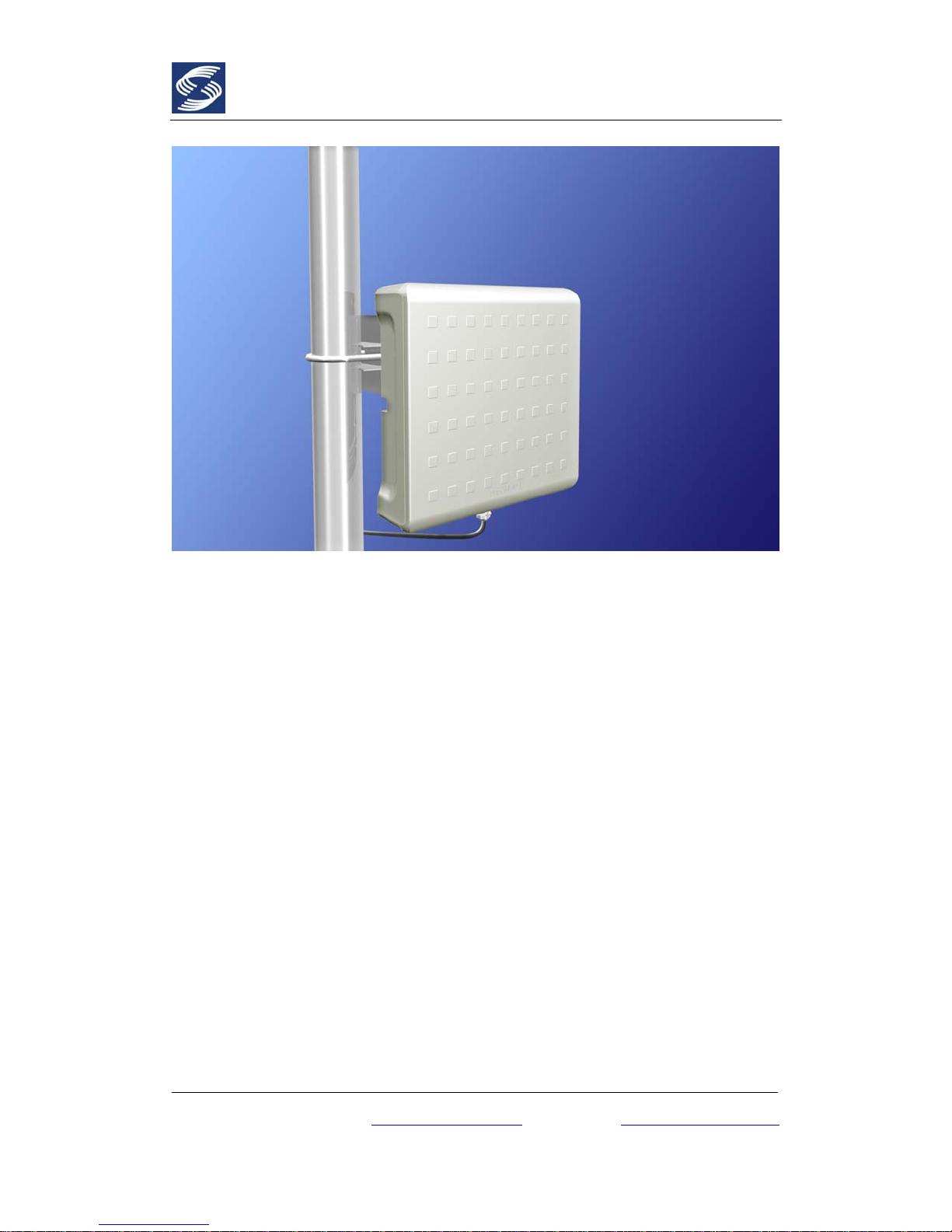

SUPER-RFID
SP-D300 series long range RF reader
user manual
SUPER-RFID 11/28/2006
Shanghai Super Electronic Technology Co. Ltd Phone: 021-64646641, 64646643, 64692252
Fax: 021－64646643-802 E-Mail: marketing@superrfid.net website：http://www.superrfid.net
Page 2 of 9
SP-D300 series reader works at 2.45GHz microwave frequency band, communicating with
tags wirelessly, exchanging, collecting and update data for tags automatically, and
communicating with computers through serial port or wirelessly.
Performance
1) Identification range is adjustable from 2 to 80 meters
2) Advanced anti-collision techniques, simultaneously identifying up to 200 tags
3) Support identification of fast moving objects with speed up to 200 kilometers
4) Provide omni-directional or oriented antennas
5) Work at globally free 2.45GHz ISM band
6) Communicate with computer through RS232/483/weigand 26 or wirelessly
7) Encrypted and certified to assure data safety, preventive of eavesdropping and
intentional decoding
8) Applied channel isolation technology, no interferences between equipments
9) Customized microwave work modes, adjustable transmission power
SUPER-RFID 11/28/2006
Shanghai Super Electronic Technology Co. Ltd Phone: 021-64646641, 64646643, 64692252
Fax: 021－64646643-802 E-Mail: marketing@superrfid.net website：http://www.superrfid.net
Page 3 of 9
10) Ultra low power consumption, max transmission power is less than 1mW(0dBm)
11) Applied 0.18uM technology to reduce cost
12) Meet harsh industrial environment requirements
13) Anti-jamming capability, tolerance of interfering sources at the scene
14) Applied design techniques of anti-interferences and thunders
15) Easy installation with built in antenna
Software Interface and parameters setup
Connection to PC or controller
SP-D300 reader provide 3 kinds of communication interfaces: RS232, RS485 and
weigand26
zWith RS232 interface, reader can connect to RS232 of PC directly; if
RS485 is used, then a RS485<->RS232 converter is needed (recommend JARA
2102E converter) to connect to PC
zWhen weigand26 interface is used, reader needs to connect to
corresponding weigand controller.
—+
Reader identification range and distance are adjustable with built in attenuator,
which is seeable if you take off the cover of reader. It is quite easy to realize
the adjustment by turning adjustor clock wisely or anticlockwise.
SUPER-RFID 11/28/2006
Shanghai Super Electronic Technology Co. Ltd Phone: 021-64646641, 64646643, 64692252
Fax: 021－64646643-802 E-Mail: marketing@superrfid.net website：http://www.superrfid.net
Page 4 of 9
parameter setup for reader testing software
testing software 1: TagFinder.exe

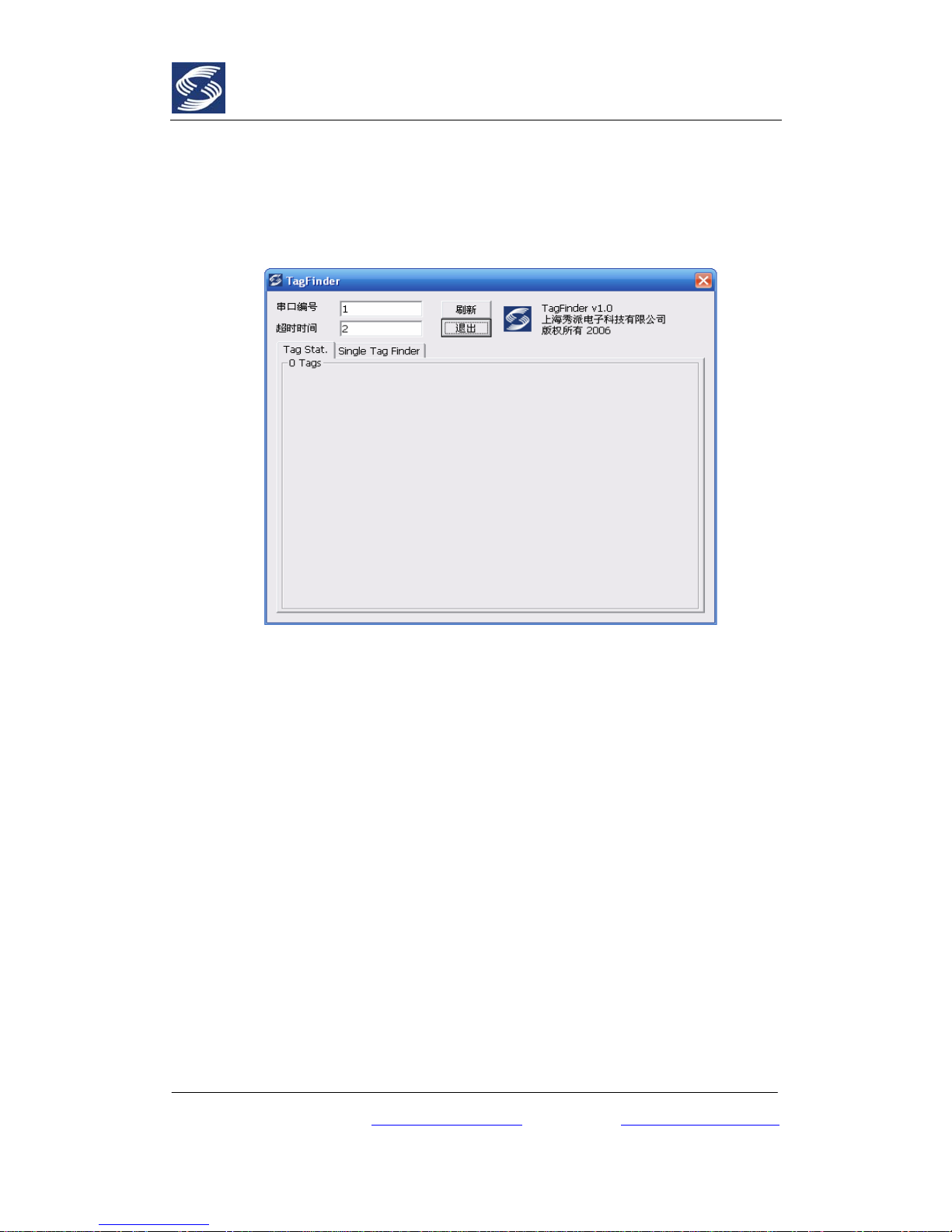

Interface is as follows:
Serial port number is consistent with the port number reader is using. Refresh time can be changed
freely. The following shows how to set Baud rate:
Right click the blue bar on the top, choose “set up baud rate” then choose right baud rate.
SUPER-RFID 11/28/2006
Shanghai Super Electronic Technology Co. Ltd Phone: 021-64646641, 64646643, 64692252
Fax: 021－64646643-802 E-Mail: marketing@superrfid.net website：http://www.superrfid.net
Page 5 of 9
Connect reader to PC, plugging in, making sure parameter settings are correct, and then choose
“Tag Stat”, clicking “renew”. Tags in reader’s identification range will be detected and
SUPER-RFID 11/28/2006
Shanghai Super Electronic Technology Co. Ltd Phone: 021-64646641, 64646643, 64692252
Fax: 021－64646643-802 E-Mail: marketing@superrfid.net website：http://www.superrfid.net
Page 6 of 9

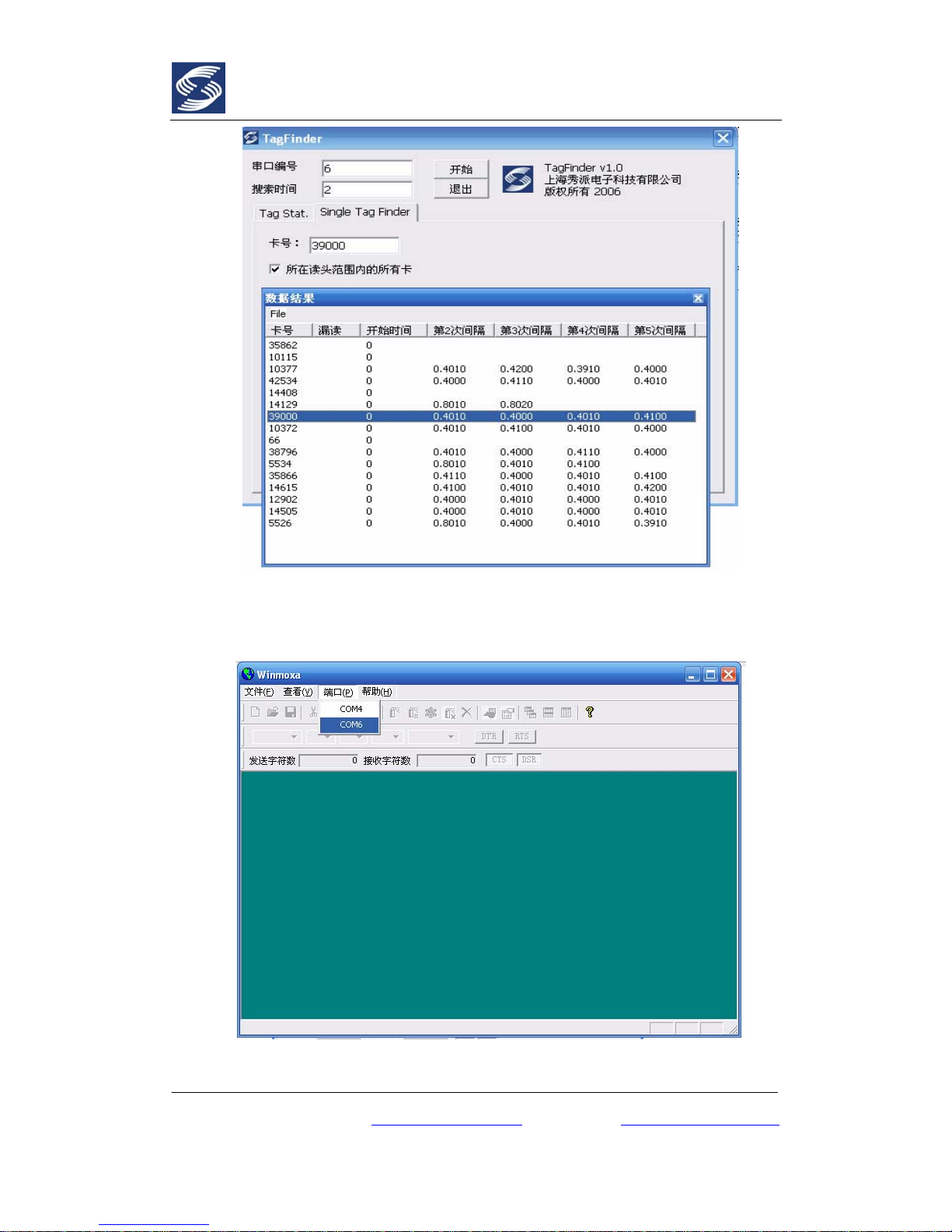

corresponding ID numbers will be displayed on the screen. Here is illustration:
Data analysis can also be done. Choose “Single Tag Finder”, inputting specific Tag ID number,
and then click “start” button. Results will be displayed on the screen (reader renews each tag’s ID
number every 400 ms. All ID numbers will be sent to PC)
SUPER-RFID 11/28/2006
Shanghai Super Electronic Technology Co. Ltd Phone: 021-64646641, 64646643, 64692252
Fax: 021－64646643-802 E-Mail: marketing@superrfid.net website：http://www.superrfid.net
Page 7 of 9
Reader testing software 2: rs232a.exe
Interface is as follows:
SUPER-RFID 11/28/2006
Shanghai Super Electronic Technology Co. Ltd Phone: 021-64646641, 64646643, 64692252
Fax: 021－64646643-802 E-Mail: marketing@superrfid.net website：http://www.superrfid.net
Page 8 of 9
Choose correct port to finish setup, and then start testing.
For example, 38400bps, 8 data bits, 1 start bit, 1 stop bit, no check bit
The data format of reader transmission and reception:
STX（1BYTE）， RFID_ID(4BYTE) totally 5 ASCII characters
STX is 0x02h
RFID_ID include 4 bytes, representing a 2 bytes unsigned integer, such as ID=10811,
the hexadecimal expression will be 0x2Ah, 0x3Bh while it can be expressed as 4 bytes
ASCII characters: 2, A, 3, B.
Therefore, the data PC received for a tag with ID=10811 is :
Expression in ASCII ： STX 2 A 3 B
Expression in hexadecimal： 0x02h 0x32h 0x41h 0x33h 0x42h
Starting with 0X02h, the following 4 bytes represent an ID number.
SUPER-RFID 11/28/2006
Shanghai Super Electronic Technology Co. Ltd Phone: 021-64646641, 64646643, 64692252
Fax: 021－64646643-802 E-Mail: marketing@superrfid.net website：http://www.superrfid.net
Page 9 of 9
Warning:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
The equipment compliance with FCC radiation exposure limit set forth for
uncontrolled
environment
Changes or modifications to this unit not expressly approved by the party
responsible for
compliance will void the user’s authority to operate the equipment. Any change to the
equipment
will void FCC grant.
