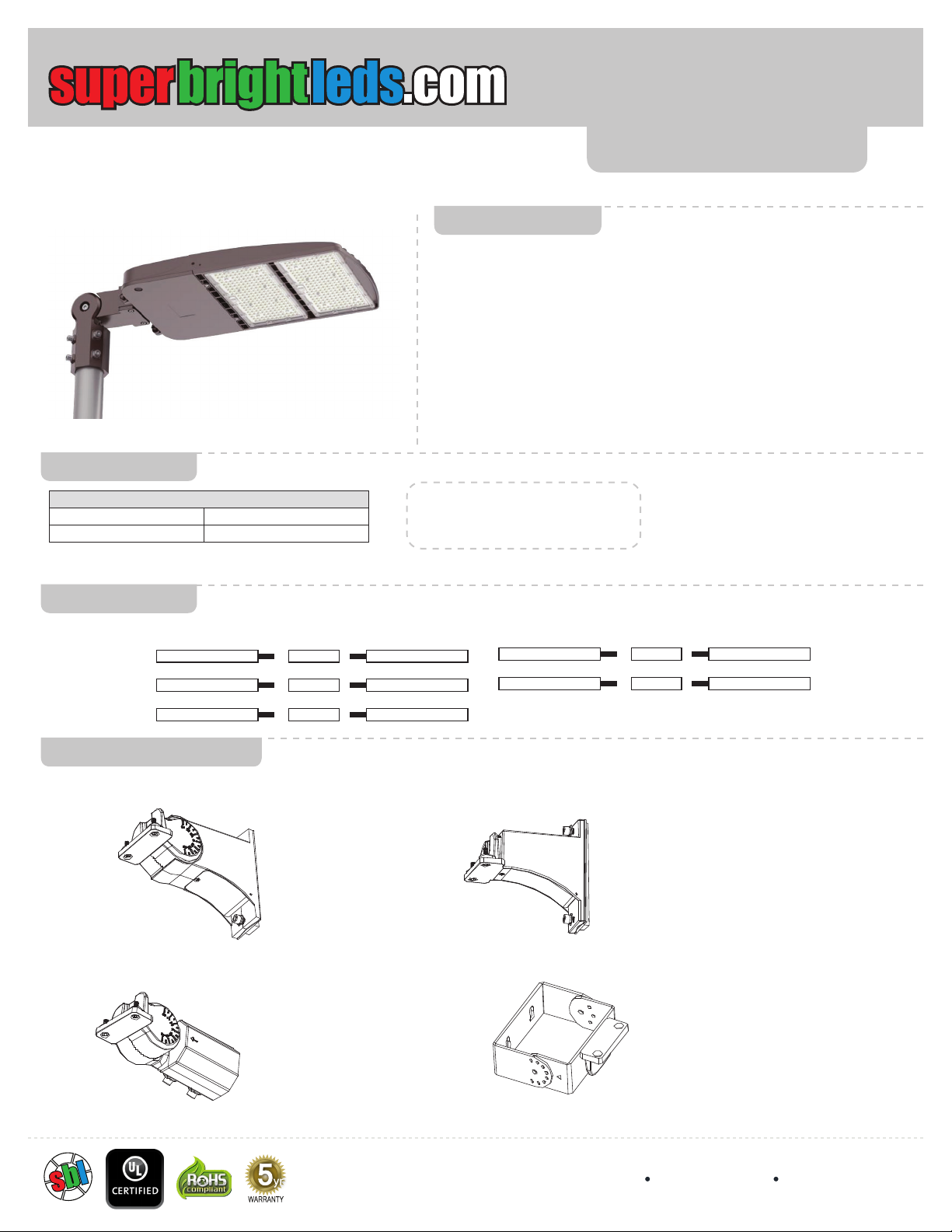

SuperLightingLED PLLD-T Series Bedienungsanleitung
LED Parking Lot/Area Light
Important: Read all instructions prior to installation. PLLD-T Series
4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com
Rev Date: V2.0 03/12/2021
5yr
User Manual
Mounting Options
Safety and Notes
Environmental Specications
Operating Temperature -40°–113° F(-40°–45° C)
IP Rating IP65
Fixed Square/Round Pole Mount (PLLD-T1FPM)
Adjustable Slip-tter/Pole Mount (PLLD-T1SF)
Adjustable Square/Round Pole Mount (PLLD-T1APM)
Wall/Trunnion Mount (PLLD-T1WM)
• Product should be installed and serviced by a certied electrician in accordance
with applicable national, state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power source and
circuit breakers are switched o before performing any installation or wiring
procedures. Do not install while inclement weather, such as rain storms, may
increase the chances of electrical hazard.
• Avoid looking directly into lamp when illuminated.
• Ensure all mounts are securely attached and will support the weight of the
xture. Failure to properly support xture may result in damage or injury, for
which the manufacturer does not assume responsibility.
Specications
PLLD-T150K240-H3P
(with PLLD-T1SF mount)
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
Wiring Diagram
Line
Neutral
Ground
Black
L L
N N
GND GND
White
Dim (+)
Dim (-)
Purple
+ +
- -
Gray
Green
Line
Neutral
Ground
Black
L L
N N
GND GND
White
Dim (+)
Dim (-)
Purple
+ +
- -
Gray
Green
120–277 VAC Input 1–10 V Dimming
Slip fitter
square/round pole mount
fixed square/round pole mount
trunnion
Slip fitter
square/round pole mount
fixed square/round pole mount
trunnion
Slip fitter
square/round pole mount
fixed square/round pole mount
trunnion
Slip fitter
square/round pole mount
fixed square/round pole mount
trunnion
LED Parking Lot/Area Light
Important: Read all instructions prior to installation. PLLD-T Series
4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com
Rev Date: V2.0 03/12/2021
5yr
User Manual

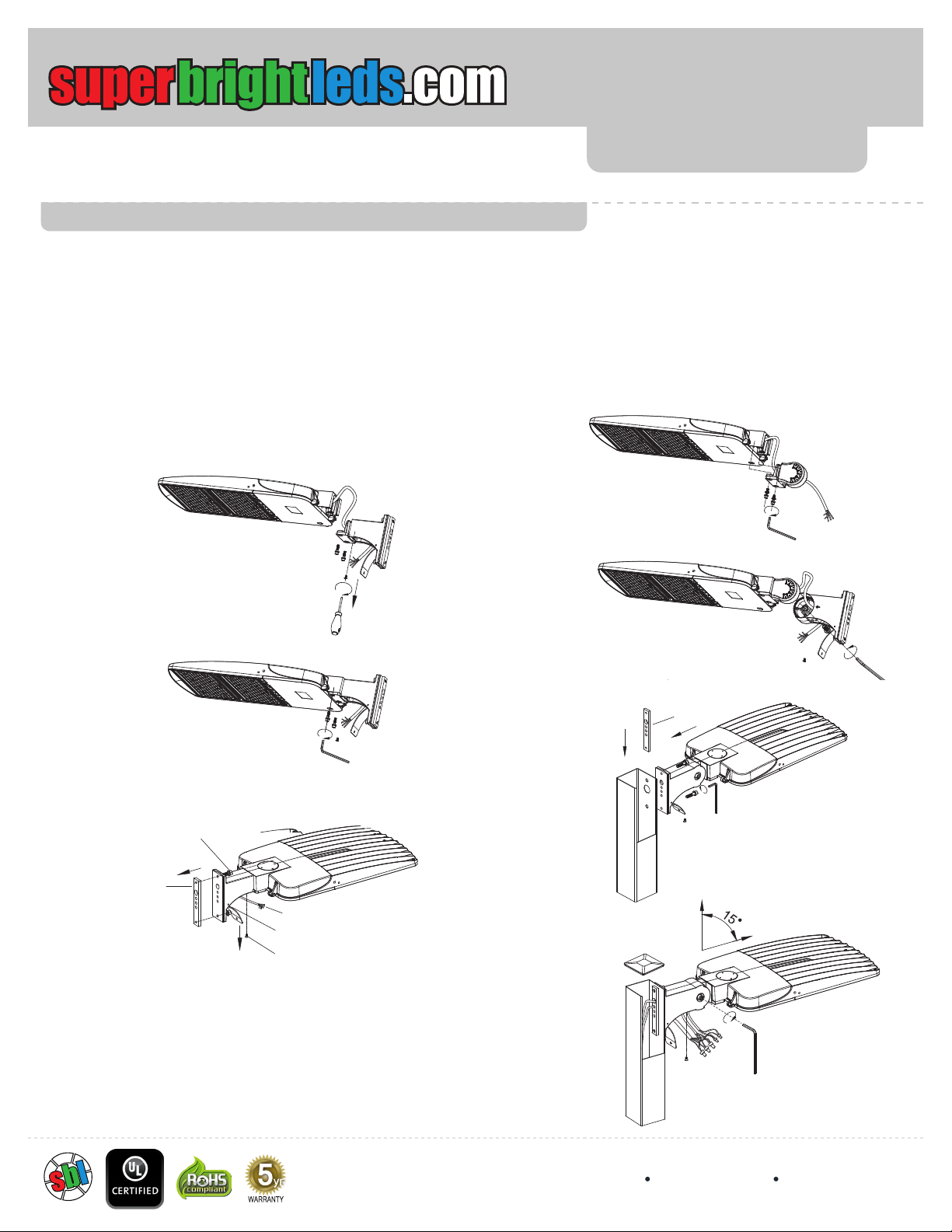

Pole/Post Mount (PLLD-T1APM and PLLD-T1FPM) Installation
1. Mark and drill holes for mounting.
2. Run light wiring through mount.
3. Securely mount ange to light.
4. Run supply wiring into mount and attach mount to pole/post.
5. Ensuring supply power is o, use lower access door to connect
wiring, then close lower access door.
6. On adjustable models, loosen adjustment bolt to adjust angle.
Rotate light to desired angle and tighten adjustment screw.
Iron bar
Iron bar
Screw
Fixed Screw
AC wire
Junction box
Iron bar
Iron bar
Screw
Fixed Screw
AC wire
Junction box
Iron bar
Iron bar
Screw
Fixed Screw
AC wire
Junction box
Fixed Pole/Post Mount (PLLD-T1FPM)
Iron bar
Iron bar
Screw
Fixed Screw
AC wire
Junction box
Iron bar
Iron bar
Screw
Fixed Screw
AC wire
Junction box
Iron bar
Iron bar
Screw
Fixed Screw
AC wire
Junction box
Adjustable Pole/Post Mount (PLLD-T1APM)
LED Parking Lot/Area Light
Important: Read all instructions prior to installation. PLLD-T Series
4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com
Rev Date: V2.0 03/12/2021
5yr
User Manual

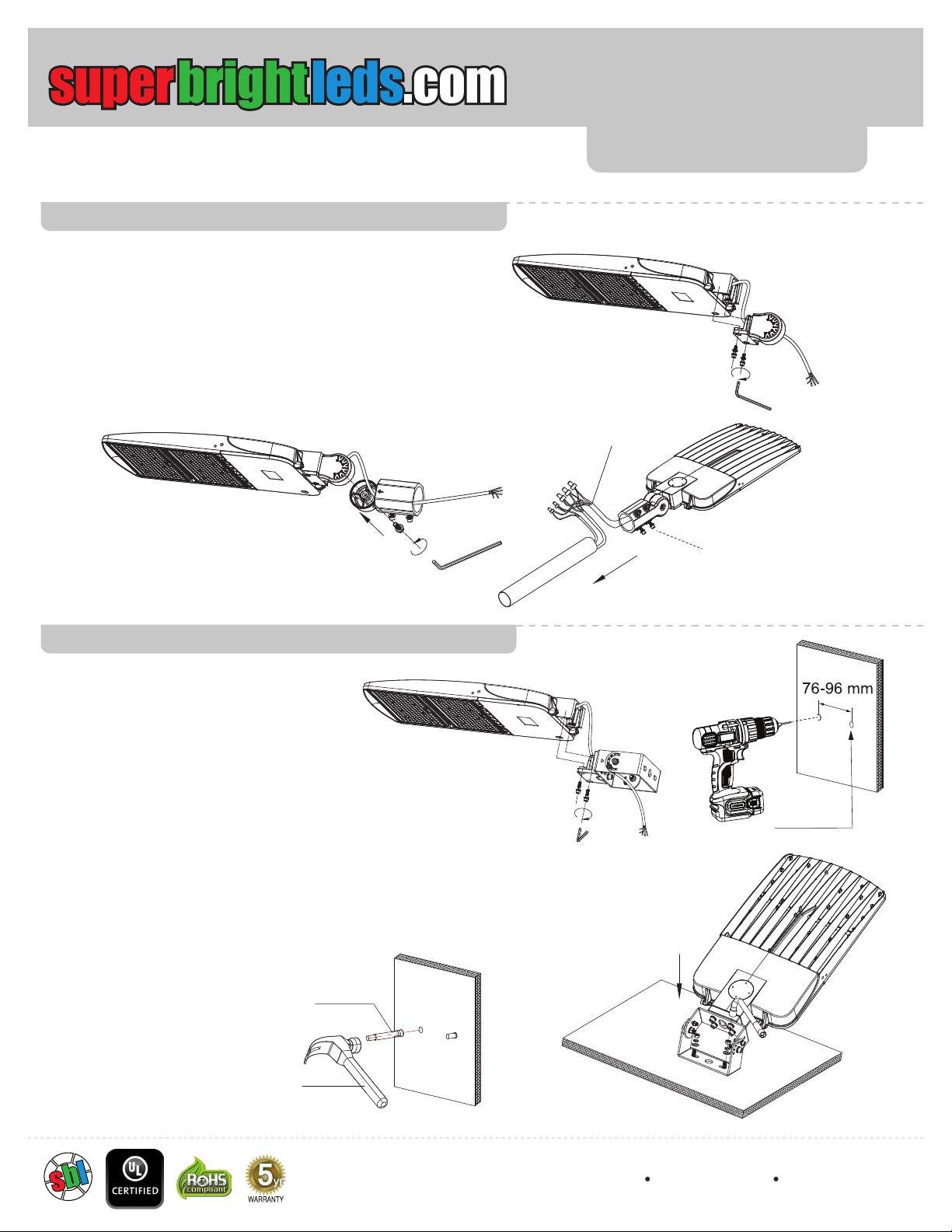

1. Disassemble mount and run wiring through it.
2.Reassemble mount.
3.Attach mount to light.
4.With supply power o, connect wiring.
5.Slide mount over pole/post and secure in place.
Note: The maximum pole/post diameter is 2.5 in.
6.Rotate light to desired angle and tighten
adjustment screw.
Slip-Fitter Mount (PLLD-T1SF) Installation
1. Use trunnion mount as a template to make
mounting holes on wall/surface and install
hardware.
2.Run wiring through the ange then attach the light
to the bracket.
3.Mount bracket to surface.
4.With supply power o, connect wiring.
5.Once installation is complete, the position locking bolts can be
removed and the center trunnion bolts can be loosened to adjust the
mounting angle of the light. Reinstall the position locking bolts and
re-tighten center bolt when the desired angle is achieved.
Trunnion Wall/Surface Mount (PLLD-T1WM) Installation
AC input wires
Angle Locking
bolt
Locking bolt
Locking bolt
hammer
expansion bolt
drill
Ǿ10 mm
