Supermicro P4DP6 Bedienungsanleitung

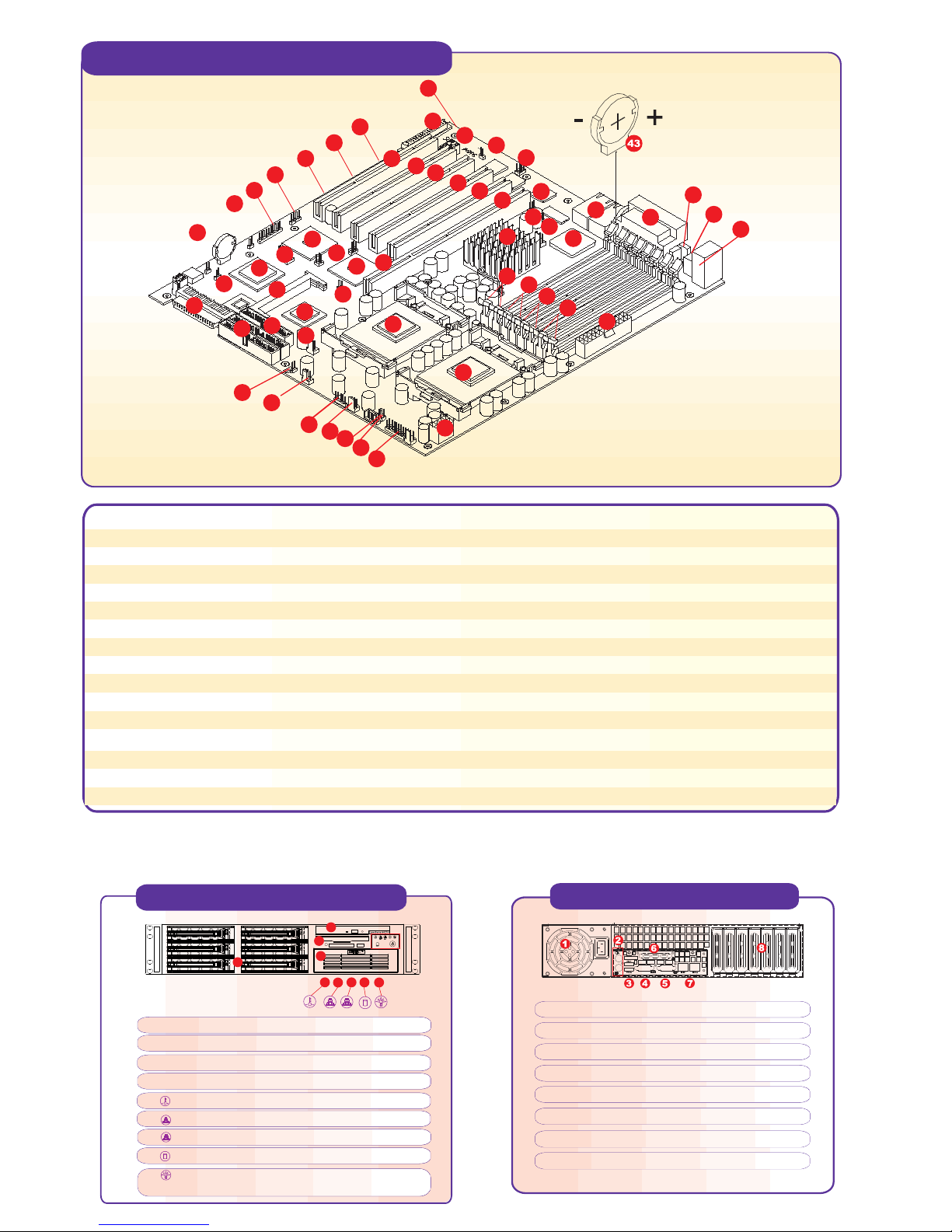

Motherboard Components

Note: Interleaved ECC registered memory requires DDR DIMMs to be installed in pair.

1Super P4DP6 motherboard

2 JA4: Ultra SCSI CH B

3JBT1: CMOS clear

4 JWOR: wake-on-ring Header

5 WOL: wake-on-LAN header

6,7,8,9,10 JP10-JP21: PCI-X bus speed setting

11 USB2, USB3

12 JP32: ACPI/sleep button header

13 JD1: PWR LED/speaker/NMI header

14 JPA1: SCSI termination

15 JA1: Ultra III LVD SCSI CH A

16 J2A/J3A: IDE#1/IDE#2 drive conn.

17 JP7: floppy drive conn.

18 IPMI port

19 Adaptec 7899W SCSI chip

20 ICH3

21,22 P64H2

23 CPU2 fan

24 JL1: chassis intrusion header

25 CPU2/chassis fan

26 USB 4

27 JP33: CPU1/chassis fan

28 JP9: third power fail header

29 JP36: alarm reset switch

30 JF2: front control panel conn.

31 Secondary ATX power conn.

32, 33 CPU1, CPU2

34, 35, 36, 37 Bank1, 2, 3, 4

38 ATX power conn.

39 Keyboard & mouse

40 USB 0 & USB1

41, 42 COM1, VGA, parallel port

43 Battery

44 LAN1, LAN2 ports

45 ATI rage XL graphic chip

46 Overheat fan

47 MCH

48 JP4: VGA enable/disbale

49 JP38: thermal fan enable/disbale

50 JP3 /JP27: LAN1/LAN2 enable/disable

51 JP17/Bus 1B (PCI-X 133MHz, slot #6)

52 JP18/Bus 1A (PCI-X 133MHz, slot #5)

53 JP19/Bus 2A (PCI-X 100MHz, slot #4)

54 JP20/Bus 2B (PCI-X 66MHz, slot #3)

55 JP21/Bus 2B (PCI-X 66MHz, slot #2)

56 JP23/Bus 2B (PCI-X 66MHz, slot #1)

57 JP35: keylock switch conn.

58 COM2

36 37 38

56 57

Rear Panel Functions

1. AC power connector

2. PS/2 mouse and keyboard ports

3. 2 USB ports

4. COM 1 port

5. VGA port

6. Parallel port

7. 2 x Intel 82550 LAN ports

8. 7 I/O expansion slots

Front Panel Functions

5678

1. 6 SCA Ultra160 hot-swap drive bays

2. 1 slim CD-ROM drive

3. Floppy Drive

4. 1 x 5.25" drive bay

5. Overheat: Indicates an overheat condition in the system

6. NIC2: Indicates network activity on LAN2 when flashing

7 NIC1: Indicates network activity on LAN1 when flashing

8. HDD: Indicates IDE channel activity

9. Power: Indicates power is being supplied to the system's 

power supply units

To protect the system and components, it is essential that you reinstall the top panel after you have finished working on the system.

P4DP6 Quick Reference

Jumpers Description  Default Setting

JPA1  LVD SCSI Ch A term. Open (Enabled)

JPA2  LVD SCSI Ch B term. Open (Enabled)

JBT1  CMOS clear  Pins 1-2 (Normal)

JP9 Power fail alarm en/disable Open (Disabled)

JD1 Speaker enable/disable Closed 6-7 (Enabled)

JP3  LAN1 enable/disable Pins 1-2 (Enabled)

JP27  LAN2 enable/disable Pins 1-2 (Enabled)

JP22 SCSI enable/disable Pins 1-2 (Enabled)

JP38 Thermal fan enable/disable Open (BIOS control)

JP4  VGA enable/disable Pins 1-2 (Enabled)

JP33 CPU chassis/CPU fan select Close (CPU Fan)

Warning !

CPU Heatsink Installation Procedure

(For Supermicro SuperServer 2U Systems)

Due to the fact that adequate air flow and proper thermal control are very critical in maintaining 1U

system's stability and performance, it is imperative that the proper installation procedures listed

below be followed in order to maximize system performance. This is especially critical for 2U dual

Xeon processor server solutions.

1) Only those CPU heatsinks that are provided by Supermicro should be used.

2) Apply a small amount of silicon compound on the CPU's die.

3) Place the CPU heatsink on top of the CPU.

4) Attach the heatsink clips to the heatsink retention pieces, one on each

side of the heatsink as shown in the diagram at right.

5) The three tabs on each heatsink retention pieces should completely

protrude though the corresponding holes on the heatsink clips.
