Supermicro SUPERSERVER 6028U-T Series Bedienungsanleitung

USER’S MANUAL

Revision 1.0d

SUPERSERVER®



The information in this User’s Manual has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates. Please Note: For the most up-to-date version of this manual,

please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product

described in this manual at any time and without notice. This product, including software and

documentation, is the property of Supermicro and/or its licensors, and is supplied only under a

license. Any use or reproduction of this product is not allowed, except as expressly permitted by

the terms of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO

USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY

HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE

COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH

HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa

Clara County in the State of California, USA. The State of California, County of Santa Clara shall

be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all

claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class

A or Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is operated in

industrial environment for Class A device or in residential environment for Class B device. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the manufacturer’s instruction manual, may cause harmful interference with

radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate

warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate

Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: This product can expose you to chemicals including

lead, known to the State of California to cause cancer and birth

defects or other reproductive harm. For more information, go

to www.P65Warnings.ca.gov.

Manual Revision 1.0d

Release Date: May 21, 2021

Unless you request and receive written permission from Super Micro Computer, Inc., you may not

copy any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

Preface

Warning! Indicates high voltage may be encountered when performing

a procedure.

Warning! Indicates important information given to prevent equipment/

property damage or personal injury.

Preface

About this Manual

This manual is written for professional system integrators and PC technicians. It

provides information for the installation and use of the SuperServer 6028U-T Series.

Installation and maintenance should be performed by experienced technicians only.

             

supported memory, processors and operating systems (www.supermicro.com).

Notes

For your system to work properly, please follow the links below to download all

necessary drivers/utilities and the user’s manual for your server.

• Supermicro product manuals: https://www.supermicro.com/support/manuals/

• Product drivers and utilities: https://www.supermicro.com/wdl

• Product safety info: https://super-dev/about/policies/safety_information.cfm

If you have any questions, please contact our support team at:

[email protected]m

This manual may be periodically updated without notice. Please check the

Supermicro Web site for possible updates to the manual revision level.

Secure Data Deletion

A secure data deletion tool designed to fully erase all data from storage devices

can be found on our website: https://www.supermicro.com/about/policies/disclaimer.

cfm?url=/wftp/utility/Lot9_Secure_Data_Deletion_Utility/

Warnings

Special attention should be given to the following symbols used in this manual.

SUPERSERVER 6028U-T Series Manual

Contents

Chapter 1 Introduction..............................................................................1-1

1-1 Overview ......................................................................................................... 1-1

1-2 Motherboard Features..................................................................................... 1-2

Processors ...................................................................................................... 1-2

Memory ........................................................................................................... 1-2

Onboard Serial ATA ........................................................................................ 1-2

Rear I/O Ports................................................................................................. 1-2

Graphics Controller ......................................................................................... 1-2

1-3 Server Chassis Features ................................................................................ 1-3

System Power................................................................................................. 1-3

Hard Drives ..................................................................................................... 1-3

PCI Expansion Slots ....................................................................................... 1-3

Front Control Panel......................................................................................... 1-3

Cooling System............................................................................................... 1-3

NVMe .............................................................................................................. 1-4

System Block Diagram.................................................................................... 1-4

1-4 Contacting Supermicro.................................................................................... 1-5

Chapter 2 Server Installation

2-1 Unpacking the System .................................................................................... 2-1

2-2 Preparing for Setup......................................................................................... 2-1

Choosing a Setup Location............................................................................. 2-1

2-3 Warnings and Precautions.............................................................................. 2-2

Rack Precautions............................................................................................ 2-2

Server Precautions.......................................................................................... 2-2

Rack Mounting Considerations ....................................................................... 2-3

2-4 Installing the System into a Rack ................................................................. 2-4

Identifying the Sections of the Rack Rails...................................................... 2-4

Releasing the Inner Rail ................................................................................. 2-5

Installing the Inner Rails on the Chassis ........................................................ 2-6

Installing the Outer Rails onto the Rack......................................................... 2-7

Sliding the Chassis onto the Rack Rails......................................................... 2-8

Chapter 3 System Interface......................................................................3-1

3-1 Overview ......................................................................................................... 3-1

3-2 Control Panel Buttons ..................................................................................... 3-2

3-3 Control Panel LEDs ........................................................................................ 3-2

Overheating..................................................................................................... 3-3

Overheat Temperature Setting ................................................................... 3-3

Contents

Responses.................................................................................................. 3-3

3-4 Drive Carrier LEDs.......................................................................................... 3-4

3-5 Power Supply LEDs ........................................................................................ 3-4

Chapter 4 Standardized Warning Statements for AC Systems

About Standardized Warning Statements....................................................... 4-1

 ........................................................................................... 4-1

Installation Instructions.................................................................................... 4-4

Circuit Breaker ................................................................................................ 4-5

Power Disconnection Warning ........................................................................ 4-6

Equipment Installation..................................................................................... 4-8

Restricted Area................................................................................................ 4-9

Battery Handling............................................................................................ 4-10

Redundant Power Supplies (if applicable to your system)........................... 4-12

Backplane Voltage (if applicable to your system)......................................... 4-13

Comply with Local and National Electrical Codes........................................ 4-14

Product Disposal........................................................................................... 4-15

Hot Swap Fan Warning................................................................................. 4-16

Power Cable and AC Adapter ...................................................................... 4-18

Chapter 5 Advanced Serverboard Setup

5-1 Handling the Serverboard ............................................................................... 5-1

Precautions ..................................................................................................... 5-1

Unpacking ....................................................................................................... 5-1

5-2 Installing the Processor and Heatsink ............................................................ 5-2

Installing an LGA 2011 Processor................................................................... 5-2

Installing a CPU Heatsink ............................................................................... 5-5

Removing the Heatsink .................................................................................. 5-6

5-3 Connecting Cables.......................................................................................... 5-7

Connecting Data Cables ................................................................................. 5-7

Connecting Power Cables .............................................................................. 5-7

Connecting the Control Panel......................................................................... 5-7

5-4 I/O Ports.......................................................................................................... 5-8

LAN Ports........................................................................................................ 5-8

5-5 Installing Memory............................................................................................ 5-9

Memory Support............................................................................................ 5-10

 ...................... 5-10

Populating DDR4 Memory Modules......................................................... 5-10

5-6 Serverboard Details .......................................................................................5-11

 .................................................................................... 5-14

Power Connectors ....................................................................................... 5-14

SUPERSERVER 6028U-T Series Manual

Control Panel Connector............................................................................... 5-14

Other Connectors.......................................................................................... 5-17

5-8 Jumper Settings ............................................................................................ 5-20

5-9 Onboard Indicators........................................................................................ 5-22

5-10 SATA Ports .................................................................................................... 5-23

5.11 Microsoft Windows OS Installation ............................................................... 5-24

5-12 Installing Software......................................................................................... 5-26

SuperDoctor®5 ............................................................................................. 5-27

5.13 IPMI............................................................................................................... 5-28

BMC ADMIN User Password ........................................................................ 5-28

5-14 Onboard Battery............................................................................................ 5-29

Chapter 6 Advanced Chassis Setup........................................................6-1

6-1 Static-Sensitive Devices.................................................................................. 6-1

Precautions ..................................................................................................... 6-1

6-2 Control Panel .................................................................................................. 6-2

6-3 Removing the Chassis Cover ......................................................................... 6-3

6-4 Hard Drive Installation..................................................................................... 6-4

6-5 Adding PCI Expansion Cards ......................................................................... 6-7

6-6 System Fans ................................................................................................. 6-10

Replacing a System Fan............................................................................... 6-10

Air Shroud ......................................................................................................6-11

6-7 Power Supply................................................................................................ 6-12

Replacing a Power Supply Module............................................................... 6-12

Chapter 7 BIOS

7-1 Introduction...................................................................................................... 7-1

Starting BIOS Setup Utility.............................................................................. 7-1

 ......................................................... 7-1

Starting the Setup Utility ................................................................................. 7-2

7-2 Main Setup...................................................................................................... 7-2

 ...................................................................... 7-4

7-4 Event Logs .................................................................................................... 7-25

7-5 IPMI............................................................................................................... 7-27

7-6 Security......................................................................................................... 7-29

7-7 Boot............................................................................................................... 7-30

7-8 Save & Exit ................................................................................................... 7-31

Appendix A BIOS Error Beep Codes

Appendix B UEFI BIOS Recovery Instructions

Appendix C System Specications

Chapter 1

Introduction

1-1 Overview

The SuperServer 6028U-T Series is a high-end server comprised of two main

subsystems: the SC829UAC(4)-R1K02 2U server chassis and the X10DRU-i+

dual processor motherboard. Refer to the Supermicro web site for information on

www.supermicro.

com).

6028U-T Series Models

System LAN Ports NVMe Ultra Riser Card Backplane

6028U-TR4+ Four GbE no AOC-2UR68-i4G BPN-SAS3-826A

6028U-TRT+ Two 10GBase-T no AOC-2UR68-i2XT BPN-SAS3-826A

6028U-TR4T+ Four 10GBase-T no AOC-2UR6-i4XT BPN-SAS3-826A

6028U-TRTP+ Two 10G SFP+ no AOC-2UR68-i2XS BPN-SAS3-826A

6028U-TNRT+ Two 10GBase-T 4 port AOC-2UR8N4-i2XT BPN-SAS3-826A-N4

6028U-TNR4T+ Four 10GBase-T 4 port AOC-2URN4-i4XT BPN-SAS3-826A-N4

In addition to the above components, the server includes:

•Four 8-cm system cooling fans (FAN-0118L4)

•Two passive CPU heatsinks (SNK-P0058PSU)

•One air shroud (MCP-310-82908-0B)

•Twelve hard drive carriers (MCP-220-00075-0B)

•Riser Cards:

One RSC-R1UW-E8R-O-P

One RSC-R2UW-4E8-O-P

•One rackmount rail kit (MCP-290-00053-0N)

Chapter 1: Introduction

1-1

1-2

SUPERSERVER 6028U-T Series User's Manual

1-2 Motherboard Features

At the heart of the SuperServer 6028U-T Series lies the X10DRU-i+, a dual processor

motherboard based on the Intel PCH C612 chipset. Below are the main features of

the motherboard. (See Figure 1-1 for a block diagram of the chipset.)

Processors

The motherboard supports single or dual Intel E5-2600 v3 Series processors in

LGA2011 sockets (Socket R3). Refer to the Supermicro web site for a complete

listing of supported processors (www.supermicro.com).

Memory

The motherboard has 24 memory sockets that can support up to 768 GB of ECC

registered DDR4-1600/1333/1066/800 non-volatile RDIMM (Registered DIMMs)

or 1536 GB of LRDIMM (Load-Reduced DIMMs) DDR4-2133/1866/1600/1333

memory. Please refer to Chapter 5 for installing memory.

Onboard Serial ATA

A SATA controller is integrated into the chipset to provide a ten-port SATA

subsystem. Six of the ports are supported by the Intel PCH and four of the ports are

supported by the Intel SCU. The SATA 3.0 ports are connected to the backplane

by default. RAID 0, 1, 5 and 10 are supported by Intel RSTe Software RAID.

Rear I/O Ports

The rear I/O ports include one COM port, a VGA (monitor) port, two USB 3.0 ports

and a dedicated IPMI LAN port. In addition, there are several possible networking

           

Secion 1-1.

Graphics Controller

The motherboard features an integrated ASpeed 2400 BMC graphics chip.

1-3

Chapter 1: Introduction

1-3 Server Chassis Features

The 6028U-T Series is built upon the SC829UAC-R1K02 chassis or the SC829UAC4-

R1K02 for NVMe models. Details and related procedures can be found in Chapter

6.The following is a general outline of the main features of the chassis.

System Power

The chassis features a redundant 1 KW power supply consisting of two hot-plug

           

󰀩

Hard Drives

The chassis supports up to twelve 3.5" hot-swap hard drives.

PCI Expansion Slots

All 6028U-T Series models include two WIO riser cards that support PCI-Express 3.0



In addition, each system comes with an Ultra riser card to provide added features

such as LAN ports and additional PCI expansion slots.

System Ultra Riser Card Ultra Riser Additional PCI-E 3.0 Support

6028U-TR4+ AOC-2UR68-i4G One PCI-E x8 (Supermicro SAS only)

One PCI-E x8 (in x16 slot)

One PCI-E x16

6028U-TRT+ AOC-2UR68-i2XT

6028U-TRTP+ AOC-2UR68-i2XS

6028U-TR4T+ AOC-2UR6-i4XT One PCI-E x8 (Supermicro SAS only)

One PCI-E x16

6028U-TNRT+ AOC-2UR8N4-i2XT One PCI-E x8 (Supermicro SAS only)

One PCI-E x8 (in x16 slot)

6028U-TNR4T+ AOC-2URN4-i4XT One PCI-E x8 (Supermicro SAS only)

Front Control Panel

The chassis front control panel provides system monitoring and power control.

Status LEDs indicate system power, HDD activity, network activity, UID, and

overheat and fan failure.

Cooling System

The chassis has an innovative cooling design that features four 8-cm high-

performance fans. Fan speed can be determined by system temperature via IPMI.

Each power supply module also includes a cooling fan.

1-4

SUPERSERVER 6028U-T Series User's Manual

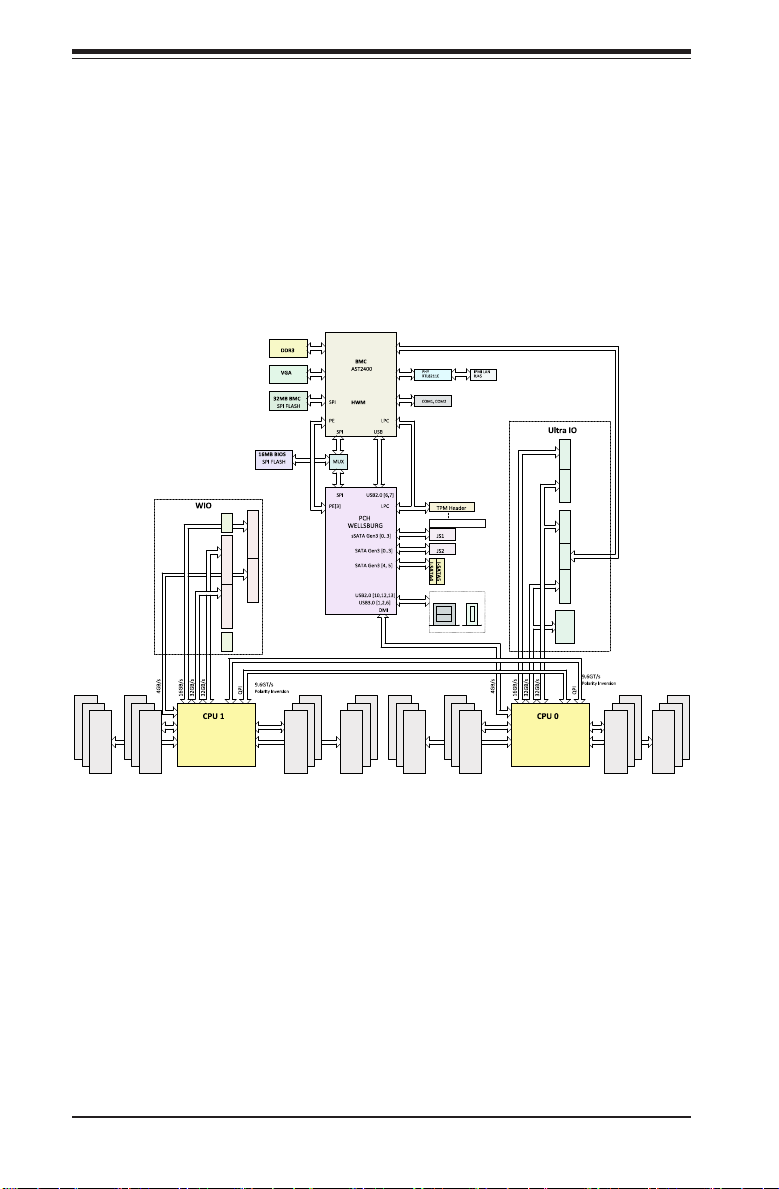

Figure 1-1. Intel PCH C612 Chipset:

System Block Diagram

Note: This is a general block diagram. Please see Chapter 5 for details.

Port A Port B Port B NCSI Port C Port C

NIC

Port A

0~7

Port B

0~7

Port B

8~15

Port C

0~10

Port C

11~15

Port 0, 1 Port 3

Type A

Rear

#1 #1 #1 #1 #1 #1 #1 #1

#2 #2 #2 #2 #2 #2 #2 #2

#3 #3 #3 #3 #3 #3 #3 #3

DDR4 DIMM

x16

PE1 PE2 PE3 PE1 PE2 PE3 QPI1 QPI0

QPI1 QPI0

DMI

Upper

Lower

Processor

VGA

DDR3 NCSI

LAN

UART

Onboard TPM (Optional)

NVMe

The NVM Express ports provide high-speed, low-latency connections directly from

the CPU to NVMe Solid State drives (SSDs). This greatly increases SSD throughput



requirements resulting from the direct PCI-E interface between the CPU and the

NVMe SSD drives.

System Block Diagram
