SUPERTOOTH LIGHT Bedienungsanleitung

Bluetooth Handsfree Kit

For Bluetooth Mobile Phones

Operating Manual

Contents

______________________________________________________________________________________________________________

Product Overview..............................................2

Charging .............................. ......................3

Power On/Off .................................................3

Pairing to your Bluetooth Mobile Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Basic Operations...............................................

Advanced Functions............................................5

Button Functions Matrix..........................................6

______________________________________________________________________________________________________________

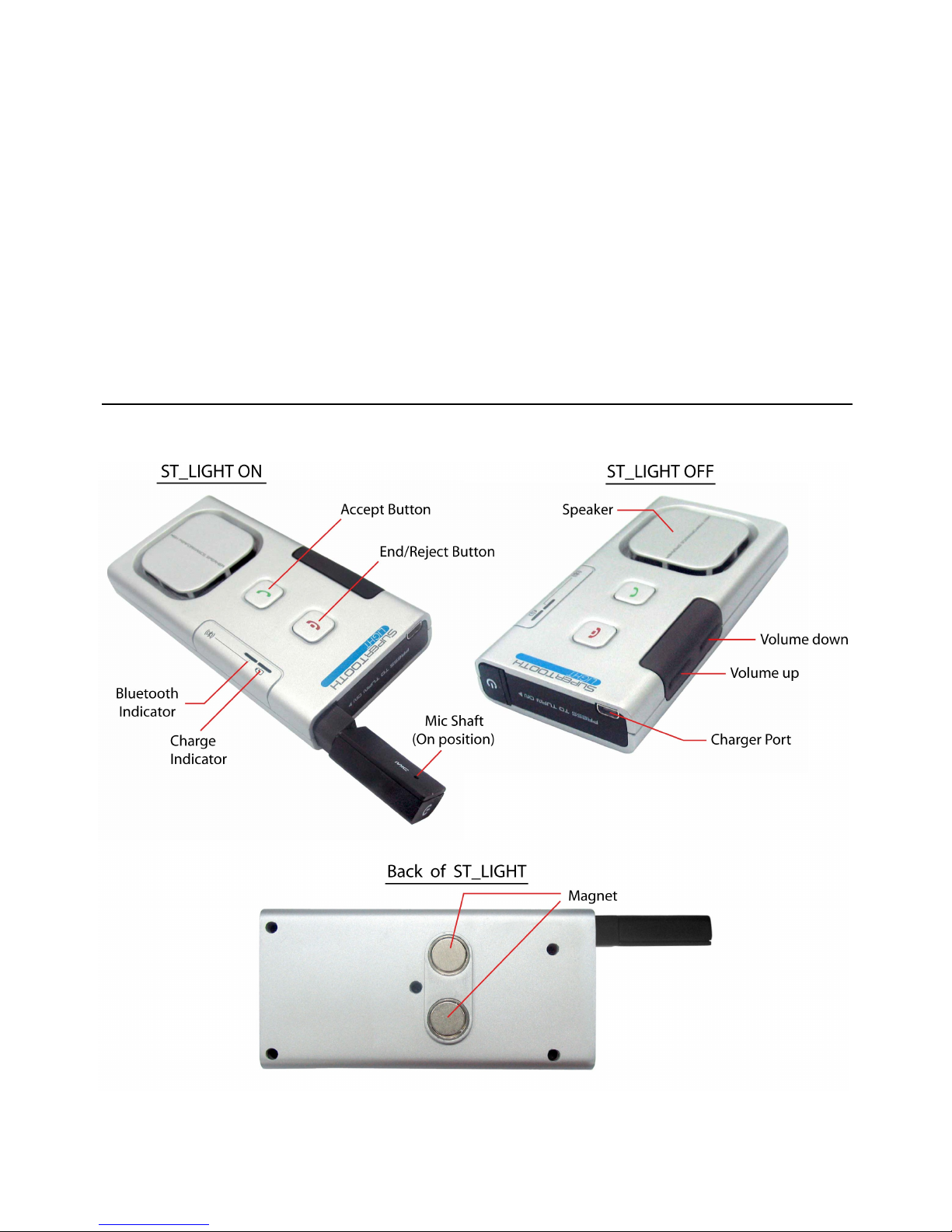

Product Overview

Charging

When the Charge Indicator turns red, the battery of the kit is low. Charge the

unit.

1. Connect the charger’s plug into the Charger

Port of the ST LIGHT. Connect the charger to

an external power source.

2. When fully charged, disconnect the charger.

Charge Indicator Status:

Low Batt: steady red

Charging: steady orange

Full Charge: steady green

Power On/Off

Power On: Press-and-release the Mic Shaft.

Power Off: Push the Mic Shaft in.

Pairing to your Bluetooth Mobile Phone

Pair the ST LIGHT to your Bluetooth mobile phone to create the link or audio

connection between the two.

1. From OFF, press and hold the Accept Button of

the ST LIGHT.

2. While holding the Accept Button, switch the kit on.

3. When the Bluetooth Indicator turns blinking red/blue, release the Accept

Button. This means the kit is now in pairing mode.

4. While the kit is at pairing mode, access the Bluetooth menu of your phone.

Turn on the Bluetooth function then execute a Bluetooth search, or

discover.

5. When the phone displays the list of Bluetooth devices it found, select ST

LIG T.

6. When the phone asks for the passcode, enter 0000. The phone will show if

pairing and connection is successful.

Important Note: The kit is paired now. Most phones automatically connect to the

kit after pairing. With some phones you need to connect manually after pairing.

Go back to Bluetooth > Paired devices > highlight the name of this kit (ST

Light) > ress Options > then ress Connect.

The kit is now ready to use.

Basic O erations

IMPORTANT:

The kit needs to be ‘ aired’ to your Bluetooth mobile phone first, before you can

use the following functions.

Make a Call (Normal Dial):

Dial the number on your phone. Audio will automatically be on the kit.

Note: With some hones like Siemens S55 and Panasonic X70, audio is always

on the hone during an outgoing call. You will need to ress the Accept Button

for 1 second to transfer the audio to your kit.

Redial (For Handsfree Profile Phones only) :

Press Accept Button for 3 seconds. The last dialed number will be redialed.

Audio will be on the kit.

Voice Dial:

Important Be sure the voice dialing function of your phone is activated. Record

at least one voice tag. (Kindly refer to the procedure in your phone’s manual.)

Note: Voice dialing entries must be stored in the hone’s memory, not on the

SIM card!

Execute Voice dial:

1. Press the Accept Button for 1 second.

2. A voice dial tone/beep will be heard on the kit, prompting the user to say

the voice tag of a contact to call.

3. Say the voice tag exactly as how you recorded it.

4. The voice will be played back to you, and then the phone will dial the

number automatically.

Answer a Call:

During the ring tone, press Accept Button for 1 second to answer the call.

End a Call:

When conversation is over, press End/Reject Button for 1 second to end the

call.

Reject a Call (For Handsfree Profile Phones only) :

During the ring tone, press End/Reject Button. The incoming call will be

rejected.

Volume Setting:

Increase or decrease the volume by pressing the volume up or volume down

button. Press repeatedly until desired level is reached.

Audio Transfer (For Handsfree Profile Phones only) : During an ongoing call,

you can transfer the audio.

Kit to Phone: Push in the microphone shaft (or turn off the kit). The audio

will be transferred to the phone.

Phone to Kit: Press-and-release the microphone shaft (or turn on the kit).

Some phones do not connect automatically to the kit after turning on. With

these phones, you need to press Accept Button for 1 second. Then the

audio will be transferred to the kit.

Advanced Functions

Multi-Pairing / Switching Connections Between Phones

The ST LIGHT can be paired to 5 Bluetooth phones. An additional pairing will

automatically delete the phone that has not been used for the longest time.

Thus, maintaining 5 phones in its memory.

You can easily switch to any of the paired phones by:

1. Disconnecting the currently used phone using the “Active devices” in the

Bluetooth menu of that phone and then;

2. Connect to the wanted phone by using the “Paired devices” in the

Bluetooth menu of that wanted phone.

Note: Reconnection to a paired phone can also be done by pressing the Accept

Button. But when you press the Accept Button, the ST LIGHT will attempt to

connect to the last used phone only. It is recommended to connect to the ST

LIGHT using your phone.

Button Functions Matrix

Status

Accept Key /

(Short press /

1 second)

Accept Key /

(Long press /

2 seconds)

End / Reject

Key

(Short press)

Mic Shaft

(Push in)

Mic Shaft

(Press-and-

release)

Connected /

On and

Standby

Initiates Voice

dial

Redials last

dialed number

Turns ff kit /

Disconnects

Off Turns n kit /

Reconnects

On and

Standby but

Disconnected

Creates

reconnection/

initiates voice

dial

Incoming call

ring being

generated)

Accepts the call Rejects the call

Active call on

ST LIGHT Ends the call Transfers audio

to phone

Active call on

Phone

Transfers

audio to kit

Outgoing call

being set-up Ends the call

(Applicable in the European Union and other European countries with separate

collection systems) This marking shown on the product or its literature, indicates that

it should not be disposed with other household wastes at the end of its working life. To

prevent possible harm to the environment or human health from uncontrolled waste

disposal, please separate this from other types of wastes and recycle it responsibly to

promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their

local government office, for details of where and how they can take this item for environmentally

safe recycling.

Business users should contact their supplier and check the terms and conditions of the

purchase contract. This product should not be mixed with other commercial wastes for disposal.

FCC Notices

Federal Communications Commission (FCC) Statement

15.21

You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could

void the user’s authority to operate the equipment.

15.105(b)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of

the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Operation is subject to the following two conditions:

1) this device may not cause interference and

2) this device must accept any interference, including interference that may cause undesired operation of the device.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must

follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located

or operating in conjunction with any other antenna or transmitter.
