GSF650/S

GROUP INDEX

GENERAL INFORMATION 1

PERIODIC MAINTENANCE 2

ENGINE 3

FUEL SYSTEM 4

CHASSIS 5

ELECTRICAL SYSTEM 6

SERVICING INFORMATION 7

FOREWORD

This manual contains an introductory description on

the SUZUKI GSF650/S and procedures for its

inspection/service and overhaul of its main compo-

nents.

Other information considered as generally known is

not included.

Read the GENERAL INFORMATION section to

familiarize yourself with the motorcycle and its main-

tenance. Use this section as well as other sections

to use as a guide for proper inspection and service.

This manual will help you know the motorcycle bet-

ter so that you can assure your customers of fast

and reliable service.

*This manual has been prepared on the basis of

the latest specifications at the time of publica-

tion. If modifications have been made since

then, differences may exist between the content

of this manual and the actual motorcycle.

*Illustrations in this manual are used to show the

basic principles of operation and work proce-

dures. They may not represent the actual

motorcycle exactly in detail.

*This manual is written for persons who have

enough knowledge, skills and tools, including

special tools, for servicing SUZUKI motorcy-

cles. If you do not have the proper knowledge

and tools, ask your authorized SUZUKI motor-

cycle dealer to help you.

Inexperienced mechanics or mechanics

without the proper tools and equipment

may not be able to properly perform the

services described in this manual.

Improper repair may result in injury to the

mechanic and may render the motorcycle

unsafe for the rider and passenger.

HOW TO USE THIS MANUAL

TO LOCATE WHAT YOU ARE LOOKING FOR:

1. The text of this manual is divided into sections.

2. The section titles are listed in the GROUP INDEX.

3. Holding the manual as shown at the right will allow you to find

the first page of the section easily.

4. The contents are listed on the first page of each section to

help find the item and page you need.

COMPONENT PARTS AND WORK TO BE DONE

Under the name of each system or unit, is its exploded view. Work instructions and other service information

such as the tightening torque, lubricating points and locking agent points, are provided.

Example: Front wheel



1Front axle



2Dust seal



3Brake disc (RH)



4Bearing (RH)



5Spacer



6Bearing (LH)



7Brake disc (LH)



8Collar



9Front wheel



0Air bleeder valve



ABalancer



AFront axle



BBrake disc bolt

ITEM N·m

kgf-m



A65 6.5



B23 2.3

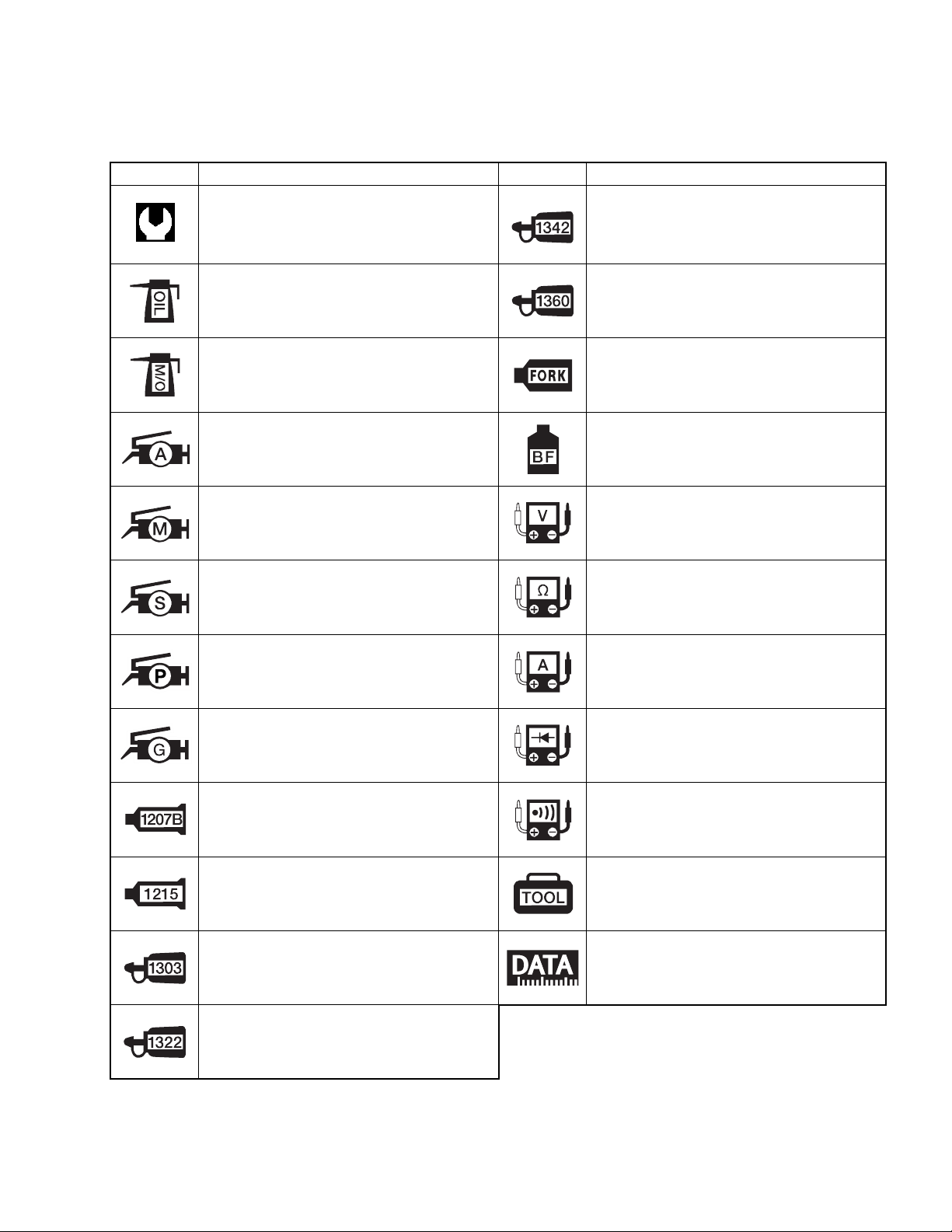

SYMBOL

Listed in the table below are the symbols indicating instructions and other information necessary for servic-

ing. The meaning of each symbol is also included in the table.

SYMBOL DEFINITION SYMBOL DEFINITION

Torque control required.

Data beside it indicates specified

torque.

Apply THREAD LOCK “1342”.

99000-32050

Apply oil.

Use engine oil unless otherwise speci-

fied.

Apply THREAD LOCK SUPER “1360”.

99000-32130

Apply molybdenum oil solution (mixture

of engine oil and SUZUKI MOLY PASTE

in a ratio of 1:1).

Use fork oil.

99000-99044-10G

Apply SUZUKI SUPER GREASE “A”.

99000-25010 Apply or use brake fluid.

Apply SUZUKI MOLY PASTE.

99000-25140 Measure in voltage range.

Apply SUZUKI SILICONE GREASE.

99000-25100 Measure in resistance range.

Apply PBC GREASE.

99000-25110 Measure in current range.

Apply THERMO-GREASE.

99000-59029 Measure in diode test range.

Apply SUZUKI BOND “1207B”.

99000-31140 Measure in continuity test range.

Apply SUZUKI BOND “1215”.

99000-31110 Use special tool.

Apply THREAD LOCK SUPER “1303”.

99000-32030 Indication of service data.

Apply THREAD LOCK SUPER “1322”.

99000-32110

GENERAL INFORMATION 1-1

GENERAL INFORMATION

CONTENTS

COUNTRY AND AREA CODES

The following codes stand for the applicable country(-ies) and area(-s).

CODE COUNTRY OR AREA

E-02

E-19

E-28

England (UK)

European markets

Canada

WARNING/CAUTION/NOTE .........................................................................1- 2

GENERAL PRECAUTIONS ...........................................................................1- 2

SUZUKI GSF650 (2005-MODEL) ..................................................................1- 4

SUZUKI GSF650S (2005-MODEL) ................................................................1- 4

SERIAL NUMBER LOCATION ......................................................................1- 4

FUEL AND OIL RECOMMENDATION ..........................................................1- 5

FUEL (For Canada) ...............................................................................1- 5

FUEL (For other countries) ..................................................................1- 5

ENGINE OIL ...........................................................................................1- 5

BRAKE FLUID ........................................................................................1- 5

FRONT FORK OIL .................................................................................1- 5

BREAK-lN PROCEDURES ...........................................................................1- 6

CYLINDER IDENTIFICATION .......................................................................1- 6

INFORMATION LABELS ...............................................................................1- 7

SPECIFICATIONS .........................................................................................1- 8

1-2 GENERAL INFORMATION

WARNING/CAUTION/NOTE

Please read this manual and follow its instructions carefully. To emphasize special information, the symbol

and the words WARNING, CAUTION and NOTE have special meanings. Pay special attention to the mes-

sages highlighted by these signal words.

Indicates a potential hazard that could result in death or injury.

Indicates a potential hazard that could result in motorcycle damage.

NOTE:

Indicates special information to make maintenance easier or instructions clearer.

Please note, however, that the warnings and cautions contained in this manual cannot possibly cover all

potential hazards relating to the servicing, or lack of servicing, of the motorcycle. In addition to the WARN-

INGS and CAUTIONS stated, you must use good judgement and basic mechanical safety principles. If you

are unsure about how to perform a particular service operation, ask a more experienced mechanic for

advice.

GENERAL PRECAUTIONS

* Proper service and repair procedures are important for the safety of the service mechanic and

the safety and reliability of the motorcycle.

* When 2 or more persons work together, pay attention to the safety of each other.

* When it is necessary to run the engine indoors, make sure that exhaust gas is forced out-

doors.

* When working with toxic or flammable materials, make sure that the area you work in is well-

ventilated and that you follow all of the material manufacturer’s instructions.

* Never use gasoline as a cleaning solvent.

* To avoid getting burned, do not touch the engine, engine oil, oil cooler and exhaust system

until they have cooled.

* After servicing the fuel, oil, exhaust or brake systems, check all lines and fittings related to

the system for leaks.

GENERAL INFORMATION 1-3

* If parts replacement is necessary, replace the parts with Suzuki Genuine Parts or their equiva-

lent.

* When removing parts that are to be reused, keep them arranged in an orderly manner so that

they may be reinstalled in the proper order and orientation.

* Be sure to use special tools when instructed.

* Make sure that all parts used in reassembly are clean. Lubricate them when specified.

* Use the specified lubricant, bond or sealant.

* When removing the battery, disconnect the negative cable first and then the positive cable.

When reconnecting the battery, connect the positive cable first and then the negative cable,

and replace the terminal cover on the positive terminal.

* When performing service to electrical parts, if the service procedures not require use of bat-

tery power, disconnect the negative cable the battery.

* When tightening the cylinder head and case bolts and nuts, tighten the larger sizes first.

Always tighten the bolts and nuts diagonally from the inside working out and to the specified

tightening torque.

* Whenever you remove oil seals, gaskets, packing, O-rings, locking washers, self-locking

nuts, cotter pins, circlips and certain other parts as specified, be sure to replace them with

new ones. Also, before installing these new parts, be sure to remove any left over material

from the mating surfaces.

* Never reuse a circlip. When installing a new circlip, take care not to expand the end gap larger

than required to slip the circlip over the shaft. After installing a circlip, always ensure that it is

completely seated in its groove and securely fitted.

* Use a torque wrench to tighten fasteners to the specified torque. Wipe off grease and oil if a

thread is smeared with them.

* After reassembling, check parts for tightness and proper operation.

* To protect the environment, do not unlawfully dispose of used motor oil, engine coolant and

other fluids: batteries and tires.

* To protect Earth’s natural resources, properly dispose of used motorcycle and parts.

1-4 GENERAL INFORMATION

SUZUKI GSF650 (2005-MODEL)

* Difference between photographs and actual motorcycles may exist depending on the markets.

SUZUKI GSF650S (2005-MODEL)

* Difference between photographs and actual motorcycles may exist depending on the markets.

SERIAL NUMBER LOCATION

The frame serial number or V.I.N. (Vehicle Identification Number)



1is stamped on the right side of the

steering head pipe and frame down tube. The engine serial number



2is located on the right side of the

crankcase. These numbers are required especially for registering the machine and ordering spare parts.

GENERAL INFORMATION 1-5

FUEL AND OIL RECOMMENDATION

FUEL (For Canada)

Use only unleaded gasoline of at least 87 pump octane (R/2 + M/2) or 91 octane or higher rated by the

research method.

Gasoline containing MTBE (Methyl Tertiary Butyl Ether), less than 10% ethanol, or less than 5% methanol

with appropriate cosolvents and corrosion inhibitor is permissible.

FUEL (For other countries)

Gasoline used should be graded 91 octane (Research Method) or higher. An unleaded gasoline is recom-

mended.

ENGINE OIL

Oil quality is a major contributor to your engine’s performance

and life. Always select good quality engine oil. Use SF/SG or

SH/SJ with JASO MA in API (American Petroleum Institute)

classification.

Suzuki recommends the use of SAE 10W-40 engine oil. If SAE

10W-40 engine oil is not available, select an alternative accord-

ing to the following chart.

BRAKE FLUID

Specification and classification: DOT 4

FRONT FORK OIL

Use fork oil #10 or equivalent fork oil.

MULTIGRADE

TEMP.

Since the brake system of this motorcycle is filled with a glycol-based brake fluid by the manu-

facturer, do not use or mix different types of fluid such as silicone-based and petroleum-based

fluid for refilling the system, otherwise serious damage will result.

Do not use any brake fluid taken from old or used or unsealed containers.

Never re-use brake fluid left over from a previous servicing, which has been stored for a long

period.

1-6 GENERAL INFORMATION

BREAK-lN PROCEDURES

During manufacture only the best possible materials are used and all machined parts are finished to a very

high standard but it is still necessary to allow the moving parts to “BREAK-IN” before subjecting the engine

to maximum stresses. The future performance and reliability of the engine depends on the care and restraint

exercised during its early life. The general rules are as follows.

• Keep to these break-in engine speed limits:

Initial 800 km : Below 6 000 r/min

Up to 1 600 km : Below 9 000 r/min

Over 1 600 km : Below 12 000 r/min

• Upon reaching an odometer reading of 1 600 km you can subject the motorcycle to full throttle operation.

However, do not exceed 12 000 r/min at any time.

CYLINDER IDENTIFICATION

The four cylinders of this engine are identified as No. 1, 2, 3 and No. 4 cylinder, as counted from left to right

(as viewed by the rider on the seat).

#1 #2 #3 #4

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Suzuki Motorrad Handbücher

Suzuki

Suzuki SV1000K5 Handbuch

Suzuki

Suzuki FZ50 Bedienungsanleitung

Suzuki

Suzuki GSX R600 2003 Bedienungsanleitung

Suzuki

Suzuki RM250 Anwendungshandbuch

Suzuki

Suzuki RM125 Anwendungshandbuch

Suzuki

Suzuki DL1000 Bedienungsanleitung

Suzuki

Suzuki GZ250 Marauder Bedienungsanleitung

Suzuki

Suzuki 1996 GSX-R750 Bedienungsanleitung

Suzuki

Suzuki VLR1800 Bedienungsanleitung

Suzuki

Suzuki DL1000AL4 Bedienungsanleitung

Suzuki

Suzuki GSX-1300R Bedienungsanleitung

Suzuki

Suzuki V-STROM DL 1000 '02 Bedienungsanleitung

Suzuki

Suzuki RM-Z250 Anwendungshandbuch

Suzuki

Suzuki DR-Z70K8 Benutzerhandbuch

Suzuki

Suzuki shogun sports 125 Bedienungsanleitung

Suzuki

Suzuki GSF1250 Bedienungsanleitung

Suzuki

Suzuki RM85/LK5 Benutzerhandbuch

Suzuki

Suzuki LS650P Bedienungsanleitung

Suzuki

Suzuki DR650SE Bedienungsanleitung

Suzuki

Suzuki DR-Z400S 2001 Bedienungsanleitung

Suzuki

Suzuki Intruder VZ1500 Bedienungsanleitung

Suzuki

Suzuki gw250F Bedienungsanleitung

Suzuki

Suzuki XS 600 - SCHEMATICS 1970-1973 Bedienungsanleitung

Suzuki

Suzuki GSF650A Bedienungsanleitung

Beliebte Motorrad Handbücher anderer Marken

OHVALE

OHVALE GP-0 Stücklistenhandbuch

Yamaha

Yamaha Star XV19CTSZ 2009 Bedienungsanleitung

KTM

KTM 350 XCF-W USA Bedienungsanleitung

HYOSUNG

HYOSUNG ST7 Bedienungsanleitung

Husqvarna

Husqvarna FC 250 2016 Bedienungsanleitung

Ducati

Ducati SCRAMBLER 800 Gebrauchsanweisung

MOTO GUZZI

MOTO GUZZI QUOTA 1100 ES Bedienungsanleitung

APRILIA

APRILIA ETV MILLE CAPONORD - PART1 02-2001 Bedienungsanleitung

Yamaha

Yamaha 2006 YZF-R1V Bedienungsanleitung

KTM

KTM Freeride E-XC 2021 Bedienungsanleitung

Fantic

Fantic Enduro 125 Bedienungsanleitung

Ducati

Ducati Supersport 750 desmodue Bedienungsanleitung

MV Agusta

MV Agusta 2008 F4 312RR 1078 Gebrauchsanweisung

Yamaha

Yamaha XVS650A Bedienungsanleitung

Yamaha

Yamaha YZF-R6T(C) Handbuch

Ducati

Ducati 748 monoposto strada Bedienungsanleitung

ATK

ATK 1988 250 Bedienungsanleitung

Excelsior-HENDERSON

Excelsior-HENDERSON 1999 HCX Bedienungsanleitung
