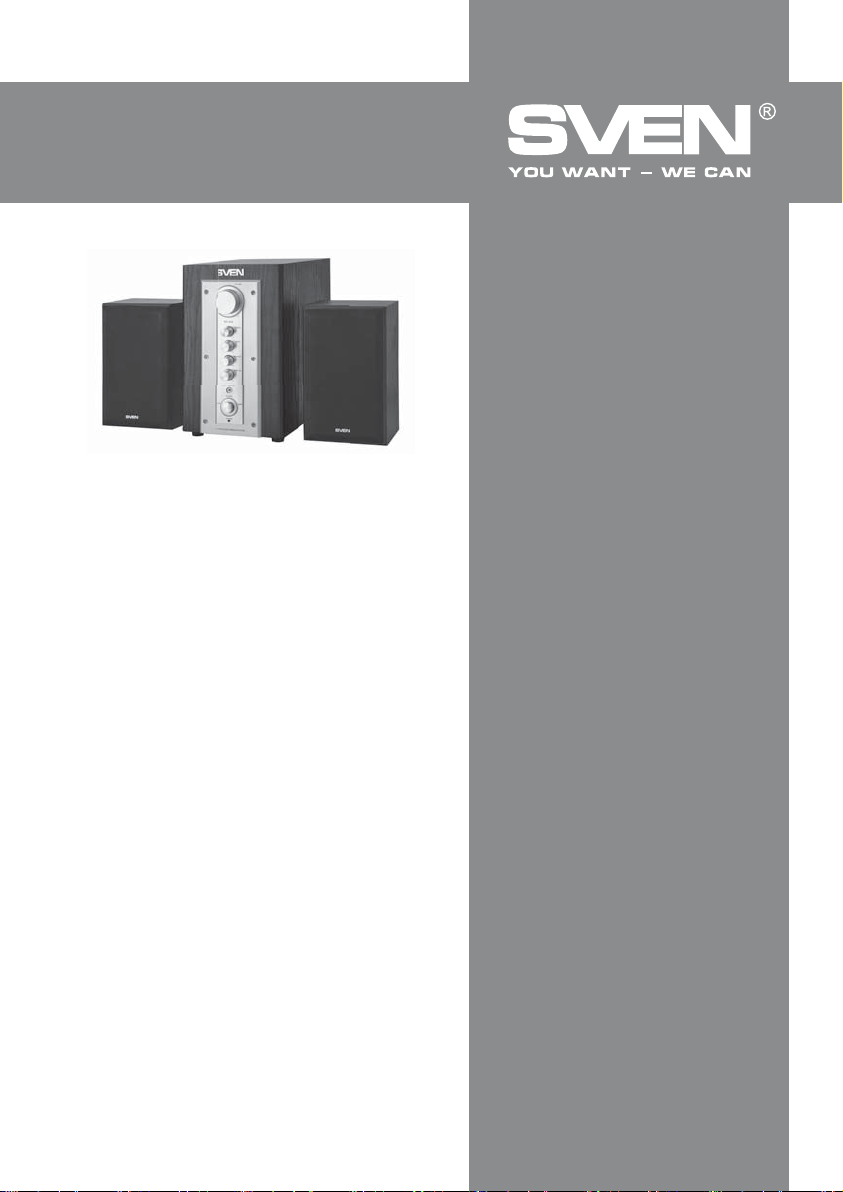

Sven MS-960 Bedienungsanleitung

www.sven.ﬁ

OPERATION

MANUAL

2.1 Multimedia Speaker System

MS-960

Congratulations on your purchase of the Sven speaker system!

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted eﬀorts to make this Manual more exact, some discrepancies may occur. The

information in this Manual is given on «as is» terms. The author and the publisher do not bear any

liability to a person or an organization for loss or damage which has arisen from the information

contained in this Manual.

CONTENTS

1. BUYER RECOMMENDATIONS ..................................................

.............

2. PACKAGE CONTENTS.............................................................

............

3. SAFETY PRECAUTIONS ..................................................

...................

4. TECHNICAL DESCRIPTION ....................................................

................

5. PREPARATION AND OPERATION ..........................................

......................

6. TROUBLESHOOTING.................................

...............................................

7. TECHNICAL SPECIFICATIONS ....................................................

...........

1. BUYER RECOMMENDATIONS

•Unpack the device carefully. Make sure there are no accessories left in the box. Check up the

device for damage; if the product was damaged during transportation, address the ﬁrm which

carried out the delivery; if the product functions incorrectly, address the dealer at once.

•Check up the package contents and availability of the warranty card. Make sure the warranty

card has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods

number corresponds to that in the warranty card.

•Do not switch on the speaker system immediately after you bring it into a room from environment

with negative temperature! After unpacking, the speaker system should be kept in conditions of

room temperature for at least 4 hours.

•Before installing and using the speaker system, read this Manual carefully and keep it for future

reference.

Technical support is on www.sven.ﬁ

ENG

Operation Manual MS-960

2. PACKAGE CONTENTS

•Subwoofer — 1 pc

•Satellites — 2 pcs

•2RCA to mini-jack (Ø 3.5 mm) signal cable — 1 pc

•Аcoustic cable — 2 pcs

•Operation manual — 1 pc

•Warranty card — 1 pc

3. SAFETY PRECAUTIONS

•To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service and

repairs should be performed only by qualiﬁed specialists in an authorized service center. The list of

authorized service centers is available on www.sven.ﬁ

•Do not allow the circuit of wires (including the grounded ones) between the speakers, on the

power ampliﬁer or the ground, for it causes damage to the power ampliﬁer output stage.

•Do not touch the MSS power cord plug pins for 2 seconds after unplugging it from the mains.

•Disconnect the MSS from the mains system during a fuse replacement. Use fuses of the same

type and rated value. Do not use hand-made fuses.

•Do not put foreign objects inside the holes of the MSS.

•Protect the MSS from high humidity, water and dust.

•Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose

it to direct sunlight.

•Do not place any open ﬂame sources on or close to MSS.

•Do not place the MSS in poorly ventilated areas. Leave an air gap of 10 cm or more. When

operating the MSS, do not put any devices on it, do not cover it with cloth or other objects pre-

venting it from cooling.

•Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.

4. TECHNICAL DESCRIPTION

MS-960 Multimedia Speaker System 2.1 (MSS) is designed to play music and sound games,

movies etc. The MSS has a built-in ampliﬁer, due to which it can be connected to virtually any audio

source (CD/DVD-player, TV, PC, etc.) without using an additional power ampliﬁer.

Special features

•Speaker system is compatible with PCs, DVD/Media-players, mobile devices and other sound sources

•Separate master volume control, timbre control and balance control

•Subwoofer volume control

•Convenient control on the front panel

•Headphone jack

•High quality silk tweeters

•Magnetic shielding

•Wall-mounted speakers

•MDF subwoofer and satellites cabinets

Caution! High voltage inside! To avoid the risk of electric

shock do not open or touch elements inside.

ENG

2.1 Multimedia Speaker System

AUDIO INPUT

5. PREPARATION AND OPERATION

Speaker placement

•Place the speakers symmetrically to the listener at the distance not

less than one meter, speakers can be wall-mounted.

•The subwoofer emits non-directional sound, therefore it can be

located in any place of the room, where it will sound to the best

advantage.

•Place MSS far away from monitors and TV sets, as insigniﬁcant

image distortion in these supersensitive devices is possible.

MSS сonnecting and control

MS-960 Multimedia Speaker System can be con-

nected to virtually any audio source: DVD/CD, PC

sound card, etc. (see connection diagram, Fig. 3).

•Before connecting make sure that the MSS is

switched oﬀ. Then, observing polarity (see Fig. 3),

connect the audio cables ﬁrst to the jacks, and then

into SPEAKERS OUT L/R iof the subwoofer. The

positive (red) terminals of the active speaker must be

connected to the red terminals of the passive speaker

(+ →+), and the negative (black) terminals of the active

speaker must be connected to the black terminals of

the passive speaker (– →–).

•Connect the included 2RCA jacks of the signal cable

to AUDIO INPUT jL and R jacks of the subwoofer,

and insert the mini-jack (Ø 3.5 mm) of the signal cable

into LINE OUT port of the PC sound card or OUTPUT

of the DVD/CD/МР3-player. To connect the device to

OUTPUT of the DVD/CD/MP3-player or TV, use the

2RCA to mini-jack signal cable (included) + mini-jack

to 2RCA adapter (not included) or 2RCA to 2RCA

signal cable (not included).

Front and rear subwoofer panels

aVOLUME: master volume control knob

bTREBLE: TREBLE control knob

cBASS: BASS control knob

dBALANCE: BALANCE control knob

eSUB. VOL: subwoofer volume control knob

fEARPHONE OUT: headphone jack

gPOWER ON/OFF: POWER switch

hPOWER: POWER LED

iSPEAKERS OUT L/R: satellite outputs

jAUDIO INPUT L/R: audio source input

kPower cord

Fig. 1. Subwoofer

front panel

Fig. 2. Subwoofer rear panel

ON OFF

POWER

EARPHONEOUT

POWER

VOLUME

TREBLE

BASS

BALANCE

SUB.VOL

ENG

Operation Manual MS-960

AUDIO INPUT

DVD

Power cord

2RCA to mini-jack Ø 3.5 mm

signal cable

Fig. 3. Connection diagram

Right

speaker

Left

speaker

2RCA to mini-jack signal cable

+ mini-jack to 2RCA adapter

Notes. Sound quality is directly affected by correctness and reliability of the connection of

cables. It is recommended to use cables that are included in the package contents of the MSS.

•Adjust volume control knob VOLUME aon the subwoofer to its minimum (by turning the Volume

control knob counterclockwise as far as it would go), then connect the subwoofer to a mains outlet

via the built-in power cord k.

•Switch on the subwoofer by shifting POWER ON/OFF switch ginto ON position, power LED h

will light up. Then turn on the audio source and adjust the subwoofer volume level by volume control

knob VOLUME a, bass level, treble level, subwoofer volume level by BASS control knob c,

TREBLE control knob band SUB. VOL control knob erespectively.

•Connect the headphones to the headphone jack EARPHONE OUT fon the subwoofer front

panel.

Notes:

• If the MSS won’t be used for a long time, please mind to switch it off g(position OFF) on

the subwoofer front panel and unplug it k.

• To enhance sound quality, use Line-Out output of the sound card.

Audio cable Audio cable

Subwoofer rear panel

Player

ENG

2.1 Multimedia Speaker System

Parameter, measurement unit

Output power (RMS), W

subwoofer

satellites

Frequency range, Hz

subwoofer

satellites

Speaker diameters, mm

subwoofer

satellites (full-range driver + tweeter)

Power supply, V / Hz

Dimensions (W × H × D), mm

subwoofer

satellites (one speaker)

Weight, kg

Value

50 (20 + 2 × 15)

2 × 15

50 – 140

140 – 20 000

Ø 125

Ø 75 + Ø 20

~220/50

170 × 238 × 260

115 × 180 × 140

6.8

7. TECHNICAL SPECIFICATIONS

If none of the above methods can solve the problem, please seek professional advice at your

nearest service center. Never attempt to repair the product yourself.

6. TROUBLE SHOOTING

Notes:

• Technical speciﬁcations given in this table are supplemental information and cannot give

occasion to claims.

• Technical speciﬁcations are subject to change without notice due to the improvement of

SVEN production.

Problem

The MSS does not

turn on.

No sound or sound

of speakers is too

quiet.

Distortion of

sound.

Cause

The MSS is not connected to the mains

outlet.

Power switch is oﬀ.

Volume level is set at minimum value.

The audio source is improperly connected.

Large amplitude of the input signal.

Solution

Check the connection.

Turn on the switch.

Adjust the volume control knob.

Connect audio sources correctly.

Turn down the source volume

and MSS volume.

ENG

Operation Manual MS-960

2.0 Multimedia Speaker System

Automatic Voltage Regulator

Стабилизатор напряженияСтабилизатор напряжения

Automatic Voltage Regulator

2.0 Multimedia Speaker System2.0 Multimedia Speaker System

SPS-619

MS-960

Модель: MS-960

Импортер вРоссии: ООО «СКАНДИТРЕЛ»,

111024, РФ, г. Москва, ул. Авиамоторная, д. 65, стр. 1.

Уполномоченная организация вРоссии: ООО «РТ-Ф»,

105082, г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5.

Условия гарантийного обслуживания смотрите

вгарантийном талоне или на сайте www.sven.ﬁ

Гарантийный срок: 12 мес. Срок службы: 5 лет.

Производитель: «СВЕН ПТЕ. Лимитед», 176

Джу Чиат Роуд, №02-02, Сингапур, 427447.

Произведено под контролем «Свен Скандинавия

Лимитед», 48310, Финляндия, Котка, Котолахдентие,

15. Сделано вКитае.

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,

№02-02, Singapore, 427447. Produced under the

control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,

Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.

2.1 Multimedia Speaker System
