SWEEX TV126 Bedienungsanleitung
LED TV
TV126
INSTRUCTION MANUAL
TO THE CUSTOMER:
Thank you for purchasing this LED TV. When opening the box for the first time, please
check whether all the accessories are present. Before connecting parts and power, please
carefully read the user manual and always keep these instructions handy and close by your
LED TV.
Contents
Safety precaution................................................................................................2
Accessories........................................................................................................3
Remote control manual........................................................................................4
Remote control functions.....................................................................................5
LED TV panel overview........................................................................................7
Connecting to external devices............................................................................9
The OSD menus.................................................................................................10
TELETEXT function buttons.................................................................................6
Trouble shooting..............................................................................................24
Maintenance....................................................................................................25
USB Multimedia operation................................................................................22
Notes:
1.Safety precaution
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of insinuated
dangerous voltage within the product's enclosure that may be
of sufficient magnitude to constitute a risk of electric shock
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
The exclamation point within an equilateral triangles is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the product.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER(OR BACK). REFER SERVICING TO
AUTHORISED SERVICE PERSONNEL.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DO's
Always power this product from an outlet with the same rating (voltage and
frequency) as indicated on the rating label on the back of the product.
If this product has been damaged (including cord or plug) take it to an authorised
service technician for inspection, and if necessary, repair.
Turn off and disconnect the power cable before cleaning or storing this product.
Ensure this product does not get wet or splashed.
Only use the A/C power adapter supplied with your product, or a replacement
recommended by an authorised technician.
DON'T's
Do not place naked flames, such as lighted candles on or near the product.
Do not place objects filled with liquids, such as vases on or near the product.
Do not install this product on top of other electrical equipment or on uneven surfaces.
Do not use or store this product in a place where it is subject to direct sunlight, heat,
excessive dust or vibration.
Do not use this product with wet hands.
Do not clean this product with water or other liquids.
Do not block or cover the slots and holes in the product.
Do not push foreign objects into the slots or holes in the product.
The screen surface is easily scratched. Do not touch the screen with your hands or
any hard object.
Do not pull the power cord when disconnecting power. Turn off the switch on the
socket and pull the plug not the cord.
Do not attempt to open this product yourself. There are no user serviceable parts
inside.
DO's and DON'T's
2
Before using this product, read and follow all warnings and instructions.
This product is not intended for use by young children. Young children should
be properly supervised.
This product is intended for household use only and not for commercial or
industrial use.
Do not expose to dripping or splashing.
No naked flame sources, such as lighted candles, should be placed on the product.
Allow suitable distances around the product for sufficient ventilation.
Ventilation should not be impeded by covering ventilation openings with items
such as newspapers, table cloths, curtains and the like.
Make sure the LED TV stand is adjusted to a stable position. Damage caused by
using this product in an unstable position or by failure to follow any other warning
or precaution contained within this user manual will not be covered by warranty.
SAFETY WARNINGS
2.Accessories

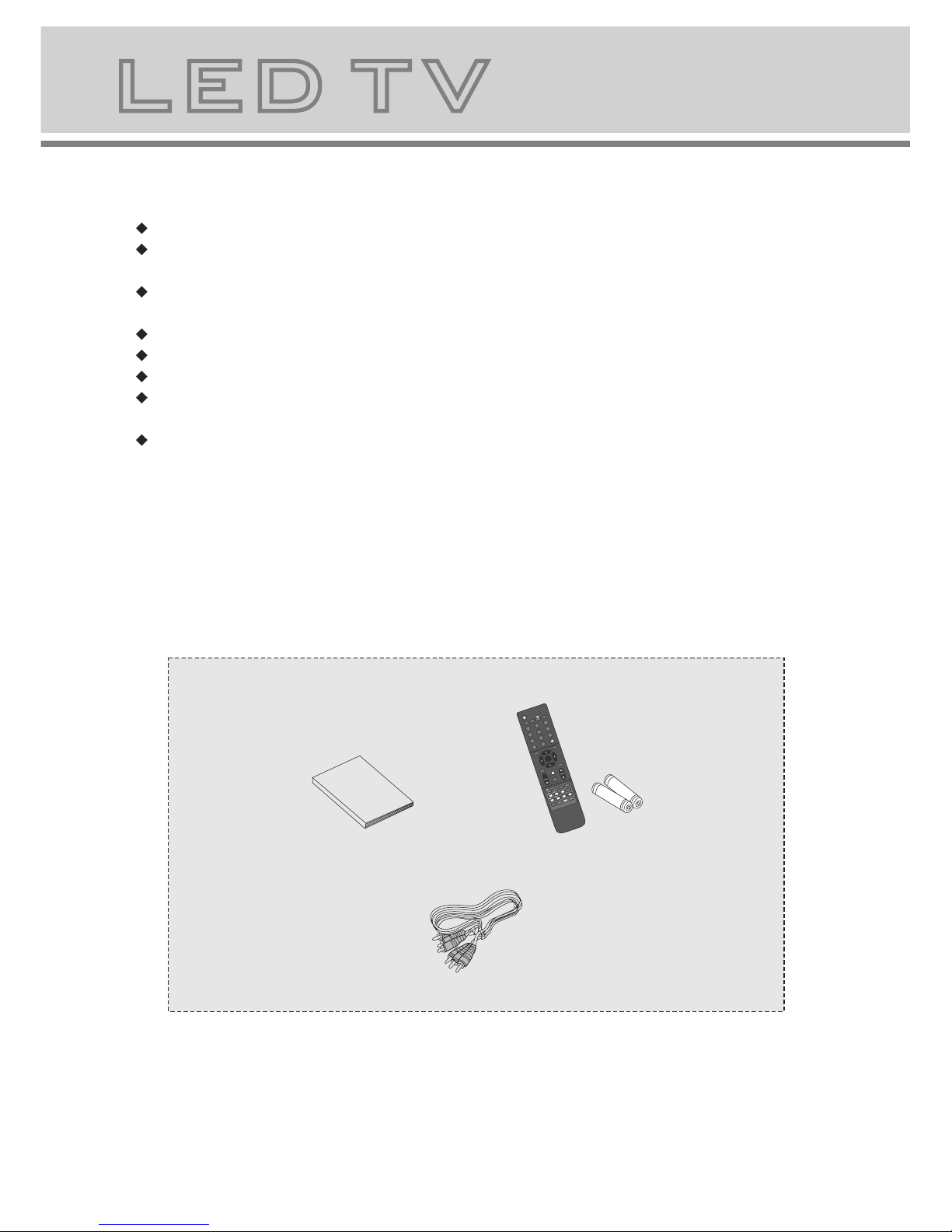

Check the accessories
3
User manual
AV connection cable
Remote control/batteries
0
123
456
789
A/DTV
+
RC-TFG019
0
123
456
789
OK
P
.MODES.MODESLEEP
SOURCE MENU
INFO EXIT
MUTE
VOL CH
ASPECT
ADD/DEL
/EPG
/HOLD
/REVEAL
SUBPAGE
/FAV
SIZE
SUBTITLE
MEDIA
X
/TTX
/CANCEL
INDEX
CH.LIST
(TV accessories)
X
Confirm button
Numeric button
Channel list button
Aspect button
Power button
Picture mode button
Sound mode button NICAM function button
Sleep button
Return channel button
Signal source selection button Main menu
Up
LEFT Right
Down
Volume adjusting button Channel selection button
Mute button
Exit the OSD menu button
RED button
GREEN button YELLOW button
BLUE button
INDEX button
FORWARD/REVEAL button
HOLD/NEXT button
SUBPAGE button
SUBTITLE button
PREV/TTX/MIX button
Size button
REVERSE/CANCEL button
MEDIA button
STOP/Favourite button ADD/DEL button
EPG/Play/Pause button
3.Remote control manual
4
Bright sunlight or lighting may cause erratic remote operation
Information button
5
4.Remote control functions
: Power on/standby.
S.MODE: Select a sound mode (Off, Concert,Living Room,Hall,Bathroom,Care,Arena,Church).
SLEEP: The TV will automatically switch to standby after a preset time
I/II: Select audio language (A2 or NICAM).
P.MODE: Select picture mode (Standard, User, Cinema, Sport, Vivid, Hi-Bright).
ASPECT: Select the picture display ratio: 16:9 / 4:3 / AUTO (Display in 4:3 format is not possible
if the resolution is above 720P.).
INFO: Display information about the current channel.Press again to remove it.
0,1-9: Select TV channel.
CH.LIST: Display the channel list.
:Go back to the last channel.
SOURCE: Select the source: TV, AV, S-VIDEO, SCART1, SCART2,YPBPR, VGA,
HDMI1, HDMI2,HDMI3.
MENU: TV system setup menu.
OK: Confirm button for OSD menu / Enter Initial Setup menu.
EXIT: Exit the menu or cancel the current operation.
MUTE: Turn the speaker output on/off.
/ (UP/Down): Move cursor in menu.
/ (Left/Right): Move cursor in menu, adjust .
VOL +/- : Volume up/down.
CH /:Channel up/down.
EPG: Display the electronic program guide (detailed information about the channel and programs).
FAV: Display your list of favorite channels.
ADD/DEL: Add or delete Favorite channel
MEDIA: Enable the media function, enter or exit media function interface.
Play/Pause.
Stop playing.
Skip to previous track.
Skip to next track.
Fast forward
Fast reverse
6
5.TELETEXT function buttons
Press this button once, turn on the teletext function,
Press twice, enter picture and text mix mode.
Press once more, turn off the teletext function.
After searching for some page, press this key once to
go back to the text mode.
While the searching result will be displayed at the top
of the TV picture, press again to go back to the text
mode.
Press this key to change the size of the character of
the current text page as following:
Normal Display the upper half Display the bottom
half Normal Display.
Keep the current page not to refreshed and press
again to cancel the holding state.
Reveal/Conceal the concealed information of the
current text page.
To enter the subpage.
To show teletext index.
Press this key to turn on or off the subtitle of TV
programs.
RED GREEN YELLOW BLUE:Fast teletext buttons
SUBTITLE
6.LED TV panel overview
7
TV Control Panel
12
34 5
1.Volume adjustment and Menu item adjustment.
2.Channel selection and Menu item selection.
3.Main menu display and confirm.
4.Signal Source selection button.
5.On/off button.
Instruction of the touch button
1. Press any button with your fingers lightly to activate the touch buttons and
all indicators willbe lit.
2. Press the desired button while all the button indicators are turned on.
The corresponding indicator will flicker once it is pressed.
NOTE
To make it easier for the monitor to respond the touch button, please press the
location slightly below the silk screen of the buttons indicated as following.
8
TV Terminal connections
345
1 2
1. USB input.
2. HDMI input.
3. AV input.
4. Headphone output.
5. CI card input.
1. Antenna input (75 Ohm VHF/UHF).
2. S-VIDEO input.
3. SCART input terminal, suitable for a
European export machine.
4. Component and audio input terminal.
5. VGAinput.
6. Coaxial audio signal out plug.
7. PC audio input.
8. HDMI input.
1
3
2
4
56
7
8

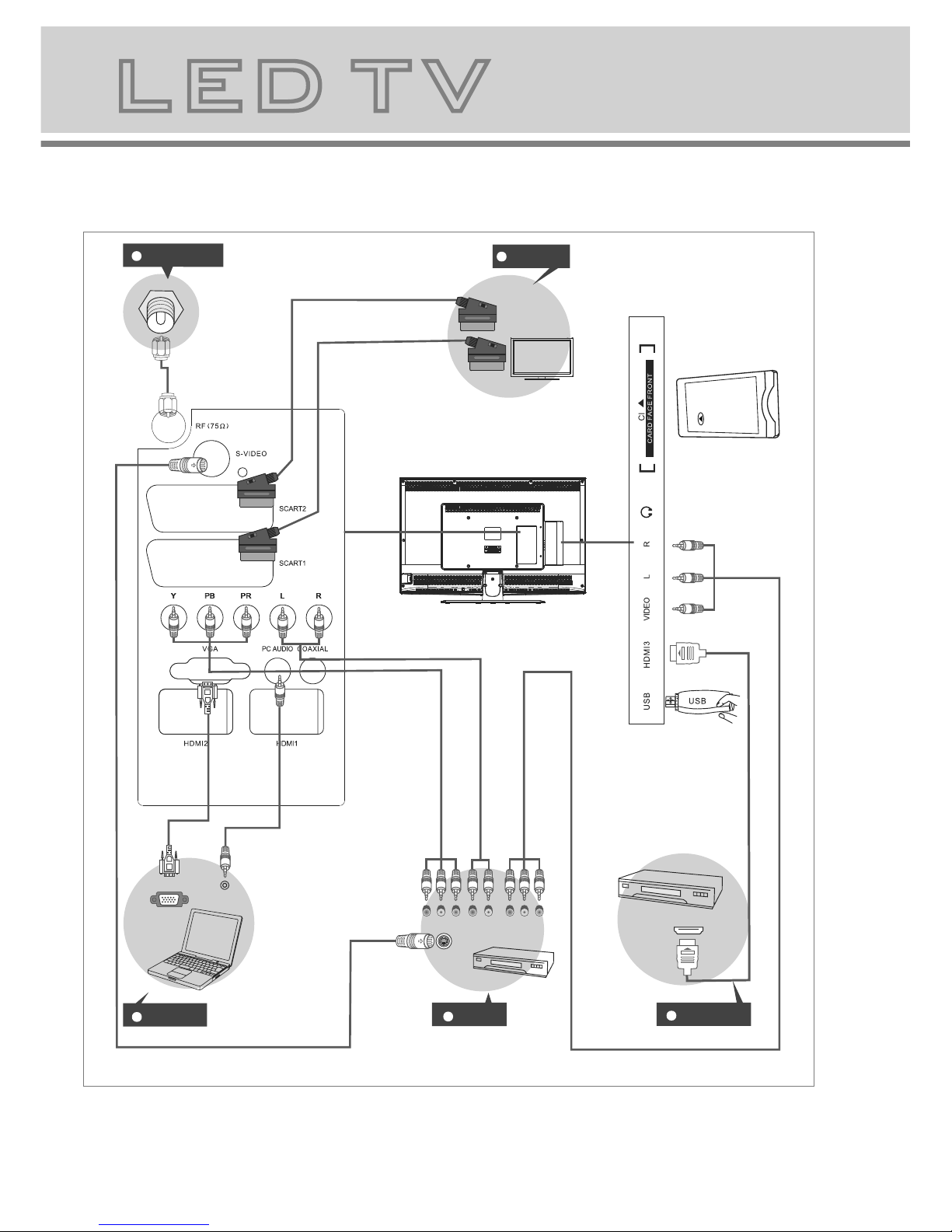

7.Connecting to external devices
9
HDMI
HDMI
ANTENNA
VGA
PC AUDIO
PC
YPBPR
S-VIDEO
LR
VIDEO
DVD
LR
TV
