Sylvania SKCR2644A Technisches Handbuch

SKCR2644A

Operation Instruction

Digital Kitchen Television DVD Multimedia Player

I. Precautions

II. Accessories

III. Operation of the Remote Control and Functions of Its Major

Parts

IV. Appearance

V. Operation Instruction of Remote Control

VI. Operation Instruction for Alarm Clock Radio System

VII. TV Menu Operation

VIII. DVD Operation Instruction

IX. Before Repair

X. Technical Parameters

-1-

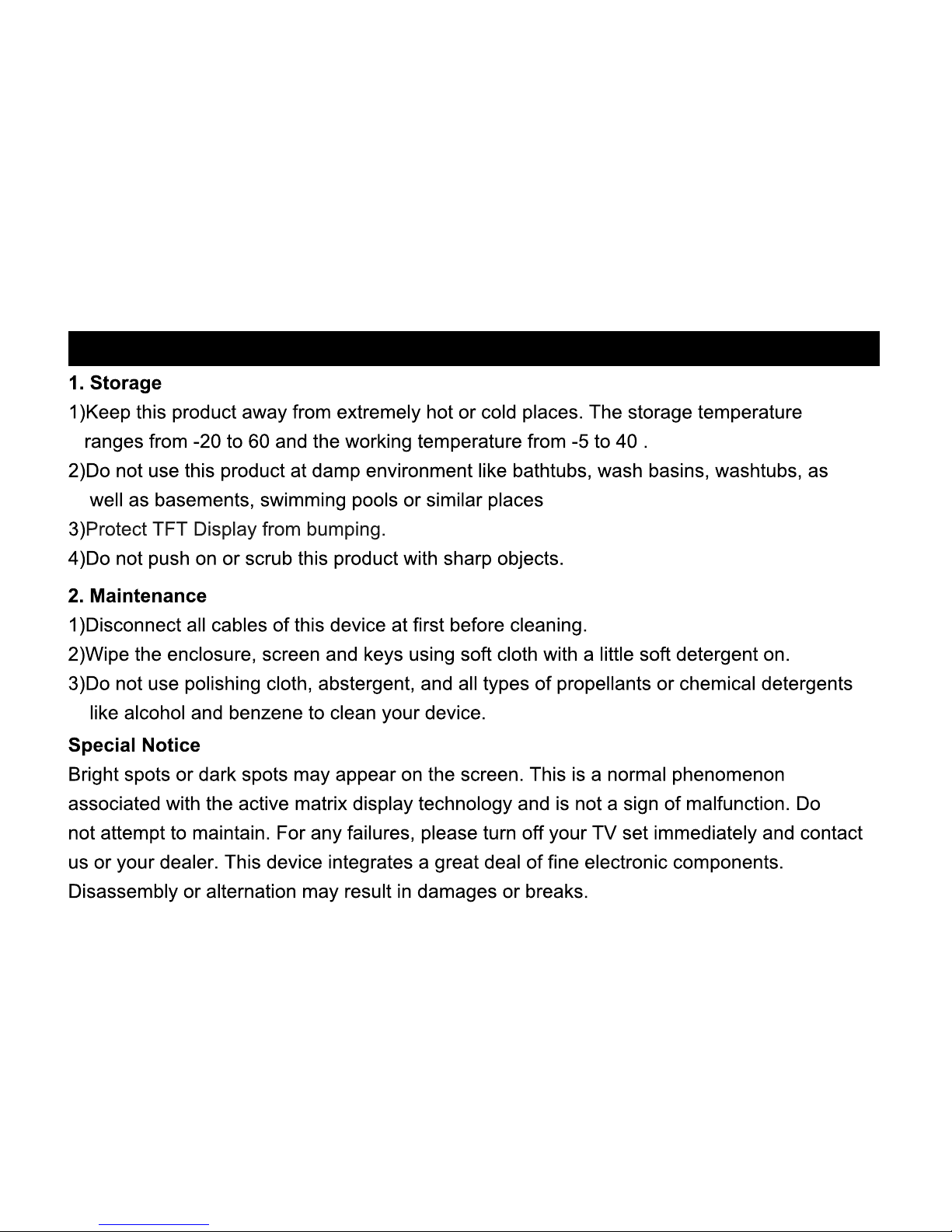

I. Precautions

1. Knighthead

2. Screw

3. Remote Control

4. AAA type Batteries

5. Installation diagram

6. Operation Instruction

* Open the package and make sure all the items are included.

-2-

II. Accessories

III. Operation of the Remote Control and Functions of Its Major Parts

Precautions

*Do not throw, step on or strongly strike the remote control to avoid damage.

*The remote control may fail to function if the machine is separated from the

remote control with a barrier in between.

*Do not keep the remote control exposed under violent light radiation; it may

otherwise lead to malfunction.

*Do not use a remote control from other devices at the same time.

*Use the remote control within an operational range.

Exchange the Batteries

You should exchange the batteries if the remote control fails to

function within a normal operational range.

*Draw off the battery cover on the remote control.

* Load new batteries in a correct direction as indicated on the

remote control.

*Re-cover the new batteries.

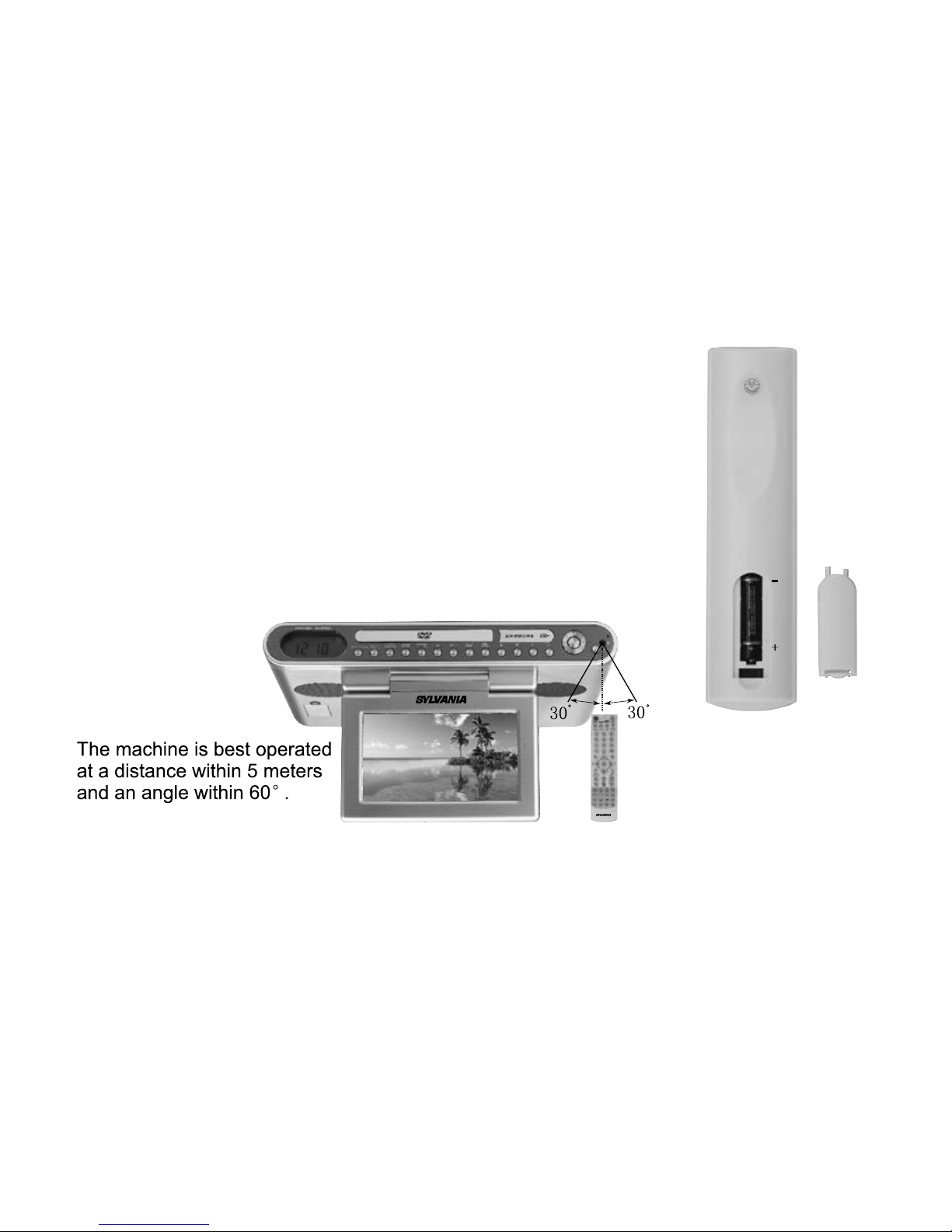

Operational Range of Remote Control

-3-

IV. Appearance

19 20

1. DVD/TV/AUX (DVD/TV/AUX switch key):

Press this key to switch among DVD/

TV/AUX modes under a power-on condition.

2. RADIO (RADIO switch key):

Press this key to switch

between RADIO system.

3. MEMORY/CARD/USB

(MEMORY/CARD/USB switch key):

Under FM mode of radio search

condition, press this key to enter into

MEMORY mode. Press "SKIP+/

TUNER+" key/ "SKIP-/TUNER- " key

or "CH+/-" key to select radio stations.

Press this key again to confirm your selection.For DVD mode, press it to switch modes

among DVD/USB/CARD.

4. CLOCK/ALARM: Time Show key. In power-on or standby state, press shortly to display the time

of current alarm1, alarm2 and the clock; long press to respectively enter the setting state of hours

and minutes of the current time, AL1, AL2 (the number of current hour or minute will flash), then

press "SKIP+/TUNE+" or "SKIP-/TUNE-" to adjust. When these two alarms are set at the same

time, alarm 1 is effective but alarm 2 isn't.

5. SLEEP/SNOOZE: Sleep/Snooze key. In power-on state, press this key repeatedly to set the

system to sleep and shut down after 90/80/70/60/50/40/30/20/10 minutes, then press this key to

-4-

exit the Sleep power-off Setting function. Press this key in sleep state to cancel this state; in alarm

state, press this key to start snooze function (interval time is 8 minutes), and the screen will show

"SNOOZE" symbol.

6. EQ: Sound Effect key. Press this key in power-on state, you can set the sound effect as Rock

Jazz Popular Classical Normal in turns.

7. TIMER: Timer Setting key. In power-on or standby state, press this key to enter the state of

clockwise time setting from1 to 90 minutes, then press "SKIP+/TUNE+" or "SKIP-/TUNE-" to

adjust minutes, and press again to confirm the set time.

8. SKIP-/TUNE- (Radio tuner/Time adjust key): Under a radio search condition, press this key

shortly to tune backward the radio. A long press on this key is to search backward for radio

stations. The search stops automatically upon receipt of radio station. Under time adjusting

condition, a quick press on this key is to backward adjust the hour or minute figure by figure,

while a long press on it is to backward adjust the hour or minute quickly. For MEMORY mode

of radio, press this key to decreasingly select the station number. For DVD mode, press it to

select the previous track/chapter.

9. SKIP+/TUNE+: Under a radio search condition, press this key shortly to tune forward the radio.

A long press on this key is to search forward for radio stations. The search stops automatically

upon receipt of radio station. Under time adjusting condition, a quick press on this key is to

forward adjust the hour or minute figure by figure, while a long press on it is to forward adjust

the hour or minute quickly. For MEMORY mode of radio, press this key to increasingly select

the station number. For DVD mode, press it to select the next track/chapter.

10. Eject key: In DVD state, press this key to eject the disc.

11. (Stop key): Stop key (Only in DVD state).

12. Play/ Pause key. In DVD playing, press this key to pause,press again to resume playing.

13. OK (Confirm key): In DVD mode, press this key to confirm adjustment/selection.

-5-

14. VOL- (Volume decrease key): Under a power-on condition, press this key to decrease volume.

For DVD mode, while in DVD menu interface, a quick press on it is to select leftward and a

long press on it is to decrease volume. In menu interface, press it to leftward select the items

or to decreasingly adjust setting parameters.

15. VOL+ (Volume increase key): Under a power-on condition, press this key to increase volume.

For DVD mode, while in DVD menu interface, a quick press on it is to select rightward and

a long press on it is to increase volume. In menu interface, press it to rightward select the items

or to increasingly adjust setting parameters.

16. STANDBY: Power-on/Standby/Cancel Alarm key.

17. Loudspeaker

18. TFT LCD screen

19. Power Indicator

20. Remote Controller Receiving Window

21. CH- (Channel number decrease key/Alarm 2 adjust key): Under a radio search condition,

press this key to decreasingly select the radio station saved. For MEMORY mode of radio,

press it to decreasingly select the place you prefer to save the radio station. Under standby

condition, press this key to switch modes among Alarm 2, Radio 2 and TV 2. For TV mode,

press it to decrease the channel number. In menu interface, press it to backward select items.

For ZOOM-IN mode, press this key to move the picture downward. Under a condition when

photos are played, press it to turn over the pictures in horizontal direction.

22. CH+ (Channel number increase key/Alarm 1 adjust key): Under a radio search condition,

press this key to increasingly select the radio station saved. For MEMORY mode of radio,

press it to increasingly select the place you prefer to save the radio station. Under standby

condition, press this key to switch modes among Alarm 1, Radio 1 and TV 1. For TV mode,

press it to increase the channel number. In menu interface, press it to forward select items.

For ZOOM-IN mode, press this key to move the picture upward. Under a condition when

photos are played, press it to turn over the pictures in vertical direction.

-6-

23. MENU/MONO: For FM mode of radio search condition, press this key to switch modes between

MONO or STEREO modes. For TV/AUX mode, press this key to enter into menu. For

DVD mode, press it to play the menu. For VCD playing mode, press it to switch on PBC.

24. USB port/Three-in-one connection

25. TV Antenna Input.

26. External video Input

27. External Audio Left Channel Input

28. External Audio Right Channel Input

29. External DC Power socket (Optional)

30. Power Cable

31. FM Antenna

-7-

V. Operation Instruction of Remote Control

1. POWER: Standby/off key, press to switch between ON and STANDBY. when the alarm

sounds,press this key to close alarm.

2. DVD/TV/AUX (TV system mode switch key): Press it to switch modes among TV/DVD/AUX.

3. RADIO: Radio key. In power-on state, press this key to

enter the FM RADIO system.

4. OPEN (Open key): In DVD mode, press it to open the

CD deck and again for resetting the deck.

5. CLOCK (LCD clock display key): Press it to circularly

display the time on clock, Alarm 1 and Alarm 2. A long

press on it is to adjust the time on clock, Alarm 1 and

Alarm 2 in turn.

6. SLEEP (SLEEP/SNOOZE switch key): Press it to set the

machine to switch off automatically after a set time.

When alarm rings, press this key to enter into SNOOZE

mode. The alarm rings again and again every 8 minutes

until you switch it off.

8. MENU (Menu key): In TV/DTV/AUX mode, press this

key to enter into the main menu. In DVD mode, press

it to play the menu. In VCD playing mode, a press

on it is to switch on/off PBC.

9. CH+/ CH-/ (Upward and Downward key): In menu

interface, press it to select items. In ZOOM-IN mode under

DVD condition, press it to move the picture upward under a

condition when the photos are displayed, press it to rotate the

7. 0-9(Number Key) :In TV mode, press them to select from

preset TV programs. In DVD, it is used for selection/

composition of songs.

234

15 16

17 18

620 21 22

23 24

25 26

932

36 37

-8-
