Sylvania SMPK8220PL Bedienungsanleitung
User Manual - SMPK8220PL
Sylvania is a registered trademark of OSRAM Sylvania Inc. Used under license.
What’s in the box?
Operating Unit
User Manual
USB Cable
Earphone
CD Driver
Content
Buttons location and usages
Basic Operation
Intro
Operation of Music Mode
Operation of Video Mode
Operation of Pictures Mode
Operation of Camera
Operation of Video Recorder
Technical Specification
Trouble Shooting
Operation of E-Book
Operation of Recording
Operation of File Navi
Operation of Setting Mode
Buttons location and usages
(1) On/ Off Button
(2) Display Screen
(3) M Button
(4) Next Button
(5) Play/ Pause Button
(6) Power Button
(7) Previous Button
(8) USB Port
(9) Microphone
(10) Earphone Jack
(11) Camera Lens
Software Utilities Installation
Insert the CD into the CD ROM Drive of your PC. Click
Setup.exe to start driver installation. Follow the
on-screen-menu to complete the installation.
Click Close once you reach the Installation Complete
Screen.
For Window 98/98SE users, please install the driver in the
CD-ROM before downloading any files to your player
3
Connect & Charge
Your player will be charged
while being connected to PC
through the USB cable.
! You will see the charging
animation in the bottom right
hand corner of the display. The
player is fully charged when the
charging animation stops.
(Switch on the player when
charging)
Transfer
Step 1:
Set the Online Device of the
player as USB Disk (Refer to
Page 6), then connect it to your
PC by USB cable. Once the
connection is successfully
made, the above screen display
would be shown. Try
re-connecting the player if the
above screen doesn’t appear.
4
Step 2:
The above screen would appear.
(Apply only to Window XP)
Choose Take no action and
click OK to close the window.
Double click My Computer on
your desktop and the above
window would appear. Look for
the Removable Disk Icon.
Double click the Removable
Disk icon. Note: Do not
disconnect the USB cable once
you click into the removable
disk window. Such action may
cause data loss or problems to
the player.
Drag and drop your media files into the removable disk.
You can create any folder or directory in the removable
disk. Close the removable disk window and disconnect the
player from your PC after the data transfer.
5

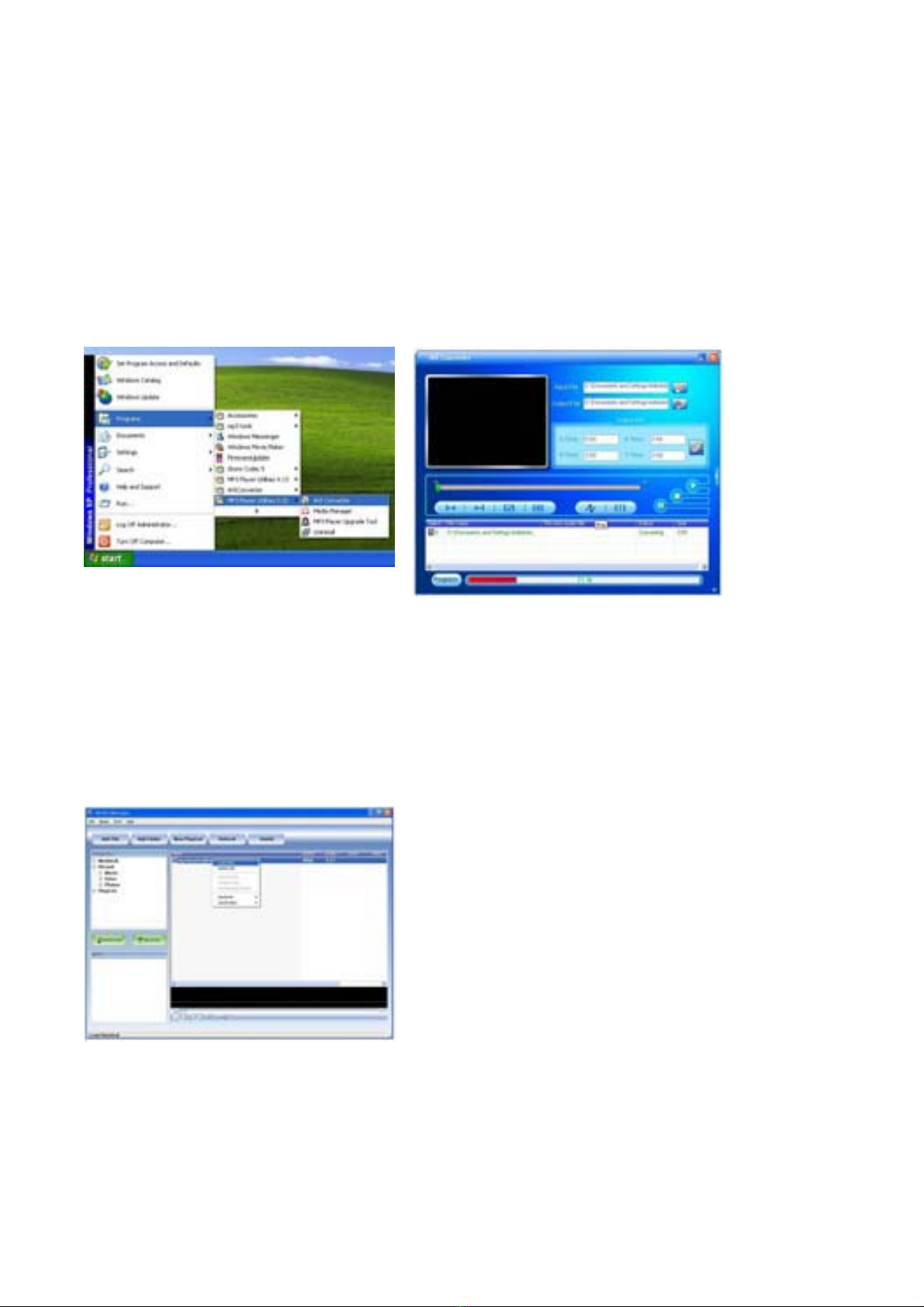

Software Operation
Video Converter
You can convert your fovourite video file in any other
format into the .AVI format with the help of the AVI
converter. The converting progress is shown.
Media Manager
You can enjoy songs from both PC and your player thru
the Media manager.
6
Basic Operation
Power on/off and Lock
Switch on the Power button on the top and hold ON/OFF
button to switch on the device.
Main interface
Once your switch the player on you’ll reach to the main
interface as below..
7
Operation of Music Mode
Press Previous/ Next button to select “Music” and press
Play/ Pause button to enter the page. Once you’ve
entered the music mode, the following screen would show
up.
Now Playing
Press Previous/ Next button to
select Now Playing and press
Play/ Pause button to resume
playing the current song.
All Music
Press Previous/ Next button to
choose All Music and press
Play/ Pause button to show
your library of music. Press
Previous/ Next button to select
any particular song and press Play/ Pause to start playing.
Artist
Press Previous/ Next button to select Artist to show all of
your artists. Press Previous/ Next to choose any
particular artist to show the songs of that artist. Select
song and press Play/ Pause to start playing.
Album
Press Previous/ Next button to select Album to browse
all of your albums. Press Previous/ Next to choose any
particular album to browse the songs of that album. Press
Play/ Pause button after selected any song to start playing.
8
