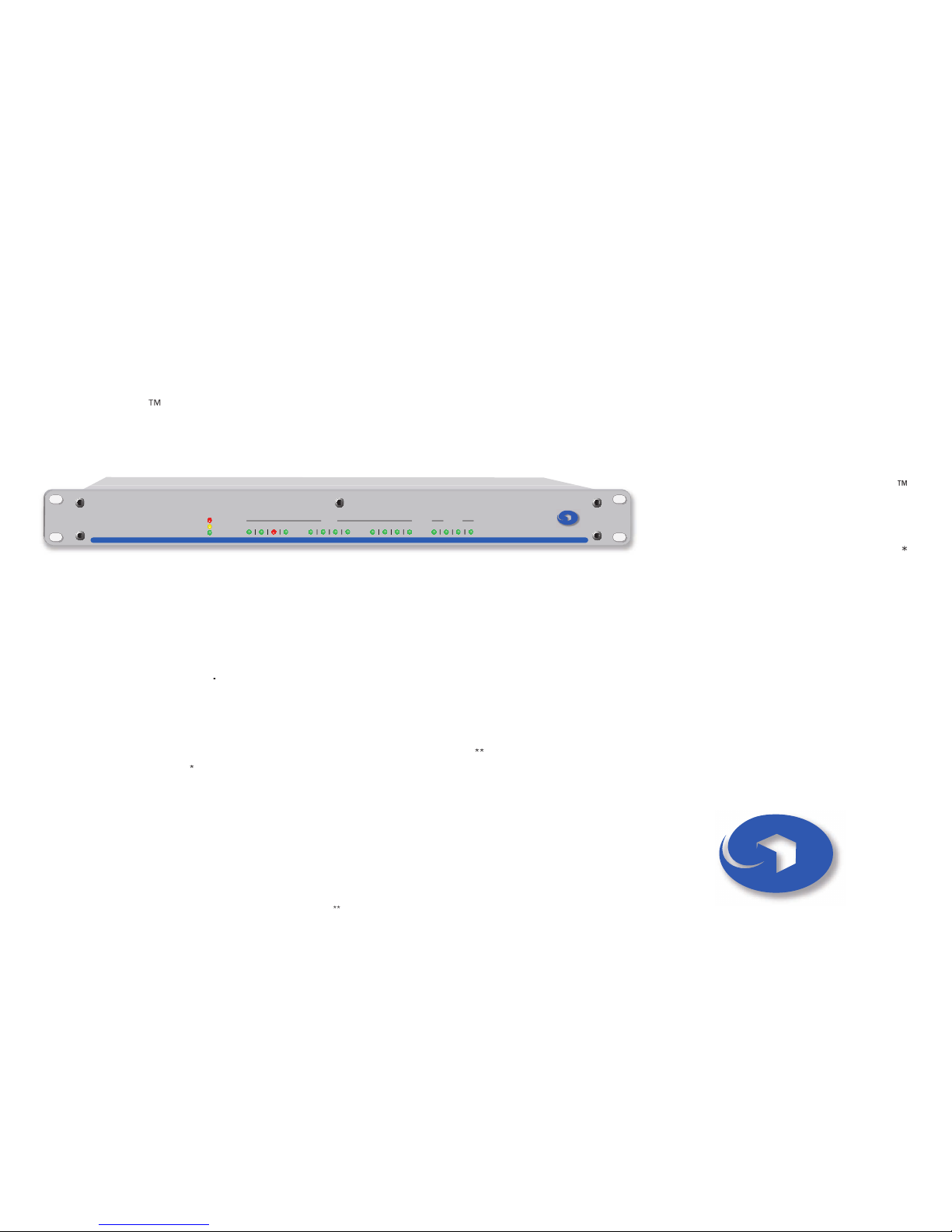

Symetrix SymNet Express 8x8 Bedienungsanleitung





Audio Matrix

INPUTS OUTPUTS

1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4



POWER

COMM

COBRANET

EXPRESS 12x4 Cobra SYSTEM STATUS SIGNAL LEVELS

Introducing the next generation

SymNet technology

...

SymNet

™

Express

Symetrix

• Field

Upgradeable

•

ptional CobraNet

™

•

Externally Controllable

•

Flexible

DSP

Architecture

•

Redundant Power Supply

•

Onboard Ethernet Interface

•

Comprehensive Processing Toolkit

* Redundant supply is optional.

Originally, BGM stood for Bob, Gomer, and Mary, pioneers in the

ﬁ eld of pre-recorded programs. In later years it has fallen into com-

mon parlance as the more generic Back Ground Music.

Symetrix,

designers of the SymNet Audio

Matrix,

a fully developed DSP audio backbone,

responds to the demands of sound contractors

worldwide by launching a new series of

hardware engineered to advance the SymNet

technology.

Introducing SymNet Express

This new audio

DSP is available in two basic hardware versions

–

Express

and Express Cobra

. Each has

selectable line/microphone inputs for ﬂ exible

connectivity. Each is individually addressable

over Ethernet for network control. Each supports

a redundant power supply

for building-

code-friendly sound systems. Both are easily

updateable. And as you would expect, Express

Cobra includes onboard CobraNet™, Peak

Audio’s industry standard protocol for digital

audio networking.

The SymNet family,

with the addition of Express,

now includes ﬁ fteen core products. Continuing

the tradition, Express plugs the power of SymNet

into 100MHz SHARC processors to set a new

level in DSP value. This exciting new series

of audio processors is ready to be used in sound

system applications from neighborhood churches to

corporate boardrooms. From hotel meeting spaces to

lounges, gymnasiums to courtrooms. Installed sound

professionals around the world have come to count

on the SymNet Audio Matrix for reliability and sonic

purity. Now you have seven more reasons to turn to

Symetrix.

he ﬂ exibility to adapt

to your project’s requirements

and budget is what the Express series is all about.

If your project is input heavy, i.e., a boardroom

automixer, a rack of BGM

sources, then consider

one of the 12x4’s. For applications needing lots of

outputs,

multi-band speaker management, multi-zone

paging, etc.,

one of the Express 4x12s may be the

ticket. And of course, the standard 8x8 form factor

is available in two conﬁ guations, one with and one

without CobraNet. Last but not least, choose the

Express Cobra 4x4 for applications requiring four or

fewer remote inputs and/or outputs.

Express 12x4 Cobra

Express 4x12 Cobra

Express 8x8 Cobra

Express 4x4 Cobra

Express 12x4

Express 4x12

Express 8x8



AUX POWER

BOTH SUPPLIES MAY BE CONNECTED AT THE SAME TIME

INPUT

6W MAX

100-240V

50/60Hz

WARNING! 15VDC!

USE ONLY WITH

ARC DEVICES!

RS-232

RELAY

OUT

O / C

OUT CONTROL IN

RS-485

NO C NC 2 1 2B 1B 1A2A

HOST: 57k / 115k

RS-232: ACC / HOST

BOOT MODE

UNIT

1 2

4 3 2 1

ANALOG OUTPUTS

ANALOG INPUTS

+24VDC

2.5A

11 10 9 8 7 6 5

ETHERNET/

COBRANET

ETHERNET

ANALOG INPUTS

4 3 2 1

ANALOG INPUTS

Express

MANUFACTURED BY SYMETRIX, INC. MOUNTLAKE TERRACE , WA USA

THIS UNIT CONTAINS NO USER SERVICEABLE PARTS

FABRIQUÉ AUX E.-U. PAR SYMETRIX, INC. MOUNTLAKE TERRACE, WA USA

PAS DES ELEMENTS SERVIABLE PAR UTILISATEUR

ARC GND B A DEVICE CONFIG



BOTH SUPPLIES MAY BE CONNECTED AT THE SAME TIME

INPUT

6W MAX

100-240V

50/60Hz

DEVICE CONFIG



DEVICE CONFIG

HOST: 57k / 115k

DEVICE CONFIG

HOST: 57k / 115k



HOST: 57k / 115k

RS-232: ACC / HOST

HOST: 57k / 115k

RS-232: ACC / HOST

HOST: 57k / 115k

RS-232: ACC / HOST

DEVICE CONFIG



RS-232: ACC / HOST

DEVICE CONFIG



UNIT

DEVICE CONFIG



BOOT MODE

UNIT

DEVICE CONFIG



(425) 778-7728

www.symetrixaudio.com

[email protected]

SymNet

Express is

conﬁ gured

and controlled

from SymNet

Designer

™

Express

(without CobraNet) is intended for auditoriums,

boardrooms, churches, courtrooms, hotels – any stand-

alone application where a single DSP unit handles

everything between the microphones and the ampliﬁ ers.

Your choices are

12x4, 4x12, and 8x8.

Express Cobra

provides a cost-effective tool to network

audio between ampliﬁ ers, powered speakers, and the

growing legion of products supporting the CobraNet

audio standard. Express Cobra units can freely exchange

up to 8 channels of bi-directional audio on a single CAT5

cable with other Express Cobras, CobraLink-equipped

SymNet rings, or third party CobraNet-compatible gear

located in distant areas of a venue. Choices are 12x4,

4x12, 8x8, and 4x4

Network Control

ll Express models is via 10/100

Ethernet

, each unit having a unique IP address.

When

integrated into a LAN, complete Express control is

available from anywhere on the network.

External control

of SymNet Express is

accomplished

by connecting rotary encoders, contact clos

ures, analog

pots or our own

ARC (Adaptive Remote Control)

wall

panels. Express also directly interfaces with touch screen

tec

hnologies from AMX and Crestron.

What about security?

Express

supports multi

-tiered

access to user control screens while protecting hardware

from unauthorized access.

SymNet Designer

application software

works ac

ross

the SymNet f

amily of hardware products

providing over

300 DSP modules and

more than

50 control mo

dules. Our

design team constantly adds features, and as they do,

post them online. They’re yours for the taking.

It’s called Express

because it’s fast to install, connect,

control, and update. Symetrix brings its considerable

expertise in DSP design to Express to provide an

extraordinary value in audio signal processing.

Come on,

cat

ch the Express

catch the Expresscat

SymNet

™

Express

Sym

etrix

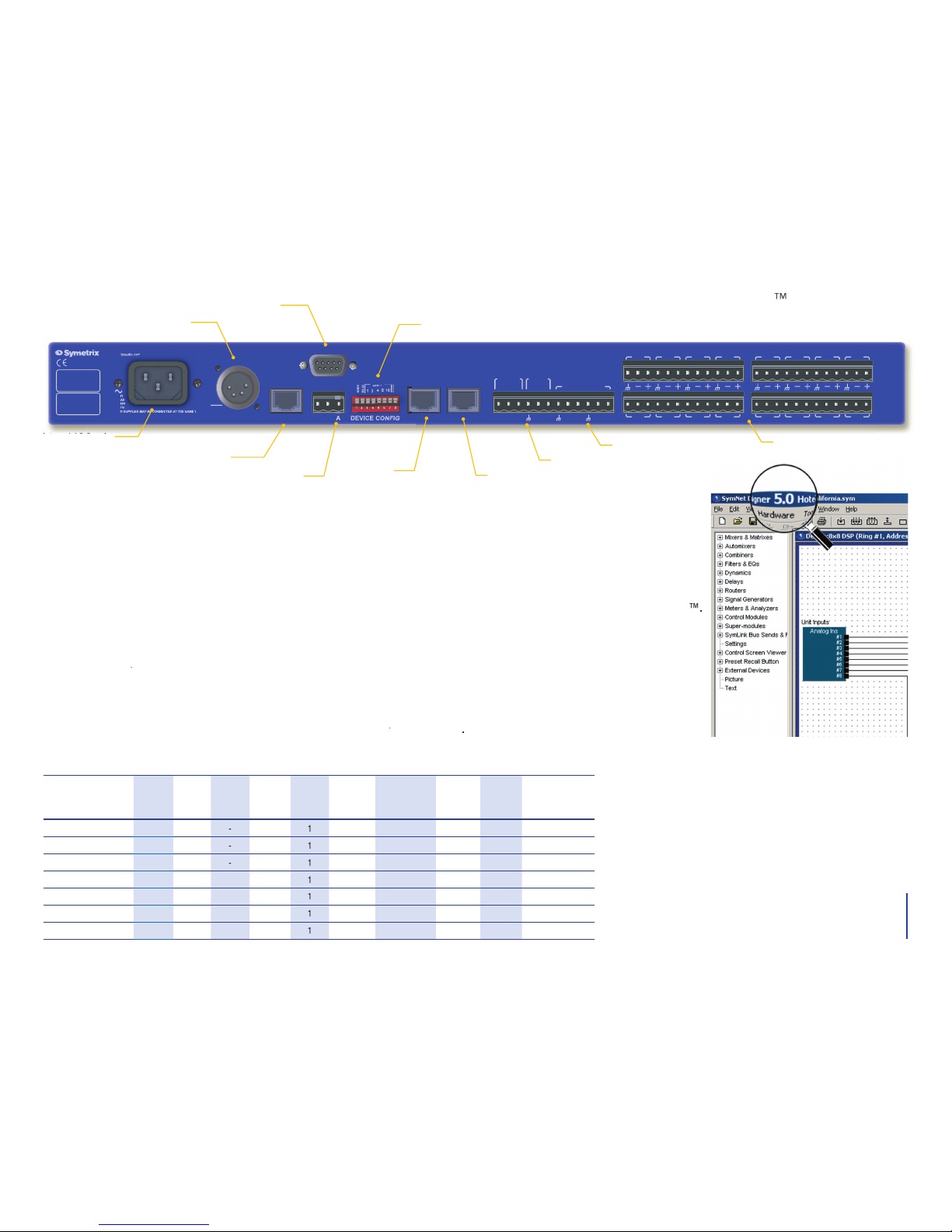

Internal AC Supply

Connector for optional

redundant power supply

The ARC™ Port -

Direct connection via CAT-5

cable to SymNet ‘Adaptive

Remote Control’

RS-232 port connects to external

controller or host PC

RS-485 external

control port

Sets baud rates and

network address

Ethernet/CobraNet ‘dual’ port

External control binary outputs

Analog control inputs

Analog

udio inputs

and outputs

Ethernet

control/data

port

Analog

Out

Cobra

In/Out

Analog

Control

Inputs

Relay

Output

Open

Collector

Outputs

RS-232

Host/

Control Port

Ethernet

Control

Port

RS-485

Control

Port

Optional

Redundant

Power Supply

Express 12x4

yes

Express 4x12

yes

Express 8x8

yes

Express 12x4 Cobra

8/8

yes

Express 4x12 Cobra

8/8

yes

Express 8x8 Cobra

8/8

yes

Express 4x4 Cobra

8/8

yes

Choose the Express conﬁ guration that meets your requirements and budget ...
