Symphony SYK-1015 Handbuch
© 2022
Order #XXXXX
Locked layer contains
placeholder marks.
Perspective View
Plan View
10’
10’
SYK-1015 - 10’ x 10’ Portable Display
If you would like to tell us about your experience with your setup instructions please email us at [email protected]
SETUP INSTRUCTIONS
REV 7/2022
© 2022
Order #XXXXX
Locked layer contains
placeholder marks.
= 1 sq ft
Plan View
© 2022
Order #XXXXX
General Setup Instructions
- Read entire setup instruction manual prior to
unpacking parts and pieces.
- The setup instructions are created specifically
for this configuration.
- Setup instructions are laid out sequentially in
steps, including exploded views with detailed
explanation for assembly.
Cleaning & Packing
- For Cleaning Metal, Plex, & Laminate Parts:
Use a MILD NON-ABRASIVE cleanser and
soft cloth/paper towel to clean all surfaces.
- Keep exhibit components away from heat
and prolonged sun exposure.
Heat and UV exposure will warp and
fade components.
- Retain all provided Packing Materials.
All provided packing materials are for
ease of repacking & component protection.
Disassembly
- For loss prevention, keep all
knobs & connectors attached to
extrusions during disassembly.
Part Identification - Numbering
7A
Engaged Lock
DO NOT USE POWER TOOLS
ALL CONNECTIONS MUST
BE TIGHTLY SECURED
WARNING
General Information
© 2022
Order #XXXXX
TSP49 Profile
All knobs must be tightened securely to ensure a proper connection.
Adjust connectors if necessary to
prevent gaps in connection.
Upper Horizontal Extrusion
Lower Horizontal Extrusion
Corner
Connector Corner
Connector
Corner
Connector
Corner
Connector
COMPLETED ASSEMBLY
Slide verticals over
lower connectors.
Then slide upper
connectors into
groove of verticals.
Tighten all knobs.
Corner Connection
3) Tighten all knobs to secure connection.
Disassembly
1) Loosen knobs on vertical extrusions.
2) Slide the vertical extrusions off of
corner connectors on lower and upper
horizontal extrusions.
1) Loosen knobs, then slide vertical extrusions onto
corner connectors of lower horizontal extrusion.
2) Slide corner connectors of upper horizontal
extrusion into grooves of vertical extrusions.
Disassembly
1) Loosen all knobs.
2) Slide connectors off of one extrusion.
3) Tighten knobs to prevent loss during
packing & shipping.
Keep straight connectors in groove of
extrusion. Do not remove connectors
during disassembly.
Straight Connection
3) Tighten all knobs to secure connection.
When assembling frame, first attach all straight
connectors, then attach corner connectors.
1) Place extrusions end-to-end.
Slide connector across seam of extrusions.
Tighten all knobs.
All knobs must be tightened securely to ensure a proper connection.
Straight Connector
2) Loosen all knobs, then slide straight
connector across the seam of extrusions.
Tool-less Frame Assembly
© 2022
Case 1 of 2
Order #XXXXX
Locked layer contains
placeholder marks.
Top View of Each Level
Level 1
(Bottom level)
Level 2 Level 3 Level 4
1 3
5,6
9
2 4
7,8
9
Setup Hardware
Counter
Legs
Graphics
Monitor
Mount
15
Case Packing
© 2022
Case 2 of 2
Order #XXXXX
Locked layer contains
placeholder marks.
Top View of Each Level
Level 2 Level 3
1 3
5,6
2
4
7,8
Level 4
Counter
Top
Lights
Level 1
(Bottom level)
Workstation
Graphic
Case Packing
© 2022
Step 1 of 6
Order #XXXXX
Locked layer contains
placeholder marks.
Item
1
2
3
4
5
6
7
8
9
Qty.
1
1
1
1
1
1
1
1
1
Description
45”h TSP49 Vertical Extrusion
31.305”h TSP49 Vertical Extrusion
45”h TSP49 Vertical Extrusion
45”h TSP49 Vertical Extrusion
27.35”w TSP49 Horizontal Extrusion
27.35”w TSP49 Horizontal Extrusion
28.514”w TSP49 curved Horizontal Extrusion
28.514”w TSP49 curved Horizontal Extrusion
6” x 22” End Base Plate w/ foot
Steps:
Refer to the Tool-less Frame Assembly general information page.
1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8]
together, using Tool-less Spline connectors labeled [X] & [Y].
2) Connect vertical assemblies [1/2], [3/4] between horizontal
assemblies [5/6], [7/8], using Tool-less Corner Connectors labeled [A] & [B].
3) Install Base Plate [9] to bottom corners of frame assembly
as shown. See Base Plate Attachment detail.
3
4
1
65
8
7
FRONT VIEW
Tool-less Spline Connector
1. Place extrusions end-to-end.
2. Slide tool-less connectors
across seam of extrusions.
*
3. Tighten all knobs to secure connection.
Tool-less Corner Connector
1. Slide extrusion onto
Corner Connector.
2. Tighten all knobs to
secure connection.
*
Keep corner connectors attached to horizontal extrusions.
Assemble frame flat on ground.
When assembled
9
*
1) Place key hole over bolt on panel
& slide down.
2) Twist knob to secure connection.
Base Plate Attachment
*
bolt
knob
Base Plate
threaded
hole
key hole
2
A
*A
*
*
X
*X
*
X
A
**
Y
Curved
connector
B*
Arch corner
connector
Left Backwall Frame Assembly
© 2022
Step 2 of 6
Order #XXXXX
Locked layer contains
placeholder marks.
Item
1
2
3
4
5
6
7
8
9
Qty.
1
1
1
1
1
1
1
1
1
Description
45”h TSP49 Vertical Extrusion
31.305”h TSP49 Vertical Extrusion
45”h TSP49 Vertical Extrusion
45”h TSP49 Vertical Extrusion
27.35”w TSP49 Horizontal Extrusion
27.35”w TSP49 Horizontal Extrusion
28.514”w TSP49 curved Horizontal Extrusion
28.514”w TSP49 curved Horizontal Extrusion
6” x 22” End Base Plate w/ foot
Steps:
Refer to the Tool-less Frame Assembly general information page.
1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8]
together, using Tool-less Spline connectors labeled [X] & [Y].
2) Connect vertical assemblies [1/2], [3/4] between horizontal
assemblies [5/6], [7/8], using Tool-less Corner Connectors labeled [A] & [B].
3) Install Base Plate [9] to bottom corners of frame assembly
as shown. See Base Plate Attachment detail.
*
1
2
3
4
56
7
8
9
FRONT VIEW
Tool-less Spline Connector
1. Place extrusions end-to-end.
2. Slide tool-less connectors
across seam of extrusions.
*
3. Tighten all knobs to secure connection.
Tool-less Corner Connector
1. Slide extrusion onto
Corner Connector.
2. Tighten all knobs to
secure connection.
*
Keep corner connectors attached to horizontal extrusions.
Assemble frame flat on ground.
1) Place key hole over bolt on panel
& slide down.
2) Twist knob to secure connection.
Base Plate Attachment
*
bolt
knob
Base Plate
threaded
hole
key hole
When assembled
A
*
A*
A
*
*
X
*X
*
X
*
Y
Curved
connector
B
*Arch corner
connector
Right Backwall Frame Assembly
© 2022
Step 3 of 6
Order #XXXXX
Locked layer contains
placeholder marks.
When assembled
15
FRONT VIEW
Steps:
1) Install Base Plate [15] to vertical [1/2] of right frame.
See Right Frame Base Plate Attachment detail.
2) Connect vertical [1/2] of left frame to Base Plate [15].
See Left Frame Base Plate Attachment detail.
*
TOP VIEW
Item
15
Qty.
1
Description
6” x 22” Two-Connection Base Plate
*
1
2
1
2
Left Frame Base Plate Attachment
*
Place key hole over bolt on panel & slide down.
Twist knob to secure connection.
Front
Base Plate
key hole
bolt
Right Frame Base Plate Attachment
*
bolt
knob
Front
key hole
1) Place key hole over bolt
on panel & slide down.
2) Twist knob to secure
connection.
threaded
hole
Base Plate
Backwall Frames Connection
© 2022
Step 4 of 6
Order #XXXXX
Locked layer contains
placeholder marks.
Steps:

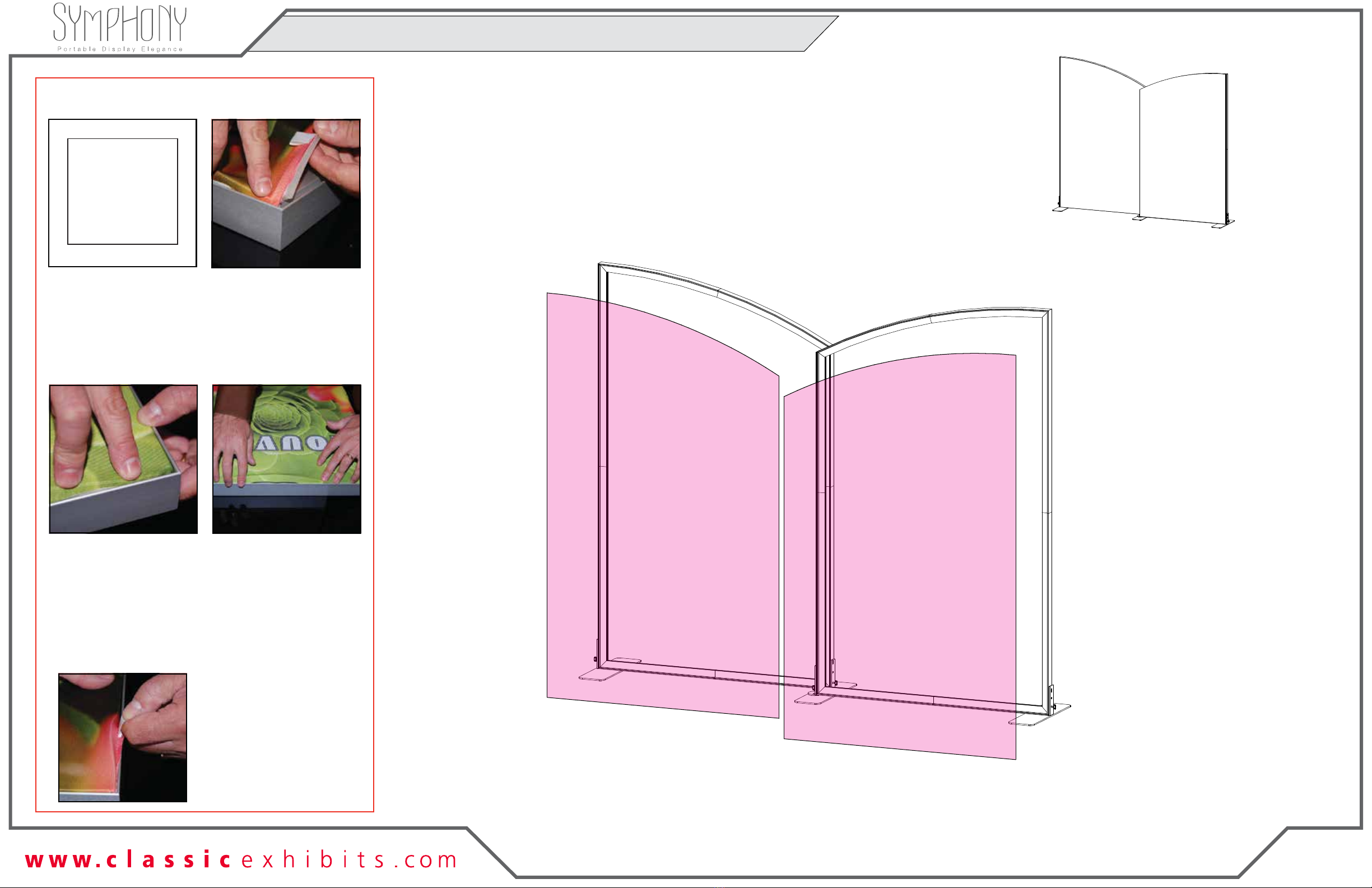

1) Apply SEG Graphics to front of assembled frames.
SEG Graphic Installation
Corner A
Corner D
Corner B
Corner C
It is important to first insert
graphic into each alternate
corner, then to the sides of
the frame. If this is not done,
graphic will not fit into the
frame correctly.
Step 1
Insert corner A. Turn edge of
graphic so silicon welt is
perpendicular to face of
graphic. Insert narrow side
of welt with fabric to outside
into the channel. Repeat for
other side of this corner.
Step 2
Repeat Step 1 for opposite
corner C, then insert corner
B, followed by corner D, to
complete the installation of
the corners.
Graphic Removal
To remove the graphic from
the frame, locate the fabric
pull tab. Gently pull up on
the tab to remove the fabric.
Step 3
Once all corners are inserted,
press one silicon edge into
channel from corners and
work toward the center.
Make sure welt is fully inserted
into channel. Continue until
all sides are done. Smooth
out edges of graphic.
FRONT VIEW
S
E
G
Grap
h
ic
S
E
G
Grap
h
ic
When assembled
Fabric Graphics Application
