Synology NEXT-POE4210L2S-TP Bedienerhandbuch

NEXT-POE4210L2S-TP

L2+ Managed GbE PoE+ Switch

Quick Installation and

Initial Configuration

Contents

Chapter 1 Introduction.............................................1

Overview...........................................................................................1

Front View of the Switch............................................................1

Rear View of the Switch..............................................................1

LED Descriptions ...........................................................................2

Mode/Reset Button......................................................................3

Chapter 2 Installing the Switch .............................5

Package Contents.........................................................................5

Mounting the Switch on Wall ..................................................5

Mounting the Switch on Desk or Shelf................................6

Connecting the AC Power Cord..............................................6

Installing SFP Modules ...............................................................7

Chapter 3 Initial Configuration of Switch..........9

Initial Switch Configuration Using Web Browsers...........9

Initial Switch Configuration Procedure ................................9

Chapter 4 Troubleshooting.................................. 12

Chapter 1 Introduction

Overview

This user guide describes how to install, configure, and troubleshoot the

NEXT-POE4210L2S-TP, 10 Ports L2+ Managed GbE PoE+ Switch.

By reading this user guide, users can perform the following tasks:

To check the switch status by reading the LED behavior

To reset the switch or to restore the switch to factory defaults

To install the switch

To use a Web browser to initially configure the switch

To troubleshoot the switch

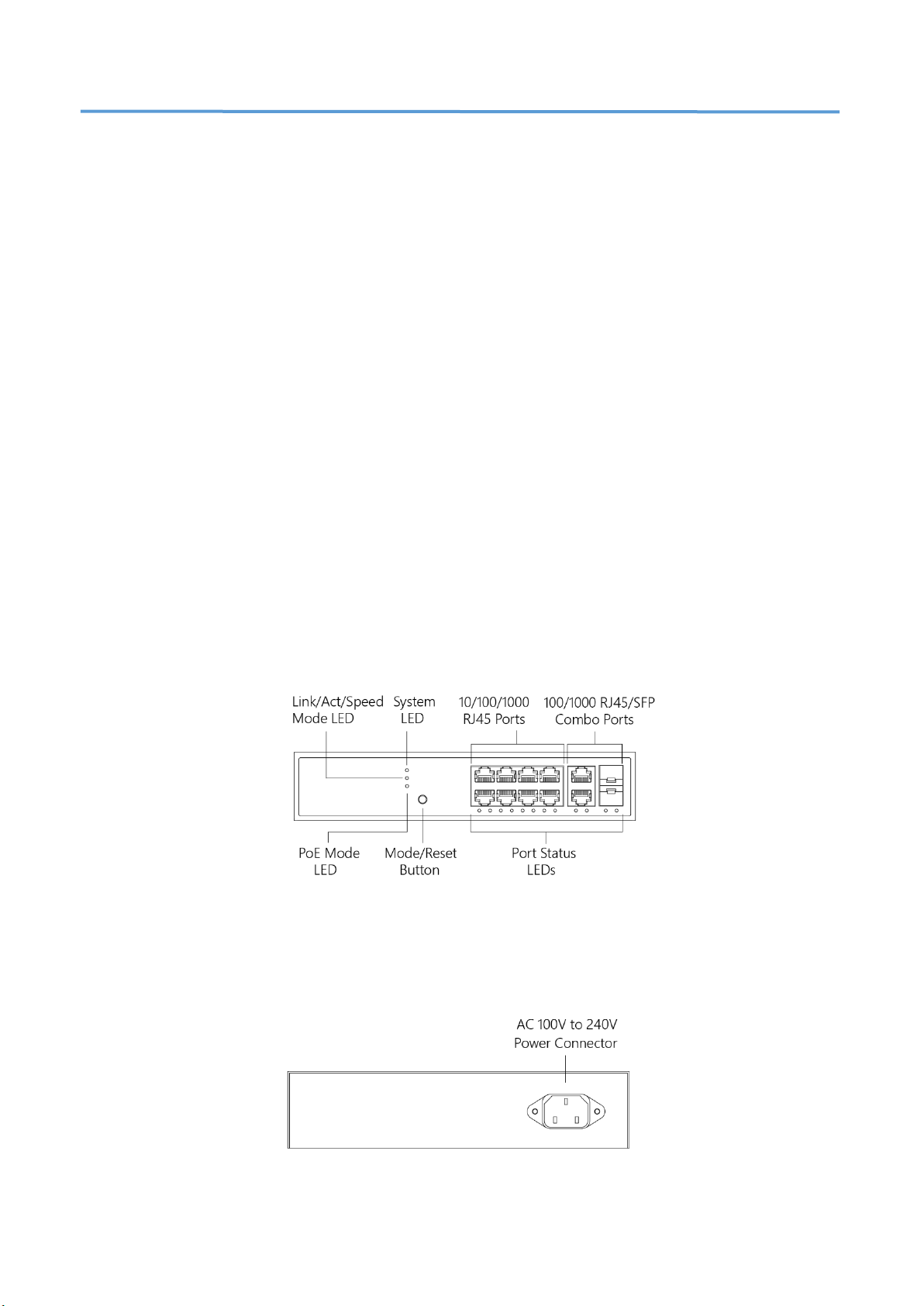

Front View of the Switch

Figure 1:Front panel of the switch

Rear View of the Switch

Figure2:Rear panel of the switch

LED Descriptions

The LEDs on the front panel provide users with switch status checking and

monitoring. There are three types of LEDs as follows:

System LED

indicates if the switch is powered up correctly or not.

Mode LEDs

indicates the mode of all ports on the switch. Users can press the

Mode button sequentially to switch among the two different modes

(Link/Activity/Speed mode and PoE mode).

Port Status LEDs

indicates the current status of each port. Users can check these LEDs

to understand the port status in different modes, after changing the

mode by pressing Mode button.

The following table details the functions and descriptions of various LED

indicators.

Table1:SystemLED

LED

Color

State

Description

System

Green

The switch is powered ON correctly.

Off

The switch is not receiving power.

Table 2:ModeLEDs

LED

Color

State

Description

Link/Act/Speed

Green

The Port Status LEDs are displaying link

status, network activity and speed of each

port.

PoE

Green

The RJ45 Port Status LEDs are displaying

PoE powering status of each port.

By pressing the MODE button in less than 2 seconds to change LED

modes (Link/Act/Speed Mode or PoE Mode), users can check the port

status by reading the LED behaviors per the table below.

Table 3:Port Status LEDs

When Link/Act/Speed Mode LED Lit

LED

Color

State

Description

RJ45

Ports

Green

The port is enabled and established a link to connected

device, and the connection speed is 1000Mbps.

Green

Blinking

The port is transmitting/receiving packets, and the

connection speed is 1000Mbps.

Amber

The port is enabled and established a link to connected

device, and the connection speed is 10/100Mbps.

Amber

Blinking

The port is transmitting/receiving packets, and the

connection speed is 10/100Mbps.

Off

The port has no active network cable connected, or it is

not established a link to connected device. Otherwise, the

port may have been disabled through the switch user

interface.

SFP

Ports

Green

The port is enabled and established a link to connected

device, and the connection speed is 1000Mbps.

Green

Blinking

The port is transmitting/receiving packets, and the

connection speed is 1000Mbps.

Amber

The port is enabled and established a link to connected

device, and the connection speed is 100Mbps.

Amber

Blinking

The port is transmitting/receiving packets, and the

connection speed is 100Mbps.

Off

The port has no active network cable connected, or it is

not established a link to connected device. Otherwise, the

port may have been disabled through the switch user

interface.

When PoE Mode LED Lit

LED

Color

State

Description

RJ45

Ports

Green

The port is enabled and supplying power to connected

device.

Amber

An abnormal state, such as overload status, has been

detected in the switch.

Off

The port has no active network cable connected, or it is

not connected a PoE PD device. Otherwise, the port may

have been disabled through the switch user interface.

Mode/Reset Button

By pressing the Mode/Reset Button for certain period of time, users can

perform the following tasks.

Change Port Status LED Mode

to read the port status correctly in the two different modes

(Link/Act/Speed mode or PoE mode).

Reset the Switch

to reboot and get the switch back to the previous configuration

settings saved.

Restore the Switch to Factory Defaults

to restore the original factory default settings back to the switch.

Note:

According to the table below, users can easily judge which task is being

performed by reading the LED behaviors while pressing the Mode/Reset

button.Once the LED behaviors are correctly displayed, users may

just release the button.

Table 4:Mode/Reset Button Descriptions

Task to

bePerformed

Time Period of

Pressing Button

SYS LED

Behavior

Port Status LED

Behavior

Change LED Mode

0 ~ 2 seconds

Green

LED status will be

changed according the

mode selected.

Reset the Switch

2 ~ 7 seconds

Blinking

Green

ALL LEDs Light OFF

Restore to Defaults

7 ~ 12 seconds

Blinking

Green

ALL LEDsStay ON

Chapter 2 Installing the Switch

Package Contents

The Switch

AC Power cord (Option)

Four adhesive rubber feet

Installation Guide

Note:

The switch is an indoor device. If it is to be used with outdoor devices

such as outdoor IP cameras or outdoor WiFi APs, then users are strongly

suggested to install a surge protector or surge suppressor in order to

protect the switch.

Mounting the Switch on Wall

Step 1:stall user-supplied screws on the appropriate location on the all,

and be aware of the dimensional limitation of the screws.

Figure 3: Installscrews to the wall

Step 2:make sure that the switch is attached securely to wall.

Figure 4:Attaching switch to the wall

Mounting the Switch on Desk or Shelf

Step1: Verify that the workbench is sturdy and reliably grounded.

Step2:Attach the four adhesive rubber feet to the bottom of the switch.

Figure 5:Attaching the Rubber Feet

Connecting the AC Power Cord

Step 1:Connect the AC power cord to the AC power receptacle of

switch.

Step 2:Connect the other end of the AC power cord to the AC power

outlet.

Step 3:Check the SYS LED. If it is ON, the power connection is correct.

Figure 6:Connecting AC power cord

Installing SFP Modules

You can install or remove a mini-GBIC SFP module from a SFP port

without having to power off the switch.

Step1:Insert the module into the SFP port.

Step2:Press firmly to ensure that the module seats into the connector.

Figure 7:Installing a SFP Module into a SFP Port

Note:

The SFP ports should use UL Listed Optional Transceiver product, Rated

3.3Vdc, Laser Class 1.
