SySTIUM®TECHNOLOGIES MotherBoard ReadyTM System • MODEL 215

PN: 90215-00 Rev 00

USER QUICK START GUIDE

Product Safety Warnings

WARNINGS

Ensure that the computer is disconnected from its power

source and from all telecommunications links, networks, or

modem lines whenever the chassis cover is removed. Do not

operate the computer with the cover removed.

AVERTISSEMENT

Assurez vous que le système soit débranché de son

alimentation ainsi que de toutes les liaisons de

télécomunication, des réseaux,et des lignes de modem avant

d’enlever le capot. Ne pas utiliser le système quand le capot

est enlevé.

WARNUNG

Das System darf weder an eine Stromquelle angeschlossen

sein noch eine Verbindung mit einer

Telekommunikationseinrichtung, einem Netzwerk oder einer

Modem-Leitung haben, wenn die Gehäuseabdeckung entfernt

wird. Nehmen Sie das System nicht ohne die Abdeckung in

Betrieb.

AVVERTENZA

Prima di rimuovere il coperchio del telaio, assicurarsi che il

sistema sia scollegato dall’alimentazione, da tutti i

collegamenti di comunicazione, reti o linee di modem. Non

avviare il sistema senza aver prima messo a posto il

coperchio.

ADVERTENCIAS

Asegúrese de que cada vez que se quite la cubierta del chasis,

el sistema haya sido desconectado de la red de alimentación y

de todos lo enlaces de telecomunicaciones, de red y de líneas

de módem. No ponga en funcionamiento el sistema mientras

la cubierta esté quitada

Connect the Peripheral & Power Cables

Connect the peripherals (Keyboard, Mouse, Video, etc.) required

for correct operation of the computer system. Refer to Figure 2

on the following page.

NOTE

All of the external peripheral cables are designed such that the

connector can only be inserted in one orientation. Check the

orientation of the connector if the cable will not connect easily. Do

not use excessive force to connect a cable.

Check that the power cord supplied is designed and approved for

power connections. If you are unsure of the power cords

suitability, check with the safety approval agency in your region

of the world. If the power cable supplied is not suitable please

review the instructions in the section “Power Cord Replacement”.

Warning

The power supply voltage standby circuit is active when the

computer is turned off. Ensure that the computer is

disconnected from its power source and from all

telecommunications links, networks, or modem lines whenever

the chassis cover is removed. Do not operate the computer

with the cover removed.

Power Cord Replacement

WARNING

Do not attempt to modify or use the supplied AC power cord if

it is not the exact type required.

In some cases, the power cord supplied with this system may not

be compatible with the AC wall outlet in your region. If this is true,

you must obtain a suitable power cord that meets the following

criteria:

The cord must be rated for use at the AC voltage available, with

a current rating that is at least 125% of the current rating of the

product.

The AC plug end must be terminated in a grounding-type male

plug designed for use in your region. The plug ends must be

labeled or marked to indicate they have been certified by an

agency acceptable in your region.

The connector at the product end must be an IEC 320, sheet

C13, female connector (or the equivalent EN 60 320 connector).

The cord must be less than 14.8 feet (4.5 meters) long and, for

use in Europe, be created with <HAR> (harmonized) or VDE

certified cordage.

SySTIUM®TECHNOLOGIES MotherBoard ReadyTM System • MODEL 215

PN: 90215-00 Rev 00

Turning on the Computer

Your computer is supplied with an advanced power supply that

allows the operating system to control the operation. The front

power switch is used primarily to turn the system on. The power

switch can also be used to turn off the computer before the

operating system is completely loaded. Once the operating

system is completely loaded and the computer is operational the

computer should only be turned off using the operating system.

Pressing the power switch on the front panel turns on the

computer. Figure 1 shows the location of the power switch.

Power-on Self-Test

Each time you turn on the Computer, the power-on self-test

(POST) runs automatically and checks the system motherboard,

CPU module, memory, keyboard, and most installed peripheral

devices.

NOTE

If the system halts before POST completes running and emits a beep

code indicating a fatal system error or displays a POST failure

message on the monitor, contact your service representative or

supplier for assistance.

The POST will also display the message indicating what key to

push to enter setup mode. You have about five seconds to press

the required key to enter setup before the boot process will

continue.

The computer will then start the operating system. Please refer to

the documentation supplied with the operating system for further

information on operating the computer.

Shutting off Your Computer

Your computer is equipped with a power supply that supports the

“Soft-OFF” feature of operating systems that support the ACPI

1.0 or APM standard 1.1 or higher. The “Soft-OFF” feature allows

the operating system to turn off the power supply automatically

once it is ready to shutdown the system.

Please refer to the manual supplied with you operating system to

determine how to shut down your computer.

NOTE

It is possible to turn the computer off using the front panel switch

while the computer has the operating system loaded and is

operational. Pushing in the power switch and holding the switch in

until the computer shuts off. Release the switch.

Caution

Doing this may result in a loss of data and corruption of the

computer operating system or application. The computer

should only be shut off using the front power switch when the

operating system becomes unavailable for shutting off the

computer.

WARNING

Your computer is never totally powered off unless the

computer is disconnected from the ac outlet. Never open the

computer without removing the AC power cord from the AC

inlet.

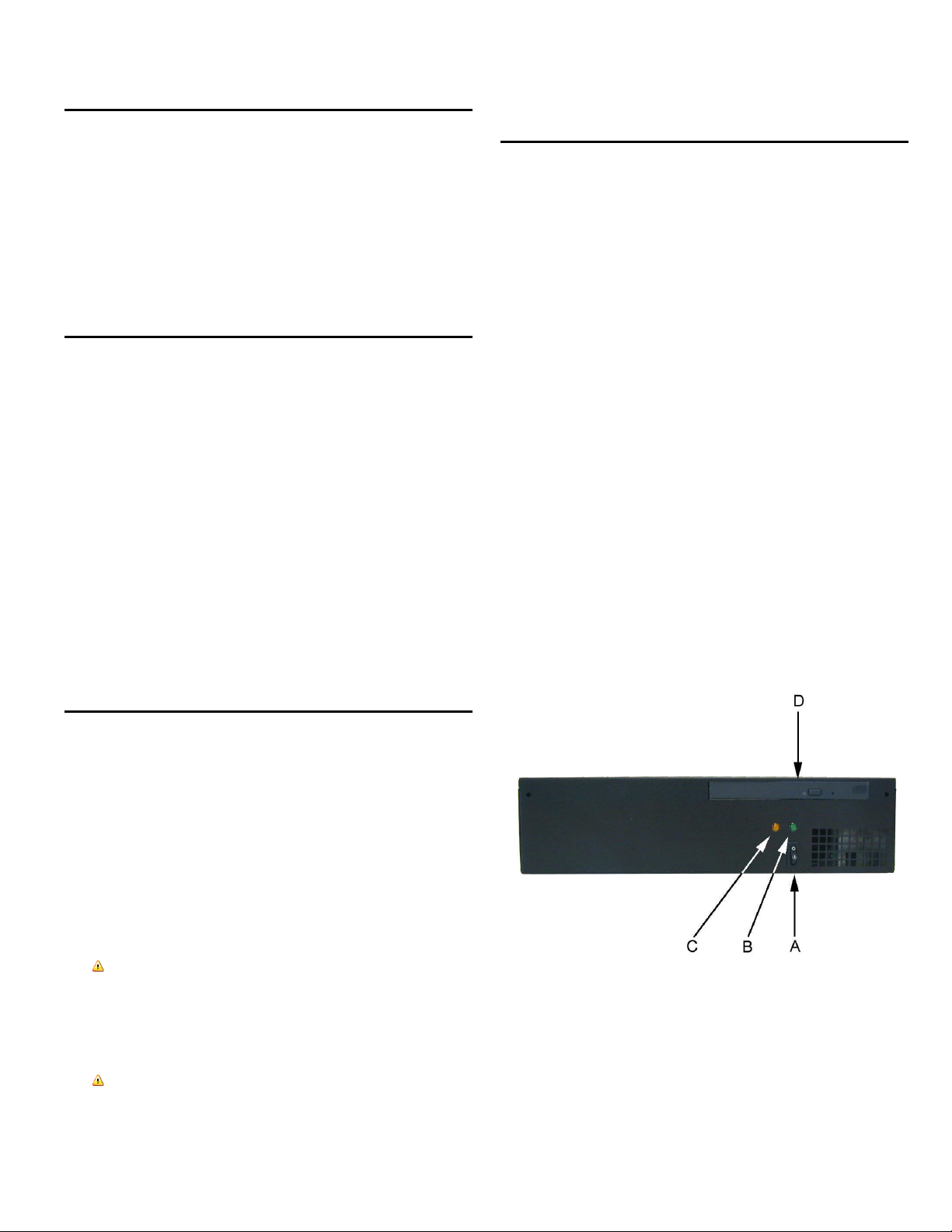

Front Panel Controls

The rear panel of your computer has the power control switch

and front panel has the activity indicators used for daily

operation.

Refer to Figure 1 for the rear panel layout and Figure 2 for the

front panel layout.

A. Power control switch. Press and release to turn on the

computer. Once the operating system is completely

loaded and the computer is operational the computer

should only be turned off using the operating system.

1. It is possible to turn the computer off using the front

panel switch while the computer has the operating

system loaded and is operational. Push in the

power switch and hold the switch in until the

computer shuts off. Release the switch.

B. Power on/off. LED is green when the computer is on.

When the computer is in a powered off state the LED is

not on.

C. Hard disk light. Turns on when the computer reads or

writes data to a hard disk.

D. Slim CD-ROM or DVD-ROM

FIGURE 1

SySTIUM®TECHNOLOGIES MotherBoard ReadyTM System • MODEL 215

PN: 90215-00 Rev 00

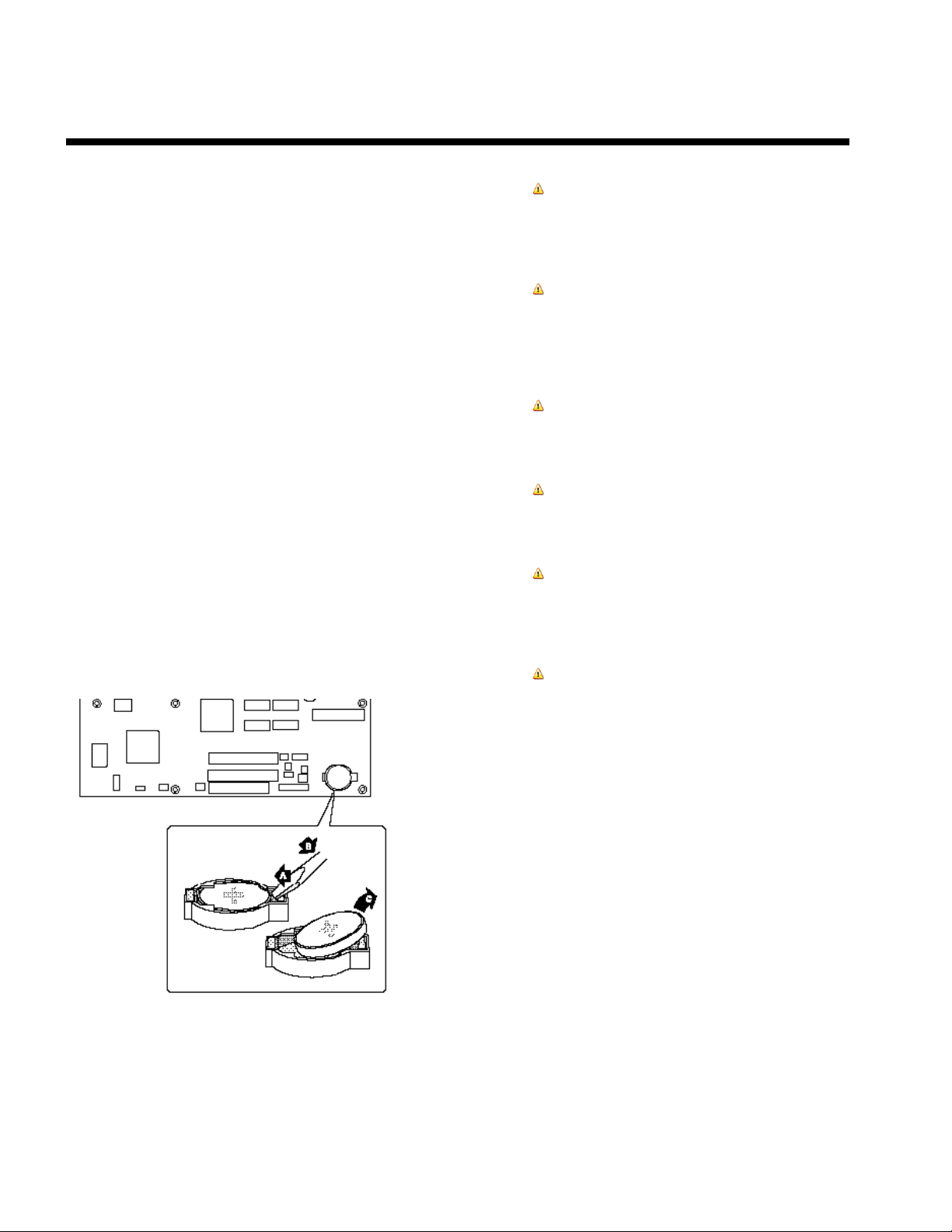

BATTERY REPLACEMENT INSTRUCTIONS

HOW TO REPLACE THE BATTERY

When your computer is turned off, a lithium battery keeps the

time of- day clock and the values in CMOS RAM current. Figure

B.1 shows the location of the battery.

The battery should last about seven years. When the battery

begins to die, it loses voltage; when the voltage drops below a

certain level, the Setup program settings stored in CMOS RAM

(for example, the date and time) might not be accurate. Replace

the battery with an equivalent one.

TO REPLACE THE BATTERY, FOLLOW THESE STEPS:

1. Turn off all peripheral devices connected to the

computer. Turn off the computer. Disconnect the power

cord.

2. Remove the computer cover. Locate the battery on the

motherboard (see Figure B.1).

3. With a medium flat-bladed screwdriver, gently pry the

battery free from its socket.

Note the orientation of the “+” and “-” on the battery.

4. Install the new battery in the socket, orienting the “+”

and “-”correctly.

5. Replace the computer cover.

FIGURE B.1

NOTE

Do not expose batteries to excessive heat or fire. Keep all batteries

away from children. Spent batteries must be disposed of at an

approved recycling or disposal facility or in accordance with federal,

state, provincial, municipal or local environmental control

requirements. The customer agrees to abide by such disposal

requirements as may exist in their jurisdiction and to indemnify

Systium® Technologies for any failure to do so.

WARNING

Danger of explosion if the battery is incorrectly replaced.

Replace only with the same or equivalent type recommended

by the equipment manufacturer. Discard used batteries

according to manufacturer’s instructions.

ATTENTION

Il y a danger d’explosion s’il y a remplacement incorrect

de la batterie. Remplacer uniquement avec une batterie du

méme type ou d’un type recommandé par le constructeur.

Mettre au rebut les batteries usagées conformément aux

instructions du fabricant.

ADVARSEL!

Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering.

Udskiftning må kun ske med batteri af samme fabrikat og

type. Levér det brugte batteri tilbage til leverandøren.

ADVARSEL

Lithiumbatteri - Eksplosjonsfare. Ved utskifting benyttes kun

batteri som anbefalt av apparatfabrikanten. Brukt batteri

returneres apparatleverandøren.

VARNING

Explosionsfara vid felaktigt batteribyte. Använd samma

batterityp eller en ekvivalent typ som rekommenderas av

apparattillverkaren. Kassera använt batteri enligt

fabrikantens instruktion.

VAROITUS

Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda

paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin.

Hävitä käjtetty paristo valmistajan ohjeiden mukaisesti.

SySTIUM®TECHNOLOGIES MotherBoard ReadyTM System • MODEL 215

PN: 90215-00 Rev 00

PRODUCT REGULATORY COMPLIANCE

Radio Frequency Interference Notice

(USA)

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the

receiver.

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for

help.

Any changes or modifications not expressly approved by the

grantee of this device could void the user's authority to operate

the equipment. The customer is responsible for ensuring

compliance of the modified product.

Only peripherals (computer input/output devices, terminals,

printers, etc.) that comply with FCC class B limits may be

attached to this computer product. Operation with noncompliant

peripherals is likely to result in interference to radio and TV

reception.

All cables used to connect to peripherals must be shielded and

grounded. Operation with cables, connected to peripherals that

are not shielded and grounded may result in interference to radio

and TV reception.

Manufacturer: SySTIUM® Technologies, LLC

New Hope, MN

763-537-3600

Contact: Customer Support

Radio Frequency Interference

Notice (CDN)

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme

NMB-003 du Canada.

Declaration of the Manufacturer or

Importer

This system is compliant with Low Voltage Directive 2006/95/EC

using the standard IEC60950-1 according to EN60950-

1:2006/A11:2009/A1:2010/A12:2011.

This system is compliant with EU directive 2004/108/EC using

the standards EN55022 and EN55024-1.

SAFETY COMPLIANCE

UL 60950-1 Second Edition; CSA60950-1-07 Second Edition

Amendment 1:2009

Information Technology Equipment - Safety - Part 1: General

Requirements

EN 60950- 1:2006/A11:2009/A1:2010/A12:2011;

The Standard for Safety of Information Technology Equipment

including Electrical Business Equipment. (European Union)

“EN 60950 compliance”

IEC 60950-1:2005 (2nd Edition); Am 1:2009

The Standard for Safety of Information Technology Equipment

including Electrical Business Equipment. (International)

EMC COMPLIANCE

FCC Class B

Title 47 of the Code of Federal Regulations, Parts 2 & 15, Subpart B,

pertaining to unintentional radiators. (USA) “EMI

regulations” “FCC compliance”

CISPR 22; 2003

Limits and methods of measurement of Radio Interference

Characteristics of Information Technology Equipment.

(International) “CISPR 22compliance”

EN 55022

Limits and methods of measurement of Radio Interference

Characteristics of Information Technology Equipment. (Europe)

“EN 55022 compliance”

EN 55024-1 2003

ITE Immunity Standard;

ICES-003, Issue 3

Disclaimer Statement

SystiumTechnologies makes no warranty of any kind with regard

to this material, including, but not limited to, the implied

warranties of merchantability and fitness for a particular purpose.

SystiumTechnologies assumes no responsibility for any errors

that may appear in this document. SystiumTechnologies makes

no commitment to update nor to keep current the information

contained in this document. No part of this document may be

copied or reproduced in any form or by any means without prior

written consent of SystiumTechnologies.

† Third-party brands and trademarks are the property of their

respective owners.

Andere Systium Technologies Computerzubehör Handbücher

Systium Technologies

Systium Technologies 555 Bedienungsanleitung

Beliebte Computerzubehör Handbücher anderer Marken

Motorola

Motorola ATRIX Bedienungsanleitung

HP USB Media Docking Station Bedienungsanleitung

Cherry

Cherry B.UNLIMITED 3.0 Bedienungsanleitung

Logitech

Logitech IO2 Bedienungsanleitung

ARM

ARM DSTREAM-ST Bedienungsanleitung

Bartec

Bartec TC 7 Series Bedienungsanleitung

Philips

Philips SPC3540 Bedienungsanleitung

Logitech

Logitech mk220 Bedienungsanleitung

SilverStone

SilverStone LC02 Bedienungsanleitung

Flexispot

Flexispot ML2B Bedienungsanleitung

Hamlet

Hamlet UNIVERSAL COVER 101 KBT2 Bedienungsanleitung

Adam Equipment

Adam Equipment RS-485 Bedienungsanleitung

Vivo

Vivo MOUNT-KB05-4DW Bedienungsanleitung

Kvaser

Kvaser Memorator Professional Bedienungsanleitung

DRC

DRC D-Imaging Bedienungsanleitung

Sven

Sven Base 305 сombo Bedienungsanleitung

Hama

Hama 108310 Bedienungsanleitung

SpeechWare

SpeechWare FlexyMike FMK03 Bedienungsanleitung
