TAG MCLAREN AUDIO DVD32FIR Bedienungsanleitung

contents |01

02 controls

04 welcome

07 key features

10 regional coding

11 connecting

14 controlling the DVD32FLR

18 the first time setup

20 main functions

21 playing a DVD (CD)

28 TAGtronic Communications Bus

30 test patterns

37 future expansion

42 running in and warming up

43 care and maintenance

44 programming the system-remote

50 technical data

53 acknowledgments

9602X

dvd player DVD32FLR

GRR00868.01-DVD32RFLR UM 5/30/02 12:23 PM Page 01

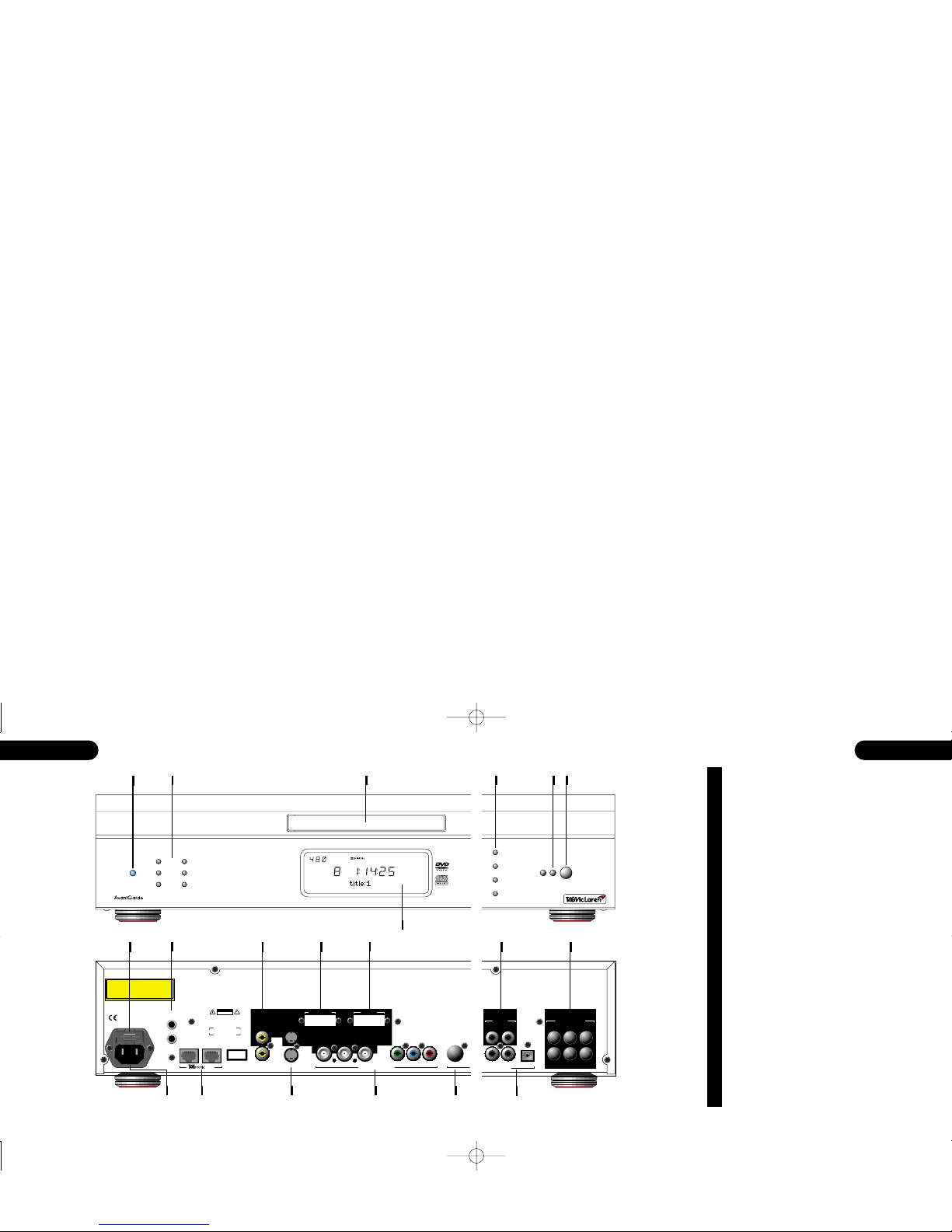

controls |0302 |controls

standby display

skip

–

dvd player DVD32FLR

video

PAL

kHz

1. 2. 3.

OUTIN

BUS

REMOTE

OUT

serial number

this product complies

with 21 CFR §1010

CLASS 1

LASER PRODUCT

DVI OUTPUT OPTION

COMPONENT VIDEO

PROGRESSIVE SCAN OPTION

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Double insulated: When servicing, use only

identical replacement parts.

OPTION

(G) (B) (R)

YPBPR YPRPB

IN-S

COMPOSITE

OUT-1

IN-C

S-VIDEO

220-240V

~50-60Hz

Fuse: T1A L250V

OUT-2

Manufactured by TAG McLaren Audio Ltd.

Huntingdon, Cambridgeshire, United Kingdom

Manufactured under license from Macrovision

Apparatus Claims of U.S. Patent Nos. 4,631,603;

4,577,216; 4,819,098 and 4,907,093 licensed

for limited viewing uses only.

Made in United Kingdom

CAUTION - VISIBLE AND INVISIBLE LASER RADIATION

WHEN OPEN AND INTERLOCKS DEFEATED.

DO NOT STARE INTO BEAM OR VIEW

WITH OPTICAL INSTRUMENTS

9. 11. 13. 15. 17.

10. 12. 14. 16.

open/close

play

pause

stop

5. 6. 7.

ANALOG AUDIO

OPTION

DIGITAL OUTPUT

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IN OUT

SURR.LEFT

SURR.RIGHT

CENTRE

SUB

LEFT

RIGHT

T2LINK

19.

18. 20.

01 power/standby LED

02 standby and function buttons

03 disc tray

04 display

05 transport control buttons

06 remote control active LED

07 remote control window

08 fuse carrier

09 ac supply socket

10 remote relay sockets

11 TAGtronic Communications sockets

12 composite video sockets

13 S-Video sockets

14 DVI output socket option

15 component video output sockets

16 option

17 option

18 TAGtronic Synchronisation Link sockets

19 digital audio output sockets

20 analog audio option

GRR00868.01-DVD32RFLR UM 5/30/02 12:23 PM Page 02

welcome |0504 |welcome

Pushing technological

boundaries; TAG McLaren’s

F1 electronics

Dr. Udo Zucker

Chief Executive Ofﬁcer

TAG McLaren Audio

TAG McLaren Audio exists with one aim

in mind: to produce the very best audio and

audio-visual equipment.

Like many people, I often have my best

ideas when relaxing to a piece of music or

watching a movie. For years, knowing the

technical capabilities of TAG McLaren, I

have nurtured the ambition to push music

and movie reproduction to the absolute limit

without compromising ease of use; that’s

why we formed TAG McLaren Audio.

At the core of our development team are

highly experienced engineers whose

heritage of award-winning hi-ﬁ and world-

beating electronic control systems is envied

by many and equalled by few.

There are many immediate spin-offs into

audio from our expertise in automotive

electronics, mechanical engineering and the

material science of Formula One motor

racing: multi-layer printed circuits, fast digital

signal processing, electronic noise

suppression, radio frequency technology and

software expertise to name but a few, all

prerequisites of an outstanding audio product.

TAG McLaren’s aim is sonic perfection

combined with aesthetic delight and solid

build quality – a rare combination in hi-ﬁ

but one which TAG McLaren Audio is

already delivering.

Dr Udo Zucker

welcome to

dvd player DVD32FLR with our

award winning av processor AV32R

GRR00868.01-DVD32RFLR UM 5/30/02 12:24 PM Page 04

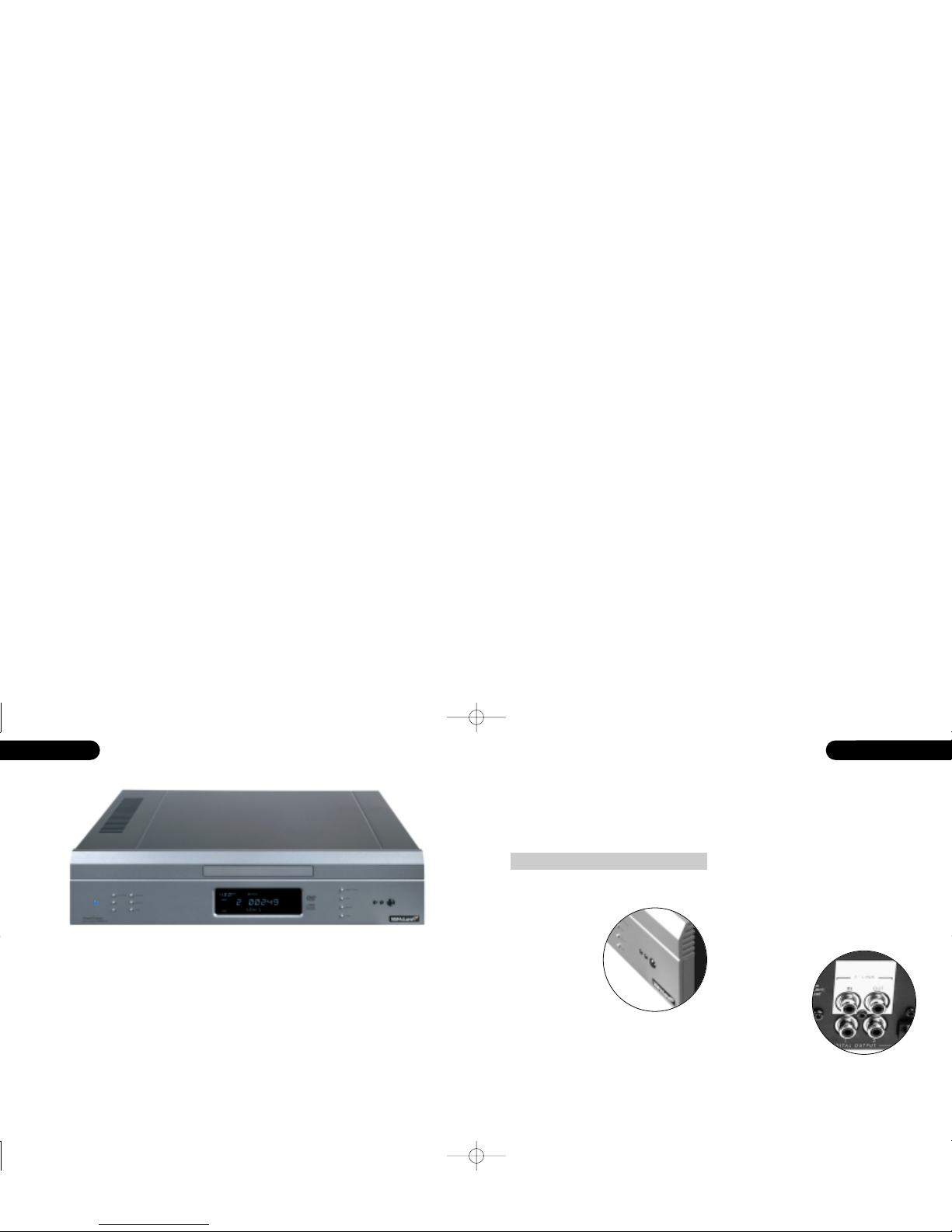

headin |07key features |0706 |welcome

The DVD32FLR is a high performance video source that supports a wide range of video

outputs, making it the perfect choice for home cinema installations. It is particularly well

suited to situations which cannot accommodate our top-loading DVD32R. The DVD32FLR is

an ideal complement to the TAG McLaren Audio theatre AV32R but also complements many

other high-performance audio-visual processors.

Thank you for purchasing theTAG McLaren

dvd transport DVD32FLR

There are many outstanding features included in this high-performance DVD player

DVD32FLR. Within this manual we focus on the operation of the DVD32FLR. If you want to

know more about the technical background, which led to this outstanding player, then please

refer to our in-depth technical documentation which can be found in the DVD32FLR product

section at our website www.tagmclaren.com.

performance and formats

• Compatible with DVD-Video and CD

music (8 and 12 cm)

• Native support of

PAL and NTSC

video formats

• Composite,

S-Video and

Component

outputs

• Very low jitter

clock re-times the

SPDIF audio data,

resulting in very high quality signal

timing of the digital audio data

• The TAGtronic Synchronisation Link T2L

allows the DVD32FLR to synchronise its

master clock to the clock within the

TAG McLaren Audio av processor

AV32R, resulting in a very low-noise,

ultra-low jitter

reference right

next to the

audio output

DACs. The

result is a

crisper,

cleaner and

much more

controlled sound.

This is a world ﬁrst for a DVD player!

GRR00868.01-DVD32RFLR UM 5/30/02 12:25 PM Page 06

headin |0908 |headin key features|0908 |key features

• Dual laser DVD mechanism for optimum

performance when playing DVDs and CDs

• Mediamatics/National Semiconductor’s

32 bit RISC processor for best audio and

video quality

• Powerful 16-bit microcontroller

• Stable multi-frequency internal clocks

• Round-core

transformer

• 12 independent

power supplies

• Premium-grade

audio

components

• Broadcast-

quality video

components

• Mixed technology construction, leaded

and surface mount for optimum results

• Multi-layer printed circuit board for best

signal to noise ratio

• Vibration damping of chassis panels

for best sound and picture quality

• SorbothaneTM mounting feet for best

vibration isolation

key building blocks

• Fully remote controlled

• Unique setup wizard lets you forget

printed user manuals

• Learning backlit remote control

• User conﬁgurable auto-standby function

• TAGtronic Communications Bus for

inter-product communication and

ﬁrmware upgrades

The TAGtronic Communications Bus can be

user conﬁgured to activate the following

features if the DVD32FLR is connected to

the AV32R and/or 100x5R:

• Relaying remote commands between

TAGtronic Communications Bus

equipped products

• Sending all products into standby

• Synchronising display brightness

• Displaying AV32R status messages on

the DVD32FLR video outputs

• Automatically adjusting picture settings

and selecting inputs on the PSM192 to

suit the selected video source

1. One Composite and one S-Video connector become inputs to the Progressive Scan Module PSM192 when this option is fitted

2. The BNC connectors carry the analog progressively scanned output from PSM192 when this option is fitted

inputs and outputs

• Two Composite and two S-Video outputs(1)

• Two multi-standard Component video

outputs, one using RCA

phono and one BNC

connectors(2) for

best picture

quality

• DVI 1.0 digital

progressively

scanned video

output when optional

Progressive Scan

Module PSM192 is ﬁtted

• Three digital audio outputs (two coaxial

SPDIF and one optical)

• TAGtronic Synchronisation Link T2L, input

and output for daisychaining

• Enhanced TAGtronic Communications Bus,

input and output for daisychaining

ease of use

upgrade paths

• Optional Progressive Scan Module

PSM192 for progressively scanned

analog and digital video outputs from

DVDs and from external Composite

and S-Video sources

• Prepared for DVD-Audio, hardware

and software upgrade required

• Operating software upgrades,

distributed via the Internet using the

Enhanced TAGtronic Communications

Bus

construction

Enhanced TAGtronic

Communications Bus support

GRR00868.01-DVD32RFLR UM 5/30/02 12:25 PM Page 08

headin |1110 |headin connectin |1110 |re ional codin

Regional coding has been deﬁned by the developers of the DVD standard (the licensors) to

protect the sequential patterns of distribution for the motion picture producers’ copyrighted

works. In line with these copy protection laws, your DVD32FLR has been conﬁgured for one

of six regions (1 to 6), dependent upon the country of destination. The region of your

DVD32FLR is clearly shown on the packaging beside the mains operating voltage and

frequency, and can also be obtained from the information screen via the setup menu.

Simply press menu, 5and a screen, similar to the one shown below, appears:

player information

_______________________________________

mmooddeell :: DDVVDD3322FFLLRR

sseerriiaall nnuummbbeerr :: DDVVDD--......

rreeggiioonnaall ccooddee :: 22

ssooffttwwaarree vveerrssiioonn ::VV......

In the example above, the DVD32FLR is set to region code 2.

We know that you are keen to get your DVD32FLR working. This section describes the

connections required to make your DVD32FLR fully functional and have you viewing your

favourite movies as quickly as possible. Refer to page 2 for diagrams to help you ﬁnd your

way around your DVD32FLR(1).

Make sure that all components of your audio-visual system are disconnected from the AC

supply whenever you change any connections.

Please keep the original packing and use it whenever your DVD32FLR is transported.

Shipping without the appropriate transit protection will invalidate your warranty.

...regional coding

before you start

positioning

Your DVD32FLR is designed to run warm during normal operation. Please ensure that there is

adequate ventilation above and below the unit. We recommend that you do not place your

DVD32FLR near any heat sources such as radiators or in direct sunlight.

1. Throughout the instruction manual, bold print indicates the lettering that you will find on the panels of your DVD32FLR and Remote

Do not expose your DVD32FLR to dripping or splashing liquids. Do not place

objects ﬁlled with liquid, such as vases, on or near to it.

Do not place the DVD32FLR on top of the AV32R (or other electronics), it will harm both

products because of restricted ventilation.

GRR00868.01-DVD32RFLR UM 5/30/02 12:25 PM Page 10

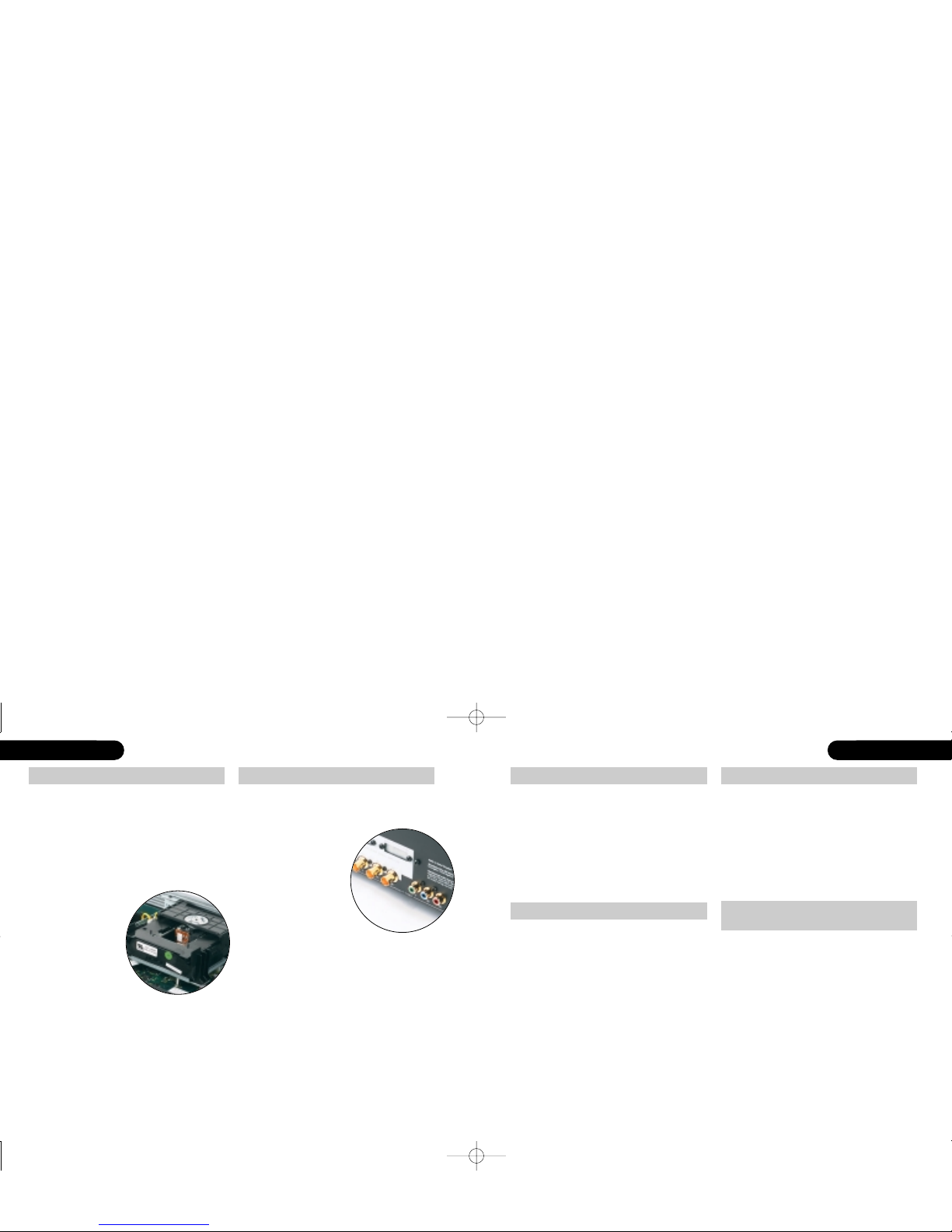

connectin |1312 |connectin

Using the cable supplied, connect the socket on the back of your DVD32FLR to

an AC supply outlet. The player will automatically enter standby when the

power is applied, press any button on the front panel or the system remote

(see ‘remote control’ on page 14) to bring it out of standby. The blue power LED will come

on, followed by ‘SELFTEST’ then the software version, shown on the front panel display.

Your DVD32FLR has three different types of video output; COMPONENT VIDEO(1), S-VIDEO(2)

and COMPOSITE VIDEO. By deﬁnition, Component video will give better quality than S-

Video, which in turn will give much better quality than Composite video. You should therefore

use the highest quality video type which your video display device or video processor can

support, and connect directly from your DVD32FLR using high quality video cables (for

example our F3-10-SVID S-Video cable or our F3-10-VID Composite/Component cable).

When the optional Progressive Scan Module PSM192 is ﬁtted it provides progressively

scanned video outputs in digital form on the DVI connector and in analog form on the BNC

component connectors. The analog progressively scanned outputs can be conﬁgured as

component YPbPr or RGB format with sync on green.

If you use the DVD32FLR with the TAG McLaren AV32R you can also connect the output

labelled ‘sync’ on the AV32R to the input labelled T2Link in on your DVD32FLR using a high

quality analogue cable, such as our F3-10-ANA. This connection provides synchronisation

between the AV32R and DVD32FLR which, when enabled(1), further enhances the sound

quality produced by the AV32R. The DVD32FLR will also work with your AV32R without this

connection so you could activate the T2Link at a later stage.

Your DVD32FLR is shipped with a shorting plug in the T2Link (Sync) input. It is recommended

that the shorting plug be left in place if no T2Link connection to the AV32R is made, for best

sound quality.

power connection

video display connection

surround sound (audio visual) processor connection

Your DVD32FLR has two types of digital output; Two coaxial SPDIF (called DIGITAL OUTPUT 1

and 2) and one OPTICAL. We recommend using one of the coaxial connections for best

sound quality. Using a high quality digital interconnect, such as our F3-10-DIG, connect the

DIGITAL OUTPUT 1 or 2of your DVD32FLR to a digital input on your AV processor.

1. If you intend to use Component video for best video quality, the picture may appear in false colours until your DVD32FLR has been setup correctly

2. S-Video is also available on the Y (luminance) and Pb (chroma) ‘component’ connectors to achieve a higher quality S-Video connection (compared

to the standard S-Video connector)

TAGtronic Synchronisation Link (T2Link)

1. Refer to the AV32R user manual for instructions on how to enable the T2Link

ATTENTION:

Remove the shorting plug when using the TAGtronic Synchronisation Link,

otherwise the link will not function.

GRR00868.01-DVD32RFLR UM 5/30/02 12:25 PM Page 12

headin |15controllin the DVD32FLR |1514 |controllin the DVD32FLR

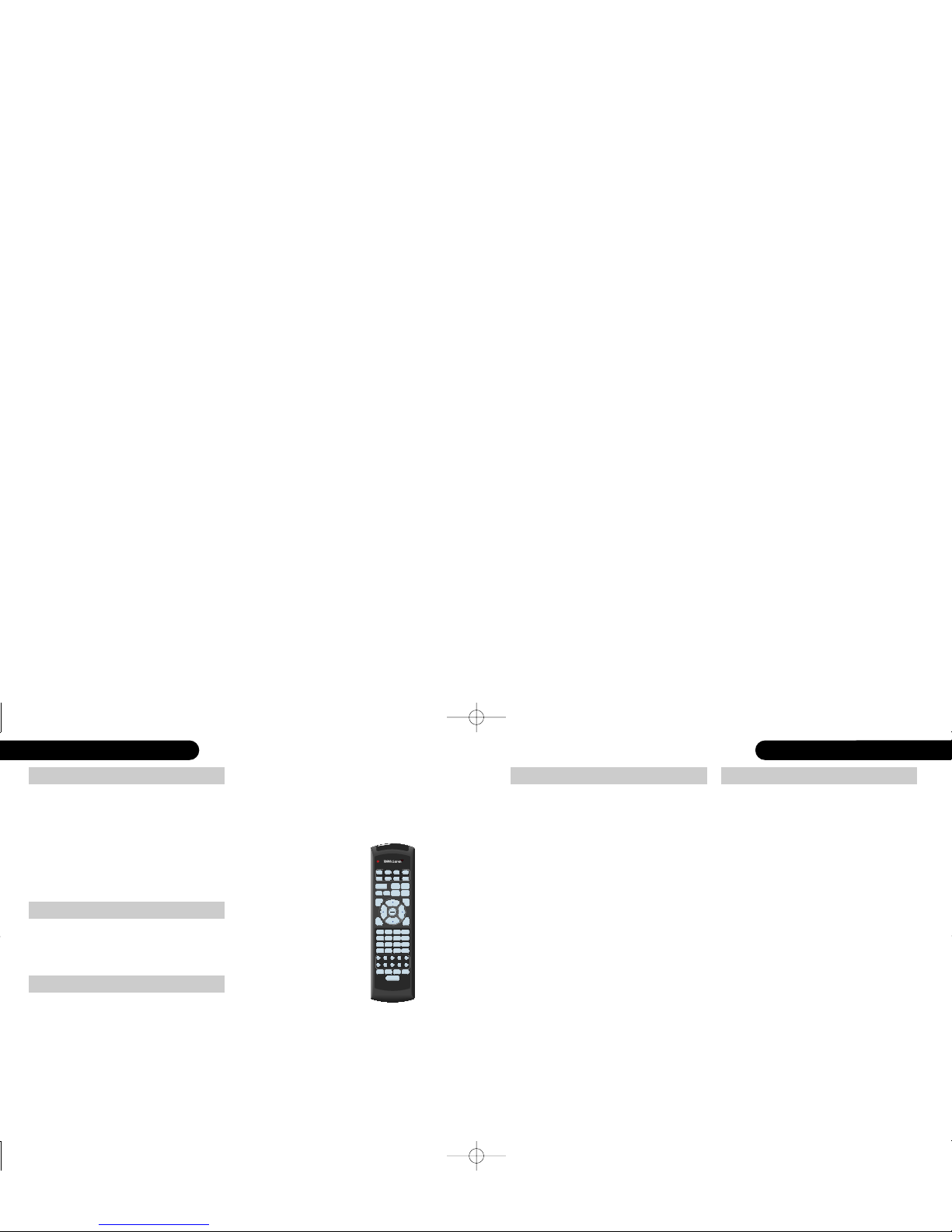

Your DVD32FLR is supplied with a backlit system-remote(2), suitable

for controlling all the main functions of your complete home cinema,

for day to day operation. For more details see the following pages.

The backlit system-remote is designed to

control your complete home cinema system.

The system-remote comes preprogrammed

and ready to use for many TAG McLaren

Audio products, including the TAG

McLaren av processor AV32R, ﬁve-channel

ampliﬁer 100x5R, three-channel ampliﬁer

250x3R and your DVD player DVD32FLR.

Other devices which are not

preprogrammed to work with the system-

remote will need to be ‘learnt’. To program

the system-remote for other devices, you

will need the original remote control for the

unit you wish to control. Details of how to

program the system-remote are included at

the end of this manual.

The DVD32FLR has a standby mode which can be entered by

pressing standby either on the front panel or Remote(1). The blue

power LED will be dimmed and the display switched off. Normal

operation may be resumed by pressing any button on the front

panel or Remote. You can keep the DVD32FLR in standby for long

periods of time without penalty of a high electricity bill, as the

DVD32FLR includes its own low-current standby transformer and

circuitry.

remote control

inserting batteries

Before using the remote for the ﬁrst time, you will need to insert the

batteries supplied (be sure to insert the batteries with the polarity as

indicated). For optimum operation you should point the Remote

towards your DVD32FLR when using it. The red Remote active LED on

the front panel ﬂashes when commands are received from the Remote.

system-remote controlling the DVD32FLR

Before you can control the DVD32FLR with

the system-remote you must ﬁrst select DVD

as the device to control. This is done by

pressing the dvd key in the REMOTE

SELECTION area at the top of the system-

remote. The DVD32FLR will remain selected

by the Remote until another unit is chosen

via the REMOTE SELECTION area. Once the

DVD32FLR has been selected, it can be

controlled from the system-remote. A red

light on the front panel of the DVD32FLR

will ﬂash when commands from the system-

remote are received, and the ‘DVD’ key in

the REMOTE SELECTION area will light

brieﬂy with each key press.

standby

1. The player enters standby automatically when power is applied

2. The system-remote is identical to the one shipped with the TAG McLaren av processor AV32R

cd dvd amp

vcr ldtvsat

pause

play

skip

record

skip eject

surround

123normal

4 5 6 display

789tape

10 0 THX

m1 m2 m3 m4

light

--- stop

REMOTE SELECTION

return

cancel

time

subtitle

audio angle

vcrtv

sat

dvd

tuner

aux

dab

------

standby

mute menu

VOL CH

LFE

---

defabcspace

ghi jkl mno +/–

pqrs tuv wxyz

shift

system-remote

GRR00868.01-DVD32RFLR UM 5/30/02 12:25 PM Page 14

controllin the DVD32FLR |1716 |controllin the DVD32FLR

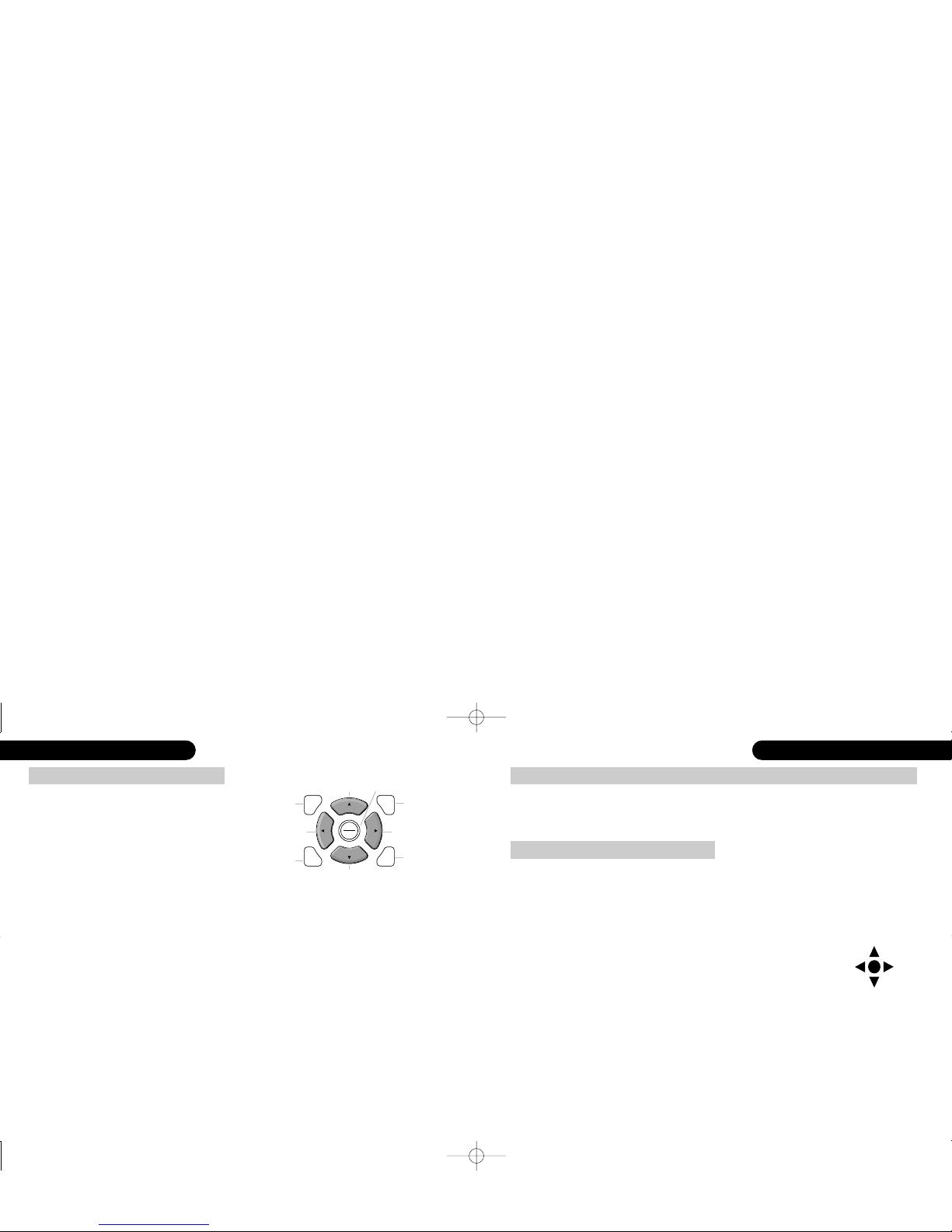

Overview of the context sensitive keys:

The system-remote, once switched to

operate the DVD32FLR, is a Context -

Sensitive Remote, meaning keys operate

differently, depending on the content on

your television. What might sound initially

confusing is very intuitive. Just do what you

instinctively would do and you can control

the DVD32FLR with very few keys - a

perfect solution for operating a hi-

performance home cinema in the dark.

Example: Playing a DVD requires you to

open the DVD32FLR tray, insert a DVD and

start it after selecting any special function

from the DVD disc menu. The system-remote

lets you do all this by using very few keys,

all located around the remote control’s

central cursor keys. eject opens the tray,

play starts spinning the disc until it reaches

the DVD disc menu(1). (The DVD disc menu

is the page from which you usually select

any special settings, such as audio modes,

subtitles, documentary etc.)

context sensitive remote keys the menu key can call up the DVD disc menu and the DVD32FLR setup

The menu key activates the DVD disc menu, if a DVD is playing. If not playing a disc

(stopped or none loaded) the menu key will activate the DVD32FLR’s setup menu, (just as the

av menu key would activate the AV32R’s setup menu)(1).

1. You need to stop the disc before setup can be activated

1. If the DVD doesn’t automatically invoke the DVD disc menu, the menu key will bring it up

manual selection of the cursor keys

The transport function keys rev, ffw, stop, and pause change their

functionality to the cursor control , ,and when the DVD is

within the DVD disc menu. Some DVDs do not allow the DVD32FLR

to detect the presence of the DVD disc menu automatically. In this

case pressing menu for more than two seconds will force the

DVD32FLR to switch over the transport function to the cursor control.

The keys remain in the cursor control state until you press menu

again for more than two seconds. The icon shown opposite will

appear in the top right corner of the picture when cursor control is

manually activated.

pause

play

skip

record

skip eject

--- stop

return

cancel

LFE

---

In setup:

goes back one step

otherwise: skip forward

In DVD disc menu: accepts

menu item otherwise play.

Repetitive pressing selects

DVD32R's status information

pause or in DVD disc

menu: cursor up

Search forward or

in DVD disc menu

cursor right

Opens the

DVD32R door

Stop or in DVD disc menu: cursor down,

or stop if held > 1 second.

Skip backwards

Search backwards or

in DVD disc menu

cursor left

title

Whilst in the DVD disc menu the cursor

keys change their usual function from rev,

ffw, stop and pause to , , and ,

allowing you to navigate through the DVD

disc menu options. Once you have selected

the item you want, simply press the

play=ok key.

If you wish to stop the DVD while in the

disc menu, simply hold down the stop key

for more than one second.

GRR00868.01-DVD32RFLR UM 5/30/02 12:25 PM Page 16

ATTENTION:

The DVD32FLR setup menus can only be accessed when the DVD32FLR’s tray

is closed and no disc is playing.

the first time setup |1918 |the first time setup

If a disc is playing (and not in the DVD disc menu), stop will stop the disc, allowing you to

resume from exactly the same position when you press play. Pressing stop a second time will

clear the resume buffer, meaning play will now start the DVD/CD from its beginning. In the

DVD disc menu, stop becomes cursor down, unless it is held for more than one second.

stop key

setup wizard

Conﬁguring for the optimum performance

...let the setup wizard guide you through a perfect setup but close the DVD32FLR’s tray ﬁrst.

ATTENTION:

When the player is in setup mode many control buttons, such as open/close

are temporarily de-activated. Setup cannot be invoked when the DVD32FLR’s

tray is open or a disc is playing.

To maximise the performance from your DVD32FLR, it is essential to conﬁgure it correctly;

this will ensure it performs at its very best. Without this setup you might signiﬁcantly reduce

your player’s potential.

Conﬁguring your DVD32FLR will be very simple as the DVD32FLR includes a comprehensive

step-by-step setup wizard. After connecting the DVD player DVD32FLR to your display

device, e.g. a television, your surround sound processor and the power, simply press ‘menu’

on the system-remote. If a disc is playing you must stop it ﬁrst, otherwise this key will invoke

the menu of the DVD you are playing.

Depending on the software version loaded in your DVD32FLR, the player might support several

languages for the player setup menus and on screen display information. It is recommended that

you select your preferred language before commencing with the setup wizard. This is done

using set languages from the menu.

The Setup Wizard is invoked if you select ﬁrst time setup. Alternatively, if you are an

experienced user, select item 3, change setup, which allows you to individually conﬁgure

each feature.

setup

1. set languages

2. ﬁrst time setup

3. change setup

4. test-patterns

5. show player information

A setup wizard for ﬁrst time users. Takes the user through all of

the player’s settings, giving detailed explanations along the way.

Use , , and [ ] or number key to select.

[ ] to go back. [ ] to exit setup.

After activating the setup wizard, we suggest you sit back and relax whilst the wizard takes you

step-by-step through the entire setup procedure. At the end you will not only have covered all

possible features but will also have perfectly mastered and conﬁgured them. It is time well spent!

GRR00868.01-DVD32RFLR UM 5/30/02 12:25 PM Page 18

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TAG MCLAREN AUDIO DVD-Player Handbücher

TAG MCLAREN AUDIO

TAG MCLAREN AUDIO DVD32R Bedienungsanleitung

Beliebte DVD-Player Handbücher anderer Marken

Sony

Sony DVP-F11 Bedienungsanleitung

Philips

Philips DVP3560K/F8 Bedienungsanleitung

LENCO

LENCO DVP-740 X2 Bedienungsanleitung

JVC

JVC XV-N650BEU Bedienungsanleitung

Aiwa

Aiwa XD-DV370 Bedienungsanleitung

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Bedienungsanleitung

Denon

Denon DVM-1805 - DVD Changer Bedienungsanleitung

Toshiba

Toshiba SD-3815 Bedienungsanleitung

Tevion

Tevion 44330 Bedienungsanleitung

Samsung

Samsung DVD-HD860 Bedienungsanleitung

Sylvania

Sylvania DP170SL8 Bedienungsanleitung

Toshiba

Toshiba SD-P1200 Bedienungsanleitung

JVC

JVC XV-D9000E Bedienungsanleitung

Dolby Laboratories

Dolby Laboratories CP650 Bedienungsanleitung

Philips

Philips DVD737K/931 Bedienungsanleitung

Denon

Denon DVD-5900 Bedienungsanleitung

Philips

Philips DVD 951 Bedienungsanleitung

Philips

Philips DVDR3460 Bedienungsanleitung
