TagMaster XT-1 Bedienungsanleitung
XT-1
Installation Manual
XT-1 Installation Manual 13-111 02, 2014-RO-012, 2014-04-30
Page 2 of 32
Note: This equipment has FCCID: M39XTXX. It complies with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in aresidential
area is likely to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Caution: To comply with Council Recommendation 1999/519/EC and FCC regulations, this reader must be
installed to provide a separation distance of at least 25 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter.
Copyright
The copyright and ownership of this document belongs to TagMaster AB. The document may be downloaded
or copied provided that all copies contain the full information from the complete document. All other copying
requires a written approval from TagMaster AB.
Disclaimer
While effort has been taken to ensure the accuracy of the information in this document TagMaster AB
assumes noresponsibilityfor any errors or omissions, orfor damages resulting fromthe use of the information
contained herein. The information in this document is subject to change without notice.
XT-1 Installation Manual 13-111 02, 2014-RO-012, 2014-04-30
Page 3 of 32
Table of Contents
1 Introduction 4
Overview........................................................................................................4
Tags ..............................................................................................................4
Security and SecureMarkID
®
.........................................................................4
2 Installation 4
Safety Instructions.........................................................................................4
Mounting Instruction ......................................................................................5
2.2.1 General......................................................................................................5
2.2.2 Dimensions................................................................................................6
3 Interfaces 7
Cables...........................................................................................................7
Wires.............................................................................................................9
3.2.1 Terminal Connections................................................................................9
3.2.2 Ethernet and USB......................................................................................9
Power Supply ..............................................................................................10
Wiegand/Magstripe......................................................................................11
3.4.1 Wiegand Timing.......................................................................................12
3.4.2 Magstripe Timing......................................................................................12
Ethernet.......................................................................................................13
RS232 .........................................................................................................14
RS485 .........................................................................................................15
Inputs...........................................................................................................17
Relay...........................................................................................................18
USB.............................................................................................................19
DIP Switches...............................................................................................20
3.11.1 Interface Configuration DIP Switch (S301)...............................................20
3.11.2 Software Configuration DIP Switch (S101)...............................................20
Light and Sound...........................................................................................21
MicroSD Memory Card Slot .........................................................................21
4 Configuration 22
Easy Configuration ......................................................................................22
Web Interface..............................................................................................23
4.2.1 Start.........................................................................................................24
4.2.2 Information...............................................................................................24
4.2.3 Settings....................................................................................................24
4.2.4 Web Tools................................................................................................26
4.2.5 Documentation.........................................................................................27
4.2.6 Reboot.....................................................................................................27
Firmware Upgrade.......................................................................................27
Factory Defaults...........................................................................................27
5 TAGP Communication Protocol 28
6 Troubleshooting 29
7 Definitions and Abbreviations 29
8 References 29
9 Technical Specification 30
XT-1 Installation Manual 13-111 02, 2014-RO-012, 2014-04-30
Page 4 of 32
1 Introduction
Overview
The XT-1 is an UHF RFID reader compliant with EPC Gen 2 (ISO 18000-6C). The reader is specifically
tailored for Automatic Vehicle Identification (AVI) applications such as Parking, Gated Communities and
Condominiums. It has been designed to provide absolutely premium performance for read-range and
environmental specifications while also giving a large number of interface options and having an innovative
implementation for TCP/IP connectivity and monitoring.
Tags
XT-1 supports any UHF tag compliant with the EPC Gen 2 standard. XT-1 also supports the SecureMarkID
®
format developed by TagMaster to ensure that each tag has a truly unique identity that is difficult to duplicate.
Security and SecureMarkID
®
The EPC Gen 2 standard was initially developed for low cost item management and has for that reason no
built-in support for encryption like DES or AES. This differentiates the system from for instance many
proximity identification systems. To address this, TagMaster has developed the SecureMarkID
®
format using
an encryption algorithm and non-writeable parts of the tag to create a truly unique identity that is difficult to
duplicate. It is recommend to use SecureMarkID
®
tags only together with XT-1, but also to consider these
limitations in any application requiring high security.
As the development of a cryptographic framework for EPC Gen2 proceeds, TagMaster will offer future new
products to continue to make the most of available technology in an effort to offer the highest possible
security.
2 Installation
Safety Instructions
The following safety instruction should be observed during installation, normal use and service.
The installation and service should only be done by qualified personnel.
Shields of cables should be connected to safety ground.
The XT-1 must be disconnected from all voltage sources before any installation or service work.
Capacitors inside the XT-1 can hold their charge even if the equipment has been disconnected from
all voltage sources.
Do not modify any part of the product. Repair is to be performed by TagMaster only.
Where local regulations exist, these are to be followed. The safety information in this manual is a
supplement to local regulations. It is the responsibility of the local project manager to make certain
that local regulations are known and followed.
XT-1 Installation Manual 13-111 02, 2014-RO-012, 2014-04-30
Page 5 of 32
Mounting Instruction
2.2.1 General
Mount the reader in a horizontal position with the cable glands on the bottom side. Direct the reader so that
the reading lobe covers the positions of the tags. For optimal performance, tilt and rotate the reader into a
position so that the front side of the reader is parallel with the front side of the tag to be read. Align the reader
so that the actual reading range is 60–70% of the specified maximum.

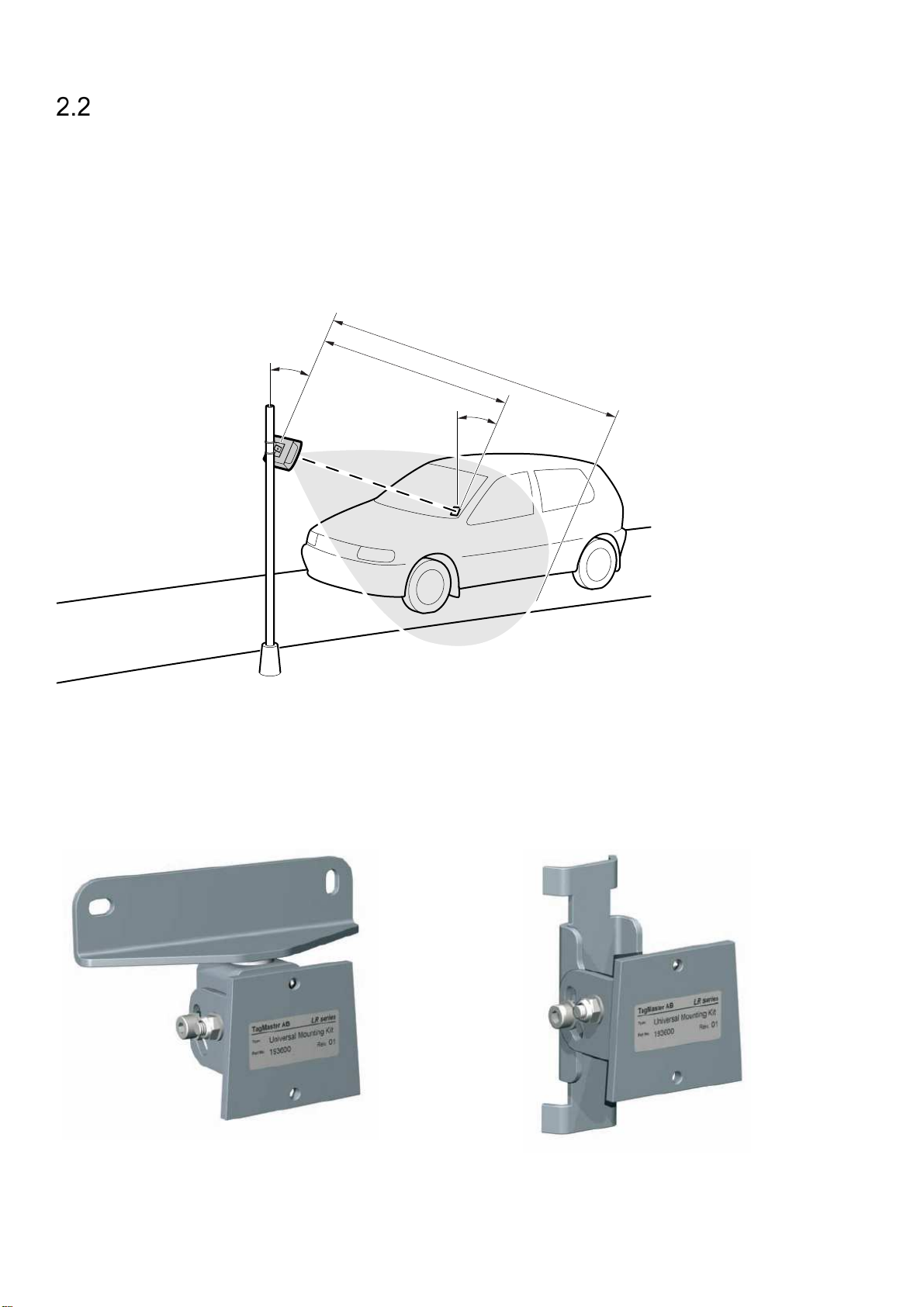

Figure 1 shows a typical reader installation.
Figure 1 Reading lobe
The UMK (Universal Mounting Kit, Part No. 193600), see Figure 2, from TagMaster enables the reader to be
mounted in a wide variety of positions and angles. The kit contains all parts needed for mounting the reader
on a wall or on a pole. The UMK is designed and suitable for outdoor use. See separate data sheet for more
details on installation [1].
Figure 2 UMK for wall and pole mounting of XT-1
TM00103
=
=
100%
60 - 70%
XT-1 Installation Manual 13-111 02, 2014-RO-012, 2014-04-30
Page 6 of 32
2.2.2 Dimensions
Figure 3 XT-1 Dimensions
XT-1 Installation Manual 13-111 02, 2014-RO-012, 2014-04-30
Page 7 of 32
3 Interfaces
Cables
Connections to the XT-1 is primarily done using the central M20 cable gland (Figure 4, Pos 1), and
secondarily by replacing any of the 4 pcs of M16 blind plugs with cable glands (Figure 4, Pos 2). Shielded
cables should be used for all connections. Select cables suitable for the installation environment, considering
indoor or outdoor environment and use flexible cables with stranded wire. The reader chassis should be
grounded.
Figure 4 Cable connections for XT-1 (Pos. 1 is M20 cable gland, Pos. 2 is M16 blind plugs)
Instructions:
1. Select and use the M20 cable gland insert corresponding to the number of cables required. The cable
gland can be used with one cable (6-12 mm) or by using the supplied insert with two cables (2-6 mm),
see Figure 5.
2. Open XT-1 lid by loosening the 8 screws on the front, and slide the lid open (see Figure 6 for reader
with lid in open position).
3. Feed the cable (or two cables) through the cable gland and through the chassis. All parts of the cable
gland except the nut shall be on the outside of the XT-1.
4. Connect the wires to relevant terminals and connections depending on interfaces being used. If using
RJ45 connectors for Ethernet these must be crimped inside the reader.
5. Connect the shielding of the power cable to the chassis grounding point using the grounding screw
(Figure 6, Pos. 1).
6. Screw the cable gland to tighten and ensure proper water and dust sealing.
As an alternative for grounding, a metallic cable gland (not included) can be used to connect the reader
chassis to ground using the power cable shielding.
2
1
XT-1 Installation Manual 13-111 02, 2014-RO-012, 2014-04-30
Page 8 of 32
Figure 5 The XT-1 M20 cable gland with insert for 2 cables
Never remove or use the ventilating membrane (Figure 6, Pos. 2) on the back of the XT-1 for cable
connections.
Figure 6 XT-1 overview (Pos. 1 is ground screw connection, Pos.2 is ventilating membrane)
1
2
XT-1 Installation Manual 13-111 02, 2014-RO-012, 2014-04-30
Page 9 of 32
Wires
3.2.1 Terminal Connections
Wire connections (with the exception of Ethernet and USB, see §3.2.2) are added as single wires to spring
cage terminal connectors, see Figure 7. These are easy-to-use terminals for single solid or stranded wires.
Instructions:
1. Strip wire lead approximately 9 mm.
2. Push screwdriver down to release spring cage.
3. Insert wire into terminal.
4. Remove screwdriver to clamp wire.
5. Gently pull installed wire to make sure connection is reliable.
Figure 7 Connection with easy-to-use spring cage terminal
Wire size 0.5 mm
2
- 1.5 mm
2
(AWG 20 - AWG 16)
Table 1 Wire connection overview
3.2.2 Ethernet and USB
Ethernet is connected using RJ45 connectors. To be able to fit this connector given the limited diameter of
the M20 cable gland and the hole in the chassis, such RJ45 must be crimped to the wires inside the reader.
This is done with corresponding standard tool and RJ45. Pass the Ethernet cable through the cable gland
before crimping the connector on the cable.
USB is intended for service and maintenance and is therefore connected only when lid is open. Connection
is done using a standard USB type B cable.
XT-1 Installation Manual 13-111 02, 2014-RO-012, 2014-04-30
Page 10 of 32
Power Supply
The XT-1 shall be powered by an isolated power supply suitable for outdoor use. The required voltage is
12 VDC to 24 VDC. It is recommended to use a power supply of 24 VDC, 0.5 A minimum.
Figure 8 Power supply connection, overview and detail
The power input has built-in protection for an accidental connection of reversed polarity.
Connections DC+ High supply potential (See Figure 8 for details)
DC- Low supply potential
Supply voltage 12 VDC to 24 VDC
(Absolute minimum rating 10 VDC, absolute maximum rating 30 VDC)
Recommended / Max length 10 m / 100 m
Wire size Recommended 1.5 mm
2
(AWG 16)
Table 2 Power connection overview
