PV-DDR
Motherboard
User’s Manual
Product Name: PV-DDR
Manual Revision: English, 1.0
Trademarks
Intel, Celeron, Socket 370 and Pentium III are trademarks of Intel
Corporation
VIA is a registered trademark of VIA Technologies, Incorporated.
Award is a trademark of Award Software International Inc.
MS-DOS, Windows 95, Windows 98, Windows ME, Windows
2000 and Windows NT are registered trademarks of Microsoft
Corporation
Novell is a trademark of Novell Corporation
All other brand and product names are trademarks or registered
trademarks of their respective companies.
Table of Contents
Chapter 1. Introduction
1.1 Product Overview
1.2 Features
1.3 Specifications
1.4 Content
1.5 System Board Layout
Chapter 2. Hardware Setup
2.1 Installation Procedure
2.1.1 Jumper Settings
2.1.2 Keyboard Voltage Setting
2.1.3 Clearing the CMOS
2.1.4 CPU Voltage Setting
2.1.5 CPU FSB Frequency Setting
2.2 Installation of CPU
2.3 Installation of Memory
2.3.1 Installation of 184-pin DIMM
2.3.2 Removal of 184-pin DIMM
2.3.3 Memory Configuration
2.4 I/O Connections/Panel Connections
2.4.1 ATX Power Connector
2.4.2 Infrared Connector
2.4.3 System and CPU Fan Connectors
2.4.4 Wake On LAN Connector
2.4.5 Wake On Modem Connector
2.4.6 Floppy Disk Drive Connector
2.4.7 Primary/Secondary IDE Connector
2.4.8 PS/2 Mouse Port
2.4.9 PS/2 Keyboard Connector
2.4.10 Serial Port
2.4.11 Printer Port
2.4.12 USB Connectors
2.4.13 Line Out Connector
2.4.14 Line In Connector
2.4.15 Microphone In Connector
2.4.16 Game/MIDI Port
2.4.17 ATAPI IDE/SONY Audio
2.4.18 Panel Connection
Chapter 3. BIOS Setup
3.1 CMOS Setup Utility
3.2 Standard CMOS Setup
3.3 Advanced BIOS Features Setup
3.4 Advanced Chipset Features Setup
3.5 Integrated Peripherals
3.6 Power Management Setup
3.7 PNP/PCI Configuration Setup
3.8 PC Health Status
3.9 Frequency Control
3.10 Load Fail-Safe Defaults
3.11 Load Optimized Defaults
3.12 Set Supervisor/User Password
3.13 Save & Exit Setup
3.14 Exit Without Saving
Chapter 4. Driver Installation
4.1 Autorun Program
4.2 AGP & IDE Driver Installation
4.3 Sound Driver Installation
4.3.1 Windows 95 Installation
4.3.2 Windows 98/ME Installation
4.3.3 Windows 2000 Installation
4.3.4 Windows NT 4.0 Installation
4.4 ACR LAN Driver Installation
4.4.1 Windows 95 Installation
4.4.2 Windows 98 Installation
4.4.3 Windows ME Installation
4.4.4 Windows 2000 Installation
4.4.5 Windows NT 4.0 Installation
Chapter 1. Introduction
1.1 Product Overview
Thank you for purchasing the PV-DDR motherboard. This motherboard utilizes
VIA’s latest technology, namely Apollo Pro266 VT8633 & VT8233 chipset. It
supports the new generation of high-speed DDR266 DRAM and features a new
high-speed V-Link bus that doubles the communication bandwidth between the
North and South Bridge to 266MB per second.
We have conducted a motherboard compatibility test with a variety of hardware
and software, such as CPUs, memory, display cards, CD ROMs, Novell, MS
Office….etc and compliance with Year 2000.
We have set high standards on our quality control, with absolute confidence,
we believe this product is the wisest choice.
This manual is composed of four sections. The first section is the introduction
of this motherboard, and the second section explains the proper procedure to
setup the motherboard, the third section provides information on how to setup
the CMOS. The last section states the installation for driver and utility.
1.2 Features
- Wake On LAN/Modem.
- Modem Remote Ring On.
- Support NCR SCSI BIOS.
- Support Ultra DMA 33/66/100.
- Integrated Hardware Monitoring
- Integrated AC-97 Audio.
- Support 66/100/133MHz FSB frequency.
- Support AGP slot for AGP (1X/2X/4X) graphics card.
- Support Advanced Configuration Power Interface (ACPI).
- BIOS Green feature function, and "Plug & Play" Flash ROM.
- Support Desktop Management Interface (DMI) through BIOS.
- RTC Wake Up Alarm: Program the date/time to wake up your system.
- Both the BIOS and hardware levels of the motherboard meet PC '99
compliant.
1.3 Specifications
CPU : -Supports Intel Socket 370, Celeron, Pentium III and VIA
Cyrix III Processors with 66/100/133MHz Front Side Bus.
Chipset : -VIA VT8633 & VT8233.
DIMM : -Supports 2.5V PC1600/2100 (DDR200/266)-compliant
DDR SDRAM in four 184-pin sockets, which can support
memory sizes of 64/128/256/512 MB/1GB modules.
-Supports up to a maximum of 4GB system memory.
IDE : -Dual channel PIO and PCI Bus Master IDE ports support
up to 4 EIDE devices for HDD or CD-ROM
-Supports PIO Mode 4
-Supports Multiword DMA Mode 0, 1, 2
-Supports Ultra DMA 33/66/100
BIOS : -Award BIOS with built-in Anti-Virus, ACPI, DMI
support, and green function (Plug-and-Play BIOS)
-Supports CD-ROM/HD/SCSI/Floppy/LS120/ZIP100
and LAN boot up
-Supports NCR SCSI BIOS.
I/O Devices : -One FDD control port supports two of the 5.25" or
3.5" floppy drives up to 2.88 MB.
-Two high-speed 16550 UART compatible serial ports
-One parallel ports with ECP/ EPP compatibility.
-One PS/2 mouse port
-One PS/2 Keyboard connector
IR Port : -One IrDA/ASKIR compatible Infrared interface port.
(Cable optional)
Dimension : - 305 mm x 205 mm ATX Form factor
Operating System :-Supports Windows 95/98/ME/2000, Windows NT,
MS-DOS V6.22, OS/2, Novell, Unix, SCO UNIX...
USB Ports : -Six function ports support up to 127 peripheral
devices. ( Cable optional )
-USB v1.1 and Intel Universal HCI v1.1 compatible.
Sound : -AC '97 Rev 2.1 compliant
-16-bit Stereo Full-Duplex Codex
-Variable Sampling Rate (VSR) up to 48kHz in 1Hz
resolution
-3D Stereo expansion for simulated surround
-4 stereo and 2 mono analog line-level inputs
-MIC level input switchable from two sources
-Second line-level output with volume control
-3.3V, 5V or split analog/digital power supply
-External Audio Amplifier Control
-Power management support
-Low Power consumption mode
-Stereo Headphone Amplifier
ATX Power : -Supports Modem remote Ring-On function
-Supports software power off function
-Supports RTC Wake-Up.
-Supports Wake On LAN.
-Supports Wake On Modem.
Expansion Slots : -Five 32-bit PCI expansion slots. PCI v2.2
compliant.
-One 32-bit AGP expansion slot. AGP v2.0
compliant.
-One Advanced Communications Riser (ACR) slot
1.4 Content
The motherboard box contains the following items:
- One Motherboard
- One IDE Ribbon Cable
- One Floppy Ribbon Cable
- One CD Driver Disk
- User’s Manual
1.5 MotherBoard Layout
Chapter 2. Hardware Setup
2.1 Installation Procedure
1. Jumper settings (BIOS and CPU)
2. Installation of CPU
3. Installation of Memory
4. I/O Connections & Panel Connections
2.1.1 Jumper Settings
In this manual , (1-2) represents the first and second pins of the jumper. (2-
3) represents the second and third pins of the jumper. On the motherboard,
you will see two sets of jumpers with different color jumper caps:
Yellow Jumper Caps : Sets the Function of Flash CMOS JRTC
Red Jumper Caps : Sets the FSB frequency of CPU JFSB1, JFSB2
Sets the Keyboard Voltage JKBV
WARNING: Electronic parts are Static sensitive. To prevent damage to
the computer and its parts please take the following
measures.
-Work on a surface such as concrete, linoleum or hard
wood floor.
-Ground your self with either a properly installed
grounding strap or by touching a major electrical appliance
long enough to discharge the static.

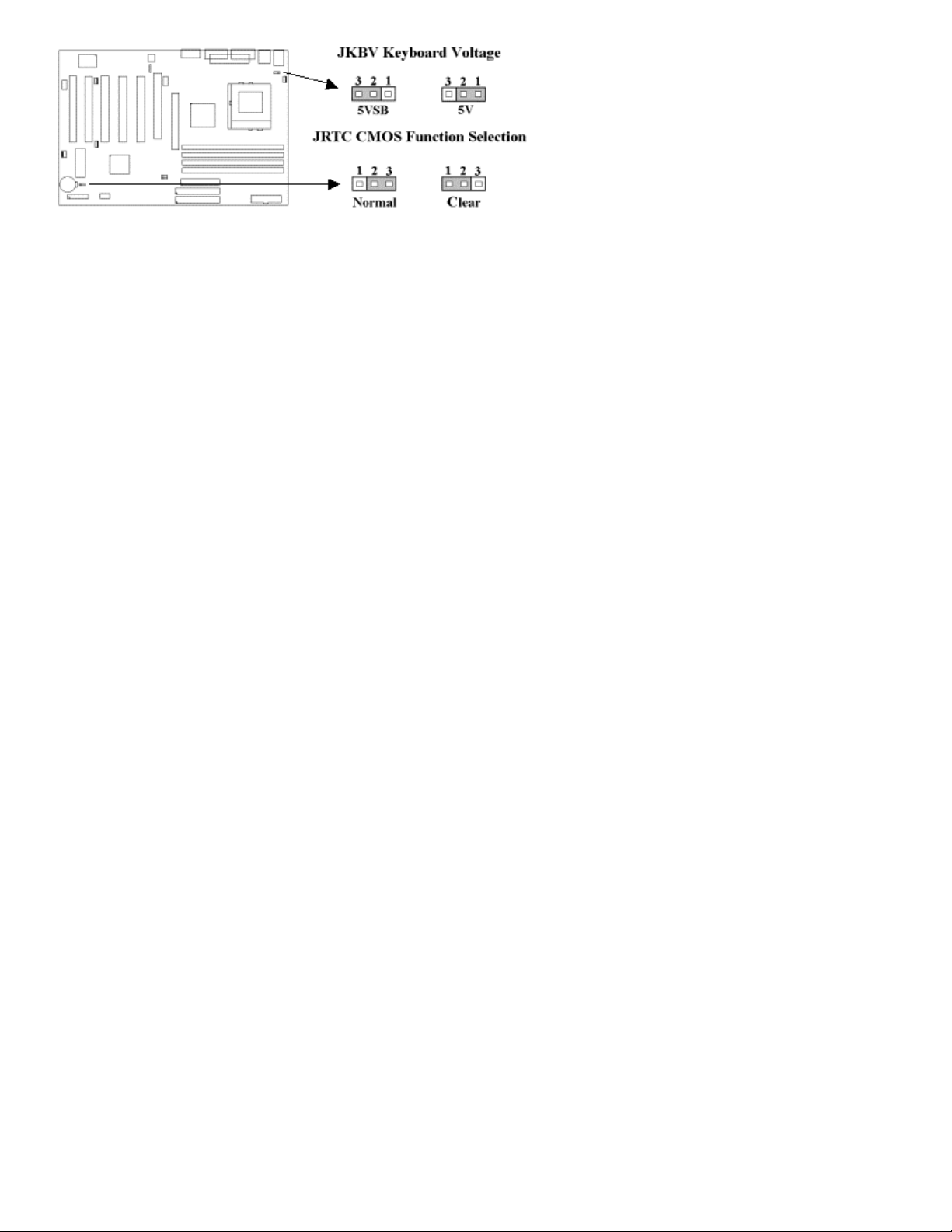

2.1.2 Keyboard Voltage Setting (Red Jumper Cap)
This motherboard supports wake on keyboard function. This feature requires
that your system has an ATX power supply with at least 300mA +5V standby
power and set this jumper to 2 & 3 pin short. Refer to session 3.6.11 PS2KB
Wakeup for more information. 1-2 : 5V (Default Setting)
2-3 : 5V Stand By
2.1.3 Clearing the CMOS (Yellow Jumper Caps)
JRTC : CMOS Function Selection
1-2 : Clear data
2-3 : Normal Operation (Default Setting)
How to Clear the CMOS Setting:
(1) Turn off the power.
(2) Remove ATX power cable from connector ATXPWR.
(3) Remove Yellow Jumper Cap from JRTC (2-3) and put on JRTC
(1-2) to remove the CMOS setting.
(4) Remove Yellow Jumper Cap from JRTC (1-2) and put on JRTC
(2-3).
(5) Connect ATX power cable back to connector ATXPWR.
(6) Turn on the power.
(7) While the system reboots, press <DEL> key to set the BIOS
setup.
2.1.4 CPU Voltage Setting
The motherboard supports CPU VID function. It can automatically detect CPU
VID signal and generates proper CPU core voltage.
2.1.5 CPU FSB Frequency Setting (Red Jumper Caps)
The JFSB jumper provides some FSB frequency settings for the CPU. Auto
Detect, 66MHz, 100MHz or 133MHz FSB frequency can be selected with this
jumper. The over specification operation is not recommended.
2.2 Installation of CPU
Before installing CPU, make sure the power is off. Locate the level bar on the
PGA370 ZIF socket. Push level bar away from the socket and pull upward 90
degrees. Insert the CPU into the socket. Be careful of CPU orientation. Make
sure the notch of the CPU corresponds with the white dot on the ZIF socket
(the corner without pin socket). Do not push in the CPU. Make sure all pins
are aligned with the CPU socket. ON the level bar.
2.3 Installation of Memory
The motherboard has four 184-pin 64-bit DDR (Double Data Rate) Dual Inline
Memory Module (DIMM) sockets. You can install 2.5V Unbuffered
PC1600/2100 (DDR200/266)-compliant DDR Synchronous DRAM (SDRAM)
memory.
2.3.1 Installation of 184-pin DIMM (Dual Inline Memory
Module)
1. Before inserting the DIMM, make sure the pin1 of the DIMM matches with
the pin1 on the DIMM socket.
2. Insert DIMM into the DIMM sockets at a 90-degree angle and press down.
2.3.2 Removal of 184-pin DIMM
1. Press the holding clips on both sides of the socket outward to release the
DIMM.
2. Gently pull the DIMM out of the socket.
