Takeway LA1-PH05 Bedienungsanleitung
LA1-PH05 can be mounted on the rearview mirror base of the motorcycle. The motorcycle rider can mount a smartphone onto it for navigation. It is
available to the smartphone screen between 4.7”~6.5”.
4
MANUAL
LA1-PH05
Phone Holder
Loosen up the nut of the rearview mirror and keep turning
the mirror until you can take it off. Insert the ball mount of
LA1-PH05 into the dismantled rearview mirror and screw
the mirror back to the motorcycle. You can adjust the angle
of the phone holder using the knob on the bracket.
Please check the curve between the dashboard and the
rearview mirror base and adjust the the ball mount
accordingly to get a proper angle (front/rear).
If your rearview mirror base has a 8 mm screw, please
use the enclosed 8 mm washer for mounting.
Step 1.
Hold the smartphone and insert the lower right tip of the
phone into the sleeve corner at the bottom of LA1-PH05.
Push downward so that the upper and lower sleeve
corners of the phone holder are pushed outward at the
same time and there is enough space for placing the
smartphone in between. Insert the upper left tip of the
phone into the other sleeve coner. Make sure the upper
and lower sleeve corners of the phone holder firmly
hold the phone before letting go your hand. Slide down
the smartphone smart security lock at the back of the
phone holder to ensure double safeguards when you use
the device on the move.
Note: When using the smart security lock, please do not put your finger between the clamping
jaws (silver components) to avoid injury to your finger or compromise of the clamping strength.
Step 2.
1
Ball Mount
Fig.7
Fig.8 Fig.9
unlock
lock
1
4.
Press both sides of the installed pad with
the thumb and make sure that the pad
firmly sits in the sleeve.
5.
Repeat ( 3. ) and ( 4. ) for installing the other
pad.
Installation of the damping foam:
The standard version. With factory default
2mm foam installation and a 1mm foam
attached.
The thicker case version. With factory
default 1mm foam installation and 2pcs
1mm foam attached.
Installation of
the damping foam
3
Fig. 4
Fig. 5
Fig. 6
Press
Press
White releasing paper
Thick damping
foam
Fig. 2
Installation of pads for both upper
and lower sleeve corners :
x 2
1mm
damping foam
x 2
Pads for
sleeve corners

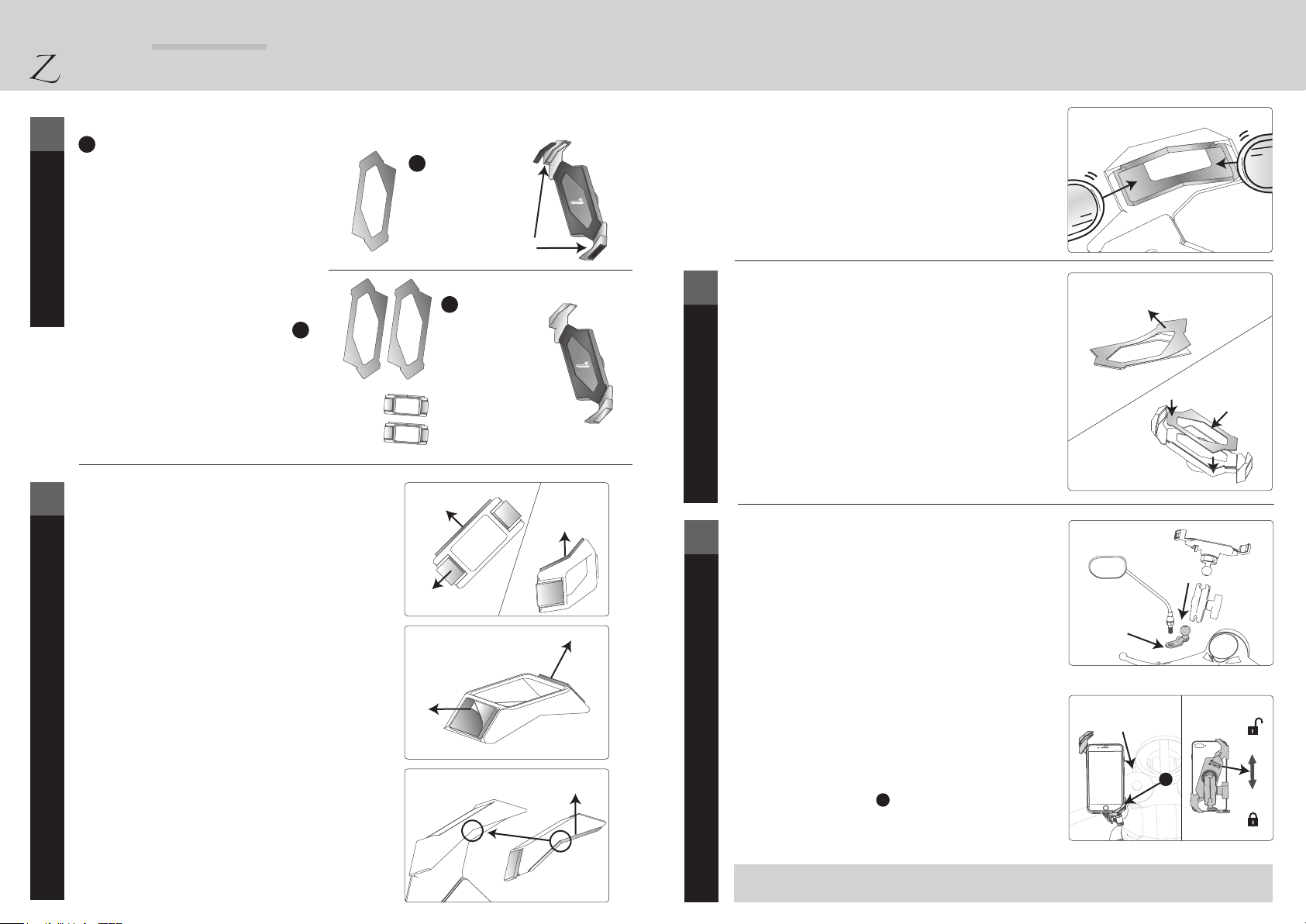

Installation of pads
Contents
1
Installation of pads for both upper & lower sleeve corners
2
The standard version:
1 mm thick damping foam is
included. The user can decide whether
to use the foam, based on the
thickness of the phone case. Sticking
the foam on the phone holder bed
before inserting the smartphone helps
enhance the phone holder‘s grasping
power.
The thicker case version:
Suitable for a thicker phone case. 1
mm thick damping foam and two pads
for both the upper and lower sleeves
are included. The user can decide
whether to use the foam and pads for
enhancing the phone holder‘s grasping
power.
1.
Take off the white releasing paper at
both sides of the pad (Figure 1).
2.
Be aware of the facing. The convex
side should be the front side (Figure 2).
3.
Insert a pad onto the inner side of the
sleeve, with the convex side
forward-facing the sleeve corner.
Center the pad and with a level
position, press it into the sleeve
(Figure3).
A
x 1
1mm
damping foam
A
A
A
Fig. 1
White
releasing
paper
White
releasing
paper
Position
convex side up
Fig. 3
convex
side up
convex side
Double-sided
stickers
Assemblage and operation
5
6
7
Unlock the smart security lock. Use one hand
to push the corner sleeves open by applying
force toward the lower right corner. Once the
corner sleeves are expanded, you can easily
take out your phone.

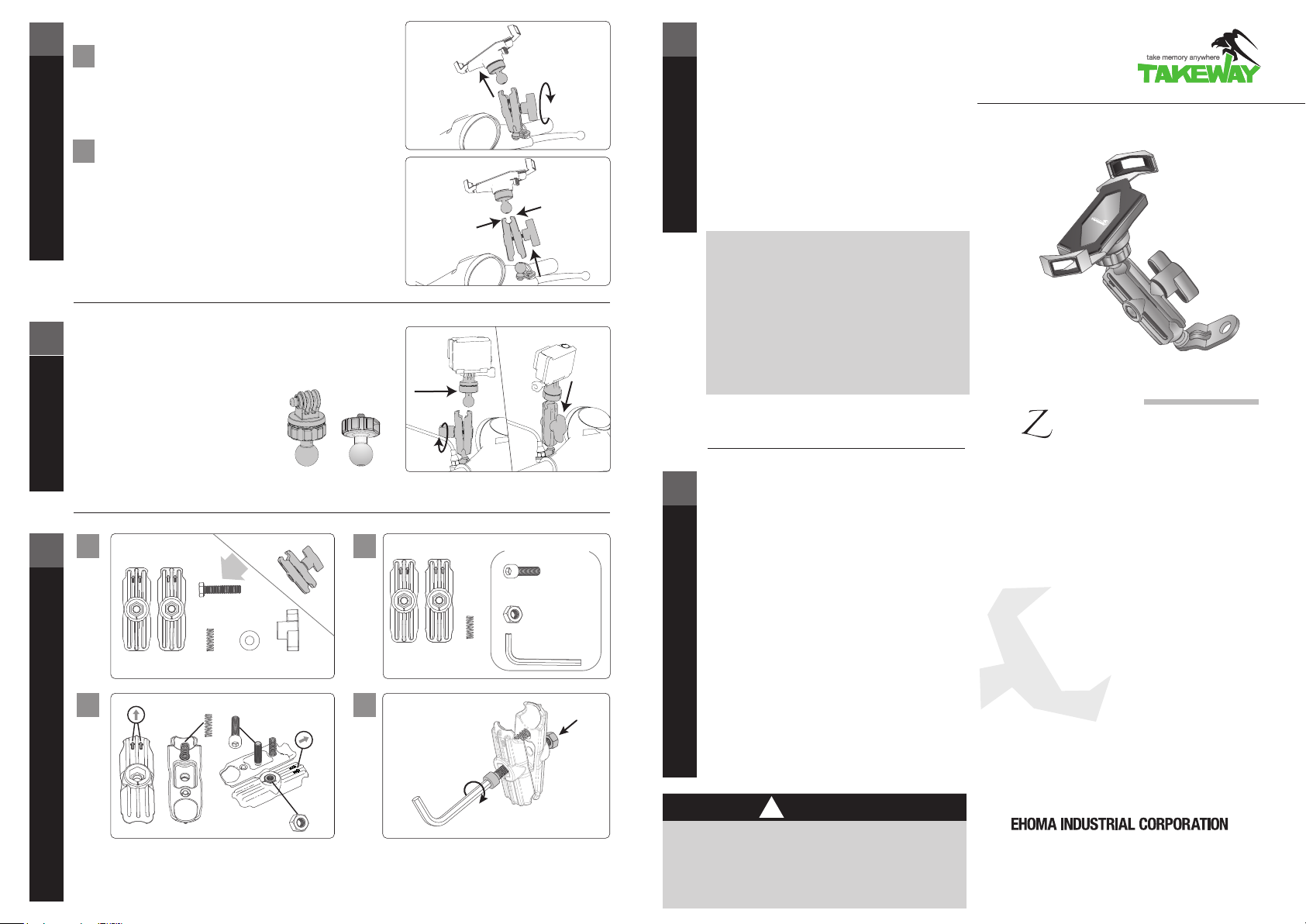

T-RC04 Quick release Ballhead
for action camera
Put the action camera on
T-RC04 Quick release ballhead.
Quick release universal bracket
(Anti-theft feature):
If the bracket will not be in use for a long time,
you can dismantle it by using the quick release
feature and store the bracket in a safe place.
Instruction: Loosen the bracket knob. Take off
the the ball-shaped mount of the phone holder.
Use fingers to nip the top of the clamping
bracket and the bracket will come off easily.
Take out the smartphone Mount for
Action Camera
※ Optional accessory: T-RC04
※ Optional accessory T-RC05
< Dismantling >
B
A
Mount For Anti-theft Instruction
3 4
1
Socket Arm Washer
Spring
Hexagon
Head Screw
Knob
Bracket 2
Socket Arm Spring M5 Allen key
anti-vibration nut
hexagon socket head
screw
Anti-theft pouch
Place and assemble the spring,
the screw, and the screw nut in the
right position. Use an Allen key to
tighten up the screw.
Note the direction!
The circle of the anti-vibration
hexagonal nut is outward.
T-RC04 T-RC05
1/4"
Universal
Screw
Fig.10
Fig.11
Take out
Loosen
Fig.12
T-RC04
All information described in this user guide is
based on the test standard of Takeway®. Sorry for
the inconvenience caused if there are any errors.
The design and specifications of this product are
subject to change without notice.
TW 02/2020
TEL:04-2406 5031
www.takeway.tw
Simple functional testing
8
The validity period of
the standard limited warranty
9The standard limited warranty is valid for
one year, from the original date of
purchase for a consumer or a private
purchaser (the warranty covers only the
primary phone holder and does not
include the attached accessories).
Please be aware of this condition and
use the phone holder at your discretion.
This product is covered by product
liability insurance. However, any
personal injury and property damage
caused by misuse of and physical abuse
to the product is not covered, and
Takeway® takes no responsibility for
such injury and damage.
Please carefully read the product manual
and correctly use the phone holder.
Patented product,
counterfeiting not allowed
1. Before setting the security lock, use
one hand to pull down the lower sleeve
corner to check whether the gliding is
smooth.
2. Fasten the security lock, while keeping
the sleeve corners open. Check whether
the extended sleeve corners are firmly
fixed and do not glide.
3. Unfasten the security lock. The sleeve
corners will automatically return to their
original positions.
※ Inappropriate testing and use might
damage the phone holder structure. Any
damage due to this inappropriate
handling is not covered by the standard
limited warranty.
※ If you have any concerns about the
product use, please stop using it
immediately and contact our customer
service.
Customer Service E-Mail:
This product is designed to reduce the vibration’s
impact on the smartphone. However, it does not function
as optical image stabilization and cannot completely
eliminate the vibration’s impact on the optical lens.
Please be aware of this condition and use the phone
holder at your discretion.
WARNINGS
!
Push
Push
Take out
Before using the product for the first time, please
read through the user guide.
Please use this product correctly after fully
understanding the contents of the user guide.
