VOIP-600Series Phone

Rave Mobile Safety Integration Guide

Page 1of 4Rev. 9/12/2014

I. Introduction

This guide provides general instructions for integration of the VOIP-600 Series Phone with a Rave

Mobile Safety account. Please read this instruction set completely before making any changes to the

system. For detailed VOIP-600 Series Phone setup instructions, please consult the VOIP-600 Series

Phone Manual.

II. Prerequisites

VOIP-600 Series Phone registered to receive direct inward dialing (DID) service calls and

DTMF through a SIP proxy or registrar

SIP proxy/registrar setup with direct inward dialing (DID) service

Rave Mobile Safety account

Network access to the Rave Mobile Safety account and VOIP-600 Series Phone

III. VOIP-600 Configuration

1. In the VOIP-600 main menu, select VOIP > Paging Settings.

2. Enter the following fields on the Paging Settings page. Then click Apply.

Select Paging Output:

Choose Speaker if a standalone VOIP-600 or WEBS-PA-1

Choose Line Level Output if a WEBS-CM-2, WEBS-PA-2IP, or connected to a WEBS

Tower

Add gain to incoming page before sending to specified output:

Output Gain: Range from 1-20, default setting is 20.

Automatically activate paging for inbound Phone calls:

Select No, as we need to use DTMF tones to be able to select specific devices.

Key code to activate paging during an inbound call is:

Select this check box and enter desired code.

Key code to deactivate paging during an inbound call is:

Select this check box if needed and enter desired code.

VOIP-600Series Phone

Rave Mobile Safety Integration Guide

Page 2of 4Rev. 9/12/2014

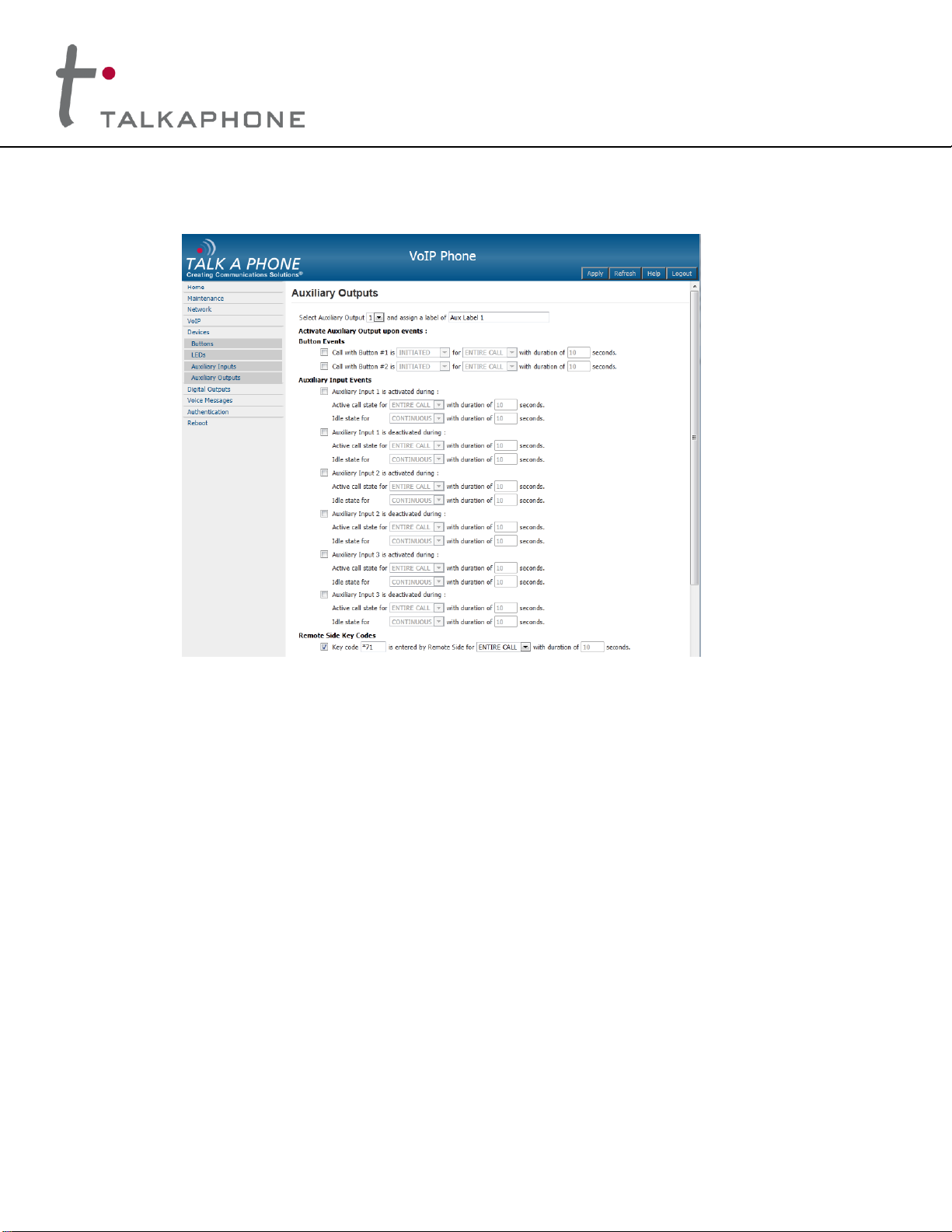

3. If Line Level Output was selected in Step 2, then the VOIP-600 may need to be configured to

activate an amplifier via an Auxiliary Output. From the VOIP-600 Main Menu select Devices >

Auxiliary Outputs.

4. From the dropdown menu at the top of the page, select the Auxiliary Output that is being used

to activate the amplifier.

5. Under Activate Auxiliary Output upon events,scroll down to Remote Side Key Codes.

Check the box and then enter the key code to activate the amplifier. This can be the same as

the code used in Step 2.

VOIP-600Series Phone

Rave Mobile Safety Integration Guide

Page 3of 4Rev. 9/12/2014

6. Select Authentication from the VOIP-600 Main Menu.

7. Authentication to activate Auxiliary Outputs can be enabled if desired. Complete the following

steps and then click Apply.

DTMF Access Code:

Guard Access Code always begins with *4* and then the code desired followed by a *.

Aux. Output Activation/Deactivation: If authentication is desired check this box.

VOIP-600Series Phone

Rave Mobile Safety Integration Guide

Page 4of 4Rev. 9/12/2014

IV. Rave Mobile Safety Basic Configuration

1. Using a web browser, log in to your Rave Mobile Safety account.

2. From the “My Account” screen, click “Add” to add the direct inward dialing (DID) phone number

of a VOIP-600 Series Phone.In the United States, a DID phone number is typically comprised

of 10-digits (i.e. 3-digit area code + 7-digit phone number).

3. Within the “Voice Only Line” page, simply enter the 10-digit Phone Number of the VOIP-600

Series Phone and use the Extension field to provide the DTMF code as configured earlier.

4. Click Save.
