TallyGenicom 34PPM Bedienungsanleitung

RS232/422 Installation Guide

for the 34PPM Laser Printer

Publication No. GEG-99203 Nov 04

ii RS232/422 Installation Guide for the 34ppm Laser Printer

Trademarks

The following are trademarks or registered trademarks of their respective owners. Other product names

mentioned in this manual may also be trademarks or registered trademarks of their respective owners.

Registered trademarks are registered in the United States Patent and Trademark Office; some trademarks may

also be registered in other countries. PostScript is a trademark of Adobe Systems Incorporated for a page

description language and may be registered in certain jurisdictions.

Proprietary Statement

not be reproduced, modified, displayed, transferred, or copied in any form or in any manner or on any media, in

whole or in part, without the express written permission of the manufacturer.

transferred to any other media or language, without the express written permission of the manufacturer.

The specifications of your printer and the content of this publication are subject to change without prior notice.

Every attempt has been made to verify the accuracy of the content herein

Nov 04 Publication No. GEG-99203

RS232/422 Installation Guide for the 34ppm Laser Printer iii

Features of the RS232/422 Serial Interface

How This Guide is Organized

Chapter 1 - Installing the Serial Interface in the 34PPM Printer

This chapter explains the procedure for installing the RS232/422 Serial Interface option in the

color laser printer.

Chapter 2 - Using the RS232/RS422 Ser ial Interface

This chapter lists the Serial Interface setup features and available selections via the control panel

menus. The Serial Interface connector pinouts are listed. Troubleshooting error messages appearing

on the printer’s control panel are also discussed.

Chapter 3 - Troubleshooting

This chapter discusses troubleshooting error messages appearing on the printer’s control panel.

Sources of help, information and technical support are also discussed.

Features of the RS232/422 Serial Interface

The RS232/422 Serial Interface for your printer provides the following:

■RS232/422 support

■Baud rate support from 1200 bps to 115200 bps

■DB-25 female connector

■Quick and easy installation

■Control panel menus enable fast and easy configuration and troubleshooting.

Publication No. GEG-99203 Nov 04

iv RS232/422 Installation Guide for the 34ppm Laser Printer

Safety Precautions

CAUTION: Handling ESD-Sensitive Parts

Many electronic parts use parts that are known to be sensitive to electrostatic discharge (ESD). To

prevent damage to ESD-sensitive parts, follow the instructions below in addition to all the usual

precautions, such as turning off power before removing logic boards:

❥Keep the ESD-sensitive part in its original shipping container (a special “ESD bag”) until you are

ready to install the part into the machine.

❥Make the least-possible movements with your body to prevent an increase of static electricity

from clothing fibers, carpets, and furniture.

❥Use an ESD wrist strap on your wrist if available. Connect the wrist band to the system ground

point. This discharges any static electricity in your body to the machine.

❥Hold the ESD-sensitive part by its edge connector cover; do not touch its pins. If you are remov-

ing a pluggable module, use the correct tool.

❥Do not place the ESD-sensitive part on any metal surface; if you need to put down the ESD-sen-

sitive part for any reason, first put it into its special bag.

❥Metal surfaces are electrical grounds. They increase the risk of damage because they make a

discharge path from your body through the ESD-sensitive part. (Large metal objects can be dis-

charged paths without being grounded.)

❥Prevent ESD-sensitive parts from being accidentally touched by other personnel.

❥Take extra care working with ESD-sensitive parts when cold weather heating is used because

low humidity increases static electricity.

WARNING: To prevent the danger of electric shock, before installing any options be sure to

turn the power switch of the printer to the off [O] position and disconnect the power cord

from the wall outlet.

Nov 04 Publication No. GEG-99203

Contents

How This Guide is Organized 1-iii

Features of the RS232/422 Serial Interface 1-iii

Safety Precautions 1-iv

Contents 0-1

Chapter 1 Installing the Serial Interface in

the 34PPM Printer 1-1

About this Chapter 1-2

Installing the RS232/422 Serial Interface in the 34PPM Laser Printer

1-2

Chapter 2 Using the RS232/422 Serial Interface 2-1

About this Chapter 2-2

Control Panel MENU structure 2-2

SERIAL SETUP Menu 2-4

Interpreter 2-4

Format 2-4

Serial Mode 2-4

Baud Rate 2-4

Data Bits 2-4

Publication No. GEG-99203 Nov 04

2RS232/422 Installation Guide for the 34ppm Laser Printer

Stop Bits 2-4

Parity 2-5

DTR Ready/Busy 2-5

DTR Onl/Offl 2-5

DTR Error 2-5

RTS Ready/Busy 2-5

RTS Onl/Offl 2-5

RTS Error 2-5

XON Ready/Busy 2-5

XON Onl/Offl 2-6

XON Error 2-6

DTR Polarity 2-6

RTS Polarity 2-6

Robust XON 2-6

Disabling the Serial Interface 2-6

Serial 2-6

RS-422 Serial Cable Pin Assignments 2-7

Chapter 3 Troubleshooting 3-1

About this Chapter 3-2

Control Panel Error Messages 3-2

Obtaining Help and Information 3-2

Your Point of Purchase 3-3

Your Application Vendor 3-3

Technical Support 3-3

Nov 04 Publication No. GEG-99203

Chapter 1

Installing the Serial

Interface in

the 34PPM Printer

In this Chapter . . .

■“About this Chapter” on page 1-2

■“Installing the RS232/422 Serial Interface in the 34PPM Laser Printer” on page

1-2

Publication No. GEG-99203 Nov 04

1-2 RS232/422 Installation Guide for the 34ppm Laser Printer

Installing the RS232/422 Serial Interface in the 34PPM Laser Printer

About this Chapter

This chapter explains the procedure for installing the RS232/422 Serial Interface option in the

color laser printer.

Installing the RS232/422 Serial Interface in the 34PPM Laser Printer

1. Carefully review the safety precautions in the front of this guide before starting this installa-

tion procedure.

2. Ensure that the printer power switch is set to the OFF [ O ] position and unplug the power

cord from the AC outlet.

3. Disconnect the power cord from the wall outlet.

Nov 04 Publication No. GEG-99203

RS232/422 Installation Guide for the 34ppm Laser Printer 1-3

Installing the RS232/422 Serial Interface in the 34PPM Laser Printer

5. Turn thumbscrews on controller assembly counterclockwise until loose and gently pull cover

towards you to remove from printer.

6. Once the thumbscrews have been removed, pull the side panel away from the printer by the

top edge as show below.

Publication No. GEG-99203 Nov 04

1-4 RS232/422 Installation Guide for the 34ppm Laser Printer

Installing the RS232/422 Serial Interface in the 34PPM Laser Printer

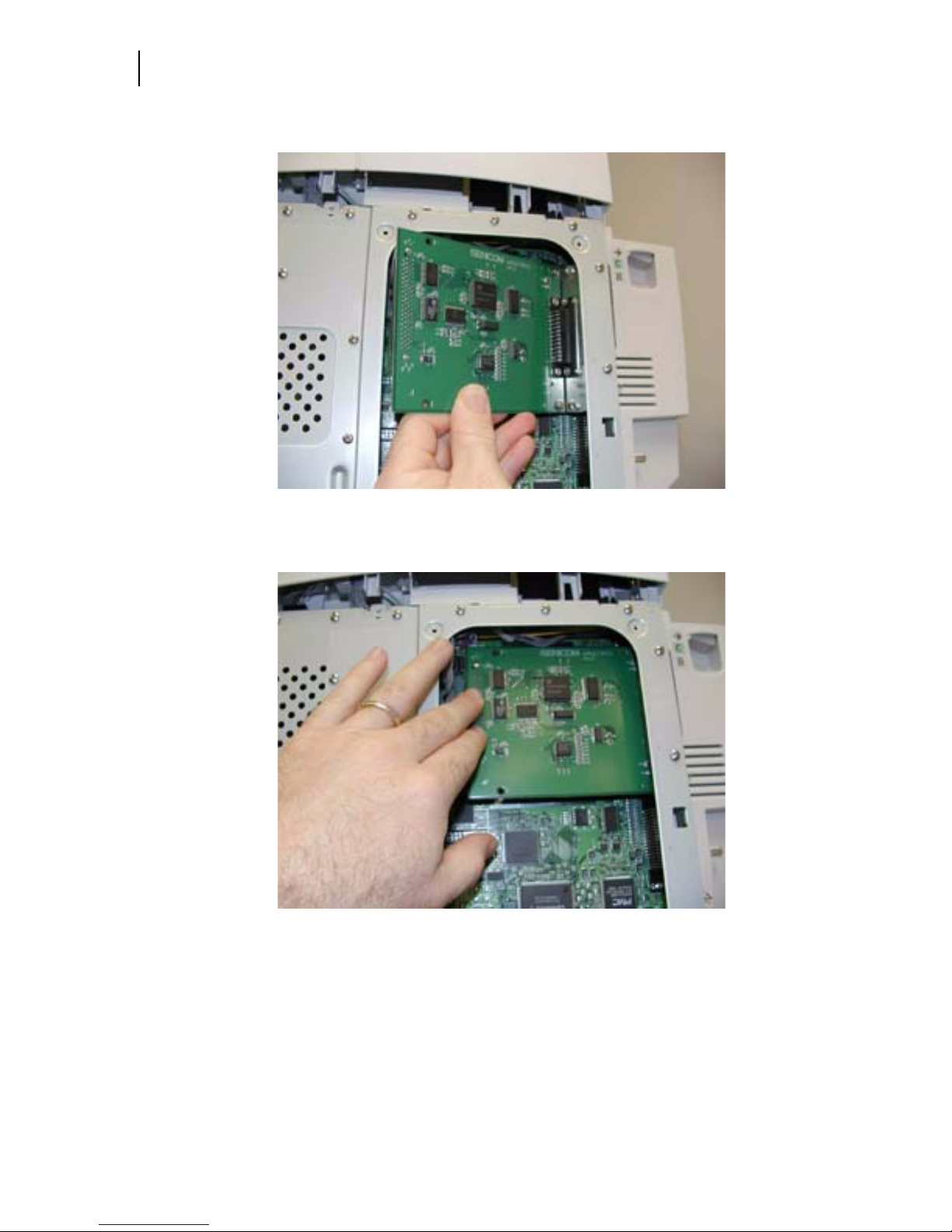

7. Gently place the RS232/422 option into the controller assembly as shown below.

8. While aligning the front bracket of the serial interface assembly to the two respective thumb-

screws on the controller assembly bracket, firmly seat the 80-pin male connector on the

underside of the interface to the 80-pin female connector on the controller assembly.
