Talon Talon 65556 Bedienungsanleitung
REVISED DATE
REVISED DATE
SPECIFY MODEL NO. WHEN ORDERING PARTS

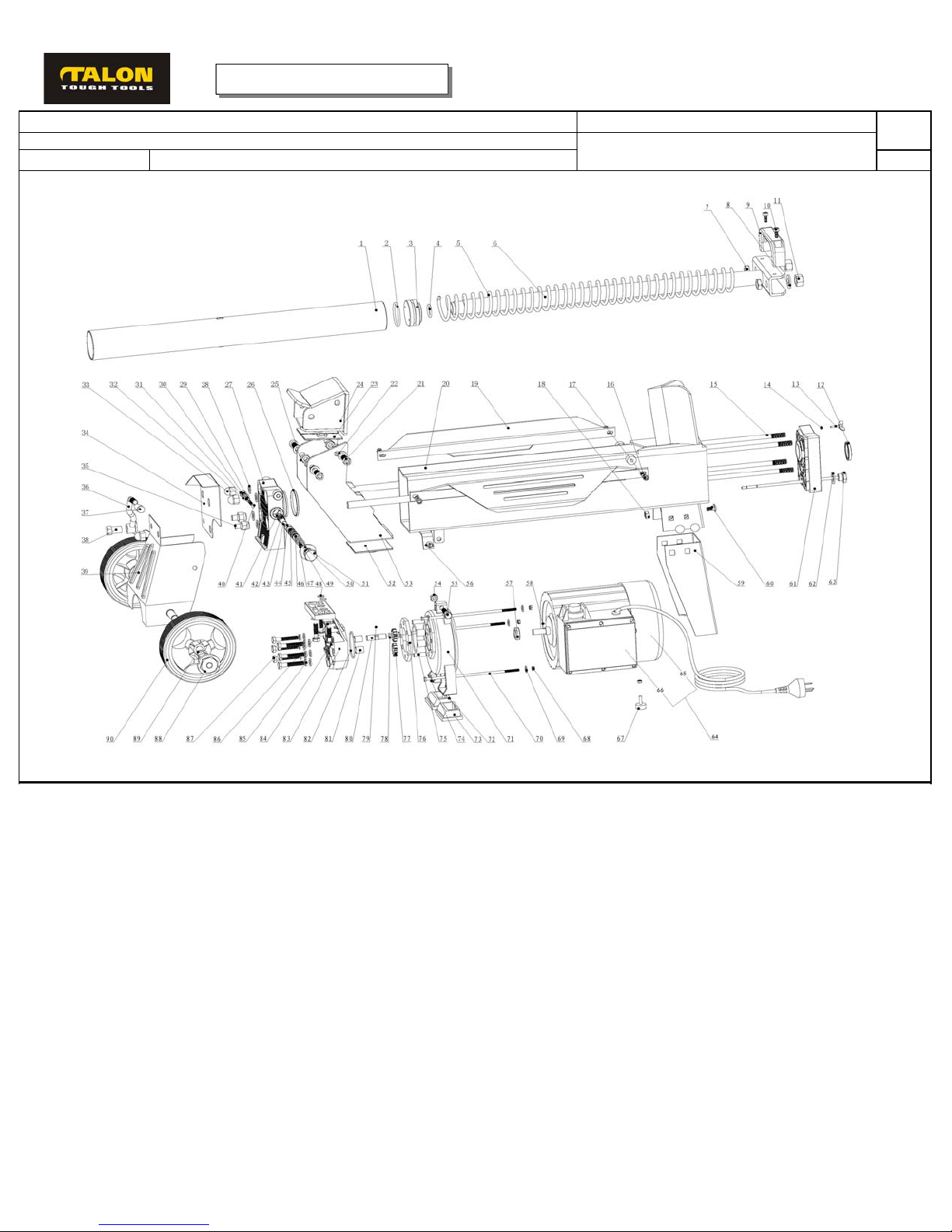

4 TON LOG SPLITTER
SERVICE SPARE PARTS LIST
N/A
8/7/2008
REVISED
DATE
MODEL NO.
4
TON
LOG
SPLITTER
FB4052 (65556)
SERVICE SPARE PARTS LISTSERVICE SPARE PARTS LISTSERVICE SPARE PARTS LISTSERVICE SPARE PARTS LISTSERVICE SPARE PARTS LIST
TIYA model #65556
6/1/2009
TIYA No. JF Parts No. Descri
p
tion
Q
P Code
JF model # FB4052
PARTS LIST
TIYA
No.
JF
Parts
No.
Description
Q
1 7200-405201 CYLINDER 1 210
2 7200-405202 PISTON O-RING 1 210
3 7200-405203 PISTON 1 210
4 7200-405204 O-RING 1 210
5 7200-405205 SPRING 1 210
PARTS LIST
6 7200-405206 POSITON ROD WELDMENT 1 210
7 7200-405207 NUT 2 210
8 7200-405208 WASHER 2 210
9 7200-405209 MOVING HANDLE 1 210
10 7200-405210 HEX. BOLT 2 210
11 7200-405211 NUT
,
M14 2 210
PARTS LIST
11
7200 405211
NUT
,
M14
2
210
12 7200-405212 PLASTIC SEAL 1 210
13 7200-405213 WING SCREW/ BLEED SCREW 1 210
14 7200-405214 O-RING 1 210
15 7200-405215 LONG STUB 4 210
16 7200-405216 HEX. BOLT 6 210
PARTS LIST
17 7200-405217 SPRING WASHER 4 210
18 7200-405218 NUT 5 210
19 7200-405219 SUPPORT PLATE 2 210
20 7200-405220 TUBE FRAME/ OIL TANK 1 210
21 7200-405221 HEX. BOLT 4 210
22
7200
-
405222
WASHER
4
210
PARTS LIST
22
7200-405222
WASHER
4
210
23 7200-405223 UPPER PLASTIC INSERT 1 210
24 7200-405224 LOG PUSHER WELDMENT 1 210
25 7200-405225 NUT 4 210
26 7200-405226 O-RING 1 210
27 7200-405227 CYLINDER COVER-LEFT 1 210
PARTS LIST
28 7200-405228 COPPER GASKET 4 210
29 7200-405229 SAFETY VALVE SPRING 1 210
PARTS LIST
30 7200-405230 SCREW 1 210
31 7200-405231 SAFETY VALVE BOLT 1 210
32 7200-405232 O-RING 1 210
33 7200-405233 ROUND HEAD NUT 3 210
34 7200-405234 LEVER GUARD 1 210
35 7200-405235 NUT 2 210
36 7200-405236 LEVER WELDMENT 1 210
37 7200-405237 LEVER HEAD 1 210
38 7200-405238 LEVER NUT 1 210
39 7200-405239 WHEEL FRAME PLATE WELDMENT 1 210
40 7200-405240 STEEL BALL 1 210
41 7200-405241 CIRCLIP 1 210
42 7200-405242 RESTORE VALVE SPRING 1 210
43 7200-405243 VALVE ROD 1 210
3
700 05 3
VV O
0
44 7200-405244 O-RING 1 210
45 7200-405245 VALVE SLEEVE 1 210
46 7200-405246 O-RING 5 210
47 7200-405247 O-RING 2 210
48 7200-405248 SLIDING SLEEVE SPRING 1 210
49 7200-405249 SLIDING SLEEVE 1 210
50 7200-405250 WASHER 1 210
51 7200-405251 VALVE PLUG 1 210
52 7200-405252 LOWER PLASTIC INSERT 1 210
53 7200-405253 DRAWING WELDMENT 1 210
54 7200-405254 LOOSE NUT 1 210
54
7200 405254
LOOSE
NUT
1
210
55 7200-405255 HEX. BOLT 1 210
56 7200-405256 WASHER 2 210
57 7200-405257 MOTOR SHAFT SEAL 1 210
58 7200-405258 SETEEL BALL, 2.5 1 210
59 7200-405259 SUPPORT LEG 1 210
60 7200-405260 CARRIAGE 5 210
61 7200-405261 CYLINDER COVER-RIGHT 1 210
62 7200-405262 DIPSTICK GASKET 1 210
63 7200-405263 DIPSTICK 1 210
64 7200-405264 MOTOR WITH SWITCH 1 210
65 7200-405265 MOTOR 1 210
66 7200-405266 SWITCH BOX 1 210
67 7200-405267 BOLT 1 210
68 7200-405268 NUT 1 210
69 7200-405269 SPRING WASHER 3 210
70 7200-405270 BOLT 3 210
71 7200-405271 MOTOR COVER 1 210
72 7200-405272 MOTOR SUPPORT SHOE - LEFT 1 210
73 7200-405273 MOTOR SUPPORT SHOE - RIGHT 1 210
74 7200-405274 WASHER 9 210
75 7200-405275 PIN 2 210
76 7200-405276 GEAR HOUSING PLATE 1 210
77 7200-405277 GEAR 2 210
77
700 0577
G
0
78 7200-405278 GEAR GEAR SHAFT SNAP WASHER 2 210
79 7200-405279 PIN 1 210
80 7200-405280 GEAR SHAFT 1 210
81 7200-405281 SLIDING BEARING 4 210
82 7200-405282 O-RING 2 210
83 7200-405283 PUMP COVER 1 210
84 7200-405284 BOLT 3 210
85 7200-405285 SPRING WASHER 9 210
86 7200-405286 WAHSER 9 210
87 7200-405287 BOLT 6 210
88 7200-405288 WHEEL COVER 2 210
88
7200 405288
WHEEL
COVER
2
210
89 7200-405289 WHEEL SHAFT SNAP RING 2 210
90 7200-405290 WHEEL 2 210
