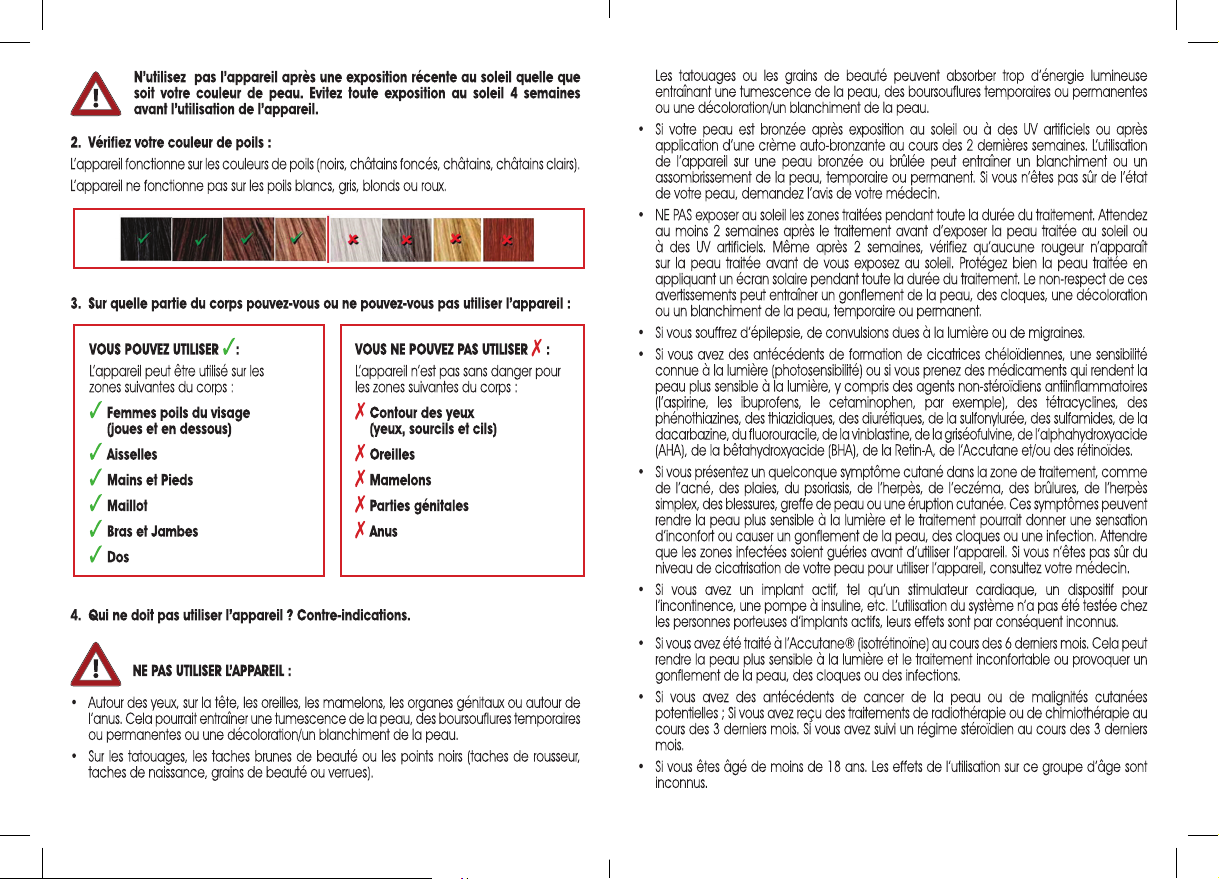

Ne Pas utiliser l’appareil si votre couleur de peau est listée comme
« à risque ». Si vous utilisez l’appareil sur un teint moyennement
foncé, brun, brun foncé ou noir - tous répertoriés comme « à risque »
- la peau peut absorber trop de lumière, ce qui pourrait la brûler.
✓✓✓✓
II I
✓✓
III
✓✓
IV V
✗
✗
VI
✗
✗
Couleurs de peau
à risque
Usermanual
KAM YUE N PL A S TIC PRODU C T S LT D
Website:www.kyplastic.com
Pu Jin Industrial Konghou Zhongshan City China
Tel:(86)760-88416080
Email:kamyuen@kyplastic.com
28
Warranty card
(The user save it,show to maintenance site when maintence)
Product name:
Type:
Production place:
Guarantee time:
Invoice N O .:
Buying date:
Maintenance Record
Maintenance date: Examination date:
Condition of ault, maintenance ,handling:
Maintenance company: Maintenance man signature:
01
Catalogue
Introduction…………………………………………..………02
Structural composition…………………………..….…..03
Product use and description……..…………..…..…04
Taboo…………………………………………………….………05
Under what circumstances don't allow use this
product….….….….….….….….….….….….….….….…......….06
Specification for use...........................................08
Common problems and solutions.....................11
Usage cycle..........................................................14
Preparation before use.......................................16
Pre - use skin test................................................16
How to use...........................................................18
Cleaning and maintenance................................24
Trouble shooting.................................................25
Assistance............................................................25
Technical parameter...........................................26
Working Condition.............................................27
Stock and Transportation..................................27
Warranty card......................................................28
02
Introduction
Before you use for the first time,please read the
whole user manual.

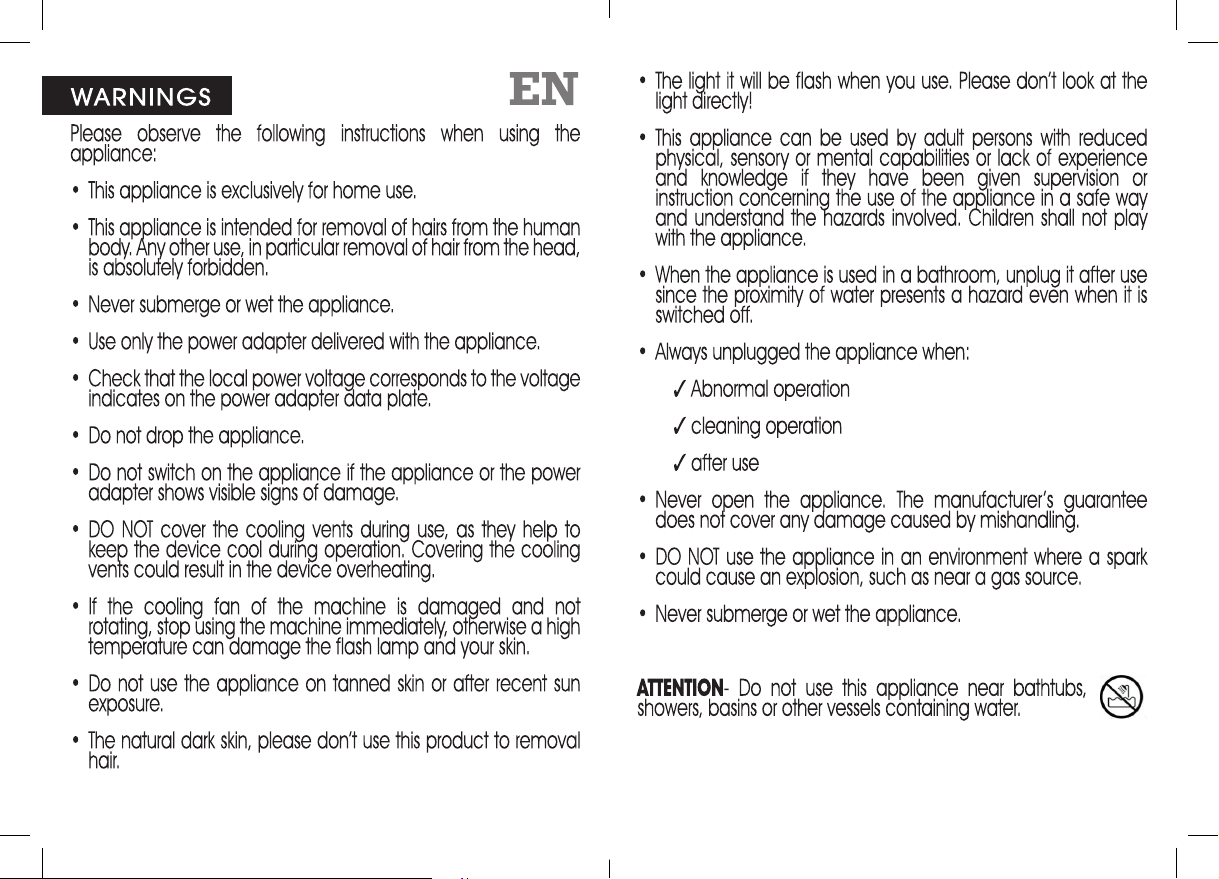

Attention:
The light it will be flash when you use.
Please don't look at the light directly!
Do not use this product on tanned skin
or after recent sun exposure!
If use in above condition, it may be
burnyour skin or serious damage to
your skin.
The natural dark skin please don't use this product
to removal hair.
Before using this product, please read carefully
and use it in accordance with all safety warnings
and guidelines for the Aimanfun Ice sense sliding
hair removal .
The Aimanfun Ice sense sliding hair removal is a
personal care appliance.So in the safe side,it need to
use in careful.
27
Working Condition
Stock and Transportation
Temperature
Relative Humidity
Atmospheric Pressure
Temperature
Relative Humidity
Atmospheric Pressure
26

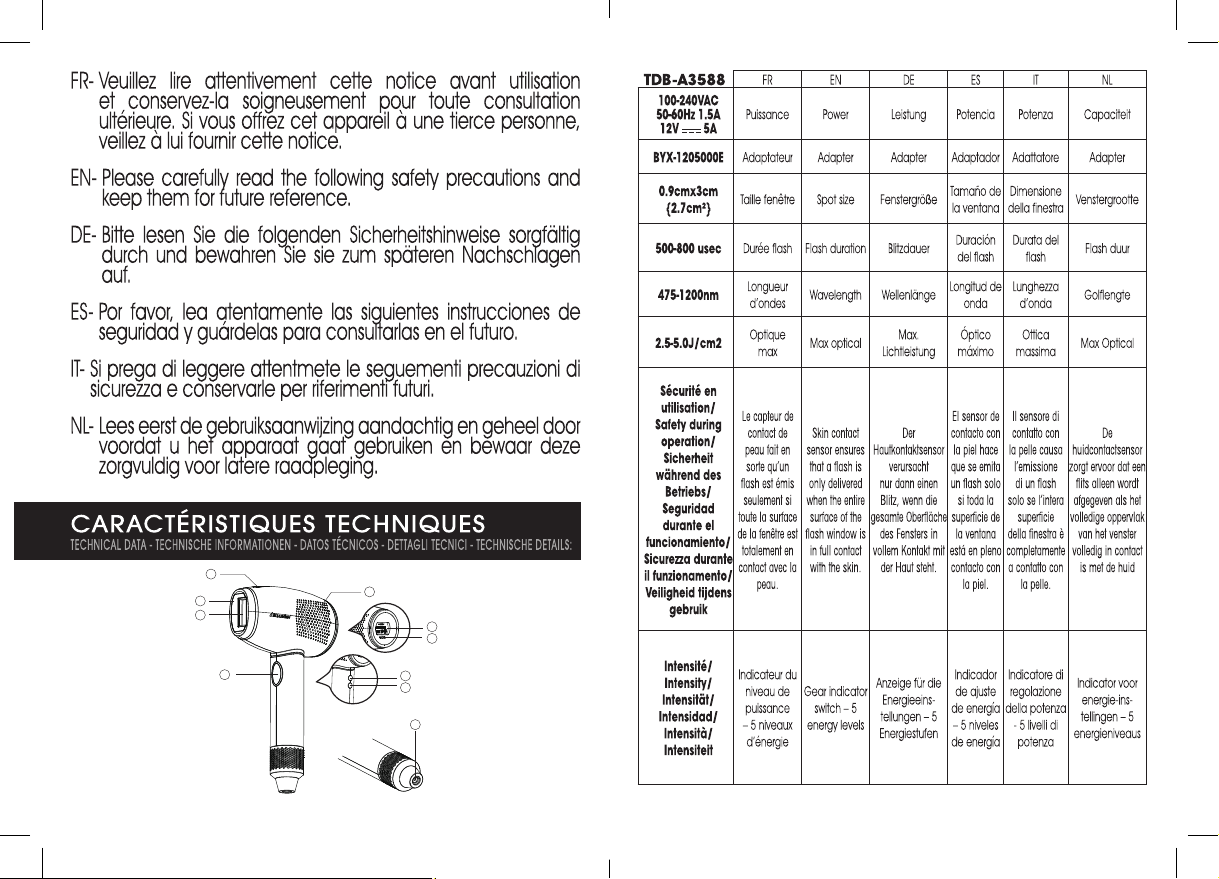

Technical parameter
A-3588
2.5-5.0J/cm2
100-240VAC 50-60Hz 1.5A
（13.5x7.5x23cm）H*W*D
360g
BYX-1203000
Model
Spot size
Technology used
Flash duration
Wavelength
Power output
Charging time/ Power source
Time needed to
treat on e lower leg
Safety during operation
Risk group
Package size
Product weight
Adapter
Rated
Intense pulsed light
500-800 usec
Continuous operation
11minute
Skin color sensor ensures
that a flash is only delivered
to appropriate skin colors.
Exempt
03
Structural composition
1
2
3
4
5
6
7
8
9
10
1Power interface
2Flash button
3Flash light
window
4Refrigeration panel/
Ice - sensing contact
surface
5Air outlet
6Air inlet
7LCD display screen
8Indicator light
9ICE -Switch
10 ON/OFF Gear conversion button
※It is forbidden to block the
air inlet and outlet with sundries.
Failure to do so could result in
serious damage to the instrument.
04
Product use and description
Aimanfun Ice sense sliding hair removal product is used for
removing excess hair and body hair, and can also reduce hair
regrowth. The products include underarm, bikini wire, arms
and legs.
IPL technology offers superior safety with lower energy
level.
Intense Pulsed light technology is able to achieve long-term
hair removal results at a fraction of the energy level used in
other light-based hair removal device. The low energy used in
Aimanfun Ice sense sliding hair removal reduces its potential
to cause harm or complications, and contributes to your
overall safety.
Aimanfun Ice sense sliding hair removal has eye and skin
protection settings.
It is designed so that the flash light window requires full
contact with the skin to work ( flash ), No works (flash)as long
as either side does not contact the skin.
The product uses ice technology, a newly developed ice
technology.Can be cooled to 10 degrees celsius.After turn
on the ICE -Switch, it is possible to reduce the heat generated
in using for hair removal.At the same time, after entering the
ice nursing mode, more careful care of the skin, tighten the
skin, bring more painless and lasting beauty skin care
experience.
There are no any operation af ter 10 minutes ,the product
will automatically shut down to stop working.
25
Trouble shooting
1.Cannot start
- Make sure that the power cord is plugged into the device
socket properly.
- Make sure that the adapter is plugged into the electrical
outlet Properly.
2.No flash is emitted when I press the flash button
- Make sure that you have good skin contact and that the
skin contact surface is evenly and firmly pressed onto the skin. For
your safety, the flash button will only activate a flash if the skin
contact surface is in full contact with the skin.
- This is a system error if the READY is flashing with other
lights.Please turn off the equipment and unplug the power
supply.Then insert the setting and try opening it again. If the
problem persists, call 400 - 846 - 1668 for assistance.
Assistance
If you need assistance, pls send e-mail to
kamyuen@kyplastic.com or call our toll-free hotline at 400 -
846 - 1668
24
How to use
After you use this device:
1.When you complete a depilation period , long Press the ON/OFF
button until the device is turned off.
2.Unplug the adapter from the electrical outlet and the AC cord
from the device socket.
3.Put it back in its original box and away from the water.
Skin care after hair removal session
Do not expose the treated areas of the skin to the sun. To protect
recently treated skin when exposed to sunlight, be sure to apply a
sunscreen with SPF30 or higher thoroughly for 2 weeks after each
hair removal session.
Side effects and complications
Some users experience pigment changes after using the product. If
it happens, it is both mild and transient. If you have any
complications, please contact your doctor directly.
Cleaning and maintenance
After each use, it is recommended that you clean the equipment,
especially its skin contact surface.
1.Turn off the device and unplug it from the electrical outlet.
2.Use a dry, clean cloth and a specially formulated cleaner for
electronic equipment to gently wipe the outer shell and the skin
contact surface of the device.
※Never immerse the device or any of its parts in water.
05
Taboo
Important information - please read before using!
Aimanfun Ice sense sliding hair removal is not designed for
everyone. Please read and consider the information in the
following section before use.
1.If you are not sure the Aimanfun Ice sense sliding hair
removal is suitable for your use, consult your physician or
dermatologist.
2.Do not use if you have a naturally dark skin color.This
product removes excess hair by addressing hair coloring, but
depends on Is your skin color suitable for use with this device.The
amount of skin pigment in a person is determined by their skin
color. Using this product in dark color skin tone can cause burns,
bubbles and skin color changes ( pigmentation or
hypopigmentation ).。
3.Do not use on tanned skin or after recent sun exposure.
Tanned skin, particularly after sum exposure, contains large
quantities of the pigment melanin. There is a high risk of using
this product under the skin of large amounts of melanin.Side
effects such as burns, blisters, and skin color changes that can
result from the use of this product on recently exposed skin. (
excessive pigmentation or hypopigmentation ).
4.Avoid exposure to the sun for 4weeks before your use
with Aimanfun Ice sense sliding hair removal !
5.If you are natural white, gray, blond and red hair, do not
use this product!
There is no effect in the above case. If your own hair is these
colors, do not use it.
06
Under what circumstances don't allow use this product
Do not use this Aimanfun Ice sense sliding hair removal, for
the time being under specific conditions. Do not use this
device if:
1.If you are pregnant or nursing (lactating).
2.If you 've been exposed to the sun or had an ar tificial skin
graft in the last four weeks.
3.If you have a tattoo or mark in the area you want to use this
product.
4.If you have dark spots, such as freckles, birthmarks, moles in
the area you want to use.
5.If you have eczema, psoriasis, lesions, open wounds or
active infections, such as cold sores, in the area to be treated.
Wait for the area to heal before you use the device.
6.If you have a histor y of kelodial scar formation, a known
sensitivity to light (photosensitivity) or are taking medication
that makes the skin more sensitive to light, including non-
steroidal anti-inflammatory agents, (e.g., aspirins, ibuprofens,
acetaminophen), tetracyclines, phenothiazines, thiazide,
diuretics, sulfonyluraes, sulfonamides, DTIC, fluorouracil,
vinblastine,
griseofulvin, Alpha-Hydroxi Acids (AHAS), beta-hydroxi acids
(BHAS), retin-A, accutane and /or topical retinoids.
7.If you have abnormal skin conditions due to diabetes,
forexample. Or another systemic or metabolic disease.
23
How to use
For many people, the use of this depilator y instrument is their
first experience with optical depilatory equipment designed
for home use. The depilation instrument is simple and easy to
use, and the depilation speed is fast.
When the machine cooling fan damage without
rotation, please stop using the
machineimmediately, otherwise it may lead to
flash rupture due to high temperature and
damage the skin.
Flash- The bright light emitted by Aimanfun Ice sense sliding
hair removal does not harm the eyes when directed at non-facial
areas. Special eye protection is not necessary when using this
product.
A fan noise- The cooling fan inside the device sounds similar
to a hairdryer. This is normal.
A popping sound at each flash- When a flash is activated, it is
normal to hear a soft popping sound and see a flash at the same
time when a flash is being emitted.
A warm and tingling sensation- When a flash is administered,
it is normal to feel a mild warm and tingling sensation. Remember
that is important to always use low settings for initial hair removal
sessions. You may continue to feel some warmth up to an hour
after use.
Mild red or pink color- During or just after you use, it is not
uncommon to see very mold pink coloration of the skin. This pink
color is usually most noticeable around the hairs themselves. If
your skin is completely red or shows blisters or burns, stop using
the device immediately.
22
How to use
This device has two mode options, single flash (manual mode) and
sliding flash.
The device has two flash modes, which make it easier to use in
different body parts.
- The single flash (manual mode) is ideal for small or curved areas
such as the knee and underarm. Just press and loosened the flash
button to emit a flash.
- The sliding flash mode can be conveniently used for large area
parts such as legs. You can slide the device on the skin while holding
down the flash button to flash continuously.
Gear level
Gear adjustment determines the intensity of the flash reaching your
skin.A total of five levels, the corresponding intensity bar shows the
selected intensity.As the intensity level increases, the risk of possible
side effects and complications of depilation increases
accordingly.Always use this product from the lowest level of strength.
If you have no discomfort during the first depilation using the
minimum strength level, the next use can increase the strength level
by 1.
Do not increase the strength level if you feel uncomfortable during
use of this product(For more information, please see” Common
problems and solutions”)
If you feel comfortable using the previous stage, you can strengthen
the level appropriately.
Make sure that the skin contact surface is pressed against the skin
around, and then press the flash button to let go. Place the device
next to the area of use in the next flash. This step of the flash mode
ensures hair removal effects such as knees and ankles.
07
Under what circumstances don't allow use this product
8.If you are currently or have recently been treated with
alpha-hydroxi acids, beta-hydroxi acids, retin-a, acctane
(isotretinoin), topical retinoids, or azelaic acid.
9.If you have been treated with accutane (isotretinoin) within
the past 6 months.
10.If you have been on a steroid regimen within the past 3
months.
11.If you have a histor y of herpes outbreaks in the treatment
area, unless you have consulted your physician and received
preventive treatment before you start using the device.
12.If you suffer from epilepsy.
13.If you have an active implant, such as a pacemaker,
incontinence device, insulin pump, etc.
14.If you have a disease related to photosensitivity, such as
prophyria, polymorphic light eruption, solar urticaria,
lupus,ect.
15.If you have a histor y of skin cancer or potential skin
malignancies.
16.If you have received radiation therapy or chemotherapy
treatments within the past 3 months.
17.If you have any other condition which in your physician's
opinion would make it unsafe for you to be treated.
18.If you are unsure Aimanfun Ice sense sliding hair removal
is safe for you to use,please consult your physician or
dermatologist.
08
Specification for use
1.Choose the intensity level carefully.
Intensity level refers to the intensity of the flash emitted onto
your skin during use., form the lowest level to the highest level.
The intensity lights around the intensity button indicate the
intensity
level at which the device is set. As the intensity level increases,
so do the results as well as the risk of side effects (see chapter
“Common problems and solutions”)
2.Always use this device from the lowest intensity level!
Only if you experience little or no discomfort during and after
use of Aimanfun Ice sense sliding hair removal at the lowest
intensity level, raise the intensity by one level the next time
you use the device and so on for each subsequent session. For
detailed instructions on setting the intensity level, please see
section"How to use".
3.Avoid adverse effects!
⑴ Do not treat the same area of skin more than once
during a session!
⑵Avoid overlapping flashes!
⑶ If your skin blisters or burns, stop using the device
immediately!
4.Avoid complications after use!
⑴Do not expose treated areas of skin to the sun. Sun exposure
includes constant unprotected exposure to direct sunlight
forover 15 minutes, or constant unprotected exposure to
diffuse sunlight for over 1 hour.
21
How to use
Operation steps:
Mode conversion:The device
defaults to single flash
mode(manual mode).When the
device is arranged in the sliding
flash mode, the flash light
window does not flash while away
from the skin,If you leave the skin
for more than 10 seconds, the
mode will automatically switch
back to single flash mode,second
to switch to single flash mode.
3、Ice - sensing mode: If you
only need to select the ice-
sensing mode, after the device is
turned on, press the ice-sensing
switch key for 1 second, and the
device will enter the ice-sensing
nursing mode.The LCD screen
switches to the current mode
screen,the indicator is long
blue.Can 't flash at this time,Inside
the radiator fan is still working.If
you need to return to flash mode,
press the ICE -Switch for another
1 second to return to flash mode.
4、Power off, press ON / OFF
for 1 second, and the device is
powered off.
ON/OFF
ICE
Long press
ON /O FF
ICE
Long press
ON /O FF
ICE
20
How to use
Operation steps:
4）Gear conversion button,
select the level you want.
(press the ON/OFF button
briefly to The strength of level
1 - 5 can be selected cyclically.
5）Correct usage: palce the
flash light window close（all
side contact） to the skin, the
indicator light ⑧ flashing, can
start to depilate.
2、Flash mode
This device has two mode
options, single flash (manual
mode) and sliding flash.
Sliding flash mode: After the
device is turned on, the flash
button is switched to sliding
mode by long press the flash
key without contacting the
skin.Flash continuously by
sliding slowly without pressing
any key
Single flash (manual mode) :
Shortly press the flash button
briefly to complete a flash.
Short press
ON/OFF
ON /O FF
ICE
ICE
90°
√
×
Long press
Sliding flash mode
As icon above
Short press
Single flash (manual mode)
As icon above
09
Specification for use
To protect recently treated skin when exposed to sunlight, be
sure to apply a sunscreen with SPF30 orhigher thoroughly for
2weeks after each hair removal session.
⑵Cover brithmarks and tattoos before treatment.
⑶Cover dark brown or black spots, such as large freckles,
birthmarks, moles or warts before treatment.
⑷Never look directly at light coming out of the light exit
window of the device.
⑸Do not use the device on nipples and genitals(male or
female).
⑹Do not use the device on any body site where you might later
want hair.
⑺Do not use the device for any other purpose than hair
removal.
⑻Never emit a flash into open space. Always make sure the skin
contact surface is in full contact with the skin during treatment.
⑼Remove the skin contact surface from the skin if either the
skin or the surface is too hot.
⑽Never use flammable liquids such as alcohol (including
perfumes, sanitizers, or other substances containing alcohol)
or acetone to clean the skin before you use the device.
⑾Use of the device may cause temporary pigmentation
changes (see chapter “Common problems and solutions“)
⑿Keep this device out of the reach of children.
⒀Do not use the device on children or allow children to use it.
10
Specification for use
In order to ensure that you can use this device properly, some
precautions must be:
1.Modification of this equipment is not allowed.
2.Do not put the device where there is water, keep away from
the water ,so as to fall into the water, may cause electric shock .
3.Don't allow disassemble the Aimanfun Ice sense sliding hair
removal device .
a.Do not attempt to disassemble or service this product.
Disconnecting this device can expose you to dangerous
electrical components and intense light, or can cause personal
injury or eye injury.
b.Assistance call 400-846-1668.
c.If you try disassemble this product , you may also damage the
device. Opening the device will void your warranty. Please call
to 400-846-1668. you have a broken or damaged device in need
of repair.
4.This product is used for the intended purpose only, as
described in the specification.
5.Do not connect the device to the power supply when not in
use.
6.Do not start the device if the wire or adapter is damaged.
Keep the wire away from the high temperature source.
7.Smell smoke while you are using it.
8.Do not use the device if it does not function properly or is
damaged.
19
How to use
Note: your skin may be exposed to different radiation for a
variety of reasons Days / occasions with different reactions.
Operation steps:
1、1）Connect the power
supply: plug in the power
supply, LCD start a second after
the screen is not bright
,Indicator light ⑧ long bright
purple.
2）Standby: Press the on /
off button for 1 second for the
device to start running with the
sound of fan rotation.The LCD
displays the current information,
the number of flashes
remaining,( note - The default
level 1 with manual mode, no
ice sense. )When the indicator
light ⑧ changes from red to
blue, the device can start to use.
3）Ice - sensing mode:short
press the ICE -Switch once, the
LCD displays the snowflake icon,
and the refrigeration panel
starts to work. ( skip this if you
don 't need ice sensing)
Short press
ON /O FF
ICE
ON/OFF
ICE
Long press
ON /O FF
ICE
18
How to use
Select the appropriate intensity level
1.Feel good when using this device. If you feel uncomfortable,
reduce the intensity level. You can use the gear selection
button to select the desired level
2.If you move to another body part or have recently done self-
tanning, skin tests should be performed to determine the
appropriate gear.
Note: because the skin color of each part of the
body may be different, you need to select the
appropriate gear for each part. This device does
not automatically select the appropriate gear.
Skin type
Skin type
White, always sunburned, not tanning
Beige, easy to sunburn，Easy to sunburn
into light black
Light brown, easy to sunburn,self-tanning
speed is slow,It turns brown
Dark brown; Rarely sunburned，easy to
self-tanning
Brown black or darker, rarely or never
tanned, dark black You cannot use
this device
You cannot use
this device
Gear setting
Medium brown, easy to sunburn,
self-tanning speed is slow
11
Specification for use
9.Do not use this device if the contact surface is damaged,
separated or missing and air leaks.
10.Do not use this device if the skin color sensor is broken or
damaged.
11.Do not use this device if the enclosure is broken or broken.
12.Unplug the power supply directly after you don't use.
13.Be sure to unplug the power supply before cleaning.
14.There are no referrals or accessories at AIMANFUN, please
do not use them at the same time.
15.For the Aimanfun Ice sense sliding hair removal must use
only its designated adapter. For the correct adapter details,
see specifications.
16.This device is not suitable for use in the presence or
flammable anaesthetic mixtures with air, oxygen or nitrous
oxide.
Common problems and solutions
Complications are not common in the use of this
device.However, each plastic surgery, including those
designed specifically for home use, involves a degree of
risk.Therefore, it is important that you understand and
accept risks and complications. This complex and intense
pulsed light depilation system is suitable for home use.
12
Common problems and solutions
Adverse
reaction
Possibility of
adverse
reactions
Side effect
Possibility of
side effects
Stack in g or
overlapping of
multiple flashes Slight Slight
Slight
Slight
Possibility of
side effects
Slight
Skin discomfort
Rubefaction
Skin allergy
Skin wound
or burn
Scar
Pigment
change
Excessive redness
or swelling
Infection
Bruise
Rare
Rare
Rare
Rare
Seldom
Seldom
Slight skin discomfort
Although IPL hair removal generally feels good, most users
experience slight discomfort during use.This slight
discomfort is usually described as a slight tingling sensation,
usually after a few minutes of flash or flash.Any excess of this
discomfort is an anomaly, meaning you should not continue
to use this product or use it incorrectly because you can 't
stand its depilation method, or the intensity level is set too
high.
17
Pre - use skin test
1.Select a position near the par t to be flashed
Do not try in difficult or sensitive areas ( ankle or bone )
Using the device.
2.Start the device to ensure that the gear is in 1st gear.
3.Place the device on the skin at an angle of 90 °and the device
exit window is fully in contact with the skin.
Integrated safety systems prevent accidental flash when not
in contact with the skin.
4.Press the flash button to flash.
5.Slide the device against the skin to the next area where flash
is required.
6.Choose to change the level according to your comfort level
7.After a skin test, wait 24 hours to check your skin for any
reaction. If your skin reacts, select settings that do not cause
skin reactions when used later.
If the skin color changes after the last flash, perform a skin
test and wait 30 minutes before the next flash.
16
Preparation before use
Before using this product, it is
recommended to pretreat the skin to
remove hair from the skin surface.
This allows the hair portion on the
skin surface to absorb light to ensure
the effect of the illumination. You can
shave, cut short, depilate or wax
Depilation. Do not use depilatory
cream because chemicals can cause
skin reactions.
Skin pretreatment
1.Pretreat the area where you want to use for hair removal
2.Clean the skin to make sure it is free of hair, completely dry
and free of oily substances.
Note: if shaving causes skin allergy, it is
recommended that you use this product
again after skin allergy is cured.
Pre - use skin test
Skin test
If this device is used for the first time or recently has been
blackened, each Prepare the irradiated area for skin test. Skin
tests are required Try, in order to check whether there is a skin
response to radiation, and determine each body Correct light
intensity settings for the location
13
Common problems and solutions
Skin redness
Your skin may apper skin redness within before or after 24
hours of using this product. If skin redness does not
disappear within 2 - 3 days, consult your doctor.
Skin allergy
Skin area allergy may be due to dr y or peeling skin.
Skin wound or burn
Ver y rare, skin wounds or burns occur after use of the
device.Wounds and burns take weeks to heal, and ver y rarely
leave scars.
Bruise
Although very rare, scarring may occur. Usually when scarring
occurs, it is in the form of a flat and white lesion on the skin
(hypotrophic). However, it can be large and red
(hyertrophic)or large and extend beyond the margins of the
injury itself (keloid). Subsequent aesthetic treatments may be
required to improve the appearance of the scar.
Pigment change
Aimanfun Ice sense sliding hair removal targets the hair
shaft, in particular the pigmented cells in the hair follicle and
the hair follicle itself. Nevertheless, there is risk of temporary
hyerpigmentation (increased pigment or brown
discoloration) or hypopigmentation (whitening) to the
surrounding skin. This skin of changes in skin pigmentation is
higher for people with darker skin color. Usually discoloration
or changes to skin pigment are temporar y and
hyperpigmentation or hypopigmentation rarely occur.
14
Common problems and solutions
Excessive redness or swelling
In rare cases, treated skin may become very red and swollen.
This is more common in sensitive areas of the body. The
redness and swelling should subside within 2 to 7days.
Application of ice may help to reduce the welling. Gentle
cleansing of the skin is allowed, but exposure to the sun should
be avoided.
Under the action of IPL technology, soft light pulses are
irradiated on the skin and absorbed by the roots.The darker
the hair, the better the absorption of light pulses.If your hair
is light gold, gray, red, or white, irradiation with this product
will not work because light hair does not absorb enough
light.Below is a list of suitable and effective hair colors for use
with this product.
15
Usage cycle
Arms
Bikini line
Underams
50 % of
hair remove
60 % of
hair remove
55 % of
hair remove
Expected treatment outcome for hair removal .(Dark brown -
brown)
Hair color Light fluence
[l/cm2]
Hair removal
area
Average number
of uses Effect
Dark brown
- brown Max.5 Lower or
upper legs
Approximately
8 - 10 times ，
once for 4 weeks
70 % of
hair remove
Arms
Bikini line
Underams
60 % of
hair remove
70 % of
hair remove
65 % of
hair remove
Expected treatment outcome for hair removal .(Brown-Black)
Hair color Light fluence
[l/cm2]
Hair removal
area
Lower or
upper legs
Max.5
Average number
of uses
Approximately
10 - 12 times ，
once for 4 weeks
Effect
60 % of
hair remove
Brown
-Black
Aimanfun Ice Sense Sliding
Hair Removal Device
A-3588
Usermanual
KAM Y U EN P LAS T IC PRO D UCTS LTD
Website:www.kyplastic.com
Pu Jin Industrial Konghou Zhongshan City China
Tel:(86)760-88416080
Email:kamyuen@kyplastic.com
28
Warranty card
(The user save it,show to maintenance site when maintence)
Product name:
Type:
Production place:
Guarantee time:
Invoic e N O.:
Buying date:
Maintenance Record
Maintenance date: Examination date:
Condition of ault, maintenance ,handling:
Maintenance company: Maintenance man signature:
01
Catalogue
Introduction…………………………………………..………02
Structural composition…………………………..….…..03
Product use and description……..…………..…..…04
Taboo…………………………………………………….………05
Under what circumstances don't allow use this
product….….….….….….….….….….….….….….….…......….06
Specification for use...........................................08
Common problems and solutions.....................11
Usage cycle..........................................................14
Preparation before use.......................................16
Pre - use skin test................................................16
How to use...........................................................18
Cleaning and maintenance................................24
Trouble shooting.................................................25
Assistance............................................................25
Technical parameter...........................................26
Working Condition.............................................27
Stock and Transportation..................................27
Warranty card......................................................28
02
Introduction
Before you use for the first time,please read the
whole user manual.
Attention:
The light it will be flash when you use.
Please don't look at the light directly!
Do not use this product on tanned skin
or after recent sun exposure!
If use in above condition, it may be
burnyour skin or serious damage to
your skin.
The natural dark skin please don't use this product
to removal hair.
Before using this product, please read carefully
and use it in accordance with all safety warnings
and guidelines for the Aimanfun Ice sense sliding
hair removal .
The Aimanfun Ice sense sliding hair removal is a
personal care appliance.So in the safe side,it need to
use in careful.
27
Working Condition
Stock and Transportation
Temperature
Relative Humidity
Atmospheric Pressure
Temperature
Relative Humidity
Atmospheric Pressure
26
Technical parameter
A-3588
2.5-5.0J/cm2
100-240VAC 50-60Hz 1.5A
（13.5x7.5x23cm）H*W*D
360g
BYX-1203000
Model
Spot size
Technology used
Flash duration
Wavelength
Power output
Charging time/ Power source
Time needed to
treat on e lower leg
Safety during operation
Risk group
Package size
Product weight
Adapter
Rated
Intense pulsed light
500-800 usec
Continuous operation
11minute
Skin color sensor ensures
that a flash is only delivered
to appropriate skin colors.
Exempt
03
Structural composition
1
2
3
4
5
6
7
8
9
10
1Power interface
2Flash button
3Flash light
window
4Refrigeration panel/
Ice - sensing contact
surface
5Air outlet
6Air inlet
7LCD display screen
8Indicator light
9ICE -Sw itch
10 ON/OFF Gear conversion button
※It is forbidden to block the
air inlet and outlet with sundries.
Failure to do so could result in
serious damage to the instrument.
04
Product use and description
Aimanfun Ice sense sliding hair removal product is used for
removing excess hair and body hair, and can also reduce hair
regrowth. The products include underarm, bikini wire, arms
and legs.
IPL technology offers superior safety with lower energy
level.
Intense Pulsed light technology is able to achieve long-term
hair removal results at a fraction of the energy level used in
other light-based hair removal device. The low energy used in
Aimanfun Ice sense sliding hair removal reduces its potential
to cause harm or complications, and contributes to your
overall safety.
Aimanfun Ice sense sliding hair removal has eye and skin
protection settings.
It is designed so that the flash light window requires full
contact with the skin to work ( flash ), No works (flash)as long
as either side does not contact the skin.
The product uses ice technology, a newly developed ice
technology.Can be cooled to 10 degrees celsius.After turn
on the ICE -Switch, it is possible to reduce the heat generated
in using for hair removal.At the same time, after entering the
ice nursing mode, more careful care of the skin, tighten the
skin, bring more painless and lasting beauty skin care
experience.
There are no any operation after 10 minutes ,the product
will automatically shut down to stop working.
25
Trouble shooting
1.Cannot start
- Make sure that the power cord is plugged into the device
socket properly.
- Make sure that the adapter is plugged into the electrical
outlet Properly.
2.No flash is emitted when I press the flash button
- Make sure that you have good skin contact and that the
skin contact surface is evenly and firmly pressed onto the skin. For
your safety, the flash button will only activate a flash if the skin
contact surface is in full contact with the skin.
- This is a system error if the READY is flashing with other
lights.Please turn off the equipment and unplug the power
supply.Then insert the setting and try opening it again. If the
problem persists, call 400 - 846 - 1668 for assistance.
Assistance
If you need assistance, pls send e-mail to
846 - 1668
24
How to use
After you use this device:
1.When you complete a depilation period , long Press the ON/OFF
button until the device is turned off.
2.Unplug the adapter from the electrical outlet and the AC cord
from the device socket.
3.Put it back in its original box and away from the water.
Skin care after hair removal session
Do not expose the treated areas of the skin to the sun. To protect
recently treated skin when exposed to sunlight, be sure to apply a
sunscreen with SPF30 or higher thoroughly for 2 weeks after each
hair removal session.
Side effects and complications
Some users experience pigment changes after using the product. If
it happens, it is both mild and transient. If you have any
complications, please contact your doctor directly.
Cleaning and maintenance
After each use, it is recommended that you clean the equipment,
especially its skin contact surface.
1.Turn off the device and unplug it from the electrical outlet.
2.Use a dry, clean cloth and a specially formulated cleaner for
electronic equipment to gently wipe the outer shell and the skin
contact surface of the device.
※Never immerse the device or any of its parts in water.
05
Taboo
Important information - please read before using!
Aimanfun Ice sense sliding hair removal is not designed for
everyone. Please read and consider the information in the
following section before use.
1.If you are not sure the Aimanfun Ice sense sliding hair
removal is suitable for your use, consult your physician or
dermatologist.
2.Do not use if you have a naturally dark skin color.This
product removes excess hair by addressing hair coloring, but
depends on Is your skin color suitable for use with this device.The
amount of skin pigment in a person is determined by their skin
color. Using this product in dark color skin tone can cause burns,
bubbles and skin color changes ( pigmentation or
hypopigmentation ).。
3.Do not use on tanned skin or after recent sun exposure.
Tanned skin, particularly after sum exposure, contains large
quantities of the pigment melanin. There is a high risk of using
this product under the skin of large amounts of melanin.Side
effects such as burns, blisters, and skin color changes that can
result from the use of this product on recently exposed skin. (
excessive pigmentation or hypopigmentation ).
4.Avoid exposure to the sun for 4weeks before your use
with Aimanfun Ice sense sliding hair removal !
5.If you are natural white, gray, blond and red hair, do not
use this product!
There is no effect in the above case. If your own hair is these
colors, do not use it.
06
Under what circumstances don't allow use this product
Do not use this Aimanfun Ice sense sliding hair removal, for
the time being under specific conditions. Do not use this
device if:
1.If you are pregnant or nursing (lactating).
2.If you 've been exposed to the sun or had an artificial skin
graft in the last four weeks.
3.If you have a tattoo or mark in the area you want to use this
product.
4.If you have dark spots, such as freckles, birthmarks, moles in
the area you want to use.
5.If you have eczema, psoriasis, lesions, open wounds or
active infections, such as cold sores, in the area to be treated.
Wait for the area to heal before you use the device.
6.If you have a history of kelodial scar formation, a known
sensitivity to light (photosensitivity) or are taking medication
that makes the skin more sensitive to light, including non-
steroidal anti-inflammatory agents, (e.g., aspirins, ibuprofens,
acetaminophen), tetracyclines, phenothiazines, thiazide,
diuretics, sulfonyluraes, sulfonamides, DTIC, fluorouracil,
vinblastine,
griseofulvin, Alpha-Hydroxi Acids (AHAS), beta-hydroxi acids
(BHAS), retin-A, accutane and /or topical retinoids.
7.If you have abnormal skin conditions due to diabetes,
forexample. Or another systemic or metabolic disease.
23
How to use
For many people, the use of this depilator y instrument is their
first experience with optical depilatory equipment designed
for home use. The depilation instrument is simple and easy to
use, and the depilation speed is fast.
When the machine cooling fan damage without
rotation, please stop using the
machineimmediately, otherwise it may lead to
flash rupture due to high temperature and
damage the skin.
Flash- The bright light emitted by Aimanfun Ice sense sliding
hair removal does not harm the eyes when directed at non-facial
areas. Special eye protection is not necessary when using this
product.
A fan noise- The cooling fan inside the device sounds similar
to a hairdryer. This is normal.
A popping sound at each flash- When a flash is activated, it is
normal to hear a soft popping sound and see a flash at the same
time when a flash is being emitted.
A warm and tingling sensation- When a flash is administered,
it is normal to feel a mild warm and tingling sensation. Remember
that is important to always use low settings for initial hair removal
sessions. You may continue to feel some warmth up to an hour
after use.
Mild red or pink color- During or just after you use, it is not
uncommon to see very mold pink coloration of the skin. This pink
color is usually most noticeable around the hairs themselves. If
your skin is completely red or shows blisters or burns, stop using
the device immediately.
22
How to use
This device has two mode options, single flash (manual mode) and
sliding flash.
The device has two flash modes, which make it easier to use in
different body parts.
- The single flash (manual mode) is ideal for small or curved areas
such as the knee and underarm. Just press and loosened the flash
button to emit a flash.
- The sliding flash mode can be conveniently used for large area
parts such as legs. You can slide the device on the skin while holding
down the flash button to flash continuously.
Gear level
Gear adjustment determines the intensity of the flash reaching your
skin.A total of five levels, the corresponding intensity bar shows the
selected intensity.As the intensity level increases, the risk of possible
side effects and complications of depilation increases
accordingly.Always use this product from the lowest level of strength.
If you have no discomfort during the first depilation using the
minimum strength level, the next use can increase the strength level
by 1.
Do not increase the strength level if you feel uncomfortable during
use of this product(For more information, please see” Common
problems and solutions”)
If you feel comfortable using the previous stage, you can strengthen
the level appropriately.
Make sure that the skin contact surface is pressed against the skin
around, and then press the flash button to let go. Place the device
next to the area of use in the next flash. This step of the flash mode
ensures hair removal effects such as knees and ankles.
07
Under what circumstances don't allow use this product
8.If you are currently or have recently been treated with
alpha-hydroxi acids, beta-hydroxi acids, retin-a, acctane
(isotretinoin), topical retinoids, or azelaic acid.
9.If you have been treated with accutane (isotretinoin) within
the past 6 months.
10.If you have been on a steroid regimen within the past 3
months.
11.If you have a history of herpes outbreaks in the treatment
area, unless you have consulted your physician and received
preventive treatment before you start using the device.
12.If you suffer from epilepsy.
13.If you have an active implant, such as a pacemaker,
incontinence device, insulin pump, etc.
14.If you have a disease related to photosensitivity, such as
prophyria, polymorphic light eruption, solar urticaria,
lupus,ect.
15.If you have a histor y of skin cancer or potential skin
malignancies.
16.If you have received radiation therapy or chemotherapy
treatments within the past 3 months.
17.If you have any other condition which in your physician's
opinion would make it unsafe for you to be treated.
18.If you are unsure Aimanfun Ice sense sliding hair removal
is safe for you to use,please consult your physician or
dermatologist.
08
Specification for use
1.Choose the intensity level carefully.
Intensity level refers to the intensity of the flash emitted onto
your skin during use., form the lowest level to the highest level.
The intensity lights around the intensity button indicate the
intensity
level at which the device is set. As the intensity level increases,
so do the results as well as the risk of side effects (see chapter
“Common problems and solutions”)
2.Always use this device from the lowest intensity level!
Only if you experience little or no discomfort during and after
use of Aimanfun Ice sense sliding hair removal at the lowest
intensity level, raise the intensity by one level the next time
you use the device and so on for each subsequent session. For
detailed instructions on setting the intensity level, please see
section"How to use".
3.Avoid adverse effects!
⑴ Do not treat the same area of skin more than once
during a session!
⑵Avoid overlapping flashes!
⑶ If your skin blisters or burns, stop using the device
immediately!
4.Avoid complications af ter use!
⑴Do not expose treated areas of skin to the sun. Sun exposure
includes constant unprotected exposure to direct sunlight
forover 15 minutes, or constant unprotected exposure to
diffuse sunlight for over 1 hour.
21
How to use
Operation steps:
Mode conversion:The device
defaults to single flash
mode(manual mode).When the
device is arranged in the sliding
flash mode, the flash light
window does not flash while away
from the skin,If you leave the skin
for more than 10 seconds, the
mode will automatically switch
back to single flash mode,second
to switch to single flash mode.
3、Ice - sensing mode: If you
only need to select the ice-
sensing mode, after the device is
turned on, press the ice-sensing
switch key for 1 second, and the
device will enter the ice-sensing
nursing mode.The LCD screen
switches to the current mode
screen,the indicator is long
blue.Can 't flash at this time,Inside
the radiator fan is still working.If
you need to return to flash mode,
press the ICE -Switch for another
1 second to return to flash mode.
4、Power off, press ON / OFF
for 1 second, and the device is
powered off.
ON/OFF
ICE
Long press
ON /O FF
ICE
Long press
ON /O FF
ICE
20
How to use
Operation steps:
4）Gear conversion button,
select the level you want.
(press the ON/OFF button
briefly to The strength of level
1 - 5 can be selected cyclically.
5）Correct usage: palce the
flash light window close（all
side contact） to the skin, the
indicator light ⑧ flashing, can
start to depilate.
2、Flash mode
This device has two mode
options, single flash (manual
mode) and sliding flash.
Sliding flash mode: After the
device is turned on, the flash
button is switched to sliding
mode by long press the flash
key without contacting the
skin.Flash continuously by
sliding slowly without pressing
any key
Single flash (manual mode) :
Shortly press the flash button
briefly to complete a flash.
Short press
ON/OFF
ON /O FF
ICE
ICE
90°
√
×
Long press
Sliding flash mode
As icon above
Short press
Single flash (manual mode)
As icon above
09
Specification for use
To protect recently treated skin when exposed to sunlight, be
sure to apply a sunscreen with SPF30 orhigher thoroughly for
2weeks after each hair removal session.
⑵Cover brithmarks and tattoos before treatment.
⑶Cover dark brown or black spots, such as large freckles,
birthmarks, moles or warts before treatment.
⑷Never look directly at light coming out of the light exit
window of the device.
⑸Do not use the device on nipples and genitals(male or
female).
⑹Do not use the device on any body site where you might later
want hair.
⑺Do not use the device for any other purpose than hair
removal.
⑻Never emit a flash into open space. Always make sure the skin
contact surface is in full contact with the skin during treatment.
⑼Remove the skin contact surface from the skin if either the
skin or the surface is too hot.
⑽Never use flammable liquids such as alcohol (including
perfumes, sanitizers, or other substances containing alcohol)
or acetone to clean the skin before you use the device.
⑾Use of the device may cause temporary pigmentation
changes (see chapter “Common problems and solutions“)
⑿Keep this device out of the reach of children.
⒀Do not use the device on children or allow children to use it.
10
Specification for use
In order to ensure that you can use this device properly, some
precautions must be:
1.Modification of this equipment is not allowed.
2.Do not put the device where there is water, keep away from
the water ,so as to fall into the water, may cause electric shock.
3.Don't allow disassemble the Aimanfun Ice sense sliding hair
removal device .
a.Do not attempt to disassemble or service this product.
Disconnecting this device can expose you to dangerous
electrical components and intense light, or can cause personal
injur y or eye injury.
b.Assistance call 400-846-1668.
c.If you try disassemble this product , you may also damage the
device. Opening the device will void your warranty. Please call
to 400-846-1668. you have a broken or damaged device in need
of repair.
4.This product is used for the intended purpose only, as
described in the specification.
5.Do not connect the device to the power supply when not in
use.
6.Do not start the device if the wire or adapter is damaged.
Keep the wire away from the high temperature source.
7.Smell smoke while you are using it.
8.Do not use the device if it does not function properly or is
damaged.
19
How to use
Note: your skin may be exposed to different radiation for a
variety of reasons Days / occasions with different reactions.
Operation steps:
1、1）Connect the power
supply: plug in the power
supply, LCD start a second after
the screen is not bright
,Indicator light ⑧ long bright
purple.
2）Standby: Press the on /
off button for 1 second for the
device to start running with the
sound of fan rotation.The LCD
displays the current information,
the number of flashes
remaining,( note - The default
level 1 with manual mode, no
ice sense. )When the indicator
light ⑧ changes from red to
blue, the device can start to use.
3）Ice - sensing mode:short
press the ICE -Switch once, the
LCD displays the snowflake icon,
and the refrigeration panel
starts to work. ( skip this if you
don 't need ice sensing)
Short press
ON /O FF
ICE
ON/OFF
ICE
Long press
ON /O FF
ICE
18
How to use
Select the appropriate intensity level
1.Feel good when using this device. If you feel uncomfortable,
reduce the intensity level. You can use the gear selection
button to select the desired level
2.If you move to another body part or have recently done self-
tanning, skin tests should be performed to determine the
appropriate gear.
Note: because the skin color of each part of the
body may be different, you need to select the
appropriate gear for each part. This device does
not automatically select the appropriate gear.
Skin type
Skin type
White, always sunburned, not tanning
Beige, easy to sunburn，Easy to sunburn
into light black
Light brown, easy to sunburn,self-tanning
speed is slow,It turns brown
Dark brown; Rarely sunburned，easy to
self-tanning
Brown black or darker, rarely or never
tanned, dark black You cannot use
this device
You cannot use
this device
Gear setting
Medium brown, easy to sunburn,
self-tanning speed is slow
11
Specification for use
9.Do not use this device if the contact surface is damaged,
separated or missing and air leaks.
10.Do not use this device if the skin color sensor is broken or
damaged.
11.Do not use this device if the enclosure is broken or broken.
12.Unplug the power supply directly after you don't use.
13.Be sure to unplug the power supply before cleaning.
14.There are no referrals or accessories at AIMANFUN, please
do not use them at the same time.
15.For the Aimanfun Ice sense sliding hair removal must use
only its designated adapter. For the correct adapter details,
see specifications.
16.This device is not suitable for use in the presence or
flammable anaesthetic mixtures with air, oxygen or nitrous
oxide.
Common problems and solutions
Complications are not common in the use of this
device.However, each plastic surgery, including those
designed specifically for home use, involves a degree of
risk.Therefore, it is important that you understand and
accept risks and complications. This complex and intense
pulsed light depilation system is suitable for home use.
12
Common problems and solutions
Adverse
reaction
Possibili ty of
adverse
reactions
Side effect
Possibili ty of
side effects
Sta cking or
overlapping of
multiple flashes Slight Slight
Slight
Slight
Possibility of
side effects
Slight
Skin discomfort
Rubefaction
Skin allergy
Skin wound
or burn
Scar
Pigment
change
Excessive redness
or swelling
Infection
Bruise
Rare
Rare
Rare
Rare
Seldom
Seldom
Slight skin discomfort
Although IPL hair removal generally feels good, most users
experience slight discomfort during use.This slight
discomfort is usually described as a slight tingling sensation,
usually after a few minutes of flash or flash.Any excess of this
discomfort is an anomaly, meaning you should not continue
to use this product or use it incorrectly because you can 't
stand its depilation method, or the intensity level is set too
high.
17
Pre - use skin test
1.Select a position near the part to be flashed
Do not tr y in difficult or sensitive areas ( ankle or bone )
Using the device.
2.Star t the device to ensure that the gear is in 1st gear.
3.Place the device on the skin at an angle of 90 °and the device
exit window is fully in contact with the skin.
Integrated safety systems prevent accidental flash when not
in contact with the skin.
4.Press the flash button to flash.
5.Slide the device against the skin to the next area where flash
is required.
6.Choose to change the level according to your comfort level
7.Af ter a skin test, wait 24 hours to check your skin for any
reaction. If your skin reacts, select settings that do not cause
skin reactions when used later.
If the skin color changes af ter the last flash, perform a skin
test and wait 30 minutes before the next flash.
16
Preparation before use
Before using this product, it is
recommended to pretreat the skin to
remove hair from the skin surface.
This allows the hair portion on the
skin surface to absorb light to ensure
the effect of the illumination. You can
shave, cut short, depilate or wax
Depilation. Do not use depilatory
cream because chemicals can cause
skin reactions.
Skin pretreatment
1.Pretreat the area where you want to use for hair removal
2.Clean the skin to make sure it is free of hair, completely dry
and free of oily substances.
Note: if shaving causes skin allergy, it is
recommended that you use this product
again after skin allergy is cured.
Pre - use skin test
Skin test
If this device is used for the first time or recently has been
blackened, each Prepare the irradiated area for skin test. Skin
tests are required Try, in order to check whether there is a skin
response to radiation, and determine each body Correct light
intensity settings for the location
13
Common problems and solutions
Skin redness
Your skin may apper skin redness within before or after 24
hours of using this product. If skin redness does not
disappear within 2 - 3 days, consult your doctor.
Skin allergy
Skin area allergy may be due to dry or peeling skin.
Skin wound or burn
Ver y rare, skin wounds or burns occur after use of the
device.Wounds and burns take weeks to heal, and very rarely
leave scars.
Bruise
Although very rare, scarring may occur. Usually when scarring
occurs, it is in the form of a flat and white lesion on the skin
(hypotrophic). However, it can be large and red
(hyertrophic)or large and extend beyond the margins of the
injury itself (keloid). Subsequent aesthetic treatments may be
required to improve the appearance of the scar.
Pigment change
Aimanfun Ice sense sliding hair removal targets the hair
shaft, in particular the pigmented cells in the hair follicle and
the hair follicle itself. Nevertheless, there is risk of temporary
hyerpigmentation (increased pigment or brown
discoloration) or hypopigmentation (whitening) to the
surrounding skin. This skin of changes in skin pigmentation is
higher for people with darker skin color. Usually discoloration
or changes to skin pigment are temporar y and
hyperpigmentation or hypopigmentation rarely occur.
14
Common problems and solutions
Excessive redness or swelling
In rare cases, treated skin may become very red and swollen.
This is more common in sensitive areas of the body. The
redness and swelling should subside within 2 to 7days.
Application of ice may help to reduce the welling. Gentle
cleansing of the skin is allowed, but exposure to the sun should
be avoided.
Under the action of IPL technology, soft light pulses are
irradiated on the skin and absorbed by the roots.The darker
the hair, the better the absorption of light pulses.If your hair
is light gold, gray, red, or white, irradiation with this product
will not work because light hair does not absorb enough
light.Below is a list of suitable and effective hair colors for use
with this product.
15
Usage cycle
Arms
Bikini line
Underams
50 % of
hair remove
60 % of
hair remove
55 % of
hair remove
Expected treatment outcome for hair removal .(Dark brown -
brown)
Hair color Light fluence
[l/cm2]
Hair removal
area
Average number
of uses Effect
Dark brown
- brown Max.5 Lower or
upper legs
Approximately
8 - 10 times ，
once for 4 weeks
70 % of
hair remove
Arms
Bikini line
Underams
60 % of
hair remove
70 % of
hair remove
65 % of
hair remove
Expected treatment outcome for hair removal .(Brown-Black)
Hair color Light fluence
[l/cm2]
Hair removal
area
Lower or
upper legs
Max.5
Average number
of uses
Approximately
10 - 12 times ，
once for 4 weeks
Effect
60 % of
hair remove
Brown
-Black
Aimanfun Ice Sense Sliding
Hair Removal Device
A-3588
Usermanual
KAM YUE N PL A S TIC PRODU C T S LT D
Website:www.kyplastic.com
Pu Jin Industrial Konghou Zhongshan City China
Tel:(86)760-88416080
Email:kamyuen@kyplastic.com
28
Warranty card
(The user save it,show to maintenance site when maintence)
Product name:
Type:
Production place:
Guarantee time:
Invoice N O .:
Buying date:
Maintenance Record
Maintenance date: Examination date:
Condition of ault, maintenance ,handling:
Maintenance company: Maintenance man signature:
01
Catalogue
Introduction…………………………………………..………02
Structural composition…………………………..….…..03
Product use and description……..…………..…..…04
Taboo…………………………………………………….………05
Under what circumstances don't allow use this
product….….….….….….….….….….….….….….….…......….06
Specification for use...........................................08
Common problems and solutions.....................11
Usage cycle..........................................................14
Preparation before use.......................................16
Pre - use skin test................................................16
How to use...........................................................18
Cleaning and maintenance................................24
Trouble shooting.................................................25
Assistance............................................................25
Technical parameter...........................................26
Working Condition.............................................27
Stock and Transportation..................................27
Warranty card......................................................28
02
Introduction
Before you use for the first time,please read the
whole user manual.
Attention:
The light it will be flash when you use.
Please don't look at the light directly!
Do not use this product on tanned skin
or after recent sun exposure!
If use in above condition, it may be
burnyour skin or serious damage to
your skin.
The natural dark skin please don't use this product
to removal hair.
Before using this product, please read carefully
and use it in accordance with all safety warnings
and guidelines for the Aimanfun Ice sense sliding
hair removal .
The Aimanfun Ice sense sliding hair removal is a
personal care appliance.So in the safe side,it need to
use in careful.
27
Working Condition
Stock and Transportation
Temperature
Relative Humidity
Atmospheric Pressure
Temperature
Relative Humidity
Atmospheric Pressure
26
Technical parameter
A-3588
2.5-5.0J/cm2
100-240VAC 50-60Hz 1.5A
（13.5x7.5x23cm）H*W*D
360g
BYX-1203000
Model
Spot size
Technology used
Flash duration
Wavelength
Power output
Charging time/ Power source
Time needed to
treat on e lower leg
Safety during operation
Risk group
Package size
Product weight
Adapter
Rated
Intense pulsed light
500-800 usec
Continuous operation
11minute
Skin color sensor ensures
that a flash is only delivered
to appropriate skin colors.
Exempt
03
Structural composition
1
2
3
4
5
6
7
8
9
10
1Power interface
2Flash button
3Flash light
window
4Refrigeration panel/
Ice - sensing contact
surface
5Air outlet
6Air inlet
7LCD display screen
8Indicator light
9ICE -Switch
10 ON/OFF Gear conversion button
※It is forbidden to block the
air inlet and outlet with sundries.
Failure to do so could result in
serious damage to the instrument.
04
Product use and description
Aimanfun Ice sense sliding hair removal product is used for
removing excess hair and body hair, and can also reduce hair
regrowth. The products include underarm, bikini wire, arms
and legs.
IPL technology offers superior safety with lower energy
level.
Intense Pulsed light technology is able to achieve long-term
hair removal results at a fraction of the energy level used in
other light-based hair removal device. The low energy used in
Aimanfun Ice sense sliding hair removal reduces its potential
to cause harm or complications, and contributes to your
overall safety.
Aimanfun Ice sense sliding hair removal has eye and skin
protection settings.
It is designed so that the flash light window requires full
contact with the skin to work ( flash ), No works (flash)as long
as either side does not contact the skin.
The product uses ice technology, a newly developed ice
technology.Can be cooled to 10 degrees celsius.After turn
on the ICE -Switch, it is possible to reduce the heat generated
in using for hair removal.At the same time, after entering the
ice nursing mode, more careful care of the skin, tighten the
skin, bring more painless and lasting beauty skin care
experience.
There are no any operation af ter 10 minutes ,the product
will automatically shut down to stop working.
25
Trouble shooting
1.Cannot start
- Make sure that the power cord is plugged into the device
socket properly.
- Make sure that the adapter is plugged into the electrical
outlet Properly.
2.No flash is emitted when I press the flash button
- Make sure that you have good skin contact and that the
skin contact surface is evenly and firmly pressed onto the skin. For
your safety, the flash button will only activate a flash if the skin
contact surface is in full contact with the skin.
- This is a system error if the READY is flashing with other
lights.Please turn off the equipment and unplug the power
supply.Then insert the setting and try opening it again. If the
problem persists, call 400 - 846 - 1668 for assistance.
Assistance
If you need assistance, pls send e-mail to
846 - 1668
24
How to use
After you use this device:
1.When you complete a depilation period , long Press the ON/OFF
button until the device is turned off.
2.Unplug the adapter from the electrical outlet and the AC cord
from the device socket.
3.Put it back in its original box and away from the water.
Skin care after hair removal session
Do not expose the treated areas of the skin to the sun. To protect
recently treated skin when exposed to sunlight, be sure to apply a
sunscreen with SPF30 or higher thoroughly for 2 weeks after each
hair removal session.
Side effects and complications
Some users experience pigment changes after using the product. If
it happens, it is both mild and transient. If you have any
complications, please contact your doctor directly.
Cleaning and maintenance
After each use, it is recommended that you clean the equipment,
especially its skin contact surface.
1.Turn off the device and unplug it from the electrical outlet.
2.Use a dry, clean cloth and a specially formulated cleaner for
electronic equipment to gently wipe the outer shell and the skin
contact surface of the device.
※Never immerse the device or any of its parts in water.
05
Taboo
Important information - please read before using!
Aimanfun Ice sense sliding hair removal is not designed for
everyone. Please read and consider the information in the
following section before use.
1.If you are not sure the Aimanfun Ice sense sliding hair
removal is suitable for your use, consult your physician or
dermatologist.
2.Do not use if you have a naturally dark skin color.This
product removes excess hair by addressing hair coloring, but
depends on Is your skin color suitable for use with this device.The
amount of skin pigment in a person is determined by their skin
color. Using this product in dark color skin tone can cause burns,
bubbles and skin color changes ( pigmentation or
hypopigmentation ).。
3.Do not use on tanned skin or after recent sun exposure.
Tanned skin, particularly after sum exposure, contains large
quantities of the pigment melanin. There is a high risk of using
this product under the skin of large amounts of melanin.Side
effects such as burns, blisters, and skin color changes that can
result from the use of this product on recently exposed skin. (
excessive pigmentation or hypopigmentation ).
4.Avoid exposure to the sun for 4weeks before your use
with Aimanfun Ice sense sliding hair removal !
5.If you are natural white, gray, blond and red hair, do not
use this product!
There is no effect in the above case. If your own hair is these
colors, do not use it.
06
Under what circumstances don't allow use this product
Do not use this Aimanfun Ice sense sliding hair removal, for
the time being under specific conditions. Do not use this
device if:
1.If you are pregnant or nursing (lactating).
2.If you 've been exposed to the sun or had an ar tificial skin
graft in the last four weeks.
3.If you have a tattoo or mark in the area you want to use this
product.
4.If you have dark spots, such as freckles, birthmarks, moles in
the area you want to use.
5.If you have eczema, psoriasis, lesions, open wounds or
active infections, such as cold sores, in the area to be treated.
Wait for the area to heal before you use the device.
6.If you have a histor y of kelodial scar formation, a known
sensitivity to light (photosensitivity) or are taking medication
that makes the skin more sensitive to light, including non-
steroidal anti-inflammatory agents, (e.g., aspirins, ibuprofens,
acetaminophen), tetracyclines, phenothiazines, thiazide,
diuretics, sulfonyluraes, sulfonamides, DTIC, fluorouracil,
vinblastine,
griseofulvin, Alpha-Hydroxi Acids (AHAS), beta-hydroxi acids
(BHAS), retin-A, accutane and /or topical retinoids.
7.If you have abnormal skin conditions due to diabetes,
forexample. Or another systemic or metabolic disease.
23
How to use
For many people, the use of this depilator y instrument is their
first experience with optical depilatory equipment designed
for home use. The depilation instrument is simple and easy to
use, and the depilation speed is fast.
When the machine cooling fan damage without
rotation, please stop using the
machineimmediately, otherwise it may lead to
flash rupture due to high temperature and
damage the skin.
Flash- The bright light emitted by Aimanfun Ice sense sliding
hair removal does not harm the eyes when directed at non-facial
areas. Special eye protection is not necessary when using this
product.
A fan noise- The cooling fan inside the device sounds similar
to a hairdryer. This is normal.
A popping sound at each flash- When a flash is activated, it is
normal to hear a soft popping sound and see a flash at the same
time when a flash is being emitted.
A warm and tingling sensation- When a flash is administered,
it is normal to feel a mild warm and tingling sensation. Remember
that is important to always use low settings for initial hair removal
sessions. You may continue to feel some warmth up to an hour
after use.
Mild red or pink color- During or just after you use, it is not
uncommon to see very mold pink coloration of the skin. This pink
color is usually most noticeable around the hairs themselves. If
your skin is completely red or shows blisters or burns, stop using
the device immediately.
22
How to use
This device has two mode options, single flash (manual mode) and
sliding flash.
The device has two flash modes, which make it easier to use in
different body parts.
- The single flash (manual mode) is ideal for small or curved areas
such as the knee and underarm. Just press and loosened the flash
button to emit a flash.
- The sliding flash mode can be conveniently used for large area
parts such as legs. You can slide the device on the skin while holding
down the flash button to flash continuously.
Gear level
Gear adjustment determines the intensity of the flash reaching your
skin.A total of five levels, the corresponding intensity bar shows the
selected intensity.As the intensity level increases, the risk of possible
side effects and complications of depilation increases
accordingly.Always use this product from the lowest level of strength.
If you have no discomfort during the first depilation using the
minimum strength level, the next use can increase the strength level
by 1.
Do not increase the strength level if you feel uncomfortable during
use of this product(For more information, please see” Common
problems and solutions”)
If you feel comfortable using the previous stage, you can strengthen
the level appropriately.
Make sure that the skin contact surface is pressed against the skin
around, and then press the flash button to let go. Place the device
next to the area of use in the next flash. This step of the flash mode
ensures hair removal effects such as knees and ankles.
07
Under what circumstances don't allow use this product
8.If you are currently or have recently been treated with
alpha-hydroxi acids, beta-hydroxi acids, retin-a, acctane
(isotretinoin), topical retinoids, or azelaic acid.
9.If you have been treated with accutane (isotretinoin) within
the past 6 months.
10.If you have been on a steroid regimen within the past 3
months.
11.If you have a histor y of herpes outbreaks in the treatment
area, unless you have consulted your physician and received
preventive treatment before you start using the device.
12.If you suffer from epilepsy.
13.If you have an active implant, such as a pacemaker,
incontinence device, insulin pump, etc.
14.If you have a disease related to photosensitivity, such as
prophyria, polymorphic light eruption, solar urticaria,
lupus,ect.
15.If you have a histor y of skin cancer or potential skin
malignancies.
16.If you have received radiation therapy or chemotherapy
treatments within the past 3 months.
17.If you have any other condition which in your physician's
opinion would make it unsafe for you to be treated.
18.If you are unsure Aimanfun Ice sense sliding hair removal
is safe for you to use,please consult your physician or
dermatologist.
08
Specification for use
1.Choose the intensity level carefully.
Intensity level refers to the intensity of the flash emitted onto
your skin during use., form the lowest level to the highest level.
The intensity lights around the intensity button indicate the
intensity
level at which the device is set. As the intensity level increases,
so do the results as well as the risk of side effects (see chapter
“Common problems and solutions”)
2.Always use this device from the lowest intensity level!
Only if you experience little or no discomfort during and after
use of Aimanfun Ice sense sliding hair removal at the lowest
intensity level, raise the intensity by one level the next time
you use the device and so on for each subsequent session. For
detailed instructions on setting the intensity level, please see
section"How to use".
3.Avoid adverse effects!
⑴ Do not treat the same area of skin more than once
during a session!
⑵Avoid overlapping flashes!
⑶ If your skin blisters or burns, stop using the device
immediately!
4.Avoid complications after use!
⑴Do not expose treated areas of skin to the sun. Sun exposure
includes constant unprotected exposure to direct sunlight
forover 15 minutes, or constant unprotected exposure to
diffuse sunlight for over 1 hour.
21
How to use
Operation steps:
Mode conversion:The device
defaults to single flash
mode(manual mode).When the
device is arranged in the sliding
flash mode, the flash light
window does not flash while away
from the skin,If you leave the skin
for more than 10 seconds, the
mode will automatically switch
back to single flash mode,second
to switch to single flash mode.
3、Ice - sensing mode: If you
only need to select the ice-
sensing mode, after the device is
turned on, press the ice-sensing
switch key for 1 second, and the
device will enter the ice-sensing
nursing mode.The LCD screen
switches to the current mode
screen,the indicator is long
blue.Can 't flash at this time,Inside
the radiator fan is still working.If
you need to return to flash mode,
press the ICE -Switch for another
1 second to return to flash mode.
4、Power off, press ON / OFF
for 1 second, and the device is
powered off.
ON/OFF
ICE
Long press
ON /O FF
ICE
Long press
ON /O FF
ICE
20
How to use
Operation steps:
4）Gear conversion button,
select the level you want.
(press the ON/OFF button
briefly to The strength of level
1 - 5 can be selected cyclically.
5）Correct usage: palce the
flash light window close（all
side contact） to the skin, the
indicator light ⑧ flashing, can
start to depilate.
2、Flash mode
This device has two mode
options, single flash (manual
mode) and sliding flash.
Sliding flash mode: After the
device is turned on, the flash
button is switched to sliding
mode by long press the flash
key without contacting the
skin.Flash continuously by
sliding slowly without pressing
any key
Single flash (manual mode) :
Shortly press the flash button
briefly to complete a flash.
Short press
ON/OFF
ON /O FF
ICE
ICE
90°
√
×
Long press
Sliding flash mode
As icon above
Short press
Single flash (manual mode)
As icon above
09
Specification for use
To protect recently treated skin when exposed to sunlight, be
sure to apply a sunscreen with SPF30 orhigher thoroughly for
2weeks after each hair removal session.
⑵Cover brithmarks and tattoos before treatment.
⑶Cover dark brown or black spots, such as large freckles,
birthmarks, moles or warts before treatment.
⑷Never look directly at light coming out of the light exit
window of the device.
⑸Do not use the device on nipples and genitals(male or
female).
⑹Do not use the device on any body site where you might later
want hair.
⑺Do not use the device for any other purpose than hair
removal.
⑻Never emit a flash into open space. Always make sure the skin
contact surface is in full contact with the skin during treatment.
⑼Remove the skin contact surface from the skin if either the
skin or the surface is too hot.
⑽Never use flammable liquids such as alcohol (including
perfumes, sanitizers, or other substances containing alcohol)
or acetone to clean the skin before you use the device.
⑾Use of the device may cause temporary pigmentation
changes (see chapter “Common problems and solutions“)
⑿Keep this device out of the reach of children.
⒀Do not use the device on children or allow children to use it.
10
Specification for use
In order to ensure that you can use this device properly, some
precautions must be:
1.Modification of this equipment is not allowed.
2.Do not put the device where there is water, keep away from
the water ,so as to fall into the water, may cause electric shock .
3.Don't allow disassemble the Aimanfun Ice sense sliding hair
removal device .
a.Do not attempt to disassemble or service this product.
Disconnecting this device can expose you to dangerous
electrical components and intense light, or can cause personal
injury or eye injury.
b.Assistance call 400-846-1668.
c.If you try disassemble this product , you may also damage the
device. Opening the device will void your warranty. Please call
to 400-846-1668. you have a broken or damaged device in need
of repair.
4.This product is used for the intended purpose only, as
described in the specification.
5.Do not connect the device to the power supply when not in
use.
6.Do not start the device if the wire or adapter is damaged.
Keep the wire away from the high temperature source.
7.Smell smoke while you are using it.
8.Do not use the device if it does not function properly or is
damaged.
19
How to use
Note: your skin may be exposed to different radiation for a
variety of reasons Days / occasions with different reactions.
Operation steps:
1、1）Connect the power
supply: plug in the power
supply, LCD start a second after
the screen is not bright
,Indicator light ⑧ long bright
purple.
2）Standby: Press the on /
off button for 1 second for the
device to start running with the
sound of fan rotation.The LCD
displays the current information,
the number of flashes
remaining,( note - The default
level 1 with manual mode, no
ice sense. )When the indicator
light ⑧ changes from red to
blue, the device can start to use.
3）Ice - sensing mode:short
press the ICE -Switch once, the
LCD displays the snowflake icon,
and the refrigeration panel
starts to work. ( skip this if you
don 't need ice sensing)
Short press
ON /O FF
ICE
ON/OFF
ICE
Long press
ON /O FF
ICE
18
How to use
Select the appropriate intensity level
1.Feel good when using this device. If you feel uncomfortable,
reduce the intensity level. You can use the gear selection
button to select the desired level
2.If you move to another body part or have recently done self-
tanning, skin tests should be performed to determine the
appropriate gear.
Note: because the skin color of each part of the
body may be different, you need to select the
appropriate gear for each part. This device does
not automatically select the appropriate gear.
Skin type
Skin type
White, always sunburned, not tanning
Beige, easy to sunburn，Easy to sunburn
into light black
Light brown, easy to sunburn,self-tanning
speed is slow,It turns brown
Dark brown; Rarely sunburned，easy to
self-tanning
Brown black or darker, rarely or never
tanned, dark black You cannot use
this device
You cannot use
this device
Gear setting
Medium brown, easy to sunburn,
self-tanning speed is slow
11
Specification for use
9.Do not use this device if the contact surface is damaged,
separated or missing and air leaks.
10.Do not use this device if the skin color sensor is broken or
damaged.
11.Do not use this device if the enclosure is broken or broken.
12.Unplug the power supply directly after you don't use.
13.Be sure to unplug the power supply before cleaning.
14.There are no referrals or accessories at AIMANFUN, please
do not use them at the same time.
15.For the Aimanfun Ice sense sliding hair removal must use
only its designated adapter. For the correct adapter details,
see specifications.
16.This device is not suitable for use in the presence or
flammable anaesthetic mixtures with air, oxygen or nitrous
oxide.
Common problems and solutions
Complications are not common in the use of this
device.However, each plastic surgery, including those
designed specifically for home use, involves a degree of
risk.Therefore, it is important that you understand and
accept risks and complications. This complex and intense
pulsed light depilation system is suitable for home use.
12
Common problems and solutions
Adverse
reaction
Possibility of
adverse
reactions
Side effect
Possibility of
side effects
Stack in g or
overlapping of
multiple flashes Slight Slight
Slight
Slight
Possibility of
side effects
Slight
Skin discomfort
Rubefaction
Skin allergy
Skin wound
or burn
Scar
Pigment
change
Excessive redness
or swelling
Infection
Bruise
Rare
Rare
Rare
Rare
Seldom
Seldom
Slight skin discomfort
Although IPL hair removal generally feels good, most users
experience slight discomfort during use.This slight
discomfort is usually described as a slight tingling sensation,
usually after a few minutes of flash or flash.Any excess of this
discomfort is an anomaly, meaning you should not continue
to use this product or use it incorrectly because you can 't
stand its depilation method, or the intensity level is set too
high.
17
Pre - use skin test
1.Select a position near the par t to be flashed
Do not try in difficult or sensitive areas ( ankle or bone )
Using the device.
2.Start the device to ensure that the gear is in 1st gear.
3.Place the device on the skin at an angle of 90 °and the device
exit window is fully in contact with the skin.
Integrated safety systems prevent accidental flash when not
in contact with the skin.
4.Press the flash button to flash.
5.Slide the device against the skin to the next area where flash
is required.
6.Choose to change the level according to your comfort level
7.After a skin test, wait 24 hours to check your skin for any
reaction. If your skin reacts, select settings that do not cause
skin reactions when used later.
If the skin color changes after the last flash, perform a skin
test and wait 30 minutes before the next flash.
16
Preparation before use
Before using this product, it is
recommended to pretreat the skin to
remove hair from the skin surface.
This allows the hair portion on the
skin surface to absorb light to ensure
the effect of the illumination. You can
shave, cut short, depilate or wax
Depilation. Do not use depilatory
cream because chemicals can cause
skin reactions.
Skin pretreatment
1.Pretreat the area where you want to use for hair removal
2.Clean the skin to make sure it is free of hair, completely dry
and free of oily substances.
Note: if shaving causes skin allergy, it is
recommended that you use this product
again after skin allergy is cured.
Pre - use skin test
Skin test
If this device is used for the first time or recently has been
blackened, each Prepare the irradiated area for skin test. Skin
tests are required Try, in order to check whether there is a skin
response to radiation, and determine each body Correct light
intensity settings for the location
13
Common problems and solutions
Skin redness
Your skin may apper skin redness within before or after 24
hours of using this product. If skin redness does not
disappear within 2 - 3 days, consult your doctor.
Skin allergy
Skin area allergy may be due to dr y or peeling skin.
Skin wound or burn
Ver y rare, skin wounds or burns occur after use of the
device.Wounds and burns take weeks to heal, and ver y rarely
leave scars.
Bruise
Although very rare, scarring may occur. Usually when scarring
occurs, it is in the form of a flat and white lesion on the skin
(hypotrophic). However, it can be large and red
(hyertrophic)or large and extend beyond the margins of the
injury itself (keloid). Subsequent aesthetic treatments may be
required to improve the appearance of the scar.
Pigment change
Aimanfun Ice sense sliding hair removal targets the hair
shaft, in particular the pigmented cells in the hair follicle and
the hair follicle itself. Nevertheless, there is risk of temporary
hyerpigmentation (increased pigment or brown
discoloration) or hypopigmentation (whitening) to the
surrounding skin. This skin of changes in skin pigmentation is
higher for people with darker skin color. Usually discoloration
or changes to skin pigment are temporar y and
hyperpigmentation or hypopigmentation rarely occur.
14
Common problems and solutions
Excessive redness or swelling
In rare cases, treated skin may become very red and swollen.
This is more common in sensitive areas of the body. The
redness and swelling should subside within 2 to 7days.
Application of ice may help to reduce the welling. Gentle
cleansing of the skin is allowed, but exposure to the sun should
be avoided.
Under the action of IPL technology, soft light pulses are
irradiated on the skin and absorbed by the roots.The darker
the hair, the better the absorption of light pulses.If your hair
is light gold, gray, red, or white, irradiation with this product
will not work because light hair does not absorb enough
light.Below is a list of suitable and effective hair colors for use
with this product.
15
Usage cycle
Arms
Bikini line
Underams
50 % of
hair remove
60 % of
hair remove
55 % of
hair remove
Expected treatment outcome for hair removal .(Dark brown -
brown)
Hair color Light fluence
[l/cm2]
Hair removal
area
Average number
of uses Effect
Dark brown
- brown Max.5 Lower or
upper legs
Approximately
8 - 10 times ，
once for 4 weeks
70 % of
hair remove
Arms
Bikini line
Underams
60 % of
hair remove
70 % of
hair remove
65 % of
hair remove
Expected treatment outcome for hair removal .(Brown-Black)
Hair color Light fluence
[l/cm2]
Hair removal
area
Lower or
upper legs
Max.5
Average number
of uses
Approximately
10 - 12 times ，
once for 4 weeks
Effect
60 % of
hair remove
Brown
-Black
Aimanfun Ice Sense Sliding
Hair Removal Device
A-3588
Usermanual
KAM YUE N PL A S TIC PRODU C T S LT D
Website:www.kyplastic.com
Pu Jin Industrial Konghou Zhongshan City China
Tel:(86)760-88416080
Email:kamyuen@kyplastic.com
28
Warranty card
(The user save it,show to maintenance site when maintence)
Product name:
Type:
Production place:
Guarantee time:
Invoice N O .:
Buying date:
Maintenance Record
Maintenance date: Examination date:
Condition of ault, maintenance ,handling:
Maintenance company: Maintenance man signature:
01
Catalogue
Introduction…………………………………………..………02
Structural composition…………………………..….…..03
Product use and description……..…………..…..…04
Taboo…………………………………………………….………05
Under what circumstances don't allow use this
product….….….….….….….….….….….….….….….…......….06
Specification for use...........................................08
Common problems and solutions.....................11
Usage cycle..........................................................14
Preparation before use.......................................16
Pre - use skin test................................................16
How to use...........................................................18
Cleaning and maintenance................................24
Trouble shooting.................................................25
Assistance............................................................25
Technical parameter...........................................26
Working Condition.............................................27
Stock and Transportation..................................27
Warranty card......................................................28
02
Introduction
Before you use for the first time,please read the
whole user manual.
Attention:
The light it will be flash when you use.
Please don't look at the light directly!
Do not use this product on tanned skin
or after recent sun exposure!
If use in above condition, it may be
burnyour skin or serious damage to
your skin.
The natural dark skin please don't use this product
to removal hair.
Before using this product, please read carefully
and use it in accordance with all safety warnings
and guidelines for the Aimanfun Ice sense sliding
hair removal .
The Aimanfun Ice sense sliding hair removal is a
personal care appliance.So in the safe side,it need to
use in careful.
27
Working Condition
Stock and Transportation
Temperature
Relative Humidity
Atmospheric Pressure
Temperature
Relative Humidity
Atmospheric Pressure
26
Technical parameter
A-3588
2.5-5.0J/cm2
100-240VAC 50-60Hz 1.5A
（13.5x7.5x23cm）H*W*D
360g
BYX-1203000
Model
Spot size
Technology used
Flash duration
Wavelength
Power output
Charging time/ Power source
Time needed to
treat on e lower leg
Safety during operation
Risk group
Package size
Product weight
Adapter
Rated
Intense pulsed light
500-800 usec
Continuous operation
11minute
Skin color sensor ensures
that a flash is only delivered
to appropriate skin colors.
Exempt
03
Structural composition
1
2
3
4
5
6
7
8
9
10
1Power interface
2Flash button
3Flash light
window
4Refrigeration panel/
Ice - sensing contact
surface
5Air outlet
6Air inlet
7LCD display screen
8Indicator light
9ICE -Switch
10 ON/OFF Gear conversion button
※It is forbidden to block the
air inlet and outlet with sundries.
Failure to do so could result in
serious damage to the instrument.
04
Product use and description
Aimanfun Ice sense sliding hair removal product is used for
removing excess hair and body hair, and can also reduce hair
regrowth. The products include underarm, bikini wire, arms
and legs.
IPL technology offers superior safety with lower energy
level.
Intense Pulsed light technology is able to achieve long-term
hair removal results at a fraction of the energy level used in
other light-based hair removal device. The low energy used in
Aimanfun Ice sense sliding hair removal reduces its potential
to cause harm or complications, and contributes to your
overall safety.
Aimanfun Ice sense sliding hair removal has eye and skin
protection settings.
It is designed so that the flash light window requires full
contact with the skin to work ( flash ), No works (flash)as long
as either side does not contact the skin.
The product uses ice technology, a newly developed ice
technology.Can be cooled to 10 degrees celsius.After turn
on the ICE -Switch, it is possible to reduce the heat generated
in using for hair removal.At the same time, after entering the
ice nursing mode, more careful care of the skin, tighten the
skin, bring more painless and lasting beauty skin care
experience.
There are no any operation af ter 10 minutes ,the product
will automatically shut down to stop working.
25
Trouble shooting
1.Cannot start
- Make sure that the power cord is plugged into the device
socket properly.
- Make sure that the adapter is plugged into the electrical
outlet Properly.
2.No flash is emitted when I press the flash button
- Make sure that you have good skin contact and that the
skin contact surface is evenly and firmly pressed onto the skin. For
your safety, the flash button will only activate a flash if the skin
contact surface is in full contact with the skin.
- This is a system error if the READY is flashing with other
lights.Please turn off the equipment and unplug the power
supply.Then insert the setting and try opening it again. If the
problem persists, call 400 - 846 - 1668 for assistance.
Assistance
If you need assistance, pls send e-mail to
kamyuen@kyplastic.com or call our toll-free hotline at 400 -
846 - 1668
24
How to use
After you use this device:
1.When you complete a depilation period , long Press the ON/OFF
button until the device is turned off.
2.Unplug the adapter from the electrical outlet and the AC cord
from the device socket.
3.Put it back in its original box and away from the water.
Skin care after hair removal session
Do not expose the treated areas of the skin to the sun. To protect
recently treated skin when exposed to sunlight, be sure to apply a
sunscreen with SPF30 or higher thoroughly for 2 weeks after each
hair removal session.
Side effects and complications
Some users experience pigment changes after using the product. If
it happens, it is both mild and transient. If you have any
complications, please contact your doctor directly.
Cleaning and maintenance
After each use, it is recommended that you clean the equipment,
especially its skin contact surface.
1.Turn off the device and unplug it from the electrical outlet.
2.Use a dry, clean cloth and a specially formulated cleaner for
electronic equipment to gently wipe the outer shell and the skin
contact surface of the device.
※Never immerse the device or any of its parts in water.
05
Taboo
Important information - please read before using!
Aimanfun Ice sense sliding hair removal is not designed for
everyone. Please read and consider the information in the
following section before use.
1.If you are not sure the Aimanfun Ice sense sliding hair
removal is suitable for your use, consult your physician or
dermatologist.
2.Do not use if you have a naturally dark skin color.This
product removes excess hair by addressing hair coloring, but
depends on Is your skin color suitable for use with this device.The
amount of skin pigment in a person is determined by their skin
color. Using this product in dark color skin tone can cause burns,
bubbles and skin color changes ( pigmentation or
hypopigmentation ).。
3.Do not use on tanned skin or after recent sun exposure.
Tanned skin, particularly after sum exposure, contains large
quantities of the pigment melanin. There is a high risk of using
this product under the skin of large amounts of melanin.Side
effects such as burns, blisters, and skin color changes that can
result from the use of this product on recently exposed skin. (
excessive pigmentation or hypopigmentation ).
4.Avoid exposure to the sun for 4weeks before your use
with Aimanfun Ice sense sliding hair removal !
5.If you are natural white, gray, blond and red hair, do not
use this product!
There is no effect in the above case. If your own hair is these
colors, do not use it.
06
Under what circumstances don't allow use this product
Do not use this Aimanfun Ice sense sliding hair removal, for
the time being under specific conditions. Do not use this
device if:
1.If you are pregnant or nursing (lactating).
2.If you 've been exposed to the sun or had an ar tificial skin
graft in the last four weeks.
3.If you have a tattoo or mark in the area you want to use this
product.
4.If you have dark spots, such as freckles, birthmarks, moles in
the area you want to use.
5.If you have eczema, psoriasis, lesions, open wounds or
active infections, such as cold sores, in the area to be treated.
Wait for the area to heal before you use the device.
6.If you have a histor y of kelodial scar formation, a known
sensitivity to light (photosensitivity) or are taking medication
that makes the skin more sensitive to light, including non-
steroidal anti-inflammatory agents, (e.g., aspirins, ibuprofens,
acetaminophen), tetracyclines, phenothiazines, thiazide,
diuretics, sulfonyluraes, sulfonamides, DTIC, fluorouracil,
vinblastine,
griseofulvin, Alpha-Hydroxi Acids (AHAS), beta-hydroxi acids
(BHAS), retin-A, accutane and /or topical retinoids.
7.If you have abnormal skin conditions due to diabetes,
forexample. Or another systemic or metabolic disease.
23
How to use
For many people, the use of this depilatory instrument is their
first experience with optical depilatory equipment designed
for home use. The depilation instrument is simple and easy to
use, and the depilation speed is fast.
When the machine cooling fan damage without
rotation, please stop using the
machineimmediately, otherwise it may lead to
flash rupture due to high temperature and
damage the skin.
Flash- The bright light emitted by Aimanfun Ice sense sliding
hair removal does not harm the eyes when directed at non-facial
areas. Special eye protection is not necessary when using this
product.
A fan noise- The cooling fan inside the device sounds similar
to a hairdryer. This is normal.
A popping sound at each flash- When a flash is activated, it is
normal to hear a soft popping sound and see a flash at the same
time when a flash is being emitted.
A warm and tingling sensation- When a flash is administered,
it is normal to feel a mild warm and tingling sensation. Remember
that is important to always use low settings for initial hair removal
sessions. You may continue to feel some warmth up to an hour
after use.
Mild red or pink color- During or just after you use, it is not
uncommon to see very mold pink coloration of the skin. This pink
color is usually most noticeable around the hairs themselves. If
your skin is completely red or shows blisters or burns, stop using
the device immediately.
22
How to use
This device has two mode options, single flash (manual mode) and
sliding flash.
The device has two flash modes, which make it easier to use in
different body parts.
- The single flash (manual mode) is ideal for small or curved areas
such as the knee and underarm. Just press and loosened the flash
button to emit a flash.
- The sliding flash mode can be conveniently used for large area
parts such as legs. You can slide the device on the skin while holding
down the flash button to flash continuously.
Gear level
Gear adjustment determines the intensity of the flash reaching your
skin.A total of five levels, the corresponding intensity bar shows the
selected intensity.As the intensity level increases, the risk of possible
side effects and complications of depilation increases
accordingly.Always use this product from the lowest level of strength.
If you have no discomfort during the first depilation using the
minimum strength level, the next use can increase the strength level
by 1.
Do not increase the strength level if you feel uncomfortable during
use of this product(For more information, please see” Common
problems and solutions”)
If you feel comfortable using the previous stage, you can strengthen
the level appropriately.
Make sure that the skin contact surface is pressed against the skin
around, and then press the flash button to let go. Place the device
next to the area of use in the next flash. This step of the flash mode
ensures hair removal effects such as knees and ankles.
07
Under what circumstances don't allow use this product
8.If you are currently or have recently been treated with
alpha-hydroxi acids, beta-hydroxi acids, retin-a, acctane
(isotretinoin), topical retinoids, or azelaic acid.
9.If you have been treated with accutane (isotretinoin) within
the past 6 months.
10.If you have been on a steroid regimen within the past 3
months.
11.If you have a histor y of herpes outbreaks in the treatment
area, unless you have consulted your physician and received
preventive treatment before you start using the device.
12.If you suffer from epilepsy.
13.If you have an active implant, such as a pacemaker,
incontinence device, insulin pump, etc.
14.If you have a disease related to photosensitivity, such as
prophyria, polymorphic light eruption, solar urticaria,
lupus,ect.
15.If you have a histor y of skin cancer or potential skin
malignancies.
16.If you have received radiation therapy or chemotherapy
treatments within the past 3 months.
17.If you have any other condition which in your physician's
opinion would make it unsafe for you to be treated.
18.If you are unsure Aimanfun Ice sense sliding hair removal
is safe for you to use,please consult your physician or
dermatologist.
08
Specification for use
1.Choose the intensity level carefully.
Intensity level refers to the intensity of the flash emitted onto
your skin during use., form the lowest level to the highest level.
The intensity lights around the intensity button indicate the
intensity
level at which the device is set. As the intensity level increases,
so do the results as well as the risk of side effects (see chapter
“Common problems and solutions”)
2.Always use this device from the lowest intensity level!
Only if you experience little or no discomfort during and after
use of Aimanfun Ice sense sliding hair removal at the lowest
intensity level, raise the intensity by one level the next time
you use the device and so on for each subsequent session. For
detailed instructions on setting the intensity level, please see
section"How to use".
3.Avoid adverse effects!
⑴ Do not treat the same area of skin more than once
during a session!
⑵Avoid overlapping flashes!
⑶ If your skin blisters or burns, stop using the device
immediately!
4.Avoid complications after use!
⑴Do not expose treated areas of skin to the sun. Sun exposure
includes constant unprotected exposure to direct sunlight
forover 15 minutes, or constant unprotected exposure to
diffuse sunlight for over 1 hour.
21
How to use
Operation steps:
Mode conversion:The device
defaults to single flash
mode(manual mode).When the
device is arranged in the sliding
flash mode, the flash light
window does not flash while away
from the skin,If you leave the skin
for more than 10 seconds, the
mode will automatically switch
back to single flash mode,second
to switch to single flash mode.
3、Ice - sensing mode: If you
only need to select the ice-
sensing mode, after the device is
turned on, press the ice-sensing
switch key for 1 second, and the
device will enter the ice-sensing
nursing mode.The LCD screen
switches to the current mode
screen,the indicator is long
blue.Can 't flash at this time,Inside
the radiator fan is still working.If
you need to return to flash mode,
press the ICE -Switch for another
1 second to return to flash mode.
4、Power off, press ON / OFF
for 1 second, and the device is
powered off.
ON/OFF
ICE
Long press
ON /O FF
ICE
Long press
ON /O FF
ICE
20
How to use
Operation steps:
4）Gear conversion button,
select the level you want.
(press the ON/OFF button
briefly to The strength of level
1 - 5 can be selected cyclically.
5）Correct usage: palce the
flash light window close（all
side contact） to the skin, the
indicator light ⑧ flashing, can
start to depilate.
2、Flash mode
This device has two mode
options, single flash (manual
mode) and sliding flash.
Sliding flash mode: After the
device is turned on, the flash
button is switched to sliding
mode by long press the flash
key without contacting the
skin.Flash continuously by
sliding slowly without pressing
any key
Single flash (manual mode) :
Shortly press the flash button
briefly to complete a flash.
Short press
ON/OFF
ON /O FF
ICE
ICE
90°
√
×
Long press
Sliding flash mode
As icon above
Short press
Single flash (manual mode)
As icon above
09
Specification for use
To protect recently treated skin when exposed to sunlight, be
sure to apply a sunscreen with SPF30 orhigher thoroughly for
2weeks after each hair removal session.
⑵Cover brithmarks and tattoos before treatment.
⑶Cover dark brown or black spots, such as large freckles,
birthmarks, moles or warts before treatment.
⑷Never look directly at light coming out of the light exit
window of the device.
⑸Do not use the device on nipples and genitals(male or
female).
⑹Do not use the device on any body site where you might later
want hair.
⑺Do not use the device for any other purpose than hair
removal.
⑻Never emit a flash into open space. Always make sure the skin
contact surface is in full contact with the skin during treatment.
⑼Remove the skin contact surface from the skin if either the
skin or the surface is too hot.
⑽Never use flammable liquids such as alcohol (including
perfumes, sanitizers, or other substances containing alcohol)
or acetone to clean the skin before you use the device.
⑾Use of the device may cause temporary pigmentation
changes (see chapter “Common problems and solutions“)
⑿Keep this device out of the reach of children.
⒀Do not use the device on children or allow children to use it.
10
Specification for use
In order to ensure that you can use this device properly, some
precautions must be:
1.Modification of this equipment is not allowed.
2.Do not put the device where there is water, keep away from
the water ,so as to fall into the water, may cause electric shock .
3.Don't allow disassemble the Aimanfun Ice sense sliding hair
removal device .
a.Do not attempt to disassemble or service this product.
Disconnecting this device can expose you to dangerous
electrical components and intense light, or can cause personal
injury or eye injury.
b.Assistance call 400-846-1668.
c.If you try disassemble this product , you may also damage the
device. Opening the device will void your warranty. Please call
to 400-846-1668. you have a broken or damaged device in need
of repair.
4.This product is used for the intended purpose only, as
described in the specification.
5.Do not connect the device to the power supply when not in
use.
6.Do not start the device if the wire or adapter is damaged.
Keep the wire away from the high temperature source.
7.Smell smoke while you are using it.
8.Do not use the device if it does not function properly or is
damaged.
19
How to use
Note: your skin may be exposed to different radiation for a
variety of reasons Days / occasions with different reactions.
Operation steps:
1、1）Connect the power
supply: plug in the power
supply, LCD start a second after
the screen is not bright
,Indicator light ⑧ long bright
purple.
2）Standby: Press the on /
off button for 1 second for the
device to start running with the
sound of fan rotation.The LCD
displays the current information,
the number of flashes
remaining,( note - The default
level 1 with manual mode, no
ice sense. )When the indicator
light ⑧ changes from red to
blue, the device can start to use.
3）Ice - sensing mode:short
press the ICE -Switch once, the
LCD displays the snowflake icon,
and the refrigeration panel
starts to work. ( skip this if you
don 't need ice sensing)
Short press
ON /O FF
ICE
ON/OF F
ICE
Long press
ON /O FF
ICE
18
How to use
Select the appropriate intensity level
1.Feel good when using this device. If you feel uncomfortable,
reduce the intensity level. You can use the gear selection
button to select the desired level
2.If you move to another body part or have recently done self-
tanning, skin tests should be performed to determine the
appropriate gear.
Note: because the skin color of each part of the
body may be different, you need to select the
appropriate gear for each part. This device does
not automatically select the appropriate gear.
Skin type
Skin type
White, always sunburned, not tanning
Beige, easy to sunburn，Easy to sunburn
into light black
Light brown, easy to sunburn,self-tanning
speed is slow,It turns brown
Dark brown; Rarely sunburned，easy to
self-tanning
Brown black or darker, rarely or never
tanned, dark black You cannot use
this device
You cannot use
this device
Gear setting
Medium brown, easy to sunburn,
self-tanning speed is slow
11
Specification for use
9.Do not use this device if the contact surface is damaged,
separated or missing and air leaks.
10.Do not use this device if the skin color sensor is broken or
damaged.
11.Do not use this device if the enclosure is broken or broken.
12.Unplug the power supply directly after you don't use.
13.Be sure to unplug the power supply before cleaning.
14.There are no referrals or accessories at AIMANFUN, please
do not use them at the same time.
15.For the Aimanfun Ice sense sliding hair removal must use
only its designated adapter. For the correct adapter details,
see specifications.
16.This device is not suitable for use in the presence or
flammable anaesthetic mixtures with air, oxygen or nitrous
oxide.
Common problems and solutions
Complications are not common in the use of this
device.However, each plastic surgery, including those
designed specifically for home use, involves a degree of
risk.Therefore, it is important that you understand and
accept risks and complications. This complex and intense
pulsed light depilation system is suitable for home use.
12
Common problems and solutions
Adverse
reaction
Possibility of
adverse
reactions
Side effect
Possibility of
side effects
Stack in g or
overlapping of
multiple flashes Slight Slight
Slight
Slight
Possibility of
side effects
Slight
Skin discomfort
Rubefaction
Skin allergy
Skin wound
or burn
Scar
Pigment
change
Excessive redness
or swelling
Infection
Bruise
Rare
Rare
Rare
Rare
Seldom
Seldom
Slight skin discomfort
Although IPL hair removal generally feels good, most users
experience slight discomfort during use.This slight
discomfort is usually described as a slight tingling sensation,
usually after a few minutes of flash or flash.Any excess of this
discomfort is an anomaly, meaning you should not continue
to use this product or use it incorrectly because you can 't
stand its depilation method, or the intensity level is set too
high.
17
Pre - use skin test
1.Select a position near the part to be flashed
Do not try in difficult or sensitive areas ( ankle or bone )
Using the device.
2.Start the device to ensure that the gear is in 1st gear.
3.Place the device on the skin at an angle of 90 °and the device
exit window is fully in contact with the skin.
Integrated safety systems prevent accidental flash when not
in contact with the skin.
4.Press the flash button to flash.
5.Slide the device against the skin to the next area where flash
is required.
6.Choose to change the level according to your comfort level
7.After a skin test, wait 24 hours to check your skin for any
reaction. If your skin reacts, select settings that do not cause
skin reactions when used later.
If the skin color changes after the last flash, perform a skin
test and wait 30 minutes before the next flash.
16
Preparation before use
Before using this product, it is
recommended to pretreat the skin to
remove hair from the skin surface.
This allows the hair portion on the
skin surface to absorb light to ensure
the effect of the illumination. You can
shave, cut short, depilate or wax
Depilation. Do not use depilatory
cream because chemicals can cause
skin reactions.
Skin pretreatment
1.Pretreat the area where you want to use for hair removal
2.Clean the skin to make sure it is free of hair, completely dry
and free of oily substances.
Note: if shaving causes skin allergy, it is
recommended that you use this product
again after skin allergy is cured.
Pre - use skin test
Skin test
If this device is used for the first time or recently has been
blackened, each Prepare the irradiated area for skin test. Skin
tests are required Try, in order to check whether there is a skin
response to radiation, and determine each body Correct light
intensity settings for the location
13
Common problems and solutions
Skin redness
Your skin may apper skin redness within before or after 24
hours of using this product. If skin redness does not
disappear within 2 - 3 days, consult your doctor.
Skin allergy
Skin area allergy may be due to dr y or peeling skin.
Skin wound or burn
Ver y rare, skin wounds or burns occur after use of the
device.Wounds and burns take weeks to heal, and ver y rarely
leave scars.
Bruise
Although very rare, scarring may occur. Usually when scarring
occurs, it is in the form of a flat and white lesion on the skin
(hypotrophic). However, it can be large and red
(hyertrophic)or large and extend beyond the margins of the
injury itself (keloid). Subsequent aesthetic treatments may be
required to improve the appearance of the scar.
Pigment change
Aimanfun Ice sense sliding hair removal targets the hair
shaft, in particular the pigmented cells in the hair follicle and
the hair follicle itself. Nevertheless, there is risk of temporary
hyerpigmentation (increased pigment or brown
discoloration) or hypopigmentation (whitening) to the
surrounding skin. This skin of changes in skin pigmentation is
higher for people with darker skin color. Usually discoloration
or changes to skin pigment are temporar y and
hyperpigmentation or hypopigmentation rarely occur.
14
Common problems and solutions
Excessive redness or swelling
In rare cases, treated skin may become very red and swollen.
This is more common in sensitive areas of the body. The
redness and swelling should subside within 2 to 7days.
Application of ice may help to reduce the welling. Gentle
cleansing of the skin is allowed, but exposure to the sun should
be avoided.
Under the action of IPL technology, soft light pulses are
irradiated on the skin and absorbed by the roots.The darker
the hair, the better the absorption of light pulses.If your hair
is light gold, gray, red, or white, irradiation with this product
will not work because light hair does not absorb enough
light.Below is a list of suitable and effective hair colors for use
with this product.
15
Usage cycle
Arms
Bikini line
Underams
50 % of
hair remove
60 % of
hair remove
55 % of
hair remove
Expected treatment outcome for hair removal .(Dark brown -
brown)
Hair color Light fluence
[l/cm2]
Hair removal
area
Average number
of uses Effect
Dark brown
- brown Max.5 Lower or
upper legs
Approximately
8 - 10 times ，
once for 4 weeks
70 % of
hair remove
Arms
Bikini line
Underams
60 % of
hair remove
70 % of
hair remove
65 % of
hair remove
Expected treatment outcome for hair removal .(Brown-Black)
Hair color Light fluence
[l/cm2]
Hair removal
area
Lower or
upper legs
Max.5
Average number
of uses
Approximately
10 - 12 times ，
once for 4 weeks
Effect
60 % of
hair remove
Brown
-Black
Aimanfun Ice Sense Sliding
Hair Removal Device
A-3588
Usermanual
KAM YUE N PL A S TIC PRODU C T S LT D
Website:www.kyplastic.com
Pu Jin Industrial Konghou Zhongshan City China
Tel:(86)760-88416080
Email:kamyuen@kyplastic.com
28
Warranty card
(The user save it,show to maintenance site when maintence)
Product name:
Type:
Production place:
Guarantee time:
Invoice N O .:
Buying date:
Maintenance Record
Maintenance date: Examination date:
Condition of ault, maintenance ,handling:
Maintenance company: Maintenance man signature:
01
Catalogue
Introduction…………………………………………..………02
Structural composition…………………………..….…..03
Product use and description……..…………..…..…04
Taboo…………………………………………………….………05
Under what circumstances don't allow use this
product….….….….….….….….….….….….….….….…......….06
Specification for use...........................................08
Common problems and solutions.....................11
Usage cycle..........................................................14
Preparation before use.......................................16
Pre - use skin test................................................16
How to use...........................................................18
Cleaning and maintenance................................24
Trouble shooting.................................................25
Assistance............................................................25
Technical parameter...........................................26
Working Condition.............................................27
Stock and Transportation..................................27
Warranty card......................................................28
02
Introduction
Before you use for the first time,please read the
whole user manual.
Attention:
The light it will be flash when you use.
Please don't look at the light directly!
Do not use this product on tanned skin
or after recent sun exposure!
If use in above condition, it may be
burnyour skin or serious damage to
your skin.
The natural dark skin please don't use this product
to removal hair.
Before using this product, please read carefully
and use it in accordance with all safety warnings
and guidelines for the Aimanfun Ice sense sliding
hair removal .
The Aimanfun Ice sense sliding hair removal is a
personal care appliance.So in the safe side,it need to
use in careful.
27
Working Condition
Stock and Transportation
Temperature
Relative Humidity
Atmospheric Pressure
Temperature
Relative Humidity
Atmospheric Pressure
26
Technical parameter
A-3588
2.5-5.0J/cm2
100-240VAC 50-60Hz 1.5A
（13.5x7.5x23cm）H*W*D
360g
BYX-1203000
Model
Spot size
Technology used
Flash duration
Wavelength
Power output
Charging time/ Power source
Time needed to
treat on e lower leg
Safety during operation
Risk group
Package size
Product weight
Adapter
Rated
Intense pulsed light
500-800 usec
Continuous operation
11minute
Skin color sensor ensures
that a flash is only delivered
to appropriate skin colors.
Exempt
03
Structural composition
1
2
3
4
5
6
7
8
9
10
1Power interface
2Flash button
3Flash light
window
4Refrigeration panel/
Ice - sensing contact
surface
5Air outlet
6Air inlet
7LCD display screen
8Indicator light
9ICE -Switch
10 ON/OFF Gear conversion button
※It is forbidden to block the
air inlet and outlet with sundries.
Failure to do so could result in
serious damage to the instrument.
04
Product use and description
Aimanfun Ice sense sliding hair removal product is used for
removing excess hair and body hair, and can also reduce hair
regrowth. The products include underarm, bikini wire, arms
and legs.
IPL technology offers superior safety with lower energy
level.
Intense Pulsed light technology is able to achieve long-term
hair removal results at a fraction of the energy level used in
other light-based hair removal device. The low energy used in
Aimanfun Ice sense sliding hair removal reduces its potential
to cause harm or complications, and contributes to your
overall safety.
Aimanfun Ice sense sliding hair removal has eye and skin
protection settings.
It is designed so that the flash light window requires full
contact with the skin to work ( flash ), No works (flash)as long
as either side does not contact the skin.
The product uses ice technology, a newly developed ice
technology.Can be cooled to 10 degrees celsius.After turn
on the ICE -Switch, it is possible to reduce the heat generated
in using for hair removal.At the same time, after entering the
ice nursing mode, more careful care of the skin, tighten the
skin, bring more painless and lasting beauty skin care
experience.
There are no any operation af ter 10 minutes ,the product
will automatically shut down to stop working.
25
Trouble shooting
1.Cannot start
- Make sure that the power cord is plugged into the device
socket properly.
- Make sure that the adapter is plugged into the electrical
outlet Properly.
2.No flash is emitted when I press the flash button
- Make sure that you have good skin contact and that the
skin contact surface is evenly and firmly pressed onto the skin. For
your safety, the flash button will only activate a flash if the skin
contact surface is in full contact with the skin.
- This is a system error if the READY is flashing with other
lights.Please turn off the equipment and unplug the power
supply.Then insert the setting and try opening it again. If the
problem persists, call 400 - 846 - 1668 for assistance.
Assistance
If you need assistance, pls send e-mail to
kamyuen@kyplastic.com or call our toll-free hotline at 400 -
846 - 1668
24
How to use
After you use this device:
1.When you complete a depilation period , long Press the ON/OFF
button until the device is turned off.
2.Unplug the adapter from the electrical outlet and the AC cord
from the device socket.
3.Put it back in its original box and away from the water.
Skin care after hair removal session
Do not expose the treated areas of the skin to the sun. To protect
recently treated skin when exposed to sunlight, be sure to apply a
sunscreen with SPF30 or higher thoroughly for 2 weeks after each
hair removal session.
Side effects and complications
Some users experience pigment changes after using the product. If
it happens, it is both mild and transient. If you have any
complications, please contact your doctor directly.
Cleaning and maintenance
After each use, it is recommended that you clean the equipment,
especially its skin contact surface.
1.Turn off the device and unplug it from the electrical outlet.
2.Use a dry, clean cloth and a specially formulated cleaner for
electronic equipment to gently wipe the outer shell and the skin
contact surface of the device.
※Never immerse the device or any of its parts in water.
05
Taboo
Important information - please read before using!
Aimanfun Ice sense sliding hair removal is not designed for
everyone. Please read and consider the information in the
following section before use.
1.If you are not sure the Aimanfun Ice sense sliding hair
removal is suitable for your use, consult your physician or
dermatologist.
2.Do not use if you have a naturally dark skin color.This
product removes excess hair by addressing hair coloring, but
depends on Is your skin color suitable for use with this device.The
amount of skin pigment in a person is determined by their skin
color. Using this product in dark color skin tone can cause burns,
bubbles and skin color changes ( pigmentation or
hypopigmentation ).。
3.Do not use on tanned skin or after recent sun exposure.
Tanned skin, particularly after sum exposure, contains large
quantities of the pigment melanin. There is a high risk of using
this product under the skin of large amounts of melanin.Side
effects such as burns, blisters, and skin color changes that can
result from the use of this product on recently exposed skin. (
excessive pigmentation or hypopigmentation ).
4.Avoid exposure to the sun for 4weeks before your use
with Aimanfun Ice sense sliding hair removal !
5.If you are natural white, gray, blond and red hair, do not
use this product!
There is no effect in the above case. If your own hair is these
colors, do not use it.
06
Under what circumstances don't allow use this product
Do not use this Aimanfun Ice sense sliding hair removal, for
the time being under specific conditions. Do not use this
device if:
1.If you are pregnant or nursing (lactating).
2.If you 've been exposed to the sun or had an ar tificial skin
graft in the last four weeks.
3.If you have a tattoo or mark in the area you want to use this
product.
4.If you have dark spots, such as freckles, birthmarks, moles in
the area you want to use.
5.If you have eczema, psoriasis, lesions, open wounds or
active infections, such as cold sores, in the area to be treated.
Wait for the area to heal before you use the device.
6.If you have a histor y of kelodial scar formation, a known
sensitivity to light (photosensitivity) or are taking medication
that makes the skin more sensitive to light, including non-
steroidal anti-inflammatory agents, (e.g., aspirins, ibuprofens,
acetaminophen), tetracyclines, phenothiazines, thiazide,
diuretics, sulfonyluraes, sulfonamides, DTIC, fluorouracil,
vinblastine,
griseofulvin, Alpha-Hydroxi Acids (AHAS), beta-hydroxi acids
(BHAS), retin-A, accutane and /or topical retinoids.
7.If you have abnormal skin conditions due to diabetes,
forexample. Or another systemic or metabolic disease.
23
How to use
For many people, the use of this depilator y instrument is their
first experience with optical depilatory equipment designed
for home use. The depilation instrument is simple and easy to
use, and the depilation speed is fast.
When the machine cooling fan damage without
rotation, please stop using the
machineimmediately, otherwise it may lead to
flash rupture due to high temperature and
damage the skin.
Flash- The bright light emitted by Aimanfun Ice sense sliding
hair removal does not harm the eyes when directed at non-facial
areas. Special eye protection is not necessary when using this
product.
A fan noise- The cooling fan inside the device sounds similar
to a hairdryer. This is normal.
A popping sound at each flash- When a flash is activated, it is
normal to hear a soft popping sound and see a flash at the same
time when a flash is being emitted.
A warm and tingling sensation- When a flash is administered,
it is normal to feel a mild warm and tingling sensation. Remember
that is important to always use low settings for initial hair removal
sessions. You may continue to feel some warmth up to an hour
after use.
Mild red or pink color- During or just after you use, it is not
uncommon to see very mold pink coloration of the skin. This pink
color is usually most noticeable around the hairs themselves. If
your skin is completely red or shows blisters or burns, stop using
the device immediately.
22
How to use
This device has two mode options, single flash (manual mode) and
sliding flash.
The device has two flash modes, which make it easier to use in
different body parts.
- The single flash (manual mode) is ideal for small or curved areas
such as the knee and underarm. Just press and loosened the flash
button to emit a flash.
- The sliding flash mode can be conveniently used for large area
parts such as legs. You can slide the device on the skin while holding
down the flash button to flash continuously.
Gear level
Gear adjustment determines the intensity of the flash reaching your
skin.A total of five levels, the corresponding intensity bar shows the
selected intensity.As the intensity level increases, the risk of possible
side effects and complications of depilation increases
accordingly.Always use this product from the lowest level of strength.
If you have no discomfort during the first depilation using the
minimum strength level, the next use can increase the strength level
by 1.
Do not increase the strength level if you feel uncomfortable during
use of this product(For more information, please see” Common
problems and solutions”)
If you feel comfortable using the previous stage, you can strengthen
the level appropriately.
Make sure that the skin contact surface is pressed against the skin
around, and then press the flash button to let go. Place the device
next to the area of use in the next flash. This step of the flash mode
ensures hair removal effects such as knees and ankles.
07
Under what circumstances don't allow use this product
8.If you are currently or have recently been treated with
alpha-hydroxi acids, beta-hydroxi acids, retin-a, acctane
(isotretinoin), topical retinoids, or azelaic acid.
9.If you have been treated with accutane (isotretinoin) within
the past 6 months.
10.If you have been on a steroid regimen within the past 3
months.
11.If you have a histor y of herpes outbreaks in the treatment
area, unless you have consulted your physician and received
preventive treatment before you start using the device.
12.If you suffer from epilepsy.
13.If you have an active implant, such as a pacemaker,
incontinence device, insulin pump, etc.
14.If you have a disease related to photosensitivity, such as
prophyria, polymorphic light eruption, solar urticaria,
lupus,ect.
15.If you have a histor y of skin cancer or potential skin
malignancies.
16.If you have received radiation therapy or chemotherapy
treatments within the past 3 months.
17.If you have any other condition which in your physician's
opinion would make it unsafe for you to be treated.
18.If you are unsure Aimanfun Ice sense sliding hair removal
is safe for you to use,please consult your physician or
dermatologist.
08
Specification for use
1.Choose the intensity level carefully.
Intensity level refers to the intensity of the flash emitted onto
your skin during use., form the lowest level to the highest level.
The intensity lights around the intensity button indicate the
intensity
level at which the device is set. As the intensity level increases,
so do the results as well as the risk of side effects (see chapter
“Common problems and solutions”)
2.Always use this device from the lowest intensity level!
Only if you experience little or no discomfort during and after
use of Aimanfun Ice sense sliding hair removal at the lowest
intensity level, raise the intensity by one level the next time
you use the device and so on for each subsequent session. For
detailed instructions on setting the intensity level, please see
section"How to use".
3.Avoid adverse effects!
⑴ Do not treat the same area of skin more than once
during a session!
⑵Avoid overlapping flashes!
⑶ If your skin blisters or burns, stop using the device
immediately!
4.Avoid complications after use!
⑴Do not expose treated areas of skin to the sun. Sun exposure
includes constant unprotected exposure to direct sunlight
forover 15 minutes, or constant unprotected exposure to
diffuse sunlight for over 1 hour.
21
How to use
Operation steps:
Mode conversion:The device
defaults to single flash
mode(manual mode).When the
device is arranged in the sliding
flash mode, the flash light
window does not flash while away
from the skin,If you leave the skin
for more than 10 seconds, the
mode will automatically switch
back to single flash mode,second
to switch to single flash mode.
3、Ice - sensing mode: If you
only need to select the ice-
sensing mode, after the device is
turned on, press the ice-sensing
switch key for 1 second, and the
device will enter the ice-sensing
nursing mode.The LCD screen
switches to the current mode
screen,the indicator is long
blue.Can 't flash at this time,Inside
the radiator fan is still working.If
you need to return to flash mode,
press the ICE -Switch for another
1 second to return to flash mode.
4、Power off, press ON / OFF
for 1 second, and the device is
powered off.
ON/OFF
ICE
Long press
ON /O FF
ICE
Long press
ON /O FF
ICE
20
How to use
Operation steps:
4）Gear conversion button,
select the level you want.
(press the ON/OFF button
briefly to The strength of level
1 - 5 can be selected cyclically.
5）Correct usage: palce the
flash light window close（all
side contact） to the skin, the
indicator light ⑧ flashing, can
start to depilate.
2、Flash mode
This device has two mode
options, single flash (manual
mode) and sliding flash.
Sliding flash mode: After the
device is turned on, the flash
button is switched to sliding
mode by long press the flash
key without contacting the
skin.Flash continuously by
sliding slowly without pressing
any key
Single flash (manual mode) :
Shortly press the flash button
briefly to complete a flash.
Short press
ON/OFF
ON /O FF
ICE
ICE
90°
√
×
Long press
Sliding flash mode
As icon above
Short press
Single flash (manual mode)
As icon above
09
Specification for use
To protect recently treated skin when exposed to sunlight, be
sure to apply a sunscreen with SPF30 orhigher thoroughly for
2weeks after each hair removal session.
⑵Cover brithmarks and tattoos before treatment.
⑶Cover dark brown or black spots, such as large freckles,
birthmarks, moles or warts before treatment.
⑷Never look directly at light coming out of the light exit
window of the device.
⑸Do not use the device on nipples and genitals(male or
female).
⑹Do not use the device on any body site where you might later
want hair.
⑺Do not use the device for any other purpose than hair
removal.
⑻Never emit a flash into open space. Always make sure the skin
contact surface is in full contact with the skin during treatment.
⑼Remove the skin contact surface from the skin if either the
skin or the surface is too hot.
⑽Never use flammable liquids such as alcohol (including
perfumes, sanitizers, or other substances containing alcohol)
or acetone to clean the skin before you use the device.
⑾Use of the device may cause temporary pigmentation
changes (see chapter “Common problems and solutions“)
⑿Keep this device out of the reach of children.
⒀Do not use the device on children or allow children to use it.
10
Specification for use
In order to ensure that you can use this device properly, some
precautions must be:
1.Modification of this equipment is not allowed.
2.Do not put the device where there is water, keep away from
the water ,so as to fall into the water, may cause electric shock .
3.Don't allow disassemble the Aimanfun Ice sense sliding hair
removal device .
a.Do not attempt to disassemble or service this product.
Disconnecting this device can expose you to dangerous
electrical components and intense light, or can cause personal
injury or eye injury.
b.Assistance call 400-846-1668.
c.If you try disassemble this product , you may also damage the
device. Opening the device will void your warranty. Please call
to 400-846-1668. you have a broken or damaged device in need
of repair.
4.This product is used for the intended purpose only, as
described in the specification.
5.Do not connect the device to the power supply when not in
use.
6.Do not start the device if the wire or adapter is damaged.
Keep the wire away from the high temperature source.
7.Smell smoke while you are using it.
8.Do not use the device if it does not function properly or is
damaged.
19
How to use
Note: your skin may be exposed to different radiation for a
variety of reasons Days / occasions with different reactions.
Operation steps:
1、1）Connect the power
supply: plug in the power
supply, LCD start a second after
the screen is not bright
,Indicator light ⑧ long bright
purple.
2）Standby: Press the on /
off button for 1 second for the
device to start running with the
sound of fan rotation.The LCD
displays the current information,
the number of flashes
remaining,( note - The default
level 1 with manual mode, no
ice sense. )When the indicator
light ⑧ changes from red to
blue, the device can start to use.
3）Ice - sensing mode:short
press the ICE -Switch once, the
LCD displays the snowflake icon,
and the refrigeration panel
starts to work. ( skip this if you
don 't need ice sensing)
Short press
ON /O FF
ICE
ON/OFF
ICE
Long press
ON /O FF
ICE
18
How to use
Select the appropriate intensity level
1.Feel good when using this device. If you feel uncomfortable,
reduce the intensity level. You can use the gear selection
button to select the desired level
2.If you move to another body part or have recently done self-
tanning, skin tests should be performed to determine the
appropriate gear.
Note: because the skin color of each part of the
body may be different, you need to select the
appropriate gear for each part. This device does
not automatically select the appropriate gear.
Skin type
Skin type
White, always sunburned, not tanning
Beige, easy to sunburn，Easy to sunburn
into light black
Light brown, easy to sunburn,self-tanning
speed is slow,It turns brown
Dark brown; Rarely sunburned，easy to
self-tanning
Brown black or darker, rarely or never
tanned, dark black You cannot use
this device
You cannot use
this device
Gear setting
Medium brown, easy to sunburn,
self-tanning speed is slow
11
Specification for use
9.Do not use this device if the contact surface is damaged,
separated or missing and air leaks.
10.Do not use this device if the skin color sensor is broken or
damaged.
11.Do not use this device if the enclosure is broken or broken.
12.Unplug the power supply directly after you don't use.
13.Be sure to unplug the power supply before cleaning.
14.There are no referrals or accessories at AIMANFUN, please
do not use them at the same time.
15.For the Aimanfun Ice sense sliding hair removal must use
only its designated adapter. For the correct adapter details,
see specifications.
16.This device is not suitable for use in the presence or
flammable anaesthetic mixtures with air, oxygen or nitrous
oxide.
Common problems and solutions
Complications are not common in the use of this
device.However, each plastic surgery, including those
designed specifically for home use, involves a degree of
risk.Therefore, it is important that you understand and
accept risks and complications. This complex and intense
pulsed light depilation system is suitable for home use.
12
Common problems and solutions
Adverse
reaction
Possibility of
adverse
reactions
Side effect
Possibility of
side effects
Stack in g or
overlapping of
multiple flashes Slight Slight
Slight
Slight
Possibility of
side effects
Slight
Skin discomfort
Rubefaction
Skin allergy
Skin wound
or burn
Scar
Pigment
change
Excessive redness
or swelling
Infection
Bruise
Rare
Rare
Rare
Rare
Seldom
Seldom
Slight skin discomfort
Although IPL hair removal generally feels good, most users
experience slight discomfort during use.This slight
discomfort is usually described as a slight tingling sensation,
usually after a few minutes of flash or flash.Any excess of this
discomfort is an anomaly, meaning you should not continue
to use this product or use it incorrectly because you can 't
stand its depilation method, or the intensity level is set too
high.
17
Pre - use skin test
1.Select a position near the par t to be flashed
Do not try in difficult or sensitive areas ( ankle or bone )
Using the device.
2.Start the device to ensure that the gear is in 1st gear.
3.Place the device on the skin at an angle of 90 °and the device
exit window is fully in contact with the skin.
Integrated safety systems prevent accidental flash when not
in contact with the skin.
4.Press the flash button to flash.
5.Slide the device against the skin to the next area where flash
is required.
6.Choose to change the level according to your comfort level
7.After a skin test, wait 24 hours to check your skin for any
reaction. If your skin reacts, select settings that do not cause
skin reactions when used later.
If the skin color changes after the last flash, perform a skin
test and wait 30 minutes before the next flash.
16
Preparation before use
Before using this product, it is
recommended to pretreat the skin to
remove hair from the skin surface.
This allows the hair portion on the
skin surface to absorb light to ensure
the effect of the illumination. You can
shave, cut short, depilate or wax
Depilation. Do not use depilatory
cream because chemicals can cause
skin reactions.
Skin pretreatment
1.Pretreat the area where you want to use for hair removal
2.Clean the skin to make sure it is free of hair, completely dry
and free of oily substances.
Note: if shaving causes skin allergy, it is
recommended that you use this product
again after skin allergy is cured.
Pre - use skin test
Skin test
If this device is used for the first time or recently has been
blackened, each Prepare the irradiated area for skin test. Skin
tests are required Try, in order to check whether there is a skin
response to radiation, and determine each body Correct light
intensity settings for the location
13
Common problems and solutions
Skin redness
Your skin may apper skin redness within before or after 24
hours of using this product. If skin redness does not
disappear within 2 - 3 days, consult your doctor.
Skin allergy
Skin area allergy may be due to dr y or peeling skin.
Skin wound or burn
Ver y rare, skin wounds or burns occur after use of the
device.Wounds and burns take weeks to heal, and ver y rarely
leave scars.
Bruise
Although very rare, scarring may occur. Usually when scarring
occurs, it is in the form of a flat and white lesion on the skin
(hypotrophic). However, it can be large and red
(hyertrophic)or large and extend beyond the margins of the
injury itself (keloid). Subsequent aesthetic treatments may be
required to improve the appearance of the scar.
Pigment change
Aimanfun Ice sense sliding hair removal targets the hair
shaft, in particular the pigmented cells in the hair follicle and
the hair follicle itself. Nevertheless, there is risk of temporary
hyerpigmentation (increased pigment or brown
discoloration) or hypopigmentation (whitening) to the
surrounding skin. This skin of changes in skin pigmentation is
higher for people with darker skin color. Usually discoloration
or changes to skin pigment are temporar y and
hyperpigmentation or hypopigmentation rarely occur.
14
Common problems and solutions
Excessive redness or swelling
In rare cases, treated skin may become very red and swollen.
This is more common in sensitive areas of the body. The
redness and swelling should subside within 2 to 7days.
Application of ice may help to reduce the welling. Gentle
cleansing of the skin is allowed, but exposure to the sun should
be avoided.
Under the action of IPL technology, soft light pulses are
irradiated on the skin and absorbed by the roots.The darker
the hair, the better the absorption of light pulses.If your hair
is light gold, gray, red, or white, irradiation with this product
will not work because light hair does not absorb enough
light.Below is a list of suitable and effective hair colors for use
with this product.
15
Usage cycle
Arms
Bikini line
Underams
50 % of
hair remove
60 % of
hair remove
55 % of
hair remove
Expected treatment outcome for hair removal .(Dark brown -
brown)
Hair color Light fluence
[l/cm2]
Hair removal
area
Average number
of uses Effect
Dark brown
- brown Max.5 Lower or
upper legs
Approximately
8 - 10 times ，
once for 4 weeks
70 % of
hair remove
Arms
Bikini line
Underams
60 % of
hair remove
70 % of
hair remove
65 % of
hair remove
Expected treatment outcome for hair removal .(Brown-Black)
Hair color Light fluence
[l/cm2]
Hair removal
area
Lower or
upper legs
Max.5
Average number
of uses
Approximately
10 - 12 times ，
once for 4 weeks
Effect
60 % of
hair remove
Brown
-Black
Aimanfun Ice Sense Sliding
Hair Removal Device
A-3588
Usermanual
KAM YUE N PL A S TIC PRODU C T S LT D
Website:www.kyplastic.com
Pu Jin Industrial Konghou Zhongshan City China
Tel:(86)760-88416080
Email:kamyuen@kyplastic.com
28
Warranty card
(The user save it,show to maintenance site when maintence)
Product name:
Type:
Production place:
Guarantee time:
Invoice N O .:
Buying date:
Maintenance Record
Maintenance date: Examination date:
Condition of ault, maintenance ,handling:
Maintenance company: Maintenance man signature:
01
Catalogue
Introduction…………………………………………..………02
Structural composition…………………………..….…..03
Product use and description……..…………..…..…04
Taboo…………………………………………………….………05
Under what circumstances don't allow use this
product….….….….….….….….….….….….….….….…......….06
Specification for use...........................................08
Common problems and solutions.....................11
Usage cycle..........................................................14
Preparation before use.......................................16
Pre - use skin test................................................16
How to use...........................................................18
Cleaning and maintenance................................24
Trouble shooting.................................................25
Assistance............................................................25
Technical parameter...........................................26
Working Condition.............................................27
Stock and Transportation..................................27
Warranty card......................................................28
02
Introduction
Before you use for the first time,please read the
whole user manual.
Attention:
The light it will be flash when you use.
Please don't look at the light directly!
Do not use this product on tanned skin
or after recent sun exposure!
If use in above condition, it may be
burnyour skin or serious damage to
your skin.
The natural dark skin please don't use this product
to removal hair.
Before using this product, please read carefully
and use it in accordance with all safety warnings
and guidelines for the Aimanfun Ice sense sliding
hair removal .
The Aimanfun Ice sense sliding hair removal is a
personal care appliance.So in the safe side,it need to
use in careful.
27
Working Condition
Stock and Transportation
Temperature
Relative Humidity
Atmospheric Pressure
Temperature
Relative Humidity
Atmospheric Pressure
26
Technical parameter
A-3588
2.5-5.0J/cm2
100-240VAC 50-60Hz 1.5A
（13.5x7.5x23cm）H*W*D
360g
BYX-1203000
Model
Spot size
Technology used
Flash duration
Wavelength
Power output
Charging time/ Power source
Time needed to
treat on e lower leg
Safety during operation
Risk group
Package size
Product weight
Adapter
Rated
Intense pulsed light
500-800 usec
Continuous operation
11minute
Skin color sensor ensures
that a flash is only delivered
to appropriate skin colors.
Exempt
03
Structural composition
1
2
3
4
5
6
7
8
9
10
1Power interface
2Flash button
3Flash light
window
4Refrigeration panel/
Ice - sensing contact
surface
5Air outlet
6Air inlet
7LCD display screen
8Indicator light
9ICE -Switch
10 ON/OFF Gear conversion button
※It is forbidden to block the
air inlet and outlet with sundries.
Failure to do so could result in
serious damage to the instrument.
04
Product use and description
Aimanfun Ice sense sliding hair removal product is used for
removing excess hair and body hair, and can also reduce hair
regrowth. The products include underarm, bikini wire, arms
and legs.
IPL technology offers superior safety with lower energy
level.
Intense Pulsed light technology is able to achieve long-term
hair removal results at a fraction of the energy level used in
other light-based hair removal device. The low energy used in
Aimanfun Ice sense sliding hair removal reduces its potential
to cause harm or complications, and contributes to your
overall safety.
Aimanfun Ice sense sliding hair removal has eye and skin
protection settings.
It is designed so that the flash light window requires full
contact with the skin to work ( flash ), No works (flash)as long
as either side does not contact the skin.
The product uses ice technology, a newly developed ice
technology.Can be cooled to 10 degrees celsius.After turn
on the ICE -Switch, it is possible to reduce the heat generated
in using for hair removal.At the same time, after entering the
ice nursing mode, more careful care of the skin, tighten the
skin, bring more painless and lasting beauty skin care
experience.
There are no any operation af ter 10 minutes ,the product
will automatically shut down to stop working.
25
Trouble shooting
1.Cannot start
- Make sure that the power cord is plugged into the device
socket properly.
- Make sure that the adapter is plugged into the electrical
outlet Properly.
2.No flash is emitted when I press the flash button
- Make sure that you have good skin contact and that the
skin contact surface is evenly and firmly pressed onto the skin. For
your safety, the flash button will only activate a flash if the skin
contact surface is in full contact with the skin.
- This is a system error if the READY is flashing with other
lights.Please turn off the equipment and unplug the power
supply.Then insert the setting and try opening it again. If the
problem persists, call 400 - 846 - 1668 for assistance.
Assistance
If you need assistance, pls send e-mail to
kamyuen@kyplastic.com or call our toll-free hotline at 400 -
846 - 1668
24
How to use
After you use this device:
1.When you complete a depilation period , long Press the ON/OFF
button until the device is turned off.
2.Unplug the adapter from the electrical outlet and the AC cord
from the device socket.
3.Put it back in its original box and away from the water.
Skin care after hair removal session
Do not expose the treated areas of the skin to the sun. To protect
recently treated skin when exposed to sunlight, be sure to apply a
sunscreen with SPF30 or higher thoroughly for 2 weeks after each
hair removal session.
Side effects and complications
Some users experience pigment changes after using the product. If
it happens, it is both mild and transient. If you have any
complications, please contact your doctor directly.
Cleaning and maintenance
After each use, it is recommended that you clean the equipment,
especially its skin contact surface.
1.Turn off the device and unplug it from the electrical outlet.
2.Use a dry, clean cloth and a specially formulated cleaner for
electronic equipment to gently wipe the outer shell and the skin
contact surface of the device.
※Never immerse the device or any of its parts in water.
05
Taboo
Important information - please read before using!
Aimanfun Ice sense sliding hair removal is not designed for
everyone. Please read and consider the information in the
following section before use.
1.If you are not sure the Aimanfun Ice sense sliding hair
removal is suitable for your use, consult your physician or
dermatologist.
2.Do not use if you have a naturally dark skin color.This
product removes excess hair by addressing hair coloring, but
depends on Is your skin color suitable for use with this device.The
amount of skin pigment in a person is determined by their skin
color. Using this product in dark color skin tone can cause burns,
bubbles and skin color changes ( pigmentation or
hypopigmentation ).。
3.Do not use on tanned skin or after recent sun exposure.
Tanned skin, particularly after sum exposure, contains large
quantities of the pigment melanin. There is a high risk of using
this product under the skin of large amounts of melanin.Side
effects such as burns, blisters, and skin color changes that can
result from the use of this product on recently exposed skin. (
excessive pigmentation or hypopigmentation ).
4.Avoid exposure to the sun for 4weeks before your use
with Aimanfun Ice sense sliding hair removal !
5.If you are natural white, gray, blond and red hair, do not
use this product!
There is no effect in the above case. If your own hair is these
colors, do not use it.
06
Under what circumstances don't allow use this product
Do not use this Aimanfun Ice sense sliding hair removal, for
the time being under specific conditions. Do not use this
device if:
1.If you are pregnant or nursing (lactating).
2.If you 've been exposed to the sun or had an ar tificial skin
graft in the last four weeks.
3.If you have a tattoo or mark in the area you want to use this
product.
4.If you have dark spots, such as freckles, birthmarks, moles in
the area you want to use.
5.If you have eczema, psoriasis, lesions, open wounds or
active infections, such as cold sores, in the area to be treated.
Wait for the area to heal before you use the device.
6.If you have a histor y of kelodial scar formation, a known
sensitivity to light (photosensitivity) or are taking medication
that makes the skin more sensitive to light, including non-
steroidal anti-inflammatory agents, (e.g., aspirins, ibuprofens,
acetaminophen), tetracyclines, phenothiazines, thiazide,
diuretics, sulfonyluraes, sulfonamides, DTIC, fluorouracil,
vinblastine,
griseofulvin, Alpha-Hydroxi Acids (AHAS), beta-hydroxi acids
(BHAS), retin-A, accutane and /or topical retinoids.
7.If you have abnormal skin conditions due to diabetes,
forexample. Or another systemic or metabolic disease.
23
How to use
For many people, the use of this depilatory instrument is their
first experience with optical depilatory equipment designed
for home use. The depilation instrument is simple and easy to
use, and the depilation speed is fast.
When the machine cooling fan damage without
rotation, please stop using the
machineimmediately, otherwise it may lead to
flash rupture due to high temperature and
damage the skin.
Flash- The bright light emitted by Aimanfun Ice sense sliding
hair removal does not harm the eyes when directed at non-facial
areas. Special eye protection is not necessary when using this
product.
A fan noise- The cooling fan inside the device sounds similar
to a hairdryer. This is normal.
A popping sound at each flash- When a flash is activated, it is
normal to hear a soft popping sound and see a flash at the same
time when a flash is being emitted.
A warm and tingling sensation- When a flash is administered,
it is normal to feel a mild warm and tingling sensation. Remember
that is important to always use low settings for initial hair removal
sessions. You may continue to feel some warmth up to an hour
after use.
Mild red or pink color- During or just after you use, it is not
uncommon to see very mold pink coloration of the skin. This pink
color is usually most noticeable around the hairs themselves. If
your skin is completely red or shows blisters or burns, stop using
the device immediately.
22
How to use
This device has two mode options, single flash (manual mode) and
sliding flash.
The device has two flash modes, which make it easier to use in
different body parts.
- The single flash (manual mode) is ideal for small or curved areas
such as the knee and underarm. Just press and loosened the flash
button to emit a flash.
- The sliding flash mode can be conveniently used for large area
parts such as legs. You can slide the device on the skin while holding
down the flash button to flash continuously.
Gear level
Gear adjustment determines the intensity of the flash reaching your
skin.A total of five levels, the corresponding intensity bar shows the
selected intensity.As the intensity level increases, the risk of possible
side effects and complications of depilation increases
accordingly.Always use this product from the lowest level of strength.
If you have no discomfort during the first depilation using the
minimum strength level, the next use can increase the strength level
by 1.
Do not increase the strength level if you feel uncomfortable during
use of this product(For more information, please see” Common
problems and solutions”)
If you feel comfortable using the previous stage, you can strengthen
the level appropriately.
Make sure that the skin contact surface is pressed against the skin
around, and then press the flash button to let go. Place the device
next to the area of use in the next flash. This step of the flash mode
ensures hair removal effects such as knees and ankles.
07
Under what circumstances don't allow use this product
8.If you are currently or have recently been treated with
alpha-hydroxi acids, beta-hydroxi acids, retin-a, acctane
(isotretinoin), topical retinoids, or azelaic acid.
9.If you have been treated with accutane (isotretinoin) within
the past 6 months.
10.If you have been on a steroid regimen within the past 3
months.
11.If you have a histor y of herpes outbreaks in the treatment
area, unless you have consulted your physician and received
preventive treatment before you start using the device.
12.If you suffer from epilepsy.
13.If you have an active implant, such as a pacemaker,
incontinence device, insulin pump, etc.
14.If you have a disease related to photosensitivity, such as
prophyria, polymorphic light eruption, solar urticaria,
lupus,ect.
15.If you have a histor y of skin cancer or potential skin
malignancies.
16.If you have received radiation therapy or chemotherapy
treatments within the past 3 months.
17.If you have any other condition which in your physician's
opinion would make it unsafe for you to be treated.
18.If you are unsure Aimanfun Ice sense sliding hair removal
is safe for you to use,please consult your physician or
dermatologist.
08
Specification for use
1.Choose the intensity level carefully.
Intensity level refers to the intensity of the flash emitted onto
your skin during use., form the lowest level to the highest level.
The intensity lights around the intensity button indicate the
intensity
level at which the device is set. As the intensity level increases,
so do the results as well as the risk of side effects (see chapter
“Common problems and solutions”)
2.Always use this device from the lowest intensity level!
Only if you experience little or no discomfort during and after
use of Aimanfun Ice sense sliding hair removal at the lowest
intensity level, raise the intensity by one level the next time
you use the device and so on for each subsequent session. For
detailed instructions on setting the intensity level, please see
section"How to use".
3.Avoid adverse effects!
⑴ Do not treat the same area of skin more than once
during a session!
⑵Avoid overlapping flashes!
⑶ If your skin blisters or burns, stop using the device
immediately!
4.Avoid complications after use!
⑴Do not expose treated areas of skin to the sun. Sun exposure
includes constant unprotected exposure to direct sunlight
forover 15 minutes, or constant unprotected exposure to
diffuse sunlight for over 1 hour.
21
How to use
Operation steps:
Mode conversion:The device
defaults to single flash
mode(manual mode).When the
device is arranged in the sliding
flash mode, the flash light
window does not flash while away
from the skin,If you leave the skin
for more than 10 seconds, the
mode will automatically switch
back to single flash mode,second
to switch to single flash mode.
3、Ice - sensing mode: If you
only need to select the ice-
sensing mode, after the device is
turned on, press the ice-sensing
switch key for 1 second, and the
device will enter the ice-sensing
nursing mode.The LCD screen
switches to the current mode
screen,the indicator is long
blue.Can 't flash at this time,Inside
the radiator fan is still working.If
you need to return to flash mode,
press the ICE -Switch for another
1 second to return to flash mode.
4、Power off, press ON / OFF
for 1 second, and the device is
powered off.
ON/OFF
ICE
Long press
ON /O FF
ICE
Long press
ON /O FF
ICE
20
How to use
Operation steps:
4）Gear conversion button,
select the level you want.
(press the ON/OFF button
briefly to The strength of level
1 - 5 can be selected cyclically.
5）Correct usage: palce the
flash light window close（all
side contact） to the skin, the
indicator light ⑧ flashing, can
start to depilate.
2、Flash mode
This device has two mode
options, single flash (manual
mode) and sliding flash.
Sliding flash mode: After the
device is turned on, the flash
button is switched to sliding
mode by long press the flash
key without contacting the
skin.Flash continuously by
sliding slowly without pressing
any key
Single flash (manual mode) :
Shortly press the flash button
briefly to complete a flash.
Short press
ON/OFF
ON /O FF
ICE
ICE
90°
√
×
Long press
Sliding flash mode
As icon above
Short press
Single flash (manual mode)
As icon above
09
Specification for use
To protect recently treated skin when exposed to sunlight, be
sure to apply a sunscreen with SPF30 orhigher thoroughly for
2weeks after each hair removal session.
⑵Cover brithmarks and tattoos before treatment.
⑶Cover dark brown or black spots, such as large freckles,
birthmarks, moles or warts before treatment.
⑷Never look directly at light coming out of the light exit
window of the device.
⑸Do not use the device on nipples and genitals(male or
female).
⑹Do not use the device on any body site where you might later
want hair.
⑺Do not use the device for any other purpose than hair
removal.
⑻Never emit a flash into open space. Always make sure the skin
contact surface is in full contact with the skin during treatment.
⑼Remove the skin contact surface from the skin if either the
skin or the surface is too hot.
⑽Never use flammable liquids such as alcohol (including
perfumes, sanitizers, or other substances containing alcohol)
or acetone to clean the skin before you use the device.
⑾Use of the device may cause temporary pigmentation
changes (see chapter “Common problems and solutions“)
⑿Keep this device out of the reach of children.
⒀Do not use the device on children or allow children to use it.
10
Specification for use
In order to ensure that you can use this device properly, some
precautions must be:
1.Modification of this equipment is not allowed.
2.Do not put the device where there is water, keep away from
the water ,so as to fall into the water, may cause electric shock .
3.Don't allow disassemble the Aimanfun Ice sense sliding hair
removal device .
a.Do not attempt to disassemble or service this product.
Disconnecting this device can expose you to dangerous
electrical components and intense light, or can cause personal
injury or eye injury.
b.Assistance call 400-846-1668.
c.If you try disassemble this product , you may also damage the
device. Opening the device will void your warranty. Please call
to 400-846-1668. you have a broken or damaged device in need
of repair.
4.This product is used for the intended purpose only, as
described in the specification.
5.Do not connect the device to the power supply when not in
use.
6.Do not start the device if the wire or adapter is damaged.
Keep the wire away from the high temperature source.
7.Smell smoke while you are using it.
8.Do not use the device if it does not function properly or is
damaged.
19
How to use
Note: your skin may be exposed to different radiation for a
variety of reasons Days / occasions with different reactions.
Operation steps:
1、1）Connect the power
supply: plug in the power
supply, LCD start a second after
the screen is not bright
,Indicator light ⑧ long bright
purple.
2）Standby: Press the on /
off button for 1 second for the
device to start running with the
sound of fan rotation.The LCD
displays the current information,
the number of flashes
remaining,( note - The default
level 1 with manual mode, no
ice sense. )When the indicator
light ⑧ changes from red to
blue, the device can start to use.
3）Ice - sensing mode:short
press the ICE -Switch once, the
LCD displays the snowflake icon,
and the refrigeration panel
starts to work. ( skip this if you
don 't need ice sensing)
Short press
ON /O FF
ICE
ON/OFF
ICE
Long press
ON /O FF
ICE
18
How to use
Select the appropriate intensity level
1.Feel good when using this device. If you feel uncomfortable,
reduce the intensity level. You can use the gear selection
button to select the desired level
2.If you move to another body part or have recently done self-
tanning, skin tests should be performed to determine the
appropriate gear.
Note: because the skin color of each part of the
body may be different, you need to select the
appropriate gear for each part. This device does
not automatically select the appropriate gear.
Skin type
Skin type
White, always sunburned, not tanning
Beige, easy to sunburn，Easy to sunburn
into light black
Light brown, easy to sunburn,self-tanning
speed is slow,It turns brown
Dark brown; Rarely sunburned，easy to
self-tanning
Brown black or darker, rarely or never
tanned, dark black You cannot use
this device
You cannot use
this device
Gear setting
Medium brown, easy to sunburn,
self-tanning speed is slow
11
Specification for use
9.Do not use this device if the contact surface is damaged,
separated or missing and air leaks.
10.Do not use this device if the skin color sensor is broken or
damaged.
11.Do not use this device if the enclosure is broken or broken.
12.Unplug the power supply directly after you don't use.
13.Be sure to unplug the power supply before cleaning.
14.There are no referrals or accessories at AIMANFUN, please
do not use them at the same time.
15.For the Aimanfun Ice sense sliding hair removal must use
only its designated adapter. For the correct adapter details,
see specifications.
16.This device is not suitable for use in the presence or
flammable anaesthetic mixtures with air, oxygen or nitrous
oxide.
Common problems and solutions
Complications are not common in the use of this
device.However, each plastic surgery, including those
designed specifically for home use, involves a degree of
risk.Therefore, it is important that you understand and
accept risks and complications. This complex and intense
pulsed light depilation system is suitable for home use.
12
Common problems and solutions
Adverse
reaction
Possibility of
adverse
reactions
Side effect
Possibility of
side effects
Stack in g or
overlapping of
multiple flashes Slight Slight
Slight
Slight
Possibility of
side effects
Slight
Skin discomfort
Rubefaction
Skin allergy
Skin wound
or burn
Scar
Pigment
change
Excessive redness
or swelling
Infection
Bruise
Rare
Rare
Rare
Rare
Seldom
Seldom
Slight skin discomfort
Although IPL hair removal generally feels good, most users
experience slight discomfort during use.This slight
discomfort is usually described as a slight tingling sensation,
usually after a few minutes of flash or flash.Any excess of this
discomfort is an anomaly, meaning you should not continue
to use this product or use it incorrectly because you can 't
stand its depilation method, or the intensity level is set too
high.
17
Pre - use skin test
1.Select a position near the par t to be flashed
Do not try in difficult or sensitive areas ( ankle or bone )
Using the device.
2.Start the device to ensure that the gear is in 1st gear.
3.Place the device on the skin at an angle of 90 °and the device
exit window is fully in contact with the skin.
Integrated safety systems prevent accidental flash when not
in contact with the skin.
4.Press the flash button to flash.
5.Slide the device against the skin to the next area where flash
is required.
6.Choose to change the level according to your comfort level
7.After a skin test, wait 24 hours to check your skin for any
reaction. If your skin reacts, select settings that do not cause
skin reactions when used later.
If the skin color changes after the last flash, perform a skin
test and wait 30 minutes before the next flash.
16
Preparation before use
Before using this product, it is
recommended to pretreat the skin to
remove hair from the skin surface.
This allows the hair portion on the
skin surface to absorb light to ensure
the effect of the illumination. You can
shave, cut short, depilate or wax
Depilation. Do not use depilatory
cream because chemicals can cause
skin reactions.
Skin pretreatment
1.Pretreat the area where you want to use for hair removal
2.Clean the skin to make sure it is free of hair, completely dry
and free of oily substances.
Note: if shaving causes skin allergy, it is
recommended that you use this product
again after skin allergy is cured.
Pre - use skin test
Skin test
If this device is used for the first time or recently has been
blackened, each Prepare the irradiated area for skin test. Skin
tests are required Try, in order to check whether there is a skin
response to radiation, and determine each body Correct light
intensity settings for the location
13
Common problems and solutions
Skin redness
Your skin may apper skin redness within before or after 24
hours of using this product. If skin redness does not
disappear within 2 - 3 days, consult your doctor.
Skin allergy
Skin area allergy may be due to dr y or peeling skin.
Skin wound or burn
Ver y rare, skin wounds or burns occur after use of the
device.Wounds and burns take weeks to heal, and ver y rarely
leave scars.
Bruise
Although very rare, scarring may occur. Usually when scarring
occurs, it is in the form of a flat and white lesion on the skin
(hypotrophic). However, it can be large and red
(hyertrophic)or large and extend beyond the margins of the
injury itself (keloid). Subsequent aesthetic treatments may be
required to improve the appearance of the scar.
Pigment change
Aimanfun Ice sense sliding hair removal targets the hair
shaft, in particular the pigmented cells in the hair follicle and
the hair follicle itself. Nevertheless, there is risk of temporary
hyerpigmentation (increased pigment or brown
discoloration) or hypopigmentation (whitening) to the
surrounding skin. This skin of changes in skin pigmentation is
higher for people with darker skin color. Usually discoloration
or changes to skin pigment are temporar y and
hyperpigmentation or hypopigmentation rarely occur.
14
Common problems and solutions
Excessive redness or swelling
In rare cases, treated skin may become very red and swollen.
This is more common in sensitive areas of the body. The
redness and swelling should subside within 2 to 7days.
Application of ice may help to reduce the welling. Gentle
cleansing of the skin is allowed, but exposure to the sun should
be avoided.
Under the action of IPL technology, soft light pulses are
irradiated on the skin and absorbed by the roots.The darker
the hair, the better the absorption of light pulses.If your hair
is light gold, gray, red, or white, irradiation with this product
will not work because light hair does not absorb enough
light.Below is a list of suitable and effective hair colors for use
with this product.
15
Usage cycle
Arms
Bikini line
Underams
50 % of
hair remove
60 % of
hair remove
55 % of
hair remove
Expected treatment outcome for hair removal .(Dark brown -
brown)
Hair color Light fluence
[l/cm2]
Hair removal
area
Average number
of uses Effect
Dark brown
- brown Max.5 Lower or
upper legs
Approximately
8 - 10 times ，
once for 4 weeks
70 % of
hair remove
Arms
Bikini line
Underams
60 % of
hair remove
70 % of
hair remove
65 % of
hair remove
Expected treatment outcome for hair removal .(Brown-Black)
Hair color Light fluence
[l/cm2]
Hair removal
area
Lower or
upper legs
Max.5
Average number
of uses
Approximately
10 - 12 times ，
once for 4 weeks
Effect
60 % of
hair remove
Brown
-Black
Aimanfun Ice Sense Sliding
Hair Removal Device
A-3588
Usermanual
KAM YUE N PL A S TIC PRODU C T S LT D
Website:www.kyp la stic.com
Pu Jin Ind us tr ial Konghou Zhongshan Cit y Ch ina
Tel:(86)760-88416080
Email:kamyuen@kyplastic.com
28
Warranty card
(The user save it,show to maintenance site when maintence)
Product name:
Type:
Production place:
Guarantee time:
Invoice N O .:
Buying date:
Maintenance Record
Maintenance date: Examination date:
Condition of ault, maintenance ,handling:
Maintenance company: Maintenance man signature:
01
Catalogue
Introduction…………………………………………..………02
Structural composition…………………………..….…..03
Product use and description……..…………..…..…04
Taboo…………………………………………………….………05
Under what circumstances don't allow use this
product….….….….….….….….….….….….….….….…......….06
Specification for use...........................................08
Common problems and solutions.....................11
Usage cycle..........................................................14
Preparation before use.......................................16
Pre - use skin test................................................16
How to use...........................................................18
Cleaning and maintenance................................24
Trouble shooting.................................................25
Assistance............................................................25
Technical parameter...........................................26
Working Condition.............................................27
Stock and Transportation..................................27
Warranty card......................................................28
02
Introduction
Before you use for the first time,please read the
whole user manual.
Attention:
The light it will be flash when you use.
Please don't look at the light directly!
Do not use this product on tanned skin
or after recent sun exposure!
If use in above condition, it may be
burnyour skin or serious damage to
your skin.
The natural dark skin please don't use this product
to removal hair.
Before using this product, please read carefully
and use it in accordance with all safety warnings
and guidelines for the Aimanfun Ice sense sliding
hair removal .
The Aimanfun Ice sense sliding hair removal is a
personal care appliance.So in the safe side,it need to
use in careful.
27
Working Condition
Stock and Transportation
Temperature
Relative Humidity
Atmospheric Pressure
Temperature
Relative Humidity
Atmospheric Pressure
26
Technical parameter
A-3588
2.5-5.0J/cm2
100-240VAC 50-60Hz 1.5A
（13.5x7.5x23cm）H*W*D
360g
BYX-1203000
Model
Spot size
Technology used
Flash duration
Wavelength
Power output
Charging time/ Power source
Time needed to
treat on e lower leg
Safety during operation
Risk group
Package size
Product weight
Adapter
Rated
Intense pulsed light
500-800 usec
Continuous operation
11minute
Skin color sensor ensures
that a flash is only delivered
to appropriate skin colors.
Exempt
03
Structural composition
1
2
3
4
5
6
7
8
9
10
1Power interface
2Flash button
3Flash light
window
4Refrigeration panel/
Ice - sensing contact
surface
5Air outlet
6Air inlet
7LCD display screen
8Indicator light
9ICE -Switch
10 ON/OFF Gear conversion button
※It is forbidden to block the
air inlet and outlet with sundries.
Failure to do so could result in
serious damage to the instrument.
04
Product use and description
Aimanfun Ice sense sliding hair removal product is used for
removing excess hair and body hair, and can also reduce hair
regrowth. The products include underarm, bikini wire, arms
and legs.
IPL technology offers superior safety with lower energy
level.
Intense Pulsed light technology is able to achieve long-term
hair removal results at a fraction of the energy level used in
other light-based hair removal device. The low energy used in
Aimanfun Ice sense sliding hair removal reduces its potential
to cause harm or complications, and contributes to your
overall safety.
Aimanfun Ice sense sliding hair removal has eye and skin
protection settings.
It is designed so that the flash light window requires full
contact with the skin to work ( flash ), No works (flash)as long
as either side does not contact the skin.
The product uses ice technology, a newly developed ice
technology.Can be cooled to 10 degrees celsius.After turn
on the ICE -Switch, it is possible to reduce the heat generated
in using for hair removal.At the same time, after entering the
ice nursing mode, more careful care of the skin, tighten the
skin, bring more painless and lasting beauty skin care
experience.
There are no any operation af ter 10 minutes ,the product
will automatically shut down to stop working.
25
Trouble shooting
1.Cannot start
- Make sure that the power cord is plugged into the device
socket properly.
- Make sure that the adapter is plugged into the electrical
outlet Properly.
2.No flash is emitted when I press the flash button
- Make sure that you have good skin contact and that the
skin contact surface is evenly and firmly pressed onto the skin. For
your safety, the flash button will only activate a flash if the skin
contact surface is in full contact with the skin.
- This is a system error if the READY is flashing with other
lights.Please turn off the equipment and unplug the power
supply.Then insert the setting and try opening it again. If the
problem persists, call 400 - 846 - 1668 for assistance.
Assistance
If you need assistance, pls send e-mail to
kamyuen@kyplastic.com or call our toll-free hotline at 400 -
846 - 1668
24
How to use
After you use this device:
1.When you complete a depilation period , long Press the ON/OFF
button until the device is turned off.
2.Unplug the adapter from the electrical outlet and the AC cord
from the device socket.
3.Put it back in its original box and away from the water.
Skin care after hair removal session
Do not expose the treated areas of the skin to the sun. To protect
recently treated skin when exposed to sunlight, be sure to apply a
sunscreen with SPF30 or higher thoroughly for 2 weeks after each
hair removal session.
Side effects and complications
Some users experience pigment changes after using the product. If
it happens, it is both mild and transient. If you have any
complications, please contact your doctor directly.
Cleaning and maintenance
After each use, it is recommended that you clean the equipment,
especially its skin contact surface.
1.Turn off the device and unplug it from the electrical outlet.
2.Use a dry, clean cloth and a specially formulated cleaner for
electronic equipment to gently wipe the outer shell and the skin
contact surface of the device.
※Never immerse the device or any of its parts in water.
05
Taboo
Important information - please read before using!
Aimanfun Ice sense sliding hair removal is not designed for
everyone. Please read and consider the information in the
following section before use.
1.If you are not sure the Aimanfun Ice sense sliding hair
removal is suitable for your use, consult your physician or
dermatologist.
2.Do not use if you have a naturally dark skin color.This
product removes excess hair by addressing hair coloring, but
depends on Is your skin color suitable for use with this device.The
amount of skin pigment in a person is determined by their skin
color. Using this product in dark color skin tone can cause burns,
bubbles and skin color changes ( pigmentation or
hypopigmentation ).。
3.Do not use on tanned skin or after recent sun exposure.
Tanned skin, particularly after sum exposure, contains large
quantities of the pigment melanin. There is a high risk of using
this product under the skin of large amounts of melanin.Side
effects such as burns, blisters, and skin color changes that can
result from the use of this product on recently exposed skin. (
excessive pigmentation or hypopigmentation ).
4.Avoid exposure to the sun for 4weeks before your use
with Aimanfun Ice sense sliding hair removal !
5.If you are natural white, gray, blond and red hair, do not
use this product!
There is no effect in the above case. If your own hair is these
colors, do not use it.
06
Under what circumstances don't allow use this product
Do not use this Aimanfun Ice sense sliding hair removal, for
the time being under specific conditions. Do not use this
device if:
1.If you are pregnant or nursing (lactating).
2.If you 've been exposed to the sun or had an ar tificial skin
graft in the last four weeks.
3.If you have a tattoo or mark in the area you want to use this
product.
4.If you have dark spots, such as freckles, birthmarks, moles in
the area you want to use.
5.If you have eczema, psoriasis, lesions, open wounds or
active infections, such as cold sores, in the area to be treated.
Wait for the area to heal before you use the device.
6.If you have a histor y of kelodial scar formation, a known
sensitivity to light (photosensitivity) or are taking medication
that makes the skin more sensitive to light, including non-
steroidal anti-inflammatory agents, (e.g., aspirins, ibuprofens,
acetaminophen), tetracyclines, phenothiazines, thiazide,
diuretics, sulfonyluraes, sulfonamides, DTIC, fluorouracil,
vinblastine,
griseofulvin, Alpha-Hydroxi Acids (AHAS), beta-hydroxi acids
(BHAS), retin-A, accutane and /or topical retinoids.
7.If you have abnormal skin conditions due to diabetes,
forexample. Or another systemic or metabolic disease.
23
How to use
For many people, the use of this depilatory instrument is their
first experience with optical depilatory equipment designed
for home use. The depilation instrument is simple and easy to
use, and the depilation speed is fast.
When the machine cooling fan damage without
rotation, please stop using the
machineimmediately, otherwise it may lead to
flash rupture due to high temperature and
damage the skin.
Flash- The bright light emitted by Aimanfun Ice sense sliding
hair removal does not harm the eyes when directed at non-facial
areas. Special eye protection is not necessary when using this
product.
A fan noise- The cooling fan inside the device sounds similar
to a hairdryer. This is normal.
A popping sound at each flash- When a flash is activated, it is
normal to hear a soft popping sound and see a flash at the same
time when a flash is being emitted.
A warm and tingling sensation- When a flash is administered,
it is normal to feel a mild warm and tingling sensation. Remember
that is important to always use low settings for initial hair removal
sessions. You may continue to feel some warmth up to an hour
after use.
Mild red or pink color- During or just after you use, it is not
uncommon to see very mold pink coloration of the skin. This pink
color is usually most noticeable around the hairs themselves. If
your skin is completely red or shows blisters or burns, stop using
the device immediately.
22
How to use
This device has two mode options, single flash (manual mode) and
sliding flash.
The device has two flash modes, which make it easier to use in
different body parts.
- The single flash (manual mode) is ideal for small or curved areas
such as the knee and underarm. Just press and loosened the flash
button to emit a flash.
- The sliding flash mode can be conveniently used for large area
parts such as legs. You can slide the device on the skin while holding
down the flash button to flash continuously.
Gear level
Gear adjustment determines the intensity of the flash reaching your
skin.A total of five levels, the corresponding intensity bar shows the
selected intensity.As the intensity level increases, the risk of possible
side effects and complications of depilation increases
accordingly.Always use this product from the lowest level of strength.
If you have no discomfort during the first depilation using the
minimum strength level, the next use can increase the strength level
by 1.
Do not increase the strength level if you feel uncomfortable during
use of this product(For more information, please see” Common
problems and solutions”)
If you feel comfortable using the previous stage, you can strengthen
the level appropriately.
Make sure that the skin contact surface is pressed against the skin
around, and then press the flash button to let go. Place the device
next to the area of use in the next flash. This step of the flash mode
ensures hair removal effects such as knees and ankles.
07
Under what circumstances don't allow use this product
8.If you are currently or have recently been treated with
alpha-hydroxi acids, beta-hydroxi acids, retin-a, acctane
(isotretinoin), topical retinoids, or azelaic acid.
9.If you have been treated with accutane (isotretinoin) within
the past 6 months.
10.If you have been on a steroid regimen within the past 3
months.
11.If you have a histor y of herpes outbreaks in the treatment
area, unless you have consulted your physician and received
preventive treatment before you start using the device.
12.If you suffer from epilepsy.
13.If you have an active implant, such as a pacemaker,
incontinence device, insulin pump, etc.
14.If you have a disease related to photosensitivity, such as
prophyria, polymorphic light eruption, solar urticaria,
lupus,ect.
15.If you have a histor y of skin cancer or potential skin
malignancies.
16.If you have received radiation therapy or chemotherapy
treatments within the past 3 months.
17.If you have any other condition which in your physician's
opinion would make it unsafe for you to be treated.
18.If you are unsure Aimanfun Ice sense sliding hair removal
is safe for you to use,please consult your physician or
dermatologist.
08
Specification for use
1.Choose the intensity level carefully.
Intensity level refers to the intensity of the flash emitted onto
your skin during use., form the lowest level to the highest level.
The intensity lights around the intensity button indicate the
intensity
level at which the device is set. As the intensity level increases,
so do the results as well as the risk of side effects (see chapter
“Common problems and solutions”)
2.Always use this device from the lowest intensity level!
Only if you experience little or no discomfort during and after
use of Aimanfun Ice sense sliding hair removal at the lowest
intensity level, raise the intensity by one level the next time
you use the device and so on for each subsequent session. For
detailed instructions on setting the intensity level, please see
section"How to use".
3.Avoid adverse effects!
⑴ Do not treat the same area of skin more than once
during a session!
⑵Avoid overlapping flashes!
⑶ If your skin blisters or burns, stop using the device
immediately!
4.Avoid complications after use!
⑴Do not expose treated areas of skin to the sun. Sun exposure
includes constant unprotected exposure to direct sunlight
forover 15 minutes, or constant unprotected exposure to
diffuse sunlight for over 1 hour.
21
How to use
Operation steps:
Mode conversion:The device
defaults to single flash
mode(manual mode).When the
device is arranged in the sliding
flash mode, the flash light
window does not flash while away
from the skin,If you leave the skin
for more than 10 seconds, the
mode will automatically switch
back to single flash mode,second
to switch to single flash mode.
3、Ice - sensing mode: If you
only need to select the ice-
sensing mode, after the device is
turned on, press the ice-sensing
switch key for 1 second, and the
device will enter the ice-sensing
nursing mode.The LCD screen
switches to the current mode
screen,the indicator is long
blue.Can 't flash at this time,Inside
the radiator fan is still working.If
you need to return to flash mode,
press the ICE -Switch for another
1 second to return to flash mode.
4、Power off, press ON / OFF
for 1 second, and the device is
powered off.
ON/OFF
ICE
Long press
ON /O FF
ICE
Long press
ON /O FF
ICE
20
How to use
Operation steps:
4）Gear conversion button,
select the level you want.
(press the ON/OFF button
briefly to The strength of level
1 - 5 can be selected cyclically.
5）Correct usage: palce the
flash light window close（all
side contact） to the skin, the
indicator light ⑧ flashing, can
start to depilate.
2、Flash mode
This device has two mode
options, single flash (manual
mode) and sliding flash.
Sliding flash mode: After the
device is turned on, the flash
button is switched to sliding
mode by long press the flash
key without contacting the
skin.Flash continuously by
sliding slowly without pressing
any key
Single flash (manual mode) :
Shortly press the flash button
briefly to complete a flash.
Short press
ON/OFF
ON /O FF
ICE
ICE
90°
√
×
Long press
Sliding flash mode
As icon above
Short press
Single flash (manual mode)
As icon above
09
Specification for use
To protect recently treated skin when exposed to sunlight, be
sure to apply a sunscreen with SPF30 orhigher thoroughly for
2weeks after each hair removal session.
⑵Cover brithmarks and tattoos before treatment.
⑶Cover dark brown or black spots, such as large freckles,
birthmarks, moles or warts before treatment.
⑷Never look directly at light coming out of the light exit
window of the device.
⑸Do not use the device on nipples and genitals(male or
female).
⑹Do not use the device on any body site where you might later
want hair.
⑺Do not use the device for any other purpose than hair
removal.
⑻Never emit a flash into open space. Always make sure the skin
contact surface is in full contact with the skin during treatment.
⑼Remove the skin contact surface from the skin if either the
skin or the surface is too hot.
⑽Never use flammable liquids such as alcohol (including
perfumes, sanitizers, or other substances containing alcohol)
or acetone to clean the skin before you use the device.
⑾Use of the device may cause temporary pigmentation
changes (see chapter “Common problems and solutions“)
⑿Keep this device out of the reach of children.
⒀Do not use the device on children or allow children to use it.
10
Specification for use
In order to ensure that you can use this device properly, some
precautions must be:
1.Modification of this equipment is not allowed.
2.Do not put the device where there is water, keep away from
the water ,so as to fall into the water, may cause electric shock .
3.Don't allow disassemble the Aimanfun Ice sense sliding hair
removal device .
a.Do not attempt to disassemble or service this product.
Disconnecting this device can expose you to dangerous
electrical components and intense light, or can cause personal
injury or eye injury.
b.Assistance call 400-846-1668.
c.If you try disassemble this product , you may also damage the
device. Opening the device will void your warranty. Please call
to 400-846-1668. you have a broken or damaged device in need
of repair.
4.This product is used for the intended purpose only, as
described in the specification.
5.Do not connect the device to the power supply when not in
use.
6.Do not start the device if the wire or adapter is damaged.
Keep the wire away from the high temperature source.
7.Smell smoke while you are using it.
8.Do not use the device if it does not function properly or is
damaged.
19
How to use
Note: your skin may be exposed to different radiation for a
variety of reasons Days / occasions with different reactions.
Operation steps:
1、1）Connect the power
supply: plug in the power
supply, LCD start a second after
the screen is not bright
,Indicator light ⑧ long bright
purple.
2）Standby: Press the on /
off button for 1 second for the
device to start running with the
sound of fan rotation.The LCD
displays the current information,
the number of flashes
remaining,( note - The default
level 1 with manual mode, no
ice sense. )When the indicator
light ⑧ changes from red to
blue, the device can start to use.
3）Ice - sensing mode:short
press the ICE -Switch once, the
LCD displays the snowflake icon,
and the refrigeration panel
starts to work. ( skip this if you
don 't need ice sensing)
Short press
ON /O FF
ICE
ON/OFF
ICE
Long press
ON /O FF
ICE
18
How to use
Select the appropriate intensity level
1.Feel good when using this device. If you feel uncomfortable,
reduce the intensity level. You can use the gear selection
button to select the desired level
2.If you move to another body part or have recently done self-
tanning, skin tests should be performed to determine the
appropriate gear.
Note: because the skin color of each part of the
body may be different, you need to select the
appropriate gear for each part. This device does
not automatically select the appropriate gear.
Skin type
Skin type
White, always sunburned, not tanning
Beige, easy to sunburn，Easy to sunburn
into light black
Light brown, easy to sunburn,self-tanning
speed is slow,It turns brown
Dark brown; Rarely sunburned，easy to
self-tanning
Brown black or darker, rarely or never
tanned, dark black You cannot use
this device
You cannot use
this device
Gear setting
Medium brown, easy to sunburn,
self-tanning speed is slow
11
Specification for use
9.Do not use this device if the contact surface is damaged,
separated or missing and air leaks.
10.Do not use this device if the skin color sensor is broken or
damaged.
11.Do not use this device if the enclosure is broken or broken.
12.Unplug the power supply directly after you don't use.
13.Be sure to unplug the power supply before cleaning.
14.There are no referrals or accessories at AIMANFUN, please
do not use them at the same time.
15.For the Aimanfun Ice sense sliding hair removal must use
only its designated adapter. For the correct adapter details,
see specifications.
16.This device is not suitable for use in the presence or
flammable anaesthetic mixtures with air, oxygen or nitrous
oxide.
Common problems and solutions
Complications are not common in the use of this
device.However, each plastic surgery, including those
designed specifically for home use, involves a degree of
risk.Therefore, it is important that you understand and
accept risks and complications. This complex and intense
pulsed light depilation system is suitable for home use.
12
Common problems and solutions
Adverse
reaction
Possibility of
adverse
reactions
Side effect
Possibility of
side effects
Stack in g or
overlapping of
multiple flashes Slight Slight
Slight
Slight
Possibility of
side effects
Slight
Skin discomfort
Rubefaction
Skin allergy
Skin wound
or burn
Scar
Pigment
change
Excessive redness
or swelling
Infection
Bruise
Rare
Rare
Rare
Rare
Seldom
Seldom
Slight skin discomfort
Although IPL hair removal generally feels good, most users
experience slight discomfort during use.This slight
discomfort is usually described as a slight tingling sensation,
usually after a few minutes of flash or flash.Any excess of this
discomfort is an anomaly, meaning you should not continue
to use this product or use it incorrectly because you can 't
stand its depilation method, or the intensity level is set too
high.
17
Pre - use skin test
1.Select a position near the part to be flashed
Do not try in difficult or sensitive areas ( ankle or bone )
Using the device.
2.Start the device to ensure that the gear is in 1st gear.
3.Place the device on the skin at an angle of 90 °and the device
exit window is fully in contact with the skin.
Integrated safety systems prevent accidental flash when not
in contact with the skin.
4.Press the flash button to flash.
5.Slide the device against the skin to the next area where flash
is required.
6.Choose to change the level according to your comfort level
7.After a skin test, wait 24 hours to check your skin for any
reaction. If your skin reacts, select settings that do not cause
skin reactions when used later.
If the skin color changes after the last flash, perform a skin
test and wait 30 minutes before the next flash.
16
Preparation before use
Before using this product, it is
recommended to pretreat the skin to
remove hair from the skin surface.
This allows the hair portion on the
skin surface to absorb light to ensure
the effect of the illumination. You can
shave, cut short, depilate or wax
Depilation. Do not use depilatory
cream because chemicals can cause
skin reactions.
Skin pretreatment
1.Pretreat the area where you want to use for hair removal
2.Clean the skin to make sure it is free of hair, completely dry
and free of oily substances.
Note: if shaving causes skin allergy, it is
recommended that you use this product
again after skin allergy is cured.
Pre - use skin test
Skin test
If this device is used for the first time or recently has been
blackened, each Prepare the irradiated area for skin test. Skin
tests are required Try, in order to check whether there is a skin
response to radiation, and determine each body Correct light
intensity settings for the location
13
Common problems and solutions
Skin redness
Your skin may apper skin redness within before or after 24
hours of using this product. If skin redness does not
disappear within 2 - 3 days, consult your doctor.
Skin allergy
Skin area allergy may be due to dr y or peeling skin.
Skin wound or burn
Ver y rare, skin wounds or burns occur after use of the
device.Wounds and burns take weeks to heal, and ver y rarely
leave scars.
Bruise
Although very rare, scarring may occur. Usually when scarring
occurs, it is in the form of a flat and white lesion on the skin
(hypotrophic). However, it can be large and red
(hyertrophic)or large and extend beyond the margins of the
injury itself (keloid). Subsequent aesthetic treatments may be
required to improve the appearance of the scar.
Pigment change
Aimanfun Ice sense sliding hair removal targets the hair
shaft, in particular the pigmented cells in the hair follicle and
the hair follicle itself. Nevertheless, there is risk of temporary
hyerpigmentation (increased pigment or brown
discoloration) or hypopigmentation (whitening) to the
surrounding skin. This skin of changes in skin pigmentation is
higher for people with darker skin color. Usually discoloration
or changes to skin pigment are temporar y and
hyperpigmentation or hypopigmentation rarely occur.
14
Common problems and solutions
Excessive redness or swelling
In rare cases, treated skin may become very red and swollen.
This is more common in sensitive areas of the body. The
redness and swelling should subside within 2 to 7days.
Application of ice may help to reduce the welling. Gentle
cleansing of the skin is allowed, but exposure to the sun should
be avoided.
Under the action of IPL technology, soft light pulses are
irradiated on the skin and absorbed by the roots.The darker
the hair, the better the absorption of light pulses.If your hair
is light gold, gray, red, or white, irradiation with this product
will not work because light hair does not absorb enough
light.Below is a list of suitable and effective hair colors for use
with this product.
15
Usage cycle
Arms
Bikini line
Underams
50 % of
hair remove
60 % of
hair remove
55 % of
hair remove
Expected treatment outcome for hair removal .(Dark brown -
brown)
Hair color Light fluence
[l/cm2]
Hair removal
area
Average number
of uses Effect
Dark brown
- brown Max.5 Lower or
upper legs
Approximately
8 - 10 times ，
once for 4 weeks
70 % of
hair remove
Arms
Bikini line
Underams
60 % of
hair remove
70 % of
hair remove
65 % of
hair remove
Expected treatment outcome for hair removal .(Brown-Black)
Hair color Light fluence
[l/cm2]
Hair removal
area
Lower or
upper legs
Max.5
Average number
of uses
Approximately
10 - 12 times ，
once for 4 weeks
Effect
60 % of
hair remove
Brown
-Black
Aimanfun Ice Sense Sliding
Hair Removal Device
A-3588
