TANDYPRO®HAND PRESS
2
GENERAL DESCRIPTION
The TandyPro® Hand Press is designed for stamping, setting hardware, and punching holes on leather. Its adjustable ram height
provides convenient support for various leather thicknesses and attachments. It is ideal for small production, repair shops, and
home workshops.
LIABILITY STATEMENT
The TandyPro®Hand Press is a proprietary product of Tandy Leather and is subject to copyright and patent protection.
By purchasing this product, the purchaser assumes all liability resulting from the unsafe operation or improper use.Tandy Leather
shall not be liable for personal injury resulting from the use of this machine under any circumstances.We strongly advise against
modication and/or use of this product for any other application other than that for which it was designed.
All information in this manual is subject to change without notice.Tandy Leather reserves the right to make changes and
improvements to the product without incurring any obligation to incorporate such improvements in products previously sold.
SAFETY RULES
Safe operation of this machine and accessories requires that you read and understand this operator's manual.
Safety is a combination of common sense, staying alert, and knowing how your machine works.
• Do not operate this machine under the inuence of drugs, alcohol, medication, or when feeling fatigued.
• Keep children away.
• Machine must be bolted as directed to a sturdy, stationary surface. Do not attempt to use the machine while
placed at an angle.
• Be sure your work is placed securely in place. Do not attempt to use the machine while placed at an angle.
• Only use accessories designed for the TandyPro® Hand Press. Improper accessories may cause damage or injury.
• Do not force or overload machine by using handle extensions or excessive pressure.
• Keep handle in upright position to prevent accidents when not in use.
• Always check that machine is properly secured and setup before use.
• Keep hands and ngers clear of moving parts to avoid injury.
• Wear safety glasses. Everyday glasses do not provide adequate protection.
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible dangers.The safety symbols, and the explanations with
them, deserve your careful attention and understanding.These safety warnings do not by themselves eliminate any danger.The
instructions or warnings they give are not substitutes for proper safety and accident prevention measures.
SYMBOL
SAFETY ALERT:
Indicates danger, warning, or caution.
May be used in conjunction with other symbols or pictographs.
DANGER/WARNING/CAUTION:
Failure to follow a safety warning could result in serious injury to yourself or to others.
Always follow the safety precautions to reduce the risk of personal injury.
TANDYPRO®
HAND PRESS
3
COMPONENTS
Fig. 1
A. TandyPro®Hand Press
B. Handle
C. Allen Key Bolt
D. Table Plate
E. Allen Wrench
F. Replacement Wear Pad
TOOLS NEEDED
The following tools (not included) are
needed for assembly and alignment:
• Screwdriver
• Mounting Hardware
TANDYPRO®
HAND PRESS
B.
C.
A.
D.
E.
F.
4
INSTALLATION
• Carefully remove all parts from the packaging.
• Do not discard the packing materials until you have carefully.
inspected the machine, identied all loose parts, and satisfactorily
operated your machine.
CAUTION: Heavy machinery,
please carry with both hands to avoid injury.
• Place Screw Alignment Templates on workbench or stand and
drill 4 holes where indicated.
• Mount the machine onto the surface (hardware not included).
We recommend using 1/4" or 6 mm bolts and add corresponding
washer and nuts to secure the machine into place. Fig. 2
WARNING: Do not operate machine until it is
properly secured to a work surface. The entire
machine base must be in contact with the table
surface. Do not suspend the front of the machine
off the table.
• Insert handle onto the press, slightly compressing the ram, and
tighten the socket head bolt. Fig. 3
• Slide the table plate into the base and tighten table handle. Fig. 4
Fig. 2
Fig. 3
Fig. 4
5
FEATURES
Fig.5
1. Ram: Moves up and down with the handle.Works with different adapters.
2. Adjustment Collar: Rotates left and right to adjust ram height.
3. Table Plate: Loosen the table handle to remove or adjust plate positions.
4. Fence: Extra guide for easy work piece positioning.
5. Thumbscrew: Holds and secure adapters inside the ram.
OPERATION
WARNING: Do not attempt to operate this machine until you have read and understand all instructions and
safety rules. Failure to comply can result in serious accidents. Save this instruction manual and review frequently
for continuing safe operation.
• Rotate the adjustment collar to change the ram height. Fig. 6
Fig. 6
Fig. 5
1.
5.
3.
2.
4.
6
OPERATION
(continued)

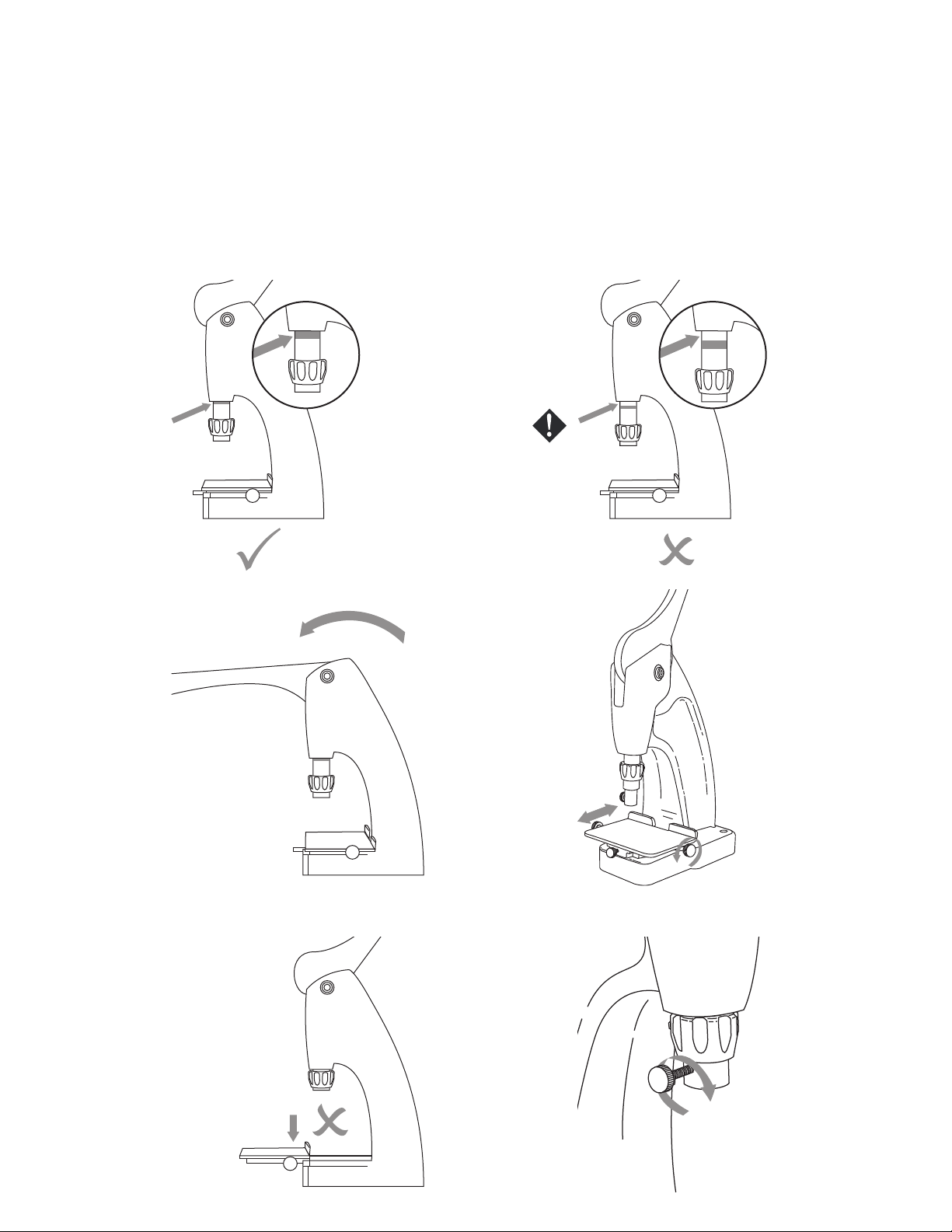

• Do not operate past the safety gauge with the handle in the upright position. Fig. 7
• Use full handle stroke each time.The handle will come to a complete stop when fully lowered. It is normal to
see the safety gauge when the handle is in the down position. Fig. 8
• To reposition table plate, loosen the table handle by rotating it counter-clockwise. Fig. 9
WARNING: Do not overload the extended arm to avoid damaging the machine. Fig. 10
• Loosen and tighten thumbscrew to change the adapters.
Fig. 7
Fig.8 Fig. 9
Fig. 10 Fig. 11
7
SETTING HARDWARE
Fig.12
• Remove the table plate.
• Insert upper die into the ram hole and tighten the thumbscrew. Insert
lower die into base hole and tighten thumbscrew. (sold separately)
• Adjust ram height setting based on leather thickness.
• Load hardware into upper and lower dies, insert leather and pull the
handle down completely.
HOLE PUNCHING
Fig.14
• Remove the table plate.
• Screw desired punch tube or chisel into the adapter.
• Insert adapter into the ram hole and tighten thumbscrews.
(sold separately).
• Insert anvil into base hole and tighten thumbscrew.
• Adjust ram height setting base on the tube or chisel height.
• Place workpiece on the anvil and pull the handle
down completely.
WARNING:Keep hands and ngers clear
of moving parts to avoid injury.
STAMPING
Fig.13
• Install the table plate and reposition it to desired location.
• Insert stamp adapter or type holder (sold separately) into the ram hole
and tighten thumbscrew.
• Adjust the ram height base on the leather thickness and desired
impression depth.
• Place workpiece onto table plate and moisten before stamping.
• Pull handle down completely.
Fig. 12
Fig. 14
Fig. 14
Upper Die
Punch
Adapter
Stamp Adapter
Lower Die
Anvil
Stamp
8
MAINTENANCE
Fig.12
• Inspect the machine and check for parts alignment. Replace components as needed.
WARNING: Only use accessories designed for the TandyPro®Hand Press.
Improper accessories may cause risk of injury.
• Frequently clean any dirt and debris left on the machine.
• Lubricate ram assembly periodically with grease or oil to prevent rust.
• Change worn wear pad with new one by removing handle and head socket screw. Reverse this step after changing out the pad.
Fig. 15
9
PART LIST
Fig.16
1. TandyPro® Hand Press
2. Handle
3. Ram Bushing
4. Follower Bolt
5. Ram
6. Wear Pad
7. Thumbscrew
8. Adjustment Collar
9. Ram Spring
10.Socket Head Bolt
11.Table Plate
12.Table Handle
13. Set Screw
14.Handle Grip
15.Stop Pin
16.T-Channel
17.Flat Head Socket Cap Screw
18.Thumbscrew
19.Arm Spacer
20.Follower Stop Plate
Fig. 16
6
4
20
9
5
14
2
15
19
10
10
3
8
17
16
18
12
11
13
10
ACCESSORIES - HARDWARE SETTERS
Rivet Setting Dies:
3997-00 (6 pcs).
Multi-size Rivet Setting Dies for:
9/32", 3/8", 13/32"
Single/Double Cap Rivets
3997-01 (2 pcs)
1/2" Rivet Setting Dies
Brass Grommet Setting Dies:
39011-01 (2 pcs)
For 3/16" Solid Brass Grommets
39011-02 (2 pcs)
For 9/32" Solid Brass Grommets
39011-03 (2 pcs)
For 5/16" Solid Brass Grommets
39011-04 (2 pcs)
For 3/8" Solid Brass Grommets
39011-05 (2 pcs)
For 1/2" Solid Brass Grommets
39011-06 (2 pcs)
For 17/32" Solid Brass Grommets
Snap Setting Dies:
A. 3985-11 (4 pcs)
For Glove Snaps
B. 3994-11 (4 pcs)
For Line Snaps
C . 395-11 (4 pcs)
For 20 Line Snaps
D. 3996-11 (4 pcs)
For Line 24 Snaps
Round Spot Setting Dies:
3988-01 (2 pcs)
For 1/4" Round Spots
3988-02 (2 pcs)
For 3/8" Round Spots
3988-03 (2 pcs)
For 7/16" Round Spots
3988-04 (2 pcs)
For 1/2" Round Spots
3988-05 2pc
For 1/8" Round Spots
Eyelet Setting Dies:
3992-00 (2 pcs)
For 3/16" Eyelets
3992-01 (2 pcs)
For 1/4" Eyelets
3992-02 (2 pcs)
For 5/16" Eyelets
Tubular Rivet Setting Dies:
3998-00 (2 pcs)
For Tubular Rivets
B C & D
