Tannoy CMS 3.0 series Bedienungsanleitung
Operation Manual
CMS 3.0 Series
In-Ceiling Loudspeakers
2
CMS 3.0 Series Operation Manual rev 3.0.0
Table of Contents
CMS 3.0 Series Operation Manual rev 3.0.0
3
Table of Contents
1. Introduction 4
2. Unpacking 4
3. Safety Notices 4
4. Product Feature Identication 5
4.1. Blind Mount ............................................................................................................................................5
4.2. Pre-install ............................................................................................................................................... 5
4.3. Pre-install backcan .................................................................................................................................6
5. Accessories 7
6. Installation 8
6.1. Installation Guide for Suspended Ceilings ...............................................................................................8
6.2. Installation Guide for Sheetrock Ceilings .................................................................................................9
6.3. Installation Guide for Optional Plaster Ring ........................................................................................... 10
6.4. Installation Guide for Optional Pre-Installation Backcan (PI Models Only) .............................................. 11
7. Wiring and Setting Up 14
8. CMS Series Model Dimensions 15
9. Technical Specications 25
10. Painting 33
11. Warranty 34
12. Declaration of conformity 35
1. Introduction
4
CMS 3.0 Series Operation Manual rev 3.0.0
1. Introduction
Thank you for purchasing this Tannoy Ceiling Monitor System product. Designed for both speech and music
program material, the Tannoy CMS range provides exceptional sonic quality and long-term reliability in all ceiling-
mount applications. The CMS 3.0 DC series features new 16 ohm Dual Concentric™ drivers for improved
performance and prolonged service life.
2. Unpacking
Every Tannoy product is carefully inspected before shipment. After unpacking, please inspect your product to
ensure no damage has occurred in transit. In the unlikely event of damage, please notify your dealer and retain
all shipping materials as your dealer may require return shipment.
All CMS loudspeakers are shipped in pairs and provided with the following accessories as standard: C-ring,
tile-bridge kit, cut-out template and paint mask. A plaster (mud) ring is available as an optional accessory.
3. Safety Notices
Some regional construction codes require the use of a secondary method of securing loudspeakers in the
ceiling to provide security of a back-up support. A secondary support line should be attached from the safety
loop on the rear of the product to a source point on the ceiling. For PI models, the secondary support line
should be attached from the back of the driver chassis to a source point on the ceiling. Please consult the
relevant construction codes in your region.
When using a power driver to install the product, it is essential to use the correct torque level settings to avoid
over-tightening and damage to the ceiling material or clamps. Recommended torque setting: 1.5 Nm
Tannoy will not be held responsible for any damages caused by the improper installation of these loudspeakers.
The CMS 603 ICT LS is UL-1480, category UUMW, for use with non-DC supervised systems.
Electrical Safety Notice: To comply with the standard UL-1480, metal-clad exible conduit (BX) is required for
connection to the terminal block for proper earth grounding.
In order to comply with UL regulations, the PI backcan must always be used with the CMS PI models.
SAFETY NOTE:
In order to comply with the relevant re safety regulations (ie. BS 5839:1998), it is required that in the event of
re, that failure of the circuit to which the loudspeaker is connected does not occur before evacuation of the
building is complete. Suitable measures include:
a) use of terminal blocks (for connection to primary) with a melting point of not less than 650°C, for example
constructed from ceramic materials;
b) use of terminal blocks of a lower melting point but protected with thermal insulation;
c) use of terminal blocks such that, on melting, an open-circuit or a short-circuit does not occur.
4. Product Feature Identification
CMS 3.0 Series Operation Manual rev 3.0.0
5
4. Product Feature Identification
IMPORTANT NOTE: Drawings for each loudspeaker below are generic and apply to the loudspeaker types
specied. Some variations will be apparent in some models, but differences are not critical for installation
purposes except as noted.
4.1. Blind Mount
The blind-mount models are supplied with a pre-tted backcan. Above applies to all models with a “BM” sufx
as well any others that do NOT have a “PI” sufx.
4.2. Pre-install
A pre-install (PI) unit is shown without the optional pre-install backcan.
4. Product Feature Identification
6
CMS 3.0 Series Operation Manual rev 3.0.0
4.3. Pre-install backcan
Optional pre-install (PI) backcan for PI models.
NOTE: The CMS 603DC/ICT and CMS 803DC models have the transformer pre-attached to the inside of the
backcan. The CMS 503DC/ICT has the transformer pre-attached to the loudspeaker assembly.
5. Accessories
CMS 3.0 Series Operation Manual rev 3.0.0
7
5. Accessories
Standard Accessories
Optional Accessories
C-Ring
Grille
Paint Mask
Cut-out template
60 W Transformer
Note: For use with CMS
803 PI in distributed lines
without backcans.
Tile-bridge kit
Note: A tile-bridge kit
must always be used
when installing into
suspended ceiling tiles
Plaster (mud)
ring
6. Installation
8
CMS 3.0 Series Operation Manual rev 3.0.0
6. Installation

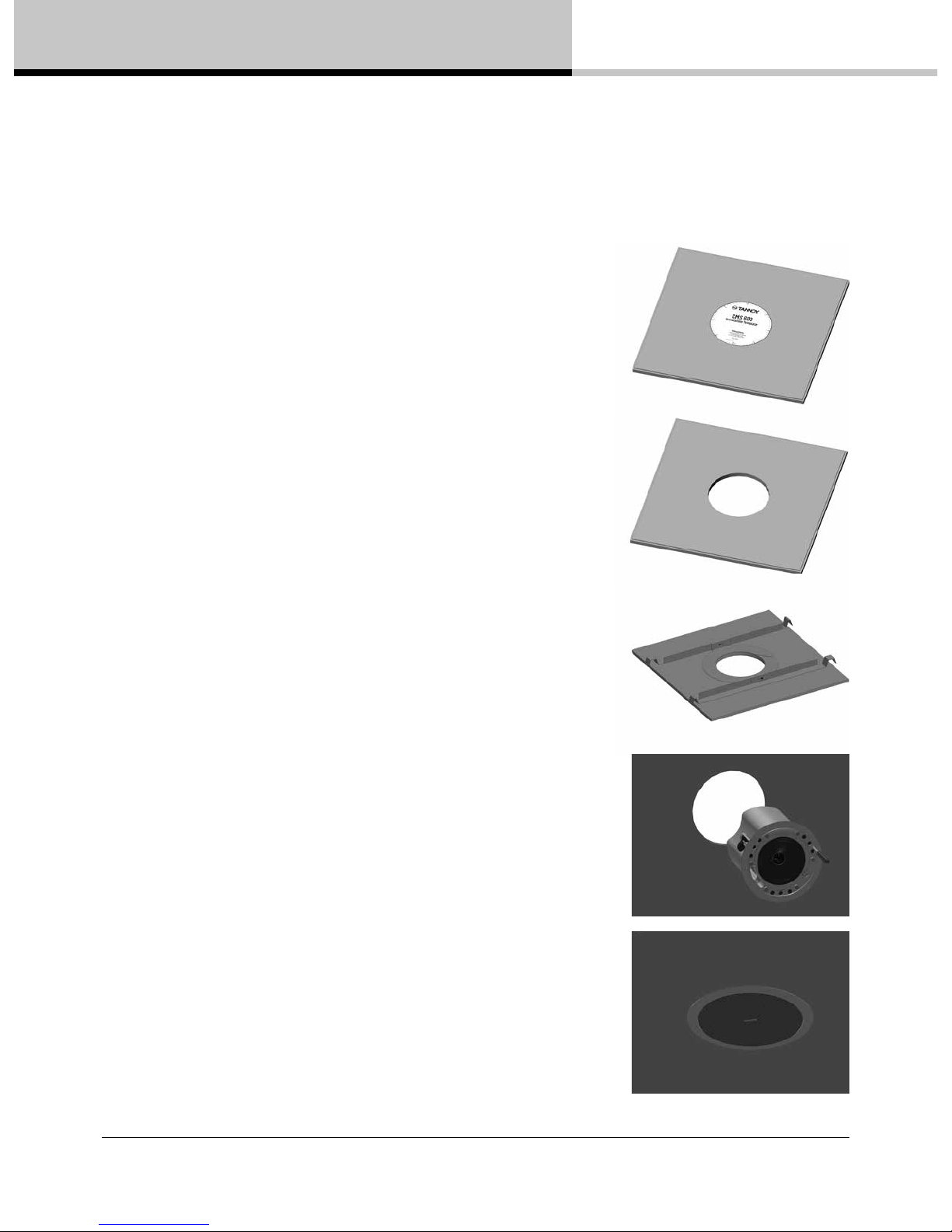

6.1. Installation Guide for Suspended Ceilings
1. Remove the ceiling tile from its frame and place it on a at
surface. Position the cutout template (self adhesive backed) on
the tile. (Fig.1)
2. Cut out the hole in the ceiling tile using a pad saw following
the broken line indicated on the template (Fig.2)
3. Place the C-Ring and tile-bridge on top of the ceiling panel,
aligning the C-Ring over the hole, and screw the C-Ring to the
tile bridge using the xings provided. (Fig.3)
4. Go to section 7 for instructions on wiring and set-up instructions.
5. Slide the speaker assembly through the hole. Turn the screws
(denoted “Screw Fix”) clockwise on the front of the speaker
to extend the mounting wings. Tighten the screws until a rm
grip is achieved. (NOTE: Screws have a PoziDriv head; use of a
PoziDriv driver is recommended). If using a power driver, Tannoy
recommends a torque setting of 1.5 Nm. (Fig.4)
DO NOT OVERTIGHTEN!
6. Attach the nylon safety to the hooks on the front bafe
before attaching the grille by presenting it to the speakers and
allowing the magnets to pull it into position (Fig.5). (With the
CMS 403DCe/ICTe, the grille is already tted to the product.)
NOTE ON INSTALLATION OF CMS 403DCe/ICTe:
Before tightening the screws in step 5, swivel the speaker in the
desired direction. When the screws are tightened, the speaker will
lock into position. Replace the front trim to conceal the mounting
screws.
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
6. Installation
CMS 3.0 Series Operation Manual rev 3.0.0
9

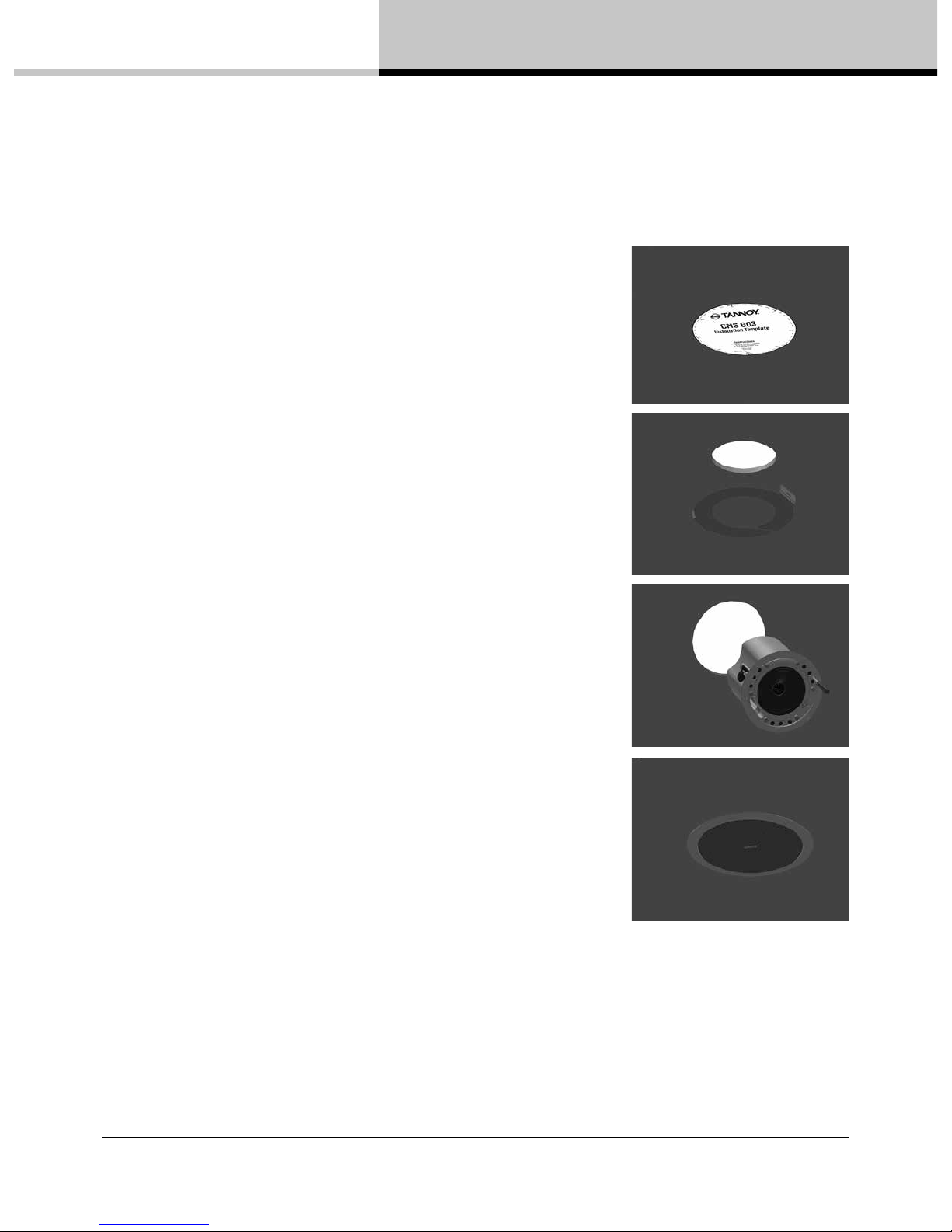

6.2. Installation Guide for Sheetrock Ceilings
1. Position the cutout template (self adhesive backed) on the
ceiling. (Fig.1)
2. Cut out the hole in the ceiling using a pad saw following the
broken line indicated on the template then slide the C-Ring into
the ceiling, aligning it over the cut-out hole. (Fig.2)
3. Go to section 7 for wiring and set-up instructions then return
to point 4 below.
4. Slide the speaker assembly through the hole. Turn the screws
(denoted “Screw Fix”) clockwise on the front of the speaker
to extend the mounting wings. Tighten the screws until a rm
grip is achieved. (NOTE: Screws have a PoziDriv head; use of a
PoziDriv driver is recommended). If using a power driver, Tannoy
recommends a torque setting of 1.5 Nm. (Fig.3)
DO NOT OVERTIGHTEN!
5. Attach the nylon safety to the hooks on the front bafe
before attaching the grille by presenting it to the speakers and
allowing the magnets to pull it into position (Fig.4). (With the
CMS 403DCe/ICTe, the grille is already tted to the product.)
NOTE ON INSTALLATION OF CMS 403DCe/ICTe:
Before tightening the screws in step 4, swivel the speaker in the
desired direction. When the screws are tightened, the speaker will
lock into position. Replace the front trim to conceal the mounting
screws.
Fig.1
Fig.2
Fig.3
Fig.4
6. Installation
10
CMS 3.0 Series Operation Manual rev 3.0.0
6. Installation
6.3. Installation Guide for Optional Plaster Ring
1. Nail or screw the plaster ring to the joists. (Fig.1)
2. Lay the speaker wiring to where the speaker will be tted and
complete the plastering work on the ceiling. (Fig.2)
3. Go to section 7 for instructions on wiring then return to point 4
below.
4. Slide the speaker assembly through the hole. Turn the screws
(denoted “Screw Fix”) clockwise on the front of the speaker
to extend the mounting wings. Tighten the screws until a rm
grip is achieved. (Note: Screws have a PoziDriv head; use of a
PoziDriv driver is recommended). If using a power driver, Tannoy
recommends a torque setting of 1.5 Nm. (Fig.3)
DO NOT OVERTIGHTEN!
5. Attach the nylon safety to the hooks on the front bafe
before attaching the grille by presenting it to the speakers and
allowing the magnets to pull it into position (Fig.4). (With the
CMS 403DCe/ICTe, the grille is already tted to the product.)
NOTE ON INSTALLATION OF CMS 403DCe/ICTe:
Before tightening the screws in step 4, swivel the speaker in the
desired direction. When the screws are tightened, the speaker
will lock into position.Replace the front trim to conceal the
mounting screws.
An optional plaster (mud) ring bracket is available from Tannoy. This bracket is designed to be pre-installed
into newly constructed, non-suspended ceilings.
Fig.1
Fig.2
Fig.3
Fig.4
