TAG-7000

INSTRUCTION MANUAL

Car Stereo CD / CDR / CDRW / MP3 Player

with PLL AM / FM Stereo Radio

USB / MMC / SD Card Input

Flip Down and Deatachable Front Panel System

E-1

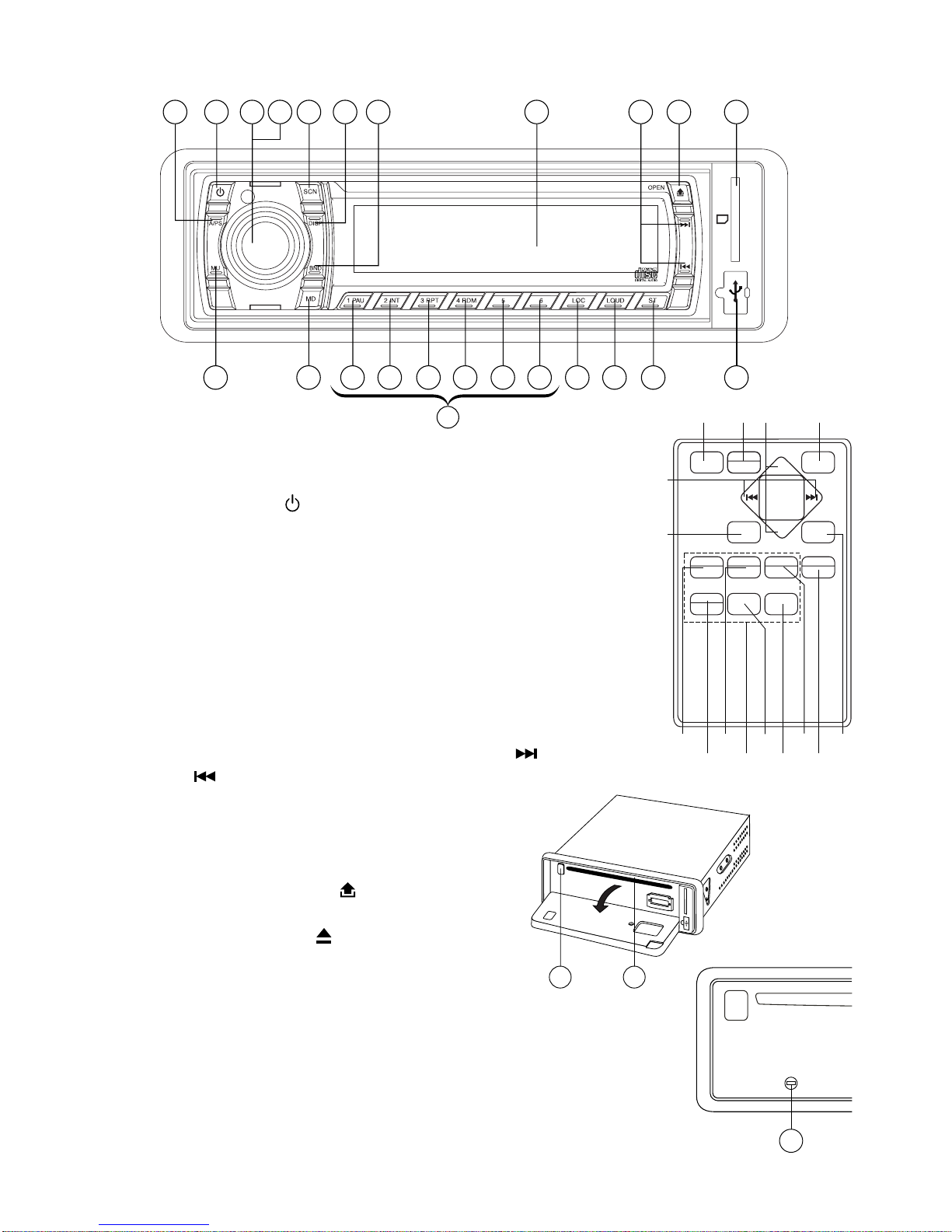

LOCATIONS OF CONTROLS

1. POWER ON/OFF ( )

2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/

FADER / AUDIO DSP/ESP/BEEP/SEEK/VOL LAST (SEL)

3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER

4. PRESET STATIONS (1,2,3,4,5,6)

5. STEREO/MONO BUTTON (ST)

6. LOUDNESS BUTTON (LOUD)

7. LOCAL/DISTANT SELECT (LOC)

8. DISPLAY BUTTON (Set the Clock) (DISP)

9. MODE BUTTON (MD)

10. BAND SELECTOR SWITCH (BND)

11. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ

DOWN )

12. AUTOMATICALLY STORE STATIONS (A/PS)

13. ‘SCAN’ AUTOMATIC TUNING CONTROL (SCN)

14. MUTE BUTTON (MU)

15. LCD DISPLAY

16. OPEN PANEL BUTTON ( )

17. CD SLOT

18. CD EJECT BUTTON ( )

19. PAUSE BUTTON

20. INTRO BUTTON (Preview all Tracks) ‘INT’

21. REPEAT BUTTON ‘RPT’

22. RANDOM BUTTON ‘RDM’

23, 24. 10 TRACK UP/DOWN SELECT: (In case of MP3 files)

25 RESET BUTTON

26. USB Port

27. MULTI-MEDIA CARD (MMC) / SD CARD SLOT

2 93

242123

19 20 12 8

(1-6)

POWER

INT

RPT

MP3

PAUSE

MODE

DISP

5 64

RDM

AS/PS

BAND

SEL

ENTER

VOL

TUNE/SEEK

(1-6)

15 16 271113 8 101 2 312

914 19 20 21 22 23 24 7 6 5 26

RESET

18 17

E-2

INSTALLATION

PRECAUTIONS

• Choose the mounting location carefully so that the unit will not interfere with the normal

driving functions of the driver.

• Avoid installing the unit where it would be subject to high temperatures, such as from direct

sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.

• Use only the supplied mounting hardware for a safe and secure installation.

• Be sure to remove the front panel before installing the unit.

Mounting angle adjustment

Adjust the mounting angle to less than 20°.

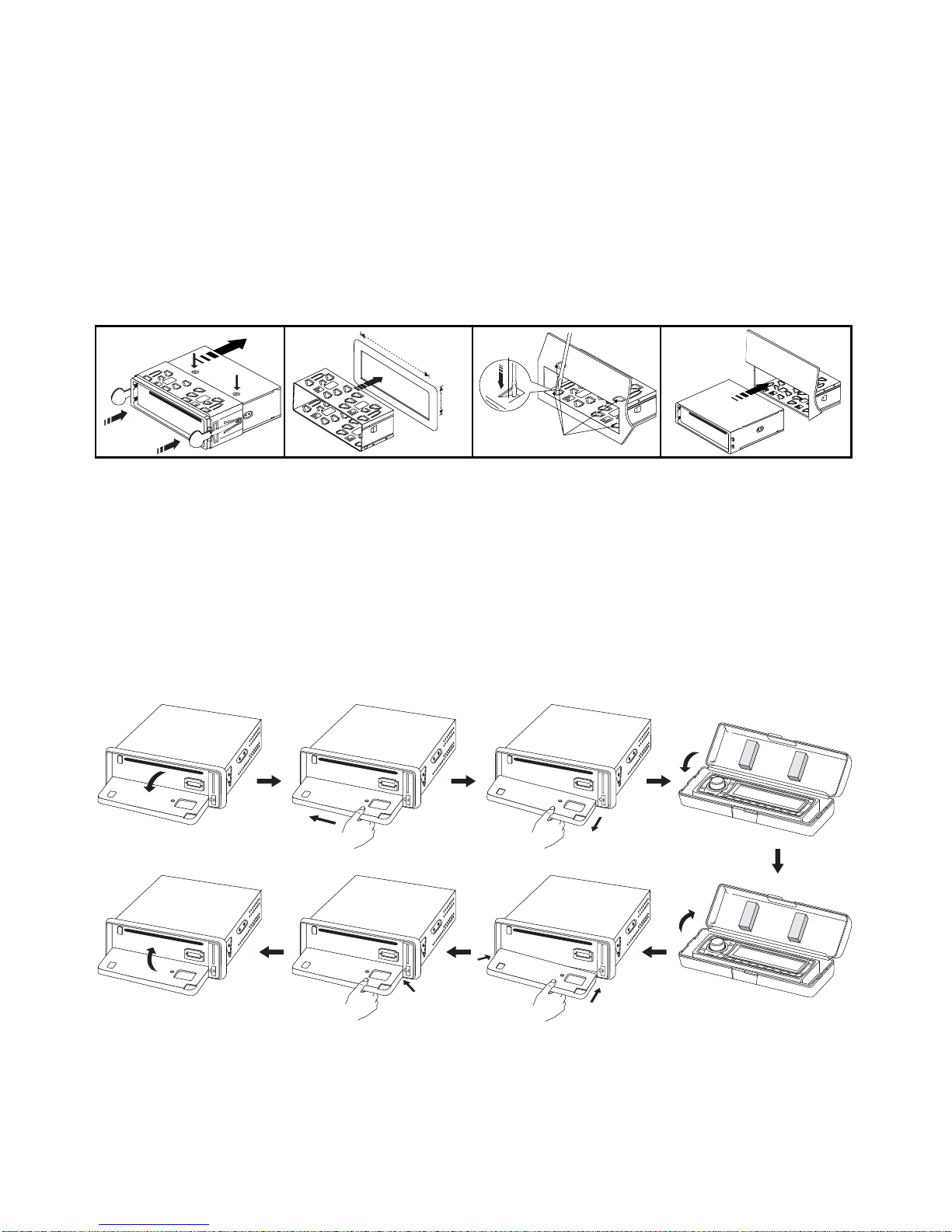

MOUNTING EXAMPLE

Installation in the dashboard

Note: Keep the release key in the safe place as you may need it in future to remove the unit

from the car.

Detaching and attaching the front panel

The front panel of this unit can be detached in order to prevent the unit from being stolen.

FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL

Before detaching the front panel, be sure to press the PWR button (1) OFF first.

Then press the OPEN button (16), let the Front Panel arrive in horizontal position and detach

the panel by pulling it towards you as illustrated.

Notes:

• Do not press the front panel hard against the unit when attaching it. It can be easily attached

by pressing it lightly against the unit.

• When you carry the front panel with you, put it in the supplied front panel case.

• Do not press hard or give excessive pressure to the display window of the front panel when

attaching it to the unit.

Bend these

claws, if necessary

Release screw and

bracket 2182mm

53mm

TAP

E-3

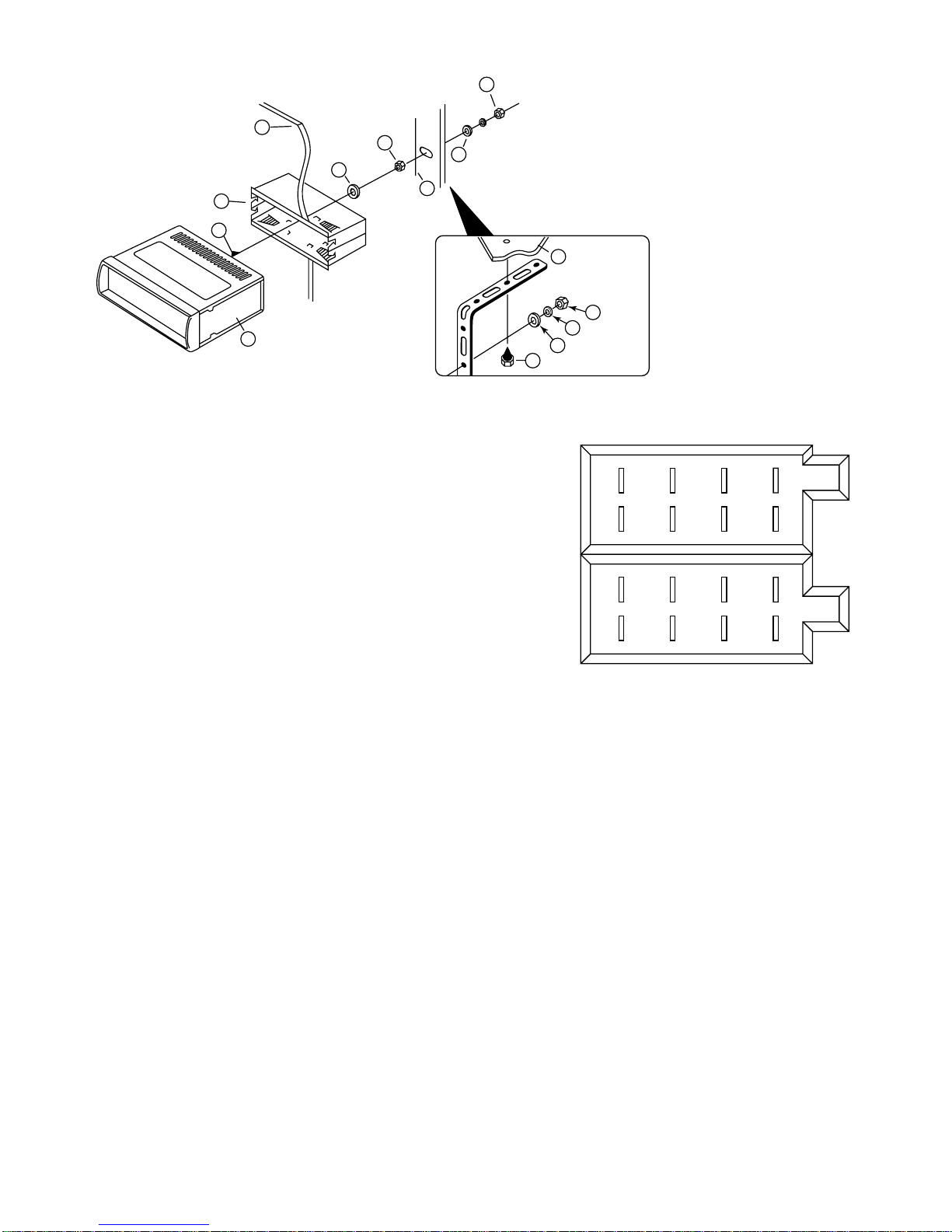

TO SUPPORT THE UNIT

ISO CONNECTOR

RCA Jack Line Out Line In

: Red (right) : Red (right)

: White (left) : White (left)

CONNECTOR A

4. MEMORY +12V

5. AUTO ANTENNA OUTPUT

7. +12V (TO IGNITION KEY)

8. GROUND

Note: (connector A no. 7) must be connected by car ignition key in order to avoid that car

battery becomes weak when the car will be not used for long period.

CONNECTOR B

1. REAR RIGHT SPEAKER (+)

2. REAR RIGHT SPEAKER (-)

3. FRONT RIGHT SPEAKER (+)

4. FRONT RIGHT SPEAKER (-)

5. FRONT LEFT SPEAKER (+)

6. FRONT LEFT SPEAKER (-)

7. REAR LEFT SPEAKER (+)

8. REAR LEFT SPEAKER (-)

Maintenance

FUSE REPLACEMENT

If the fuse blows, check the power connecton and replace the fuse. If the fuse blows again after

the replacement, there may be an internal malfunction. In this case, consult your nearest re-

pairing center.

Warning

Use the specified amperage fuse for each lead. Use of a higher amperage fuse may cause

serious damage.

2468

1357 B

2468

1357

1. UNIT

2. RELEASE CASE

3. DASH BOARD

4. HEX NUT

5. LOCK WASHER

6. PLAIN WASHER

7. CAR BODY

8. REAR SUPPORT STRAP

9. TAPPING SCREW

10.M5 X 15 HEX BOLT

Dashboard

E-4

OPERATING INSTRUCTIONS

1. POWER ON/OFF

By pressing this key, the unit is switched on and off.

This unit is turned on by pressing any key.

2. SELECT

3. VOLUME UP/DOWN

Turning the VOL knob Right or Left (3), you can adjust VOL/BASS/TREB/BAL/FAD. To

select other functions, press the SEL (2) button shortly until the desired functions is shown

on the display. Figure 1 shows how control functions are selected using the SEL button.

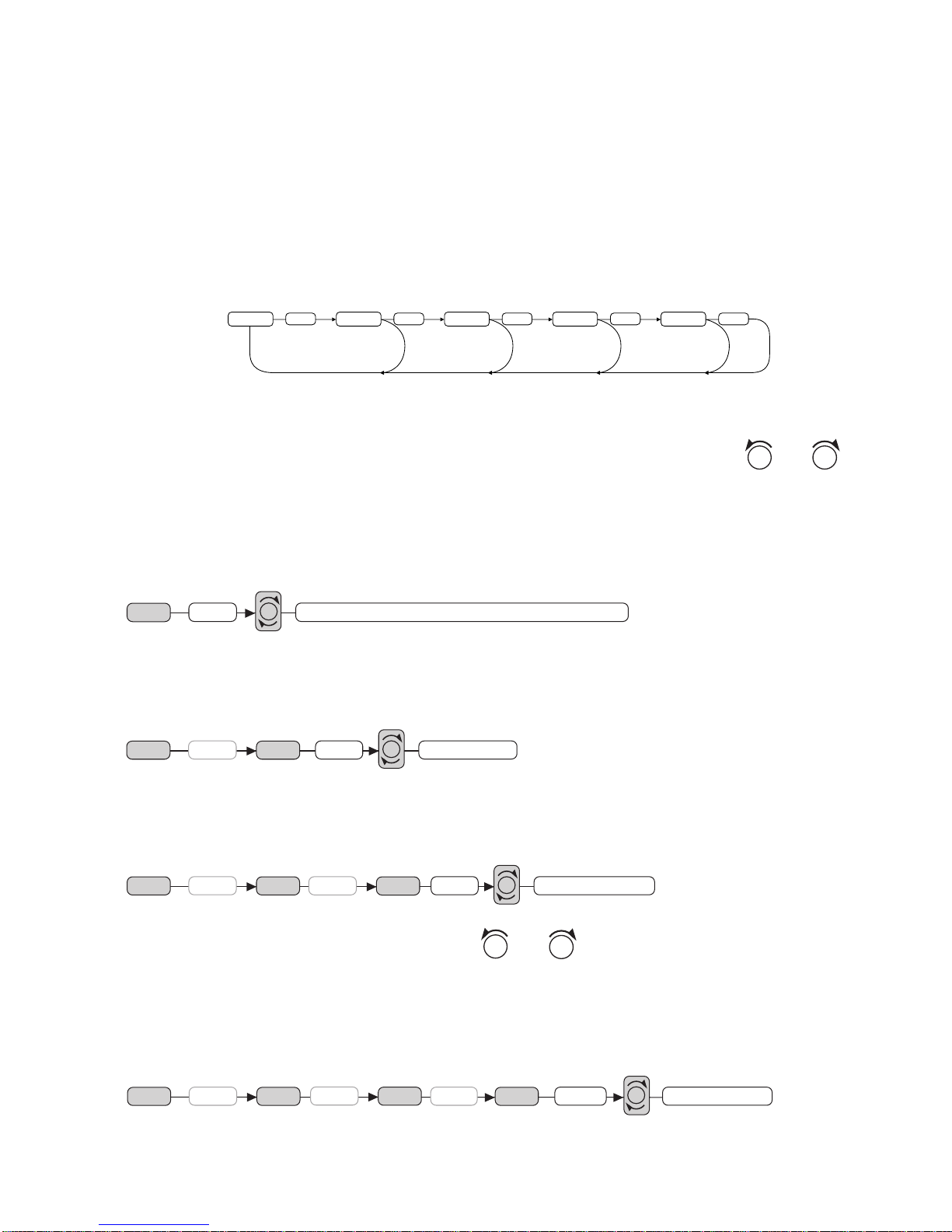

Fig. 1 Selection of sound control functions

1. VOL 2. SEL 3. BAS 4. TRE 5. BAL 6. FAD

Turning the VOL knob Right or Left. Increase or decrease the volme by turning

VOL

These buttons can be used to adjust the BASS, TREBLE, BALANCE and FADER.

AUDIO DSP CONTROLS (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of

these function.

ESP MODE (2)

When press the SEL button for more than 2 seconds, it is activated as 12 sec. or 45 sec. of

ESP mode can be selected.

MULTI CD SECTION MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of

these function.

CD MULTI ON/OFF mode is selected by

VOL

key. CD MULTI ON: Read multi

section CD. CD MULTI OFF: Read first section only.

BEEP MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of

these function.

BEEP ON: BEEP sound can be heard from speaker when the buttons are pressed.

1 3

DSP

SEL

2 sec.

POP M --- ROCK M --- CLASS --- FLAT M --- DSP OFF

VOL

ESP 12s. / 45s.DSP

SEL

2 sec.

SEL ESP

VOL

CD MULTI ON/OFFDSP

SEL

2 sec.

SEL MULTI

ESP SEL

VOL

ESP SEL

DSP

SEL BEEP

SEL

2 sec.

SEL MULTI BEEP ON/OFF

VOL

E-5

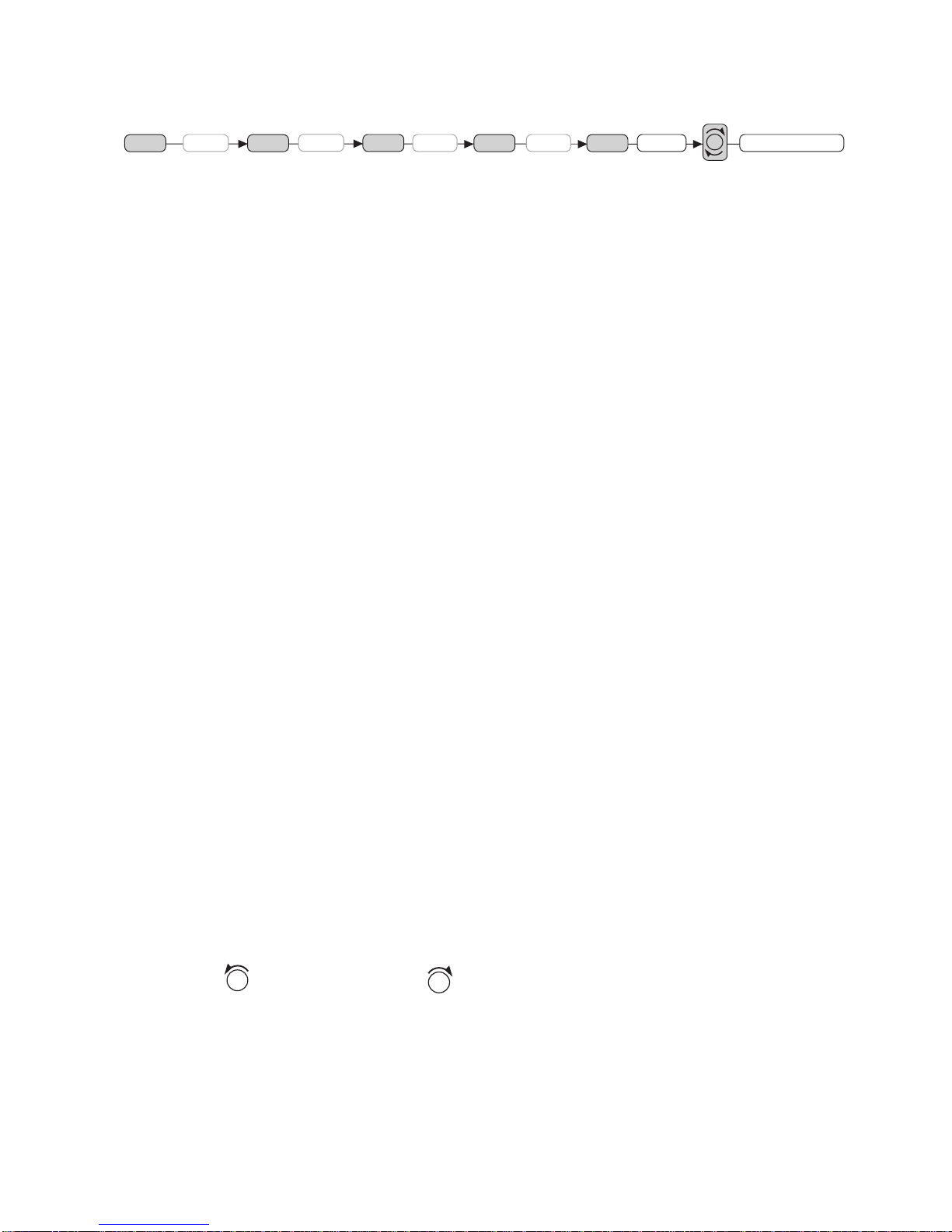

SEEK MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of

these function.

SEEK 1: When SEEK 1 mode is activated, AUTO SEEK SCAN is stopped when station is

detected even user still push SEEK button.

SEEK 2: Auto SEEK SCAN is not stopped even station is detected if user push SEEK

button. When release this SEEK button, then stop when station is defected.

4. PRESET STATIONS

Six numbered preset button store and recall stations for each band.

Storing a station:

1. Select a band (if needed)

2. Select a station

3. Hold a preset button longer than one second. Preset station number appears in the

display when station is saved.

Recall a station:

1. Select band (if needed)

2. Press a preset button for less than one second to select stored station.

5. STEREO/MONO SELECTOR

When FM stations are weak and are disturbed, listening can be improved by selecting

MONO. Press the button once, reception will then be in MONO. Repress to go back to

FM-stereo mode, “ST” appears on the display.

6. LOUDNESS CONTROL

Press this button to operate. The bass and treble response will be boosted. Push this

button again to return the player to its normal operation. This function is useful when listening

at low levels. The loudness control will boost the bass and treble response thus giving a

more lively performance.

While this function is operating, the display shows “LOUD”.

7. LOCAL/DISTANT BUTTON

Press this button to select “Local” position in areas with strong signals to let radio stop at

only strong stations during manual tuning (LOC appears). Press to Distant position in areas

with weak signals to listen to all stations.

8. DISPLAY BUTTON (Set the Clock)

Selects radio frequency or clock display.

To set the clock:

1. With clock display selected, hold down (DISP) button until clock display starts flashing.

2. Rotating

VOL

to change minutes,

VOL

to change hours.

3. Press (DISP) button to start clock.

9. MODE BUTTON

By pressing this key, user can select. AUX/TUNER/CD-MP3/USB or MMC/SD mode.

10. BAND SELECTOR SWITCH

Push this switch to select the desired band. Selection is made in regular sequence as FM1-

FM2-FM3-AM1-AM2.

ESP SEL

DSP

SEL SEEK

SEL SEL

2 sec.

SEL MULTI BEEP SEEK1 / SEEK 2

VOL

E-6

11. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN )

(A) RADIO MODE

When pressed for less than 1 second, these keys operate as manual tuning mode.

When pressed longer than 1 sec., they are operated as SEEK tuning mode.

If the keys are not pressed for 3 seconds, they will return to SEEK mode again.

(B) CD PLAYER MODE

When pressed for less than 1 second, they will operate as TRACK UP or TRACK DOWN mode.

When pressed longer than 1 sec., they will operate as CUE or REVIEW mode.

12. AUTOMATICALLY STORE STATIONS

Select six strong stations and store them in current band.

1. Select a band (if needed)

2. Hold A/PS button for more than three seconds. The new stations replace stations already

stored in that band.

Preset Scan

Scan stations stored in current band

1. Select a band (if needed)

2. Touch A/PS for more than one second but less than three seconds. Radio pauses for

five seconds at each station. Touch A/PS again to stop scanning when desired station is

reached.

13.‘SCAN’ AUTOMATIC TUNING CONTROL (SCN)

This key is operated as RADIO SCAN. The operation is similar as normal search but different

thing is holding 5 seconds on every station detected in RADIO SCAN mode.

14. MUTE Button (MU)

Press this button to mute the sound at once. Press again to return to previous volume level.

15. LCD DISPLAY

The Liquid Crystal Display will display the current state of the unit.

16. OPEN FRONT PANEL BUTTON

Press button and the front panel will be open.

CD CONTROL LOCATION OF PARTS

11. TRACK/SEARCH BUTTON

FORWARD AND REVERSE TRACK SEARCH

Press and release to advance to next track or to return to the beginning of the current track

(track number will be displayed). Press and hold to fast forward or reverse. Play will begin

at the point when you release the button.

17. CD SLOT

18. CD EJECT BUTTON

Press the EJECT button to remove the CD. The receiver will automatically switch to radio

mode.

19. PAUSE BUTTON

Press to pause CD playback. Press again to resume playback.

E-7

20. INTRO BUTTON (Preview all Tracks) ‘INT’

When this button is pressed, ‘INT ON’ indication is displayed and the first several seconds

of each track of the disc is played. Press again to stop intro and listen to track.

21. REPEAT BUTTON ‘RPT’

When this button is pressed, ‘RPT ON’ indication is displayed and the selected track will be

continually repeated until the Track repeat mode is cancelled by pressing ‘RPT’ button

again.

22. RANDOM BUTTON ‘RDM’

When this button is pressed, ‘RDM ON’ indication is displayed and each track on the disc is

played in random order instead of normal progression. To cancel RANDOM mode, press

‘RDM’ button (22) again.

23, 24. 10 TRACK UP/DOWN SELECT: (In case of MP3 files)

M5: 10 Track down / M6: 10 Track up

HOW TO SELECT MP3 FILES

1. Searching Track:

• Press “A/PS”, then search track is activated.

• Press “SEL”, then the first digit will flash.

• With “VOL

VOL

/ VOL VOL ” knob, select first digit desired.

• Press “SEL”, then the first digit is fixed and second digit will flash.

• With “VOL

VOL

/ VOL VOL ” knob, select 2’nd 3’rd respectively.

• Then automatically the song selected will start.

2. Searching File Name:

• Press “A/PS” twice, then file search is activated.

• Press “SEL”, then the first directory is displayed.

• With “VOL

VOL

/ VOL VOL ” knob, you can select the desired directory.

• Press “SEL” again, then the directory is fixed and the first file name is displayed.

• With “VOL

VOL

/ VOL VOL ” knob, you can select the file you want.

• Press “SEL”, then the song selected will start.

3. Searching Character:

• Press “A/PS” 3 times, then character search mode is activated.

• Press enter “SEL” button, then “A” character is displayed.

• With “VOL

VOL

/ VOL VOL ” knob, you can select the desired letter.

• Press enter “SEL” key longer than 2 sec.

• The song with the same character you selected is displayed.

• With “VOL

VOL

/ VOL VOL ” knob, you can select the desired song.

• Press enter “SEL” key, then the song selected will start.

• RESET

Reset button (25) is placed on the housing.

The reset button is to be activated for the following reason:

• Initial installation of the unit when all wiring is completed.

• All the funciton button do not operated.

• Error symbol on the display.

E-8

Connecting it to Portable MP3 Player

26. USB Port

Using USB cable to connect Your Portable MP3 Player.

27. MULTI-MEDIA CARD (MMC) / SD CARD SLOT

Support MP3 ID3 format music only.

* IMPORTANT INFORMATION:

BECAUSE OF THE GREAT VARIETY OF PRODUCTS WITH USB,SD AND MMC CARD

PORTS AND THEIR SOMETIMES QUITE MANUFACTURER-SPECIFIC FUNCTIONS WE

CAN NEITHER GUARANTEE THAT ALL DEVICES WILL BE RECOGNIZED NOR THAT ALL

OPERATING OPTIONS THAT ARE POSSIBLE IN THEORY WILL ACTUALLY WORK.

E-9

SPECIFICATIONS

CD/MP3 PLAYER SECTION

Signal to Noise Ratio > 60 dB

Channel Separation > 60 dB (1kHz)

Frequency Response 20 Hz - 20 kHz

TUNER (FM)

Frequency range 87.5-108 MHz

Intermediate frequency 10.7 MHz

Sensitivity 2.8 µV

Stereo separation 30 dB

Signal to noise radio 100 dB

Channel step 100 kHz

TUNER (AM)

Frequency range 530-1620 KHz

Intermediate frequency 450 KHz

Usable Sensitivity 32 dBµV

LINE-OUT

Output 1000 mV

Impedance 10 kOhm

GENERAL

Power Supply 12 V DC (10.8-15.6V allowable)

Speaker impedance 4 or 8 ohm

Output power 50W x 4CH

Note: Specifications and the design are subject to possible modification without notice due to

improvement.

Inhaltsverzeichnis

Sprachen:

Andere Targa Autoempfänger Handbücher

Targa

Targa TAG-1900 Bedienungsanleitung

Beliebte Autoempfänger Handbücher anderer Marken

Motorola

Motorola VWA63 Bedienungsanleitung

Nextar

Nextar D3201 Bedienungsanleitung

Alpine

Alpine CDE-163BT Bedienungsanleitung

Pioneer

Pioneer DEH-P645R Bedienungsanleitung

Axxera

Axxera XDMA7600 Betriebsanleitung

XM OnyX Bedienungsanleitung

Sound Storm

Sound Storm STM93R Bedienungsanleitung

Soundstream

Soundstream VIR-5000 Bedienungsanleitung

Avson

Avson MKT Platform Bedienungsanleitung

Sony

Sony MEX-1HD - Audio Library System Bedienungsanleitung

Pioneer

Pioneer DVH-P500UB Bedienungsanleitung

JVC

JVC KD-AHD69 Bedienungsanleitung

Blaupunkt

Blaupunkt SANTIAGO CR 87 Bedienungsanleitung

Sony

Sony CDX-4160 - Cd Receiver Bedienungsanleitung

XFIRE AUDIO

XFIRE AUDIO BMW42S Bedienungsanleitung

VDO

VDO CD 2253 Bedienungsanleitung

Volvo

Volvo 13 84 580 Bedienungsanleitung

ZENEC

ZENEC ZE-160DVD Bedienungsanleitung
