BULLETTO MINI

BULLETTO

Product Code: BLMRP-

BLTRP-

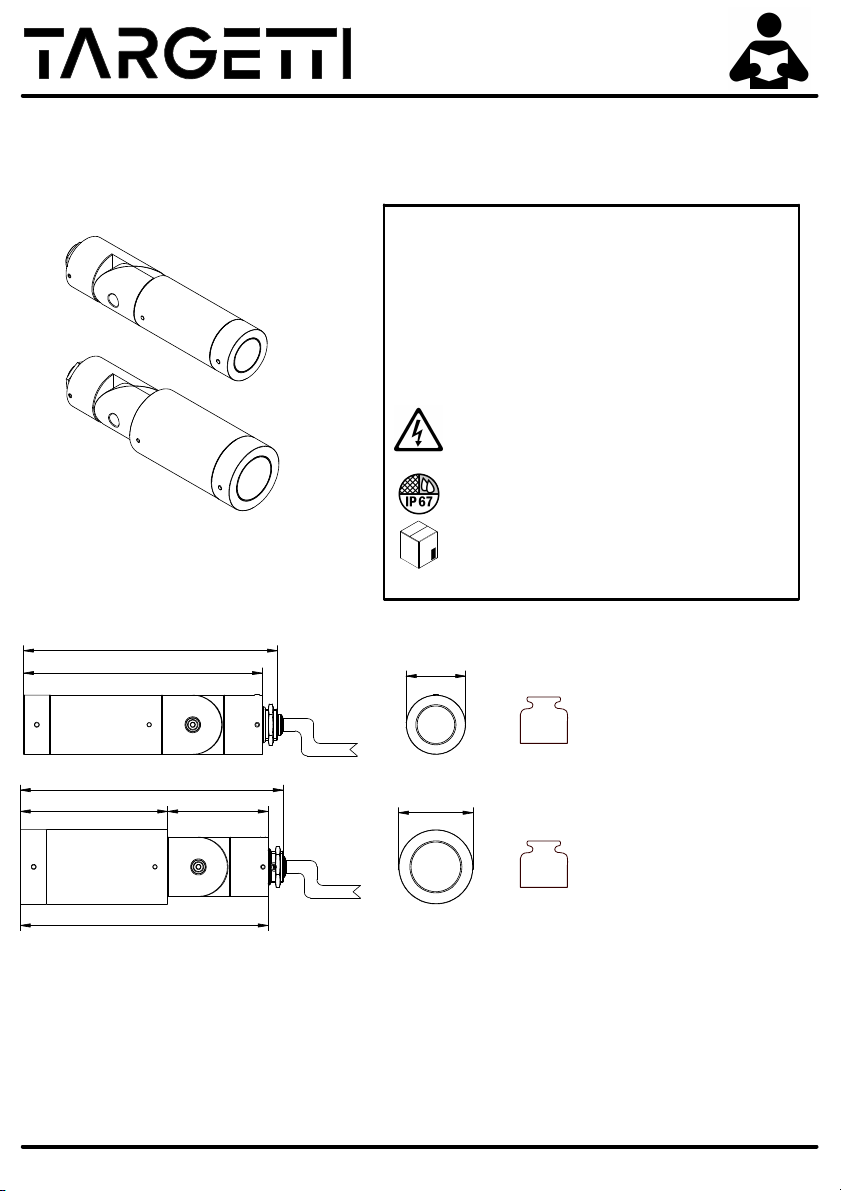

:$51,1*

To ensure a maximum efficient use

of the product, read the instructions

before proceeding installment.

This fixture must be installed by a licensed and

qualified electrician. The installer must comply with

NEC and local building codes when installing the

fixture

Electrical current can cause painful shock, serious

injury, or even death. Make sure you turn off

the power supply, ground fixture(s), and make

sure all electrical connections are correct and

secured

For use in IP67 installations.

Keep the label of the original packaging if any

eventual future claims are needed

Targetti USA - A Targetti Group Company - 750-A W 17th St. Costa Mesa, CA 92627 - Phone (714) 513-1991

- Email:[email protected] - www.targetti.us - 04.10.20 - Page 1 of 9

Note: Remote Class II 110-277VAC to 24VDC electronic

power supply and 120VAC to 24VDC power supply.

WIRING FIXTURE TO LINE VOLTAGE WILL DAMAGE

FIXTURE AND VOID WARRANTY.

5 ft

3.86" 2.64"

6.89"

5 ft

6.30"

6.69"

1.57"

1.97"

6.50"

1.37 lbs

1.01 lbs

Targetti USA - A Targetti Group Company - 750-A W 17th St. Costa Mesa, CA 92627 - Phone (714) 513-1991

- Email:[email protected] - www.targetti.us - 04.10.20 - Page 2 of 9

Table of Contents

Packaging Contents

Mounting Position

Mounting Installation

Accessories Installation

Maintenance

Support Page

Pg.2

Pg.3-6

Pg.7-8

Pg.9

Pg.10

Pg.2

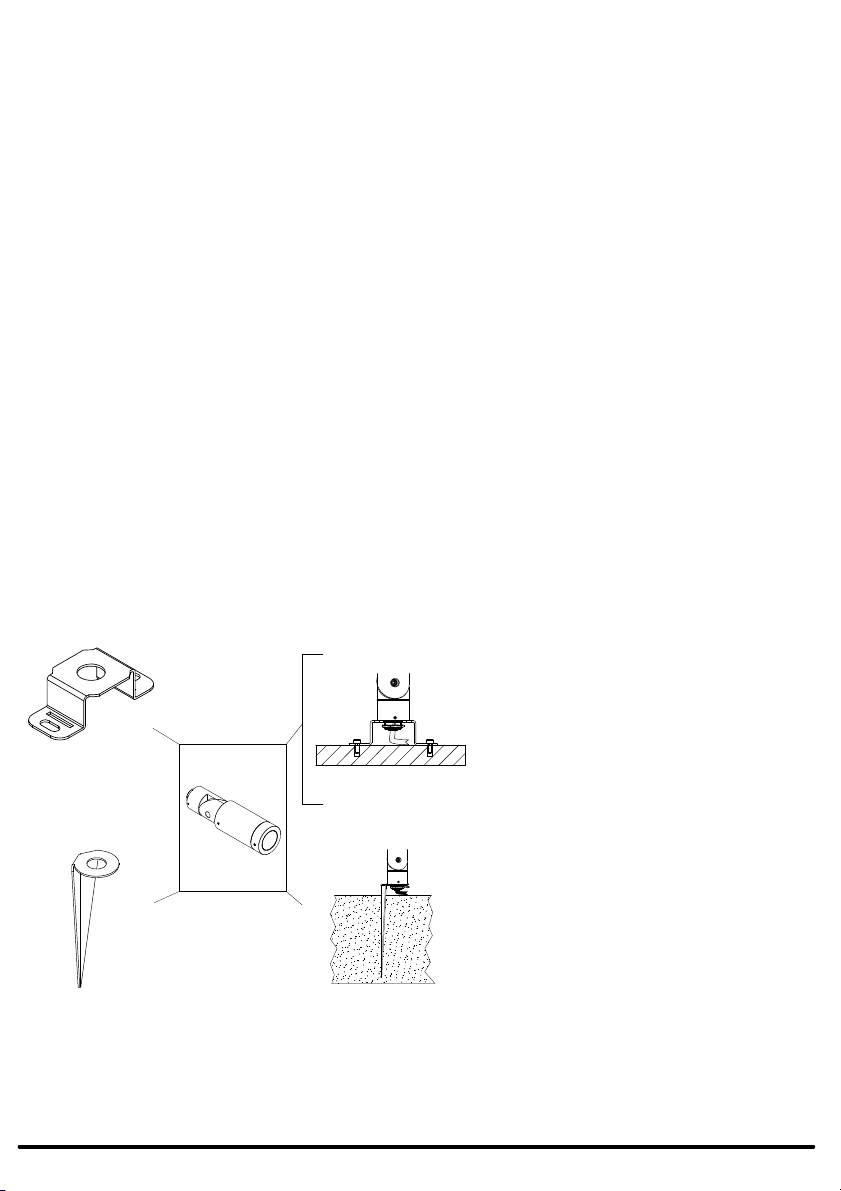

The Bulletto fixture offers two types of

mounting brackets for various

installation options. The rotational

bracket (cod.1E3786 & 1E3804) is

used for mounting the fixture on a flat

surface. Rotational bracket can also

be used to mount the fixture on a

pole, see page 4 for further details.

The second type of mounting bracket

is the earth spike mounting bracket

(cod. 1E3785 & 1E3803). The

mounting bracket is used for mounting

in soil for outdoor application.

Mounting Brackets

COD. 1E3786

COD. 1E3804

COD. 1E3785

COD. 1E3803

Bracket Assembly

Mounting Installation

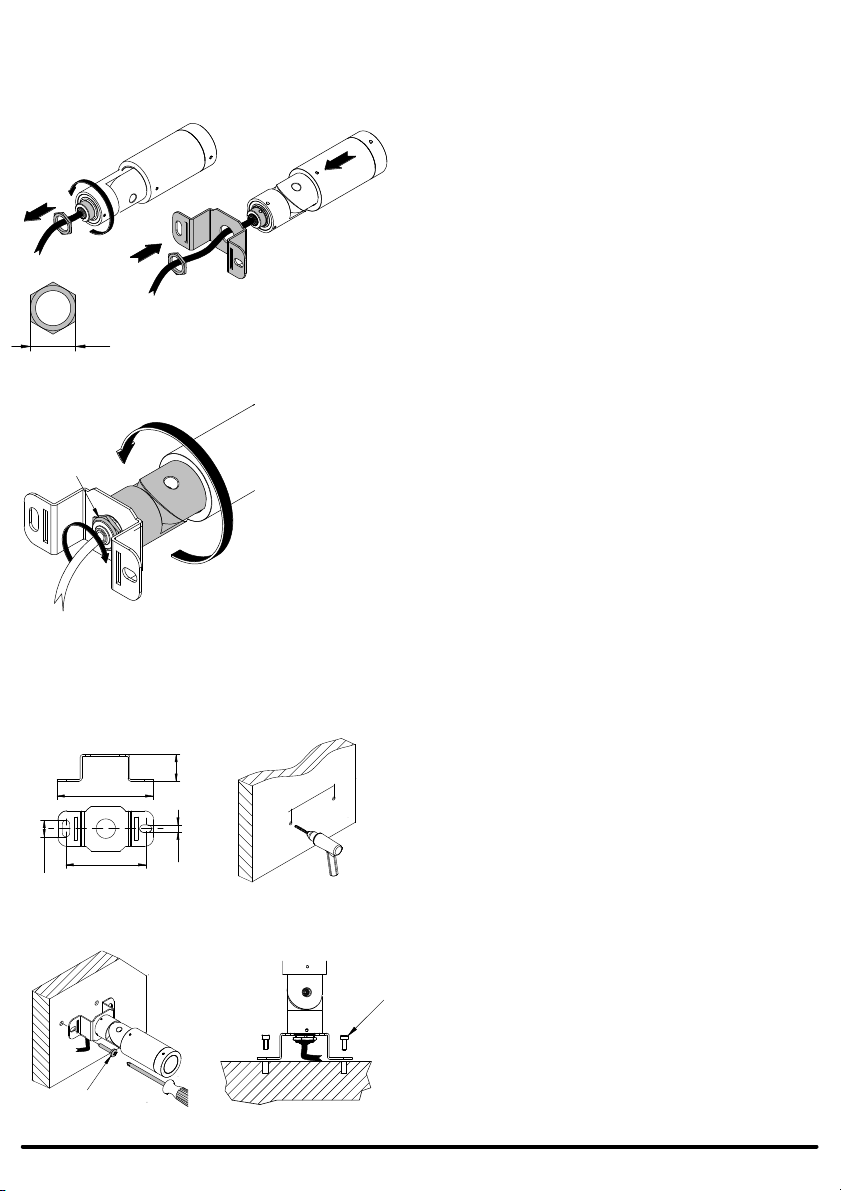

Both mounting brackets have the same

assembly instructions for both the

Bulletto and the Bulletto Mini. Installer

will first remove the lock nut that is

attached to the fixture. Once removed,

insert the fixture's cable and bottom end

through mounting bracket hole until the

fixture bottom is flat with the mounting

bracket. Then attach the lock ring back

on the fixture's bottom threading to

secure the fixture with the mounting

bracket. Be sure to properly tighten the

lock nut to secure the fixture on the

mounting bracket.

Once the mounting bracket is assembled,

using the measurements provided, mark

the distance on the designated mounting

surface and drill holes to prepare the

proper mounting fasteners. Installer is

responsible for providing the correct

mounting fasteners based on the surface

type. Installer will use the designated

mounting screws and secure the mounting

bracket to the surface. Installer must

comply with local building code when

installing.

Targetti USA - A Targetti Group Company - 750-A W 17th St. Costa Mesa, CA 92627 - Phone (714) 513-1991

- Email:[email protected] - www.targetti.us - 04.10.20 - Page 3 of 9

Lock

24 mm

3.54"

( X )

0.33"

0.73"

4.25"

1.18"

Non incluso

Not included

Rotational Bracket Mounting

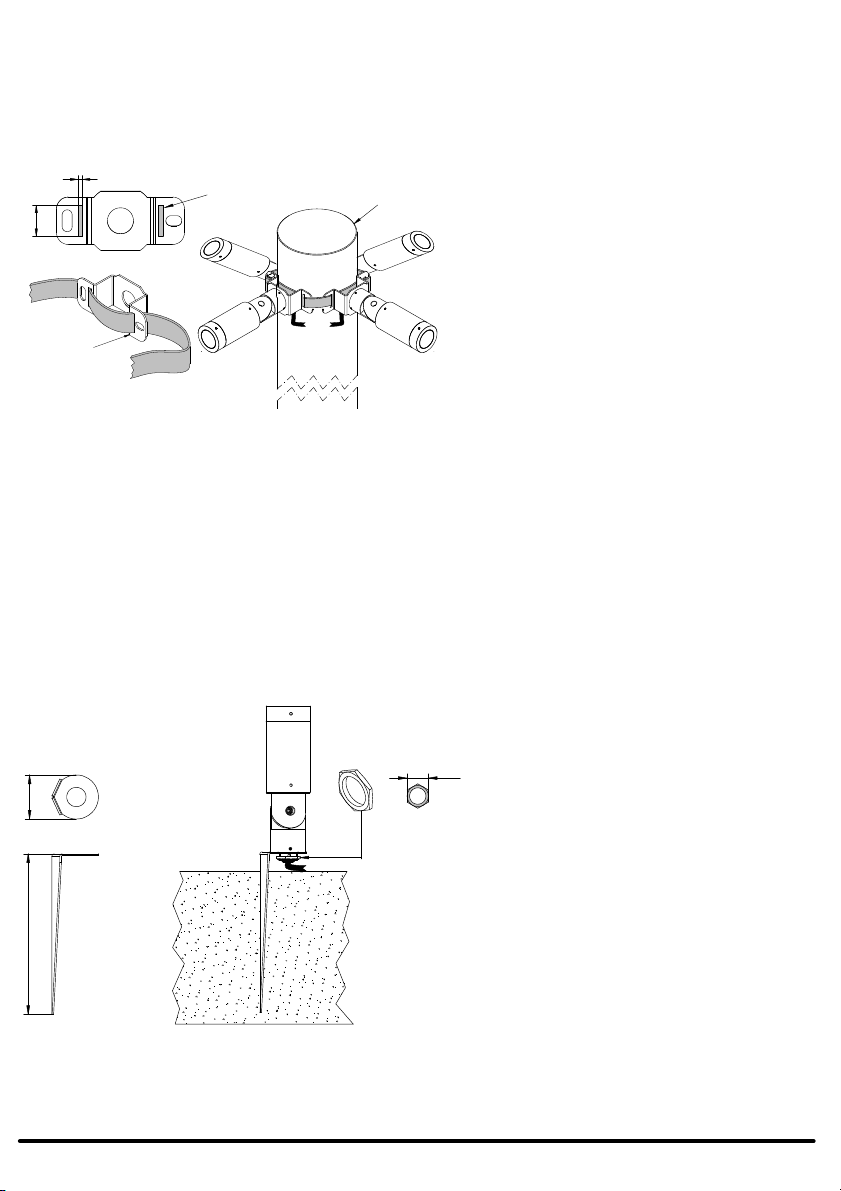

The rotational bracket is also used

for pole mounting installation. For

pole mounting, installer will insert

the belt through the slotted

opening of the assembled

rotational bracket with the fixture

attached on the bracket. Up to

four fixtures max can be

attached on one belt. Once the

desired amount of fixtures is on

the belt, wrap the belt around the

pole and secure the belt tightly

with the belt buckle.

To mount the earth spike bracket,

first be sure that the proper space

and depth for the earth spike to be

mounted is cleared. Once all is

cleared, insert the earth spike with

the attached fixture into the

ground. Be sure that the earth

spike is leveled and secured to the

ground.

Mounting Installation

Targetti USA - A Targetti Group Company - 750-A W 17th St. Costa Mesa, CA 92627 - Phone (714) 513-1991

- Email:[email protected] - www.targetti.us - 04.10.20 - Page 4 of 9

7.17" 1.97"

COD. 1E3785

COD. 1E3803 Lock

24 mm

Ø 140mm MIN.

Rotation Bracket Mounting

Earthspike Bracket Mounting

The Bulletto and the Bulletto mini fixture are powered by a 24VDC constant voltage power supply that is

installed remotely. This installation must be done by a qualified electrician that complies with NEC

and local building code. CAUTION: DO NOT CONNECT FIXTURE TO LIVE VOLTAGE! THIS WILL

DAMAGE THE FIXTURE AND VOID THE WARRANTY!

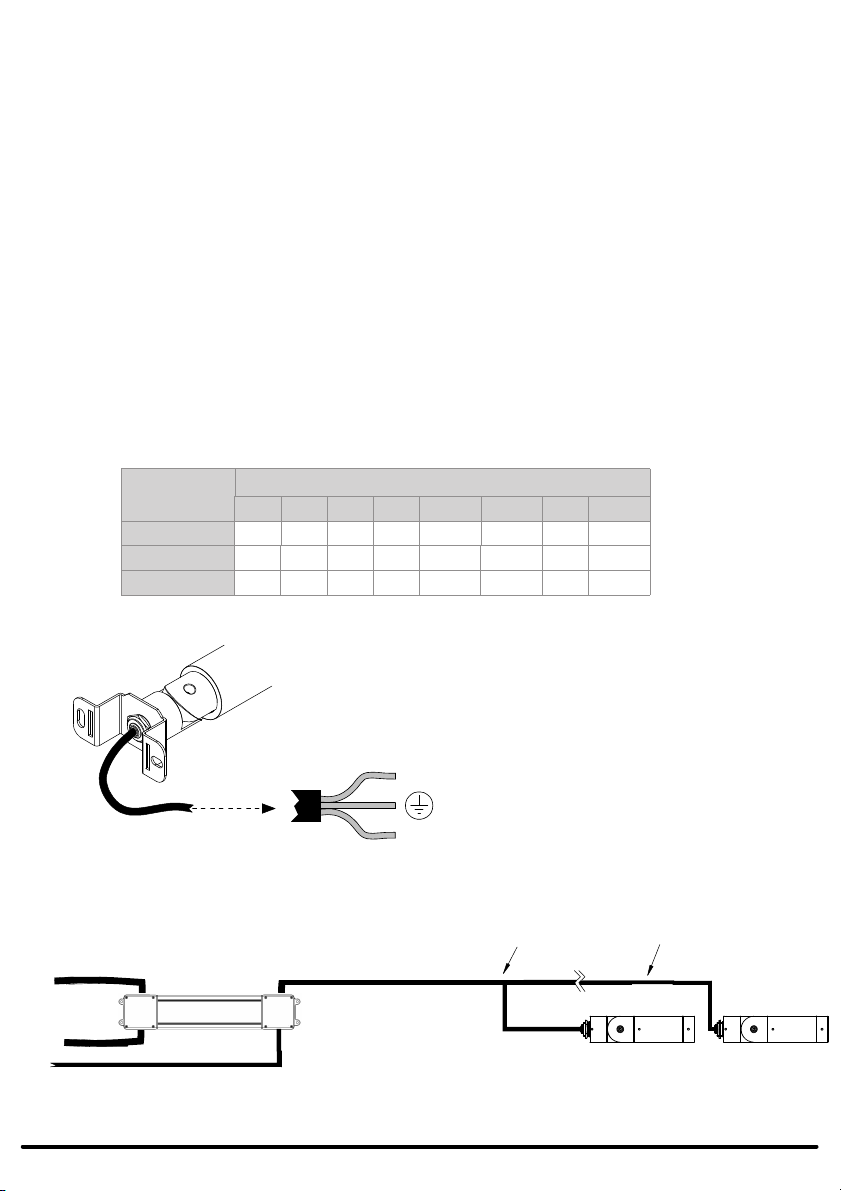

Fixture is powered with a class 2, 3 wire cable for low voltage application. Installer will run class 2 cable

rated based on the location of application from the output power feed to the driver. Cable length (A) and

gauge (B) will be determined based on installer that complies with NEC, local building code, and voltage

drop threshold percentage of <3%.

i) As a rule of thumb, we recommend installers a max distance of 50 feet with 12 gauge wiring with a

full load 96W fixture system.

Installer will wire the fixture(s) with the daisy chain connection as shown in the diagram below. Installer

must wire the fixture(s) system equal or under the max fixture allowed per power supply. See chart for

reference of max load. Overloading the fixture with the driver will damage the fixture and will void

the fixture and driver warranty.

Fixture Electrical Wiring Instructions

Targetti USA - A Targetti Group Company - 750-A W 17th St. Costa Mesa, CA 92627 - Phone (714) 513-1991

- Email:[email protected] - www.targetti.us - 04.10.20 - Page 5 of 9

Red

Green

Black

Output wire color code

Daisy Chain

Connection

OUT OUT

MAX FIXTURES PER DRIVER

Fixture

Wattage

Driver Wattage

40W 60W 96W 90W 2X90W 3X90W 100W 2X100

Bulletto Mini 8W 4 6 9 9 18 27 10 20

Bulletto 10W 3 4 7 7 14 21 8 16

Bulletto 12W 2 4 6 6 12 18 6 13

120-2777VAC

Input Power

0-10V

Dimming

Last

Connection

24VDC

Output Power

ADJUSTMENT

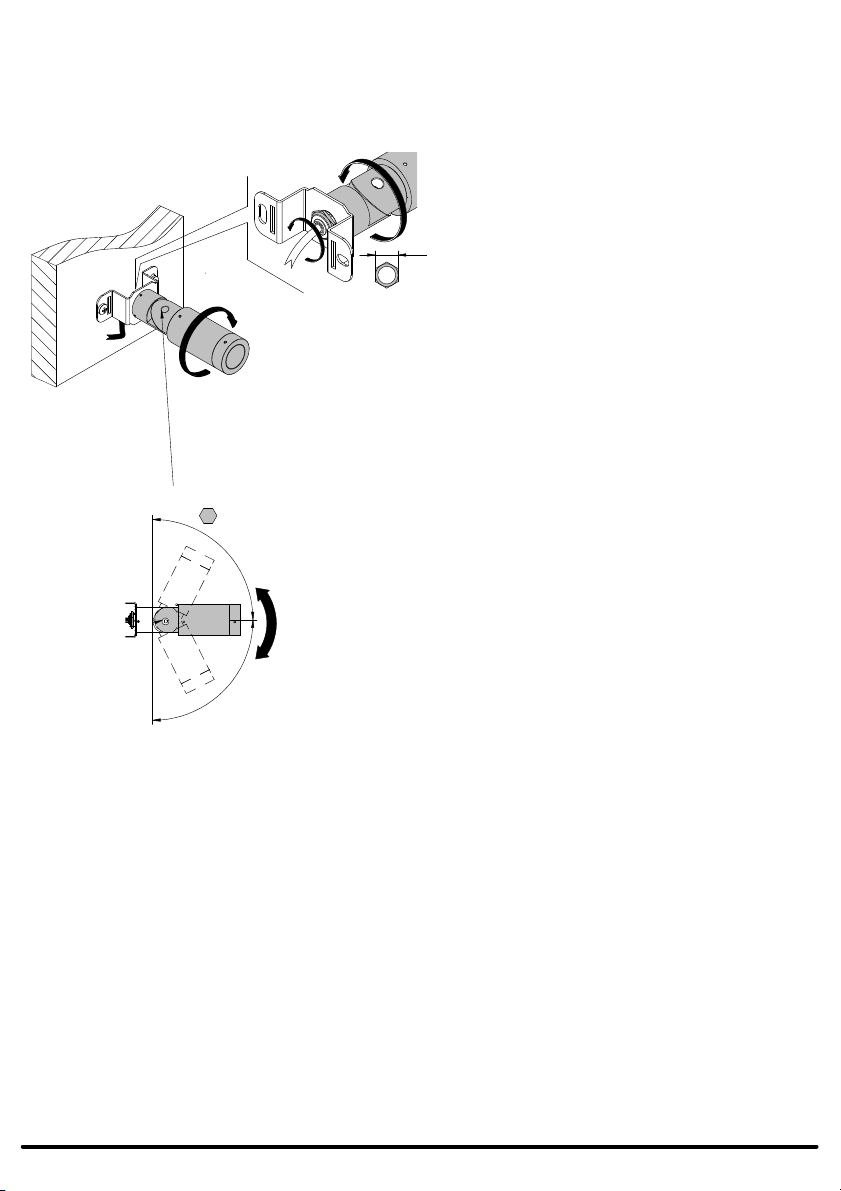

The Bulletto and Bulletto mini fixture has

a wide range of motion to aim practically

anywhere from where it mounted. The

fixture has a 360 degree rotational

freedom and a 180 degree pivotal range

of motion. To change the rotational

angle, unlock the lock nut that holds the

fixture to the mounting bracket and

adjust the rotation to the desired setting.

Once adjusted, secure the lock ring back

to hold the fixture in place and tighten to

secure.

To adjust the pivot angle of the fixture,

use a 3mm hex Allen key (supplied by

installer) to loosen the lock screw. This

will allow the fixture to move freely to

position. Once the fixture is adjusted,

use the same Allen key to lock the

position in place.

Mounting Installation

Targetti USA - A Targetti Group Company - 750-A W 17th St. Costa Mesa, CA 92627 - Phone (714) 513-1991

- Email:[email protected] - www.targetti.us - 04.10.20 - Page 6 of 9

360°

Lock

3mm

90°

Accessories Installation

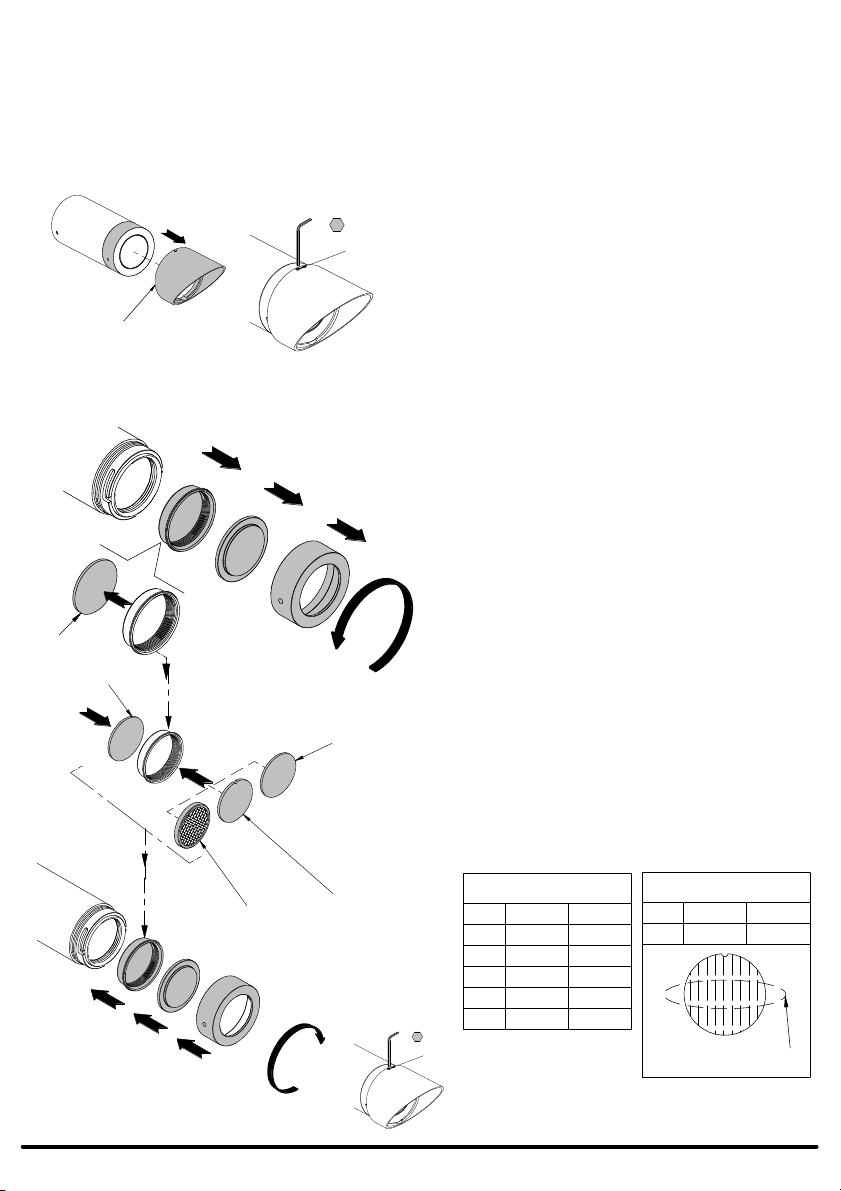

1. The Bulletto and Bulletto mini fixture has a

wide range of accessories to customize.

To change the accessories, first remove

the fixture asymmetric screen by loosening

the 1.5 mm hex screw using a Allen key

(not included). Once the hex screws is

removed, remove the asymmetric screen

to access the inside to add the filter that

the user prefers.

2. Unscrew the head cap to access the

internal optical components inside (a).

Remove the cap (b) and the lens (c) to

access the optical reflector and filter holder

(d). Remove the optical reflector from the

filter holder (e) to switch the optic type.

Then choose the desired filter(s) you wish

to add in the filter holder. The filter holder

can hold up to three max filters per fixture

(g). For the blade of light filter, pick the

desired position you want to add the blade

of light and attach the filter in the same

order as any other filter. See chart below

for different types of filters available.

3. Once the filter(s) have been set, put back

the fixture pieces together starting in

reverse order with the filter holder (a), the

lens (b), and then the cap (c) and screw

the cap back on tight clockwise (d). Then

reattach the asymmetric screen back on

and secure it with the 1.5 mm Allen key (e).

Targetti USA - A Targetti Group Company - 750-A W 17th St. Costa Mesa, CA 92627 - Phone (714) 513-1991

- Email:[email protected] - www.targetti.us - 04.10.20 - Page 7 of 9

11,5mm

Lock

BLM COD. 1E3787 / 1E3788

BLT COD. 1E3805 / 1E3806

Asymmetric screen

ANTI-GLARE LOUVER

COD. 1E3791 / 1E3792

NFL / FL / WFL

1E3793

BLM

1E3798

1E3799

1E3800

1E3801

1E3802

CHROMATIC FILTERS

BLT

1E3794

1E3795

1E3796

1E3797

COD.

1E3789

BLM

1E3790

ELLIPTICAL FILTER

BLT

COD.

Luminous

effect

1,5mm

Lock

Targetti USA - A Targetti Group Company - 750-A W 17th St. Costa Mesa, CA 92627 - Phone (714) 513-1991

- Email:tar[email protected] - www.targetti.us - 04.10.20 - Page 8 of 9

Maintenance

This fixture was designed and manufactured for a durable,

long lasting use with minimum care. To ensure the

maximum lifespan of this product, we encourage our

customer to provide a quality visual inspection of the fixture

every six months.

If there are any visible sign of issues (i.e moisture or dust)

during the inspection, please clean any of the dust or

moisture with a soft cloth and check to make sure that any

of the fixtures are still operating normally. If there are any

issues regarding the fixture please contact us as we will

assist the situation at hand.

Targetti USA - A Targetti Group Company - 750-A W 17th St. Costa Mesa, CA 92627 - Phone (714) 513-1991

- Email:[email protected] - www.targetti.us - 04.10.20 - Page 9 of 9

Support

Any questions, problems, or comments you have please

feel free to contact our Customer Service department

during our business hours Monday-Friday 8am-5pm via:

Email: usaorders@targetti.com

Phone: (714) 513-1991

Visit our website: http://www.targetti.us
