USER GUIDE

Universal Laptop

Docking Station

Visit our website at www.targus.com

Features and specifications are subject to change without notice.

ACP45EU / 410-0391-003C

Table of ConTenTs

Targus Universal Laptop Docking Station ............................ 3

Targus Universelle Laptop-Dockingstation ........................ 21

Targus Docking Station Universal Para Portátil ................. 39

Targus Station D’accueil Universelle Pour Ordinateur Portable

............................................................................................ 57

Targus Universal Laptop Docking Station .......................... 75

Targus Universeel Docking Station Voor Laptops .............. 93

Targus Universal Laptop Docking Station ........................ 111

DE - Deutsch

ES - Español

GB - English

FR - Français

IT - Italiano

NL - Nederlands

PT - Português

TARGUS

UNIVERSAL LAPTOP

DOCKING STATION

Introduction

Congratulations on your purchase of the Targus Universal

Laptop Docking Station. This portable expansion module

allows you to connect through a single USB connection up

to 4 USB devices, a network (Ethernet/LAN) connection,

speakers and microphone, PS/2 mouse and keyboard,

and a serial and parallel device. Also, the lock slot and

universal lock support provided helps you secure your

docking station to your desktop.

The docking station also features Targus Always On

technology, Targus USB Power Port providing twice the

USB speciﬁcation for higher power requirement devices,

and USB ports that are widely spaced to acommodate

larger adapters. Targus Always On provides power

to the USB ports even when the laptop is shut-down,

disconnected from the docking station or in hibernate/

stand-by mode. This allows USB devices that charge via

the USB port to keep charging under any circumstance.

Targus Universal Laptop Docking Station

Features

Heat dissipation by natural

convection:

Comfort

The docking station provides the

following ports:

Place the back edge of your laptop on the rubber pads of

the Docking Station. Most laptops dissipate heat through

the bottom and the more air that’s allowed to ﬂow under

the bottom, the better chance that heat will dissipate by

natural convection.

The raised platform also provides a more comfortable

position for the hands.

• Two PS/2 ports

• IEEE 1284 DB25 Connector parallel (USB emulated)

• Two 3.5 mm Audio: (1) stereo out and (1) microphone

• RS232 serial (USB emulated)

• One S/PDIF Digital Audio Output (not supported in

Windows 2000)

• RJ-45 Ethernet 10/100

• Four USB 2.0 Ports:

- Two High-Speed USB 2.0 ports

- Two High-Speed USB 2.0 Always-On ports with extra

power

Targus Universal Laptop Docking Station

Package Contents

In addition to this user guide, the package contains:

• Targus Universal Laptop Docking Station

• High-speed USB 2.0 upstream cable

• Driver software CD

• AC power adapter

System Requirements

Hardware

• PC with an Intel®Pentium®processor or equivalent

• CD-ROM drive

• USB version 2.0 port

• AC power source (AC adapter required)

NOTE: WhEN cONNEcTEd TO a USB vErSiON 1.1 pOrT ON

yOUr cOmpUTEr, ThE dOckiNg STaTiON’S pErfOrmaNcE

lEvEl Will BE lESS ThaN OpTimal. fOr BEST rESUlTS,

cONNEcT iT TO a USB vErSiON 2.0 pOrT.

Operating System

• Windows®2000 Service Pack 4 or

• Windows®XP Service Pack 3 or

• Windows Vista®Service Pack 1

Targus Universal Laptop Docking Station

Installing the Device

and Drivers

WarNiNg: yOU mUST iNSTall ThE SOfTWarE BEfOrE

cONNEcTiNg ThE dOckiNg STaTiON TO yOUr cOmpUTEr.

OThErWiSE, ThE dOckiNg STaTiON Will NOT WOrk prOpErly.

To use the Targus docking station, you must ﬁrst install

the driver onto your computer.

After installing your software, connect the docking station

to your computer and Windows plug-and-play will install

the hardware drivers for each port.

Installing the Docking Station

Driver

Installing the docking station driver enables your

operating system to recognize it and its ports once it’s

connected.

1 Turn on your computer.

2 Insert the driver software CD into your computer’s

CD-ROM drive.

If setup does not begin automatically, click Start, Run,

and enter D:\ACP45_setup.exe (where D: is the path of

your CD-ROM drive) and then click OK.

Targus Universal Laptop Docking Station

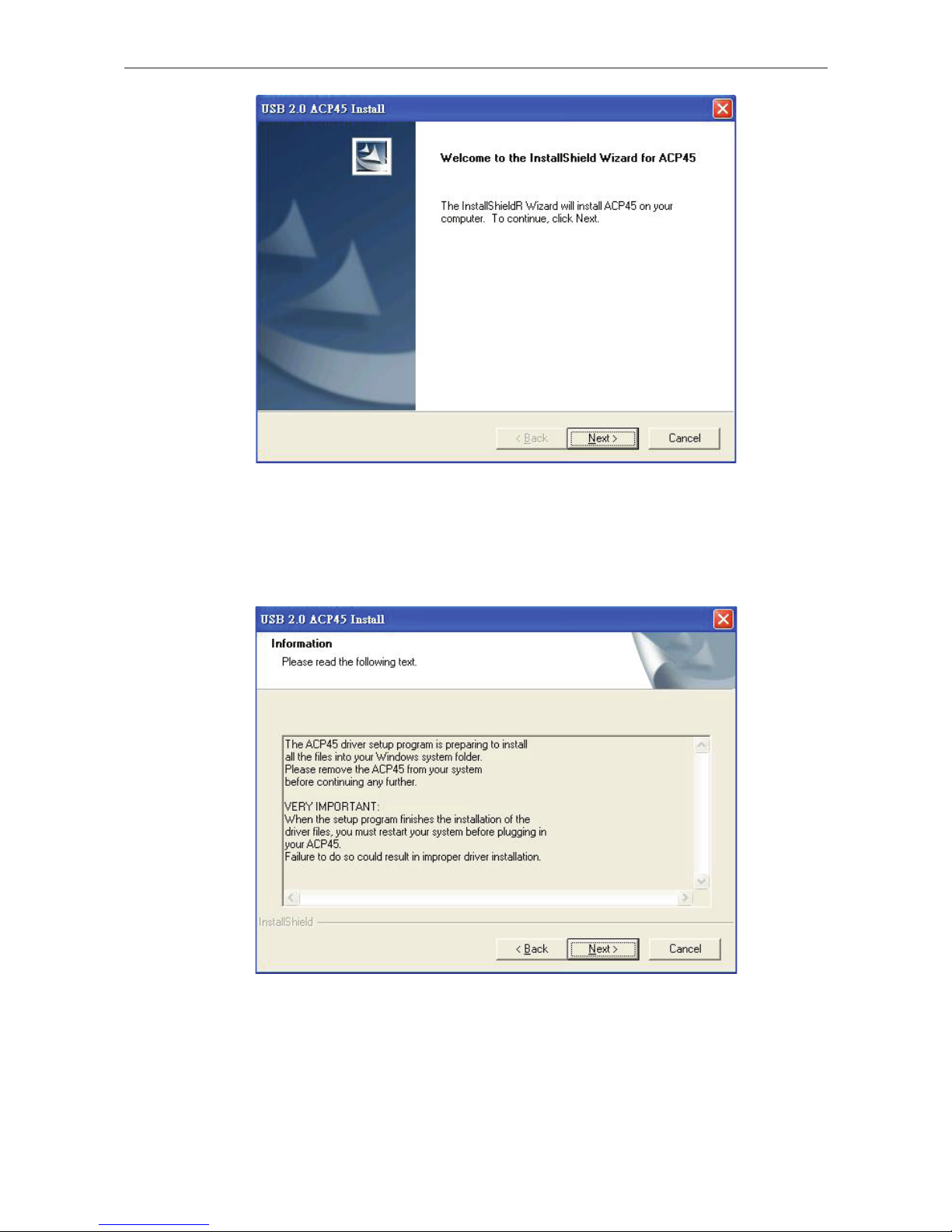

3 The Installation Wizard window of the docking station

will pop up. Click Next to proceed.

4 The Information window will pop up. Click Next to

proceed. In order to install the driver ﬁles properly,

you must restart your system before plugging in

the docking station.

Targus Universal Laptop Docking Station

5 Choose Yes, I want to restart my computer now.

Click Finish and restart your computer when

prompted.

Connecting the Docking

Station to Your Computer

After installing the docking station software, you are

ready to connect the docking station to your computer. To

do this:

1 Connect the supplied AC power adapter to the AC

power jack on the docking station.

2 Connect one end of the USB cable to the docking

station and the other end into an available USB 2.0

port on your computer.

WarNiNg: ThE dOckiNg STaTiON Will NOT fUNcTiON

prOpErly WiThOUT ThE ac adapTEr plUggEd iNTO aN ac

OUTlET.

dO NOT cONNEcT aNy dEvicES TO ThE dOckiNg STaTiON

UNTil ThE iNSTallaTiON iS cOmplETEd.

Targus Universal Laptop Docking Station

Installing the Default Device

Drivers

Once you connect the docking station to your computer,

the default drivers begin installing for each of the ports

automatically.

NOTE: plEaSE ENSUrE yOU havE ThE laTEST SErvicE packS

iNSTallEd.

Some hardware devices may prompt you to install the

drivers.

To install the drivers:

1 Select Install the software automatically

(Recommended) and click Next.

The Found New Hardware Wizard program begins

installing the hardware drivers.

The Completing the Found New Hardware Wizard

screen appears.

2 Click Finish and repeat as needed for each device.

3 Restart your computer.

LED Status Indicator Lights

Once all device drivers are installed, the USB LED status

indicator lights on the back of the docking station glow

when you connect devices to the docking station.

• Green Tx light illuminates when connected to a

network and the yellow Rx light ﬂashes when data is

transmitting to or from the network.

NOTE: ThE dOckiNg STaTiON SUppOrTS hOT SWappiNg Of

ThE NETWOrk caBlE.

Targus Universal Laptop Docking Station

Docking station ports

Docking station left-side view

Docking station right-side view

Laptop Support Pad Serial S/PDIF Network High-Speed USB

2.0 Always-On

with Extra Power

PS/2 Parallel Audio In Audio Out High-Speed

USB 2.0 Port

Cable

Lock Slot

“Easy Access”

High-Speed

USB 2.0 Port

Targus

DEFCON CL,

PA410E (not

included)

Cable

Lock Slot

USB to PC

Connection

AC Adapter
