Tascam TEAC AG-D9320 Leitfaden
Technical Documentation
AG-D9320
7733 Telegraph Road • Montebello, CA 90640 • (323) 726-0303 • http://www.tascam.com
All features and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.
Page 1 of 2
TEAC_AG-D9320_TECHDOC.pdf
051401
• Dolby Digital, Dolby Pro Logic and DTS Decoding
• Dedicated 6 Channel Pre-Amp Output
• 6 Channel Direct Input
• Composite, Component and S-Video Routing
• 130W/ch @ 8 Ohm (Stereo)
• 100W/ch @ 8 Ohm (Surround)
• Speaker A (Surround) & B (Stereo Only) Zones
• (4) A/V Inputs, (2) A/V Outputs (S-Video/Composite)
• (4) Audio Inputs, (2) Audio Outputs
• (2) Optical, (1) Coaxial Digital Input
• Optical Digital Output
• Bass and Treble Control
• (2) Rear Panel Switched Outlets
• Wireless Learning Remote Included
PRODUCT OVERVIEW
APPLICATIONS
Performance Specifications:
Digital Decoding Formats:
Speaker Delay:
Frequency Response:
Signal to Noise Ratio:
Stereo Power Output:
Surround Power Output:
Tone Control:
Digital Sample Rates:
General Specifications:
Supplied Accessories:
Power Requirements:
Power Consumption:
AC Outlets:
Dimensions:
Weight:
UPC:
Audio & Video
I/O Grid
Stereo, 3-Speaker Stereo, Dolby Pro Logic,
Dolby Digital (AC-3), DTS
Dolby Digital Rear: 0-15 msec
Dolby Digital Center: 0-5 msec
Dolby Pro Logic Rear: 15-30 msec
Phono: 20Hz-20kHz, ±1dB
Line: 14Hz-65kHz, +1/-3dB
Phono: 70dB (IHF-A); Line: 95dB (IHF-A)
130W RMS/ch (8 Ohms, 1kHz, <0.09% THD)
100W + 100W Front, 100W + 100W Rear
100W Center (8 Ohms, 1kHz, <0.05% THD)
Bass: ±10dB @ 100Hz; Treble: ±10dB @ 10kHz
Digital 1&2 - 32kHz, 44.1kHz, 48kHz, 96kHz
Digital 3 - 32kHz, 44.1kHz, 48kHz
AM Loop Antenna, FM T-Type Antenna,
FM Matching Transformer,
Wireless Remote (UR-416)
120V AC, 60Hz
3A
(2x) Switched 100W, 1A max
435 x 165 x 400 mm
17-1/8" x 6-1/2" x 15-3/4"
10.7kg, 23.5 lbs
0 43774 01090 5
SPECIFICATIONS
24 bit / 96kHz
DIGITAL AUDIO CONVERTERS
The AG-D9320 is TEAC's premium receiver, offering
plenty of A/V ports with the latest digital formats in a
cost effective package. Dolby Digital and DTS decoders
are on-board. The built in amps will be powerful enough
for small and medium rooms; a six channel direct line
output is available for feeding larger amp systems. Six
channel direct inputs are also available, for use with
external surround decoders. Video ports are offered on
S-Video, composite and component formats, with a
convenient front panel input for portable cameras or
other temporary sources. A wireless remote with
learning capability is comes standard with the receiver.
Sports Themed and Other TV-Equipped Restaurants
One feature which sets the AG-D9320 apart from much of its competition is
component video routing. The AG-D9320 can select between two component
video sources, such as a DVD player and a satellite receiver, and route either
to the TV or video projector system.
Of course, when dealing with audio systems, surround sounds better. Given
the ever-increasing number of surround sound broadcasts, and the affordable
digital cable and satellite systems delivering Dolby Digital signal to the
masses, it is easy to offer the enveloping "you are there" experience. Sci-Fi
and professional sports are the most common surround program material.
To accommodate these, the AG-D9320 includes Dolby Digital, Pro Logic, and
DTS decoders built in, providing support for the current major formats.
Additionally, the dedicated six-channel direct input also allows future formats
to be decoded externally and fed directly to the AG-D9320's amps and signal
routing matrix. This is extremely important for DVD-Audio formats which are
constantly changing, and even helps with direct routing of HDCD or SACD
formats which require additional decoders or specific D/A converters.
Given the ever-increasing number of camcorder formats, the front panel A/V
input is wonderful for direct connection of portable systems. No more
concerns about having Hi-8 players, VHS-C adapters, or having to crawl
behind the TV for the connections. Just take signal from the camcorder
directly in.
Lecture Halls, Board Rooms, School A/V Racks
The AG-D9320's interface is simple. Most anyone can route their A/V sources
without fidgeting around. The AG-D9320 routes video and audio, and the
included remote learns other functions, so only one remote will be necessary.
Plus, the on-screen commands can be assigned to either the S-Video or
composite output. So, you can set up your system with a control screen in
the equipment rack. The audience won't be viewing the setting screens. This
makes a more polished and professional impression.
Inputs with (D) above can accept signal from a digital input. The source selection will remember which
digital input is selected, and the digital input will then automatically override the analog input. One
coaxial and two optical digital inputs are available to choose from. The six channel direct input can be
assigned with any source. The digital output and 6 channel pre-amplifier output is always active.
VCR/VID1
LD/VID2
AUX/VID3
DVD/VID4
CD
TUNER
MD/TAPE1
TAPE2
PHONO
TV MONITOR
Audio - RCA
Video - Composite
Video - S-Video
Video - Component
IN (D)
IN
IN
IN
IN
IN
IN (D) IN 6CH
OUT
OUT
OUT
I/O I/O(INT)I/O
I/O
I/O
IN (D)
IN
IN
IN
AG-D9320 Technical Documentation
7733 Telegraph Road • Montebello, CA 90640 • (323) 726-0303 • http://www.tascam.com
All features and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.
Page 2 of 2

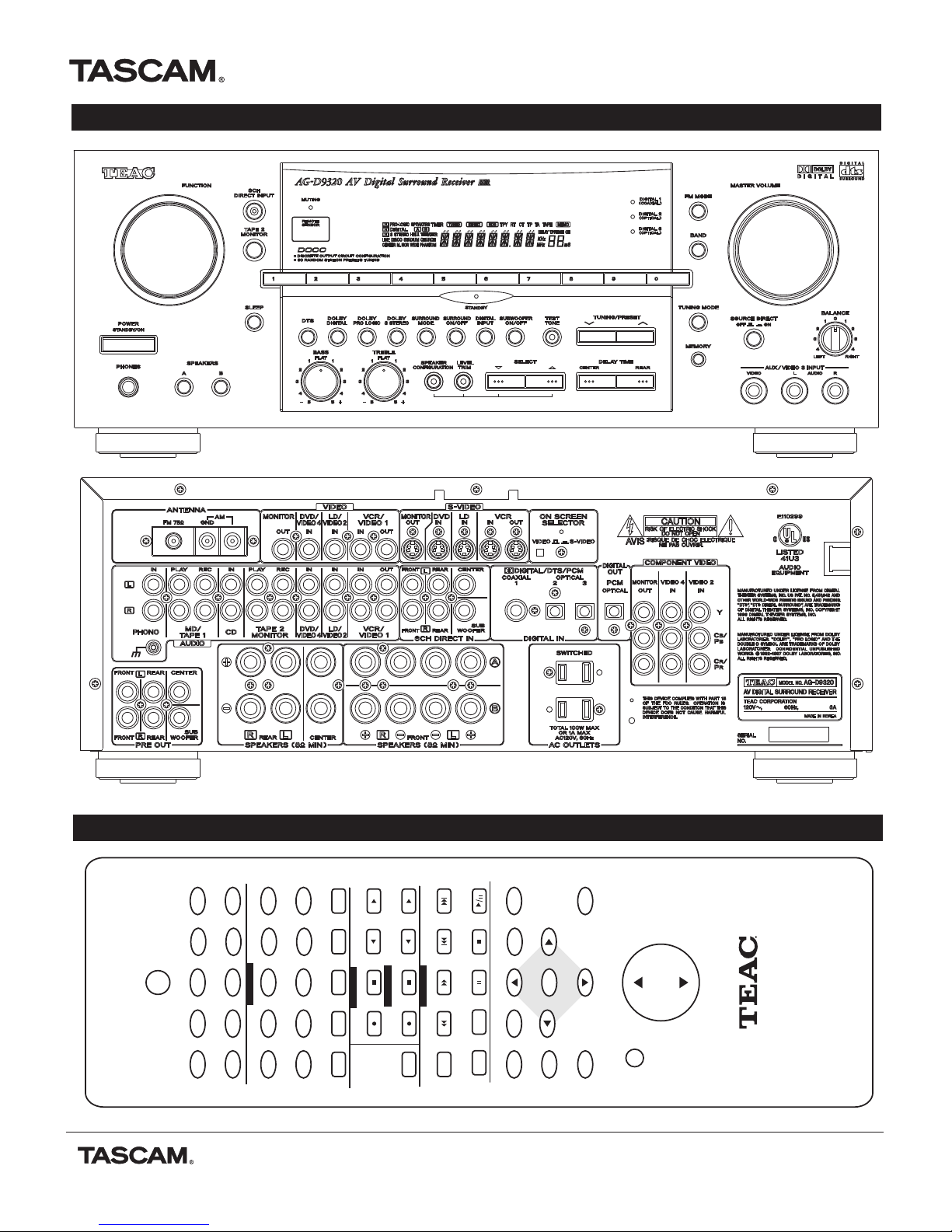

FRONT AND BACK PANEL
WIRELESS REMOTE
TEAC_AG-D9320_TECHDOC.pdf
051401
TUNER
TAPE I
CD
TAPE II
POWER
1 2 3 45
6 7 8 90
MD
TAPE 1
TAPE 2
MONITOR CD TUNER PHONO
MEMORY
SCAN
DIRECT
TUNING BAND PRESET CALL
MUTING MASTER
VOLUME
NIGHT
MODE SLEEP
TEST
TONE
CENTER
DELAY
LEVEL
TRIM
REAR
DELAY
OSD
ON/OFF
DIGITAL
INPUTON/OFF MODE
SURROUND
1/ALL A-B
REPEAT PAUSE STOP PLAY/PAUSE
VCR
VIDEO 1
LD
VIDEO 2
AUX
VIDEO 3
DVD
VIDEO 4
6CH
DIRECT
CD
SYNC RECORD STOP PLAY
DISK
SKIP SEARCH MUSIC SKIP
RECORD STOP PLAY
