MANUAL: Low Proﬁle

Ball Intake Valve

INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE

WARNING Understand manual before use. Operation of this device without understanding the manual

and receiving proper training is a misuse of this equipment. Obtain safety information at

www.tft.com/serial-number

TASK FORCE TIPS, INC.

MADE IN USA • www.tft.com 3701 Innovation Way, Valparaiso, IN 46383-9327 USA

800-348-2686 • 219-462-6161 • Fax 219-464-7155

OPERATING RANGE:

Pressure Max 300 PSI (20 bar)

Pressure Min Full Vac.

NFPA 1962 Test Pressure

300 PSI (21 bar)

Six seconds from open to close

meets NFPA 1901

slow close requirement.

©Copyright Task Force Tips, Inc. 2016 LIA-212 December 8, 2016 Rev03

DANGER

PERSONAL RESPONSIBILITY CODE

The member companies of FEMSA that provide emergency response

equipment and services want responders to know and understand the

following:

1. Fireﬁghting and Emergency Response are inherently dangerous activities

requiring proper training in their hazards and the use of extreme caution

at all times.

2. It is your responsibility to read and understand any user’s instructions,

including purpose and limitations, provided with any piece of equipment

you may be called upon to use.

3. It is your responsibility to know that you have been properly trained in

Fireﬁghting and /or Emergency Response and in the use, precautions, and

care of any equipment you may be called upon to use.

4. It is your responsibility to be in proper physical condition and to maintain

the personal skill level required to operate any equipment you may be

called upon to use.

5. It is your responsibility to know that your equipment is in operable

condition and has been maintained in accordance with the manufacturer’s

instructions.

6. Failure to follow these guidelines may result in death, burns or other

severe injury.

FEMSA

Fire and Emergency Manufacturers and Service Association

P.O. Box 147, Lynnﬁeld, MA 01940 • www.FEMSA.org

©Copyright Task Force Tips, Inc. 2016 LIA-212 December 8, 2016 Rev03

Table Of Contents

1.0 MEANING OF SIGNALWORDS

2.0 SAFETY

3.0 GENERALINFORMATION

3.1 SPECIFICATIONS

3.2 CORROSION

3.3 USE WITH SALT WATER

4.0 INSTALLATION

4.1 MOUNTING THE VALVE

4.2 CHANGING OFFSET OF CRANK HANDLE

4.3 CHANGING COUPLING LOCKOUT

4.4 STORZ ‘SUCTION GASKET’REQUEST

5.0 USE

5.1 VALVE OPERATION

5.2 AIR VENTAND WATER DRAIN

5.3 PRESSURE RELIEF VALVE

5.3.1 SETTING RELIEF VALVE PRESSURE

5.4 PRESSURE LOSS

5.5 SUCTION SCREEN

6.0 EXPLODED VIEWSAND PARTS LISTS

6.1 BALLINTAKEAXD SERIES EXPLODED VIEWAND PARTS LIST

6.2 SIDE B OPTIONS EXPLODED VIEWS AND PARTS LISTS

6.3 AIR VENT/DRAIN [B] EXPLODED VIEW AND PARTS LIST

6.4 PRESSURE RELIEF VALVE EXPLODED VIEWAND PARTS LIST

7.0 TROUBLE SHOOTING

8.0 WARRANTY

9.0 MAINTENANCE

9.1 SERVICE TESTING

9.1.1 HYDRAULIC TESTING

9.1.2 RELIEF VALVE TEST

9.1.3 SHUTOFF VALVE

9.1.4 RECORDS

9.2 CRANKSHAFT OVERRIDE & REPLACEMENT

9.2.1 CRANKSHAFT OVERRIDE

9.2.2 DIAGNOSIS

9.2.3 CRANKSHAFT REPLACEMENT

10.0 REPAIR

11.0 ANSWERS TO YOUR QUESTIONS

12.0 INSPECTION CHECKLIST

©Copyright Task Force Tips, Inc. 2016 LIA-212 December 8, 2016 Rev03

1.0 MEANING OF SIGNAL WORDS

Asafety related message is identiﬁed by a safety alert symbol and a signal word to indicate the level of risk involved with a particular

hazard. Per ANSI standard Z535.6-2011, the deﬁnitions of the four signal words are as follows:

DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or serious

injury.

WARNING WARNING indicates a hazardous situation which, if not avoided, could result in death or serious

injury.

CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor

or moderate injury.

NOTICE NOTICE is used to address practices not related to physical injury.

2.0 SAFETY

WARNING Quick changes in valve position can cause high pressure spikes due to water hammer and may

result in damaged equipment which could lead to injury or death. Open and close the valve

slowly to avoid water hammer.

WARNING Injury or death can result from burst hoses and ﬁttings. Risk can be minimized by the proper care

and use of hose and appliances per NFPA 1962. The relief valve must be set to an appropriate

pressure based on the type of hose and equipment you are using.

WARNING Injury or death may occur by attempting to use a damaged Valve. Per NFPA1962, the device shall

be inspected and tested at least quarterly. Before use inspect for damage resulting from:

• Failure to drain valve followed by exposure to freezing conditions

• Exposure to temperatures in excess of 160 degrees F

• Missing parts, physical abuse

WARNING This equipment is intended for use by trained personnel for ﬁreﬁghting. Its use for other

purposes may involve hazards not addressed by this manual. Seek appropriate guidance and

training to reduce risk of injury.

WARNING Kinks in supply hose may reduce water ﬂow and cause injury or death to persons dependant on

water ﬂow. Avoid tight bends to minimize risk of hoseline kinks.

WARNING The appliance may be damaged if frozen while containing signiﬁcant amounts of water. Such

damage may be difﬁcult to detect visually and can lead to possible injury or death. Any time the

appliance is subject to possible damage due to freezing, it must be hydrostatically tested by

qualiﬁed personnel before being considered safe for use.

CAUTION Maximum operating pressure for the valve is 300 PSI (20 bar). Do not exceed 300 PSI on either

side of the valve.

CAUTION Valve must be properly connected. Mismatched or damaged connectors may cause leaking or

uncoupling under pressure and could cause injury.

CAUTION Any alterations to the valve and its markings could diminish safety and constitutes a misuse of

this equipment.

NOTICE Use with salt water is permissible provided the valve is thoroughly cleaned with fresh water after

each use. The service life of the valve may be shortened due to the effects of corrosion and is

not covered under warranty.

©Copyright Task Force Tips, Inc. 2016 LIA-212 December 8, 2016 Rev03

3.0 GENERAL INFORMATION

The Low Proﬁle Ball Intake Valve is intended for use on either the intake manifold of a ﬁre engine or on a discharge port of a ﬁre main.

The valve is available in versions to minimize interference with surrounding components. The valve is kept closed while the water

supply from a hydrant or another pumper to the engine is being established. This prevents the pump from sucking air through the

intake manifold and losing its prime. Once the supply hose is ﬁlled and under pressure, and the air has been vented from the hose,

the valve may be opened to connect the pump to the water supply.An adjustable pressure relief valve mounted on the valve opens to

relieve any excess pressure that may damage the hose or the pump. The valve may be used for pressure or vacuum/drafting service.

Hand Crank

Pressure Relief Valve

Air Vent & Drain

Intake

Side B Coupling

Valve Position

Indicator

Outlet

Side A Coupling

Figure 3.0 ABD3ST-NX

Low Proﬁle Ball Intake Valve

With Pressure Relief Valve

3.1 SPECIFICATIONS

MODEL LOW PROFILE JUMBO INTAKE VALVE

Waterway Size 3.65” (93mm)

Max Pressure 300 psi (20 bar)

Min Pressure Full Vacuum

Temperature Rating* -25°F to 135°F (-32°C to 57°C)

Opening/Closing Speed Meets NFPA 1965 Slow Close Requirements

3.2 CORROSION

Aluminum parts are hard anodized.All castings are then powder coated inside and out to help prevent corrosion. Hose couplings are

attached using polymer bearing rings which provide electrical insulation to help prevent galvanic corrosion. The effects of corrosion

can be minimized by good maintenance practice. See section 9.0 for MAINTENANCE.

3.3 USE WITH SALT WATER

Use with salt water is permissible provided valve is thoroughly cleaned with fresh water after each use. The service life of the valve

may be shortened due to the effects of corrosion and is not covered under warranty.

©Copyright Task Force Tips, Inc. 2016 LIA-212 December 8, 2016 Rev03

4.0 INSTALLATION

4.1 MOUNTING THE VALVE

Screw the large coupling to a pump manifold or ﬁre water discharge port and tighten securely. The valve position indicator should be

clearly visible, but need not be level.

CAUTION Dissimilar metals coupled together can cause galvanic corrosion that can result in the inability

to unscrew the threads and complete loss of thread engagement over time. Per NFPA 1962 (2013

edition), if dissimilar metals are left coupled together an anti-corrosive lubricant should be applied

to the threads. Also, the coupling should be disconnected and inspected at least quarterly.

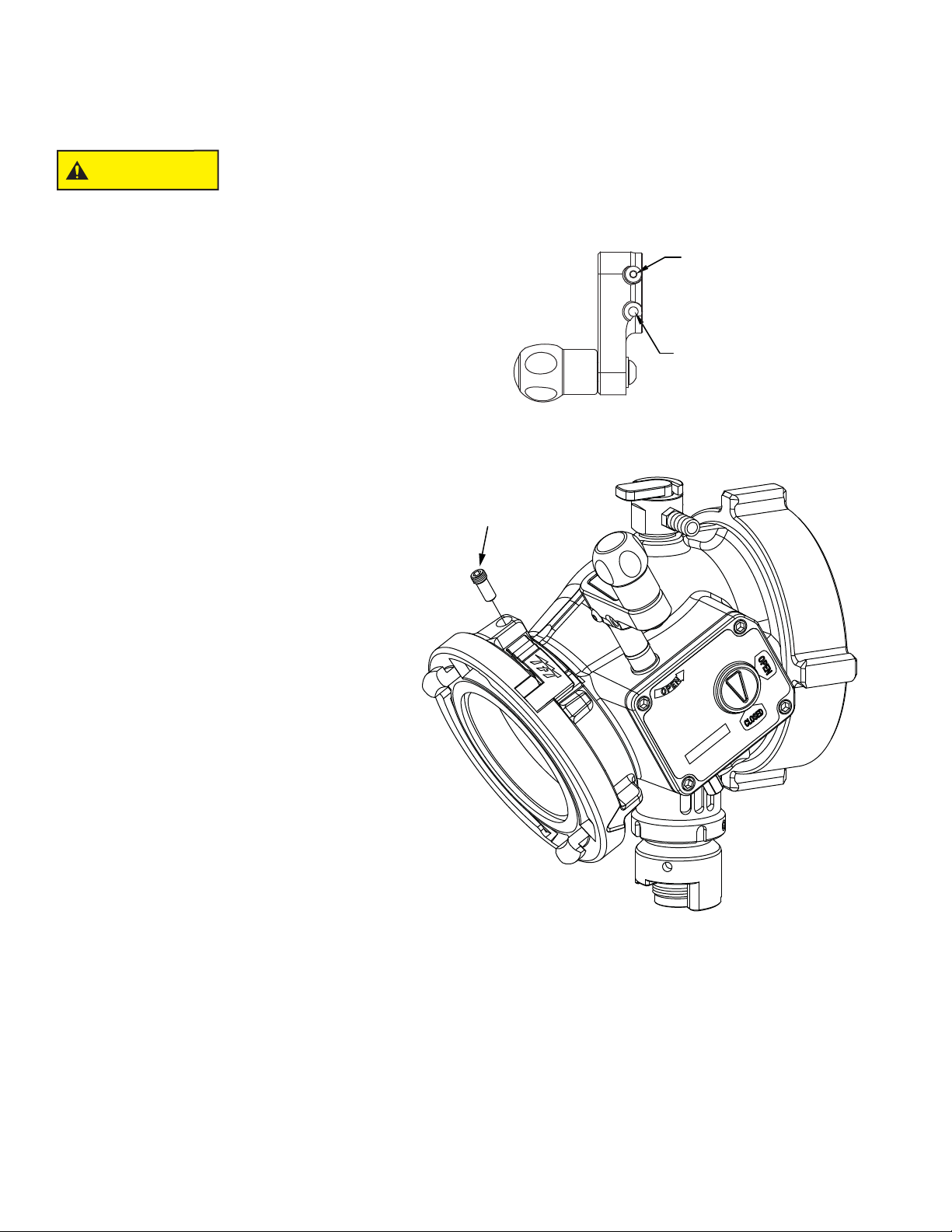

4.2 CHANGING OFFSET OF CRANK HANDLE

When equipped with a crank handle, two offset positions are available

to adjust the swing radius of the crank and knob as shown in ﬁgure

4.2. The longer offset position offers reduced effort to operate the

valve. The shorter offset is available to avoid interference with other

equipment on the apparatus. To change the offset, remove two 1/4”-

20 x 1/2” button head cap screws from crank. Place crank in desired

position and replace screws. Apply Blue Loc-Tite thread locking

compound to all of the screw threads.

Longer Offset Position

2.6" [67mm]

Swing Radius

Shorter Offset Position

1.6" [41mm]

Swing Radius

Figure 4.2

Crank Handle Offset

4.3 CHANGING COUPLING LOCK-OUT

To change a coupling from rigid to full time swivel, use a

7/32” Allen driver to back out the lockout screw until the

coupling moves freely.

To change a coupling from full time swivel to rigid, Rotate

the coupling until the lockout screw is aligned with the

Air Vent/Bleed Valve on the top of the valve body. Use

a 7/32” Allen driver to tighten the lockout screw into the

lockout divot in the elbow. Do not tighten the screw onto

the polymer bearing strip.

Lock-Out Screw

Figure 4.3.

Coupling Lock-Out

4.4 STORZ ‘SUCTION GASKET’ REQUEST

If your application of this product requires drafting, you may need a suction gasket. Please call 1-800-348-2686 to receive a free

suction gasket by mail.

Part Numbers: 4” STORZ - item #A4216, 5” STORZ - item # A4221, 6” STORZ - item #A4273

©Copyright Task Force Tips, Inc. 2016 LIA-212 December 8, 2016 Rev03

5.0 USE

5.1 VALVE OPERATION

The valves covered by this manual utilize positive stops at the OPEN and CLOSED positions.Attempting to close a valve further than

the positive stops will not result in a tighter seal between the ball and valve seat.All valves include markings to indicate the direction

of handle rotation to open the valve.

Valves with hand cranks include a valve position indicator. To open the valve, turn the hand crank until the valve position indicator

shows OPEN. To close the valve, turn the hand crank the opposite way until the valve position indicator shows CLOSED.

CLOSED

OPEN

CLOSED

Figure 5.1

Valve Position Indicator

Up to the maximum rated pressure, operating torque should never exceed the values in the table below. If greater torque is required

to operate the valve, then that is an indication that the valve needs maintenance. Exceeding 30 ft-lb / 41 N-m torque may damage

the appliance. Kicking or standing on the valve controls is considered misuse of the appliance.

Valve Seat Bore

Size Max. Acceptable

Torque Max. Acceptable

Force on Knob

3.65 in 93mm 12 ft-lb 16 N-m 45 lb 20 kg

Exceeding 45 ft-lb will cause one side of the crank shaft to shear off. This is intentional to prevent further damage to the gearbox. If

the shaft shears off, the valve can be operated temporarily using a wrench on the ½” hex on the opposite side of the crankshaft. For

repair instructions, see section 9.2 CRANKSHAFT OVERRIDEAND REPLACEMENT.

5.2 AIR VENT AND WATER DRAIN

CAUTION Loss of prime can interrupt water ﬂow and cause injury or death. Always bleed out air with air

valve to prevent possible loss of prime.

The BIV-LP comes with an Air Vent/Drain Valve situated on the top of the valve.

5.3 PRESSURE RELIEF VALVE

WARNING Do not leave the pressure relief valve in the OFF position. The pressure relief valve is disabled in

the OFF position and offers no protection against over pressurization. The OFF position may be

used for controlled pump testing but should not be used for service conditions. Exercise great

care to avoid water hammer or other pressure spikes when the pressure relief valve is in the OFF

position.

WARNING The Pressure Relief Valve may be damaged if frozen while containing signiﬁcant amounts of

water. Such damage may be difﬁcult to detect visually and can lead to possible injury or death.

Any time the Pressure Relief Valve is subject to possible damage due to freezing, it must be

hydrostatically tested by qualiﬁed personnel before being considered safe for use.

LDH valved appliances may be equipped with a pressure relief valve that can be set to any pressure between 90 and 300 psi. Its

function is to protect the pump and supply hose from excess pressure.

See LIA-202 Pressure Relief Valve Instructions for Safe Operation and Maintenance.

©Copyright Task Force Tips, Inc. 2016 LIA-212 December 8, 2016 Rev03

5.3.1 SETTING RELIEF VALVE PRESSURE

To set the relief valve pressure turn the adjusting screw on the

relief valve housing until the surface of the screw is even with the

desired pressure. A 9/16” (14mm) socket or a 1/4” Allen wrench

may be used to turn the adjusting screw. The Pressure relief

valve should not be disabled (IE: capped, plugged, or set to the

OFF position) for normal service conditions. Disabling the relief

valve may result in system damage or hose rupture if the system

exceeds operating limits. The pressure relief valve meets the

requirements of NFPA 1901.

Adjusting

Screw

Figure 7.1

Pressure Relief Valve

5.4 PRESSURE LOSS

0.5

1.5

0 1000 2000 3000 4000 5000 6000 7000

0 200 400 600 800 1000 1200 1400 1600 1800 2000

LOSS (BAR)

FLOW (LPM)

LOSS (PSI)

FLOW (GPM)

LDH Waterway

With Suction Screen

LDH

Waterway

Figure 5.4

Pressure Loss Chart

5.5 SUCTION SCREEN

This device may be equipped with a suction screen to catch debris larger than 3/8” diameter in the waterway. To add or replace a

suction screen, order TFT part #A1410-KIT for the 4.5” waterway, and TFT part #A1411-KIT for the 5.0” waterway. See Section 5.4

for suction screen pressure loss.

©Copyright Task Force Tips, Inc. 2016 LIA-212 December 8, 2016 Rev03

6.0 EXPLODED VIEWS AND PARTS LISTS

6.1 BALL INTAKE VALVE - EXPLODED VIEW AND PARTS LIST

SIDE B

COUPLING/

SPOUT

68A

21 22 23 24 25 22 26 27 28 29

10 11

12345

INDEX DESCRIPTION QTY PART #

1GASKET - 6.0" 1V3240

GASKET - 5.0" V3220

2COUPLING RL 6.0"NHF X PSF7.0-NFS 1A4674NX

COUPLING RL 5.0"NHF X PSF7.0-NFS A4671NT

3 PLASTIC STRIP 7.00" 1 A1290

4 RETAINING RING 1 A1521A

5 VALVE SEAT 1 A1520

6 HALF BALL 5.5"ALUM NO DRAIN 1 A1043A

7 BUSHING 1 A2095

8 BODY LOW PROFILE 1 A1016

9 LOWER TRUNNION 1 AY357

10 O-RING-115 1 VO-115

11 1/4-20 X 1/2 SOCKET SET SCREW 1 VT25-20SS500

12 O-RING-135 1 VO-135

13 RETAINING RING 15MM EXTERNAL 1 VR4275

14 THRUST WASHER/SMALLBUSHING 1 A1536

15 12 DP WORM 1 X220

16 THRUST WASHER/LARGE BUSHING 1 A1537

17 KEY 1 X225

18 CRANK SHAFT 1 A1533

19 1/4-20 X 1/2 BUTTON HEAD SCREW 2 VT25-20BH500

20 CRANK WITH KNOB SUBASSEMBLY 1 A1623

21 O-RING-128 1 VO-128

22 BUSHING 2 A1538

23 O-RING-214 1 VO-214

24 INTEGRAL WORM GEARAND TRUNNION 1 A1504

25 INDICATOR LABEL 1 A1508

26 GEARBOX COVER 1 A1507

27 MODEL NUMBER LABEL 1 A1303

28 LABEL LOW PROFILE BIV 1 A1315

29 1/4-20 X 3/4 SOCKET HEAD SCREW 4 VT25-20SH750

A DRAIN VALVE SUBASSEMBLY 1 SEE SECTION 6.3

B PRESSURE RELIEF VALVE SUBASSEMBLY 1 A1758

©Copyright Task Force Tips, Inc. 2016 LIA-212 December 8, 2016 Rev03

6.2 SIDE B OPTIONS EXPLODED VIEWS AND PARTS LISTS

3MALE HOSE THREADS

INDEX DESCRIPTION QTY 4.0" 4.5" 5.0" 6.0"

1 PLASTIC STRIP 1 A1291 A1291 A1291 A1291

2 CUP SEAL 1 A1596 A1596 A1596 A1596

3 LOCK-OUT SCREW 1 A1294 A1294 A1294 A1294

4 SPOUT 1 A4620N A4625N A4630N A4635N

FEMALE HOSE THREADS ROCKER LUG

INDEX DESCRIPTION QTY 3.5" 4.0" 4.5" 5.0" 6.0"

5 PLASTIC STRIP 1 A1292 A1291 A1291 A1291 A1290

6 CUP SEAL/O-RING 1 A1597 A1596 A1596 A1596 -

7 COUPLING 1 A4665N A4660N A4665N A4670N A4674NX

8 GASKET 1 V3196 V3198 V3210 V3220 V3240

- NFS RING/O-RING 1 -----

- MATE 1 A4730 - - - A4730

- PLASTIC STRIP 1 A1291 - - - A1291

- CUP SEAL 1 A1596 - - - A1596

- BALL 1 VB.437 ----

12 STORZ

INDEX DESCRIPTION QTY 4.0" 5.0" 6.0"

12 PLASTIC STRIP 1 A1292 A1291 A1291

13 CUP SEAL 1 A1597 A1596 A1596

14 LOCK-OUT SCREW 1 A1294 A1294 VB.437

15 COUPLING 1 A4124 A4125 A4289

- MATE 1 A4730 - -

- PLASTIC STRIP 1 A1291 - -

- CUP SEAL 1 A1596 - -

- BALL 1 VB.437 - -

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Task Force Tips Steuereinheit Handbücher

Task Force Tips

Task Force Tips PA2BF-L Bedienungsanleitung

Task Force Tips

Task Force Tips Max Flip Tip2 Bedienungsanleitung

Task Force Tips

Task Force Tips Ball Intake Valve Kurzanleitung

Task Force Tips

Task Force Tips VORTEX 2 ER Programmierhandbuch

Task Force Tips

Task Force Tips Pressure Relief Valve Kurzanleitung

Task Force Tips

Task Force Tips TORNADO Programmierhandbuch

Task Force Tips

Task Force Tips 2.5” GATED WYE Kurzanleitung

Task Force Tips

Task Force Tips ER Bubble Cup Programmierhandbuch

Task Force Tips

Task Force Tips Ball Intake Valve Kurzanleitung

Task Force Tips

Task Force Tips Master Stream 3200 Betriebsanleitung

Task Force Tips

Task Force Tips METRO 0 Series Montageanleitung

Task Force Tips

Task Force Tips Ball Intake Valve Programmierhandbuch

Task Force Tips

Task Force Tips A1150 Kurzanleitung

Task Force Tips

Task Force Tips Ball Intake Valve AXD1ST-NX-T Programmierhandbuch

Task Force Tips

Task Force Tips G-Force G A Series Bedienungsanleitung

Task Force Tips

Task Force Tips FlipTip Montageanleitung

Task Force Tips

Task Force Tips Twister Programmierhandbuch

Task Force Tips

Task Force Tips Ball Intake Valve Programmierhandbuch

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Task Force Tips

Task Force Tips OASIS HYDRANT ASSIST VALVE Kurzanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Shini

Shini SPV-U Series Bedienungsanleitung

Flyron

Flyron FN-BC04 Bedienungsanleitung
