Before attempting to connect or operate this product,

Please read instructions cardfully and save this manual for future use.

Copyright(c)2008

Users Manual

Intelligent Keyboard Controller

All manuals and user guides at all-guides.com

all-guides.com

PREFACE

Specification of function:

Specification of operation:

Specification of compatibility:

Specification of material:

1. It is compatible with all functions of HK’s DVR panel;

2. One Keyboard Controller control several embedded devices

with video signal switch function and truly realize the function

of digital video matrix.

3. Conveniently control high speed Dome and decoder, fill up

the deficiency of the embedded devices.

4. All devices controlled can be set to different protocol and

baud rate individually, strengthen the compatibility of system;

5. Updating software on line, its software can be updated to

match client’s special protocol via its RS485 port.

1. Operation, setup and query information can be displayed on

LCD Screen clearly;

2. Rota tion spe e d of high spe ed d ome can be controlled by

adjusting the range of joystick, and the range can be indicated

on LCD display;

3. Pa s s w o r d i s n e e d e d w h e n c h a n g e it s s e t u p pa r a me t e r,

strengthen its safety and reliability, prevent misoperation ;

4. One key to query, more convenient and safe, all setup can be

indicated on LCD display clearly, prevent misoperation;

1. Contain 12 kinds of high speed dome and decoder protocol

available for client’s choice, its protocol can be renewed

according to client’s requirement, and can be updated on line;

2. Can control 255 pieces of high speed dome/decoder, address

code is among 0-254;

3. Can control 31 pieces of embe dded DVR/PCDVR, address

code is among 1-31;

4. Support maximum 15 auxiliary keyboard controllers, keyboard

ID is among 0-15.

1. Imported joystick, accurate and reliable;

2. Each key can stand 5 millions times press, reliable, nice feel,

confirmation tone;

3. Big LCD display screen, adequate display space;

4. Standard RS485 Signal input and output port have lightning

pr o t e c t i o n f un c t i on , go o d a nt i - i n t e r f e re n c e a b i li t y,

communication distance can be up to 1200m;

5. Standard interface, make the communication more convenient,

quick and obvious.

All manuals and user guides at all-guides.com

1

1

2

1

1

1

1explain

EXPLAIN

Users Manual

Intelligent Keyboard Controller

DVR: Digital Video Recorder

P T Z : P a n / T i l t Z o o m ( m e a n s l e n s ’ s m a i n m o v e m e n t , r e f e r t o

decoder or high speed dome in general)

Please connect t h e ke y b oard controller corre c t l y as t h i s man u a l

requires.

L C D d i s p l a y c a n b e e a s i l y d a m a g e d . P l e a s e d o n ’ t p r e s s o r

e x p o s u re in su n s h i n e fo r a l o n g t i m e .

The joysti c k can b e e a s i l y da m aged. I f i t n e e d s t o be repaired,

please wrap and ship it by using original or safety packaging;

◇

◇

◇

Caution:

Abbreviation: (mentioned in this manual)

Keyboard controller parameter:

Item

Power

Temperature

Humidity

Communication

Baud rate

Interface

Display

Size

Parameter

DC12V±10%/50HZ

-10～55℃

≤90%RH(frostless)

RS485 half-duplex

1200bps,2400bps,4800bps,9600bps,19200bps

5PIN line

LCD screen

318(L)X180(W)X118(H)mm

Accessories

Name

Keyboard Controller

DC-12V Power

5pin Plug

《Users Manual》

Warranty

Qualification

Quantity Unit Note

pcs

pcs

pcs

pcs

pcs

pcs

Input:AC100-240V～50/60HZ

All manuals and user guides at all-guides.com

2

CONTENTS

CONTENTS

Users Manual

Intelligent Keyboard Controller

1. Introduction of front/rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.1 Front panel function buttons introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.1.1 Key button function introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.1.2 LCD Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1.3 Status indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1.4 Joystick control function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.2 Rear panel interface terminal introduction . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2. Operation introduction .......................................7

2.1 PTZ control introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.1 Select PTZ operation mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.2 Select PTZ address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.3 Joystick & Keyboard controller control PTZ . . . . . . . . . . . . . . . . . . . . . 7

2.1.4 Set PTZ preset position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1.5 Select PTZ preset position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 DVR operation introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2.1 Select DVR operation mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2.2 Select DVR address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2.3 Joystick & Keyboard controller control DVR . . . . . . . . . . . . . . . . . . . . . 9

2.3 Query for Keyboard parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3. Installation introduction ....................................11

3.1 Keyboard controller control DVR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.2 Keyboard controller control PTZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.3 DVR or Keyboard and DVR control PTZ synchronously . . . . . . . . . . . . . . . . 12

4. DVR and Keyboard controller connection and setup.................13

5. Other function setup.........................................14

5.1 Password setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.2 Default setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.3 Download updating on line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.4 Key button buzzer setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.5 Keyboard controller ID setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.6 Keyboard controller Lock ID setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.7 Keyboard controller parameter setup frame diagram . . . . . . . . . . . . . . . . . 15

contents

All manuals and user guides at all-guides.com

SHUT DOWN

PTZ

M/A

PREV

A

AUX

EDIT

MENU

REC

PLAY

F1

F2

F3

3

T h e r e a r e 31 pc s b u t t o n s , 1 p c L C D d i s p la y a n d 1 p c j o y s t i c k

d i s t r i b u ti n g in In t e l l i g e n t Ke y b o a r d C o n t ro l l e r fr o n t p a n e l .

1.1Front panel function button introduction

Users Manual

Intelligent Keyboard Controller

INTRODUCTION

Notes: Some buttons are multi-function bottons, PTZ control function

on the left of slash and DVR function on the right.

introduction

1.1.1 Key button introduction

【Esc】 Quit and back to up level menu

【Setup】 Press and hold for 3 seconds and enter into keyboard setup mode

【Search】 Press and hold for 1 second and check the original configuration

parameter of intelligent keyboard.

【Shitf】 Switch the control mode of PTZ or DVR: switch keyboard function

to DVR or PTZ control mode.

【F1】 Run Pattern scan button; Call the preset Pattern scan track number.

【F2】 Enter into cruise setup, press 1 time enter, press again to save and quit.

【F3】 Select cruise route number; select the preset cruise number.

【PRESET】 Set preset position key; Set the preset position of PTZ.

【SHOT/REC】 In PTZ control mode: select the speed dome preset position;

In DVR control mode: control Camera video function.

【AUTO/PLAY】In PTZ control mode: Control tripod head automatic rotation;

In DVR control mode: Control Camera video playback.

All manuals and user guides at all-guides.com

4

Users Manual

Intelligent Keyboard Controller INTRODUCTION

introduction

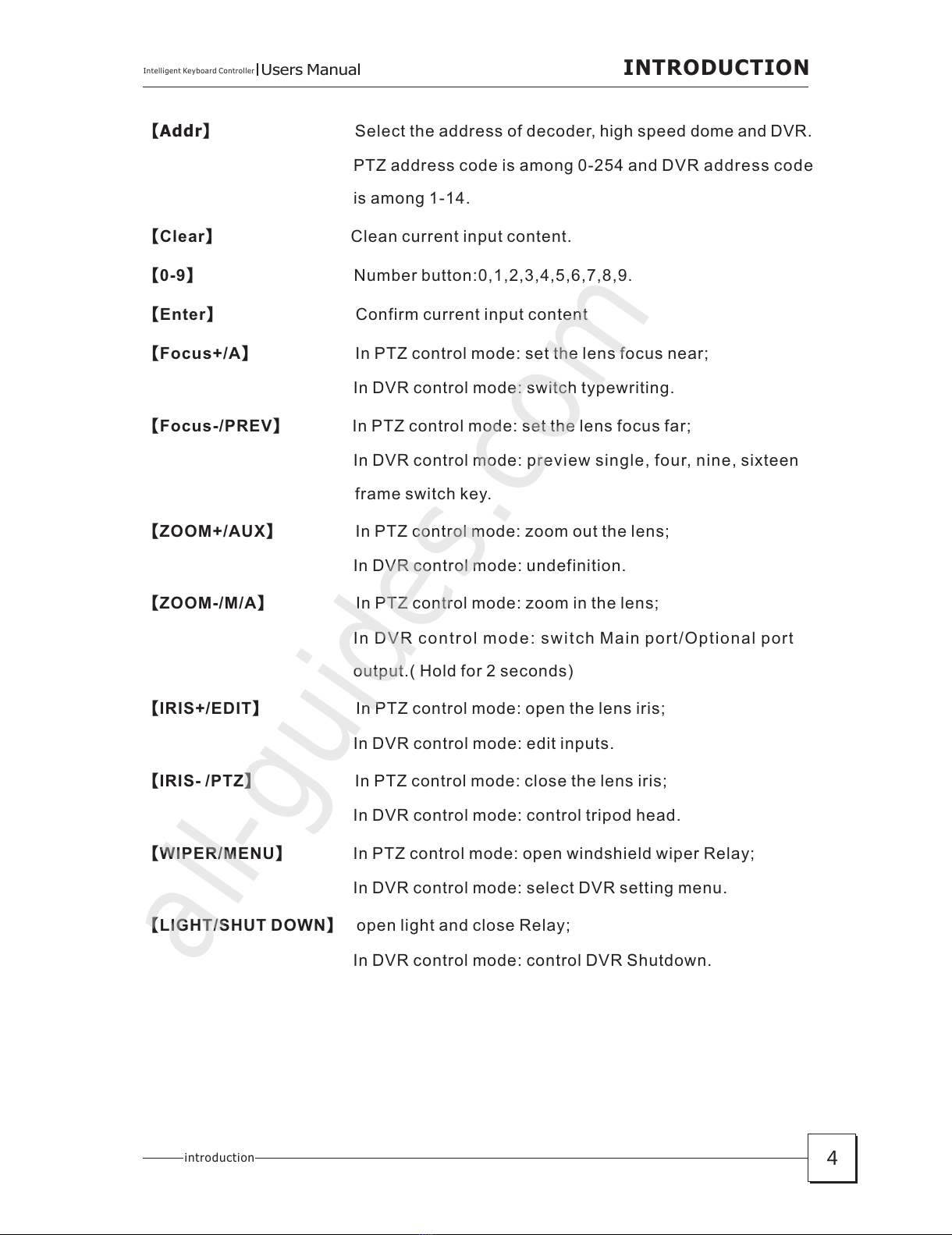

【Addr】 Select the address of decoder, high speed dome and DVR.

PTZ address code is among 0-254 and DVR address code

is among 1-14.

【Clear】 Clean current input content.

【0-9】 Number button:0,1,2,3,4,5,6,7,8,9.

【Enter】 Confirm current input content

【Focus+/A】 In PTZ control mode: set the lens focus near;

In DVR control mode: switch typewriting.

【Focus-/PREV】 In PTZ control mode: set the lens focus far;

In DVR control mode: preview single, four, nine, sixteen

frame switch key.

【ZOOM+/AUX】 In PTZ control mode: zoom out the lens;

In DVR control mode: undefinition.

【ZOOM-/M/A】 In PTZ control mode: zoom in the lens;

In DVR control mode: s wi tch Main port/Optional port

output.( Hold for 2 seconds)

【IRIS+/EDIT】 In PTZ control mode: open the lens iris;

In DVR control mode: edit inputs.

【IRIS- /PTZ】 In PTZ control mode: close the lens iris;

In DVR control mode: control tripod head.

【WIPER/MENU】 In PTZ control mode: open windshield wiper Relay;

In DVR control mode: select DVR setting menu.

【LIGHT/SHUT DOWN】 open light and close Relay;

In DVR control mode: control DVR Shutdown.

All manuals and user guides at all-guides.com

all-guides.com

5

Users Manual

Intelligent Keyboard Controller

INTRODUCTION

introduction

1.1.2 LCD screen

All operation through buttons will be displayed on LCD correspondingly,

LCD will switch to power-save mode if the keyboard doesn’t receive

any input for more than 30 seconds.(switch to lowest brightness).

1.1.3 Status indicator light

［P W Power indicator light. It is still shown when keyboard is in work

status and its status is always on and red color.

［DVR］DVR control status indicator light. It is shown when press key

button in DVR control mode and its status is flickering and

green color.

［PTZ］PTZ control status indicator light. It is shown when press key

button in PTZ control mode and its status is flickering and

green color.

1.1.4 Joystick control

］

Joystick

Figure

Operation

Function

Up

down

left

right

Rotate

left

Rotate

right

In PTZ control mode: Control tripod head move up

In DVR control mode: Control record file speed up

In PTZ control mode: Control tripod head move down

In DVR control mode: Control record file speed down

In PTZ control mode: Control tripod head move left

In DVR control mode: Control record file back

In PTZ control mode: Control tripod head move right

In DVR control mode: Control record file go ahead

In PTZ control mode: zoom in the lens

In PTZ control mode: zoom out the lens

All manuals and user guides at all-guides.com

1

1 2 3456789

PTZ-CON

PTZ-AUX

Ground

PW

DC-12V

PTZ

DVR-AUX

DVR-CON

DVR

①②③④ ⑤ ⑥ ⑦ ⑧ ⑨

6

25PIN ports, 1 DC-12V port, 3 LED indicator Shown in the following

diagram:

1.2 Rear panel interface terminal introduction

Number Function introduction

Item Mark Interface Description

Control high

speed PTZ

output(Ta,Tb)

Control high

speed dome aux.

KB input

Ground line(G)

Control DVR aux.

KB input

Control DVR

Output

PTZ output

control indicator

DVR output

control indicator

Power indicator

Power input

Connect to RS485 port of

speed dome and decoder:

Ta to RS485+,Tb to RS485-

Connect to aux KB(control

speed dome) output:

Ra connect to aux KB Ta,

Rb connect to aux KB Tb

Signal Ground line

Connect to aux KB(control

DVR) output: Ra connect

to aux KB Ta, Rb connect

to aux KB Tb

Ta,Tb connect to RS232 485A,

485B port of convertor

respectively, connect

to DVR via convertor

Indicate output,flash,green

Indicate output,flash,green

When KB is working,

it is always on, red

DC 12V power input

Users Manual

Intelligent Keyboard Controller INTRODUCTION

introduction

All manuals and user guides at all-guides.com

7

Dvr-xxx Address:

Address: 128 Ptz-128

Ptz-xxx

Users Manual

Intelligent Keyboard Controller

operation

2.1 PTZ Control Operation introduction

2.1.1 Select PTZ operation mode

　 LCD display as right figure 1,means keyboard is in PTZ operation mode,

　 if shown as right figure 2, means keyboard is in DVR operation mode,

　 press【Shift】button to switch to PTZ operation mode.

2.1.2 Select PTZ address

　 In PTZ operation mode, press【Addr】button, key in PTZ

　 address code via number buttons, press【Enter】.

　 For example: need to set PTZ address as 128.

　 Operation: press【Addr】, LCD will show as figure 3;

　 Key in【1】,【2】, 【8】,LCD will show as figure 4,

　 Press【Enter】, LCD will display as figure 5.

figure 1 figure 2 figure 3

figure 4 figure 5

Control speed dome move up, LCD will display as figure 1.

Control speed dome move left, LCD will display as right figure 2.

Control speed dome move down, LCD will display as right figure 3.

Control speed dome move right, LCD will display as right figure 4.

Set the lens focus near, LCD will display as right figure 5.

Set the lens focus far, LCD will display as right figure 6.

Zoom out the lens, LCD will display as right figure 7.

Zoom in the lens, LCD will display as right figure 8.

Open the lens iris, LCD will display as right figure 9.

Close the lens iris, LCD will display as right figure 10.

Open or close the auxiliary switch, LCD will display as right figure 11.

Open or close the auxiliary switch, LCD will display as right figure 12.

PTZ rotate automatically, LCD will display as right figure 13.

【FOCUS+】

【FOCUS-】

【ZOOM+】

【ZOOM-】

【IRIS+】

【IRIS-】

【WIPER】

【LIGHT】

【AUTO】

2.1.3 Joystick Keyboard control PTZ&

(The next page)

OPERATION

All manuals and user guides at all-guides.com

Up <<<<<< Left <<<<<< Down <<<<<< Right <<<<<<

Ptz-xxx autoAUX OFF:

AUX ON:

Ptz: iris-closePtz: iris-openPtz: zoom-tele

Ptz: zoom-wide

8

Ptz-128 Set pRESET: Set pRESET: 1

Set pRESET: Ptz-128

SHOT PRESET:

Set pRESET: 2

SHOT PRESET: 1 SHOT PRESET:

2.1.4 Set PTZ preset position

In PTZ control mode, press 【PRESET button, fix relevant angle via

all function press buttons and joysticks, press relevant preset serial

numbe r button, and t he n press【Enter】button, a preset be set

completely; fix relevant angle via all function press buttons and joysticks

again, press relevant preset serial number button, and then press

【Enter】 button, another preset be set completely. Analogize like this.

For example, set number 1 and number 2 address code of PTZ with

address code 128.

press【Addr】,【1】,【2】,【8】,【Enter】button,LCD will display as

the following figure 1; press【PRESET】button, LCD will display as

the following figure 2; after fix relevant angle via all function press

buttons and joysticks, press【1】 button, LCD wil l display as the

following figure 3; Press【Enter】 button, LCD will dislay as thep

following figure 4; fix relevant angle via all function press buttons and

joysticks again, press【2】button, LCD will display as the following

figure 5; press【ESC】button and exit after setting completely.

】

2.1.5 Select PTZ preset position

In PTZ control mode, press button, press relevant preset

serial number button, press【Enter】.

For example, Select number 1 preset of PTZ with address code 128.

1. press【Addr】,【1】,【2】,【8】,【Enter】button, LCD will display

as the above figure 6;

2. press【SHOT】button, LCD will display as the right figure 7;

3. press 【1】button, LCD will display as the right figure 8;

4. press【Enter】button, LCD will display as the right figure 9;

5. press 【ESC】 button and exit after setting completed.

【SHOT】

2.1.3 Joystick and Keyboard control PTZ

(previous page)

Rtz: focus-near Ptz: focus-far

figure 4figure 1 figure 2 figure 3

figure 5 figure 6 figure 7

figure 8 figure 9 figure 10

figure 11 figure 12 figure 13

figure 1 figure 2 figure 3

figure 4 figure 5 figure 6

figure 7 figure 8 figure 9

Users Manual

Intelligent Keyboard Controller OPERATION

operation

All manuals and user guides at all-guides.com
