TBS6528 Multi Standard Tuner Card User Guide
TBS6528 User Guide
Dear Customers,
Thank you so much for using TBS products. TBS6528 is a PCI Express TV tuner card
that supports multiple digital TV standards, including DVB-S2/S, DVB-T2/T, DVB-/C,
and ISDB-T, which makes a switchover between different digital TV signals more
convenient. Furthermore, with built-in Common Interface that allows insertion of
CAM and smartcard for pay TV, it becomes your best choice to watch/record digital
cable HD TV on PC.
In order to use this item correctly, please read this user manual carefully at the
beginning.
1. Hardware Installation
1.1 Install TBS TV Tuner Card
Power off the computer, remove computer cover and take out cover panel of
PCI-e slot in which you want to put the card. Insert the card in PCI-e slot and fix
card bracket with screw. Make sure the card fit in PCI-e slot tightly. Then put
back computer cover.
1.2 Connect TV Signal Cable to the Tuner Card on Your PC
Attention：
When turn off the computer, please do not touch the PC internal components especially the
CPU and VGA chip, which has a high temperature with a risk of burns.
Please be sure to see the manual of PC and peripheral equipment.
TBS6528 Multi Standard Tuner Card User Guide
1.2 Connect TV Signal Cable to the PCI-e Card on Your PC
Please make sure you properly connect the TV signal to the TV tuner on computer
in case of the damage to antenna device. The following TBS6528 TV Signal Table is for
your reference.
When you want to use a CAM and smart card to descrypte, you need check the
encryption of the channels first then buy them, because they are paired use. If not,
they will not go to descrypte. Here’s the correct way to insert the smart card to the
CAM, insert it to the opposite side the descryption will be failed:
Ter/cable 0 (T2/TC2/C/ISDB-T)
LNB/0 (DVB S2/S/S2X)
TBS6528 Multi Standard Tuner Card User Guide
2. windows driver installation
2.1 Start your PC and jump to “Computer Management”. There will pop up a
notice “Failed to install the device driver”if you use Windows 7 operating system.
In order to install the driver successfully, you have to do as the prompts step by
step.Then you can check the TBS TV tuner hardware device ID as follows:Open
“Computer Management”, click “Other devices”, finally choose and double click the
right hardware device for more details.
Please kindly see the following screenshot for your reference.
2. 2 Download TBS6528 Windows Driver from Our Website (See screenshot below)
http://www.tbsiptv.com/tbs6528-multi-standard-tv-tuner-ci-pci-e-card?search=6528
TBS6528 Multi Standard Tuner Card User Guide

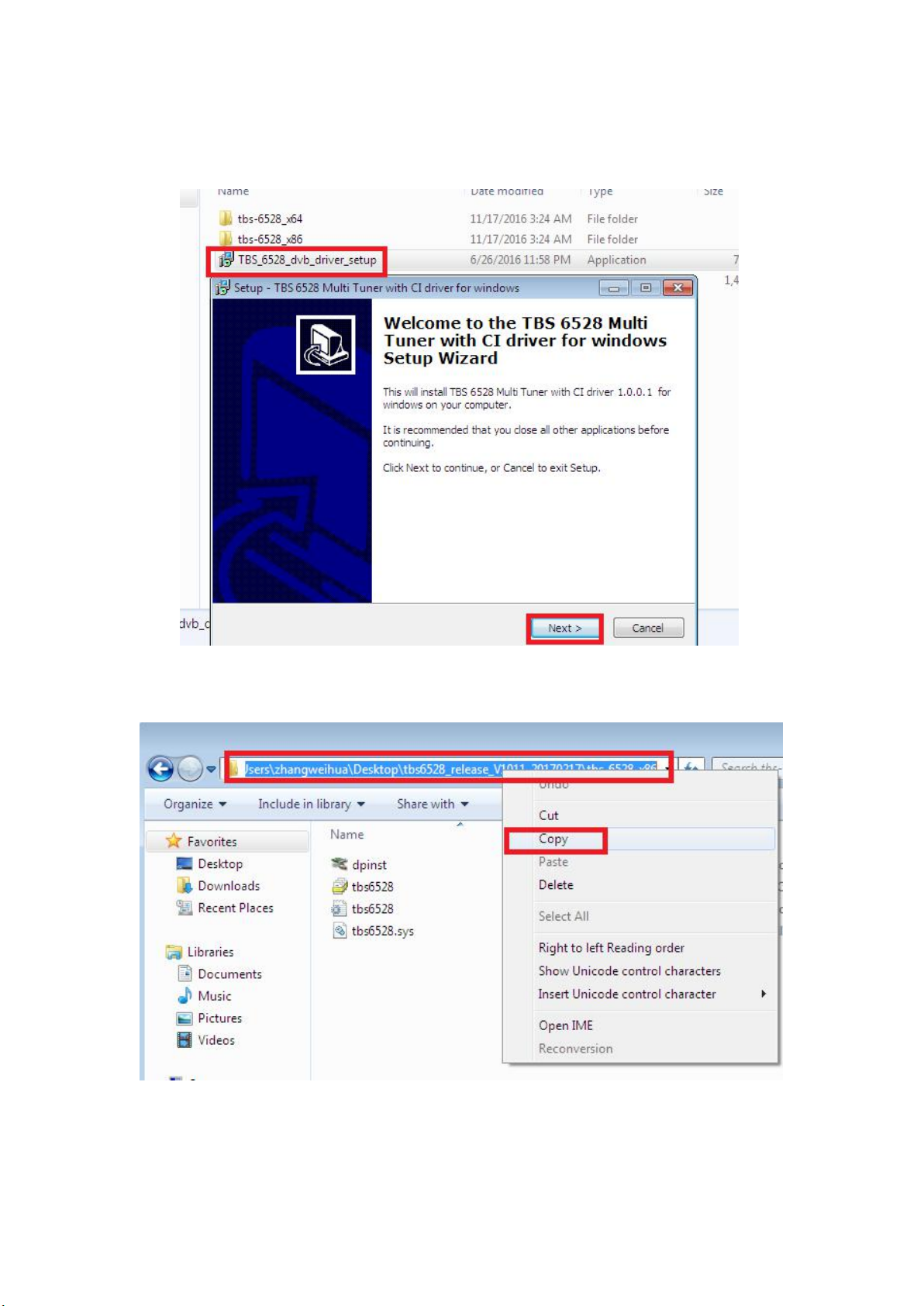

2）download and then unzip TBS 6528 Windows driver
3）Click “TBS_6528_driver_setup”, and then a new window will pop
4 ) If the quick installation fails to try to manually install, open the drive compression
package, according to their own system, copy the drive path (see below)
TBS6528 Multi Standard Tuner Card User Guide

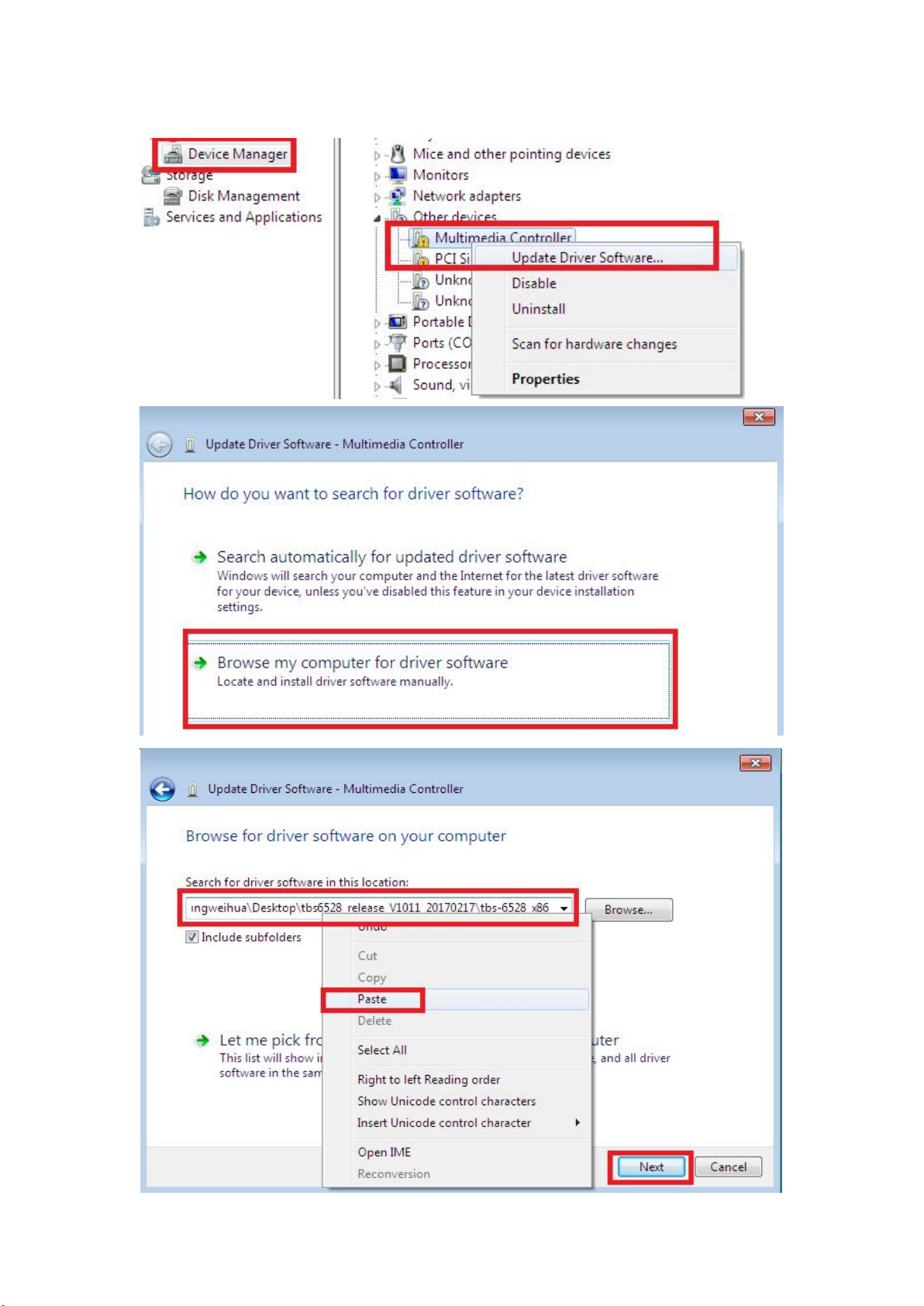

5) Open the device manager, to drive the manual update (see below)
TBS6528 Multi Standard Tuner Card User Guide

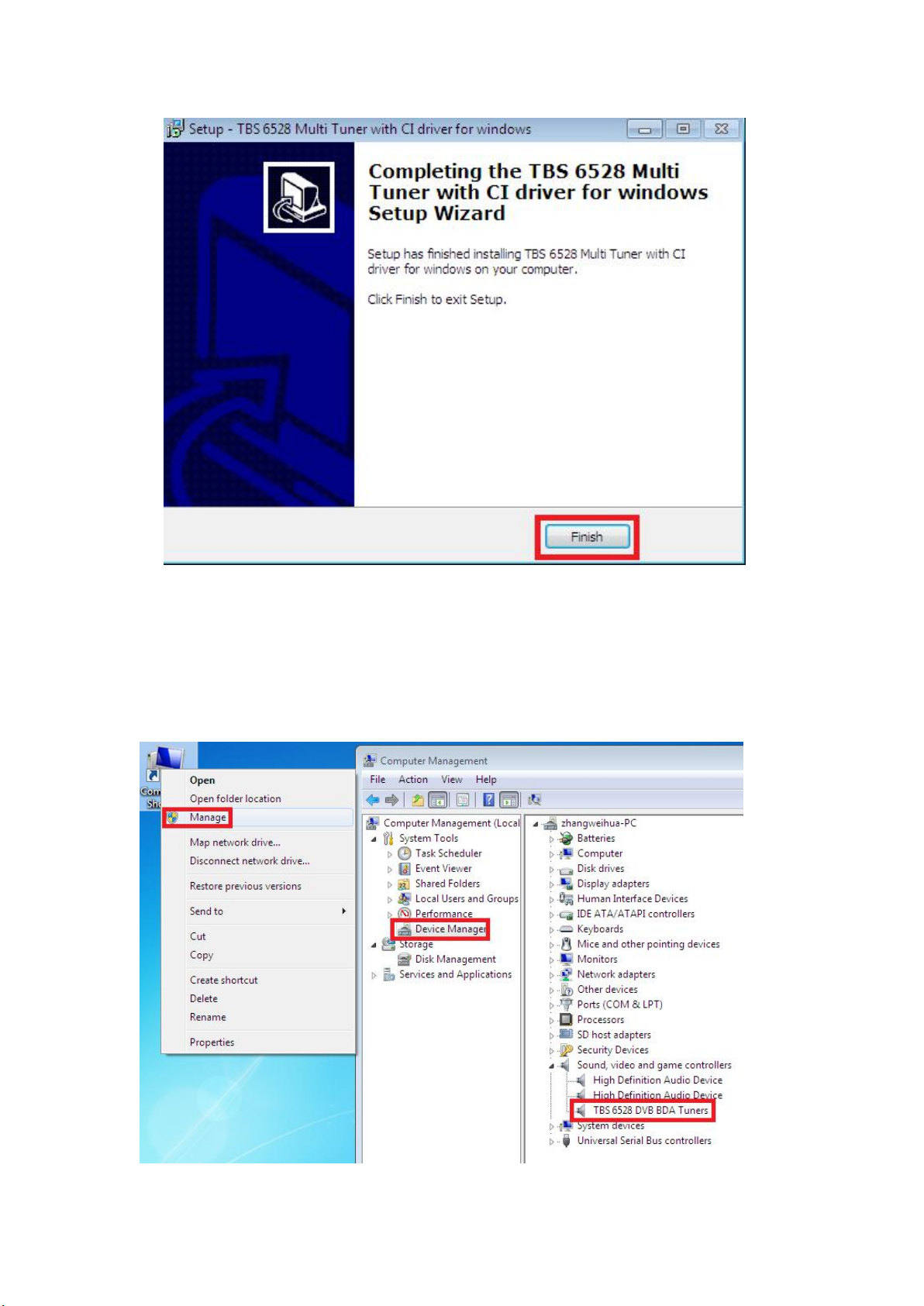

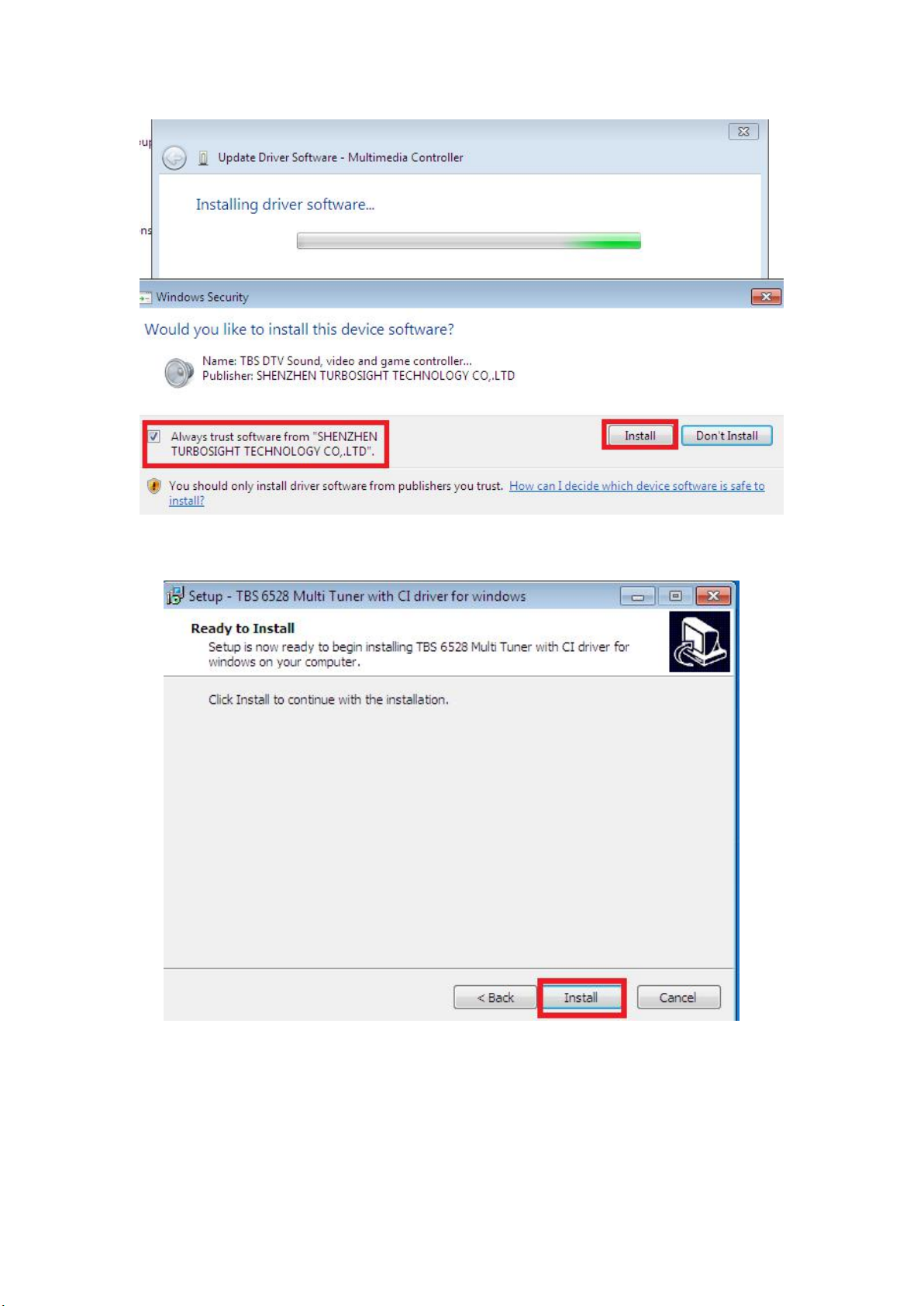

6）Click “Next” “Install” “Finish”to complete installation
TBS6528 Multi Standard Tuner Card User Guide
5）To verify if driver was correctly installed: Choose “My Computer”, right click and
choose “System Properties”to pop up “System Properties”windows, click
“Hardware” → “Device Manager”. Then click “+”in front of “Sound, video and game
controllers”. If you can see “TBS6528 Dual BDA Tuners”that means you do have
installed driver correctly. Just display as below:
TBS6528 Multi Standard Tuner Card User Guide

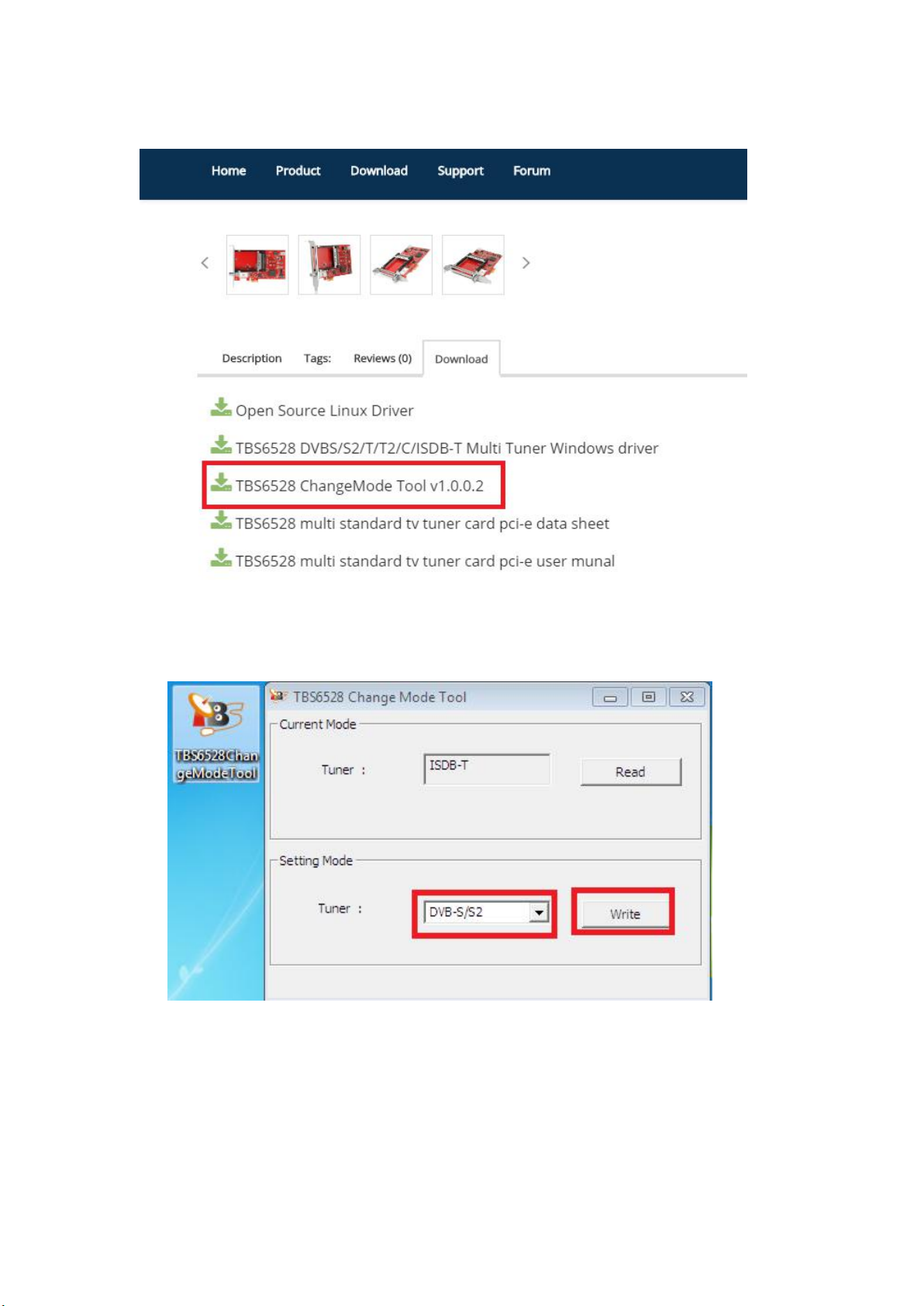

7) TBS6528 Mode change tool (See screenshot below.）
8 ) Open the TBS6528 Mode Change tool choose the right Mode as you want then
click Write to apply the change .(See screenshot below.）
TBS6528 Multi Standard Tuner Card User Guide
3.Play Software Installation
To enjoy satellite TV on PC or record video, you still need to install player software
and right set the search parameters.The above series of TBS TV tuner Card is
compatible with a lot of software like TBSViewer, DVBDream, ProgDVB etc.
We take DVBDream as an example, when you install the software first time,
please select “tbsci” item then you can check if the CAM can be read, like this:
If you forgot this step, don’t worry, after finished install, please click “Modules”
item —“Module List” to set it. When you insert the CAM, you can check its
information in “Modules”—“TBS CI” item:
TBS6528 Multi Standard Tuner Card User Guide
please download the new version from our website:
http://www.tbsiptv.com/download/common/dvbdream_oem_version_setup_v29
21.zip
Here is a link is for downloading Player software. Fordetailed installation
instructions, see its Software Installation Instructions.
http://www.tbsiptv.com/index.php?route=product/download&path=6
Moreover, you can check some Video Guide on the following link:
https://www.youtube.com/user/buydvb/videos
ATTENTION:
①In some case, the card can not be detected by your PC, you can’t see the
device in Device manager, please try to change a PCIe slot and try again; or th
e golden finger is oxidized in the air, clear it by an eraser and try.
②Don’t insert or pull the card out directly when your computer is working, ot
herwise it will damage your tuner card.
